Home Decorators Collection CARRINGTON II User manual

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
USE AND CARE GUIDE
CARRINGTON II 60 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item #1006 106 555
#1006 106 559
#1006 106 568
Model #YG419B-BN
#YG419B-NI
#YG419B-WH
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Information .................................
Warranty .........................................
Pre-installation . . . . . . ..............................
Specications ...................................
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HardwareIncluded ...............................
Package Contents . . ..............................
Installation . ......................................
Assembly ........................................
HangingtheFan .................................
Attaching the Fan Blades . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Light Kit ..............................
Operation ........................................
Pull Chain Operating Instructions . . . . . . . . . . . . . . . . . . . . .
Reverse Switch Operating Instruction .................
CareandCleaning .................................
Troubleshooting ...................................
Service Parts .....................................
2
Table of Contents
2
3
4
4
4
4
5
6
7
8
9
13
14
16
16
16
17
17
19
READ AND SAVE THESE INSTRUCTIONS

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs (15.9
kg) or less. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Safety Information
3

Pre-Installation
SPECIFICATIONS
60 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps
2.23 cu. ft.
N.W. G.W. C.F.
0.31
0.36
0.60
12.03
30.00
60.42
57
98
146
2218
4249
6372
9.57 kgs
(21.05 lbs.)
12.34 kgs
(27.21 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
4
Warranty

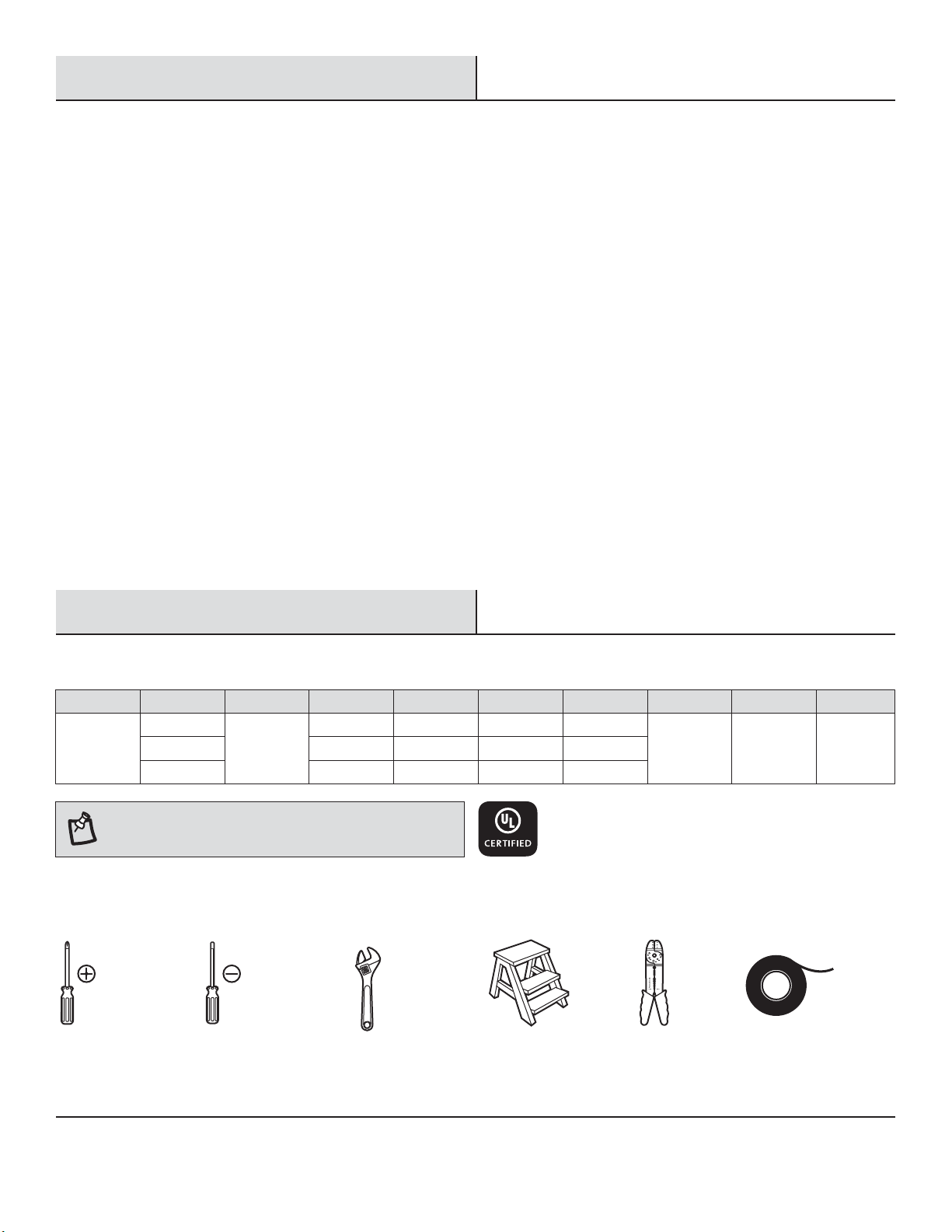

TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.

NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
Plastic wire nut
Blade attachment screw and ber washer
9 Watt LED medium base bulb
Pull chain and fob
Part Description
3
10
2
2
Quantity

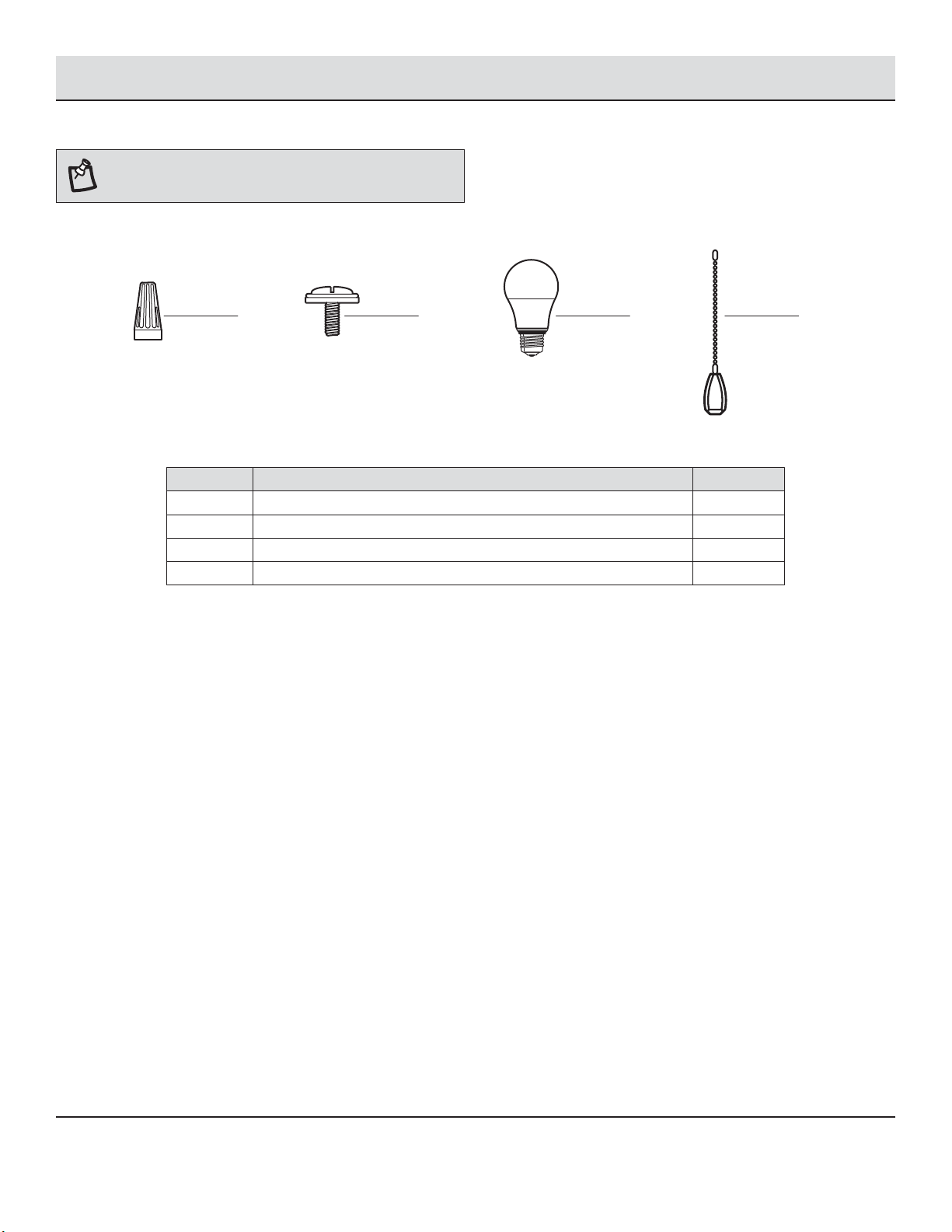

HARDWARE INCLUDED
5
Pre-Installation (continued)
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
AA BB CC DD

Part
G
H
I
J
K
L
Description
Blade arm
Blade
Medallion
Switch housing
Light kit
Plastic shade
Quantity
3
3
10
1
1
1
Part
A
B
C
D
E
F
Quantity
1
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
H
A
D
E
F
J
K
L
I
G

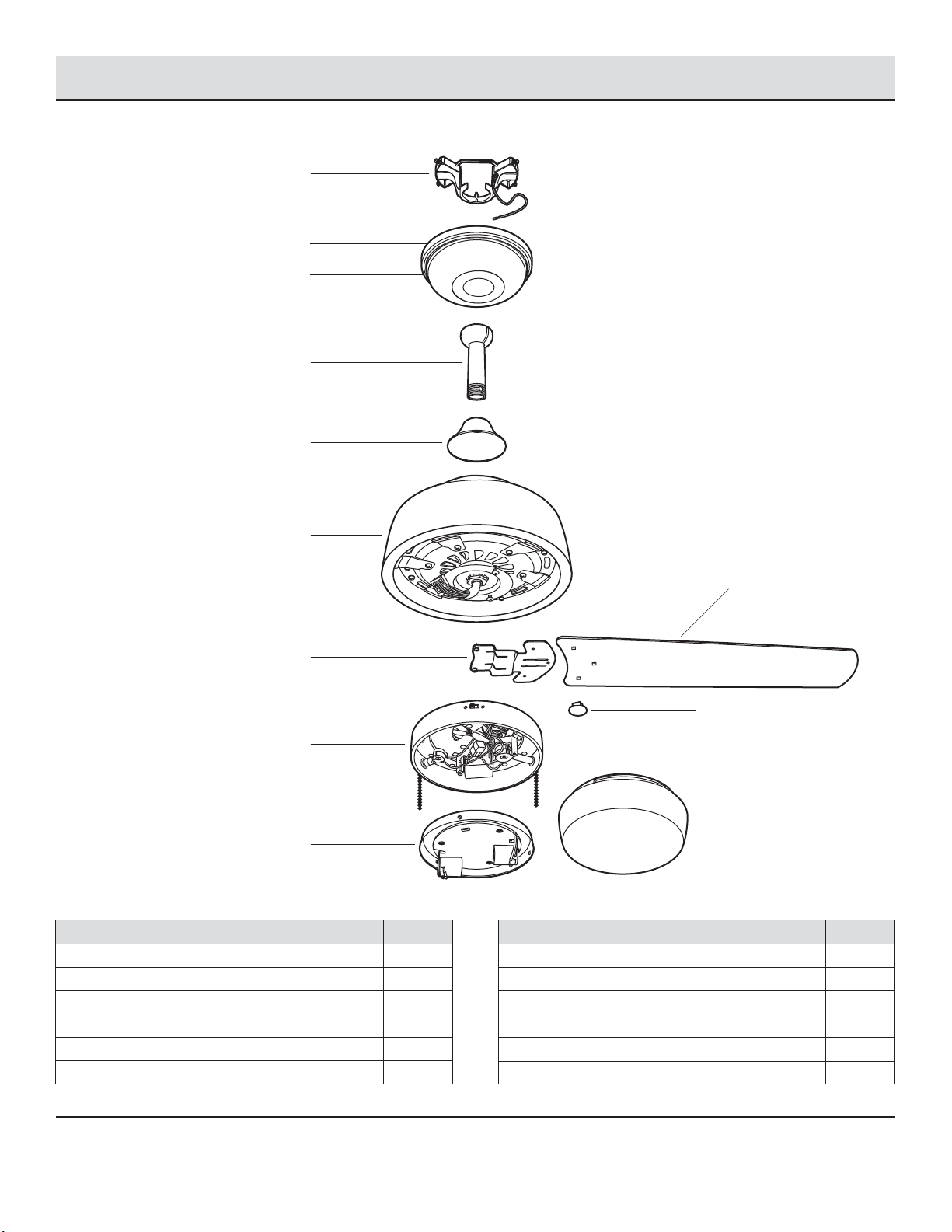

PACKAGE CONTENTS
6
Pre-Installation (continued)
B
C

7
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lbs.). Do not
use a plastic outlet box.

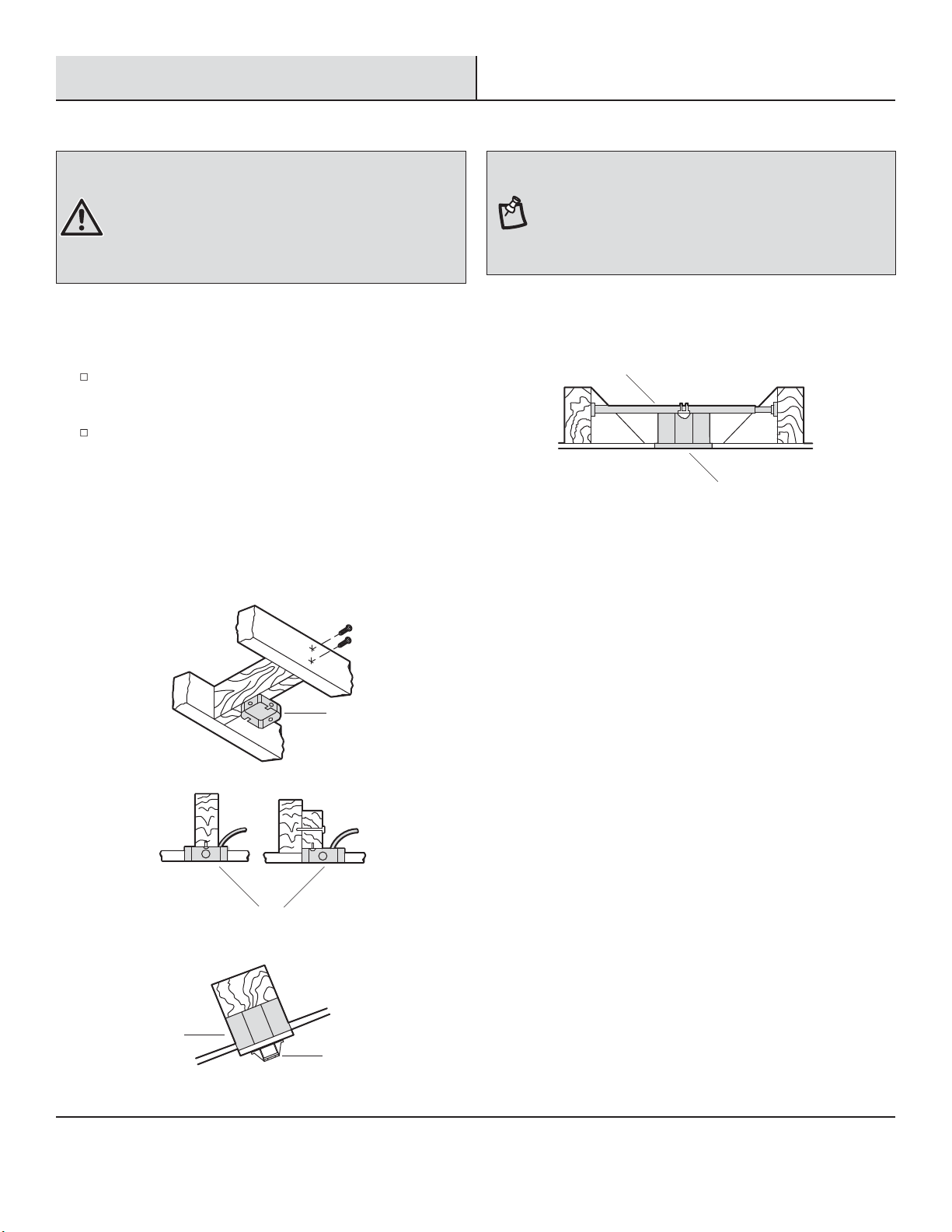

The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar (not
included) as shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box Ceiling
Mounting
Bracket
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly
(D), turn the canopy (C) 180° before attaching the canopy (C)
to the mounting bracket (A).
MOUNTING OPTIONS
Installation

WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (JJ), lower the hanger
ball (JJ) and remove the pin (KK). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.

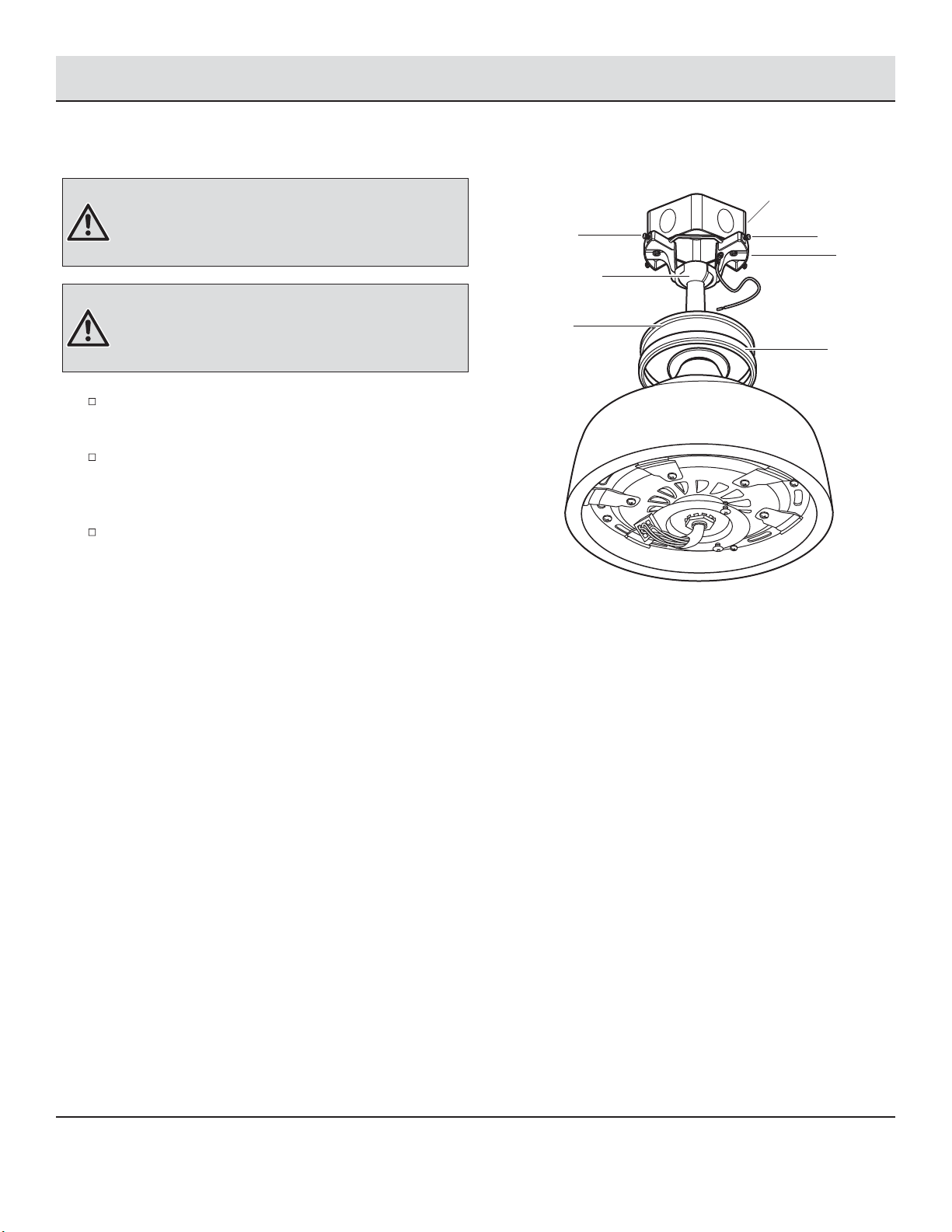

Assembly

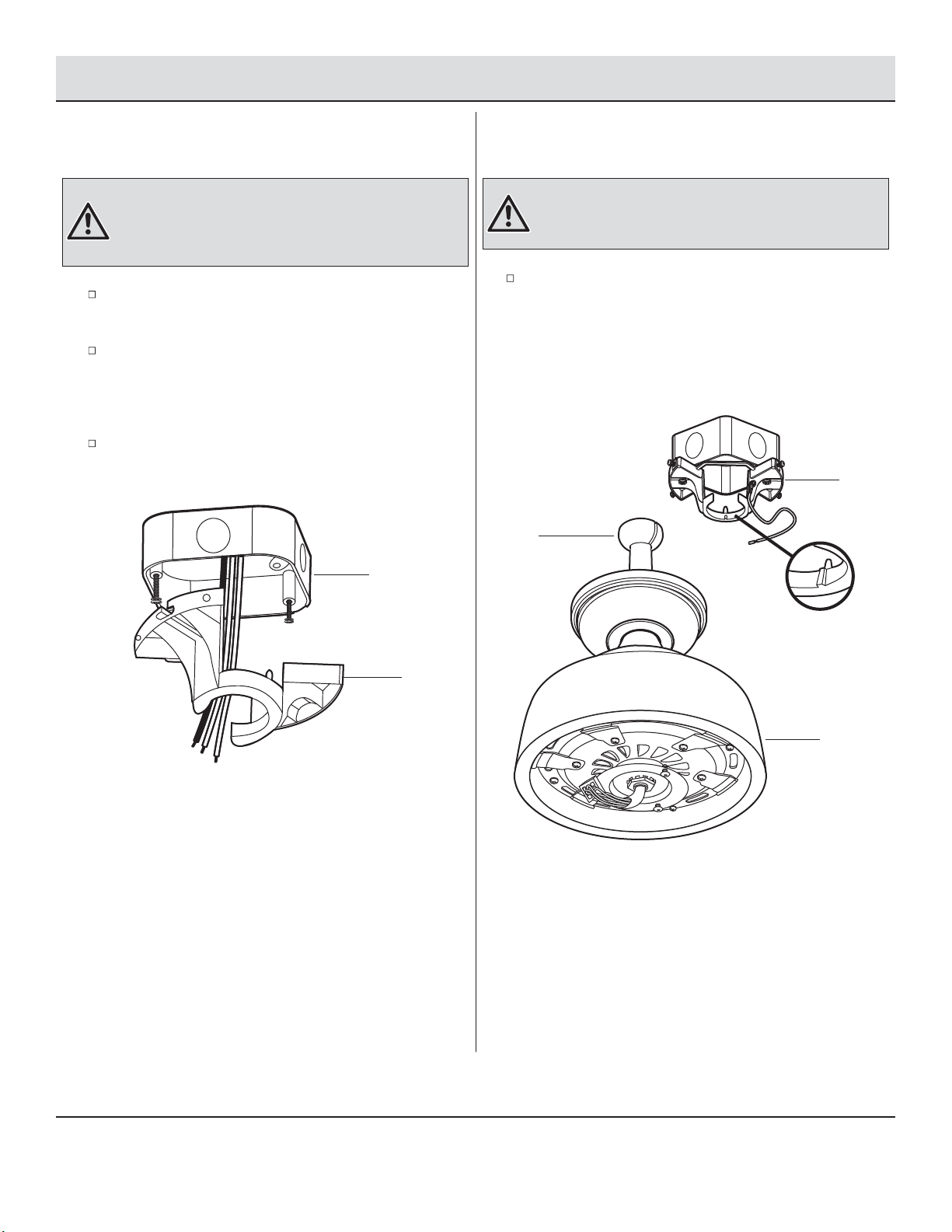

1Preparing the canopy Preparing the motor 2

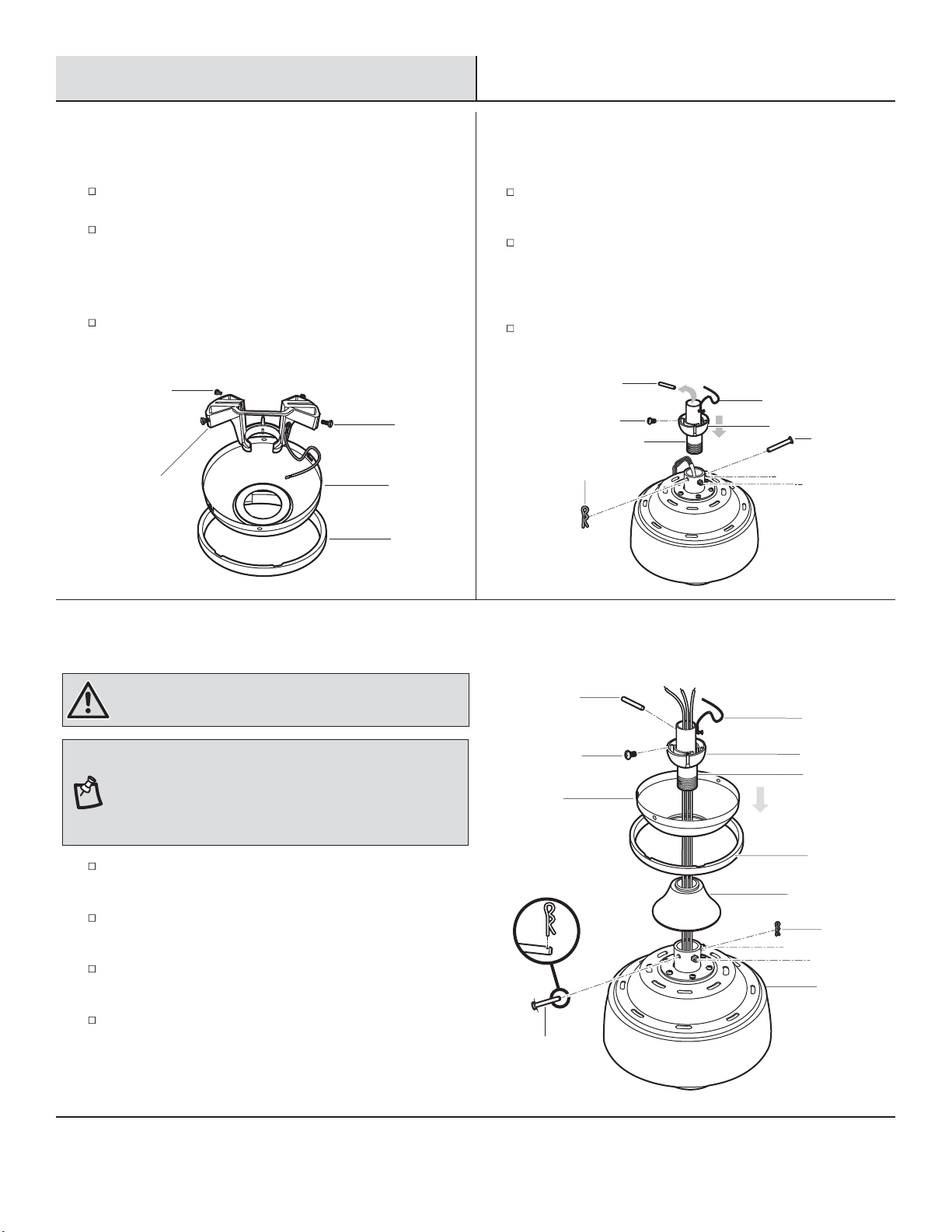

Remove the cotter pin (FF) and clevis pin (GG), and loosen
the two collar setscrews (HH) from the motor collar.
Take out the setscrew (II) located in the hanger ball (JJ),
lower the hanger ball (JJ) and remove the cross pin (KK).
Remove the hanger ball (JJ) from the hanger ball/downrod
assembly (D).
Remove the ground lead (LL) from the downrod assembly
(D).
Remove the canopy ring (B) from the canopy (C).
Remove the two non-slotted canopy mounting screws with
lock washers (EE) from the canopy (C), and loosen the
slotted canopy mounting screws with lock washers (EE) on
the canopy (C).
Remove the canopy (C) from the mounting bracket (A) by
turning the canopy (C) counterclockwise.
3Assembling the fan
Carefully feed the motor wires up through the downrod
(MM). Thread the downrod (MM) into the collar.
Align the holes and replace clevis pin (GG) and cotter pin
(FF). Tighten the two collar setscrews (HH).
Slip the coupling cover (E), canopy ring (B), and canopy (C)
onto the downrod (MM).
Carefully reinstall the hanger ball (JJ) onto the downrod
(MM) and reinstall the ground lead (LL) onto the downrod
(MM). Being sure that the cross pin (KK) is in the correct
position, the setscrew (II) is tightened and wires are not
twisted.
8
II
D
KK
JJ
LL
A
EE
EE
C
B
FF
GG
HH HH
B
F
JJ
C
MM
HH
HH
GG
FF
LL
KK
II
E

A
Outlet Box
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
Assembly — Hanging the Fan
Installing the mounting bracket
to the electrical box
4Hanging the fan to the mounting
bracket
5
Pass the 120-volt supply wires through the center hole in
the mounting bracket (A).
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. Note that the at side of the mounting bracket
(A) is toward the outlet box.
Securely tighten the two mounting screws.
Carefully lift the fan motor assembly (F) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket. Make sure the tab on
the mounting bracket (A) socket is properly seated in the
groove in the hanger ball/downrod assembly (D). This will
help to balance the ceiling fan.
9
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
A
F
D

Ground
conductor
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
Assembly — Hanging the Fan (continued)
6a Making the electrical connections
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
10
AA
NeutralHot
Black White
Blue
Black
Green
White
Green
Outlet Box
A
D
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Make wire connections as follows, using the wire nuts (AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black and blue wires will be
on the other side. Carefully tuck the connections up into the
outlet box.

Assembly — Hanging the Fan (optional)
Single Switch Connections
6b Dual Switch Connections 6c
11
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
On a single switch the fan and light can be turned on or off
together. Make wire connections as follows, using the wire
nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot#2 but maybe be
in another color other than
black, white or green)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
Ground
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
Blue Black Green White Green
Outlet Box
A
D
AA
Neutral conductor
White
Blue Black Green White Green
AC IN
Black
Red
DUAL SWITCH
Outlet Box
A
D

WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (D) before attaching the canopy (C) to the mounting
bracket (A) by turning the canopy (C) until it drops into place.
Assembly — Hanging the Fan (continued)
7Installing the canopy
Slide the canopy (C) up to the ceiling. Make sure you have
placed the wires safely into the outlet box.
Secure the canopy (C) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (EE)
included with your fan.
Slide the canopy ring (B) over the canopy (C) and tighten by
turning the ring (B).
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (EE) are engaged and rmly tightened.
12
EE
Outlet Box
A
EE
B
C
D

Assembly — Attaching the Fan Blades
8Removing the rubber packing mounts
13
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
The fan motor assembly (F) is shipped with rubber
packing mounts (NN) to prevent movement during
transportation. Remove the six rubber packing mounts (NN)
from the fan motor assembly and discard them prior to
attaching the blade arms.
Attaching the blades to the blade
arms
9

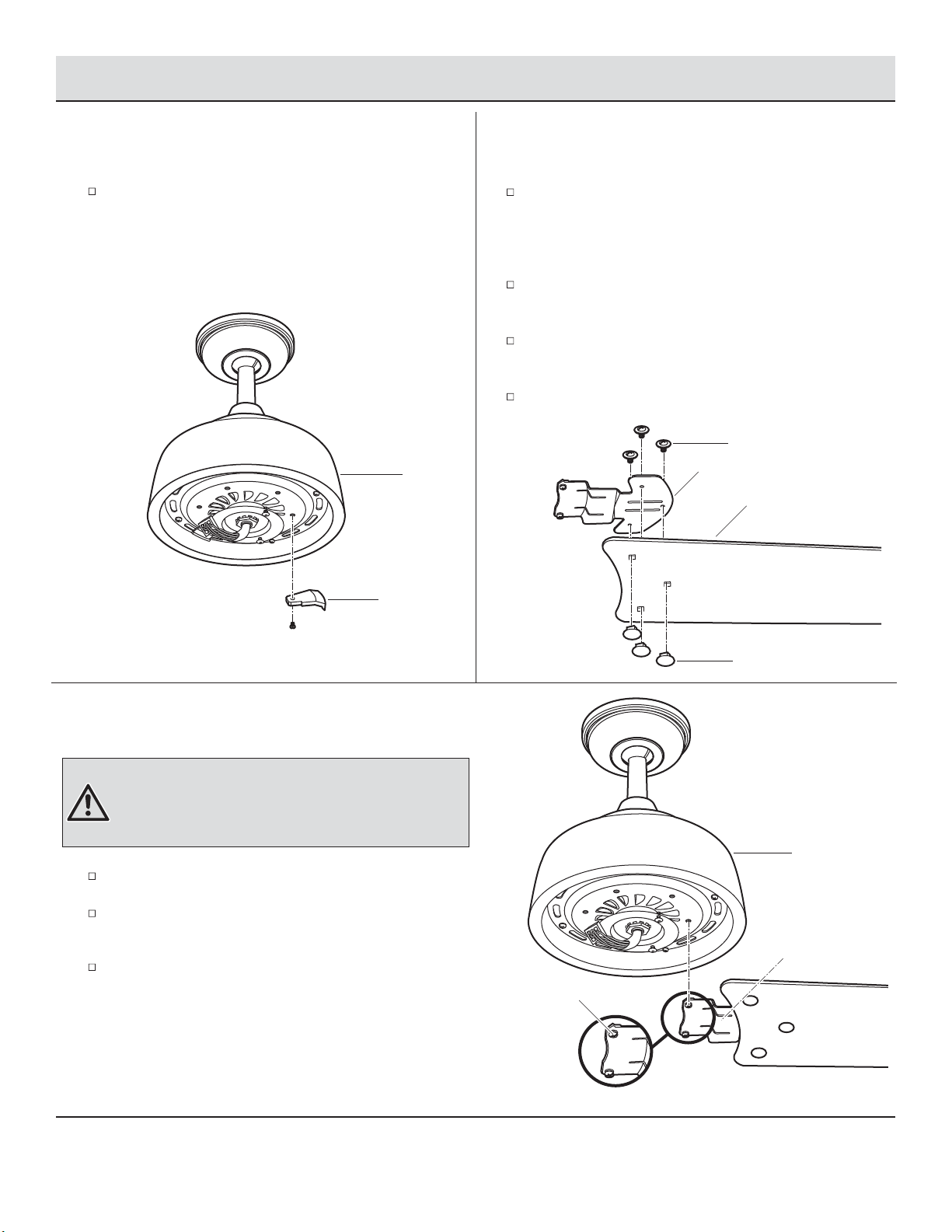

Attach the blades (H) to the blade arms (G) using the three
blade attachment screws and ber washers (BB) and the
medallions (I). Start a screw and ber washer (BB) into a
medallion (I), but do not tighten.
Repeat for the two remaining blade attachment screws and
ber washers (BB).
Tighten each screw securely starting with the center screw.
Make sure the blade (H) is straight.
Repeat these steps for the remaining blades (H).
10 Fastening the blade assemblies
to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (G) while installing, balancing the blades
(H), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (H).
Fasten the blade assemblies to the fan motor assembly (F).
Tighten the two blade arm screws and lock washers (OO)
already installed in the blade arms (G).
Repeat this procedure for the remaining blade arms (G).
G
H
BB
I
F
G
OO
F
NN

Assembly — Installing the Light Kit
11 Attaching the light kit to the
switch housing
12
Remove one of the three switch housing mounting screws
(PP) from the mounting ring (QQ) and loosen the other two
screws (PP). (Do not remove.)
While holding the switch housing (J) under the fan motor
assembly (F), snap together the wire connection plugs (RR).
Place the key holes in the switch housing (J) over the two
screws (PP) previously loosened from the mounting ring
(QQ). Turn the switch housing (J) until the switch housing
(J) locks in place at the narrow section of the key holes.
Securely tighten the two switch housing mounting screws
(PP) previously loosened and the one (PP) previously
removed.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
14
Remove one of the three light kit mounting screws (SS) from
the switch housing (J) and loosen the other two screws (SS).
(Do not remove.)
While holding the light kit (K) under the fan motor assembly
(F), snap together the two wire plugs (TT):
- White to white
- Black to blue
Place the key holes in the light kit (K) over the two screws
(SS) previously loosened from the switch housing (J). Turn
the light kit (K) until the light kit (K) locks in place at the
narrow section of the key holes. Secure by tightening the
two light kit mounting screws (SS) previously loosened and
the one (SS) previously removed.
Attaching the switch housing to
the mounting ring
J
QQ
PP
RR
F
J
F
SS
TT
K

Assembly — Installing the Light Kit (continued)
Installing the light bulbs
13 Installing the Plastic shade 14

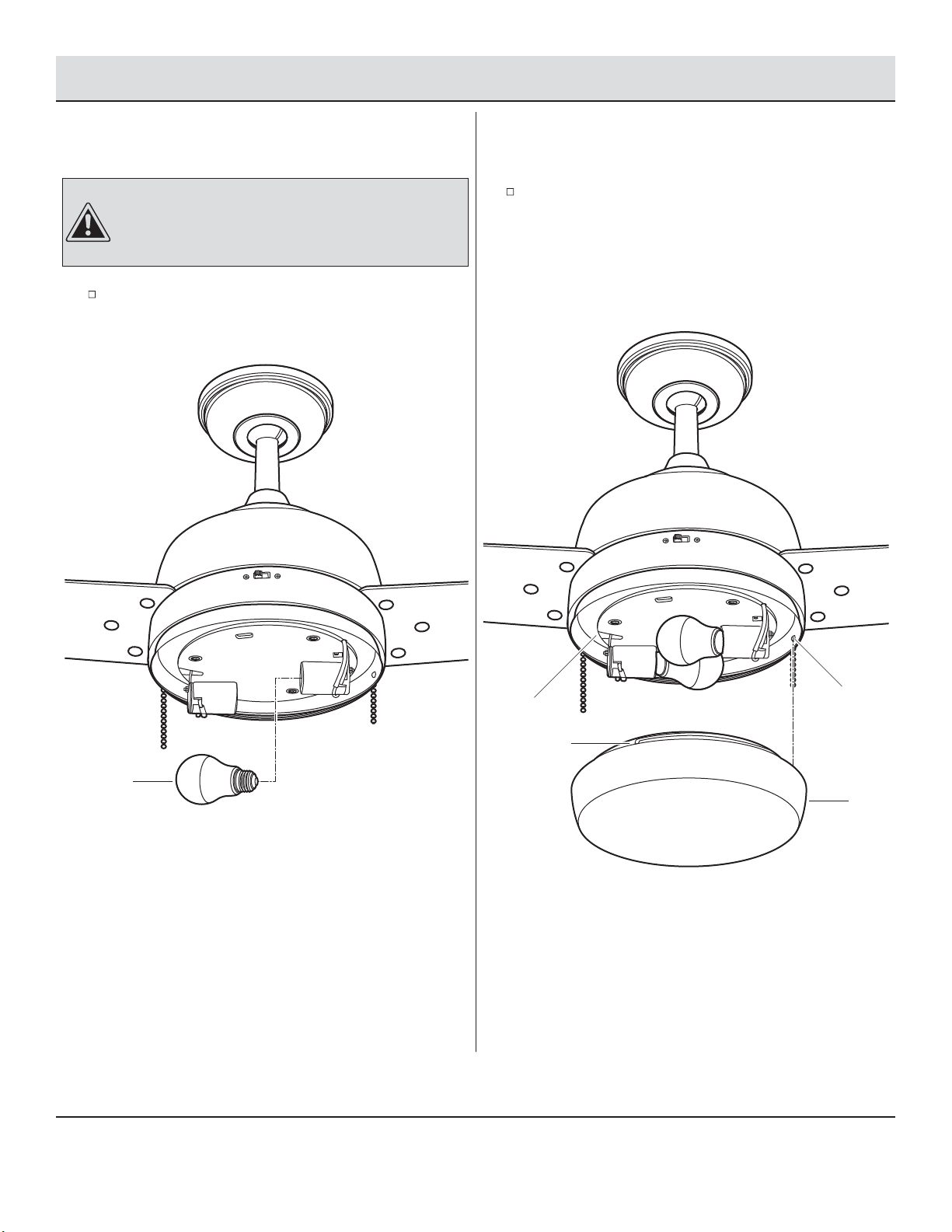

Install the 9W LED bulbs (CC) (included).
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
Position the notches (UU) in the outer rim of the plastic
shade (L) so they line up with the tabs (VV) on the inside of
the rim on the light kit (K). Carefully lift the plastic shade (L)
up inside the light kit (K) and secure it to the fan by turning
the plastic shade (L) clockwise until snug. DO NOT
OVERTIGHTEN.
15
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
CC
L
K
VV
UU

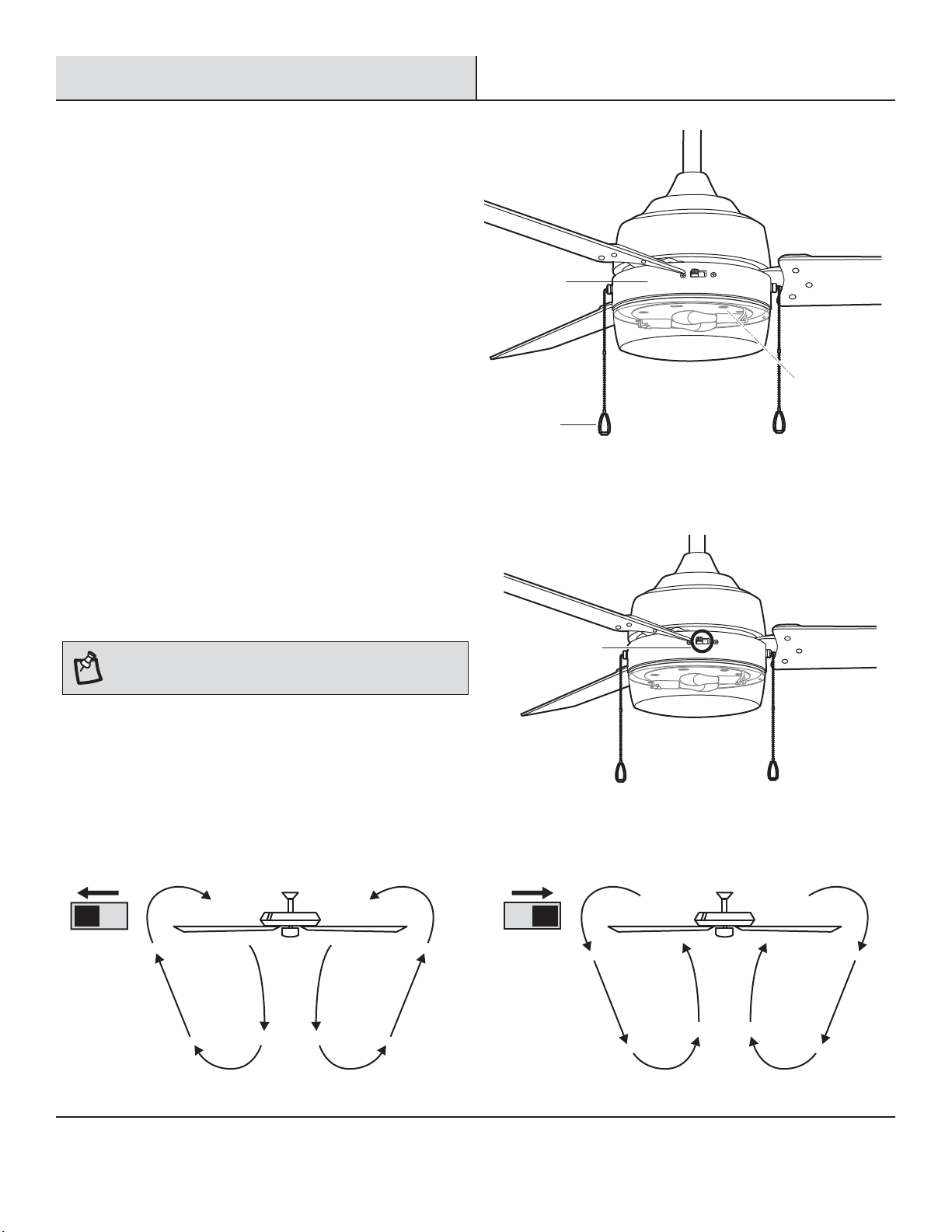

Install the pull chains and fobs (DD) onto the pull chains located in
the switch housing (J). Turn on the power and check the operation
of the fan.
The reverse switch is located on the surface of the switch housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
To turn the light kit (K) on or off, pull the chain that is attached to
the switch housing (J).
Operation
PULL CHAIN OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
16
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
DD
J
K
Reverse switch

Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some connections
may become loose over time. It is not necessary to remove
the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
(Optional) Apply a light coat of furniture polish to the wood
blades.
(Optional) Cover small scratches with a light application of
shoe polish.
Do
17
Care and Cleaning
Troubleshooting
Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 10.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.

The fan wobbles.
Problem Solution
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order complimentary
replacements of your brackets.
Troubleshooting (continued)
18

Part
A
B
C
D
E
F
G
H
I
J
K
L
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arm
Blade
Medallion
Switch housing
Light kit
Plastic shade
Part
AA
BB
CC
DD
Description
Plastic wire nut
Blade attachment screw and rubber washer
9 Watt LED medium base bulb
Pull chain and fob
19
Service Parts
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
A
H
K
I
J
AA
BB
CC
DD
L
D
E
F
G
B
C

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
