Home Decorators Collection BENTOYGA 51820 User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #xxxx xxx xxx, xxxx xxx xxx,
xxxx xxx xxx, xxxx xxx xxx
Model #51820, 51821, 51822, 51824
ETL Model #52-BENT
USE AND CARE GUIDE
BENTOYGA 52-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 14
Care and Cleaning............................................................. 15
Troubleshooting................................................................. 15
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. UC7067RYAG, manufactured by Rhine
Electronic Co., LTD.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

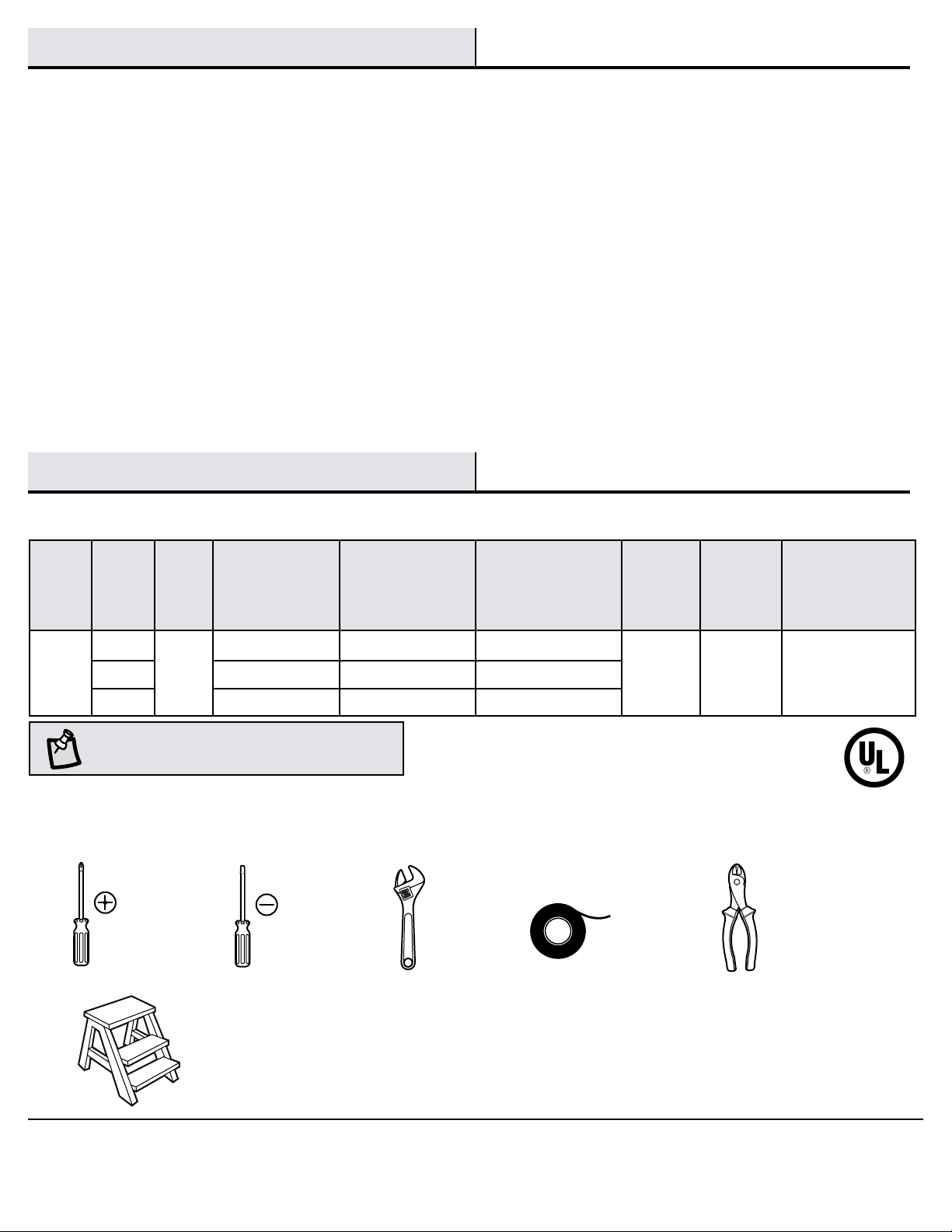

SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
52 in.
Low
120
XX XXXX XXX
XX.XX lb
(XX.X kg)
XX.X lb
(XX.X kg)
X.X cu. ft.
(X.XX m³)
Medium XX XXXX XXX
High XX XXXX XXX
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder

4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connecting nut 3
CC Blade arm hardware (screw and lockwasher) 16
DD Hanger pin 1
EE Clip 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
DD EE

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Blade 5
G Blade arm 5
Part Description Quantity
H Light kit pan 1
I LED light kit assembly 1
J Glass shade 1
K 3-pin extension wire 1
L 2-pin extension wire 1
M Receiver 1
N Remote control (batteries included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

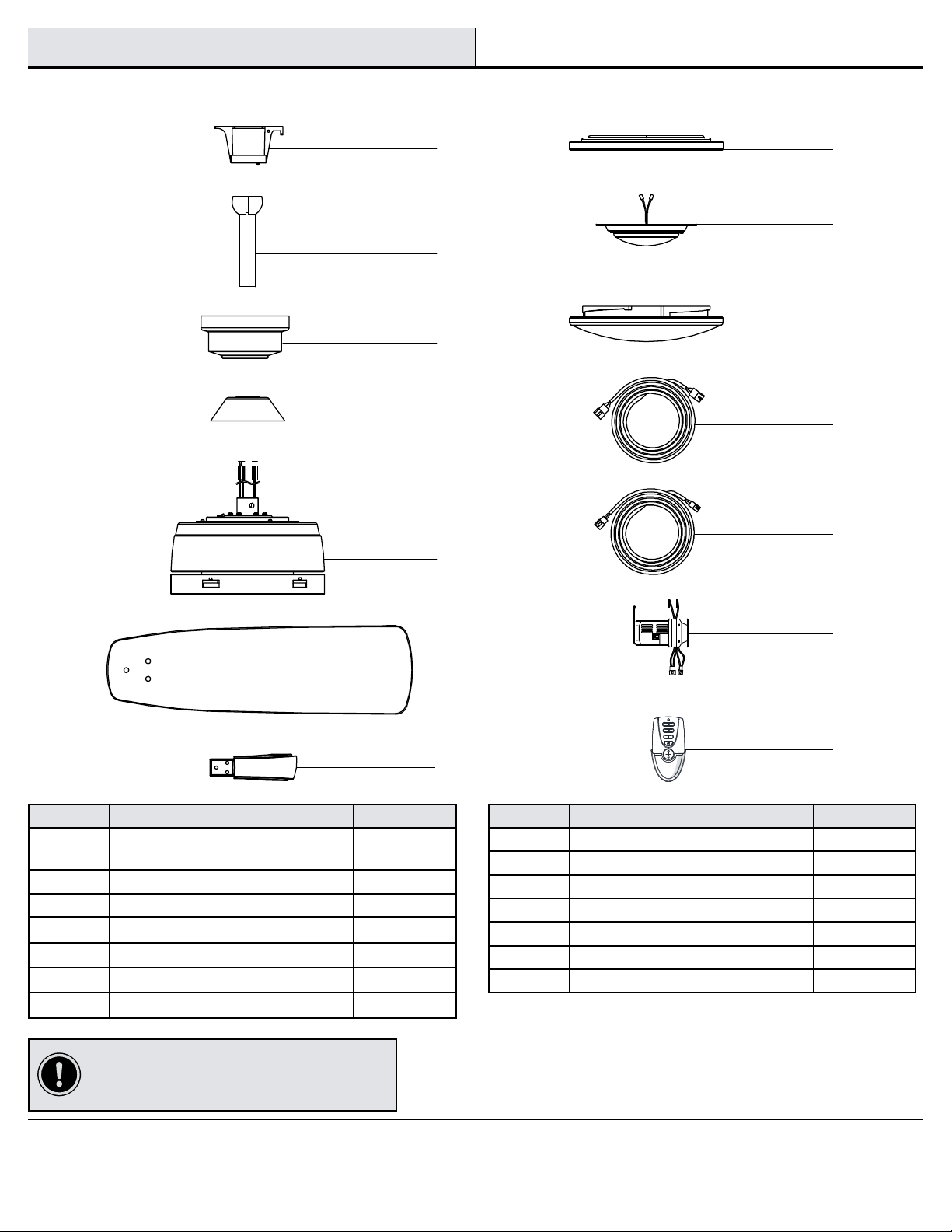

PACKAGE CONTENTS
A
B
C
D
E
F
G
H
I
J
K
L
M
N

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs. (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs. (15.9 kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support
of 35 lbs. (15.9 kg) or less” Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount

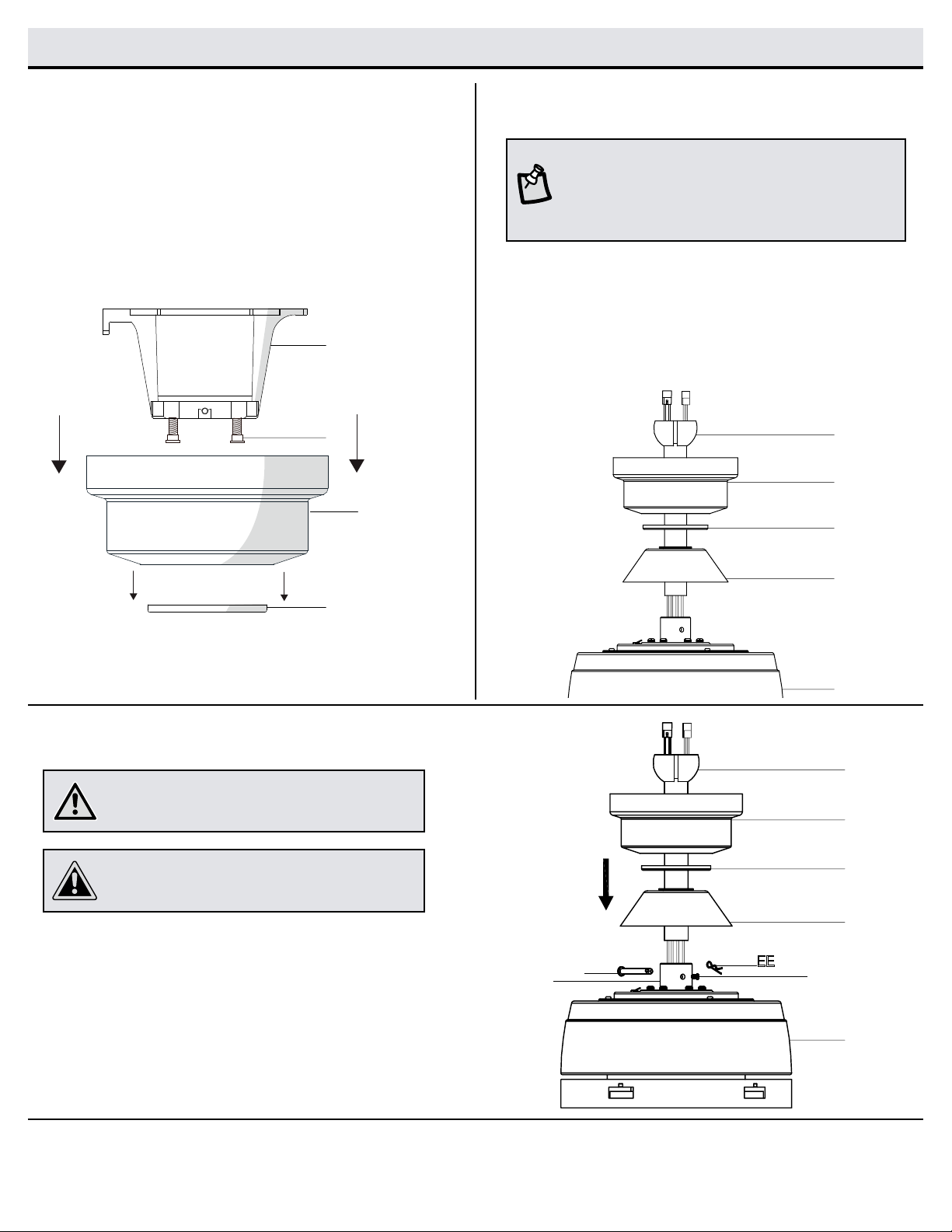

Routing the wires
Assembling the fan
Preparing for mounting
□Remove the magnetic canopy bottom cover (FF) from the
canopy (C) by pulling it off.
□Loosen the two canopy screws (GG) located in the bottom of
the mounting bracket (A).
□Turn the mounting bracket (A) counterclockwise and lift up to
remove the mounting bracket from the canopy (C).
□Insert the ball/downrod (B) through the canopy (C) and
canopy bottom cover (FF), and then slide the decorative motor
collar cover (D) onto the end of the ball/downrod (B). Make
sure the slots on the canopy bottom cover (FF) are facing the
bottom of the canopy (C).
□Route the wires exiting the top of the motor assembly (E)
through the ball/downrod (B) as shown.
2
3
1
□Loosen, but do not remove, the setscrew (HH) on the motor collar
(II) on top of the fan motor assembly (E).
□Slip downrod (B) into motor collar (II), aligning holes on both
parts. Insert hanger pin (DD) through holes on collar and downrod
(E), then insert the clip (EE) into pin until it snaps into place.
□Re-tighten the setscrew (HH) on the collar (II) on top of the fan
motor assembly (E).
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(GG) must be completely tightened.
C
A
GG
FF
B
C
FF
D
E
B
C
FF
D
E
EE
HH
DD
II
WARNING: Failure to properly install the hanger pin (DD)
and clip (EE)could result in the fan becoming loose and
possibly falling.
NOTE: The fan comes with 12 in. lead wires for use with the
provided 6 in. ball downrod assembly (B). If you wish to use
longer downrod, attach the 3-pin extension wire (K) and
2-pin extension wire (L) to the fan by connecting the molded
adaptor plugs from the extension wires to the 3-pin and
2-pin adaptor plugs from the fan.

8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Loosen the two mounting screws (JJ) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (JJ)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod (B) assembly
into the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned
with the slot in the ball.
12
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. (15.9 kg) or less”, and use screws provided with the
outlet box.
NOTE: The mounting bracket (A) is designed to slide into place on
an outlet box with the outlet box screws (HH) installed.
A
B
C
D
E
A
JJ JJ
WARNING: The tab in the ring at the bottom of the mounting
bracket must rest in the groove of the hanger ball. Failure to
properly seat the tab in the groove could cause damage to the
wiring and cause the fan to wobble.
3Connecting the safety cable
Turn the wood screw (KK) (not provided) into the ceiling.
Place the looped end of the safety cable (LL) onto the wood
screw firmly, or connect the safety cable directly to the
outer joist.
□
□
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. 15.9 kg) or less”, and use screws provided with the
outlet box.

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan
4
NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE: The switch marked ON/DIM controls the dimming
function of the lights: Set the switch to ON to disable the
dimming function. Set the switch to DIM to enable the
dimming function.
Setting the code on the remote
control and receiver
□Remove the remote control (N) battery cover by pressing
rmly on the arrow and sliding the cover off.
□Slide the dip switches (KK) to your choice of either up or
down. The factory setting is up.
□Slide the dip switches (KK) on the receiver (M) to the same
position as set on the remote control (N).
□Replace the battery cover on the remote control (N).
1 2 34
ON
ON
DIM
12V 23A
DIP

10
Assembly - Hanging the Fan (continued)
6Wiring the receiver to the household
wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver (M) black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (M) white wire to the household white
wire (neutral) wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
Black
(or Red)
White
Black
Green (or Bare)
Green
Outlet Box
in the ceiling
(NN)
Receiver
Antenna
White
Receiver (M)
BB (x3)
Outlet box
in the ceiling
(NN)
M
LL
MM
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Wiring the fan to the receiver
□Wire the receiver to the fan wires by connecting the 2-pin
molded adaptor plug (LL) and 3-pin molded adaptor plug (MM)
from receiver (M) with the 2-pin and 3-pin molded adaptor
plugs from the fan motor assembly (E).
7
NOTE: The fan comes with 12 in. lead wires for use with the
provided 6 in. ball downrod assembly (B). If you wish to use
longer downrod, attach the 3-pin extension wire (K) and
2-pin extension wire (L) to the fan by connecting the molded
adaptor plugs from the extension wires to the 3-pin and
2-pin adaptor plugs from the fan.

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Attaching the Canopy
□Align the locking slots at the bottom of the canopy (C) with the
two canopy screws (GG) in the bottom of the mounting bracket
(A). Push up to engage the slots and turn clockwise to lock in
place.
□Firmly tighten the two canopy screws (GG).
□Attach the magnetic canopy bottom cover (FF) by placing it
against the bottom of the canopy (C).
Assembly - Hanging the Fan (continued)
8

12

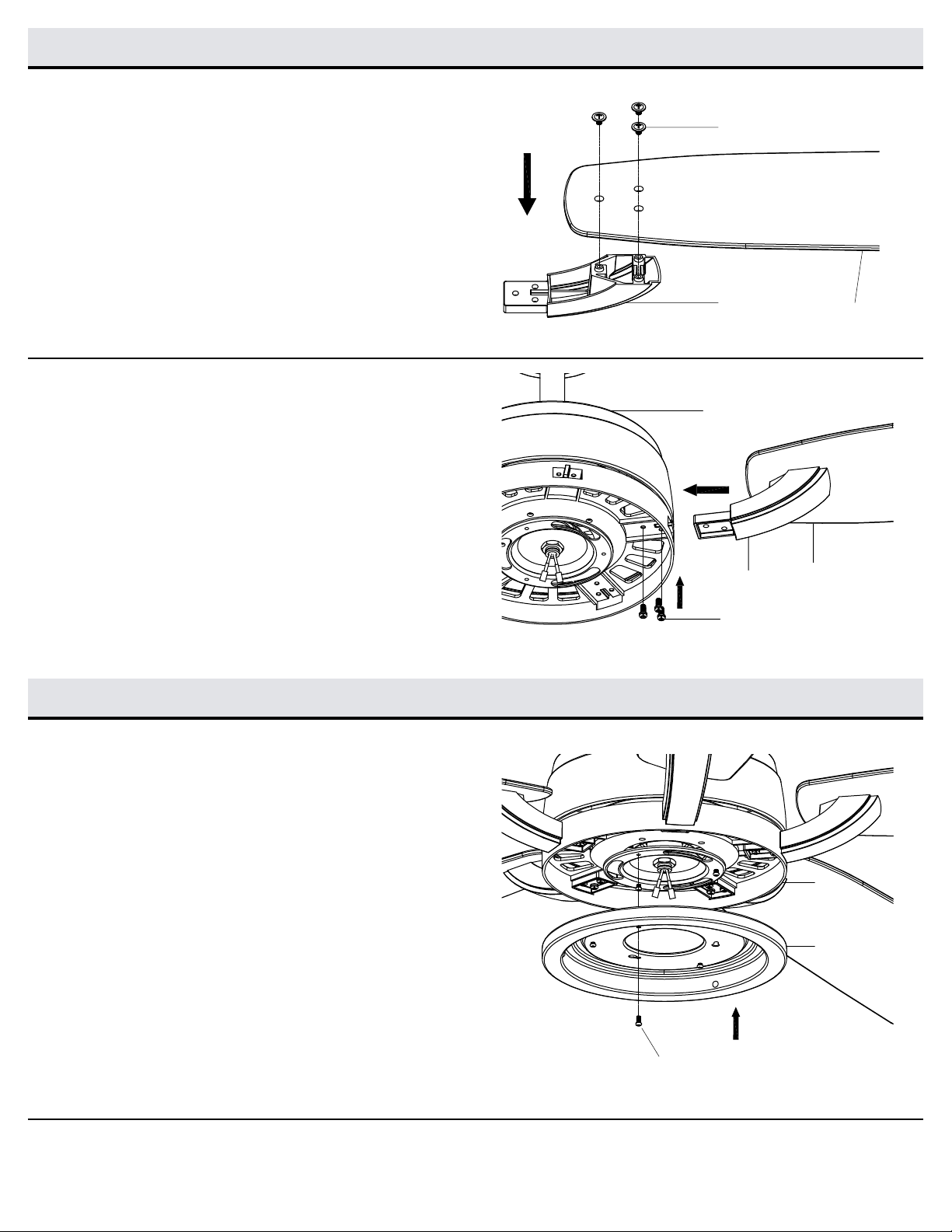

Installing the blades to the blade
brackets
1
□Attach a blade (F) to a blade bracket (G) by inserting blade
attachment screws (AA) through the holes in the blade and into
the blade bracket.
□Tighten each blade attachment screw (AA) securely.
□Repeat these steps for each blade (F) and blade bracket (G).
Assembly - Attaching the Fan Blade
Assembly - Attaching the Light Kit
Installing the light kit pan
1
□Remove one screw (PP) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□Push the light kit pan (H) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (H) clockwise.
□Re-install the screw (PP) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
AA
GF
Attaching the blade assemblies to
the motor.
2
□Insert the blade/blade bracket assembly (OO) through the hole
in the side of the center ywheel on the fan motor assembly
(E), align the three screws holes in the blade bracket (G) with
the screw holes in the center ywheel and secure with blade
arm screws (CC).
□Repeat this step for the remaining the blade assemblies.
GOO
CC
E
H
E
PP

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Light Kit (continued)

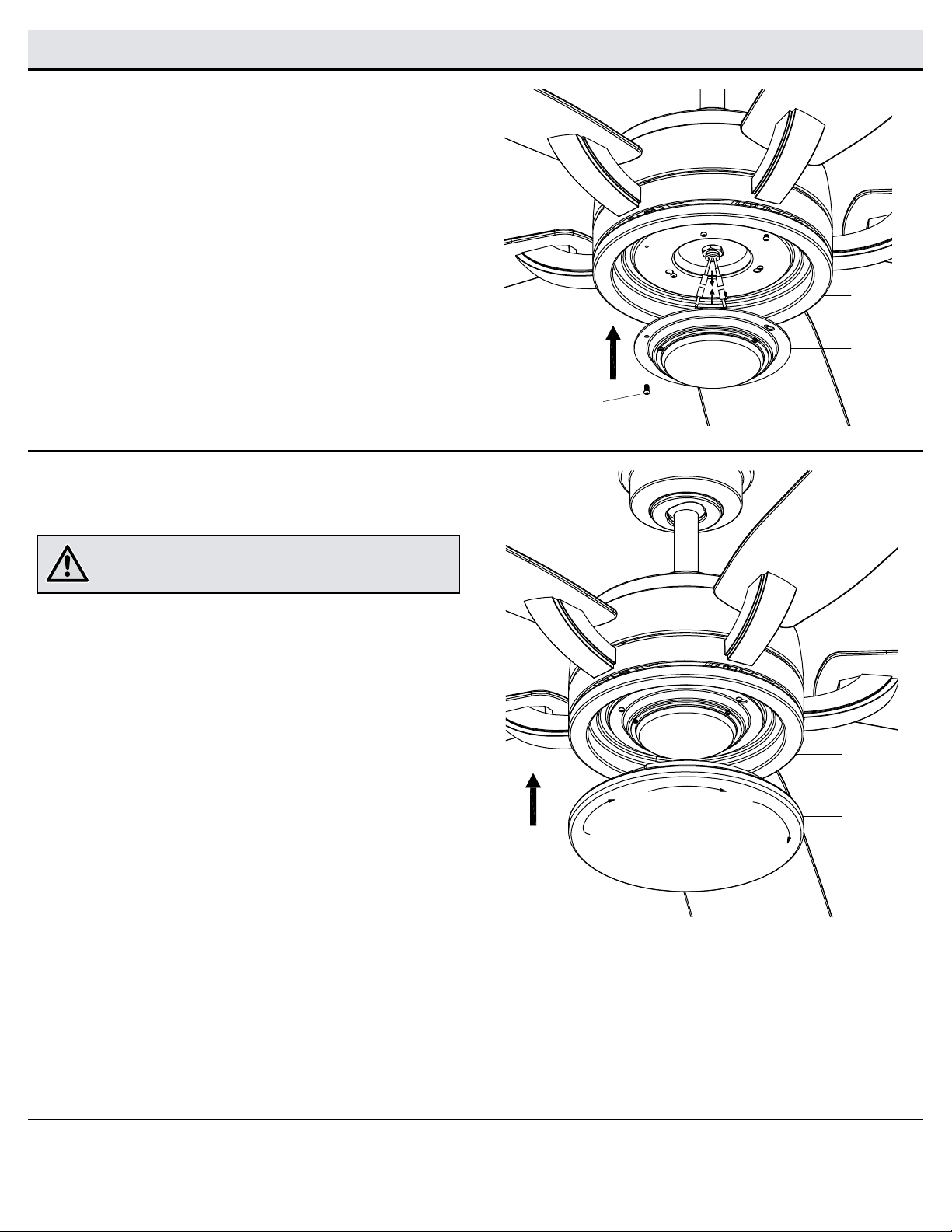

Attaching the light kit tter assembly
2
□Remove one screw (QQ) from the light kit pan, and loosen, but
do not remove the other two screws.
□Connect the wires from the light kit tter assembly (I) to the
wires exiting from the bottom of the fan motor assembly (E) by
connecting the molded adaptor plugs together (black to black,
white to white). Carefully tuck all wires into the light kit pan.
□Push the LED light kit tter assembly (I) up to the light kit
pan so that the two loosened screw heads t into the keyhole
slots. Turn the LED light kit tter assembly (I) clockwise to
secure.
□Re-install the screw (QQ) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Installing the glass shade
3
□Place the glass shade (J) into the light kit pan (H), aligning the
three at areas on the top of the ange of the glass shade (J)
with the three raised dimples in the light kit pan (H). Turn the
shade clockwise until it stops.
WARNING: Do not overtighten when installing the glass shade
into the light kit pan. Allow the glass shade to cool completely
before removing.
H
I
QQ
H
J

14

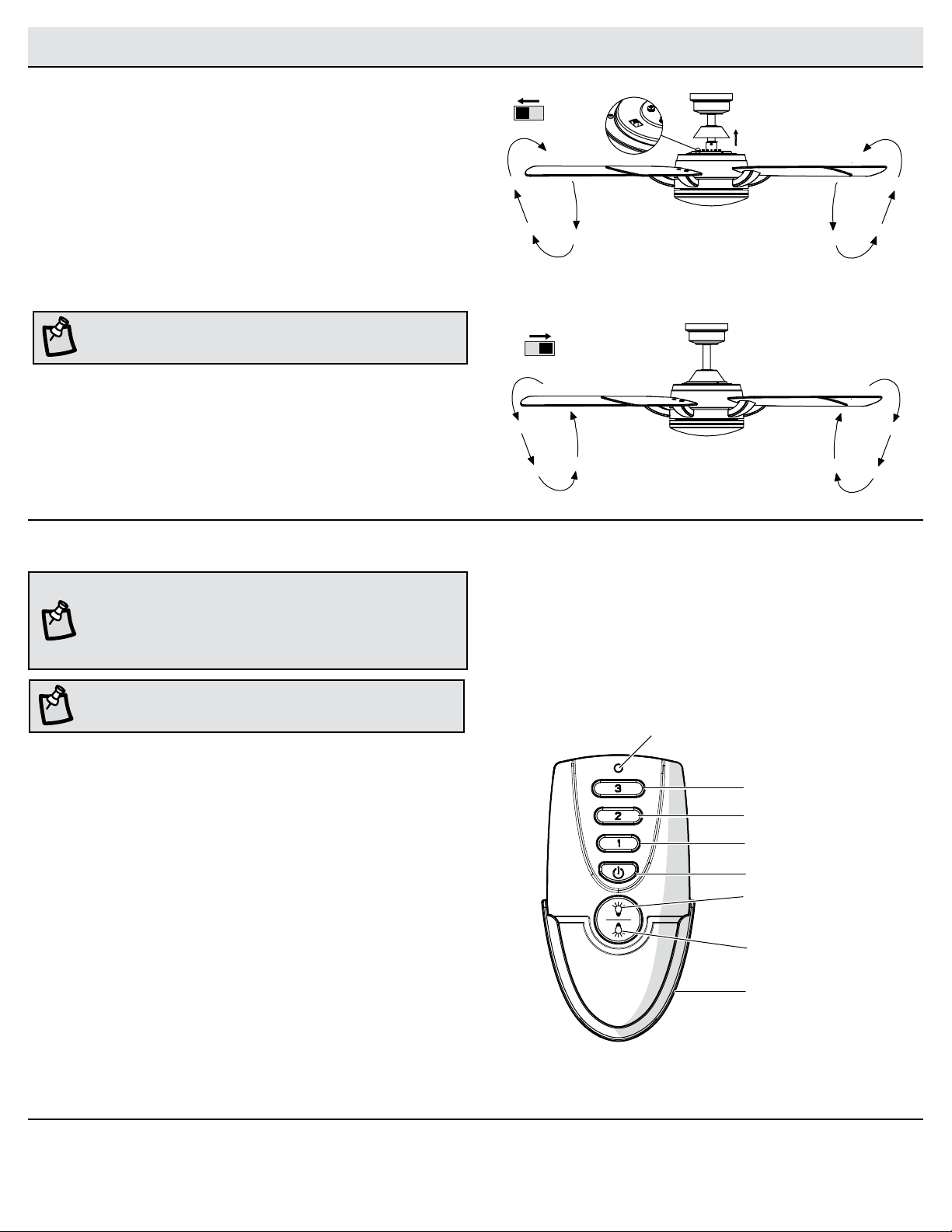

Operating Your Fan and Remote Control
Transmitter operation
□Remove the protective coating from the battery.
□Remove the battery cover from the remote control.
□Install the 12-Volt battery (included) into the battery compartment of
the remote control (N).
□Replace the battery cover on the remote control.
□Press the desired button on the remote control (N) to operate the fan:
□“3” button: Press to turn the fan on and set the fan speed to high.
□“2” button: Press to turn the fan on and set the fan speed to me-
dium.
□“1” button: Press to turn the fan on and set the fan speed to low.
□Power button (RR): Press to turn the fan off.
□Uplight button (SS): Press and release immediately to turn the
uplight on or off. Press and hold to dim or brighten the light to the
desired level and then release.
Install a 12-V battery (included).
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located in top glass housing)
to the opposite position, and turn the fan on again. The fan blades will
turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of the
blade rotation.
NOTE: This remote is equipped with a 16-code combination. To prevent
possible interference from or to other remote units such as garage
door openers, car alarm or security system, change the combination
code but be sure that the code on both the hand held transmitter and
receiver in the fan are the same.
N
RR: Power OFF
SS: Up Light ON/OFF
& Dimmer Function
ON/High
ON/Medium
ON/Low
Power Indicator will light
when buttons are pushed
TT: Down Light ON/OFF
& Dimmer Function
□Downlight button (TT): Press and release immediately
to turn the downlight on or off. Press and hold to dim or
brighten the light to the desired level and then release.
NOTE: Pressing on the middle of the light button, will turn on the
uplight only.

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
