USE AND CARE GUIDE
ROYALTY 120 IN. CEILING FAN
Item #1003 236 493
#1003 236 492
Model #AM590-BN
#AM590-NI
THANK YOU
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.

Operation ......................................................................
Preparing the Transmitter ......................................................
Learning Process ...................................................................
Operating Your Fan and Remote Control ...............................
Warm/Cool Weather Operating Instructions ...........................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
16
16
16
17
18
19
19
21
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .....................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
10
14
15
READ AND SAVE THESE INSTRUCTIONS

Safety Information
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 50
lbs (22.7 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (RH789NRB
only).
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.

SPECIFICATIONS
SPECIFICATIONS

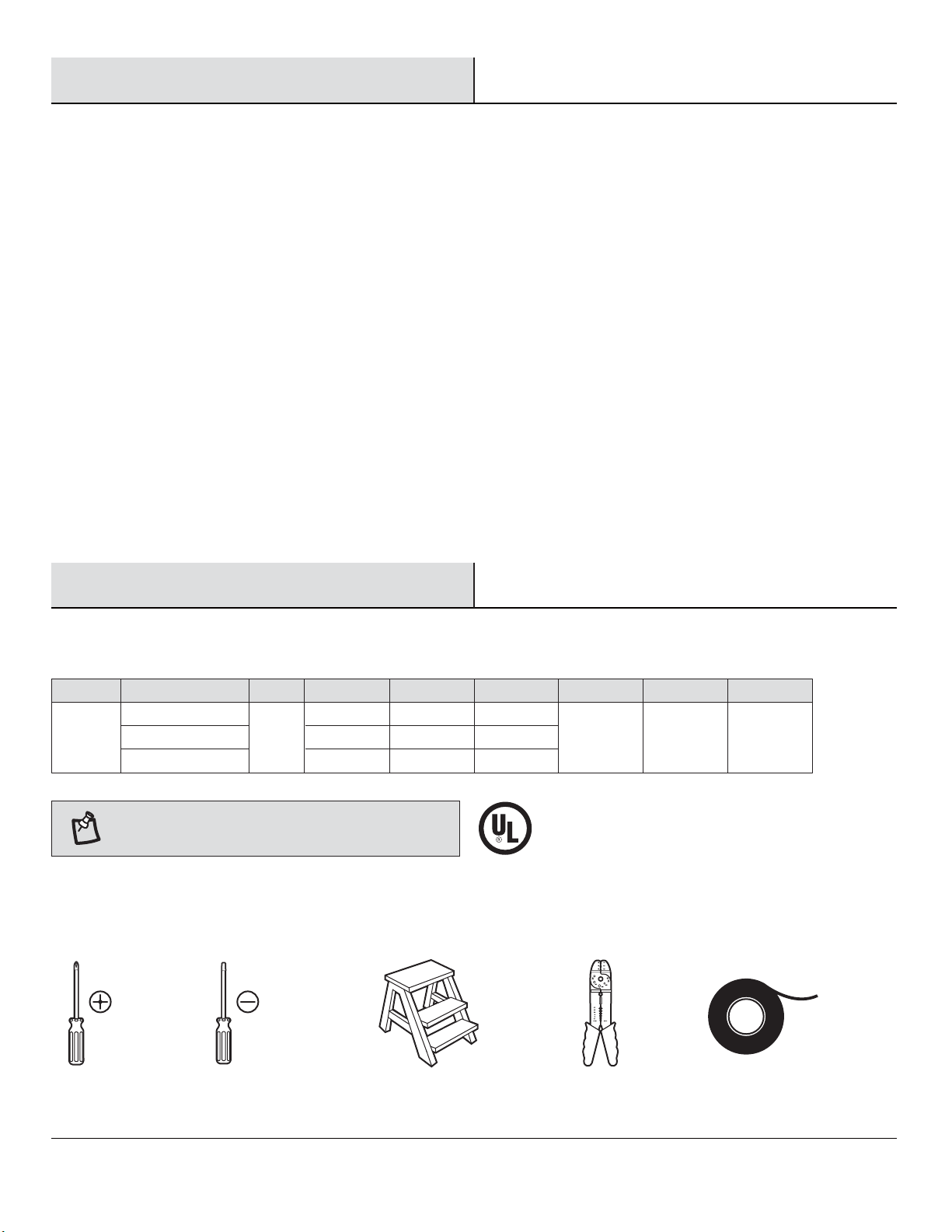

TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
120 in.
Fan size
Fan size
Watts
Watts
RPM
RPM
Amps
Amps
4.81 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.10
0.30
0.64
6.2
21.2
48.1
30
45
60
19 kg
(41.8 lbs.)
22.42 kg
(49.33 lbs.)
Low (Speed 1)
Medium (Speed 5)
High (Speed 9)
120
Speed
Speed
Volts
Volts

Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
Plastic wire nut
Canopy mounting screw (preassembled)
Neck of the mounting bracket screw (preassembled)
Stop valve screw (preassembled)
Blade attachment screw and fiber washer
Blade arm screw with lock washer (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew #1 (preassembled)
Setscrew #2 (preassembled)
Collar setscrew (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
1.5V AAA battery (not to scale)
Part Description
3
2
6
2
25
16
1
1
1
1
1
2
3
3
2
Quantity
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
LL
KK
MM
NN
OO
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ

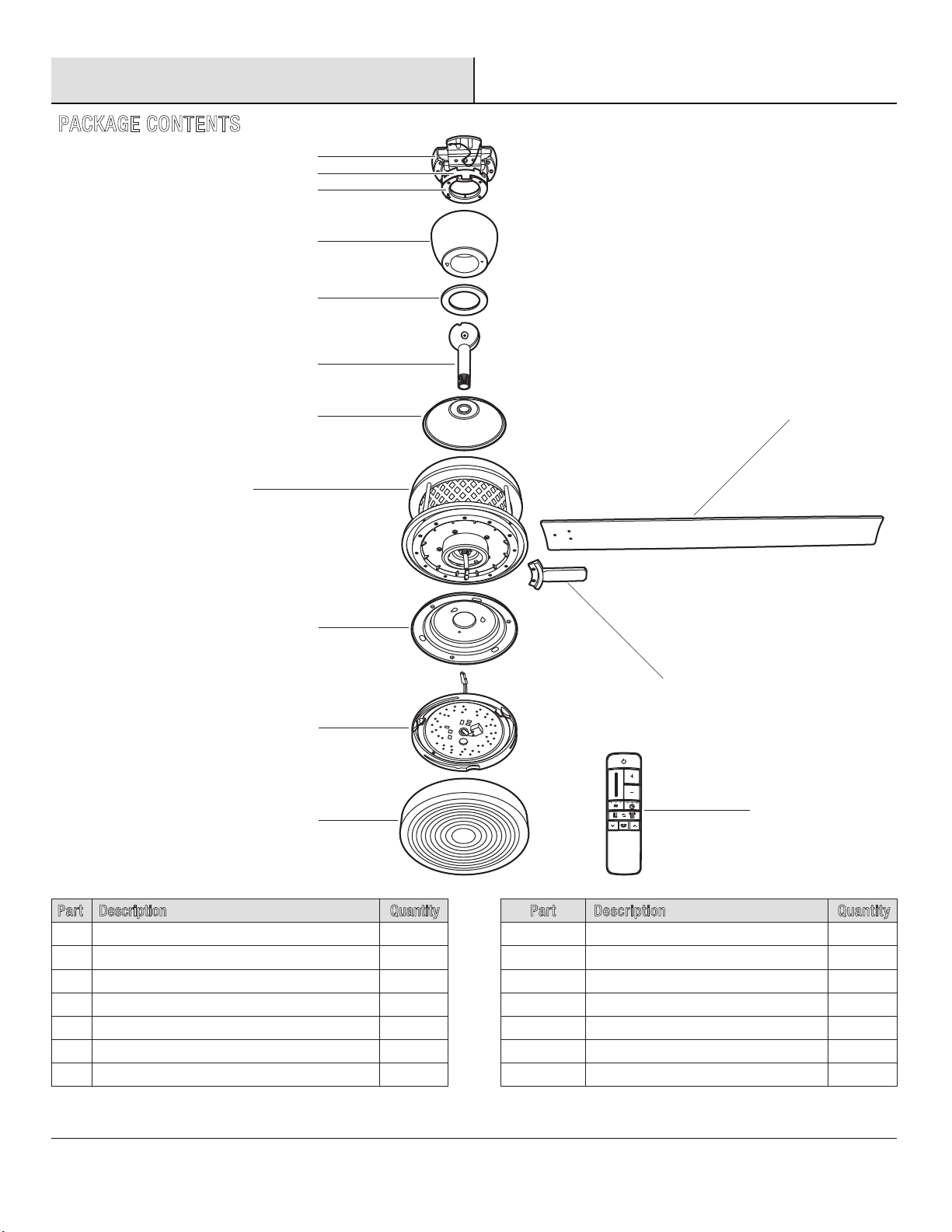

PACKAGE CONTENTS
Pre-Installation (continued)
6
J
K
L
M
H
N
I
E
F
G
D
Part
H
I
J
K
L
M
N
Description
Fan motor assembly
Blade arm
Blade
Light kit mounting plate
18 watt LED Light kit
Light cover
Remote control
Quantity
1
6
6
1
1
1
1
Part
A
B
C
D
E
F
G
Quantity
1
1
1
1
1
1
1
Description
Mounting bracket (preassembled)
Stop Valve (preassembled)
Neck of the mounting bracket (preassembled)
Canopy
Canopy bottom cover
Hanger ball/downrod assembly
Coupling cover
B
A
C

If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (PP) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 50
lbs.). Do not use a plastic outlet box.

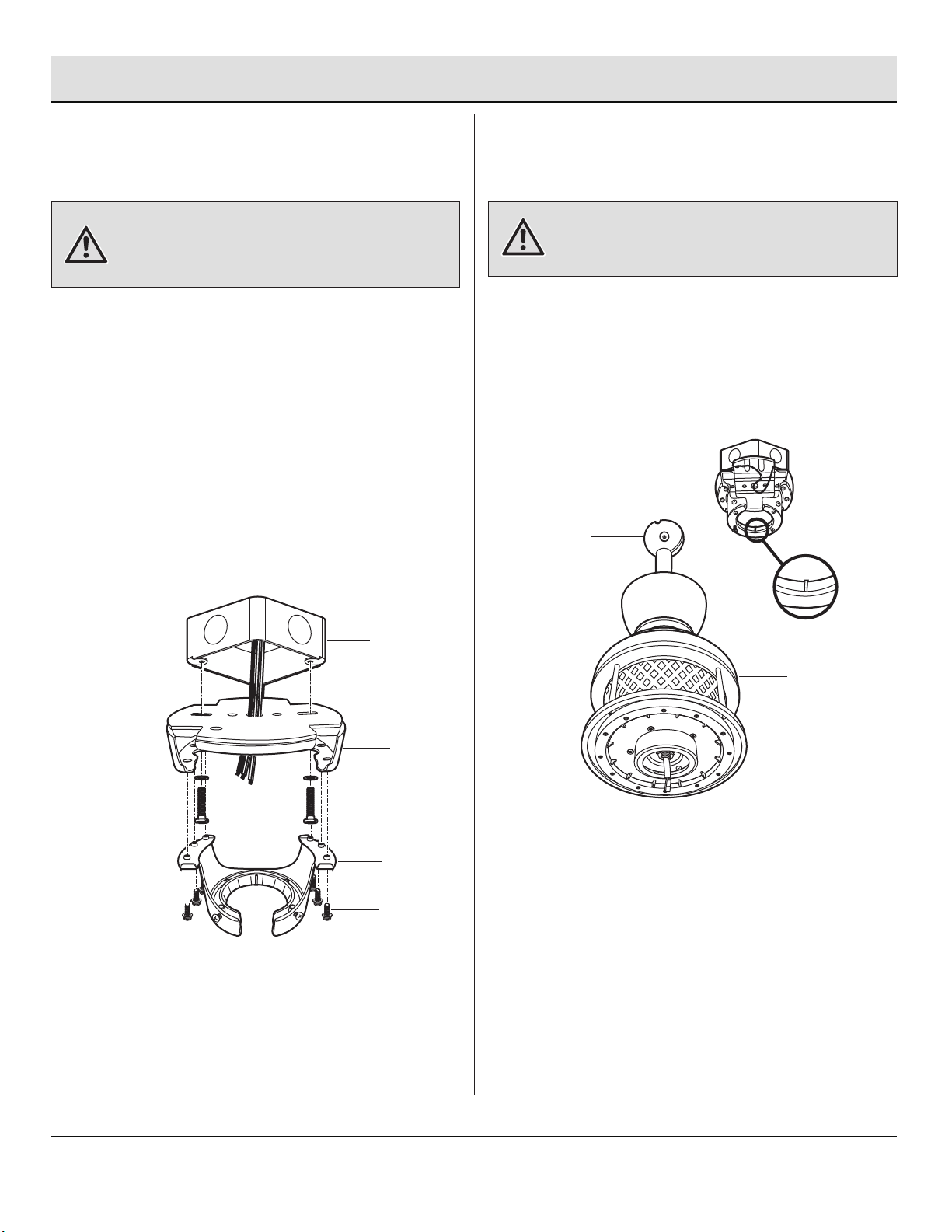

The illustrations below show three different ways to mount the
outlet box (PP) (not included).
PP
PP
PP
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (D) touches the hanger ball/downrod assembly (F),
turn the canopy (D) 180° before attaching the canopy (D) to
the mounting bracket (A).
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

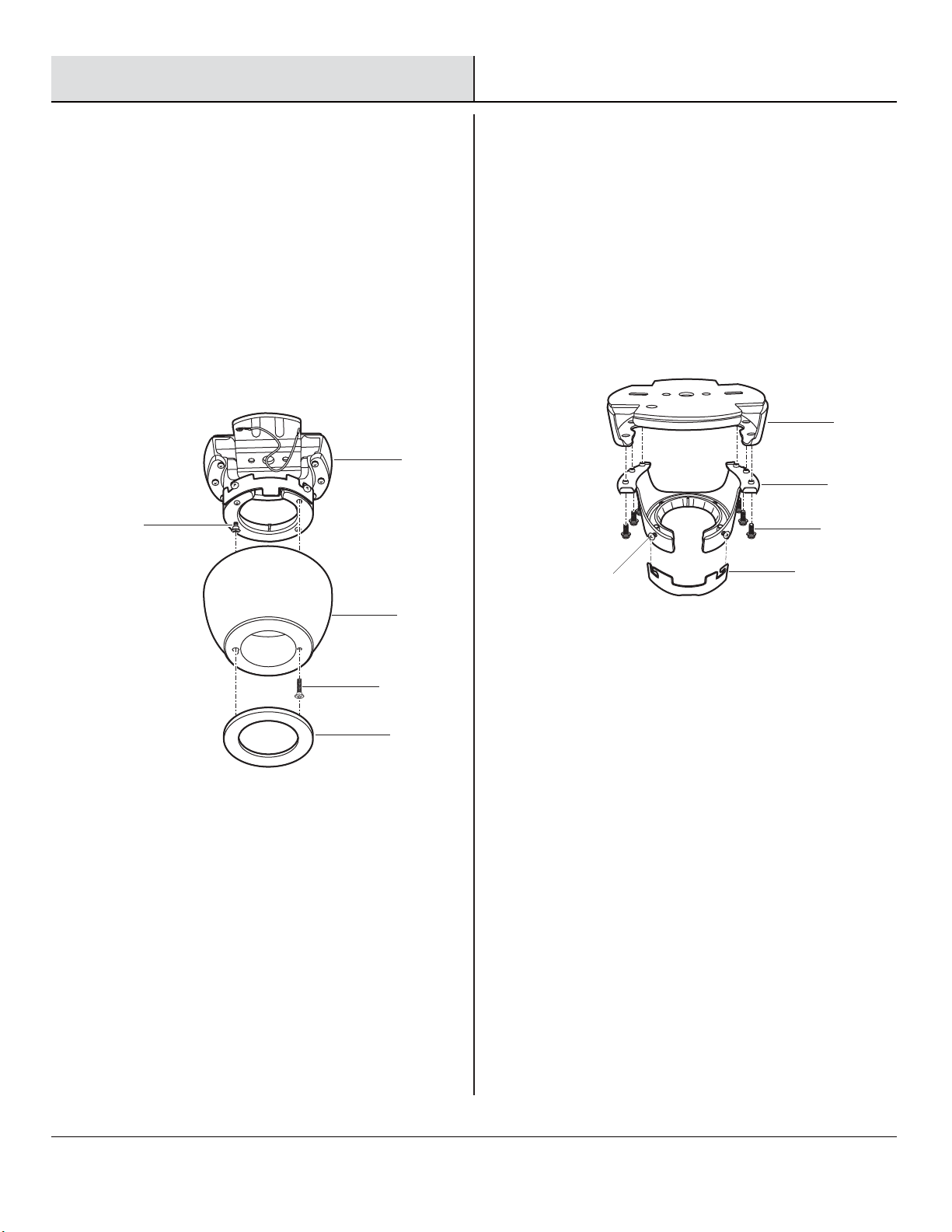

1Preparing the canopy 2Preparing the mounting bracket
□Unscrew the four neck of the mounting bracket
screws (CC) on the mounting bracket (A) to apart the
mounting plate and neck of the mounting bracket
(mounting neck) (C).
□Remove stop valve (B) from the neck of the mounting
bracket (C) by loosening the two stop valve screws
(DD) on the neck of the mounting bracket (C) in 1/4"
from the screw head.
8
Assembly
□Remove the canopy bottom cover (E) from the canopy
(D) by turning the canopy bottom cover (E) counter-
clockwise.
□Remove the mounting bracket (A) from the canopy (D)
by removing the non-slotted canopy mounting screw
(BB) from the bottom of the canopy (D) and loosening
the slotted canopy mounting screw (BB) a half turn
from the screw head. Next, turn the canopy (D)
counterclockwise to remove the mounting bracket (A)
from the canopy (D).
BB
A
D
E
BB
A
C
CC
DD B

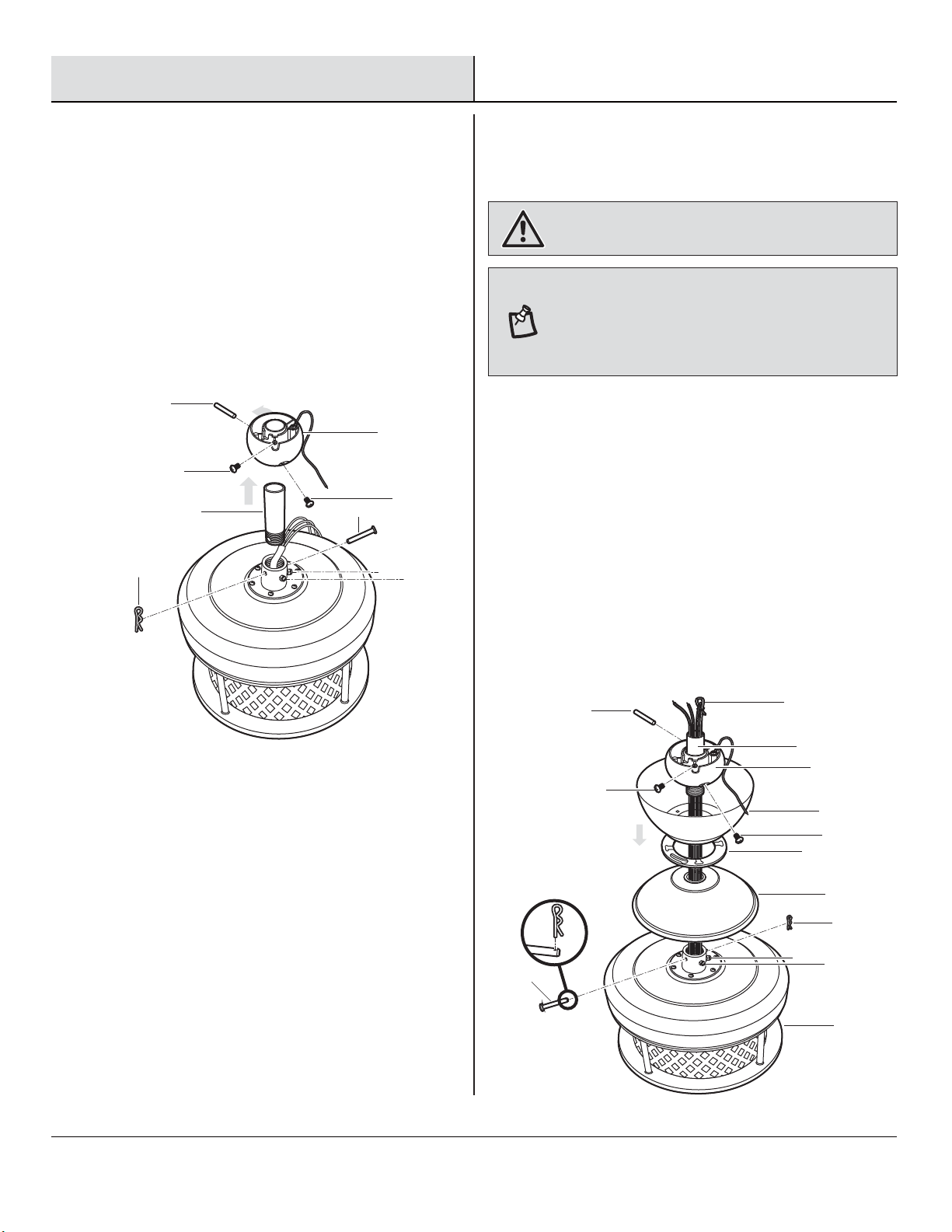

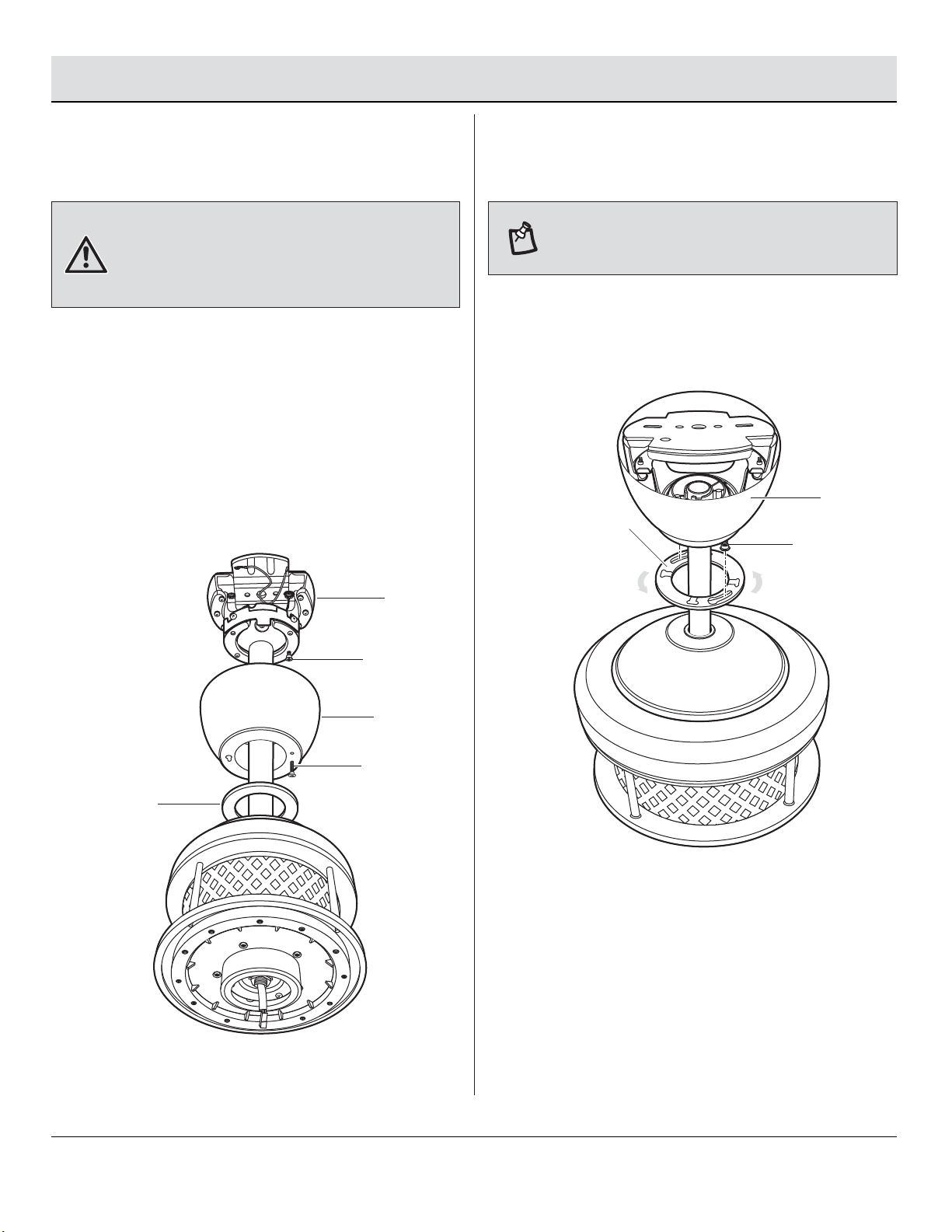

3Preparing the motor 4Assembling the fan
HH
GG
LL LL
E
H
G
D
LL
LL
GG
HH
□Remove the cotter pin (HH) and clevis pin (GG), and
loosen the two collar setscrews (LL) from the motor
collar.
□Take out the setscrew #1 (JJ) and loosen the
setscrew #2 (KK) located in the hanger ball (QQ),
lower the hanger ball and remove the cross pin (II).
Remove the hanger ball (QQ) from the hanger
ball/downrod assembly (F).
JJ
II
□Carefully feed the motor wires and the safety cable
(SS) up through the downrod (RR). Thread the
downrod (RR) into the collar.
□Align the holes and replace the clevis pin (GG) and
cotter pin (HH). Tighten the two collar setscrews (LL).
□Slip coupling cover (G), canopy bottom cover (E), and
canopy (D) onto the downrod (RR).
□Carefully reinstall the hanger ball (QQ) onto the
downrod (RR) and make sure the cross pin (II) is in
the correct position, the setscrew #1 (JJ) and
setscrew #2 (KK) is tightened and wires are not
twisted.
WARNING: Failure to properly install the cotter pin (HH)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (QQ), lower the hanger
ball (QQ) and remove the cross pin (II). Remove all three
pieces from the downrod and assemble them onto the new
longer downrod before proceeding to the downrod installa-
tion.
QQ
KK
SS
Assembly (continued)
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
F
JJ
II
KK
RR
QQ

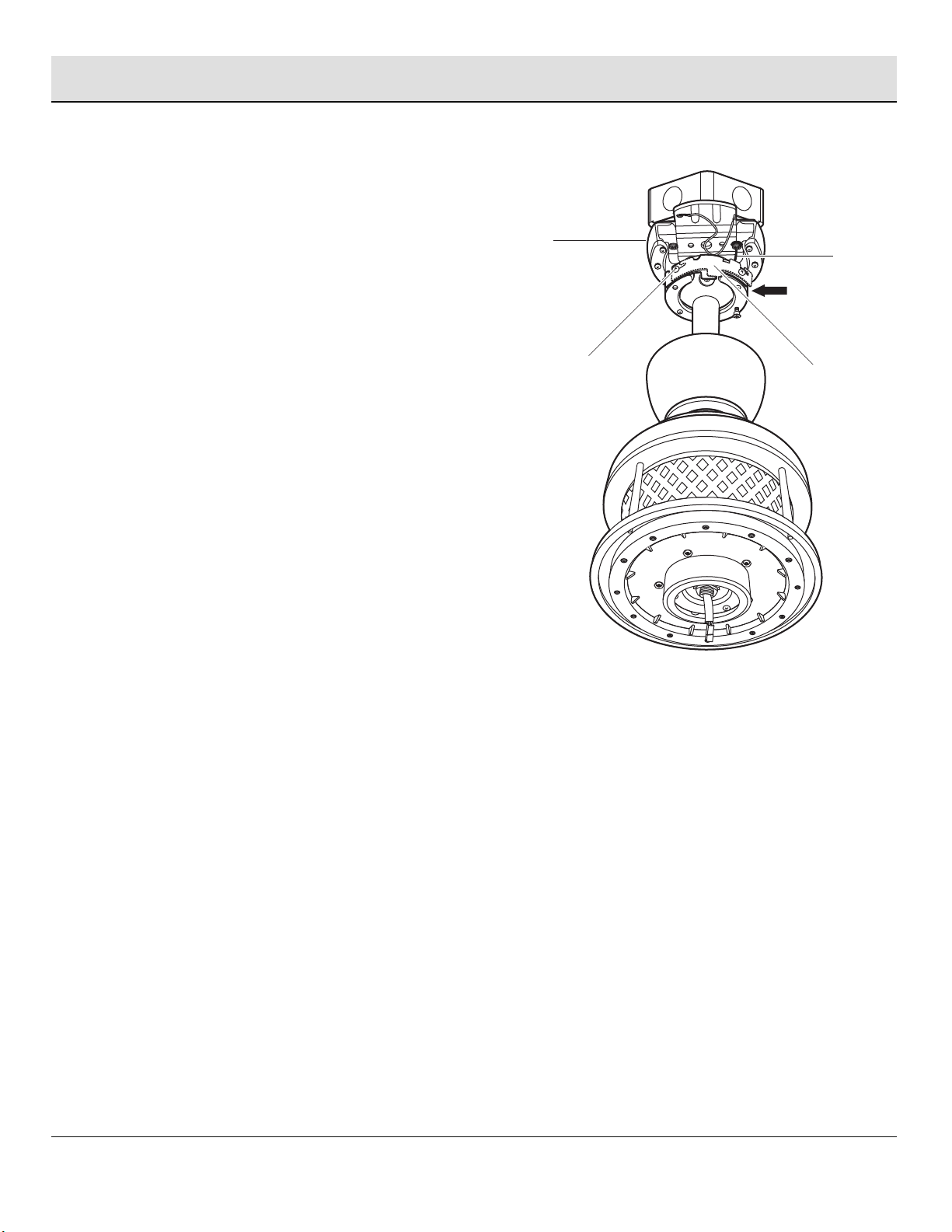

Assembly — Hanging the Fan
5Attaching the mounting
bracket to the ceiling
Hanging the fan from the
mounting bracket
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) to the outlet box (PP)
with the screws and washers provided with the outlet
box (PP).
□Securely tighten the two mounting screws.
□Attach mounting neck (C) onto the mounting bracket
(A). You have to rotate the mounting neck (C) to align
the four screw holes, Secure mounting neck (C) to
the mounting bracket (A) with four neck of the
mounting bracket screw (CC) to become a complete
mounting bracket (A).
□Carefully lift the fan motor assembly (H) up to the
mounting bracket (A) and seat the hanger
ball/downrod assembly (F) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (F). This will help
to balance the ceiling fan.
6
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (F). Failure to properly
seat the tab in the groove could cause damage to the wiring.
A
F
H
10
A
PP
C
CC
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.

Assembly — Hanging the Fan (continued)
7Installing the safety cable
and the stop valve
□Secure the safety cable (SS) to the building structure
using a wood screw (not included).
□Secure the stop valve (B) onto mounting bracket (A)
by tightening two stop valve screw (DD) to close up
the opening of mounting bracket (A).
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
A
SS
DD B

12

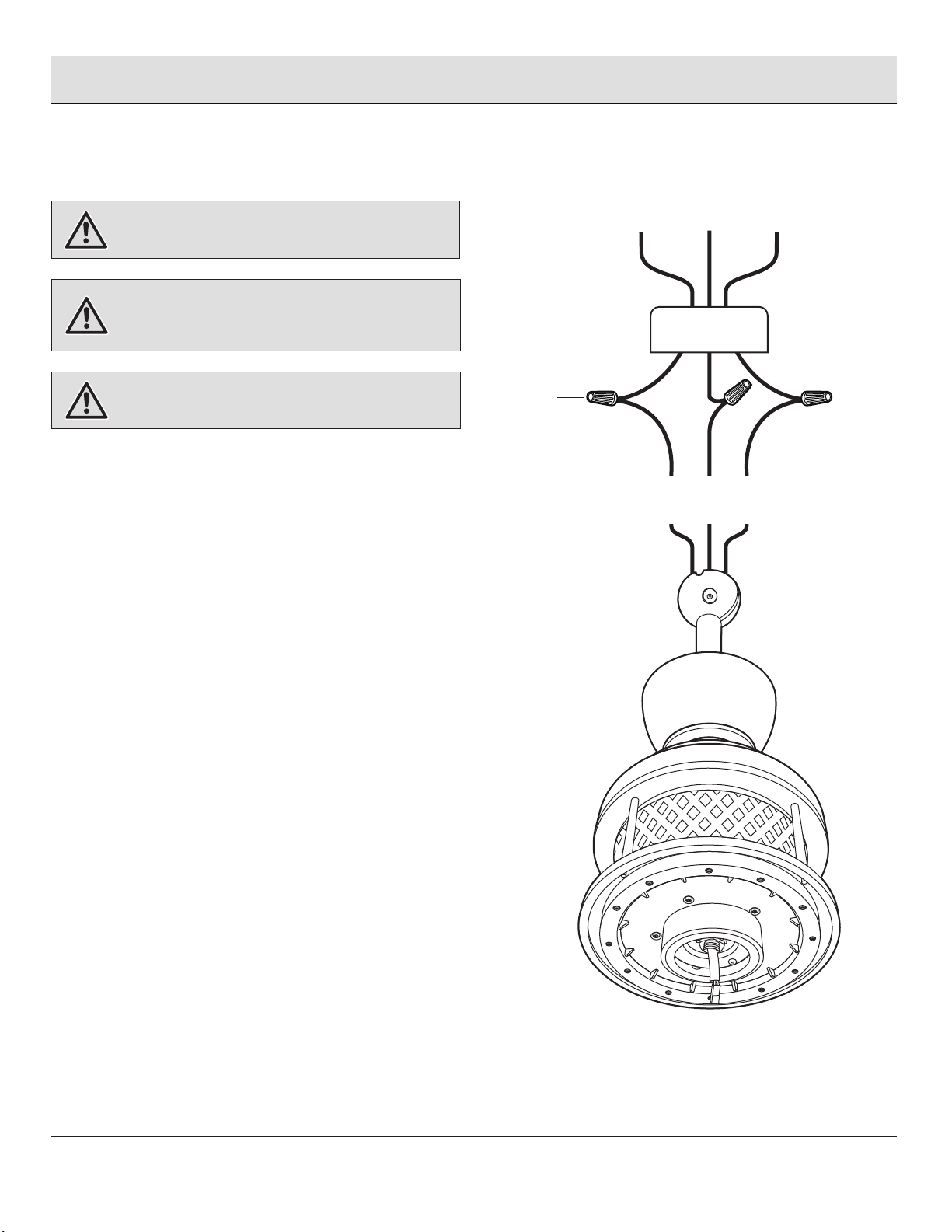

Assembly — Hanging the Fan (continued)
Making the electrical
connections
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.
□Connect the ground conductor of the 120V supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
□Connect the fan motor white wire to the supply white
(neutral) wire using a plastic wire nut (AA).
□Connect the fan motor black wire to the supply black
(hot) wire using a plastic wire nut (AA).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
8
Green
White
Black Ground
conductor
White
AA
PP
Black
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.

9Installing the canopy
□Slide the canopy (D) up to the mounting bracket (A)
and place the key hole on the canopy (D) over the
loose canopy mounting screw (BB) on the mounting
bracket (A). Turn the canopy (D) clockwise until the
canopy (D) locks in place at the narrow section of the
key holes.
□Align the circular hole on the canopy (D) with the
remaining hole on the mounting bracket (A). Secure
the canopy mounting screw (BB) previously removed
in the hole, and tighten the two canopy mounting
screw (BB).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (F) before attaching the canopy (D) to the mounting
bracket (A) by turning the canopy housing until it drops into
place.
NOTE: Adjust the canopy mounting screws (BB) as necessary
until the canopy (D) and canopy bottom cover (E) are snug.
10 Attaching the canopy
bottom cover
BB
E
D
BB
BB
A
E
Assembly — Hanging the Fan (continued)
□Attach the canopy bottom cover (E) to the canopy (D)
by inserting the canopy mounting screw (BB) into the
key slots in the canopy bottom cover (E) and rotating
the canopy bottom cover (E) clockwise.
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
D

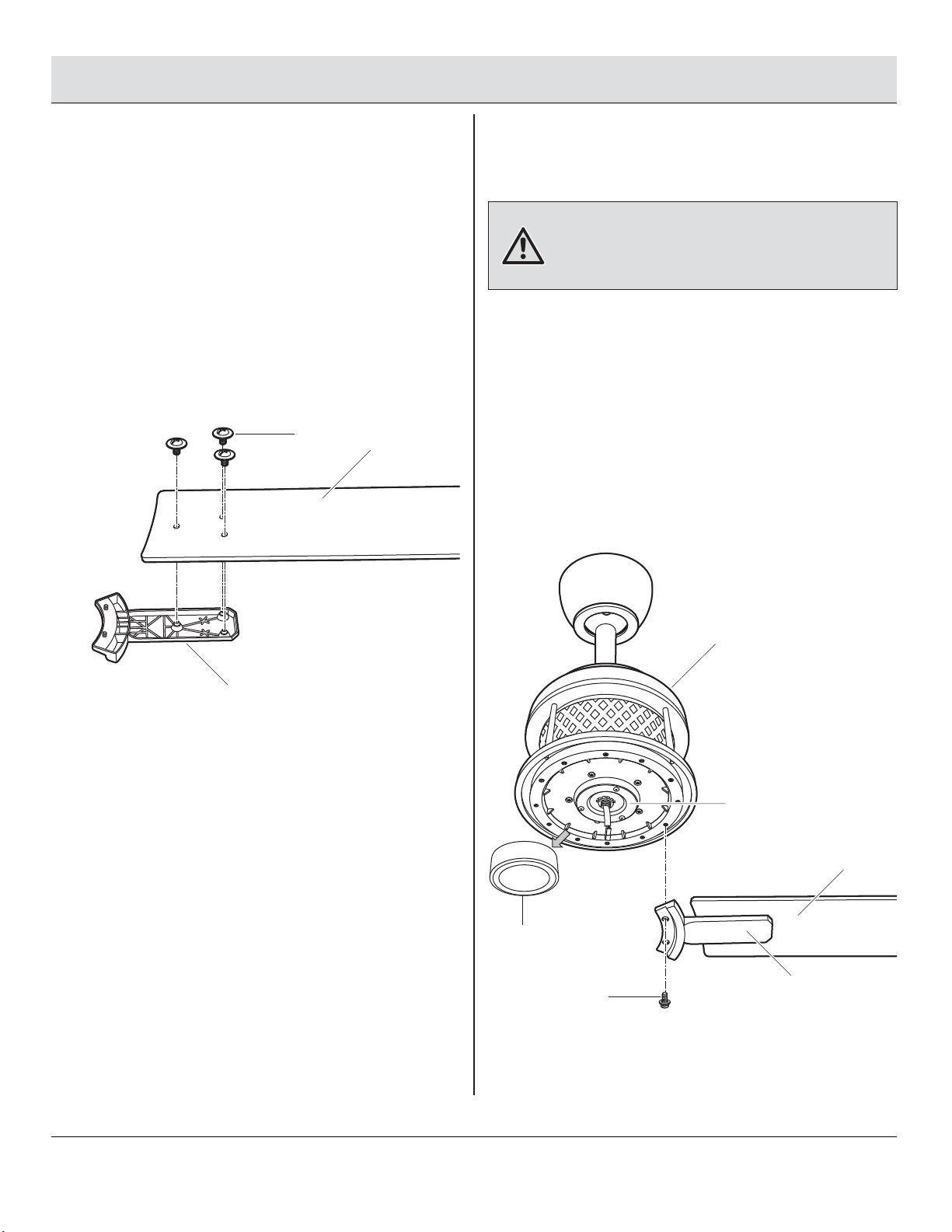

Assembly — Attaching the Fan Blades
14
Attaching the blades to the
blade arms
11 12 Fastening the blade
assemblies to the motor
□Attach the blades (J) to the blade arms (I) using the
three blade attachment screws and fiber washers (EE).
Start a screw with fiber washer (EE) into the blade
arms (I), but do not tighten.
□Repeat for the two remaining blade attachment
screws and fiber washers (EE).
□Tighten each screw securely starting with the center
screw. Make sure the blade (J) is straight.
□Repeat these steps for the remaining blades (J).
J
EE
I
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (I) while installing, balancing the blades
(J), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (J).
□The fan motor assembly (H) is shipped with motor
support plate (TT) to prevent movement during
transportation.
□Remove the motor support plate (TT) from the
mounting ring (UU) and discard.
□Align the holes from the blade arm (I) to the holes
from the motor (H), and secure the blade arm in place
with screws and washers (FF) provided.
□Repeat this process to attach the other blades
assemblies.
H
I
FF
UU
J
TT

13 Attaching the light kit mounting
plate to the mounting ring
Assembly — Installing the Light Kit
□Remove one of the three light kit mounting plate
screws (MM) from the mounting ring (UU) and loosen
the other two screws. (Do not remove.)
□Place the key holes in the light kit mounting plate (K)
over the two screws (MM) previously loosened from
the mounting ring (UU). Turn the light kit mounting
plate (K) until the light kit mounting plate (K) locks in
place at the narrow section of the key holes.
□Securely tighten the two light kit mounting plate
screws (MM) previously loosened and the one (MM)
previously removed.
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
14 Attaching the LED light kit
and light cover
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□Remove one of the three light kit mounting screws
(NN) from the light kit mounting plate (K) and loosen
the other two screws (NN). (Do not remove.)
□While holding the 18W LED light kit (L) under the fan
motor assembly (H), make the 2-pin wire
connections:
- White to white
- Black to black
□Place the key holes in the 18W LED light kit (L) over
the two mounting screws (NN) previously loosened
from the light kit mounting plate (K). Turn the 18W
LED light kit (L) until the 18W LED light kit (L) locks in
place at the narrow section of the key holes. Secure
by tightening the two light kit mounting screws (NN)
previously loosened and the one (NN) previously
removed.
□Position the notches (VV) in the outer rim of the 18W
LED light kit (L) so they line up with the tabs (WW) on
the inside of the rim on the light cover (M). Carefully
lift the light cover (M) up inside the 18W LED light kit
(L) and secure it to the fan by turning the light cover
(M) clockwise until snug. DO NOT OVERTIGHTEN.
H
L
NN
M
K
VV
WW
H
K
MM
MM
UU

Operation
16
□Remove the battery cover by pressing firmly on the arrow and
sliding the cover off.
□Install two 1.5V AAA batteries (OO) (included).
□Replace the battery cover on the remote control (N).
PREPARING THE TRANSMITTER
OO
N
NOTE: Batteries will weaken with age and should be
replaced before leaking takes place as this will damage
the remote control. Dispose of used batteries properly
and keep them out of the reach of children.
The learning process causes any installed fan within range to
memorize a remote control. Fans can learn five remotes.
To add a remote to your fan’s memory, use the steps below:
□Ensure AC power to the fan is OFF to begin the learning
process.
□Slide the dip switch in the battery compartment to the "1"
position.
□Turn the fan’s AC power ON.
□Within 60 seconds of turning AC power on, press and release the
" Pairing" button located in the remote's battery compartment
to enter the learning function. Once the fan has detected the
remote controls's frequency, the down light of your fan, if
applicable, will blink, and the fan blades will start to spin.
□The fan will now accept commands from the added remote.
To clear all other remotes from your fan’s memory, use the steps
below:
□Ensure AC power to the fan is OFF to begin the learning
process.
□Slide the dip switch in the battery compartment to the "0"
position.
□Turn the fan’s AC power ON.
□Within 60 seconds of turning AC power ON, press and release
the “Pairing” button located in the remote’s battery
compartment, and your fan will restore to the original setting
and dismiss the other remotes.
LEARNING PROCESS
Timer
Fan on/off
Light on/off
Decreases the
light level
(Dimmer)
Warm weather
(Forward)
Comfort BreezeTM
LED bar
Scale indicating
fan speed
Cool weather
(Reverse)
Increases the
light level
(Dimmer)
Decreases fan speed
Increases fan speed
NOTE: If installing multiple fans on separate remotes,
only the fan being programmed should have AC power
turned ON. All other fans, even if they have already
been programmed, should have AC power OFF so they
do not memorize other remotes during the learning
process. Separate the fan power switches by
approximately 2 meters.
NOTE: The dip switch in the battery compartment has
been set on “0” position as an universal code for your
convenience. If you have two or more fans, please
follow steps below to control each fan independently.

2. Speed functions
+button, increases the fan speed
□Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to
illuminate slightly more, until the fan has reached the maximum speed setting, at that time the LED bar will be fully illuminated.
□Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
□Pressing the + button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
–button, decreases fan speed
□Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar to dim
slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25% illuminated.
□Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the reductions will be
denoted on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
□Pressing the - button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode and the LED bar will illuminate
slowly from bottom to top to display the current setting.
□Setting 1: Alternates through speeds 1 – 3, the LED bar should fill approximately 33%.
□Setting 2: Alternates through speeds 1 – 6, the LED bar should fill approximately 66%.
□Setting 3: Alternates through speeds 1 – 9, the LED bar should be fully illuminated.
Operation (continued)
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
1. Fan button. - Press and release the button to turn the fan on or off.
□When turned on, the fan will begin spinning using its last speed settings. The remote control’s LED bar will display the speed setting
for 5 seconds.
□When turned off, the fan will stop spinning and the light from the remote control’s LED bar will quickly darken from top to bottom.
Off Setting 1 Setting 2 Setting 3 Disable Comfort BreezeTM
OPERATING YOUR FAN AND REMOTE CONTROL
NOTE: The fan will store the last used speed setting for the next time it is turned on.
NOTE: You must turn the fan on prior to using the speed or time functions.
NOTE: If you are using Comfort BreezeTM mode, pressing the button or the fan speed buttons will cancel Comfort BreezeTM mode and
resume normal fan operation.

Operation (continued)
18
WARM/COOL WEATHER OPERATING INSTRUCTIONS
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, number of fans.
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
NOTE: The fan reverse buttons must be pressed while the
fan is running.
4. Timer
□Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer
mode, the LED to the left of the time above the clock will illuminate.
Off 2H 4H 8H Disables timer
6. Light
□Press and release the light button to turn the light on or off.
□Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
7. Dimmer
□Press to increase the desired light level.
□Press to decrease the desired light level.
5. Fan reverse button (Must be pushed when the fan is in operation)
□Warm weather: LED bar will illuminate and the lights will flow from high to low.
□Cool weather: LED bar will illuminate and the lights will flow from low to high.

19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Care and Cleaning
Troubleshooting
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 12.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing are tight. Check that the light bulb is also
secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.

20
Troubleshooting (continued)
Problem
Problem
Solution
Solution
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
