Home Decorators Collection EMSWELL 52-INCH User manual

USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item # 1001 xxx xxx
Model # 51611
UL Model # 52-ESW
EMSWELL 52-INCH CEILING FAN

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................ 6
Assembly..............................................................................7
Operation ...........................................................................14
Care and Cleaning.............................................................15
Troubleshooting.................................................................15
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35lbs. (15.9kg). Use only
UL Listed outlet boxes marked”Acceptable for Fan Support of
35lbs. (15.9kg) or less”.
4. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL-listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, “this fan should only be used with fan speed
control part no. MR140A manufactured by Satellite
Industrial Co., LTD”
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

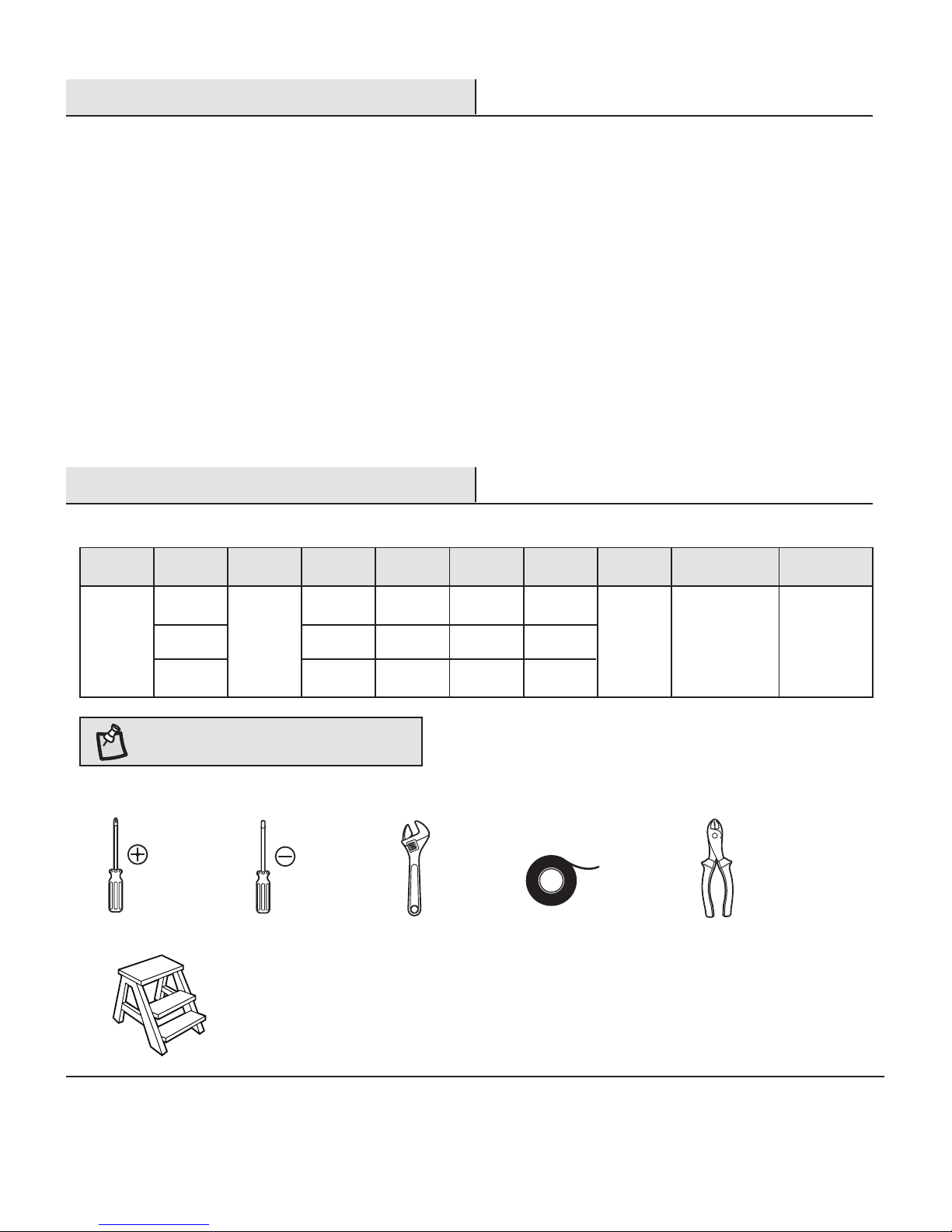

SPECIFICATIONS
TOOLS REQUIRED
NOTE:These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52 in.
Low
Medium
High
120
0.26
0.39
0.57
15.3
32.4
68.4
85
129
195
2502
3716
5507
XX.XX lbs.
(XX.X kg)
XX.XX lbs. (XX.X
kg) X.XX cu.ft.

4
Part Description Quantity
AA Blade attachment screws 15
BB Plastic wire connector 3
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE:Hardware not shown to actual size.
AA BB CC DD
Part Description Quantity
CC Blade bracket hardware (screw and
lockwasher)
11
DD Decorative nut 15

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
Part Description Quantity
F Light kit pan 1
G Blade bracket 5
H Blade 5
I Light kit tter assembly (LED included) 1
J Glass bowl 1
K Receiver 1
L Remote control (battery included) 1
IMPORTANT:This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
G
DJ
E
K
H
I
L
1 2 3 4
ON DIP
F

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the screws provided with
the outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
ƑDisconnect the power by removing the fuses or turning off
the circuit breakers.
ƑSecure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE:You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Light Kit Pan
Attaching the light kit pan
1
ƑRemove one screw (EE) from the black bracket below fan
motor assembly (E), loosen but do not remove the other two
screws.
ƑPush the light kit pan (F) up to the fan motor assembly (E)
so that the two loosened screw heads t into the keyhole
slots. Turn the light kit pan (F) clockwise.
ƑRe-install the screw (EE) that was removed in step 1.
ƑMake sure all the screws are rmly tightened.
E
F
EE
Attaching the blades to the blade
brackets
Fastening the blade assemblies to
the motor
1
2
ƑAttach a blade (H) to blade bracket (G) using the decorative
nuts (DD) and blade attachment screws (AA) provided. Insert
a blade attachment screw (AA) through a hole in the blade
(H) and blade bracket (G) and into the decorative nut (DD).
ƑTighten each screw securely.
ƑRepeat these steps for each blade (H) and blade bracket (G).
ƑAttaching the blade assemblies to the motor by aligning the
two screws holes in the blade bracket with the screw holes
in the center ywheel and secure with screws (CC).
ƑRepeat this step for the remaining blade assemblies.
DD
AA
G
H
E
CC
Assembly - Attaching the Fan Blades

8

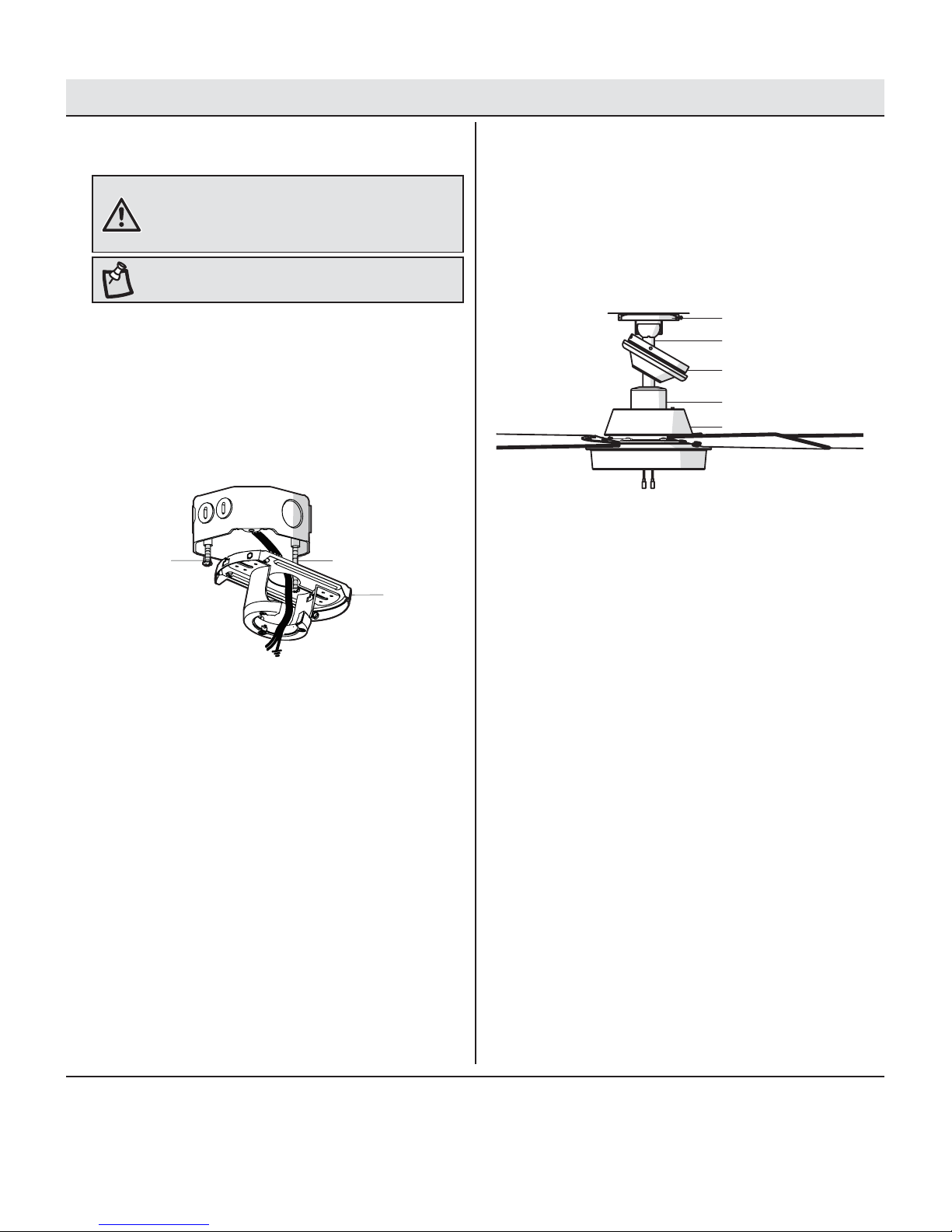

Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
ƑRoute the wires exiting at the top of the fan-motor
assembly (E) through the canopy ring (HH).
ƑInsert the ball/downrod (B) through the canopy (C) and
slide the decorative motor collar cover (D) onto the end
of the ball/downrod (B). Make sure the slots on the
canopy (C) are on top.
ƑRoute the wires exiting the top of the fan motor
assembly (E) through the downrod as shown.
21
C
A
HH
GG
FF
E
C
D
B
HH
ƑRemove the canopy ring (HH) from the canopy (C) by turning
the ring counterclockwise until it unlocks.
ƑRemove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (FF) located in the “L
shaped” slots.
ƑRemove and save the two canopy screws (GG) in the round
holes. This will enable you to remove the mounting bracket
(A).
Assembling the fan
ƑLoosen, but do not remove, the setscrew (JJ) on the collar
on top of the fan-motor assembly (E).
ƑInstall the downrod (B) by inserting it into the motor collar
(KK), and turning it clockwise until it is tight.
ƑReinstall the setscrew (JJ) turning clockwise until tight.
3
II
JJ
B
E
KK
NOTE:This fan is equipped with a safety tab (II). Should
the setscrew (JJ) ever become loose while the fan is
running in reverse, the safety tab (II) will engage and stop
the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(JJ) must be completely tightened.

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
Hanging the fan
ƑPass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
ƑInstall the ceiling slide-on mounting bracket (A) on the outlet
box by sliding the slide-on mounting bracket (A) over the two
screws (LL) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
ƑSecurely tighten the two mounting screws (LL).
ƑCarefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
ƑSeat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
12
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box or supporting
system marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the mounting screws provided
with the outlet box.
A
LL
LL
A
B
E
C
D
NOTE:The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (LL).

10
Assembly - Hanging the Fan (continued)
3
NOTE:The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE:The switch marked O/D controls the dimming function
of the light. Use a ballpoint pen or small screwdriver to
switch to O to disable the dimming function. The factory
preset is D.
Setting the code on the remote
control and receiver
ƑRemove the remote control (L) battery cover by pressing
rmly on the arrow and sliding the cover off.
ƑSlide the dip switches to your choice of either up or down.
The factory setting is up.
ƑSlide the dip switches (ZZ) on the receiver (K) to the same
position as set on the remote control (L).
ƑInstall two 1.5V AAA batteries (included).
ƑReplace the battery cover on the remote control (L).
ƑInsert the silicone rubber stopper (OO) into the hole on the
receiver (K) to cover the dip switches.
L
K
ZZ
12 34
ON
DO
1234
ON DIP
1234
ON
DO
12 34
ON
OO
NOTE:The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
hand unit. Dispose of used battery properly and keep the
battery out of the reach of children.
4Installing the receiver
ƑPosition the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
ƑInsert the narrow end of the receiver (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
B
C
AAA BBB
A
J

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)

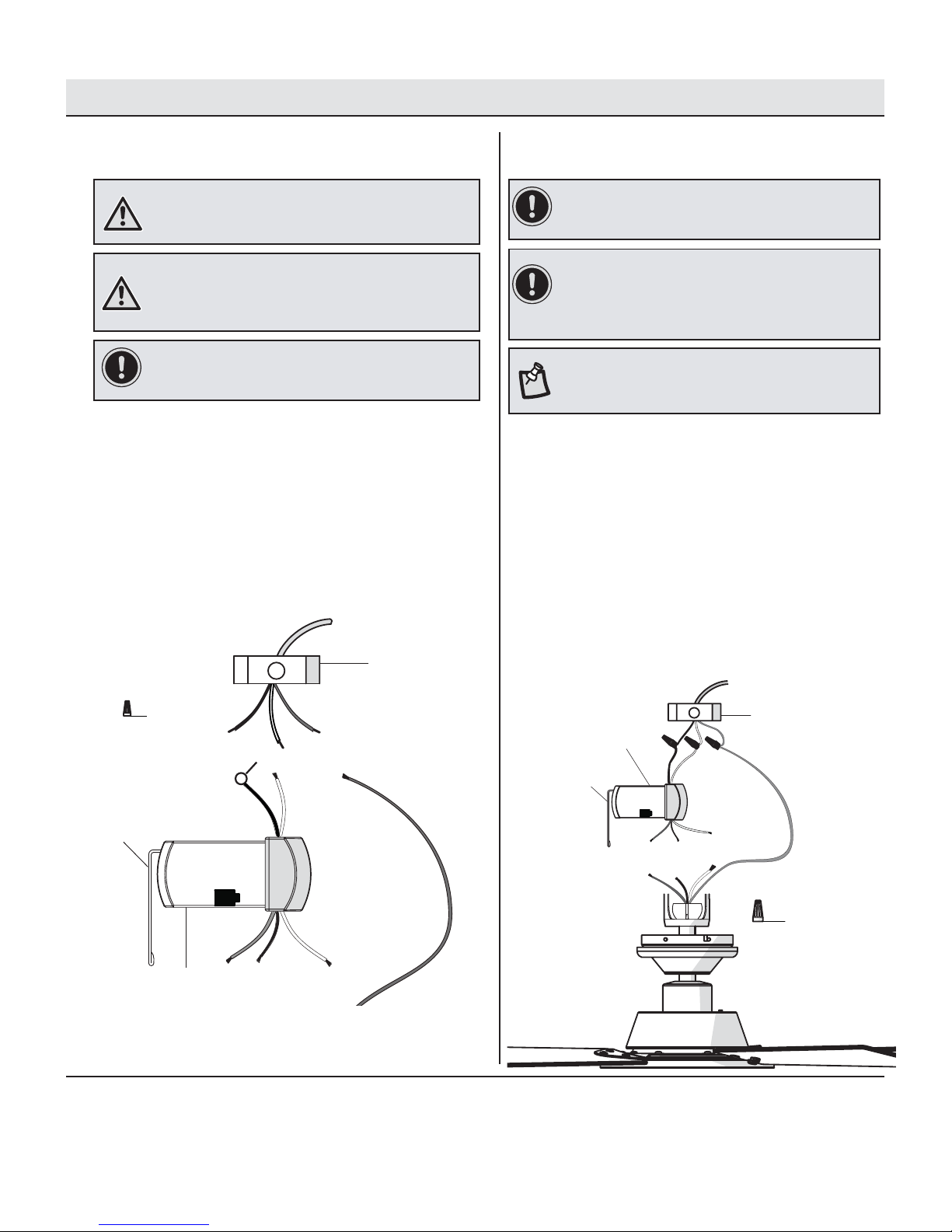

5Wiring the receiver to the household
wiring
IMPORTANT:Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
ƑSpread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
ƑConnect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
ƑConnect the receiver (K) black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
ƑConnect the receiver (K) white wire to the household white
wire (neutral) wire using a wire connecting nut (BB).
ƑSecure each wire connecting nut using electrical tape.
Black
(or Red)
Black
Green (or Bare)
Green
Outlet Box
in the ceiling (MM)
Receiver
Antenna
White
Receiver (K)
BB (x3)
1234
ON DIP
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Wiring the fan to the receiver
ƑThe fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/
downrod assembly (B) provided, you can cut the lead wires
to your desired length (no shorter than 13.5 in.) This will
make extra room in the canopy (C), if you do not wish to cut
the wires, you will need to neatly wrap them.
ƑConnect the fan motor white wire to the receiver white wire
using a wire connecting nut (BB).
ƑConnect the fan motor black wire to the receiver black wire
using a wire connecting nut (BB).
ƑConnect the fan motor blue wire to the receiver blue wire
using a wire connecting nut (BB).
ƑSecure each wire connecting nut using electrical tape.
ƑTurn the wire connecting nut (BB) upward and push the
wiring into the outlet box (MM).
6
IMPORTANT:Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
Outlet box
in the ceiling (MM)
Receiver (K)
Blue
Receiver
Antenna
Black White
Green
BB (x3)
1234
ON DIP
Blue Black White
NOTE:The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 13.5 in.).
IMPORTANT:If after this step, you decide to check that the
electrical connections have been successful, it is critical to
attach the light kit using the quick connector prior to testing.
The fan will not operate unless the light kit is connected to the
fan.

12
E
C
FF
HH
A
Assembly - Hanging the Fan (continued)
Wrapping the extra wire
ƑGently wrap the excess wire around the mounting bracket,
under the receiver.
ƑSecure with electrical tape.
7
NOTE:Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan to the receiver.
Mounting the fan-motor assembly
(standard mount)
ƑAlign the locking slots of the ceiling canopy (C) with the two
screws (FF) in the mounting bracket (A). Push up to engage
the slots and turn clockwise to lock in place.
ƑFirmly tighten the two mounting screws.
ƑInstall the two mounting screws (saved from Assembly Step
1 “Preparing for mounting”) into the holes in the canopy (C)
and tighten rmly.
ƑInstall the decorative canopy ring (HH) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
clockwise to lock in place.
8
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

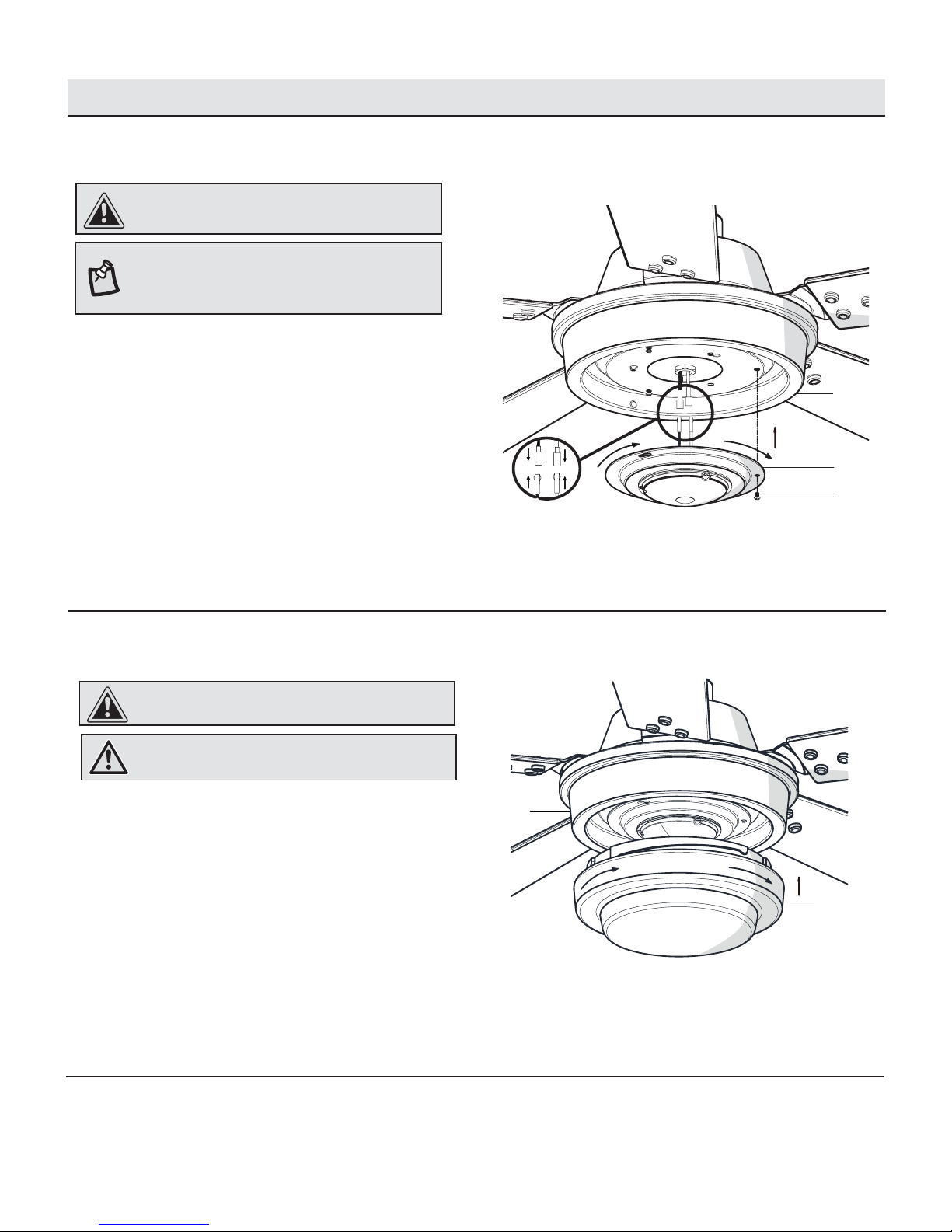

Assembly - Attaching the Lights
Attaching the light kit tter assembly
1
ƑRemove one screw (NN) from the round hole in the light kit
pan, and loosen, but do not remove the other two screws.
ƑConnect the blue wire exiting the bottom of the fan motor
assembly (E) with the black wire from the top of the light kit
tter assembly (I).
ƑConnect the white wire exiting the bottom of the fan motor
assembly (E) with the white wire from the top of the light kit
tter assembly (I).
ƑPush the light kit tter assembly (I) up to the light kit pan so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit tter assembly (I) clockwise to secure.
ƑRe-install the screw (NN) that was removed in step 1.
ƑMake sure all the screws are rmly tightened.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
NOTE: Notice the location of the fan’s slide switch. This is
the switch used to change the fan’s directional rotation.
For more information on the operation of this switch, see
Operating Your Fan and Remote Control on page 14.
E
I
NN
Installing the glass shade
2
ƑPlace the bowl (J) into the light kit pan (E), by aligning the
three at areas on the top ange of the bowl (J) with the
three raised dimples in the light kit pan.
ƑTurn the bowl clockwise until it stops.
CAUTION: Make sure the power is off before attaching or
removing the glass shades.
WARNING: Allow the glass shades to cool completely before
removing.
E
J

14

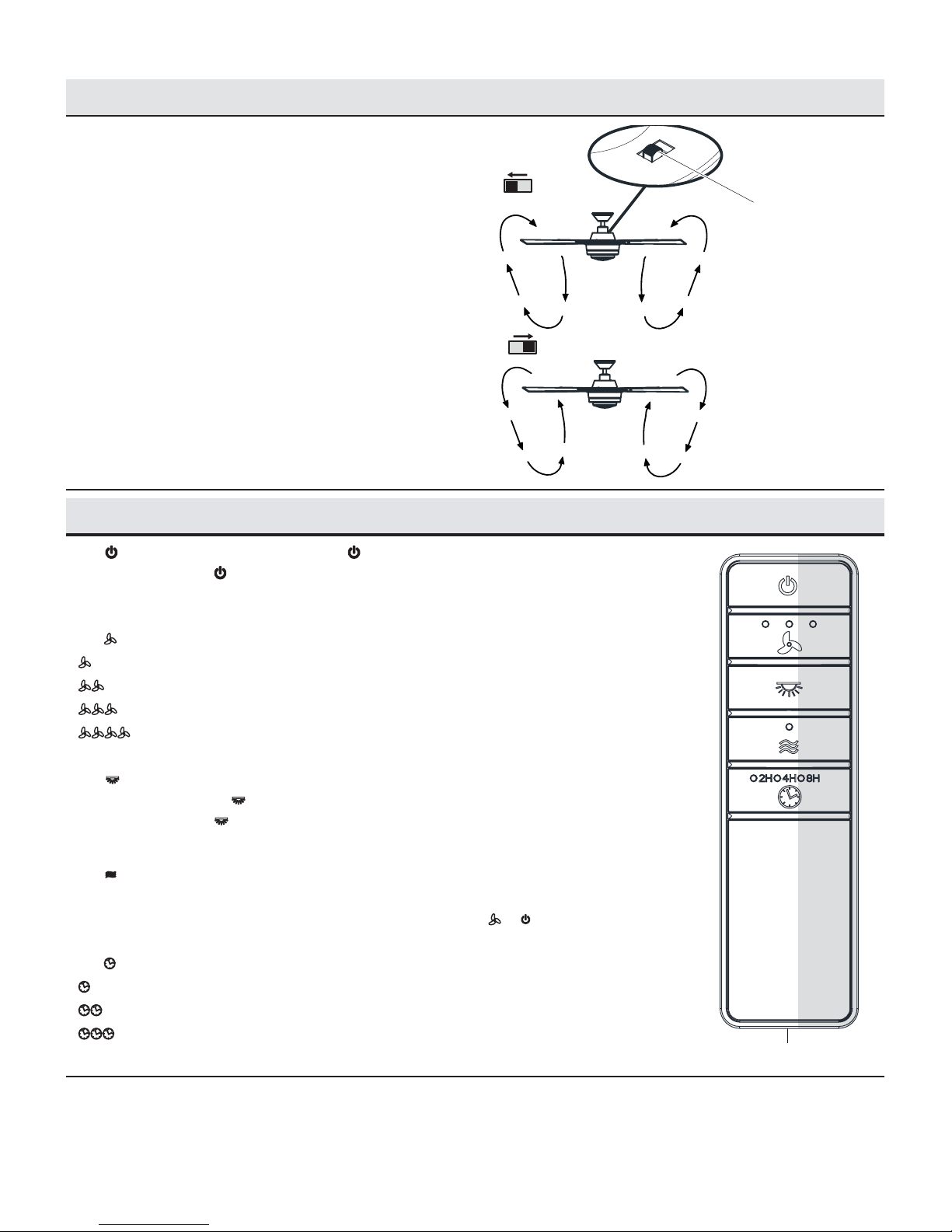

Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located on the top of the
motor housing) to the opposite position, and turn the fan on again. The
fan blades will turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
YY
A. Warm weather
B. Cool weather
1. Power ON/OFF. - Press and release the button to turn the fan on or off.
ƑPress and hold the button for 5 seconds to use the “walk away time delay”; this will active the light
for 30 seconds (the light will be activated at 50% brightness).
2. Fan Speed - LEDs on the fan speed button will illuminate to the corresponding speed.
- Press and release 1 time - turns the fan on low speed.
- Press and release 2 times - turns the fan on medium-low speed.
- Press and release 3 times - turns the fan on medium-high speed.
- Press and release 4 times - turns the fan off.
3. Light ON/OFF
ƑPress and release the button to turn the light on or off.
ƑPress and hold the button to activate the dimmer function (as long as you have NOT previously set
O/D dip switch in your remote to the “ON” position).
4. Comfort BreezeTM
ƑPress and hold this button for 3 seconds to enable Comfort BreezeTM; this will change your fan speed
randomly, simulating a relaxing breeze. To cancel this feature press or .
5. Timer
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
Operating Your Fan and Remote Control
L

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. ƑCheck the main and branch circuit fuses or breakers.
ƑCheck to make sure the wall switch is in the on position if applicable.
ƑCheck the line wire connections to the fan and switch wire connections in the switch housing.
ƑCheck the battery in the transmitter.
ƑEnsure you are in the normal range of 10-20 feet.
ƑEnsure the dip switch settings are the same on the transmitter and receiver.
ƑRemember to turn off the power supply before checking the dip switches settings.
The fan is noisy. ƑEnsure all motor housing screws are snug.
ƑEnsure the screws that attach the fan blade bracket to the motor hub are tight.
ƑEnsure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
ƑAllow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
ƑIf you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
ƑEnsure the canopy is a short distance from the ceiling. It should not touch the ceiling.
ƑEnsure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. ƑCheck that all blade and blade arm screws are secure.
ƑMost fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measure-
ment deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please contact
Customer Service and a balancing kit will be sent to you at no charge.
ƑBecause of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
ƑClean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
ƑYou can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
ƑYou do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.

GUÍA DE USO Y MANTENIMIENTO
¿Preguntas, problemas o piezas faltantes? Antes de devolver a la tienda,
llama al servicio al cliente de Home Decorators Collection,
De lunes a viernes, entre 8:00 a.m. y 7:00 p.m. (hora estándar del Este),
y los sábados de 9:00 a.m. a 6:00 p.m. (hora estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos
disponibles con vistas a las necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm. 1001 xxx xxx
Modelo núm. 51611
Modelo núm. 52-ESW Aprobado por UL
EMSWELL - VENTILADOR DE TECHO, 1.32 M

2
Tabla de contenido ..............................................................2
Información de seguridad...................................................2
Garantía................................................................................ 3
Pre-instalación..................................................................... 3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento................................................................. 14
Mantenimiento y limpieza................................................. 15
Solución de problemas .....................................................15
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
cortar la electricidad del cortacircuitos o la caja de fusibles
antes de comenzar.
2. Todo el cableado debe cumplir con el Código Nacional
de Electricidad ANSI/NFPA 70 y con los códigos locales
de electricidad. La instalación eléctrica debe realizarse
por un electricista certificado y calificado.
3. La caja eléctrica y estructura de soporte tienen que montarse
de forma segura y tener capacidad para sostener de manera
conable un mínimo de 35 lb. (15.9 kg). Usa sólo cajas
eléctricas aprobadas por UL y marcadas como apropiadas
para sostener ventiladores de 35 lb (15.9 kg) o menos.
4. El ventilador tiene que montarse con un mínimo de 7 pies (2.1 m)
de separación entre el borde trasero de las aspas y el piso.
5. No muevas el interruptor de reversa mientras las aspas
del ventilador estén en movimiento. Tienes que apagar
el ventilador y esperar a que se detengan las aspas antes
de ponerlas a girar en sentido contrario.
6. No coloques objetos en la trayectoria de las aspas.
7. Para evitar lesiones físicas o daños al ventilador y otros
artículos, ten cuidado al limpiarlo o al trabajar cerca de él.
8. Los diagramas eléctricos son sólo para referencia. Los kits
de luces no empaquetados con el ventilador tienen que estar
aprobados por UL y marcados como apropiados para usar con
el modelo de ventilador que estás instalando. Los interruptores
tienen que estar clasicados para uso general por UL. Consulta
las instrucciones adjuntas a los kits de luces e interruptores
para el ensamblaje adecuado.
9. Después de concluir las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y meterlos con
cuidado en la caja eléctrica. Los cables deben separarse con
el cable a tierra y el conductor a tierra del equipo hacia uno de
los lados de la caja eléctrica.
10. Todos los tornillos de fijación tienen que ser verificados y
ajustados donde sea necesario antes de la instalación.
ADVERTENCIA: Para reducir el riesgo de lesiones,
no dobles los soportes de las aspas (también llamados
bridas) durante el ensamblaje o después de la instalación.
No coloques objetos en la trayectoria de las aspas.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de control de velocidad de estado sólido.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, corta la energía eléctrica en la caja
principal de fusibles antes de instalar el cableado.
Si crees que no tienes suciente experiencia o
conocimientos sobre cableado eléctrico, contrata a
un electricista con licencia.
ADVERTENCIA: Los diagramas eléctricos son sólo
para referencia. Cualquier juego de luces opcional
debe estar aprobado por UL y marcado como
adecuado para usar con este ventilador.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, "este ventilador sólo debe ser
usado con un control de velocidad con el núm. de pieza
MR140A, fabricado por Satellite Industrial Co., LTD”
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones,
usa sólo los tornillos incluidos con la caja eléctrica.
LEE Y GUARDA ESTAS INSTRUCCIONES.
Este dispositivo cumple con la Parte 15 de las Regulaciones de la FCC. El uso está sujeto a las dos siguientes condiciones: (1) este dispositivo no debe
causar interferencia dañina, y (2) tiene que aceptar cualquier interferencia recibida, incluyendo aquella que pudiera afectar su funcionamiento.
PRECAUCIÓN: Los cambios o modicaciones sin
previa aprobación expresa de la parte responsable
de su cumplimiento podrían anular el derecho del
usuario a operar el equipo.
PRECAUCIÓN: No usar este ventilador con control
de pared o interruptor con regulador de intensidad.
Usar uno u otro dañará este ventilador.
ADVERTENCIA: A n de reducir el riesgo de descargas
eléctricas, este ventilador debe instalarse con un
interruptor de aislamiento para montaje en pared.

3HOMEDEPOT.COM/HOMEDECORATORS
Para más asistencia, llama al 1-800-986-3460.
Pre-instalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha de adquisición por el comprador original, que el motor del ventilador no presenta defectos
de fabricación ni de materiales al momento del envío desde la fábrica. El proveedor también garantiza, por un período de dos años a partir de la
fecha de adquisición por el comprador original, que todas las demás piezas del ventilador, sin incluir aspas de vidrio o acrílico, no presentarán
ningún defecto de fabricación ni de material al momento del envío desde la fábrica. Acordamos reparar tales defectos sin cargo alguno o,
a nuestra discreción, reemplazar el producto, si es devuelto, por un modelo de calidad igual o superior. Para obtener servicio de garantía, tiene
que presentarse una copia del recibo como prueba de compra. Todos los costos de retiro y reinstalación del producto correrán por cuenta del
cliente. Los daños a cualquiera de las piezas como resultado de accidentes, uso inadecuado, instalación inadecuada o instalación de cualquier
accesorio, no están cubiertos por esta garantía. Puesto que las condiciones climáticas pueden variar, esta garantía no cubre ningún cambio en el
acabado en bronce, incluyendo óxido, perforación, corrosión, manchas o descascaramiento. Este tipo de acabados en bronce de brinda la vida útil
más larga al dar protección contra condiciones climáticas cambiantes. Cierta “oscilación” es normal y no debe considerase un defecto. Cualquier
servicio prestado por personal no autorizado invalidará la garantía. No hay ninguna otra garantía expresa. Por este medio, Home Depot Decorators
Collection queda exento de todas y cada una de las garantías, incluyendo, pero sin limitarse a, aquellas de comercialización e idoneidad para
determinado propósito, en el alcance permitido por la ley. La duración de cualquier garantía implícita que no pueda eximirse está limitada
al período de tiempo especicado en la garantía explícita. Algunos estados no permiten limitar la duración de la garantía; por consiguiente,
la limitación anterior pudiera no aplicarse a su caso. El minorista no será responsable por daños directos, indirectos o especiales que resulten
o deriven del uso o funcionamiento del producto, excepto en los casos estipulados por la ley. Algunos estados no permiten excluir ni limitar daños
directos o indirectos, así que la limitación o exclusión anterior pudiera no aplicarse a su caso. Esta garantía otorga derechos legales especícos
y es posible que usted tenga también otros derechos, que varían de un estado a otro. Esta garantía sustituye todas las garantías anteriores. Los
costos de envío de cualquier devolución de productos como parte de una reclamación de garantía corren por cuenta del cliente.
Comuníquese con el equipo de servicio al cliente por el teléfono 1-800-986-3460 o visite www.HomeDepot.com/homedecorators.
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
NOTA:Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista
Corta
cables
Escalera de tijera
Tamaño Velocidad Voltios Amperes Watts RPM CFM Peso
neto
Peso
bruto
Pies
cúbicos
1.3 m
Baja
Media
Alta
120
0.26
0.39
0.57
15.3
32.4
68.4
85
129
195
2502
3716
5507
XX.XX lb
(XX.X kg)
XX.XX lb
(XX.X kg) X.XX pies³

4
Pieza Descripción Cantidad
AA Tornillos para montaje de aspas 15
BB Conector plástico para cables 3
Preinstalación (continuación)
HERRAJES INCLUIDOS
NOTA:Los herrajes no se muestran en su
tamaño real.
AA BB CC DD
Pieza Descripción Cantidad
CC Herrajes para montaje de aspas
(tornillo y arandela de seguridad)
11
DD Tuerca decorativa 15
