INSTRUCTION MANUAL
C010

Contents
Scope of delivery........................................................................................................................ 3
1 Safety................................................................................................................................. 4
1.1 Intended use.......................................................................................................... 4
1.2 Safety instructions................................................................................................. 4
2 Description........................................................................................................................ 7
2.1 Description of the machine.................................................................................... 7
2.2 Control panel......................................................................................................... 8
3 Unpacking and setting up the machine ....................................................................... 10
4 Switching the machine on or off ................................................................................... 12
5 Tips and tricks................................................................................................................. 13
5.1 Hygiene............................................................................................................... 13
5.2 Product................................................................................................................ 13
5.3 Packing................................................................................................................ 13
5.4 Film pouch........................................................................................................... 13
6 Operation......................................................................................................................... 15
6.1 Selecting function and setting values ................................................................. 15
6.2 Packing products................................................................................................. 15
6.3 Evacuating vacuum boxes or bottles .................................................................. 19
6.4 Interrupting the evacuation.................................................................................. 21
6.5 Cancelling packing ............................................................................................. 21
6.6 Changing favourites 1,2 or 3 .............................................................................. 21
7 Cleaning........................................................................................................................... 23
7.1 Cleaning the machine.......................................................................................... 23
7.2 Cleaning vacuum stopper for bottles................................................................... 24
8 What to do if ................................................................................................................... 25
9 Spare parts and accessories......................................................................................... 28
9.1 Changing the sealing bar.................................................................................... 29
9.2 Changing chamber lid gasket.............................................................................. 30
10 Disposal........................................................................................................................... 31
11 Technical specifications................................................................................................. 32
12 EU Declaration of Conformity........................................................................................ 33
Index.......................................................................................................................................... 34
Contents
2 / 34 25.09.2017

Scope of delivery
1Machine
2The power cord
3Quick Start Guide
4Instruction manual
5Film pouch starter set
6Sloping insert with support angle
7Vacuum hose
8Vacuum stopper (2 items)
This instruction manual is an important part of the machine. Keep the
instruction manual near the machine for future reference and provide
it to others if you sell or loan the machine.
Scope of delivery
25.09.2017 3 / 34

1 Safety
1.1 Intended use
• The machine is intended for domestic use.
• The machine can be used to pack and marinate products in film
pouches.
– Only suitable, pre-made film pouches may be used for the
packing and marinating of products. See Section 5.4 "Film
pouch" on page 13.
• The machine is suitable for 30 sequential packaging procedures.
Then let the machine cool down to room temperature.
• Bottles and vacuum boxes can be evacuated by the machine, us-
ing the vacuum hose supplied.
– Only glass bottles may be used for evacuating bottles.
– No damaged or thin-walled glass bottles may be used for evac-
uating bottles.
– Only suitable vacuum boxes may be used for evacuating vac-
uum boxes.
• Food that contains carbon dioxide may not be evacuated.
• Powder-forming products may not be evacuated.
• No liquids may be sucked in via the suction opening or the vacuum
hose.
• Living creatures may not be packed.
• Electronic devices may not be packed.
• The machine is not suitable for use in outdoor areas.
1.2 Safety instructions
The machine incorporates state-of-the-art standards. Nevertheless,
potential hazards for persons, the machine and other material assets
cannot be entirely excluded.
• If the machine is damaged or dropped it must not be switched on.
• Repairs may only be performed by the manufacturer or a service
centre that has been authorised by the manufacturer.
• Do not pack or marinate any highly flammable, combustible or ex-
plosion-prone products using the machine.
• Do not pack any dust-forming or powder-forming products with the
machine.
Protection from electric shock
• Do not touch damaged power cords or damaged mains plugs. Re-
place the power cord immediately.
• The mains voltage of the machine must match the mains voltage
of the mains electricity. Compare the mains voltage on the type
plate of the machine with the mains voltage of the mains electricity
before inserting the mains plug of the machine into the socket.
Safety
Safety instructions
4 / 34 25.09.2017

• There are live components inside the machine. Do not open the
housing.
• Do not immerse the machine in water or other liquids.
• The machine may only be operated when the electrical fuse cover
is attached.
Children at home and persons with disabilities
• Children under eight years of age are not allowed to use the ma-
chine.
• The machine can be used by children 8 years old and above, and
also by persons with reduced physical, sensory or mental capaci-
ties or insufficient experience and knowledge, if they are super-
vised or instructed in the safe use of the machine and understand
the resulting risks.
• Children are not allowed to play with the machine.
• Cleaning and user servicing must not be performed by children
without supervision.
• The sealing bar reaches a heat of approx. 140 °C (284 °F) during
operation. The seal seam of the sealed film pouch is also hot just
after sealing. Children must not touch the machine while the seal-
ing bar and the seal seam are hot.
• Risk of suffocation! The thin film of the packaging material can ad-
here to the mouth and nose and interfere with breathing. Keep the
packaging material away from babies and small children. Do not
use the packaging material in cribs, beds, carrying bags or play-
pens. Packaging material is not a toy.
Protection from burns
• The sealing bar reaches a heat of approx. 140 °C (284 °F) during
operation. The seal seam of the sealed film pouch is also hot just
after sealing. Do not touch the sealing bar or the seal seam.
Eye injuries
• A damaged or scratched chamber lid can implode and splinter. If
the chamber lid is damaged, do not switch the machine on. Re-
place the chamber lid.
• Do not scratch the chamber lid.
• Do not use the chamber lid as a storage, working or cutting sur-
face.
Safety
Safety instructions
25.09.2017 5 / 34

• Insufficient hygiene when dealing with the product and the ma-
chine can contaminate the product and the pack. Regularly clean
the machine, the work equipment, the work environment and your
hands before and after every use. In this way undesired transmis-
sion of contaminants to objects and the product can be avoided.
Protection from other injuries
• If body parts are sucked with the vacuum hose this can cause inju-
ries.
During operation
• Do not leave the machine unsupervised during operation.
Safety
Safety instructions
6 / 34 25.09.2017
Hygiene

2 Description
2.1 Description of the machine
1The chamber lid
2Vacuum hose for the evacuation of vacuum boxes and bottles
3Suction opening
4Sloping insert with support angle
5Sealing bar
6Rotary knob
7Control panel
8Handle
Description
Description of the machine
25.09.2017 7 / 34

1Handle
2The mains switch

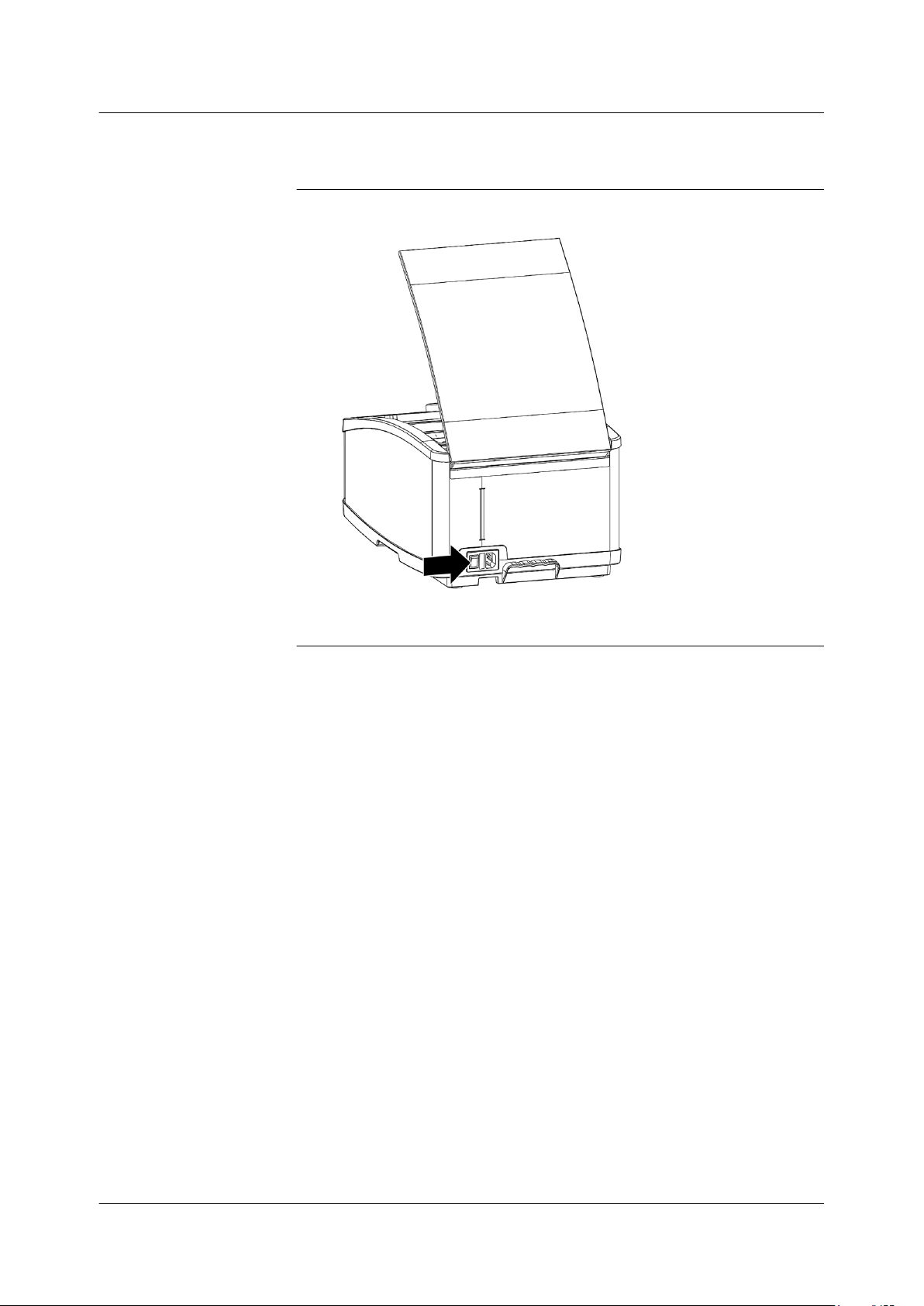

3Fuse with cover
4Cord storage compartment for the power cord
5Connection for the power cord
6Type plate
Description
Control panel
8 / 34 25.09.2017

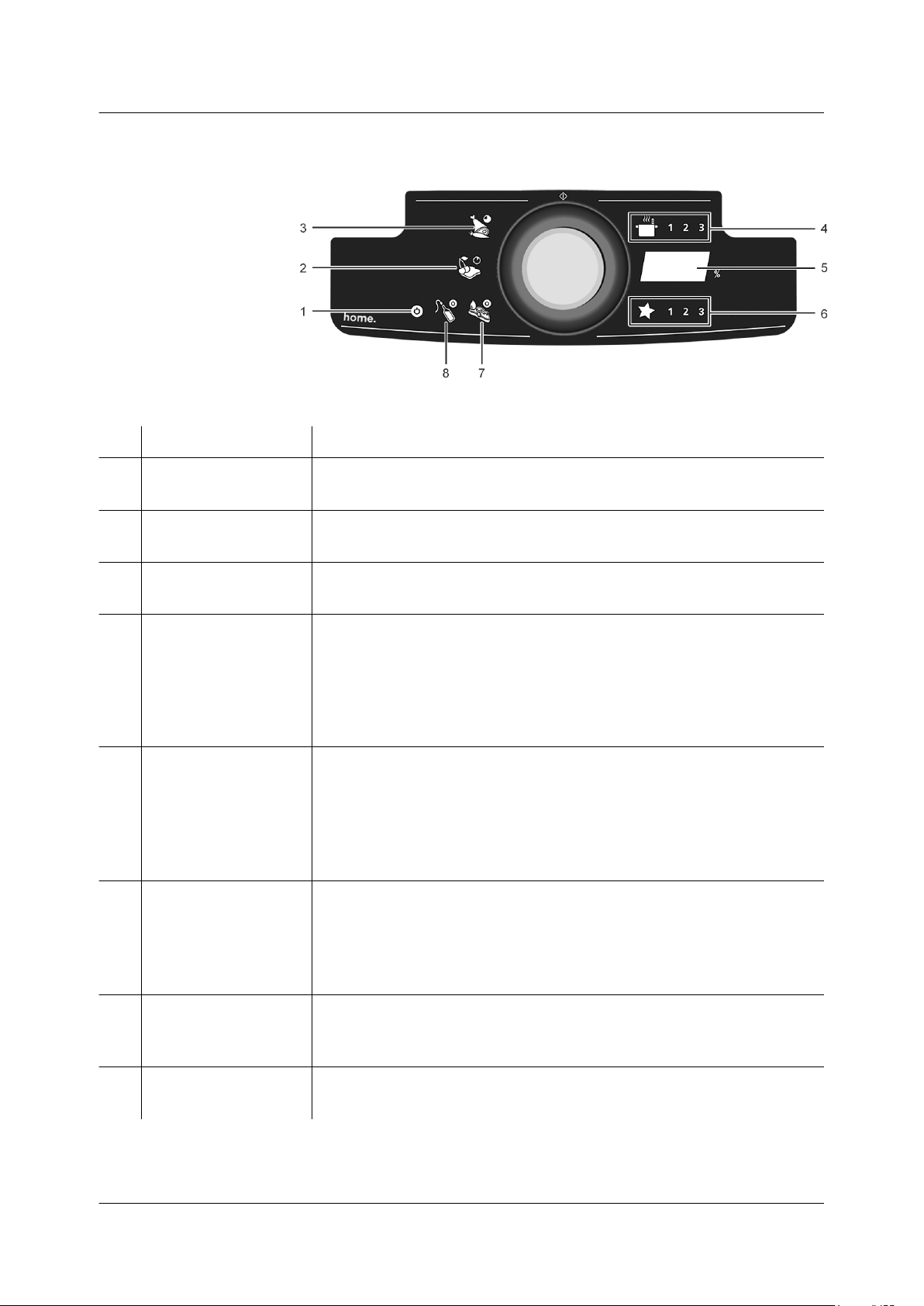

Function Description
1Stand-by The control light illuminates after a long machine downtime and
signals that the machine is operational.
2Low vacuum This function can be used to evacuate soft and pressure-sensitive
products, e.g. cooked noodles, pastries and fruit.
3Maximum vacuum This function can be used to evacuate products that are less pres-
sure-sensitive, such as meat, sausages and root vegetables.
4Sous-vide This function can be used to produce packs for the sous-vide
cooking method.
• 1: for firm products, e.g. meat and root vegetables
• 2: for soft products, e.g. fish and cucurbits (gourd family)
• 3: for particularly soft products, e.g. delicate vegetables
5Adjustable vacuum This function can be used to evacuate products with a vacuum of
40% to 100%.
The higher the set value, the higher the vacuum.
If the set vacuum cannot be reached, the machine automatically
selects the optimum vacuum. See Section 5.2 "Product" on
page 13. The message "OPT" appears on the display.
6Favourites This function can be used to save up to three custom-selected
vacuums. The saved value is shown on the display.
If the set vacuum cannot be reached, the machine automatically
selects the optimum vacuum. See Section 5.2 "Product" on
page 13. The message "OPT" appears on the display.
7Marinating This function can be used to accelerate the marinading of food.
The marinating time can be set between 10 minutes and 30 mi-
nutes.
8External vacuum This function can be used to evacuate vacuum boxes or bottles
with a vacuum stopper using the vacuum hose.
Description
Control panel
25.09.2017 9 / 34
2.2 Control panel

3 Unpacking and setting up the
machine
1. Lift the machine out of the box and place it on a clean and
even work surface.
1.1 Ensure that there is enough free space above the ma-
chine to be able to open the chamber lid.
1.2 The distance from all side panels must be at least 10 cm.
2. Check whether the scope of delivery is complete.
3. Remove all the protective film.
4. Check whether the machine is damaged. If the machine is
damaged, inform the manufacturer and send the machine
back to them.
5. Clean the machine. See Section 7 "Cleaning" on page
23.
6. Insert the power cord into the machine.
7. Plug the mains plug into the socket.
Unpacking and setting up the machine
10 / 34 25.09.2017

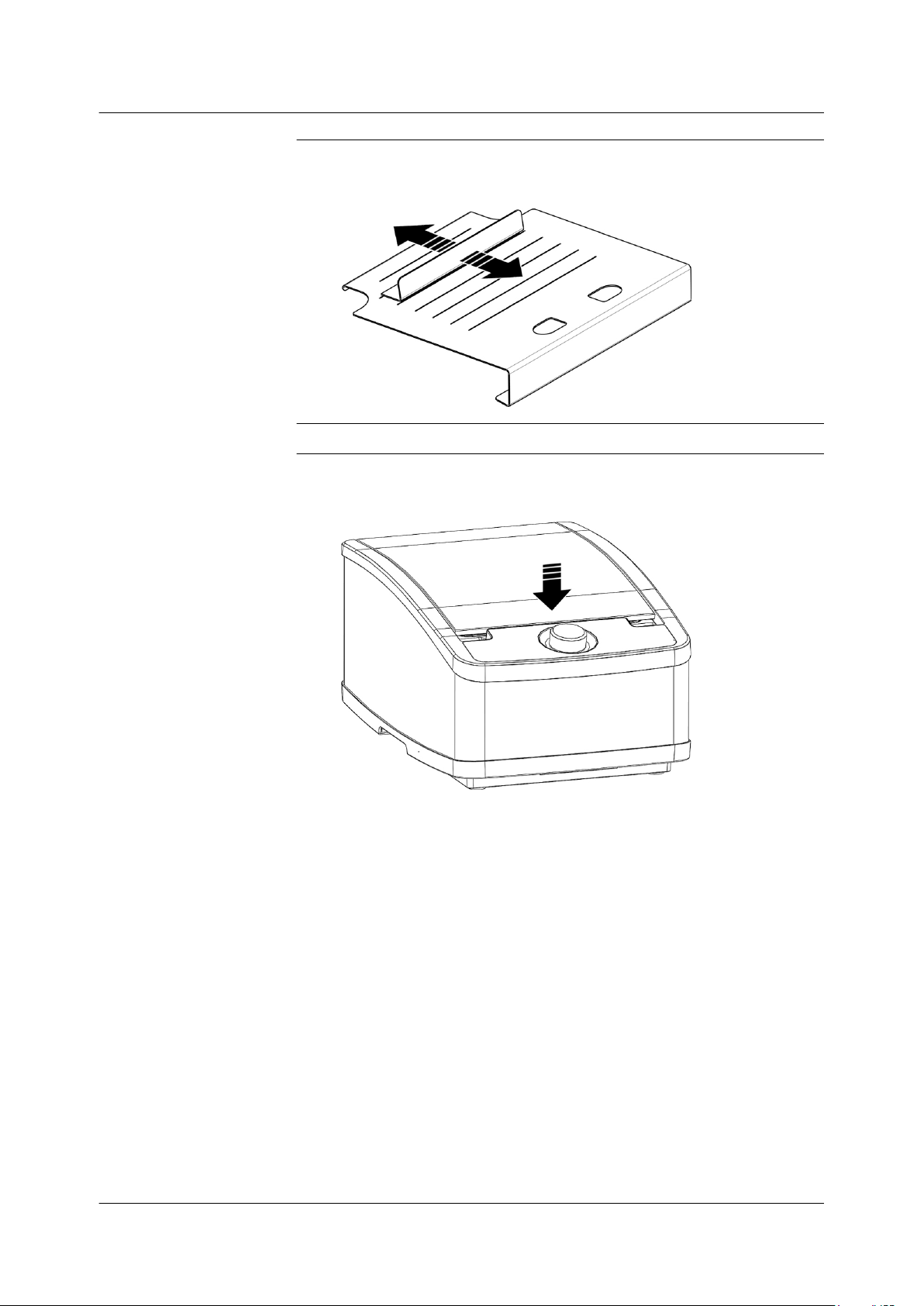

8. Insert the sloping insert and the support angle for support-
ing the film pouch in the chamber.
Unpacking and setting up the machine
25.09.2017 11 / 34

4 Switching the machine on or off
1. Switch the machine on or off using the mains switch.
üWhen the machine is switched on two clicking sounds
are emitted one after the other.
Switching the machine on or off
12 / 34 25.09.2017

5 Tips and tricks
5.1 Hygiene
• A clean and hygienic work environment is the basis for high-quality
packed food. For this reason, it is very important to regularly clean
and kept the machine, the work environment and your hands hy-
gienic before and after every use.
• Do not use the film pouch multiple times.
• Only touch the outside of the film pouch with clean hands. This
way you avoid unwanted transmission of contaminants to the film
pouch or the product and unpleasant smells in the refrigerator.
5.2 Product
• Only fresh and cooled foods can be stored for longer. Therefore,
only pack fresh food. Do not interrupt the cold chain.
• Pack food immediately and do not store it prior to packing.
• A high vacuum can be achieved for cooled food. Pack cooled
foods as much as is possible.
• A high vacuum can increase the shelf life of a foodstuff.
• Liquids can be managed more easily when packaging if they are
frozen in advance.
• Let precooked food cool down to a temperature of no more than
approx. 20 °C before packing it.
• Treat foods that have a tendency to ferment before packing them,
e.g. by blanching, frying, etc.
5.3 Packing
• The edges of the film pouch can be turned outwards when filling,
to prevent them from being dirtied in the seal seam. The edges of
the film pouch thus stay clean and the film pouch is sealed secure-
ly.
5.4 Film pouch
Depending on the application, the film pouch must satisfy various de-
mands.
• The film pouch must be suitable for the packing of food.
The film pouch must not transfer any of its components onto the
food.
• The film pouch must be sealable.
In order to seal the opening of the film pouch, it must melt and bind
when exposed to heat. The material and seal of the film pouch
must be solid enough that the pack is airtight after sealing.
• The film pouch must be impermeable to oils, fats, alkaline solu-
tions and flavours. In addition, the film pouch must have high tear
and puncture resistance.
Tips and tricks
Film pouch
25.09.2017 13 / 34

• The film pouch must have a barrier effect.
• The film pouch must be heat-resistant.
If the packaged food is immersed in hot water, such as in sous-
vide cooking, the film pouch must be able to withstand this temper-
ature.
• The film pouch must be frost-resistant.
For optimal packaging results, the use of MULTIVAC film pouches is
recommended.
Tips and tricks
Film pouch
14 / 34 25.09.2017

6 Operation
6.1 Selecting function and setting values
A function can be selected by turning the rotary knob.
The selected function is immediately active and is performed by the
machine as soon as the chamber lid is closed.
Pressing the rotary knob switches to the respective sub-menu.
A value can be selected or set in the sub-menu by turning the rotary
knob.
Pressing the rotary knob again exits the sub-menu. The selected or
set value is then active and is performed by the machine as soon as
the chamber lid is closed.
6.2 Packing products
1. Filling an unused film pouch. Ensure that the area inside
and outside the film pouch's seal seam remains clean.
Operation
Packing products
25.09.2017 15 / 34

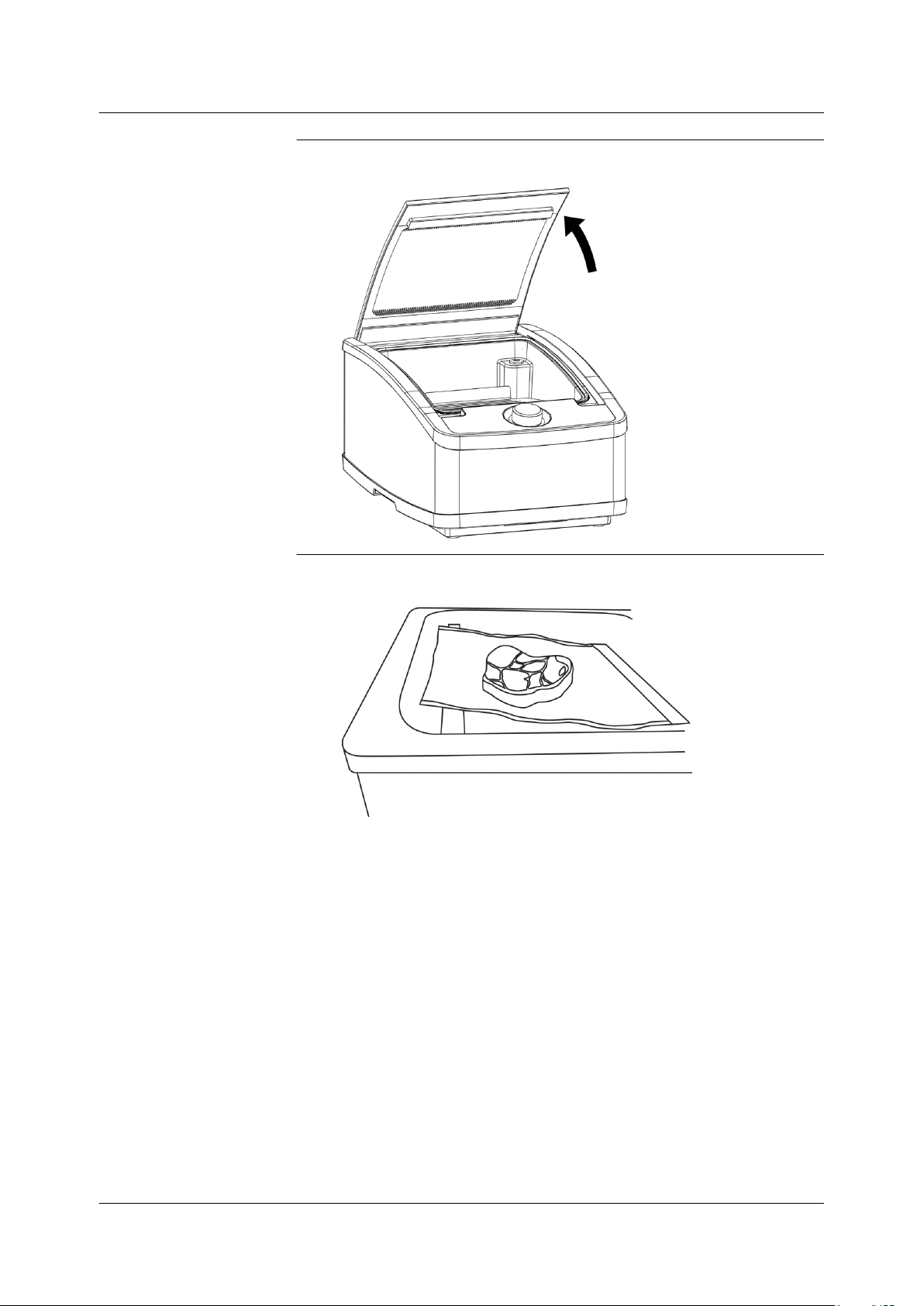

2. Open the chamber lid.
3. Place the film pouch in the chamber.
3.1 Place the opening of the film pouch centrally on the seal-
ing bar and smooth it flat.
üThe opening of the film pouch must be inside the cham-
ber.
üThe film pouch must not hang over the sides of the seal-
ing bar.
Operation
Packing products
16 / 34 25.09.2017

4. To avoid the film pouch slipping, adjust the support angle
to the length of the film pouch.
5. Select the function required.
6. Close the chamber lid, firmly press it closed and hold
pressed for 2 to 3 seconds.
üThe packaging procedure starts and runs automatically.
üThe packaging procedure takes up to 90 seconds.
Operation
Packing products
25.09.2017 17 / 34

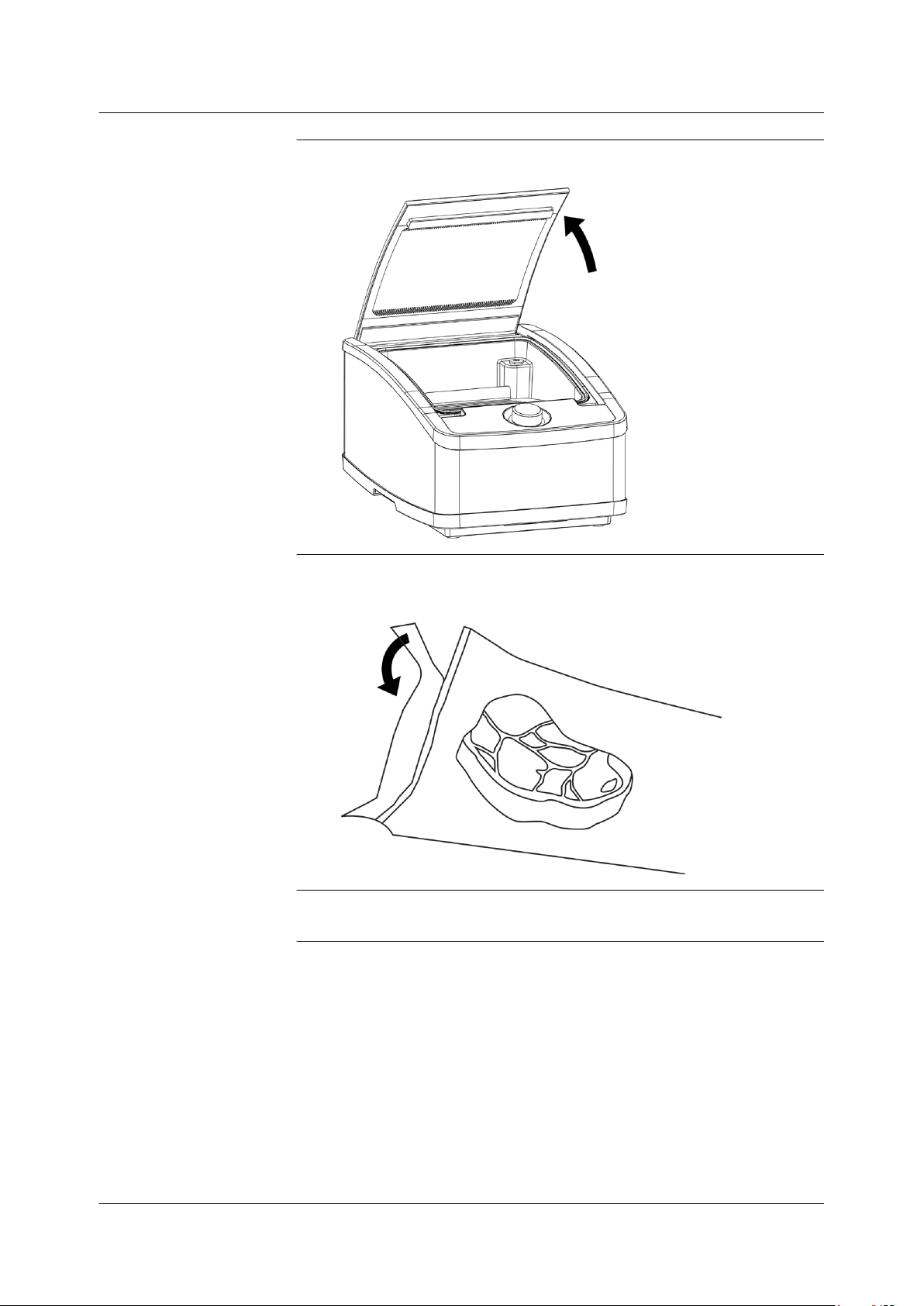

7. Open the chamber lid.
8. Remove the pack from the chamber and detach the ex-
cess length of the film pouch.
9. If no further products are to be packaged, switch the ma-
chine off.
Operation
Packing products
18 / 34 25.09.2017

6.3 Evacuating vacuum boxes or bottles

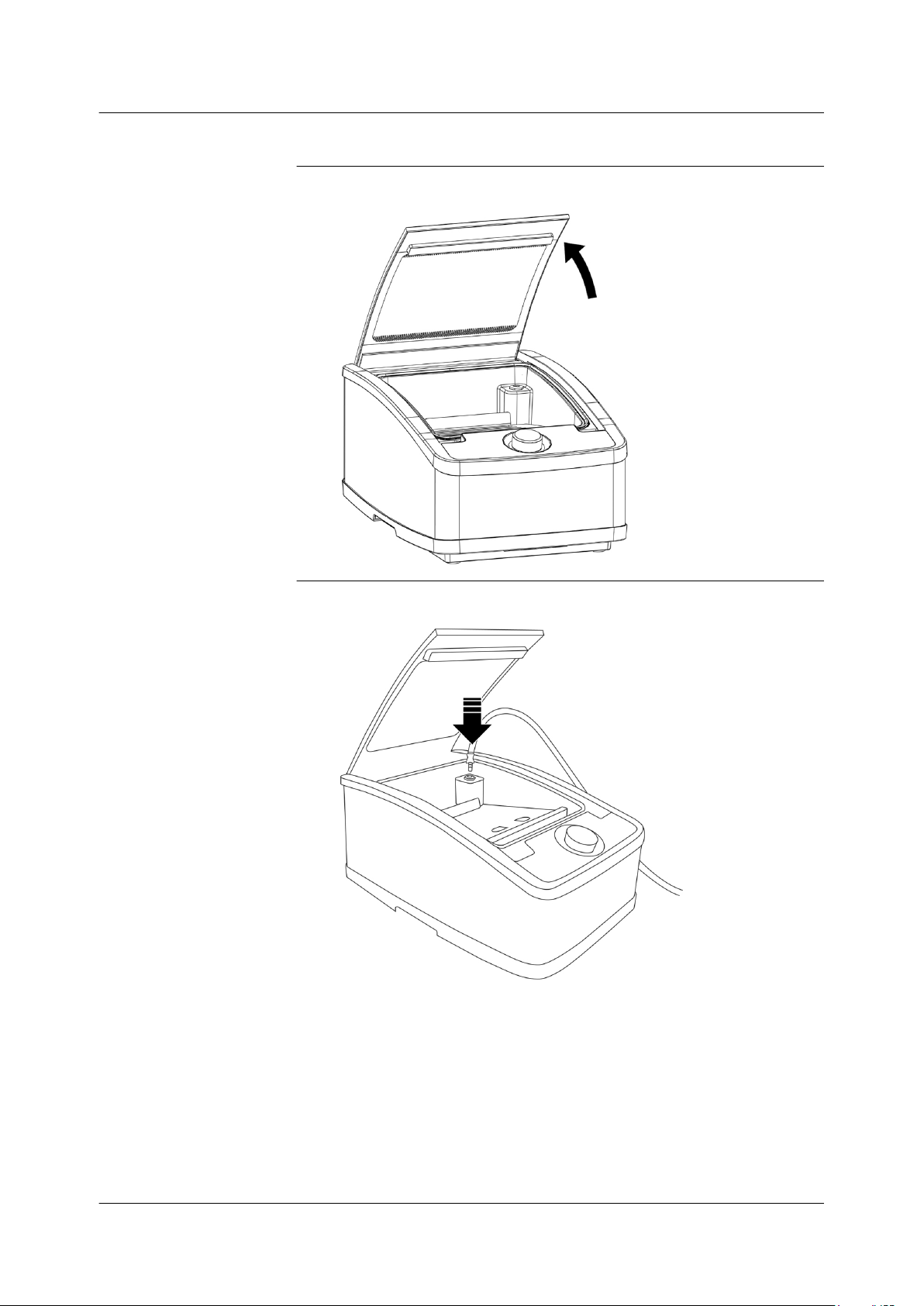

1. Open the chamber lid.
2. Plug the vacuum hose into the suction opening.
Operation
Evacuating vacuum boxes or bottles
25.09.2017 19 / 34

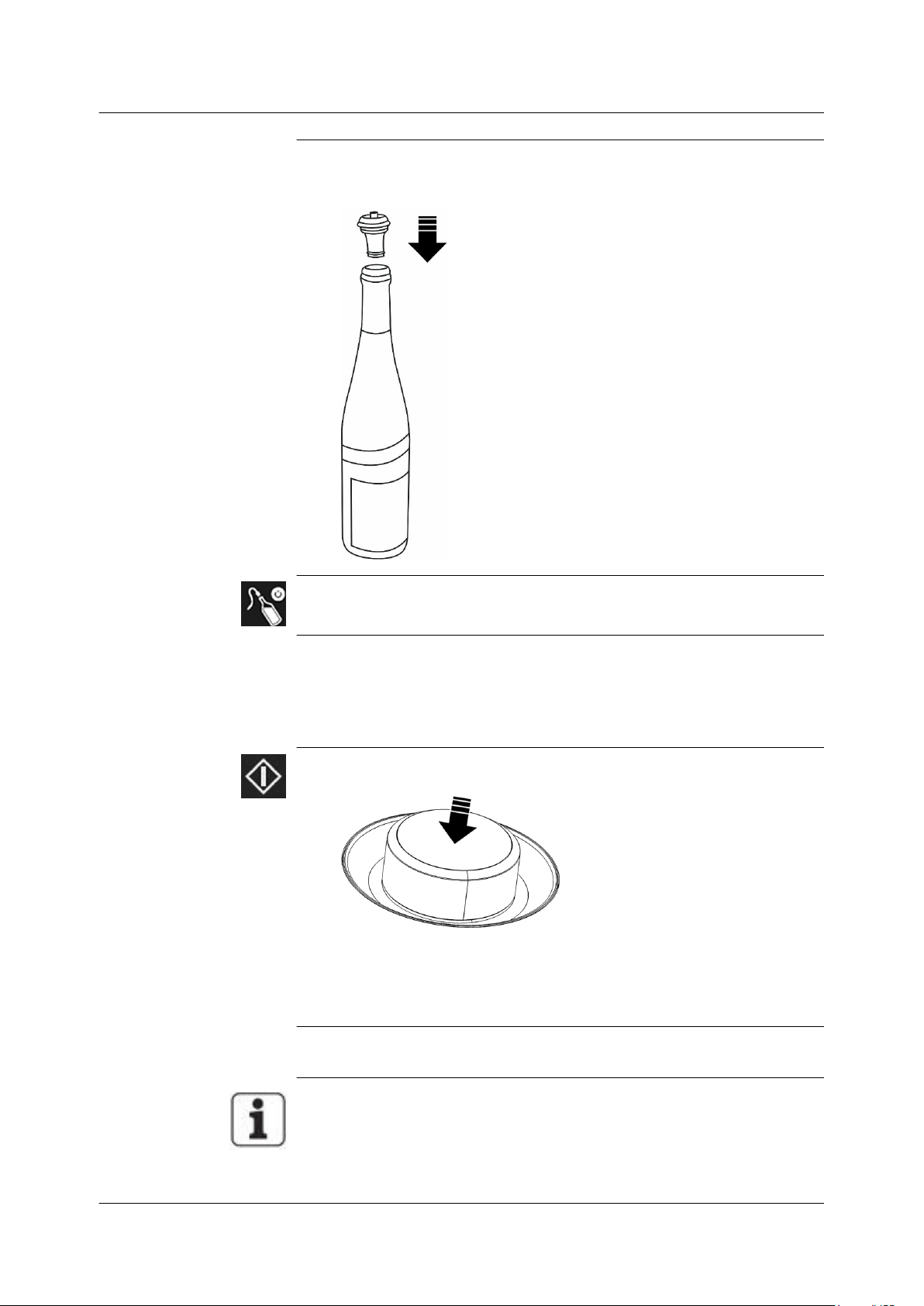

3. If a bottle is to be evacuated, clean the vacuum stopper
and insert it into the bottle.
4. Select the External vacuum function.
5. Insert the other end of the vacuum hose onto the vacuum
stopper or the valve of the vacuum box and hold firmly
during the evacuation process. Do not evacuate any bot-
tles or vacuum boxes that have contents containing car-
bon dioxide.
6. Press the <rotary knob>.
üThe evacuation starts. The pressure in the bottle or the
vacuum box is shown on the display.
üThe machine stops when the optimal vacuum has been
achieved.
7. If no further bottles or vacuum boxes are to be evacuated,
switch the machine off.
Info
• Store the evacuated bottle upright.
• To ventilate the bottle, kink the valve in the vacuum stopper.
Operation
Evacuating vacuum boxes or bottles
20 / 34 25.09.2017
