Dual-Zone Wine Cooler
43 Bole Capacity
HME030368N
Thank you for selecting our quality appliance. Please be sure to read this user manual carefully before using. Any question, please contact the professional service for help.

BEFORE FIRST USE:
To prevent any internal damage, it is very important to keep
refrigeration units (like this one) upright throughout their journey.
Please leave it standing upright and outside the box for 24 HOURS
before plugging it in.
In the event this product malfunctions or customer believes
it is defective, the customer should contact Customer Service
and retain the defective product pending further instructions.
Defective product should be clearly marked or stored where it
cannot be used again by mistake. Failure to retain the product
may impede hOme™’s ability to correct any legitimate problem
and may limit the extent to which hOme™may provide recourse.

Important Satety Instructions
Operating Instructions
Cleaning and Maintenance
Troubleshooting
Warranty
Manufacturing Info
Warning
Contact Us
6-9
10-15
16
17
18
18
18
18
TABLE OF CONTENTS

on bringing home your new appliance!
Congratulations
Don’t forget to register your product at homelabs.com/reg
for updates, coupons, and other relevant information.
Although greatly appreciated, product registration is not
required to activate any warranty.

6

This appliance is intended to be used in household and similar applications such as staff kitchen areas in


applications.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.)
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

Do not
The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
WARNING
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
• 
refrigerant.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not use extension cords or ungrounded (two prong) adapters.
DANGER

- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
The refrigerator must be disconnected from the source of electrical supply before attempting the
installation of accessory.



prevent damage to the environment or any other harm.
CHILDREN should be supervised to ensure that they do not play with the appliance.
Important Safety Instructions

7
Important Safety Instructions
WARNING
• 
instructions.
TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of

MEANING OF SAFETY WARNING SYMBOLS
Prohibition symbols
The symbols indicate prohibited matters, and those behaviors are forbidden.
Non-compliance with the instructions may result in product damages
orendanger the personal safety of users.
Warning symbols
The symbols indicate matters that must be followed, and those behaviors must
be strictly executed in line with the operation requirements. Non-compliance
with the instructions m a y result in product damages orendanger the personal
safety of users.
Note symbols
The symbols indicate matters to pay attention to, and these behaviors shall be
specially noted. Due precautions are needed or minor or moderate injuries or
damages of the product will be caused.
This manual contains lots o f important safety information which shall be observed by the users.
ELECTRICITY RELATED WARNINGS
• 
and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the
power cord is damaged or the plug is worn.
• 
• 
ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• Please turn off the valve of the leaking gas and then open the doors and windows in case of


• To ensure safety, ii is not recommended that to place socket, regulators, rice cookers, microwave
ovens and other appliances at the top of the cooler, those recommended by the manufacture are not
included. Do not use electrical appliances in the food pantry.

8
Important Safety Instructions
RELATED WARNINGS FOR USE
• 
maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related
professionals in order to avoid danger.
• The gaps between cooler door and cooler body are small, be noted not to put your hand in these

avoid falling articles.
RELATED WARNINGS FOR USE
• 
may lead to suffocation! Do not allow children to enter or climb the cooler to prevent that children
are sealed in the cooler or children are injured by the falling cooler.
• 
water so as not to affect the electrical insulation properties of the cooler.
• Do not use cooler body, cooler door, etc. as pedal or support.
• Do not place heavy objects on the top of the cooler considering that objects may fall when open or
close the door, and accidental injuries might be caused.
• Please pull out of the plug in case of power failure or cleaning. Do not connect the cooler to power
damages to the compressor due to successive starts.
WARNINGS RELATED TO PLACING ITEMS
• 

• 
• This product is household cooler and this equipment can only be used for the storage of wine.
According to the standard requirements, household cooler shall not be used for other purposes, such
as storage of blood, drugs or biological products.
WARNINGS FOR ENERGY
1. Cooler might not operate consistently when sited for an extended period of time below the cold end
of the range of temperatures for which the cooler appliance is designed.
2. The need to not exceed the storage time(s) recommended by the wine manufacturers for any kind of wine.
3. The precautions necessary lo prevent an undue rise in the temperature of the wine while defrosting
the cooler.
4. The fact that a rise in temperature of the wine during manual defrosting, maintenance or cleaning
could shorten the storage life.
5. 
and not in the vicinity of the cooler appliance, in order to prevent children from being locking inside.

9
SAVE THESE INSTRUCTIONS
For Household Use Only
Important Safety Instructions
WARNINGS RELATED TO DISPOSAL



combustion, so as to prevent damage to the environment or any other harm.

put the doors and shelves in a proper place, so as to prevent trapping of any child.
Correct Disposal of this product:
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.

10
Operating Instructions
NAMES OF COMPONENTS
C P
The picture above is only for reference. The actual product will depend on the physical product or
statement by the distributor.
• The temperature in the cooler is 41-64 F , only used to store unopened bottled wine (red wine,
white wine, rose wine).
• Do not place food in the cooler to prevent bacterial contamination.
• Keep the interior of the wine cabinet dry.
TEMPERATURE CONTROL
Standby button Temperature increase button
Light button Temperature decrease button
 Conversion button of function of



11
Display control
In the case of initial power-up, the whole screen will display relevant information for 3 seconds. You will
hear the start-up sound, followed by normal operation display.
Digital display area displays the fault code in the case of failure and the set temperature in the case of
normal operation.
This cooler can be controlled by gently touching buttons on the glass touch screen. The
display panel should be prevented from scratching by sharp objects and kept away from

operation of the cooler may be affected.
Standby function
Press the standby button for 5 seconds to access or exit the standby mode.
Light
The internal lamp will light up when the cooler door is open, and will be off when the cooler door is
closed.
You can also turn on or turn off the internal lamp by pressing the Light button. Once Light button is
activated, when open the door, the internal lamp will not turn off.
Temperature seing
• Temperature Adjustment
Press , the set temperature will increase by 1°F (°C). Press , the set temperature will decrease by 1°F


• Conversion of Centigrade and Fahrenheit
Press both and for 5 seconds to switch between Centigrade and Fahrenheit.
• 



temperature automatically.
Error codes
If the failure happens, the display area will show corresponding error codes as shown below. Contact a

Error code Description
E1 
E2 
E6 Communication error
E9 High temperature alarm
Operating Instructions

12
Operating Instructions
PLACEMENT
• Before using the cooler, remove all packaging
materials including bottom cushions and foam pads

on the door and the cooler body.
• Avoid direct sunlight and heat sources such as stove,
heating radiator, etc.
• 

right to adjust the feet for levelling if unstable).
• 
(867-890mm).
START TO USE
• 
• 
• Do not connect cooler to electronic energy saving plug and a converter that can convert DC into AC
(E.g.: solar energy system, ship grid).
• Water drop or frost will be generated on the back side of cooler when compressor is running. Wiping
out frost or water drop is not necessary. The defrosted water will be collected into drain tank, then

HANDLE INSTALLATION
Please choose the following handle installation instruction according to your actual needs.
1. Put the handle on glass door through the two bolts.

13
Operating Instructions

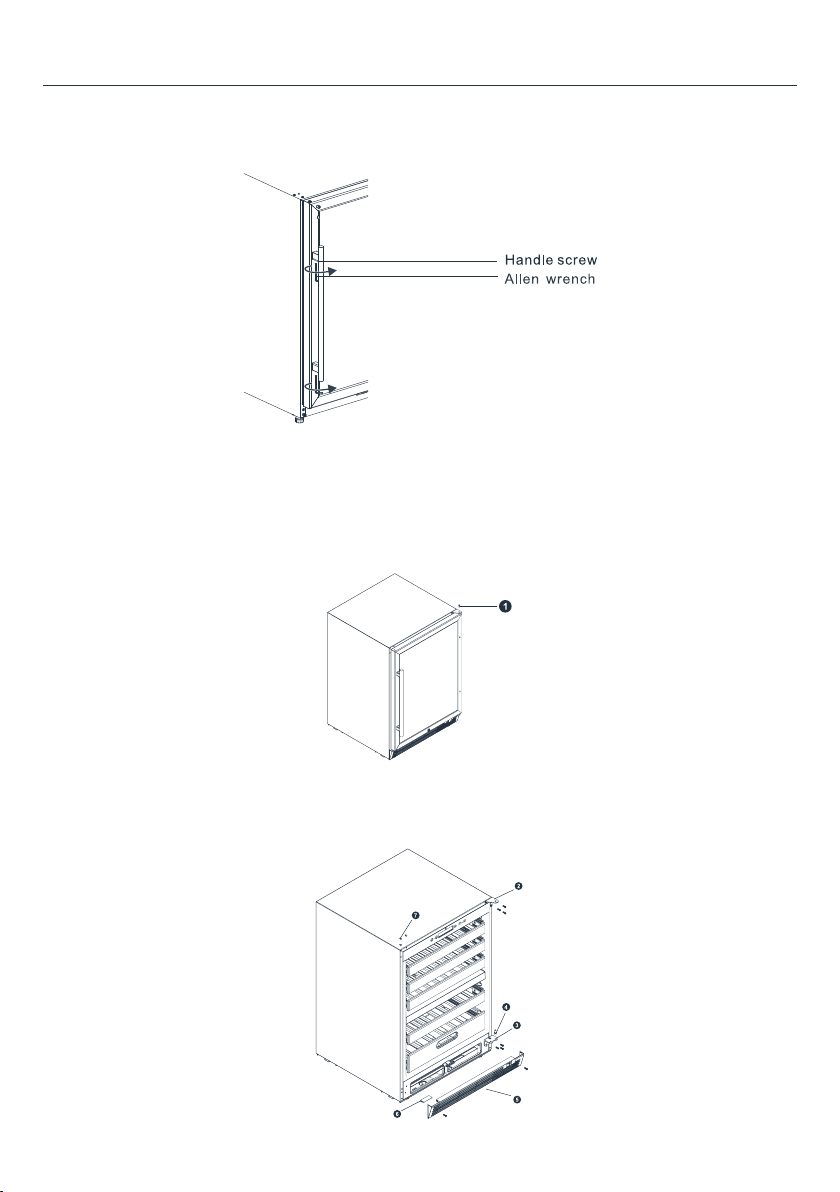

HANDLE INSTALLATION (CONT.)
2. 
REVERSING THE DOOR SWING
Warning:
door swing.
1. Remove the upper right hinge shaft (1) and remove the door body.
2. Remove the upper right hinge (2) and gently lift the door. Remove the lower hinge (3) and the lower
hinge shaft (4), the air shield (5) and its insert (6) by removing the corresponding screws as below


14
Operating Instructions
REVERSING THE DOOR SWING (CONT.)
3. Take out the left upper hinge (8) from the package box and install it to the upper left corner of the
cabinet. Install the left lower hinge shaft to the left hole of the left lower hinge. Install the left lower
hinge to the cabinet. Install the air shield and its insert. Then install the three plastic caps removed
from the left upper corner to the upper right corner.
4. 
shaft hole cap to the left handle position. Remove the bottom support bracket (10) and install it to
the other side. Install the lower hinge shaft (11), pay attention that the plastic anchor (12) should be

5. 
6. Complete the door change and store the unused upper right hinge.

15
Operating Instructions
THE ARRANGEMENT OF BOTTLES
• Do not let bottles touch the back side of cooler in order to maintain good air circulation in the cooler.
• 
• 

1.2”
12”
8.5”
3”
ENERGY SAVING TIPS
• The Cooler shall be placed in a room dry and ventilated. The cooler cannot be put under direct
sunlight or next to heat source (Such as radiator, stove. etc.), and a suitable insulation board shall be
applied if necessary.
• Shorten opening time of the cooler’s door.

16
Cleaning and Maintenance
If the cooler left unused for a long time, please:
1. 
2. 
3. Keep the cooler door open.
CLEAN THE COOLER
• Please turn off the power before cleaning, remove drinks or shelves, etc.
• Dust behind the cooler and on the ground shall be cleaned regularly to ensure the cooling and
energy saving effect.
• Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft
cloth dampened with soapy water or diluted detergent.
• The interior of the cooler should be cleaned regularly to avoid odor.
• Use a soft cloth or sponge to clean the inside of the cooler, with two tablespoons of baking soda and
a quart of warm water. Then rinse with water and dry with a soft cloth. After cleaning, open the door
and let it dry naturally before turning on the power.
• 
recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined
with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacteria accumulation in
these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the
interior of the cooler or contaminate food.
• Clean the shelves with a soft cloth dampened with soapy water or diluted detergent. Then rinse with
water and dry with a soft cloth or dry naturally.
• The wooden wine rack should not be directly immersed in liquid to prevent cracking or mold after
moisture. The wooden wine rack should be cleaned with a dry soft cloth. The heavily contaminated
wooden wine rack should be cleaned with a soft cloth that has been wrung out, and dry naturally.
• Wipe the outer surface of the cooler with a soft cloth dampened with soap water, detergent, etc.,
and then wipe dry. Do not rub or scratch the surface of the glass door to prevent the door from
being broken or scratched.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpaste), organic
solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may

deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect
electrical insulation after immersion. Water should not soak the operating control elements and
lighting system on the glass door.
NOTE:
Do not use detergent and solvent with sand or acid to clean the cooler.

17
Troubleshooting
PROBLEMS SOLUTIONS
The cooler does not
operate
The cooler is not plugged and connected to power.
Low voltage.
Temperature control knob is not in the working area.
Failure in power or tripping circuit.
Long-term operation of
compressor
It is normal that cooler operates for longer time to cool the wine in
summer when the ambient temperature is high.
Do not put too much wine bottles in the cooler at one time.
Frequent opening of cooler door.
Illuminating light does
not turn on
The cooler is not connected to power, or the indicator light is damaged.
Loud noises 
cooler accessories are properly placed.
Cooler enclosure heat
The cooler enclosure may emit heat during running specially in summer.
This is caused by the radiation of the condenser and is normal.
Condensation
Condensation will be detected on the exterior surface and door seals
of the cooler when the ambient humidity is high. This is normal. Simply
wipe with soft towel, and turns up the set temperature of the appliance
properly.


Refrigerants circulating in the refrigerant lines will generate sound and
grunts. This is normal and will not affect the cooling effect.

or shutting down.

18
hOme™

and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or
workmanship during the warranty period. The warranty does not apply where damage is caused by


™ 
The hOme™ warranty covers all costs related to restoring the proven defective product through
repair or replacement of any defective part and necessary labor so that it conforms to its original
™
’s exclusive obligation under this warranty is limited to such repair or replacement.
A receipt indicating the purchase date is required for any claim, so please keep all receipts in a safe

greatly appreciated, the product registration is not required to activate any warranty and product
registration does not eliminate the need for the original proof of purchase. The warranty becomes

those provided by hOme™ , are used. You may also arrange for service after the warranty expires at an
additional cost.
These are our general terms for warranty service, but we always urge our customers to reach out to
us with any issue, regardless of warranty terms. If you have an issue with a hOme™ product, please
contact us at 1-800-898-3002, and we will do our best to resolve it for you.

to state, country to country or province to province. The customer may assert any such rights at their
sole discretion.
HME030368N
Warranty
Manufacturing Info
This manual is to be used with all items with the model number
SKU# : HME030368N

Keep all plastic bags away from children.
Warning
Contact Us
homelabs.com/chat
Mon–Fri 10AM–5PM EST
1-(800)-898-3002
Mon–Fri 10AM–5PM EST
[email protected]
Respond within twelve hours
CHAT W ITH US CALL U S EMAIL U S

© 2016 hOme Technologies, LLC
37 East 18 Street, 7th Floor
New York, NY 10003
For household
Use Only
1-800-898-3002
[email protected]

All rights reserved, hOme®. Printed in China.
