Honeywell TC30PM User manual

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
EN
Przenosny Parowy Klimator
Instrukcja obsługi
Przeczytaj i zachowaj tę instrukcję przed użyciem
PL
Draagbare Verdamping Luchtkoelers
Gebruiksaanwijzing
Lees de gebruiksaanwijzing zorgvuldig en
bewaar deze goed
NL
Raffrescatori Evaporativi Portatili
Manuale Utente
Leggere attentamente le istruzioni prima
dell'utilizzo dell'apparecchio
IT
Portátil por Evaporação Ventilador do Ar
Manual do Utilizador
Leia e guarde estas instruções antes da
utilização
PT
Portabel Evaporativ Luftkylare
Luftkylare Användarmanual
Läs och spara dessa instruktioner innan användning
SE
Transportabel Fordampende Luftkøler
Brugervejledning
Læs og gemme disse instrukser inden brug
DK
Rafraîchisseur d'air par évaporation portatif
Mode d'emploi
Lire ces instructions avant l'utilisation et
les conserver
FR
Taınabilir Buharlı Sogutucu Kullanma
Kılavuzu
Kullanmadan önce bu talimatları okuyun ve
saklayın
TR
Tragbare Verdunstungs Luftkühler
Benutzerhandbuch
Lesen sie die anleitung vor dem gebrauch
und heben sie sie auf
DE
Enfriador de Aire Evaporativo Portátil
Manual de Instrucciones
Lea y guarde estas instrucciones antes
de usar la unidad
ES
Мобильная Климатическая Установка
Руководство пользователя
Прочтите и сохраните эту инструкцию перед
использованием
RU
Siirrettävät Höyrystävät Ilmanjäähdyttimet
Käyttäjän Opas
Lue ohjeet ennen käyttöä ja säästä ne
FI
Model / Modèle / Modelo / Modello /
Mallien / Modeller / Modell / Мoдэль :
TC30/50PM Series
www.honeywellaircomfort.com
[e-mail]

1

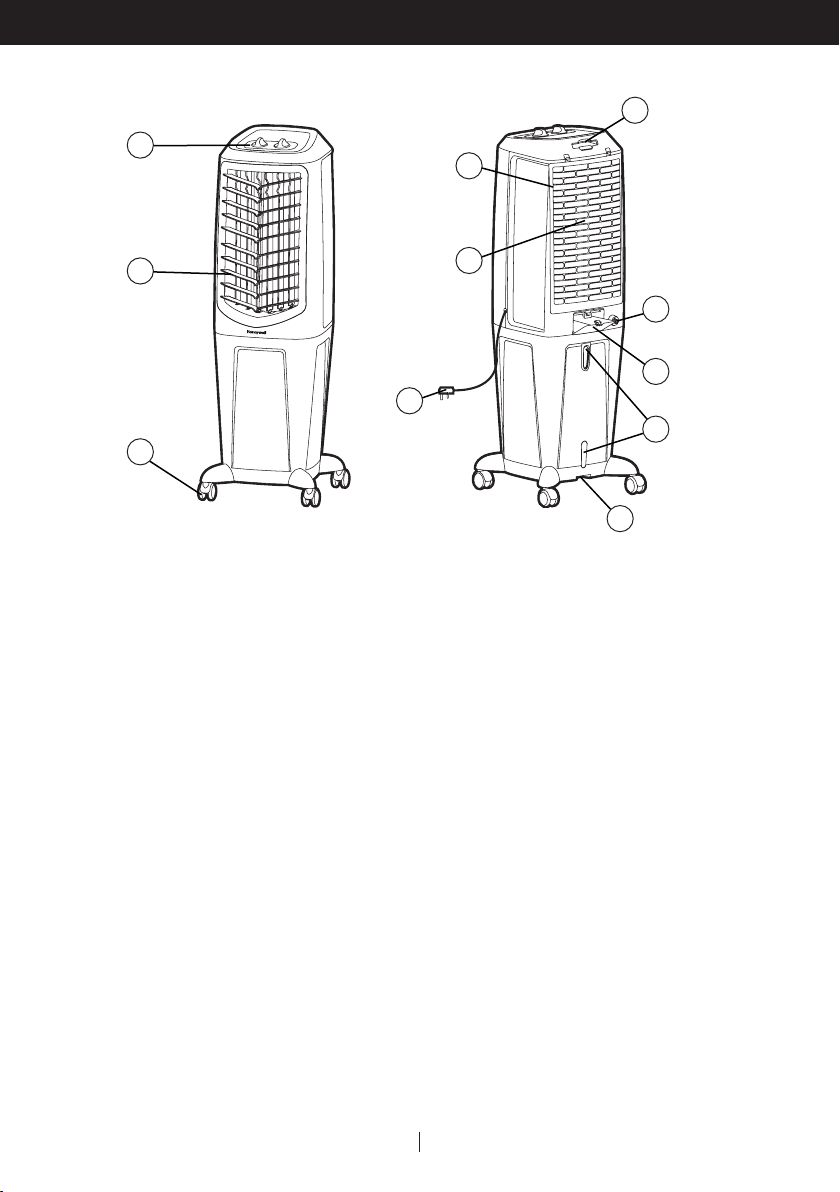

PARTS DESCRIPTION
EN
1) Control Panel 7) Honeycomb Cooling Media
2) Louvers 8) Water Fill Door
3) Water Level Indicator 9) Power Cord & Plug
4) Casters 10) Drain Plug
5) Handle 11) Water Inlet Valve*
6) Rear Grill & Mesh Filter
*Applicable for models with Water Inlet Valve only.
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.
1
5
2
8
7
11
6
4
9
10
3

2
USE & OPERATION
EN
CONTROL PANEL
OOFF
Icons on Control Panel
Swing
Power OffO
Cool
= Low
= Medium
= High

3
USE & OPERATION (CONTINUED)
EN
FUNCTION BUTTONS
SPEED
Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from
Low to High (|for Low, || for Medium and ||| for High fan speed). To switch off the unit, turn the
SPEED knob to O.
COOL / SWING
You must add water before operating the unit on Cool mode. Turn the COOL
position to activate evaporative cooling. The water pump will operate and you
will feel the cooler air after the Honeycomb Cooling Media is completely wet.
Turn the COOL / SWING position to activate evaporative cooling and
the movement of the louvers. The louvers will begin to move left to right
automatically. Vertical Air Flow - You can manually adjust the lever
located at the front of the unit to change vertical air flow.
Turn the SWING position to activate the movement of the louvers.
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION
Louver
Movement

4
USE & OPERATION (CONTINUED)
FILLING WITH WATER
EN
*Applicable for models with Water Inlet Valve only.
It is ideal to use the Continuous Water Supply* Connection to run the unit for long periods of time
without refilling the tank. This also helps prevent pump failure in case the cooler is running with
inadequate water in the tank.
CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.
Open the Water Fill Door located on the back of the unit.
Continuous Water Supply Connection*:
For a continuous water supply, you will need a garden hose that is connected to a mains water supply.
Note: The garden hose is not included. Please make use of a garden hose which is compatible with
the unit connection.
Water Fill Door
Locate the male connector at one end of the garden hose. Insert the
garden hose connector into the water inlet valve of the cooler. Screw
and tighten the water inlet valve onto the threaded part of the garden
hose connector, making sure the hose connector is secured to ensure
there will be no leaks. If there is a leakage, the hose and the water inlet
valve may not be connected properly. Try to disconnect, replace and
tighten the water inlet valve again.
When the connection is secured, turn ON the water supply and
the water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically.
When the water tank is full of water, the water inlet valve will
auto-matically stop the water supply from overflowing the water tank.
WARNING: The maximum water inlet pressure is 0.5 MPa.
•
•
•
•
Water Inlet Valve
Garden Hose

5EN
Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used
for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in
the separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.
CLEANING & DRAINING THE WATER TANK
• Move the unit to a location where the water can be drained. Remove the cap from the drain plug
located at the bottom of the unit. Allow the tank to empty.
• Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.
USE & OPERATION (CONTINUED)
FILLING WITH WATER (CONTINUED)
The Water Level Indicator is located at the back of the unit. Refill the water tank when water level
is low. Do not fill water above the "Max." water level mark to avoid water droplets collecting on the
louvers. Check the water level in the tank before running the COOL function. Make sure there is water
in the tank by using the continuous water supply connection or by filling the tank up to the maximum
indicator level. Running the unit in COOL mode with inadequate water may cause pump failure.
Note: The water capacity refers to the total volume of water that can be contained within the air
cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and
Honeycomb media.

6EN
USE & OPERATION (CONTINUED)
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and
electrical socket.
CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA
The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.
The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1
for instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•
Carefully pull out the rear grill / mesh filter from the
cooler.
Rinse the rear grill / mesh filter with clean water and let
it dry before re-installing to the unit.
Carefully pull out the Honeycomb Media.
Replace or clean media with water and a damp cloth
as needed.
WARNING: DO NOT operate the Air Cooler when the
Rear Grill is removed from the Air Cooler, or if there is a
loose-fitting Rear Grill. Doing so can cause serious
injury or dangerous electrical shock.
1.
2.
3.
4.
Removing the Mesh Filter and Honeycomb Cooling Media:
Figure 1:
Honeycomb Cooling Media
Rear Grill/
Mesh Filter

1FR
1
5
2
8
7
11
6
4
9
10
3
DESCRIPTION DES PIECES
1) Panneau de contrôle 7) Système de refroidissement
en nid d’abeilles
2) Grilles d'aération 8) Porte de remplissage d'eau
3) Indicateur de niveau d'eau 9) Cordon electrique
& prise
4) Roulettes 10) Bouchon de vidange
5) Poignée 11) Vanne de l’entrée d’eau*
6) Grille arrière & filter
AVERTISSEMENT -- LIRE ET SAUVEGARDER LE GUIDE DE SECURITE ET D'ENTRETIEN ET LE
MANUEL D'UTILISATION DU REFROIDISSEUR D'AIR AVANT D'UTILISER LE PRODUIT. NE PAS
SUIVRE CES INSTRUCTIONS POURRAIT ENDOMMAGER ET/OU PORTER ATTEINTE A SON
FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT
ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE
MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.
*Applicable uniquement pour les modèles avec la Vanne de l’entrée d’eau.

2FR
OOFF
UTILISATION ET FONCTIONNEMENT
PANNEAU DE COMMANDE
Icônes sur l’écran d’affichage
Vitesse
Oscillation
ÉteindreO
Refroidissement
= Faible
= Moyenne
= Élevée

3FR
UTILISATION ET FONCTIONNEMENT (SUITE)
BOUTONS DE FONCTION
VITESSE
Connecter à l'alimentation électrique et tourner le bouton de la VITESSE. Le ventilateur démarrera.
Changer la vitesse de Faible à Élevée ( |pour Faible, || pour Moyen et ||| pour Haute vitesse de
ventilateur). Pour OFF l'unité, tourner le bouton de la VITESSE à o.
REFROIDISSEMENT / OSCILLATION
Vous devez ajouter de l'eau avant d'utiliser l'appareil en mode
REFROIDISSEMENT. Tourner le bouton REFROIDISSEMENT en position ON
pour activer le refroidissement par évaporation. La pompe à eau fonctionnera
en propulsant de l’air refroidi une fois que le système de refroidissement en nid
d’abeilles sera complètement trempé.
Tournez la position REFROIDISSEMENT/ OSCILLATION pour activer le
refroidissement par évaporation et le mouvement des persiennes. Les grilles
d’aération commenceront à osciller de gauche à droite automatiquement. —
Débit d’air vertical – il est possible de régler manuellement les grilles d’aération
verticales pour modifier le débit d’air vertical.
Tournez la position OSCILLATION pour activer le mouvement des persiennes.
POSITION DU REFROIDISSEUR D’AIR
Veiller à placer le refroidisseur d’air comme il se doit avant de l’installer et de l’utiliser.
Il convient de se reporter à la section POSITION DU REFROIDISSEUR D’AIR (IMPORTANT à LIRE) du
Guide de sécurité et d’entretien.
Mouvement des
grilles d’aration
