Portable Air Conditioner
User Manual
Read and save these instructions before use
EN
Customer Support:
Web: www.jmatek.com
USA: 1-800-474-2147 | [email protected]
CANADA^: [email protected]
^ Canada Customer Support service available for models sold in Canada only.

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Basic safety precautions should always be followed when
using electrical appliances.
Electrical equipment and installations regulated by national
legislation must be followed.
The appliance should be transported upright or on its side.
Do not turn on the appliance for at least one hour before
starting it.
DO NOT operate the unit with a damaged plug or loose wall
outlet. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
DO NOT cover the air intake and exhaust when in use.
DO NOT place objects, especially heavy or hot objects, on
top of unit. DO NOT sit on the unit.
Always turn off and unplug the unit when cleaning or
servicing.
DO NOT use the appliance if it is damaged.
Do not modify this appliance in any way to avoid danger.
If service is needed contact an authorized service agent.
Repairs must only be undertaken by authorized service
centres of the manufacturer. Failure to comply may be
dangerous.
Unplug the unit when stored or not in use.
DO NOT pull or carry the appliance by the power cord.
DO NOT pinch the power cord in the door and DO NOT pull
it along edges or sharp corners.
SAFETY
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND
KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY
INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH
VERSION AND ANY OTHER LANGUAGE VERSION OF THE
CONTENT OF THIS MATERIAL, THE ENGLISH VERSION
SHALL PREVAIL.
WARNING:
EN

SAFETY (CONTINUED)
Do not pierce or burn the unit.
It is essential that the appliance is connected to an efficient
earth system checked by a qualified electrician.
Refrigerant gas may be odorless.
Stagnation of possible leaks of refrigerant gas in
unventilated rooms could lead to fire or an explosion hazard
should the refrigerant come in contact with electric heaters,
stoves or other sources of ignition.
Use care when storing the appliance to prevent mechanical
faults.
Only persons authorized by an accredited agency certifying
their competence to handle refrigerants in compliance with
sector legislation should work on refrigerant circuits.
Maintenance and repairs requiring the assistance of
other qualified personnel must be carried out under
the supervision of specialists in the use of inflammable
refrigerants.
DO NOT use means to accelerate the defrosting process
or to clean, other than those recommended by the
manufacturer.
DO NOT run the power cord under carpeting and rugs.
Use caution to prevent tripping on cord.
DO NOT use the device in the following cases:
- in a room with continously operating sources of ignition
(eg. open flames, an operating gas appliance or an
operating electrical heaters.
- In areas where gasoline, sulphur, oil, paint or other
flammable goods are stored.
- In an area where the water can be projected.
DO NOT touch the plug or the device with wet hands.
Flammable substances or pressurized containers (eg.
aerosol cans) should be kept a minimum of 50cms away.
This appliance has been manufactured for use in domestic
environments and should not be used for other purposes.
•
•
•
•
•
•
•
•
•
•
•
•
•
EN

SAFETY (CONTINUED)
Use only implements recommended by the manufacturer
for defrosting or cleaning.
Only use the installation kit provided to install this unit.
DO NOT attempt to extend the hose or install this unit
using other methods other than that shown in this
manual. Improper installation will void any existing
warranties.
DO NOT use an extension cord with this unit.
This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Never insert your fingers or rods into the air outlet. Take
special care to warn children of these dangers.
The manufacturer is not liable for injury caused to
persons or property damage due to non-compliance
with maintenance instructions and improper use of the
appliance.
The appliance shall be installed in accordance with national
wiring regulations.
The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
DO NOT operate your air conditioner in a wet room such as
a bathroom or laundry room.
This appliance should be used in a room that allows for
good ventilation between the unit and any walls/furniture or
other objects. The room size should correspond to the room
area as specified for operation by the manufacturer and
the appliance should be well kept to prevent mechanical
damage.
•
•
•
•
•
•
•
•
•
•
EN

SAFETY (CONTINUED)
A warning to keep ventilation openings clear of obstruction.
Do not pierce or burn the refrigerants.
Be aware that refrigerants may not contain an odor.
•
•
•
EN

1
THANK YOU
Congratulations on your purchase of this Honeywell Portable Air Conditioner.
Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal
of the appliance, please refer to the below paragraph of the manual.
USER TIPS
Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator
are housed in a compact unit. The air is dehumidified and cooled while a flexible hose sends heat
outside. The Portable Air Conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a truly
flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the hose.
There is no need to empty the drainage tank except in humid conditions. Read and follow the
instructions carefully.
To ensure optimal efficiency of the product, keep doors and windows closed when it is used as an air
conditioner or dehumidifier. If the product is being used with the fan function only, an open window
could improve air circulation.
EN
Important:
Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize.
Air outlet automatically opens when the unit is turned on, and automatically closes when the unit is
turned off. Manually adjust the air vent located at the top of the unit to adjust the direction of air flow.
Follow installation instructions to set up the unit.
Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.
•
•
Cooling and Dehumidifying
Operation Fan Operation

2
PARTS DESCRIPTION
EN
1) Control Panel 9) Upper Rubber Drain Plug
(Dehumidifying Mode)
2) Air Outlet 10) Lower Dust Filter
3) Handle 11) Drain Tube
(For Continuous Drain)
4) Casters 12) Drain Plug Cap
5) Remote Control 13) Lower Rubber Drain Plug
(Air Conditioning Mode)
6) Hose Connector 14) Power Supply Cord
7) Cord Winder
8) Upper Dust Filter
1
2
3
5
4
8
10
13
14
12
11
6
7
9

3EN
INSTALLATION
It is important that the installation instructions below are followed for successful installation of this
Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries
regarding these installation procedures.
Installation Kit:
Installation Steps:
Exhaust Hose Connector, Exhaust Hose and window bracket panel adapter are pre-assembled
inside the package.
1.

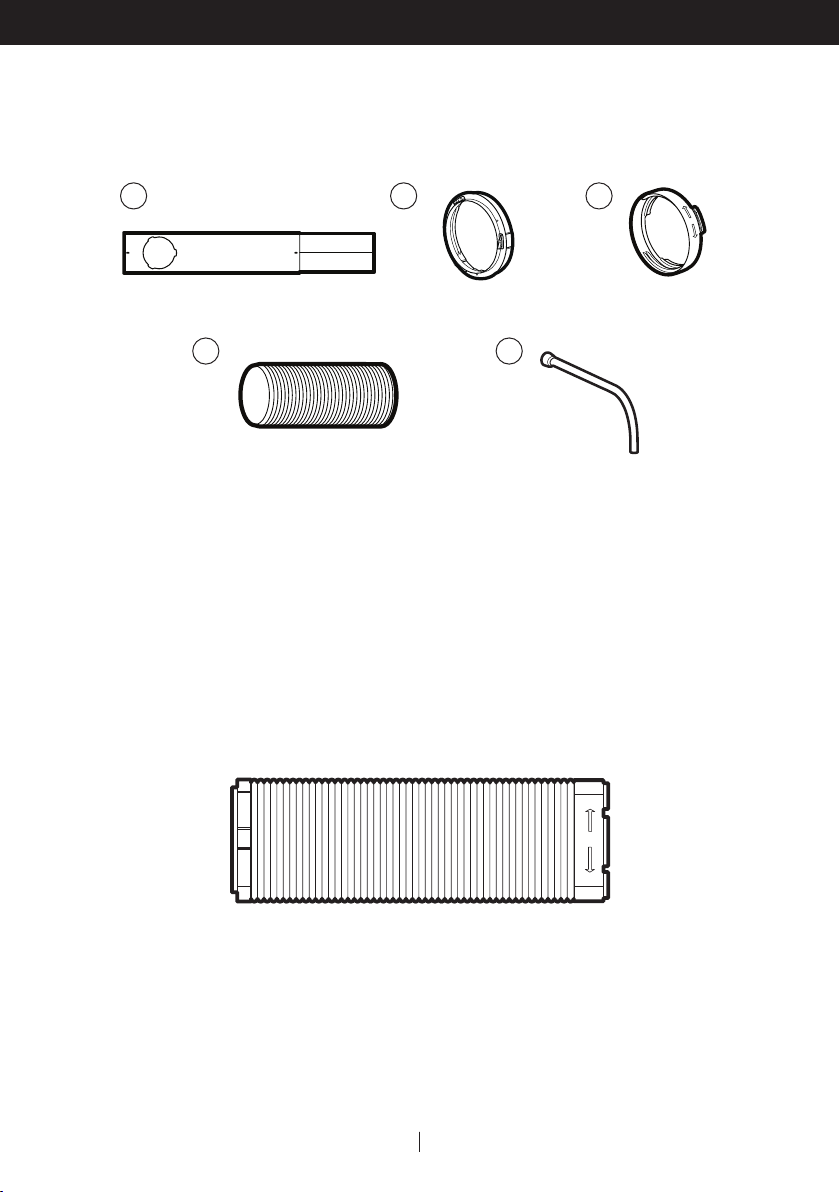

1. Window Bracket Kit (1 Set) 4. Exhaust Hose (1 Piece)
2. Window Bracket Panel Adapter (1 Piece) 5. Drain Tube (1 Piece)
3. Exhaust Hose Connector
LOCKUNLOCK
UNLOCKLOCK
4 5
1 3
x1
x1 x1
x1 x1
2
Hose:
Length: 10.23'' to 47'' (26cm to 120cm)

4EN
INSTALLATION (CONTINUED)
2. Connect the hose to the rear exhaust outlet on the back of the unit. Slide-in the hose connector
then rotate clockwise until it is locked in place.
Note: After setting the window bracket to the size of your window, please remove it from the window
and follow the instructions below.
Hose:
Dia.5.9'' (15cm)
Length: 10.23'' to 47'' (26cm to 120cm)
Window Bracket Kit:
This window kit is designed to fit most standard sliding windows. If your window is outside of the
size parameters as outlined above, the window bracket can be cut shorter to fit by bringing it to a
nearby hardware store.

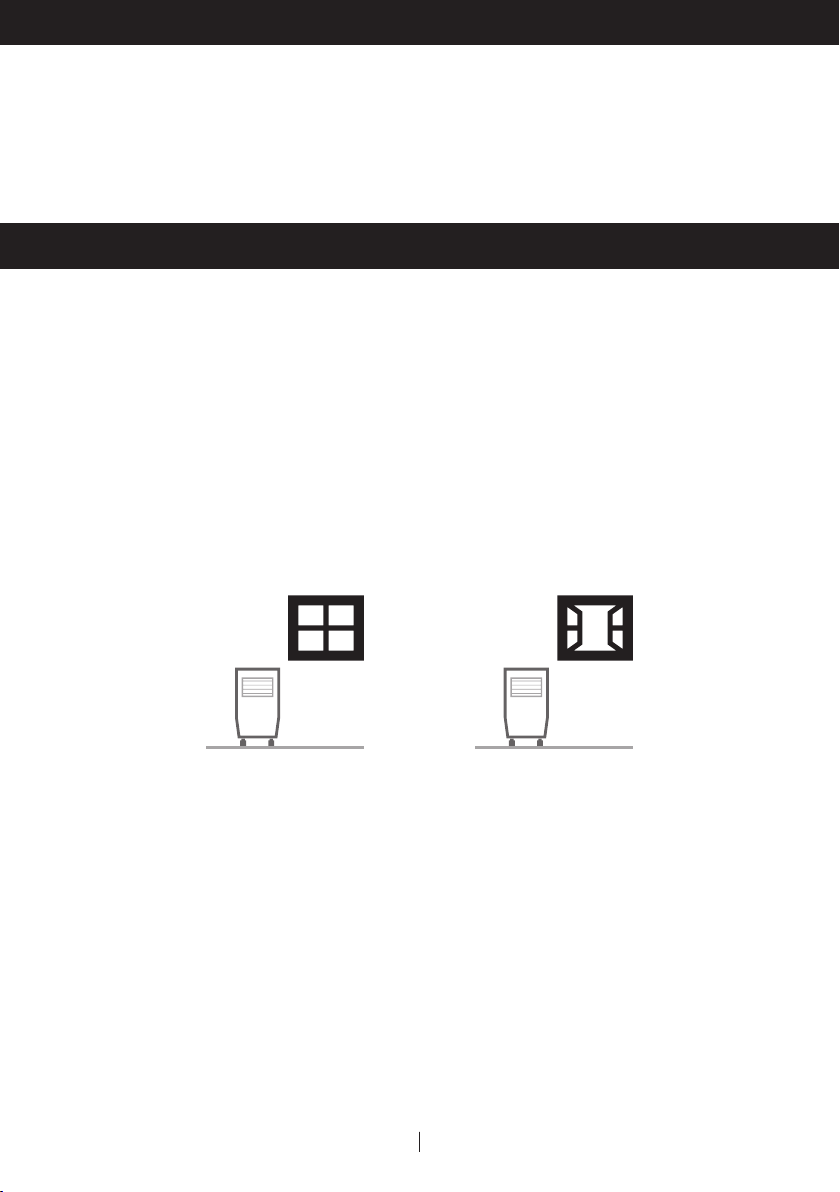

Horizontal Sliding Window Vertical Sliding Window
Part A:
Min. Length 19.7" (50 cm)
Part A + B:
Min. Length 19.7" (50 cm)
Max. Length 38.2" (97 cm)
Part B
+ =

5EN
INSTALLATION (CONTINUED)
Horizontal Sliding Window Vertical Sliding Window
5. The Portable Air Conditioner is now ready to use.
4. Connect the window bracket to the window.
3. Connect the window bracket to the window bracket panel adapter. Ensure that all connections are
tight and installed properly.

6
INSTALLATION (CONTINUED)
IMPORTANT:
Do not replace or lengthen the hose as this could cause the unit to malfunction.
The length of the hose is scientifically determined by the specifications and airflow of the air
conditioner. Extending the hose beyond the specified dimensions can cause heat to collect or flow
back into the air conditioner causing the unit to malfunction.
The supplied hose has a diameter of 5.9" (15 cm) and can be extended from
10.23'' to 47'' (26cm to 120cm).
Do not bend (to the extent shown above) the hose. A bent hose will block exhaust air
and cause the unit to malfunction or shut-off.
Make sure the back of the unit is at least 20" (50 cm) away from the wall. Do not place the unit in
front of curtains or drapes as this could obstruct the airflow.
•
•
•
WARNING: Any warranties included with this product will be voided if an extra extension hose is
added to the originally provided installation kit or if the installation is performed differently than the
manufacturer's instructions, without proper consultation. Please contact Customer Support for help
with installation procedures if needed.
Not Recommended Recommended
EN
20" (50 cm)
MIN 35.6 cm
MAX. 14" (36 cm)
MAX. 40" (102 cm)

7
USE AND OPERATION
CONTROL PANEL
FUNCTION BUTTONS
1) Indicator Lights 5) Timer / Temperature Set Controls
2) Power Control 6) Fan Speed Control
3) Sleep Mode 7) Timer Control
4) Mode Control 8) Swing Control
EN
Press to turn ON/OFF the unit. The air vent will automatically swing open when the unit is turned
ON and automatically close when the unit is turned OFF.
RESTART DELAY
If the unit turns OFF while operating in COOL mode, there will be an approx. 3-minute delay to restart
the air conditioner in COOL mode. This is a safety feature and added to help protect and extend the
life of the compressor. After 3 minutes, you will be able to turn ON the unit as usual.
POWER CONTROL
88
(6) (4) (3) (2)
(1)
(7)(8) (5)
3 settings: High, Medium, and Low.
Note: Fan Speed cannot be adjusted in Sleep Mode and Dehumidifying Mode.
FAN SPEED CONTROL

8
USE AND OPERATION (CONTINUED)
EN
FUNCTION BUTTONS (CONTINUED)
MODE CONTROL
Settings: Air Conditioning, Dehumidifying, Fan, Heating*.
The corresponding indicator light will illuminate to indicate the current mode setting.
Air Conditioning Mode (COOL)
Adjust fan speed and air temperature to suit your desired comfort level.
Temperature setting range is 60°F - 90°F (16°C - 32°C).
•
Dehumidifying Mode (DRY)
Air is dehumidified as it passes through the unit, without being in full cooling mode.
The fan speed is preset as LOW speed and can NOT be adjusted.
Note: If the unit will be used mainly as a dehumidifier, do not connect the exhaust hose.
Continuous drainage is then necessary (refer to Continuous Draining for Dehumidifier Mode).
IMPORTANT: The Dehumidifier Mode is used to support moisture reduction but should not
be expected to dehumidify to the same degree as a standard dehumidifier only appliance. The
built-in dehumidifier automatically adjusts dehumidification based on ambient room temperatures.
It is not possible to adjust to a desired humidity percentage. The front display only shows the
current and desired temperatures. It does not show humidity levels.
•
Fan Mode
For air circulation without air conditioner cooling.
•
Heating Mode*
When heating mode is selected the indicator light will shine. Heating is activated only when
the ambient temperature is below 77°F (25°C). In this mode, the desired temperature can be
set between 61°F - 77°F (16°C 25°C).
Note: The exhaust hoses must vent outside the room when using heating mode.
IMPORTANT: The Heat pump draws moisture from the air which then condenses into the internal
water tank. The unit will pause operation when the tank is full and will restart when the tank has
been emptied. It is recommended to use the Heating Mode in a room with 50% humidity or lower.
Avoid operating moisture-producing products or appliances such as a humidifier or a kettle when
using the unit in Heating Mode. See the “Draining Water Condensation in Heat Mode” section for
more information on draining the water tank.
•
TIMER / TEMPERATURE SET CONTROLS
The and buttons can be used to adjust and set your desired temperature in Cooling or
Heating* modes. They can also be used to set the Timer (see "Timer Control" below).
Note: Temperature and Timer cannot be adjusted in Fan and Dehumidify modes.
*Applicable for models with Heating feature only.

9
USE AND OPERATION (CONTINUED)
EN
FUNCTION BUTTONS (CONTINUED)
TIMER CONTROL
While the unit is turned on, press the timer button then press the or to select the number of
hours you would like the unit to continue to run. The unit will turn on/off automatically.
AUTO TURN OFF:
While unit is running, press the or button to select the number of hours you want the unit to
run in air conditioning mode.
AUTO TURN ON:
When unit is in a standby mode (plugged in with power light on), then press the or button to
select the number of hours until you want the unit to automatically start running.
SWING CONTROL
Press to activate automatic oscillation of louvers. Press again to stop swing when louvers reached
a desired angle.
WATER FULL LIGHT
Condensation may accumulate in the unit.
If the internal tank becomes full, the Water Full Light will illuminate and unit will beep 5 times for
5 seconds. The unit will not operate until the unit has been drained (refer to Water Condensation
Drainage).
ADDITIONAL FEATURES:
AUTOMATIC DEFROST FEATURE
Sometimes when the unit is operating in cooling mode in lower room temperatures (e.g. lower than
60°F), the internal cooling coils may become too cold and sometimes frost may develop on the
cooling coils. When this happens, the unit will automatically pause operation and defrost the cooling
coils to protect the unit. The air conditioner will restart automatically when the system has defrosted
and returns to standard operational temperatures.
*Applicable for models with Heating feature only.
Sleep Mode is for energy-saving comfort during the night. When Sleep Mode is ON in Air
Conditioning Cooling Mode, the fan will automatically stay on LOW Speed and the set temperature
will increase by 1°F (1°C) on the first hour. It will increase another 1°F (1°C) on the second hour, and
remain at this temperature for the rest of the night, until Sleep Mode is deactivated.
Note: The control panel lights will turn OFF after 10 seconds and light up again when any button is
pressed. When Sleep Mode is ON in Heating Mode*, the fan will automatically stay on LOW Speed
and the set temperature will decrease by 1°F (1°C) on the first hour. It will decrease another 1°F (1°C)
on the second hour, and remain at this temperature for the rest of the night, until Sleep Mode is
deactivated.
SLEEP MODE

10
Timer / Temperature Set Control
Under timer mode, press and
to adjust the time setting for
1 hour intervals.
Timer setting is available from 1
- 24 Under cooling and heating
mode, press and to up or
down the temperature.
EN
USE AND OPERATION (CONTINUED)
REMOTE CONTROL
All key functions can be accessed from the remote control.
Use only two AAA or IEC R03 1.5V batteries.
Remove the batteries if the remote control is not in use for a month or longer.
All batteries should be replaced at the same time, do not mix with old batteries.
Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
Properly dispose of used batteries.
•
•
•
•
•
Caution:
Power Control
ON / OFF
Sleep Control
Swing Control
ON / OFF
ON / OFF
Note:
Battery Installation: Remove the cover on the back of the remote control and insert two AAA
batteries with + and - pointing in the proper direction according to the polarity markings.
•
Cooling Heating*
Dehumidifying Fan
•
•
Press to change the operation mode
in the order of:
Press to switch temperature between
Centigrade and Fahrenheit.
Mode Control
Fan Speed Control
°C / °F Control
• HIGH • MED • LOW
*Applicable for models with Heating feature only.
This device complies with part 15 of the FCC Rules. Operation is subject to following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment info an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.

11
CLEANING AND MAINTENANCE
Appliance Maintenance:
Turn off the appliance before disconnecting the power supply.
Only clean the appliance with a soft dry cloth.
1.
2.
EN
Switch off and unplug the Portable Air Conditioner from the
electrical outlet.
Remove the Upper Filter/ Grill, unscrew the Lower Filter/ Grill
and carefully remove.
Gently wash using water and/ or diluted liquid dishwashing
detergent. Rinse thoroughly and gently shake excess water
from the filters. Make sure the filters are dry before reinstalling.
Note: You may use a vacuum cleaner to remove dust.
Replace the Upper Grill onto the unit, and reinstall the Lower
Grill with the screw.
1.
2.
3.
4.
Dust Filter Maintenance:
The dust filter is to be cleaned every two weeks to maintain air cooling efficiency. Please follow the
below instructions for cleaning the dust filters:
WARNING: DO NOT power or operate the Portable Air Conditioner when cleaning or when the Dust
Filter is removed from the unit, or if there is a loose-fitting Dust Filter. DO NOT attempt to handle or
touch any of the parts or wiring inside the Rear Grill after the Dust Filter has been removed from the
unit. Doing so can cause serious injury or electrical shock.
Rear
Grill
Upper
Dust Filter
Lower
Dust Filter

12
Be sure to drain the left-over water condensation. Remove the lower drain plug and use a drain
pan to collect the water (make sure to replace the deain plug cap when finished).
To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing.
Turn off and unplug the Portable Air Conditioner from the power supply.
Remove the dust filter and clean with water. Dry the dust filter and then reinstall.
Disconnecting the Window Installation Kit:
1.
2.
3.
4.
5.
Remove the Hose from the unit by rotating anti-clockwise then pulling away.
Remove the Foam Seal, Window Bracket, Window Bracket Panel Adapter and Hose Connector.
It is recommended to store the Window Kit parts in a bag together with the Remote Control,
Drain Tube and placing them together with the Portable Air Conditioner unit.
If needed, you can clean the Window Kit with a damp cloth and water before storing.
Make sure all parts of the Window Kit are dry before storage.
•
•
•
•
Cover the Portable Air Conditioner with a cloth/ plastic bag before storage, to protect from dust
and scratches collecting on the surface of the unit.
It is recommended to coil the power cord before storing to ensure the cord is protected from
bents and creases.
Store the Portable Air Conditioner in a cool, dry place, away from direct sunlight.
6.
7.
8.
End of Season Storage and Maintenance:
If the appliance will not be used for a long time, follow these steps:
EN
CLEANING AND MAINTENANCE (CONTINUED)

13EN
WATER CONDENSATION DRAINAGE
When there is excess water condensation inside the unit, the air conditioner stops running and
shows a warning light (the WATER FULL indicator illuminates with a red light). This indicates that
the water condensation needs to be drained using the following procedures:
Unplug the unit from power source.
Place a drain pan under the lower rubber drain plug.

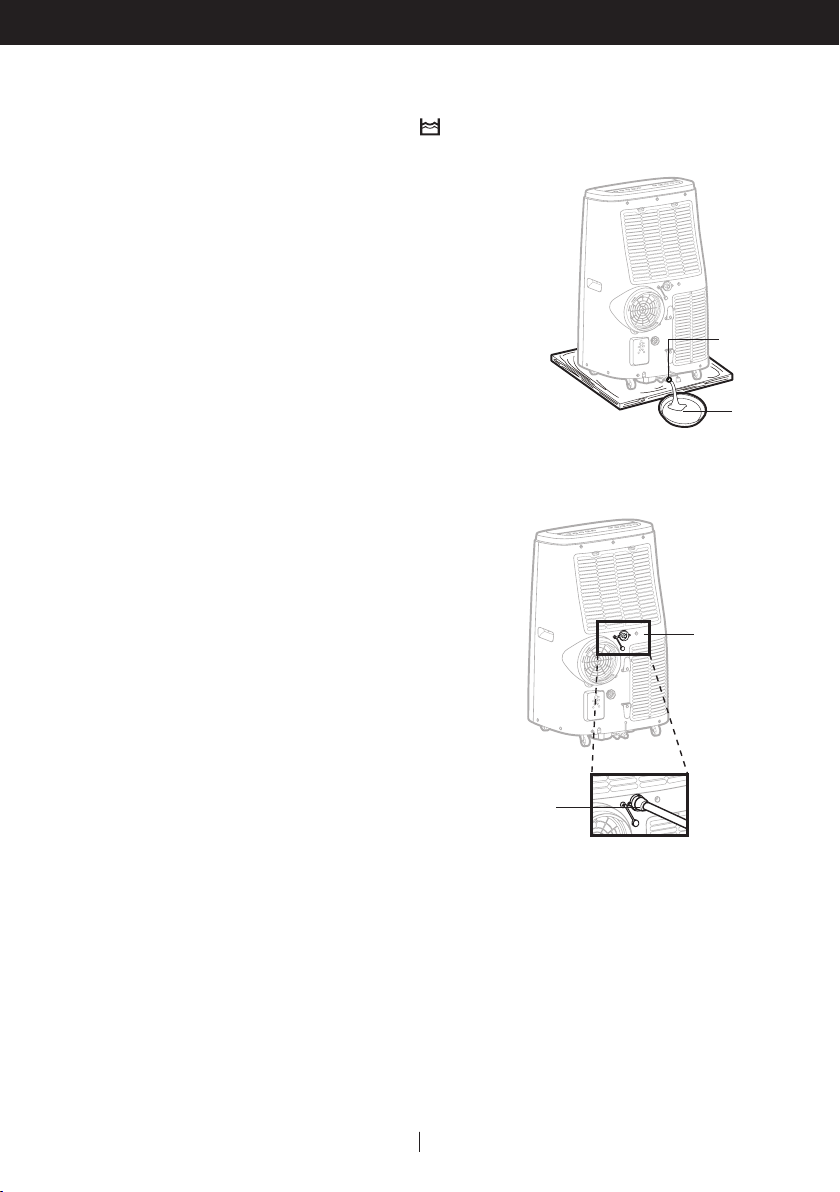

See diagram.
Remove the drain plug cap.
Water will drain out and collect in the shallow pan.
After the water is drained, replace the drain plug cap.
You can now turn on the unit.
1.
2.
3.
4.
5.
6.
Water may need to be drained in high humidity areas.
Manual Draining in Cooling, Dehumidifying Modes
IMPORTANT: It is NOT recommended to connect the drain hose for continuous drainage while the
unit is switched ON in air conditioning cooling mode. Doing so will reduce the cooling efficiency
of the Portable Air Conditioner. Only drain the water condensation when the unit is switched off.
Continuous drainage is only suitable when the unit is set up in Dehumidifier mode.
The water cannot be drained using the continuous drain option in heating* mode. In Heating mode,
the internal water tank collects condensation faster and may require more frequent emptying of
the tank in more humid rooms. It is recommended to use the heating mode in a room with 50 %
humidity or lower. Avoid operating moisture-creating products or appliances such as a humidifier or
a kettle when using the unit in heating mode.
Unplug the unit from power source.
Remove the upper drain plug cap.
Some residual water may spill so please have a pan to
collect the water.
Connect the drain tube to the upper drain plug.
See diagram.
The water can be continuously drained through the
drain tube into a floor drain or bucket.
Replace the drain plug cap.
You can now turn on the unit.
1.
2.
3.
4.
5.
6.
Continuous Draining in Dehumidifier Mode
Drain Tube (included*):
Dia. 0.7" (1.8 cm)
Length: 23.6" (60 cm)
Upper Rubber
Drain Plug
While using the unit in dehumidifier mode, continuous drainage is recommended.
Lower
Rubber
Drain Plug
Drain Pan
(not included)

14
TROUBLESHOOTING GUIDE
The following troubleshooting guide addresses the most common problems. If problems persist, call
customer support. Unplug and disconnect the appliance from the power source before attempting
to troubleshoot.
EN
PROBLEM POSSIBLE CAUSE SOLUTION
The air
conditioning
unit does not
start
No electricity. Check for power.
Batteries in the remote
control need to be
replaced.
Change remote control batteries.
The power cord is not
properly plugged in. Remove and reconnect the power cord.
The safety LCDI plug has
tripped (USA / Canada /
Mexico only).
Reset the safety LCDI plug, if problem
persists contact our customer support
(USA / Canada / Mexico only).
Runs a short
while only
The thermostat
temperature setting
is too close to room
temperature.
Lower the set temperature.
Air outlet is blocked. Make sure the hose is properly connected.
There are tight bends in
the air hose. Connect hose as per instructions on page 3.

15
TROUBLESHOOTING GUIDE (CONTINUED)
PROBLEM POSSIBLE CAUSE SOLUTION
Runs but not
cooling
A door or window is open. Make sure the window or door is closed.
The dust filter is dirty. Clean the dust filter.
The hose is detached. Reinstall hose properly
(refer to Installation section).
Temperature setting is
too high. Reduce temperature setting.
Air outlet or intake is
blocked. Remove blockage.
Room exceeds
recommended size. Move unit to smaller room.
Large size or number of
windows are decreasing
cooling effectiveness.
Cover windows with curtains or blinds.
Will not run and
WATER FULL
indicator
illuminates
Excess water
condensation inside
the tank.
Drain the water (refer to Water Condensation
Drainage).
EN
