Honeywell CL30XC User manual

Portable Evaporative Air Cooler
OWNER’S MANUAL
Read and save these instructions before use
Model: CL30XC
Power rating: 252 Watts
Voltage rating: 220-240 Volt AC, 50Hz
For product enquiry or support contact:
E-mail: [email protected]
Customer Service Hotline: [phone]
www.honeywellaircoolers.com

This page is intentionally left blank

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY INSTRUCTIONS ...................................................................................................
4. PARTS DESCRIPTION ........................................................................................
5. USE & OPERATION .............................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
7
8
15
17
19
19
10. SERVICE AND WARRANTY ................................................................................ 20
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.

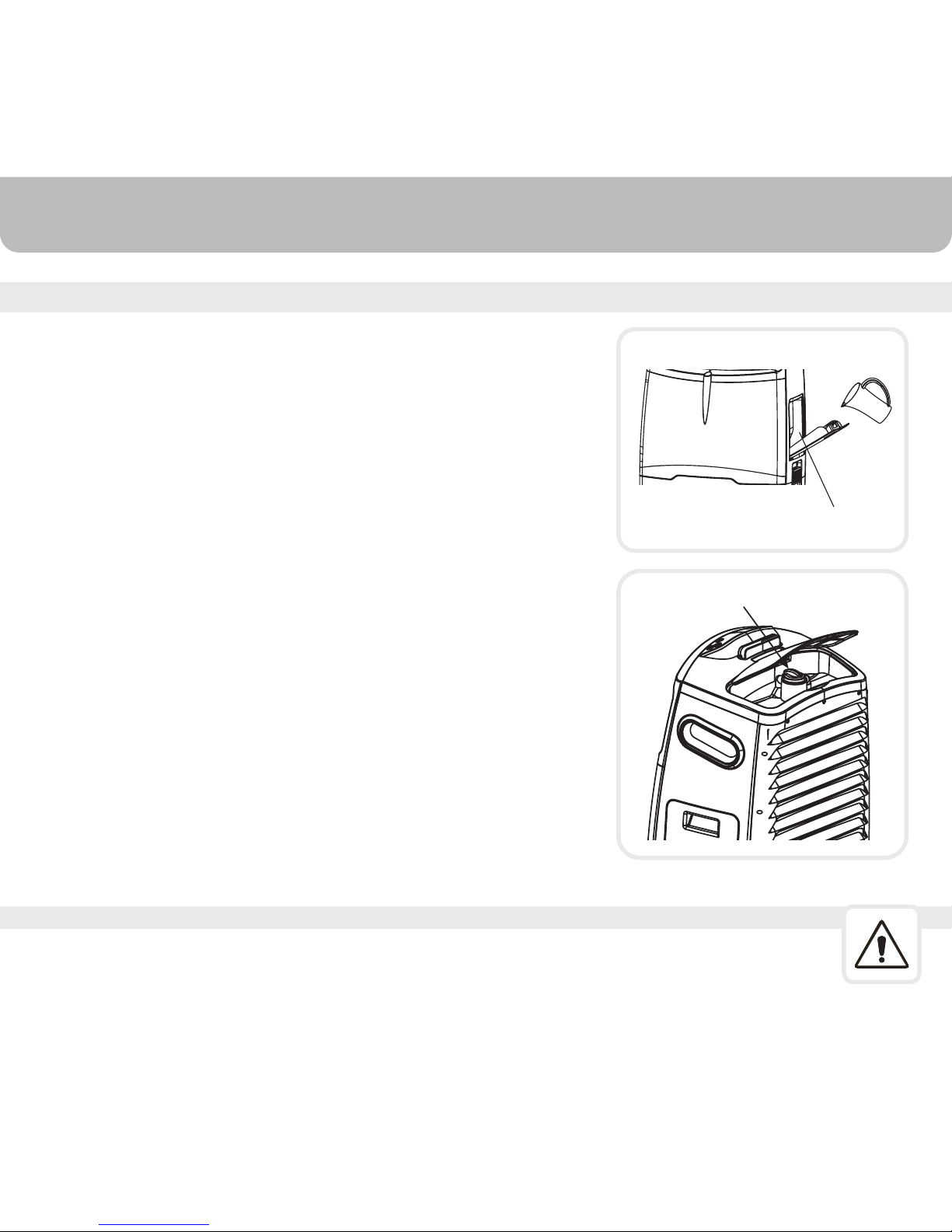

Fill Water ......................................................... .................... ...............
Function Buttons .................................................................................................
Low water alarm and cooler location ...................................................................
Remote Control ...................................................................................................
.... ............ 14
Control Panel ..................................................................................................... 8
9
11
Room Cooling and Humidifying ........................................................................... 12
13

THANK YOU!
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler.
For optimum cooling performance from your unit, fill the water tank with water & ice (if available)
to increase its cooling performance.
The unit should be positioned in a location that will create a 'flow through' air effect.The greatest
cooling effect will be felt if the unit is operated in a partly opened doorway or window.
Please read these instructions carefully.
THANK YOU
2

USER TIPS
3

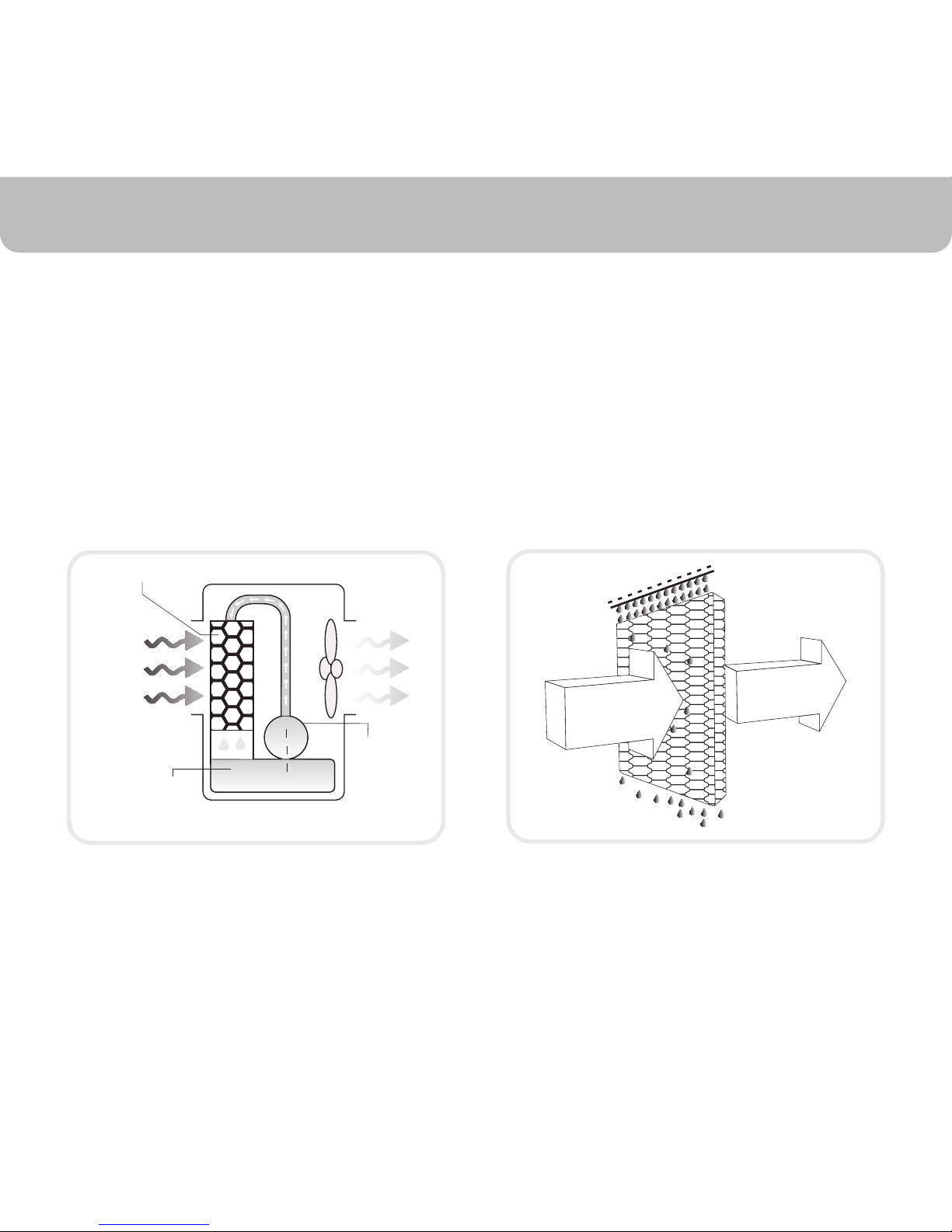

Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This
breeze drops the temperature and has a relaxing cooling effect.
The evaporative air cooler cools the air by means of the evaporation of water. When water
evaporates into the air, the result is a mixture of air and water molecules. This chemical change
requires heat which is taken from the water molecules, resulting in cooler air propelled from the
unit.
NATURAL ENERG Y EFFICIENT COOLING ..

The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
NOTE
4
USER TIPS

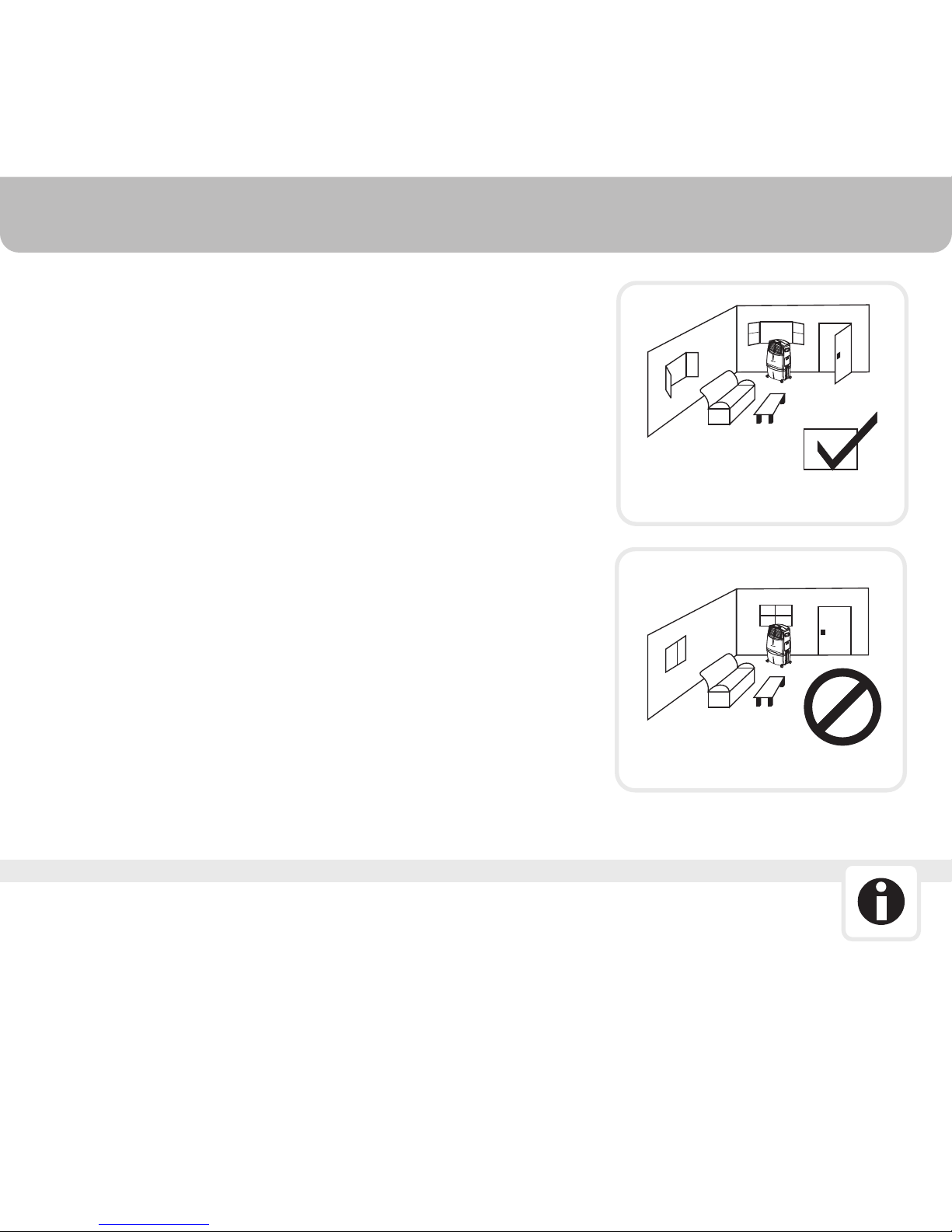

The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, the air circulates in the room,
then exits via the door. The maximum cooling effect is felt
when a person is in the flow of air coming out of the evaporative
air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate. The evaporative air cooler is not an air
conditioner as it does not use a compressor or refrigerant gas.
It should not be expected to cool as efficiently as a refrigerated
air conditioner.
When the product is used for the first time the Honeycomb
cooling media will have an odour which will dissipate in a week
or so of initial use.
Room with open windows & door
Room with closed windows & door

READ AND SAVE THESE INSTRUCTIONS:

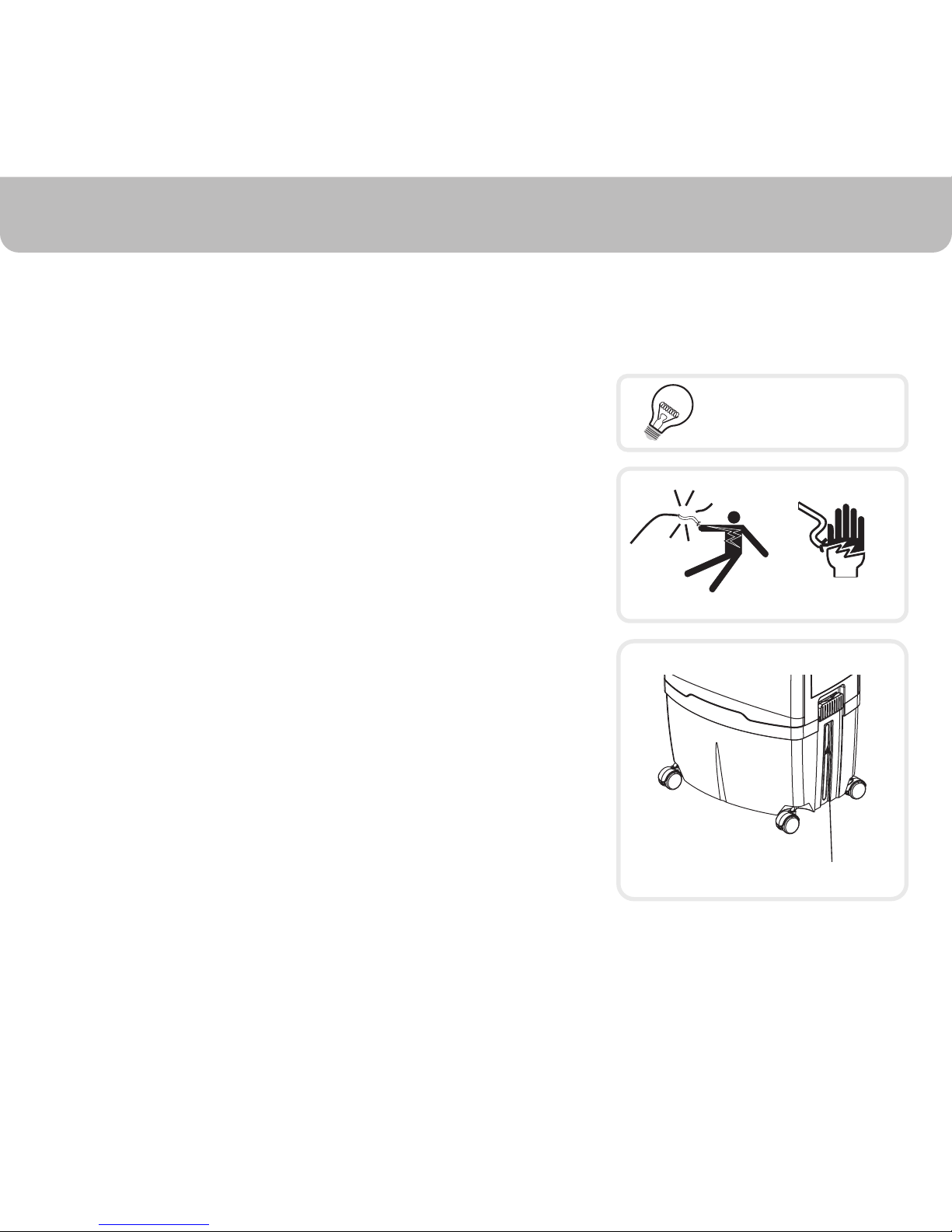

When using electrical appliances, basic safety precautions should always be followed:
SAFETY RULES
220-240 Volt AC, 50 Hz
SHOCK HAZARD
Always unplug the product before refilling the water tank.
•
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
•
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
•
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
•
WATER LEVEL INDICATOR
When using the ''COOL'' setting, please check the water tank
to ensure it is full. Operation of this unit on the ''COOL'' setting
with an empty tank may result in damage to the water pump.
•
5
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
•
•Your unit runs on 220-240 Volt AC, 50 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
•Before operating the product remove it from its packaging
and check it is in good condition.
•DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.

may cause motor damage.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
When the unit is not in use always store in a dry area.
•
This product is not intended for use in wet or damp locations.
•
DO NOT let children play with this appliance, packaging or
plastic bags.
•
DO NOT leave the appliance operating unattended for any
extended period of time.
•

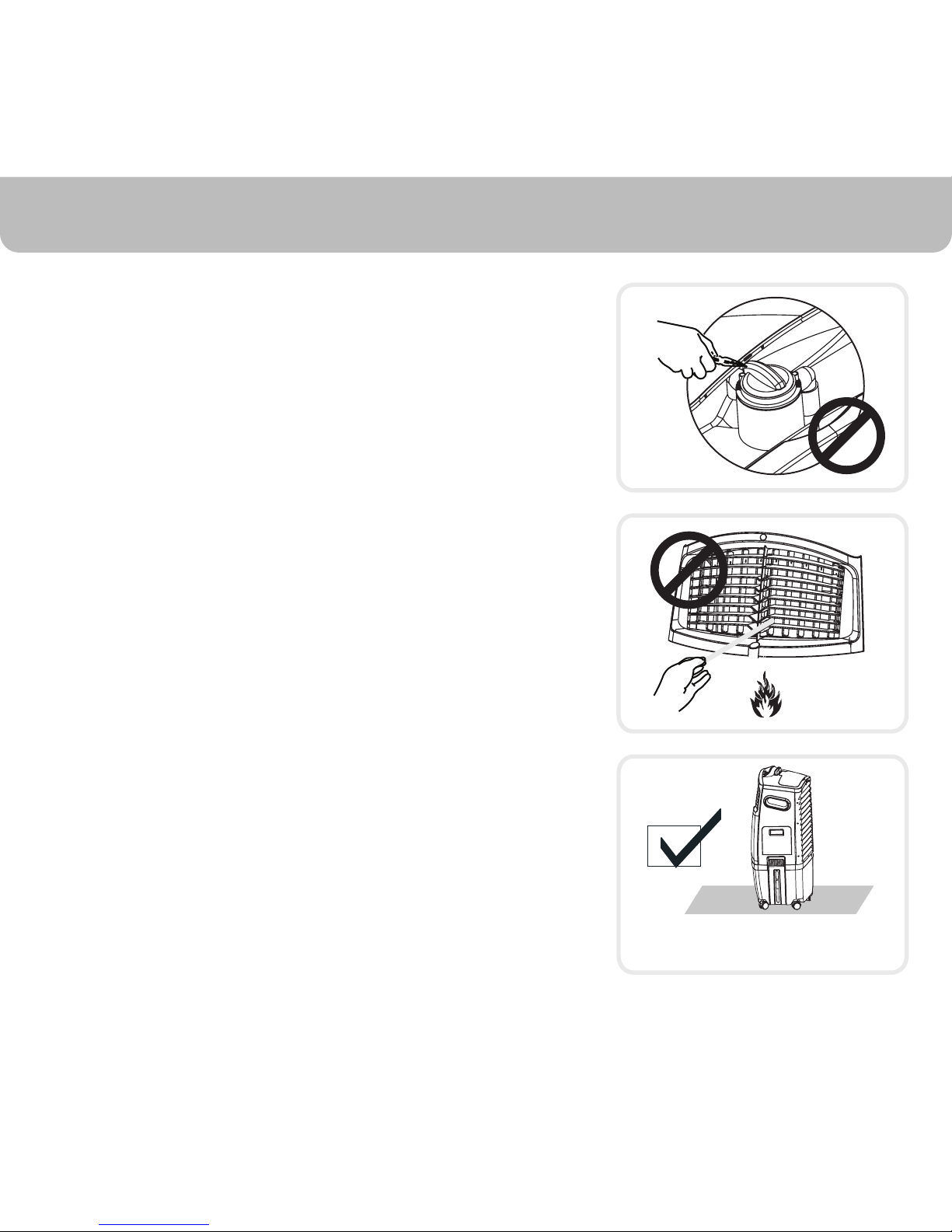

DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
•
DO NOT attempt to repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
•
DO NOT cover the air inlet or outlet on the appliance as this
•
FLOOR LEVEL
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and /or please
seek professional advice.
•
Place the unit on a level floor.
•
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
•
6
Always grip the side handles to move the unit.
•
SAFETY INSTRUC TIONS

7
6

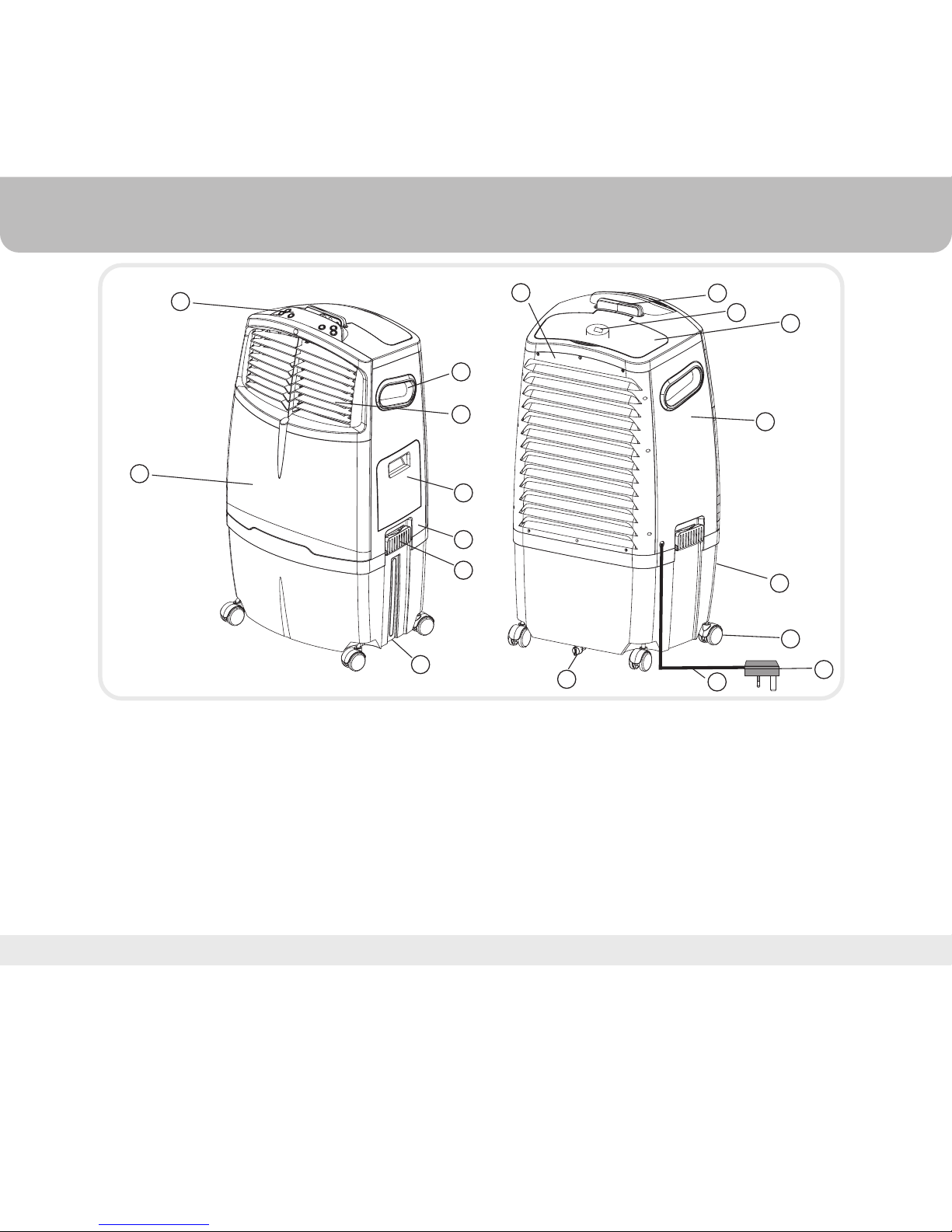

Control Panel
Handle
Louvers
Left Side Panel
Water Tank
Power Cord
Power Plug
Casters
Back Grill
Front Panel
Water Level Indicator
Remote Control
Latch
Right Side Panel
Water Fill Door
1
2
3
4
5
6
7
8
Ice Compartment Lid
9
10
11
12
13
14
15
16
17
Water Regulator
18
PARTS DESCRIPTION
1
11
12
17
14
15
16
13
2
4
3
5
8
9
18
10
ACCESSORIES:
Remote Control ( Batteries not included)
7
Drainage Tube / Cap

8
CONTROL PANEL
USE & OPERATION
Icons on LCD
Low water level in tank
Cool
Fan operating Sleep
Low speed
Medium speed
High speed
Swing
Time delay set
Ionizer
COOL
SPEED
SLEEP
TIMER
SWING
IONIZER

USE & OPERATION
9

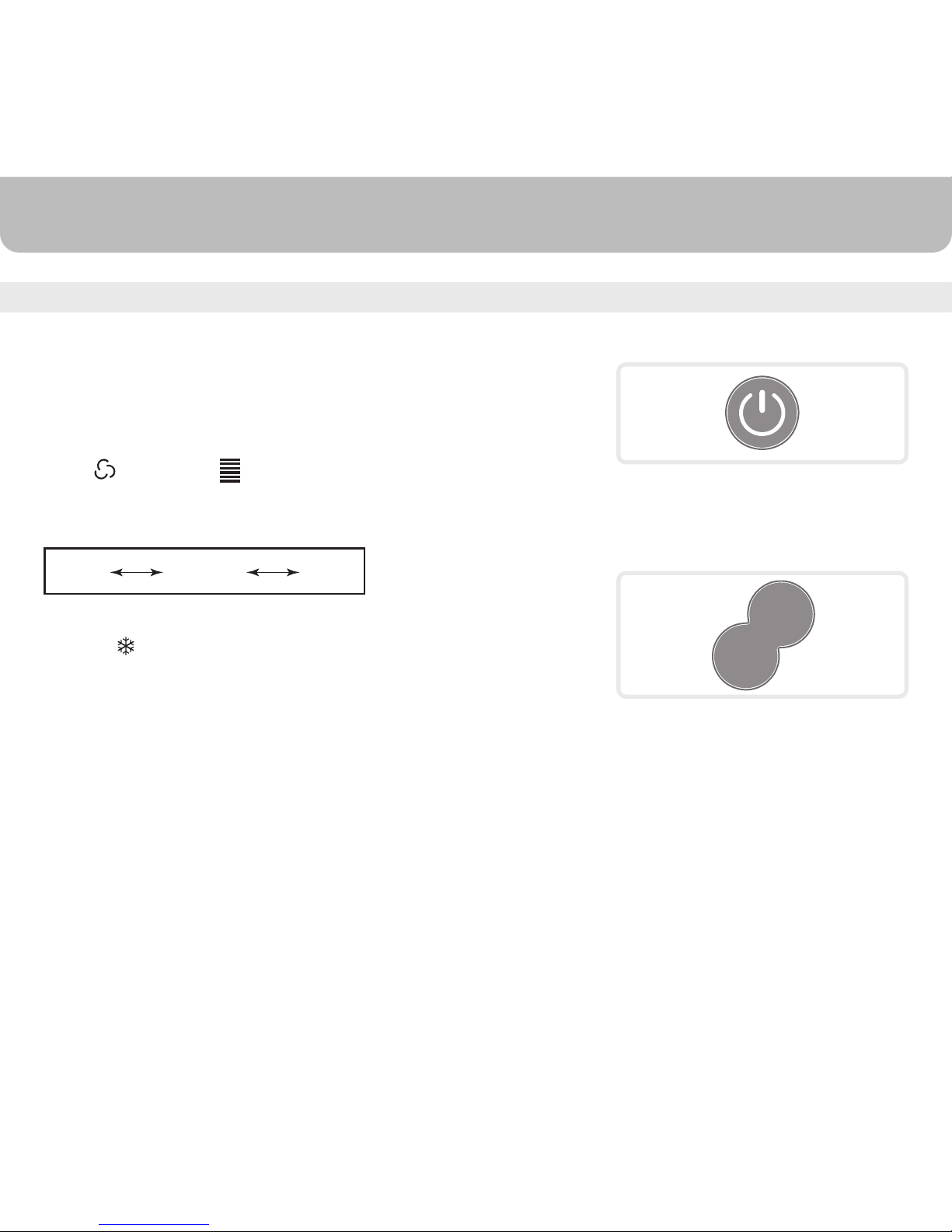

FUNCTION BUTTONS
POWER
Press the 'POWER' button to turn the unit on. To turn the unit
off, press the button again. The cooler will start automatically at
medium speed. After a few seconds the speed will switch to low.
FAN / SPEED
Press the 'FAN OR SPEED' button repeatedly and the speed
will change. The indicator light will show the selected speed.
COOL
To begin cooling the desired area press the ''COOL’'
button. The indicator light will come on and the water
pump will operate. You will feel the cooler air after the
Honeycomb media is completely wet.
High Medium Low
COOL
SPEED

USE & OPERATION
10

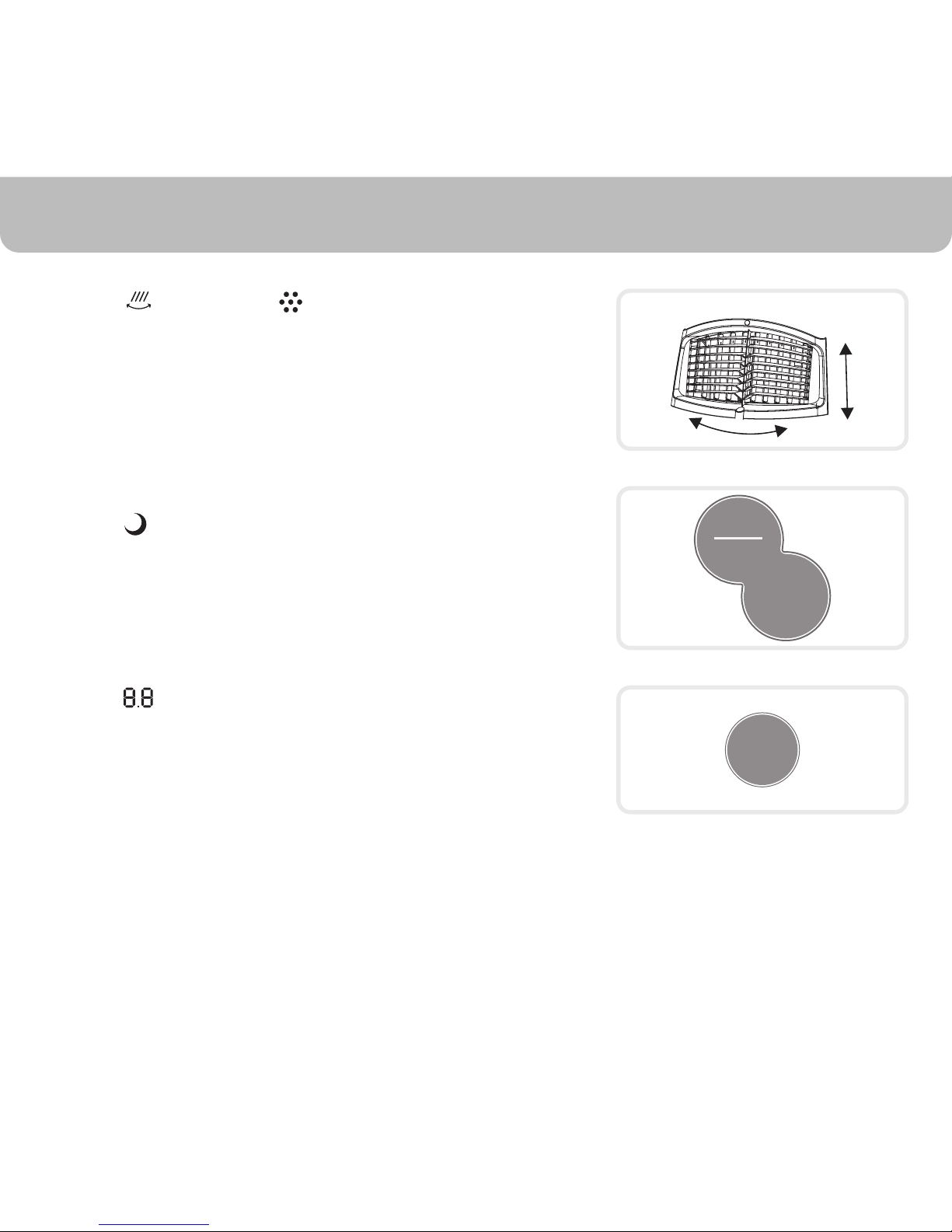

SLEEP
When the SLEEP button is pressed, the cooler will run on
HIGH speed for 1 hour, subsequently changing to MEDIUM
speed for 1 hour followed by LOW speed for the remaining
time.
TIMER
Press the ''TIMER'' button until the indicator light comes on to
your desired timer. Once the set time has passed, the unit will
automatically shut off. The Timer function allows you to program
the unit for up to 8 hours of use.
TIMER
SWING / IONIZER
Press the ''SWING'' button. The indicator light will come on
and the louvers will begin to move from right to left automatically.
Manually adjust the horizontal louvers to change vertical airflow.
"IONIZER" feature is used to remove very fine pollutant particles
such as dust, pollen, cigarette smoke, car fumes & aerosol
propellants from air.
LOUVERS MOVEMENT
SLEEP
SWING
IONIZER

USE & OPERATION

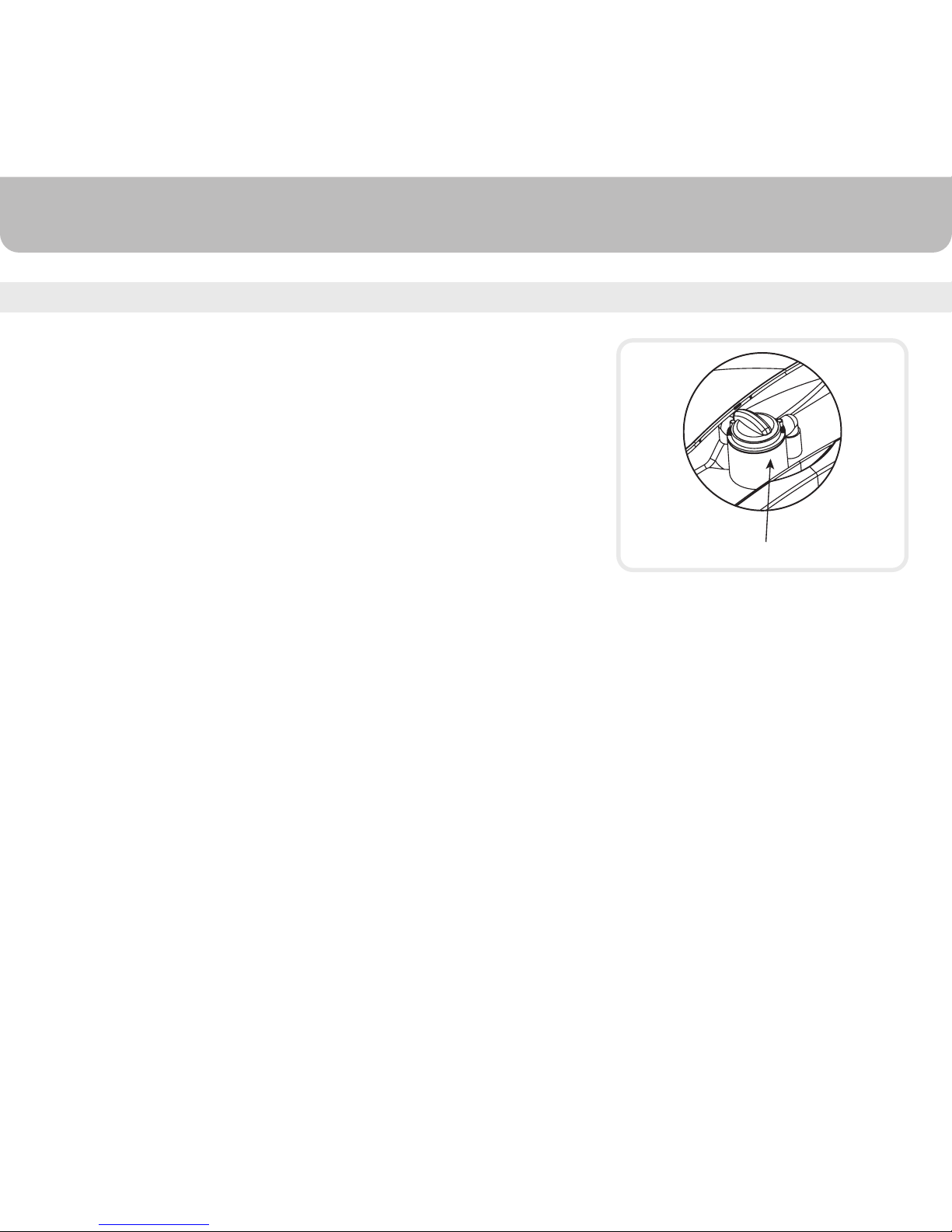

LOW WATER ALARM FUNCTION
The unit is equipped with a low water sensor. When water in the tank is below the
minimum level, you will hear 10 beeps and the COOL LCD indicator will flash
continuously. At the same time the power to the pump inside the unit will be cut off
to protect the life of the pump.
To disengage the alarm function, turn off and unplug the unit from the power
outlet, and fill the tank with water above the minimum level.
To turn off the alarm function and continue to use it in FAN mode, turn off the unit
and turn the unit on. If COOL button is pressed again without filling the tank with
water, low water alarm will activate again.
COOLER LOCATION
Place the cooler in front of an open door or window. Ensure that there is adequate
cross - ventilation in the room by leaving a door or window open
opposite from the cooler.
Following these rules will ensure your cooler will work as effectively as possible.
11

USE & OPERATION
ROOM COOLING AND HUMIDIFYING
When the Water Regulator is set to ''MIN'', the water pump
distributes minimal amount of water to the Honeycomb media.
This results in less water evaporation and reduces cooling
effect.
When the Water Regulator is set to ''MAX'', the water pump
distributes the maximum amount of water to the Honeycomb
media. This results in maximum water evaporation and the
cooling performance improves. Water Regulator
12

USE & OPERATION
REMOTE CONTROL
Power: On / Off
Speed: Low / Medium / High
Cool/Fan: Controls cooling or fan option
Swing/Ionizer: Controls the motion of the louvers&turns
On / Off the Ionizer function.
Timer:
Turns on the sleep mode(Cooler runs on high
speed for 1 hr followed by medium speed for
1 hr and then remains in low speed)
Sleep :
Remote Control ( Batteries not included)
Controls timer function for automatic shut off
NOTE
Please open the battery compartment at the back of the
remote control and insert two new AAA dry cell batteries.
Care must be taken to insert the batteries according to the
correct polarity (+ / –) markings shown inside the battery
compartment.
Always point the remote control signal transmitter towards
the unit when operating.
Make sure that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for
an extended period of time.
Do not drop the remote control.
•
•
•
•
•
SLEEP
TIMER
SPEED
POWER
COOL
SWING
IONIZER
13

USE & OPERATION
FILL WATER
Open the Water Fill Door located below the Remote Control
Holder on the unit. The water tank of the unit holds up to 30 liters
of water.
CAUTION
Unplug from power when refilling.
Water Fill Door
Top Ice Loading Compartment
14
Water level display window is located on the left side panel of
the unit. Refill the water tank when water level is low. Do not
fill water above the Max water level mark. Check water level
in the tank before running the ''COOL'' function. Please be
sure water in the tank is always above minimum water level
mark. Running the unit with inadequate water may cause
pump failure. If ice is available you may add ice in the top
compartment to enhance the cooling performance.

WARNING
CLEANING & MAINTENANCE
Before cleaning the unit, switch it to the ''off'' position and
remove the plug from the power socket.
To clean the outside, use a damp cloth to remove dirt and
dust.
Never use corrosive elements or any chemicals to clean
this product.
When the product is not in use, store the unit in a dry place
out of direct sunlight.
DRAINING AND CLEANING THE WATER TANK
•
•
•
•
•
•
•
•
•
•
•
•
Latch
Water Pick Up Tube
Turn the power “off” and disconnect the air cooler from the
power supply.
Move the unit to a location where it can be drained. Remove
the cap from the drainage tube and allow the tank to empty
(see parts description on page 7).
Once the tank is empty, unlock the latches on both sides
and lift off the cooler top section as shown in the figure and
place it vertically on the floor. Be careful not to bend the
water pickup tube that hangs below the unit.
Refill the water tank with clean water and drain it completely.
Clean the water tank with detergent or a damp cloth and
rinse it thoroughly.
Place the unit top carefully on the tank and lock the latches.
Refill the water tank with clean water, up to the maximum level.
The air cooler is now ready to be used. This cleaning
process should be repeated weekly to maintain the integrity
of the unit and to remove particles filtered from the air.
15
Rubber Plug

CLEANING & MAINTENANCE
CLEANING THE FILTER AND HONEYCOMB
The appliance is supplied with carbon filter & honeycomb
cooling media.
•
Always keep the Carbon filter clean. You can wash the
Carbon filter at least twice a year or whenever you feel
necessary.
•

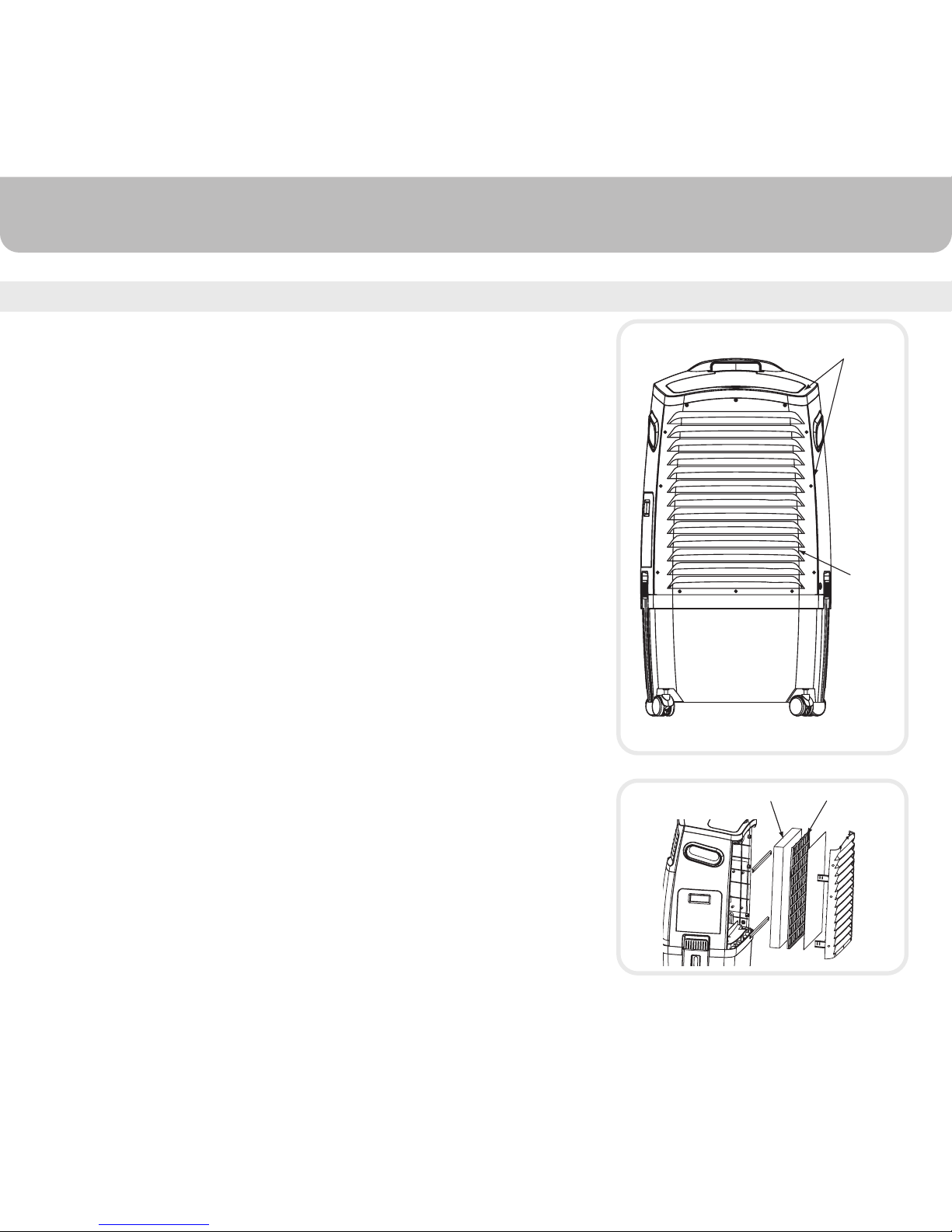

The carbon filter and honeycomb media are located inside the
back panel. Open the back panel by using a star screw driver
to clean or replace the carbon filter or honeycomb media. It is
recommended that the carbon filter and honeycomb media be
replaced every year, depending on use and environment.
•
Draining the water reservoir and refilling with fresh water at
least once a week will greatly reduce mineral deposits in the
pads and help to extend the life of Honeycomb cooling media.
•
Do not run the unit in COOL mode with stale water in the tank.
You must empty the water tank and refill with fresh water,
especially if the tank has not been cleaned in a long time.
•
The cleaning frequency for the Honeycomb media depends
on local air and water conditions. In areas where the mineral
content of water is high, mineral deposits may build up on the
honeycomb cooling media and restrict air flow. Draining the
water reservoir and refilling with fresh water at least once a
week will help reduce mineral deposits. If mineral deposits
remain on the Honeycomb media, the media should be
removed and washed under fresh water. The media should be
cleaned every two months or sooner, depending on your needs.
•
For best results allow the honeycomb cooling media to dry
after each use by turning off the cool function 15 minutes
before turning the unit off.
•
Open Screws
Back Panel
Honeycomb Carbon Filter
16

TROUBLESHOOTING GUIDE
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch in ON.
Power is not on. Try to turn the unit ON by
pressing buttons on control
panel or remote control.
Cooler not operating Initially Cord is not plugged in. Make sure power cord is plugged
in and the supply switch in ON.
Power outlet or supply faulty Check the power outlet.
Check the power supply.
Incorrect Voltage Check that the power supply is
the same as specified on the
rating label.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
remote or control panel.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Damaged Pump or Calcium
deposits on blower.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
17

TROUBLESHOOTING GUIDE
The unit does not respond Remote control batteries. Check batteries, Replace if
needed. Try to operate using
the control panel.
Damaged PCB Try with remote control. If the
unit responds, PCB board
fasteners may be loose.
Contact service centre.
If neither remote control nor
control panel works, PCB
board may be damaged.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
Odour Emission
For product enquiry or support contact:
E-mail: [email protected]
Customer Service Hotline: [phone]
New Unit. When the unit is used for the
first time, the Honeycomb
cooling media will have an
odour, which will dissipate
within a week of initial use.
Old Unit. There may be an algae issue,
Replace the honeycomb cooling
media. Contact service centre.
18
