Honeywell CL610PM User manual

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
EN
Refroidisseur d'air par évaporation portatif
Mode d'emploi
Lire ces instructions avant l'utilisation et les conserver
FR
Refroidisseur d'air par évaporation portatif
Manual Del Propietario
Lea y guarde estas instrucciones antes de usar la unidad
ES
Model / Modèle / Modelo:
CL610PM / CO610PM/
CL810PM / CO810PM
Customer Support:
Assistance Au Client:
Servicio de atencion a clientes:
Web: www.jmatek.com
USA: 1-800-474-2147 | [email protected]
CANADA^: 1-888-209-0999 | [email protected]
^ Canada Customer Support service available for models sold in Canada only.
^ Le Service Client Canadien est disponible uniquement pour les modèles vendus sur le territoire Canadien.
^ Servicio de Atención A Clientes en Canadá disponible solo para modelos vendidos en Canadá.

1
PARTS DESCRIPTION
EN
12
7
6
5
1
2
4
13
14
11
10
9
3
FOR MODEL: CL610PM/ CO610PM
FOR MODEL: CL810PM/ CO810PM
12
7
6
5
1
2
4
13
14
11
10
9
3
8
8

2
PARTS DESCRIPTION (CONTINUED)
EN
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.
1) Control Panel 8) Casters
2) Lever for Horizontal Louvers 9) Rear Grill Screws
3) Louvers 10) Rear Grill
4) Water Level Indicator 11) Water Tank
5) Water Fill Door 12) Drain Plug
6) Handle 13) Water Inlet Valve
7) Side Grill 14) Power Cord & Plug
IMPORTANT: Honeywell Outdoor Air Cooler models are designed to IPX4 product standards and not
recommended to be placed outdoors during heavy rain or snow.
FOR OUTDOOR MODELS CO610PM/CO810PM:
WARNING: Use only on GFCI Protected outlets/ sockets (for USA only).
Press the TEST button (then RESET button) every month to ensure proper operation.
Power cords must be secured to avoid tripping.
The wiring and connections must be protected from water. The electrical plug and Air Cooler
connections must be dry at all times. When used outdoors, insert the air cooler electrical plug
into an IP44 compliant outdoor electrical outlet.
Set the unit on a solid flat surface.
•
•
•
•

3
OFF
ON
ON
OFF
0
3
2
1
COOL SWING
SPEED
USE & OPERATION
EN

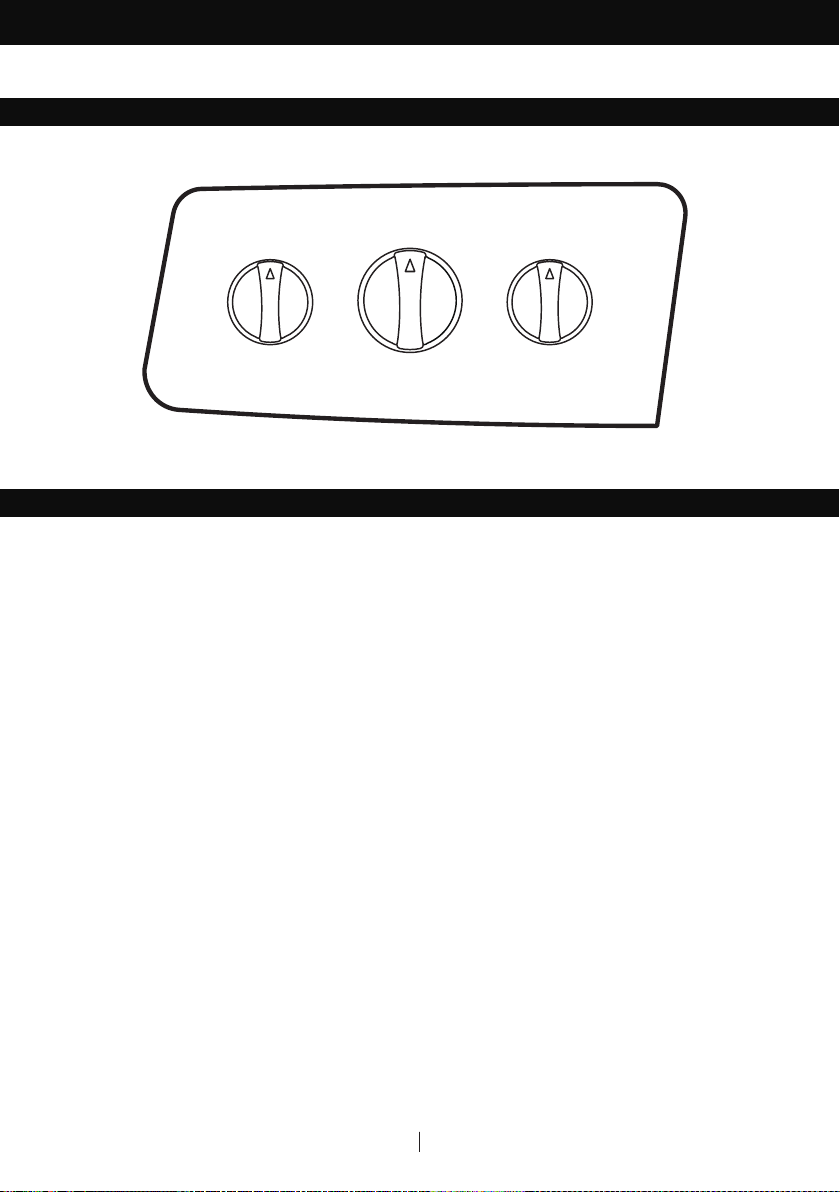

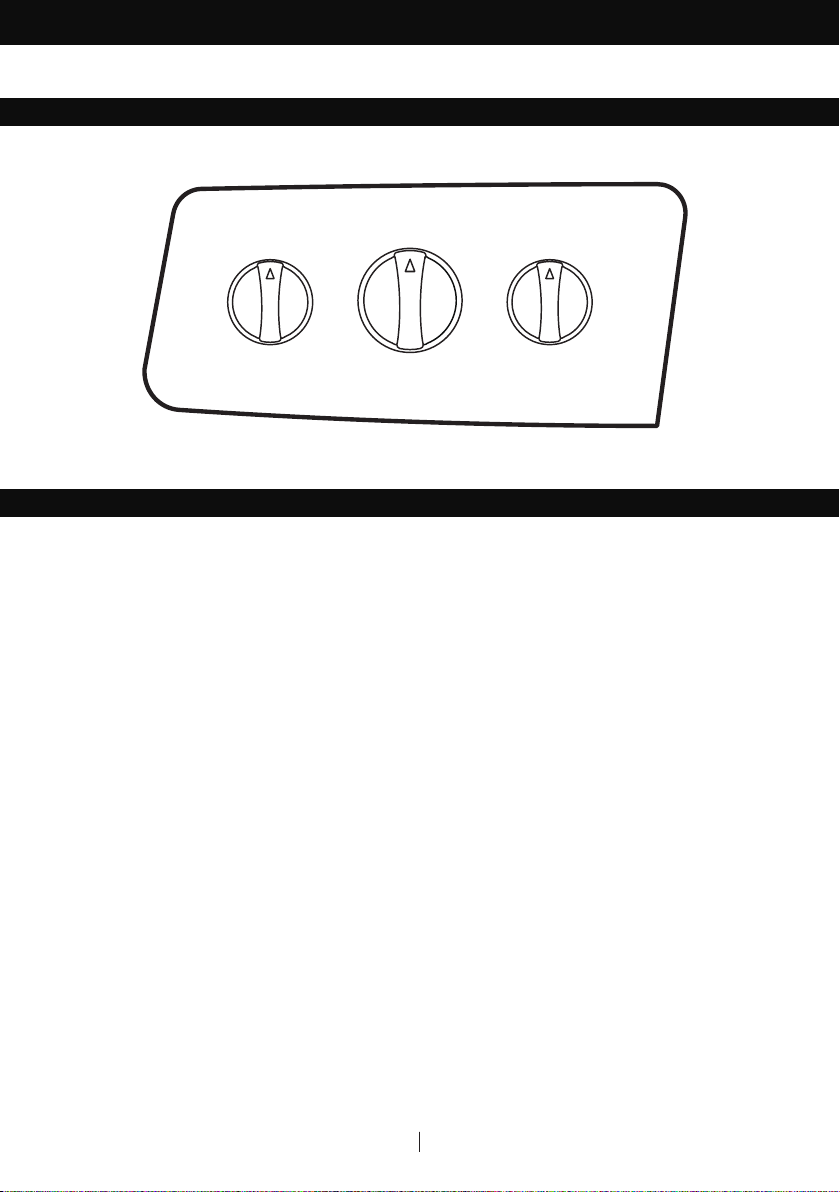

CONTROL PANEL
FUNCTION BUTTONS
SPEED / ON - OFF
Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3 to
1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED knob to 0.
COOL
You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON position to
activate evaporative cooling. The water pump will operate and you will feel the cooler air after the
Honeycomb Cooling Media is completely wet.
SWING
Turn the SWING knob to the ON position to activate the movement of the louvers. The louvers will begin
to move left to right automatically. Vertical Air Flow - You can manually adjust the lever located at the
front of the unit to change vertical air flow.

4
USE & OPERATION (CONTINUED)
EN
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION
Locate the male connector at one end of the garden hose.
Insert the garden hose connector into the water inlet valve of
the cooler. Screw and tighten the water inlet valve onto the
threaded part of the garden hose connector, making sure the
hose connector is secured to ensure there will be no leaks. If
there is leakage, the hose and the water inlet valve may not be
connected properly. Try to disconnect, replace and tighten the
water inlet valve again.
When the connection is secured, turn ON the water supply and
the water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically when
the water tank is empty, or when the water reaches below a
minimum level.
When the water tank is full, the water inlet valve will
automatically stop the water supply from overflowing.
Please open the water valve for minimum flow as too
much pressure could damage the inlet pressure control system.
WARNING: The maximum water inlet pressure is 0.5 MPa.
It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time
without refilling the tank. This also helps prevent pump failure in case the cooler is running with
inadequate water in the tank.
CAUTION: Unplug the unit from the electrical power outlet before filling or emptying the water tank.
Continuous Water Supply Connection:
For a continuous water supply, you will need a garden hose that is connected to a main water supply.
Note: The garden hose is not included. Please make use of a garden hose which is compatible with
the unit connection.
FILLING WITH WATER
•
•
•
•
•
Garden Hose
Water
Inlet Value
Water Fill Door
Water Inlet Hole

5
WARNING: Always ensure the water in the water tank is above the minimum (Min.) water level mark
for both Continuous & Manual Water Refill. Running the unit in Cool mode with inadequate water
may cause pump failure.
USE & OPERATION (CONTINUED)
EN
LOW WATER PUMP CUTOFF*
In Cooling Mode, when water in the tank is below the minimum indicator level, the air cooler water
pump will automatically turn off. This helps to protect the water pump from running without water in
the tank. When the water pump is turned off, the air coolers stops evaporative cooling.
To reactivate the water pump and restart the unit in Cooling Mode, first switch OFF the unit and
unplug from the power outlet. Fill the water tank with fresh water above the minimum level mark.
Plug in and switch the unit ON again.
*Applicable for models with Low Water Pump Cut-off only.
NOTE: The water capacity refers to the total volume of water that can be contained within the air
cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and Honeycomb
media.
FILLING WITH WATER (CONTINUED)
Manual Water Tank Refill:
•
•
Using a portable container or a garden hose, you can refill the water tank manually by pouring
water into the water tank through the water inlet hole located at the top of the air cooler.
Check the water level indicator to know when the water tank is full. Do not fill water above the
"Max." water level mark to avoid water droplets collecting on the louvers.

6
USE & OPERATION (CONTINUED)
EN
If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE
GUIDELINES located in the separate Safety & Maintenance Guide.
CLEANING & DRAINING THE WATER TANK
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.
•
•
•
•
Move the unit to a location where the water can be drained. Remove the cap from the Drain plug
located at the bottom of the unit. Allow the tank to empty.
Refill the water tank with clean water, up to the maximum level and drain it completely.
Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
When the product is not in use, store the unit in a dry place away from direct sunlight.
CLEANING THE HONEYCOMB COOLING MEDIA
The appliance is supplied with three Honeycomb Cooling Media pads.
The Honeycomb Cooling Media are located inside the Rear and Side Grills. Follow Steps 1 to 5 for
instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•

7
USE & OPERATION (CONTINUED)
EN
Remove the screws from the Rear Grill of the Air Cooler.
Carefully pull out the Rear Grill from the Air Cooler.
The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are fixed in
place by two screws on the Left and Right Sides of these Horizontal Bars. Remove these screws
to release the Horizontal Bars.
Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill. Replace with the new
Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it fits comfortably and
securely in place on the grill. Replace the Horizontal Bars back onto the Rear Grill by replacing the
Left and Right Side screws and tightening them in place. This secures the Honeycomb Cooling
Pad in place on the Rear Grill.
Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills.
1.
2.
3.
4.
5.

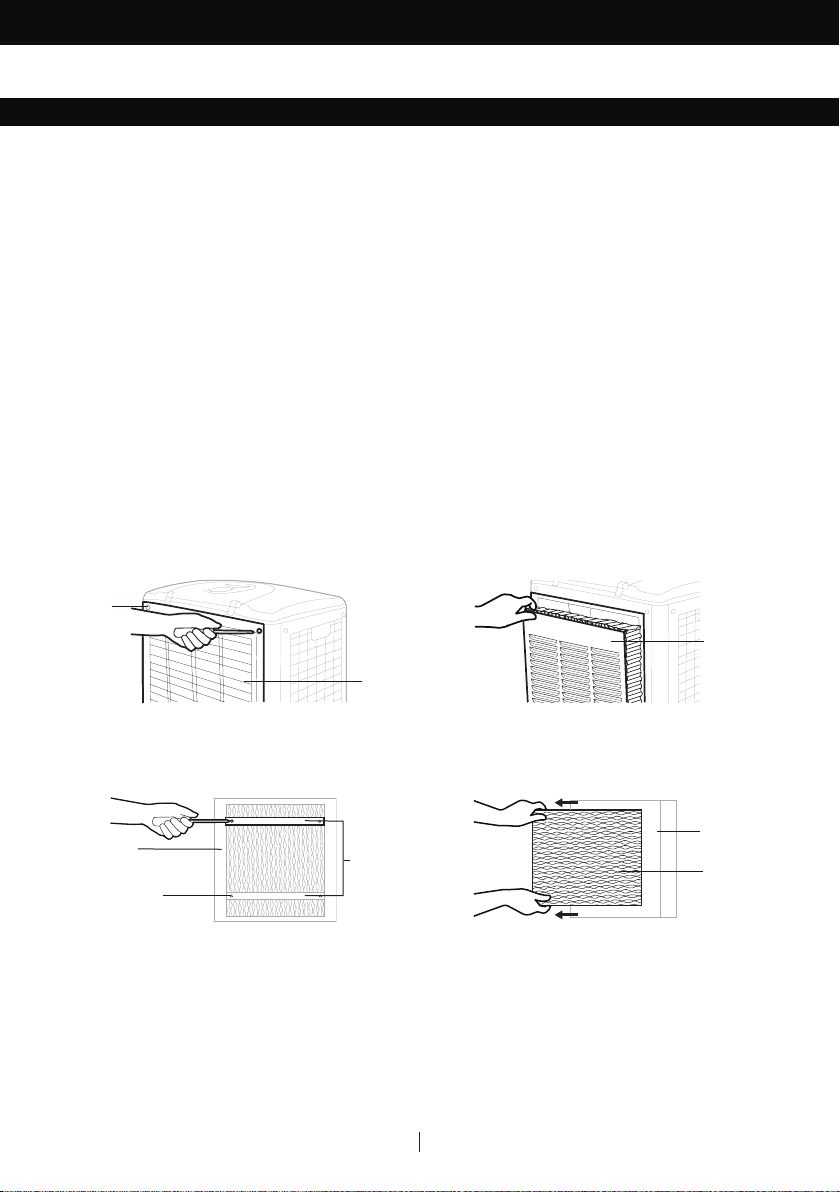

Removing the Honeycomb Cooling Media:
WARNING: DO NOT operate the Air Cooler when any or all of the Rear or Side Grills are removed
from the Air Cooler, or if there is a loose-fitting Rear or Side Grill. Doing so can cause serious injury or
dangerous electrical shock.
CLEANING THE HONEYCOMB COOLING MEDIA (CONTINUED)
Step 2:
Rear Grill
Step 1:
Rear Grill
Rear Grill
Screws
Step 3:
Rear
Honeycomb
Pad
Screws
Horizontal
Bars
Step 4:
Rear
Honeycomb
Pad
Rear Grill

1
DESCRIPTION DES PIÈCES
FR
12
7
6
5
1
2
4
13
14
11
10
9
3
POUR MODÈLE: CL610PM/ CO610PM
POUR MODÈLE: CL810PM/ CO810PM
12
7
6
5
1
2
4
13
14
11
10
9
3
8
8

2
DESCRIPTION DES PIÈCES (SUITE)
FR
1) Panneau de commande 8) Roulettes
2) Levier pour les grilles
d’aération verticales 9) Vis de la grille arrière
3) Grille d’aération 10) Grille arrière
4) Indicateur de niveau d’eau 11) Réservoir d’eau
5) Porte pour le remplissage 12) Bouchon de vidange
6) Poignée 13) Vanne de l’entrée d’eau
7) Grille latérale 14) Cordon électrique et prise
AVERTISSEMENT -- LIRE ET CONSERVER LE GUIDE DE SÉCURITÉ ET D’ENTRETIEN ET LE
MANUEL DE L’UTILISATEUR DU REFROIDISSEUR D’AIR AVANT D’UTILISER LE PRODUIT.
NE PAS SUIVRE CES CONSIGNES POURRAIT ENDOMMAGER ET/OU PERTURBER SON
FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT
ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE
MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.
IMPORTANTE: Les modèles de refroidisseur d’air par évaporation de Honeywell sont conformes à la
norme IPX4, et il n’est pas recommandé de les laisser à l’extérieur en cas de fortes pluies ou de neige.
UNIQUEMENT POUR LES MODÈLES D’EXTÉRIEUR CO610PM/CO810PM
AVERTISSEMENT: Utiliser uniquement avec des prises protégées par des disjoncteurs de fuite de
terre. Appuyez sur le bouton TEST, puis sur le bouton RESET une fois par mois pour assurer un bon
fonctionnement.
Pour éviter qu’ils provoquent une chute, les cordons d’alimentation doivent être disposés de
manière sécuritaire.
Les fils et les connexions doivent être protégés de l’eau. La prise électrique et les connexions du
refroidisseur d’air doivent être sèches tout le temps. Lorsqu'il est utilisé à l'extérieur, branchez la
fiche électrique dans une prise extérieur conforme à la norme IP44.
Placer l’appareil sur une surface plane et solide.
•
•
•
•
