Honeywell CO25MM User manual

Portable Evaporative Air Cooler
Enfriador de Aire Portátil por Evaporación
OWNER’S MANUAL
Read and save these instructions before use
MANUAL DEL USUARIO
Lea y guarde estas instrucciones antes de usar
Model: CO25MM
Modelo: CO25MM
Power rating: 1.58A/190W
Made in P.R.C.
Fabricado en China
Customer Support : 1-800-474-2147
Centro de servicios al cliente: 1-800-474-2147
Voltage rating: 120 Volt, 60Hz
Potencia: 1.58A/190W
Voltage: 120 Volt, 60Hz
For product inquiries or support, visit www.honeywellaircoolers.com
Para consultas sobre productos o soporte técnico visite: www.honeywellaircoolers.com

Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3
QUICK START GUIDE
1
2
3

2. USER TIPS .................................................................................................................
3. SAFETY ......................................................................................................................
4. PARTS DESCRIPTION .........................................................................................
Control buttons ....................................................................................................
Filling with water ...................................................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
3
5
8
5. USE & OPERATION ............................................................................................. 9
Control panel ....................................................................................................... 9
10
11
6. CLEANING & MAINTENANCE ............................................................................. 12
7. TROUBLESHOOTING GUIDE .............................................................................. 14
15
16
10. SERVICE AND WARRANTY ................................................................................ 17
1
SECTION PAGE
1. THANK YOU ............................................................................................................... 2
INDEX
Read all instructions carefully before setting up and operating the cooler, and keep this
instruction manual for future reference. This manual is designed to provide you with impor-
tant information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to
follow these instructions may damage and/or impair its operation and void the warranty.

2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, please fill the water tank to maximum level and load ice
inside the ice compartment before you turn on your air cooler.
Cooler Location – Indoors (Important - Please Read!)
The cooler in front of an open door or window. Ensure that there is adequate cross - ventilation
in the room by leaving a door or window open opposite the cooler.
Following these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

3
USER TIPS
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the
Honeycomb Cooling Media. Water pumped from the tank pours over the Honeycomb Cooling
Media. As the warm air passes through the Honeycomb Cooling Media, the water absorbs the
heat, naturally cooling and humidifying the air. A fan propels the cooled air out into the room. This
no-compressor system cools naturally, efficiently and inexpensively.

4
USER TIPS
NOTE (Important - Please Read!)
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a few hours or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
Indoor Use
Unit should be placed a minimum 10 inches away from any wall.
Outdoor Use
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)

Water Level Indicator
5

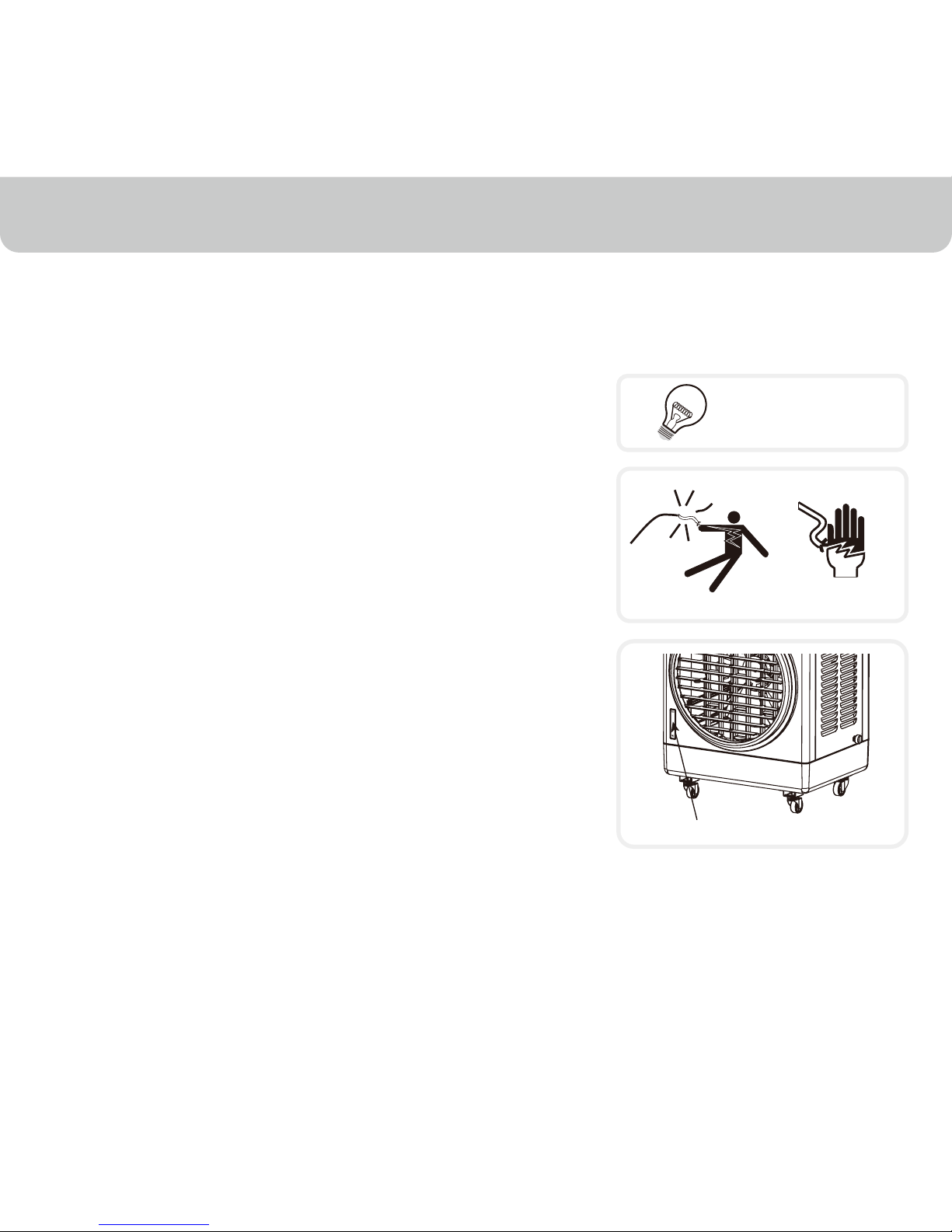

READ AND SAVE THESE INSTRUCTIONS:
SAFETY
120V ~ 60Hz
Shock Hazard
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this appli-
ance.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
Your cooler runs on 120 Volt, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
When using the COOL setting, check the water tank to
ensure that it is full. Operation of this cooler on the COOL
setting with an empty tank may result in damage to the water
pump.

Floor Level
6

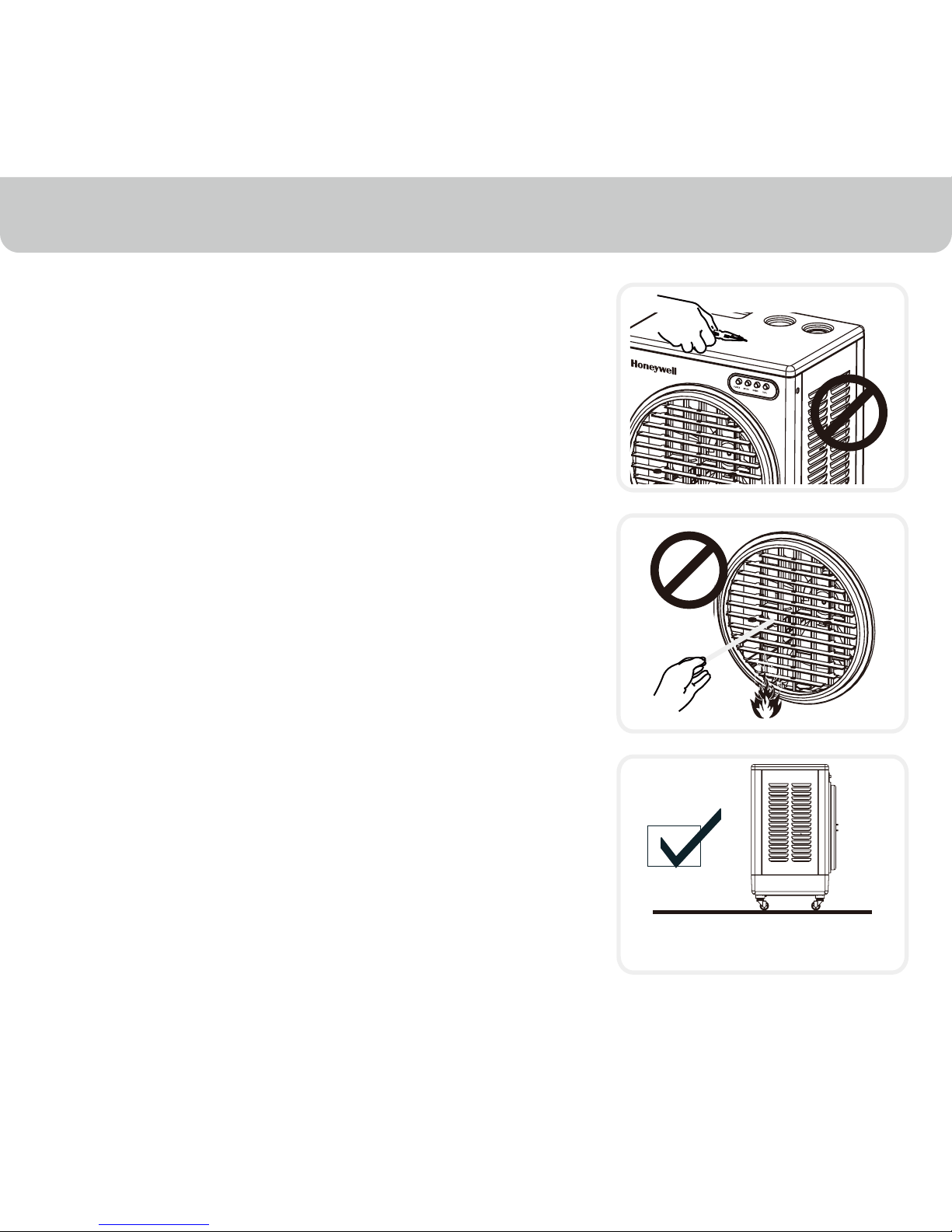

DO NOT attempt repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
DO NOT let children play with this appliance, packaging or
plastic bags.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsiblefor their safety.
Always Always grip the side handles to move the cooler.
SAFETY
•
•
•
•
•
•
•
•
•
•
•
•
•
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
DO NOT leave the operating appliance unattended for any
extended period of time.

SAFETY
7
This appliance equipped with a GFCI plug, press the TEST button (then RESET button) every
month to assure proper operation.
Power cords have to be contained. If they must run along the ground, make sure every inch
of them is secured so they will not be tripped over.
The wiring and connections must be waterproof. Be sure the connections (to the air cooler)
never get wet. Your unit is waterproof, but everything attached to it must be waterproof, too.
Set up your unit so it cannot be tripped over or wobble loose. It must rest on a solid
support.
Warning:
To reduce the risk of fire or electric shock, do not use this appliance with any solidstate speed
control device.
Installation must be performed in accordance with the requirements of NEC and CEC by
authorized personnel only.
The source of electrical supply is to be disconnected prior to the beginning of any such servicing
or cleaning operations.
•
•
•
•
•
•
•

10
11 1
2
1 Tray for Tools
2 Side Panel
3 Control Panel
4 Horizontal Louvers
5 Water Tank
6 Water Inlet Valve
7 Casters
8 Water Level Indicator
9 Lever for Horizontal Louvers
10 Back Panel
11 Water Inlet Cover
12 Water Drain Plug
13 Rear Grill Removal Screws
3
4
5
8
9
12
6
7
13
PARTS DESCRIPTION
8

CONTROL PANEL
POWER SPEED SWING COOL
9
USE & OPERATION

CONTROL BUTTONS
POWER
SPEED
SWING
COOL
USE & OPERATION
10
POWER
Press to switch the unit ON or OFF.
SPEED
Press to adjust the fan speed between Low and High speed.
COOL
To begin cooling the desired area, press the COOL button. The
water pump will operate and you will feel the cooler air after the
honeycomb cooling media is completely wet.
SWING
Vertical Louvers
Press the SWING button to activate automatic movement of the
louvers from left to right.
Horizontal Louvers
Manually adjust the horizontal louvers to change vertical airflow.

• Connect a garden hose connector to the water inlet valve,
• Maximum water inlet pressure 0.5 MPa.
• Water tank can be refilled by using water inlet hole on the top
of unit.
Make sure garden hose connector is well screwed with water
inlet valve.
• Connect water supply to the garden hose, and turn on water
supply.
• Water inside the tank will automatically refill once, it reaches
the Min. Level.
• Similarly, the water supply to the tank will stop, once the tank
is full, and reaches Max. Level.
FILLING WITH WATER ( Continuous Water Supply Connection)
WARNING
FILLING WITH WATER (Manual Operation)
Water inlet valve
USE & OPERATION
11

IMPORTANT
WARNING
•
•
•
•
•

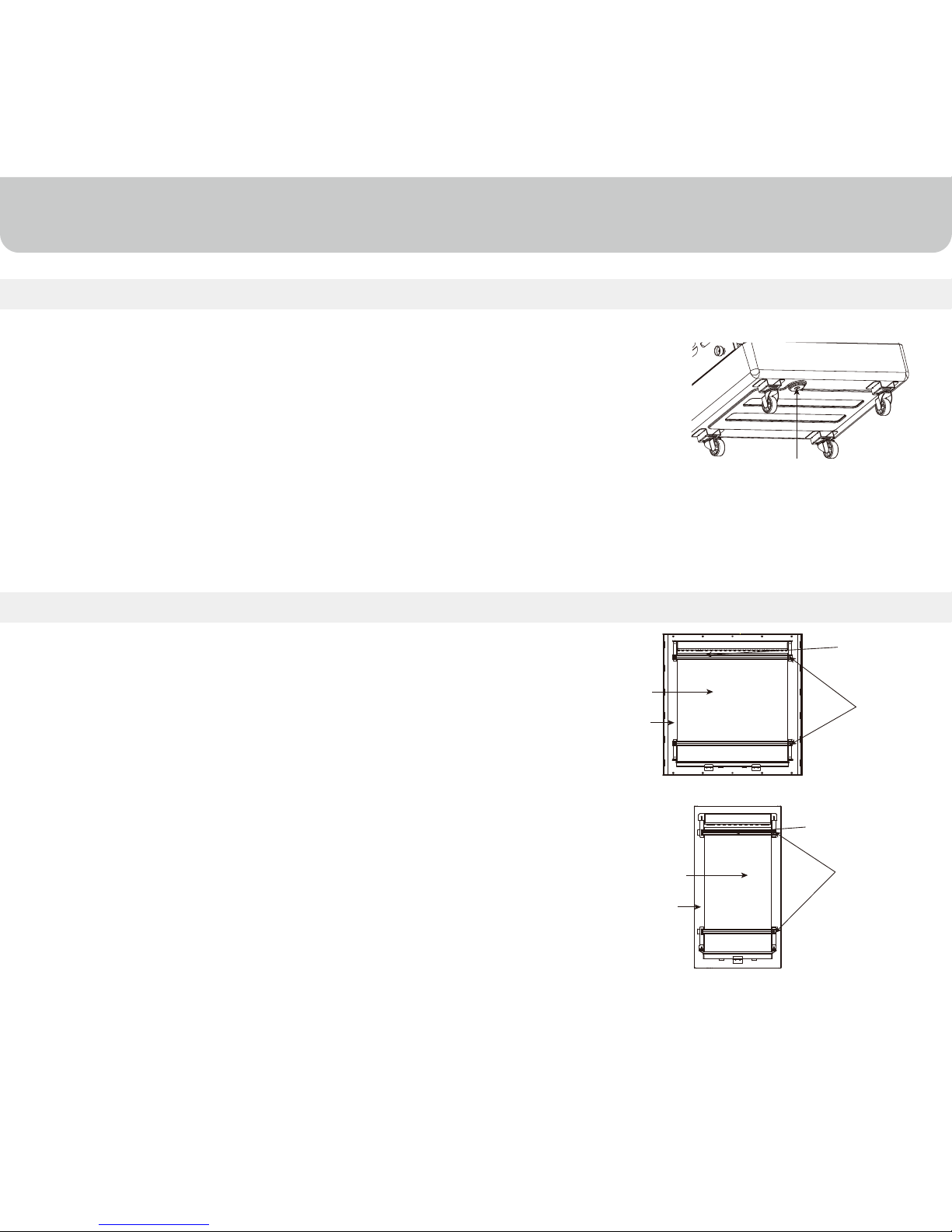

The cooler is supplied with Honeycomb Cooling Media.
The cleaning frequency for the Honeycomb Cooling Media depends on local air and
water conditions. In areas where the mineral content of water is high, mineral deposits may build
up on the Honeycomb Cooling Media and restrict air flow. Draining the water reservoir and refilling
with fresh water at least once a week will help reduce mineral deposits. If mineral deposits remain
on the Honeycomb Cooling Media, it should be removed and washed under fresh water. The
Honeycomb Cooling Media should be cleaned every two months or sooner, depending on your
needs.
Do not run the unit in COOL mode with stale water in the tank. It is recommended to empty the
tank and refill it with fresh water if the water has been standing in the tank for an extended period
of time.
For best results, allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
Draining the water reservoir and refilling with fresh water at least once a week will greatly reduce
mineral deposits in the pads and help to extend the life of Honeycomb Cooling Media.
•
•
•
•
Before cleaning the unit, switch it to the off position and remove the plug from the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
12
CLEANING & MAINTENANCE

Honeycomb
Holder
Honeycomb
Holder
Screw
Screw
Honeycomb
Honeycomb
Back Panel
Back Panel
Back Panel
Side Panel
DRAINING AND CLEANING THE WATER TANK
CLEANING THE HONEYCOMB COOLING MEDIA
•
•
•
•
•
•
•
•
•
•
Fig.1
Fig.2
Turn off the unit, and unplug the power cord from wall
outlet.
Rotate the unit facing the back panel, and locate the
Rear Grill Removal Screws.
Remove both the screws with a screw driver (refer fig. 1).
Pull the rear grill panel upwards, untill it is completely
removed.
Now, the honeycomb media can be seen. Clean both the
pads with clean cloth to remove all the dust & dirt
particles.
Repeat the same procedure in order to remove the
honeycomb pad from the side panel (refer to fig.2).
Once, the cleaning has been performed, assemble the
unit back in the same fashion as described above.
Water Drain Plug
Turn the power off and disconnect the unit from power supply.
Move the unit to a location where it can be drained and remove the
drainage tube/cap.
Once the tank is empty, refill with clean water and drain it again.
This should be repeated weekly to maintain the integrity of the unit
and to remove particles filtered from the air.
Once the tank is clean, refill the water tank. The unit is now ready to
be used again.
13
CLEANING & MAINTENANCE

No discharge of air Cord is not plugged in. Make sure power cord is
plugged in and the supply
switch is ON.
Power is not ON. Turn the unit ON by pressing
button on the control panel.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
Control Panel
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odors
Customer Support: 1-800-474-2147
When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a few hours of initial use.
If the Cooler has been used. There may be an algae issue.
Replace the Honeycomb Cooling
Media.
Damaged Pump or Calcium
deposits on blower.
Contact Customer Service
Center.
PROBLEM POSSIBLE CAUSE SOLUTION
TROUBLESHOOTING GUIDE
14

MODEL NO. CO25MM
120V
60Hz
190 Watts
6.6 Gallons
Honeycomb
24.0(L) x 19.0(W) x 32.5(H)inch
46.3 lbs
Voltage
Frequency
Wattage 1.58 A
Ampere
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
This unit is supplied with three (3) Honeycomb Cooling Media’s located on the back &
two sides.
NOTE
TECHNICAL SPECIFICATIONS
15

16
ELECTRICAL WIRING DIAGRAM

1-YEAR LIMITED WARRANTY
Read all the instructions before attempting to use this product.
This 1 year limited warranty applies to repair or replacement product found to be defective in
material or workmanship.
At its option, JMA NORTH AMERICA LLC will repair or replace this product if it is found to be
defective in material or workmanship.
This warranty does not cover damage resulting from any unauthorized attempts to repair or
from any use not in accordance with the instruction manual.
This warranty does not apply to any damage resulting from commercial, abusive, unreasonable
use or supplemental damage. Defects that are the result of normal wear and tear will not be
considered manufacturing defects under this warranty.
JMA NORTH AMERICA LLC IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an applied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights which vary from jurisdiction to jurisdiction. This warranty
applies only to the original purchaser of this product from the original date of purchase.
A.
B.
C.
SERVICE AND WARRANTY
17

Please read the Instruction Manual carefully before setting up or using this product. If you
believe this product to be suffering from a manufacturing fault, or if you have inquiries about
this product, please contact our Customer Support:
D.
CUSTOMER SUPPORT
JMA North America LLC
Mahwah, New Jersey 07495 USA
Phone : [phone]
Email: [email protected]
Web: www.honeywellaircoolers.com
When contacting our Customer Support, please have the information below along with the
proof of purchase. All warranty requests must be accompanied by a proof of purchase, which
is a copy of the original receipt.
Model : .......................................................................................................................
Date of purchase: .......................................................................................................................
Purchased from : .......................................................................................................................
18
SERVICE AND WARRANTY
