Honeywell CO25MM User manual

Portable Evaporative Air Cooler
OWNER'S MANUAL
Read and save these instructions before use
for Outdoor, Indoor & Commercial Use
Model: CO25MM
Power rating: 190 Watts
Voltage rating: 220 Volt, 50 Hz
For product inquiries or support,
visit www.honeywellaircoolers.com
Customer Service Center:
Made in P.R.C.TES Scandinavia AB
www.tesscandinavia.se, [phone]

QUICK START GUIDE
Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3

USER TIPS ..................................................................................................................
SAFETY .......................................................................................................................
PARTS DESCRIPTION - METAL STAND ...................................................................
USE & OPERATION ...................................................................................................
Control panel ............................................................................................................
CLEANING & MAINTENANCE ....................................................................................
TROUBLESHOOTING GUIDE ....................................................................................
TECHNICAL SPECIFICATIONS .................................................................................
ELECTRICAL WIRING DIAGRAM ..............................................................................
ASSEMBLING INSTRUCTIONS .................................................................................
PARTS DESCRIPTION - AIR COOLER ......................................................................
Control buttons ........................................................................................................
Filling water .............................................................................................................
1
Section Page
THANK YOU ................................................................................................................
INDEX
Read all instructions carefully before setting up and operating the cooler, and please keep this
instruction manual for future reference. This manual is designed to provide you with important
information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to follow
these instructions may damage and/or impair its operation and void the warranty.
3
5
7
8
10
11
11
12
13
14
16
17
18
2

2
THANK YOU!
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside the
ice compartment before you turn on your air cooler.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate
cross -ventilation in the room by leaving a door or window open opposite the cooler. Following
these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

3
USER TIPS
Pump
Water
Honeycomb Cooling Media

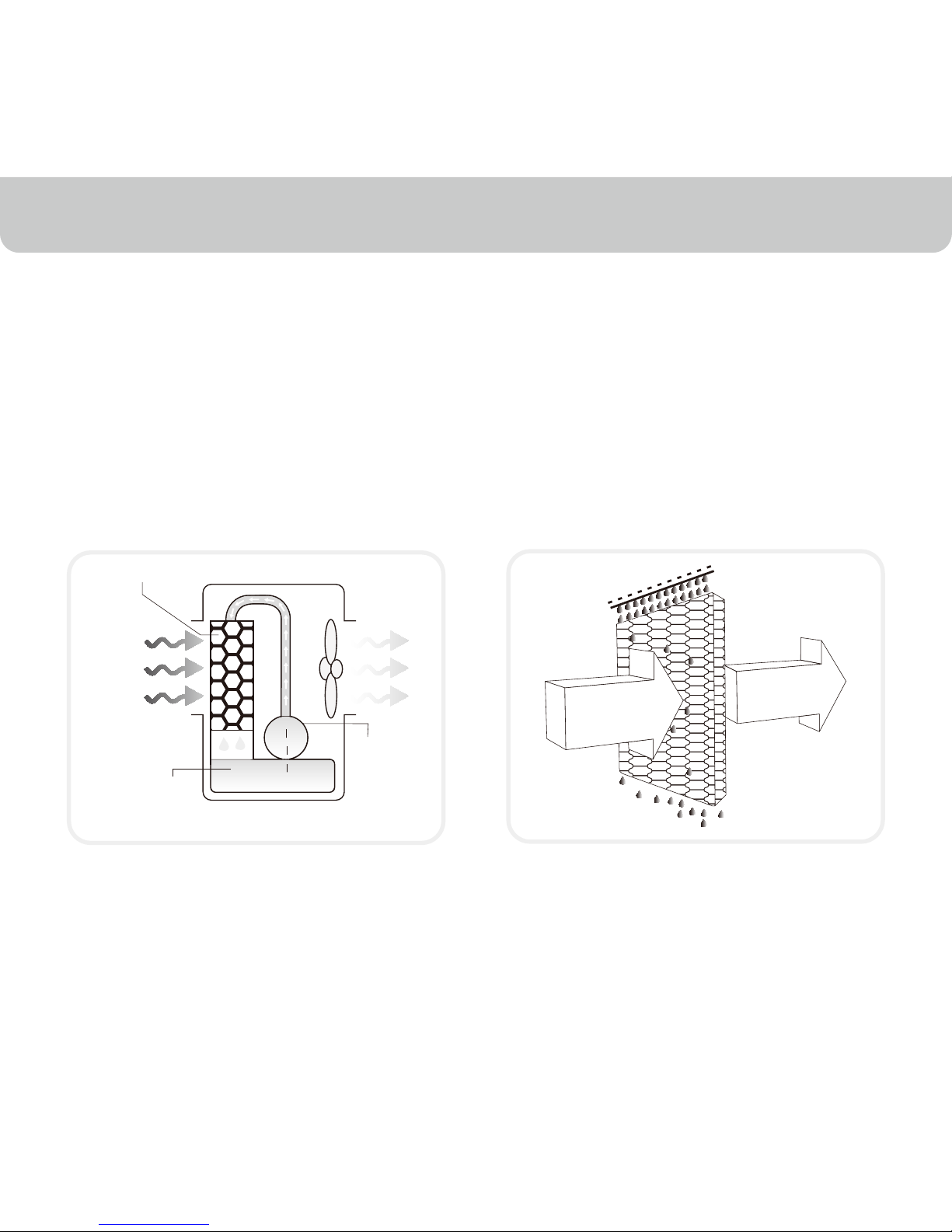

Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler and enters the Honeycomb Cooling Media. Water pumped from
the tank pours over the honeycomb media. As the warm air passes through the media, the water
absorbs the heat, naturally cooling and humidifying the air. A fan propels the cooled air out into
the room. This no-compressor system cools naturally, efficiently and inexpensively.

4
NOTE
USER TIPS

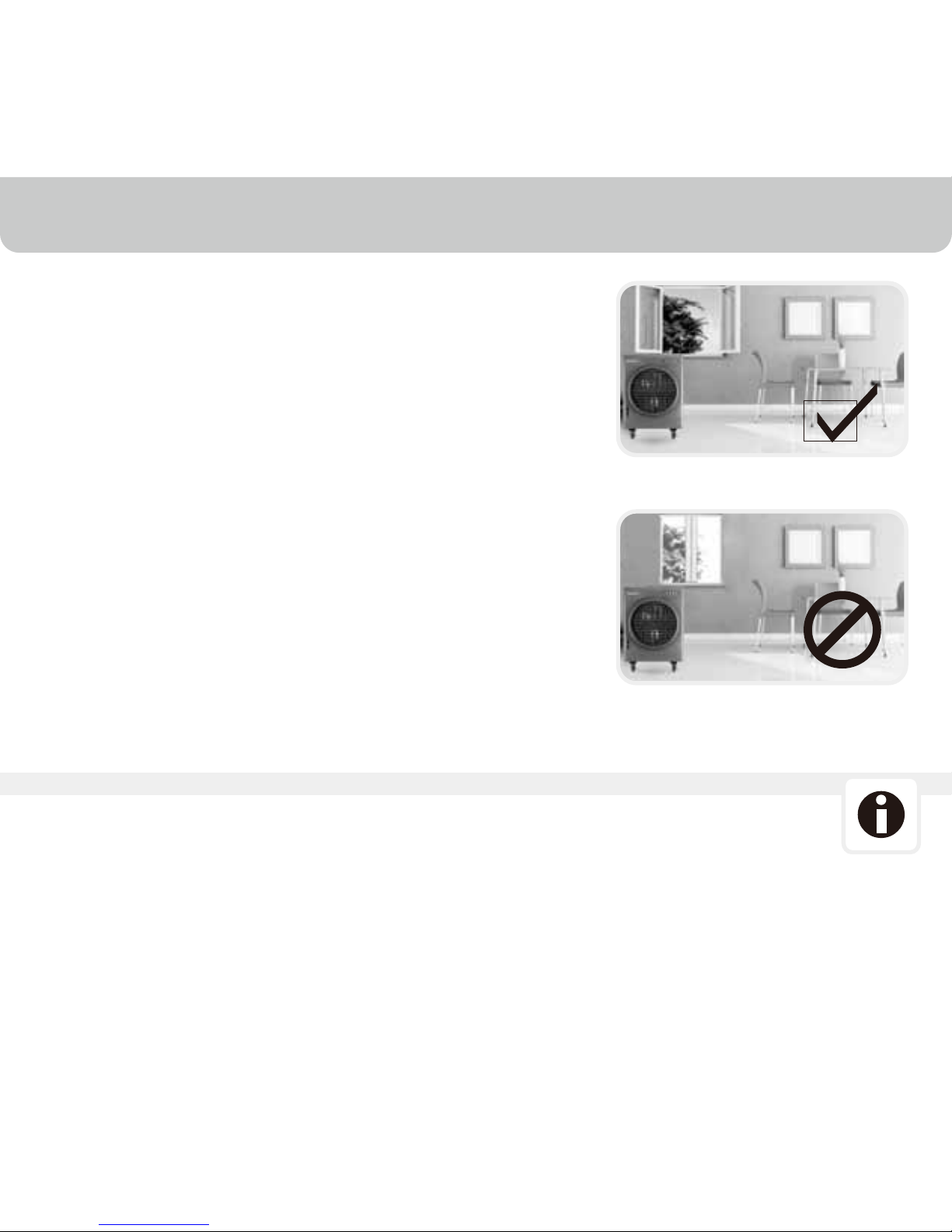

Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
The recommended maximum relative humidity level is 60%
or less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler
works best when placed near an open window, so that
outside air is drawn into the evaporative air cooler, the air
circulates in the room, then exits via the door. The maximum
cooling effect is felt when a person is in the flow of air coming
out of the evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
When the product is used for the first time the Honeycomb Cooling Media will have an
odor which will dissipate in a few hours or so of initial use.

WATER LEVEL INDICATOR
5
READ AND SAVE THESE INSTRUCTIONS:
SAFETY
220V AC 50Hz
SHOCK HAZARD

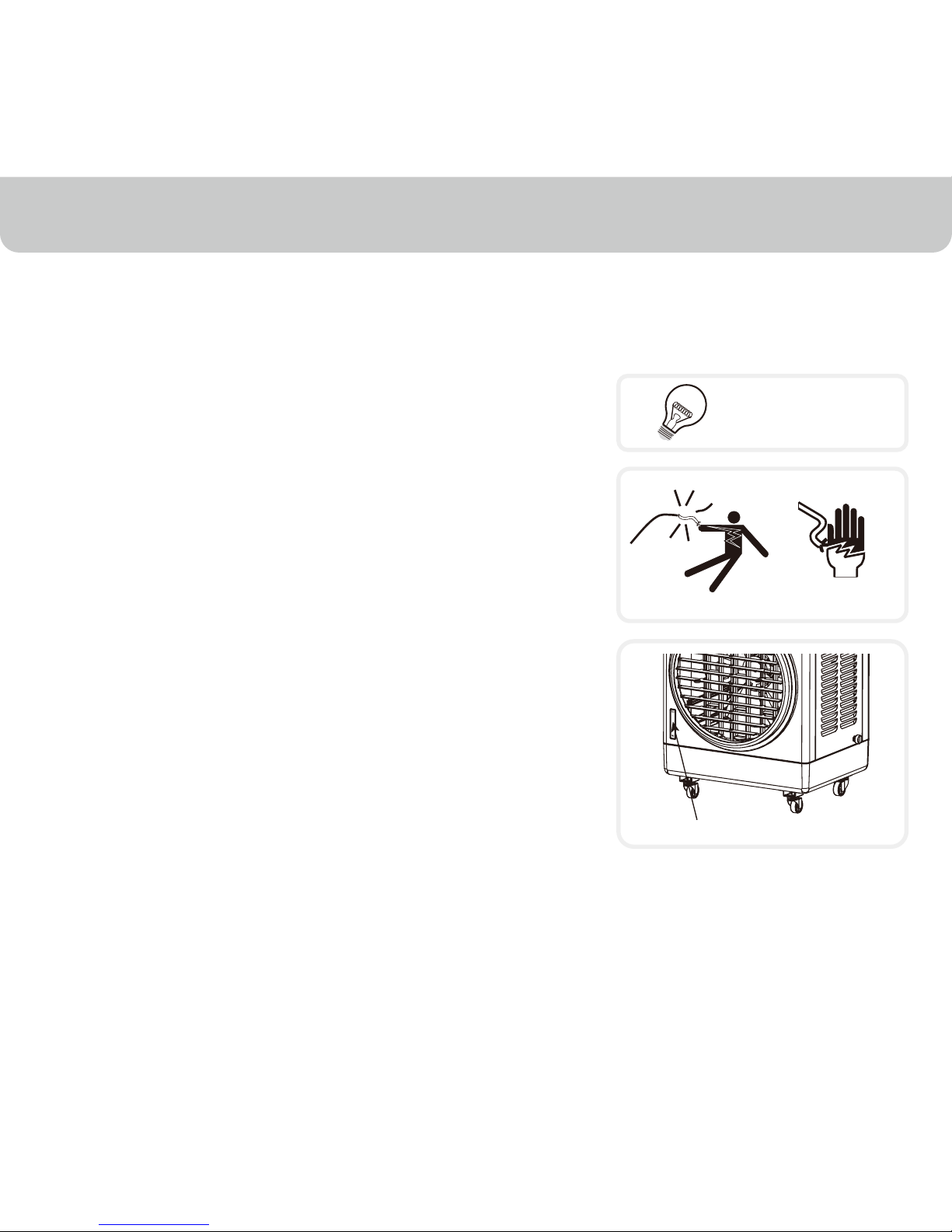

When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Your cooler runs on 220 Volt AC, 50Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check it is in good condition.
DO NOT operate any product with a damaged cord or plug.
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only,
never pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the
''COOL''setting with an empty tank may result in damage to
the water pump.

FLOOR LEVEL
6
SAFETY
•
•
•
•
•
•
•
•
•
•
•
•
•

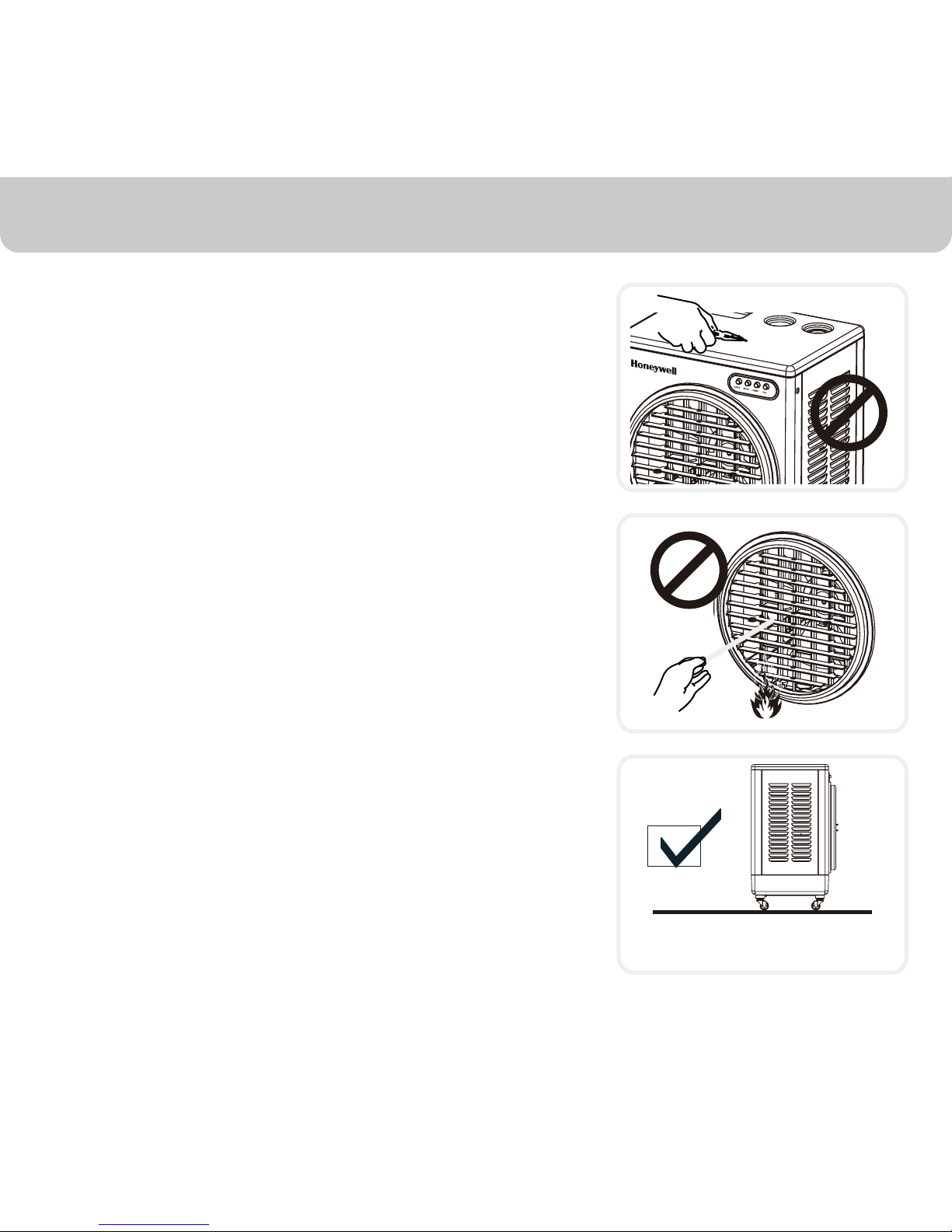

DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb Media removed as
this will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.

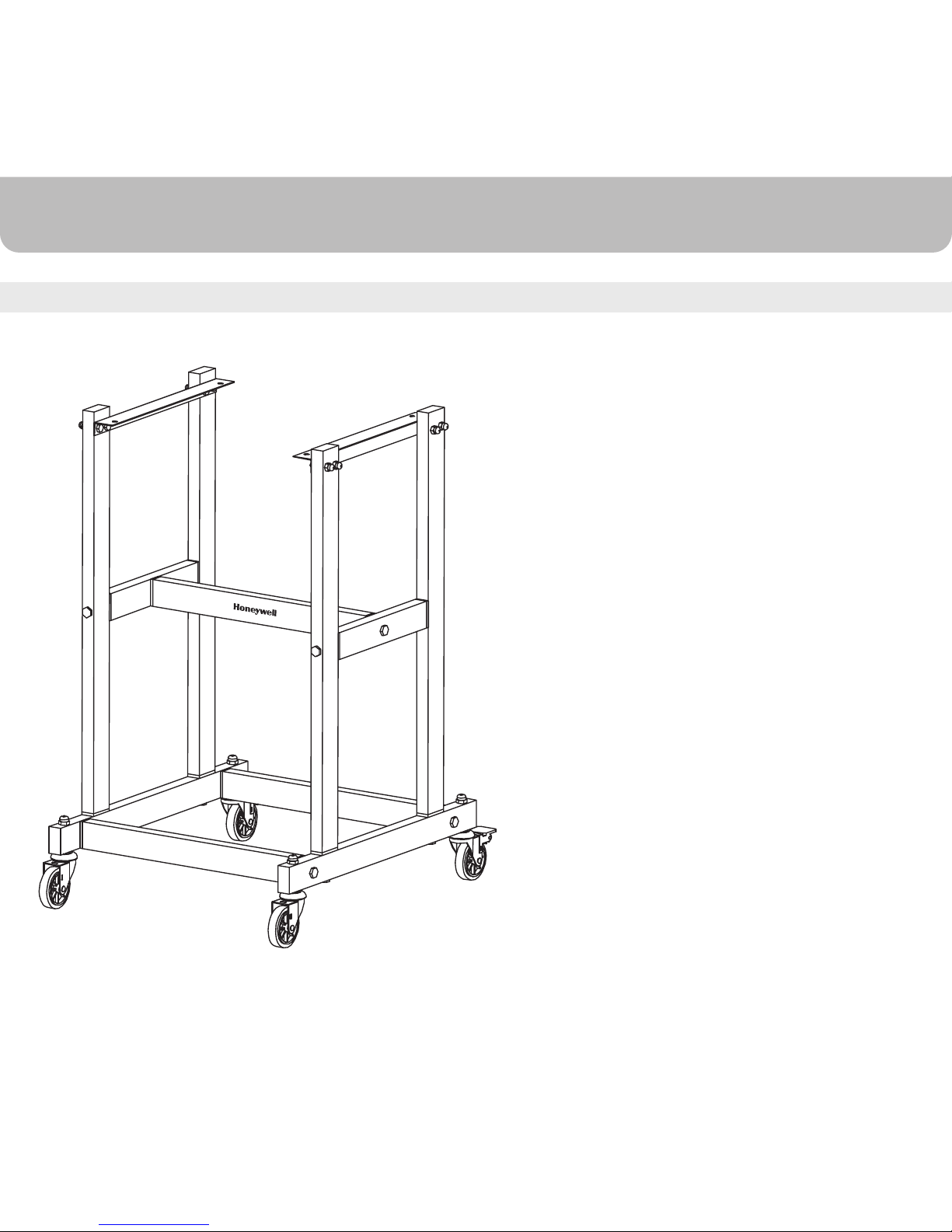

Metal Stand
NOTE: Please refer to this page only if your cooler is purchased with a metal stand.
PARTS DESCRIPTION - METAL STAND
7
Qty
2 PC
4 PC
2 PC
2 PC
2 PC
1 PC
2 PC
2 PC
8 PC(Plastic bag 130 X 100)
6 PC(Plastic bag 130 X 100)
8 PC(Plastic bag 130 X 100)
4 PC(Plastic bag 130 X 100)
8 PC(Plastic bag 130 X 100)
4 PC(Plastic bag 130 X 100)
4 PC(Plastic bag 130 X 100)
4 PC(Plastic bag 130 X 100)
4 PC(Plastic bag 130 X 100)
2 PC(Plastic bag 130 X 100)
2 PC(Plastic bag 130 X 100)
Parts List:
Steel angle
Pole 1 (755 mm)
Pole 2 (600 mm)
Pole 3 (476 mm)
Pole 4 (286 mm)
Pole 5 (with logo)
Universal wheel (without braking)
Universal wheel (with braking)
Bolt 3/8” - 16 X 75
Bolt 3/8” - 16 X 50
Bolt M8 X 35
Bolt M8 X 15
Acorn nut M8
Acorn nut M10
Nut M8
Spring washer
Black silicon pad
S17 spanner
S14 spanner

Metal Stand

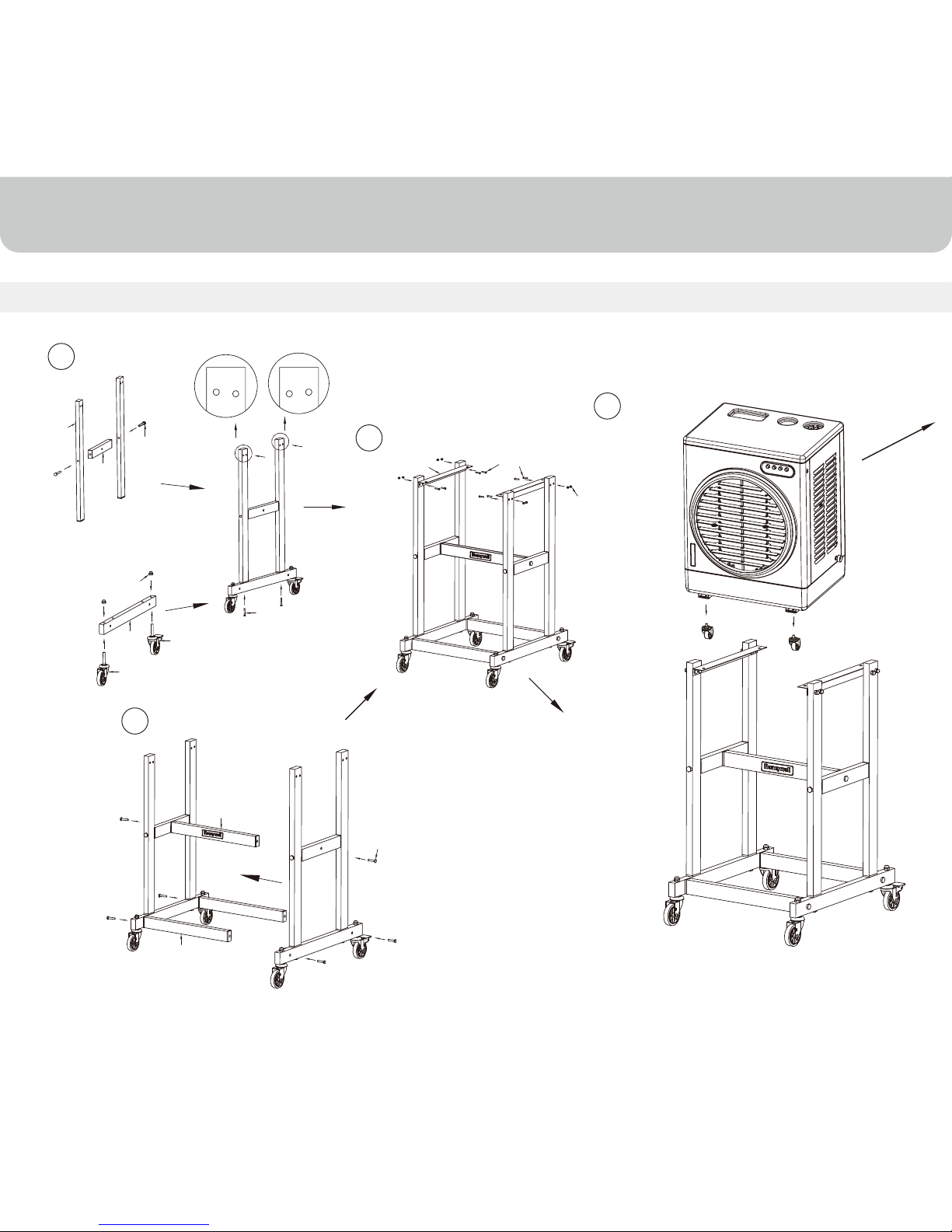

ASSEMBLING INSTRUCTIONS
8
1
2
3
4
Please watch for a direction!
(Bolt 3/8”-16X75) 2PC
(Bolt 3/8”-16X75)
2PC
Pole 1
Pole 4
Pole 2 Univerdal wheel
(with braking)
Univerdal wheel
(without braking)
(Acorn nut M10) 2PC
(Bolt 3/8”-16X50)
6PC
Pole 5
Pole 3
(Bolt M8X35) 8PC
(Acorn nut M8) 8PC
Steel angle
NOTE: Please refer to this page only if your cooler is purchased with a metal stand.

9
5
6
Air Cooler
ASSEMBLING INSTRUCTIONS
(Spring washer) 1PC
(nut M8) 1PC
(Black silicon pad) 1PC
(Bolt M8X15) 1PC
NOTE: Please refer to this page only if your cooler is purchased with a metal stand.

10
1
2
1 Tray for Tools
2 Left Side Panel
3 Control Panel
4 Horizontal Louvers
(Manual Adjustment)
5 Water Tank
6 Water Inlet Valve
7 Water Fill (continuous
water supply connection)
8 Water Fill (Manual Water Fill Hole)
9 Water Level Indicator
10 Lever for Horizontal Louvers
11 Right Side Panel
12 Back Panel
13 Drain Plug
14 Rear Grill Removal Screws
15 Honeycomb Cooling Media
16 Casters
3
4
5
9
10
13
6
7
PARTS DESCRIPTION - AIR COOLER
10
14
8
11
16
15
12

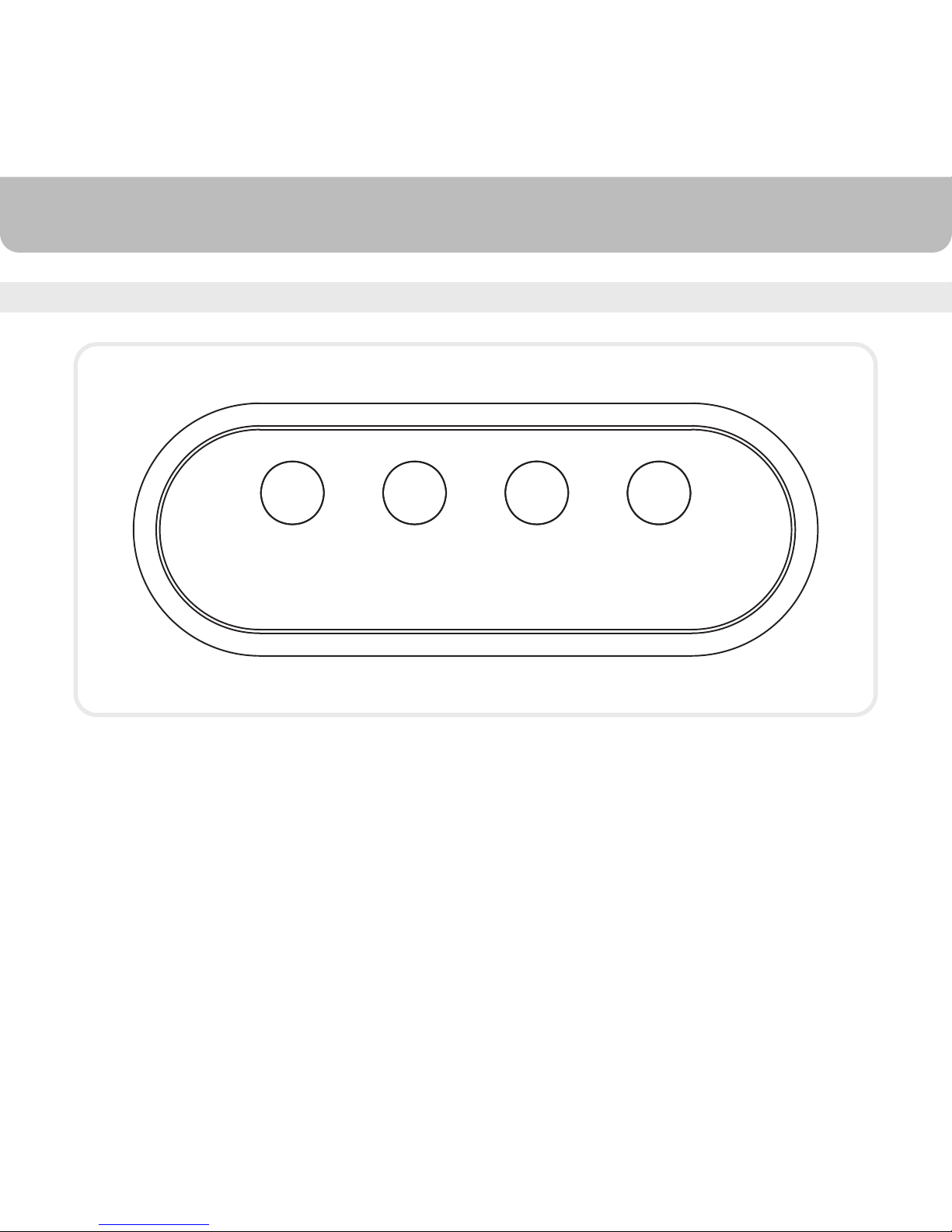

Control Panel
USE & OPERATION
POWER SPEED SWING COOL
11

Function Buttons
POWER
SPEED
SWING
COOL
12
USE & OPERATION
POWER
Press the POWER button to turn the unit on. The cooler will
start automatically and you can set the speed, swing and cool
function by pressing each of the manual push buttons. To turn
the unit off, press the button again.
SPEED
Press the 'SPEED' button and to the speed from High to
Low.
COOL
Press the COOL button to turn on the cooling mode. It takes a
few minutes to obtain the full effect in this mode.
SWING
Press the ''SWING '' button. The vertical louvers will begin to
move from right to left automatically.
Horizontal Louvers
Needs manual adjustment with the help of a lever (refer page
10, part 10)

• Water tank can be refilled by using water inlet hole on the top of unit (refer page 10, part 8).
USE & OPERATION

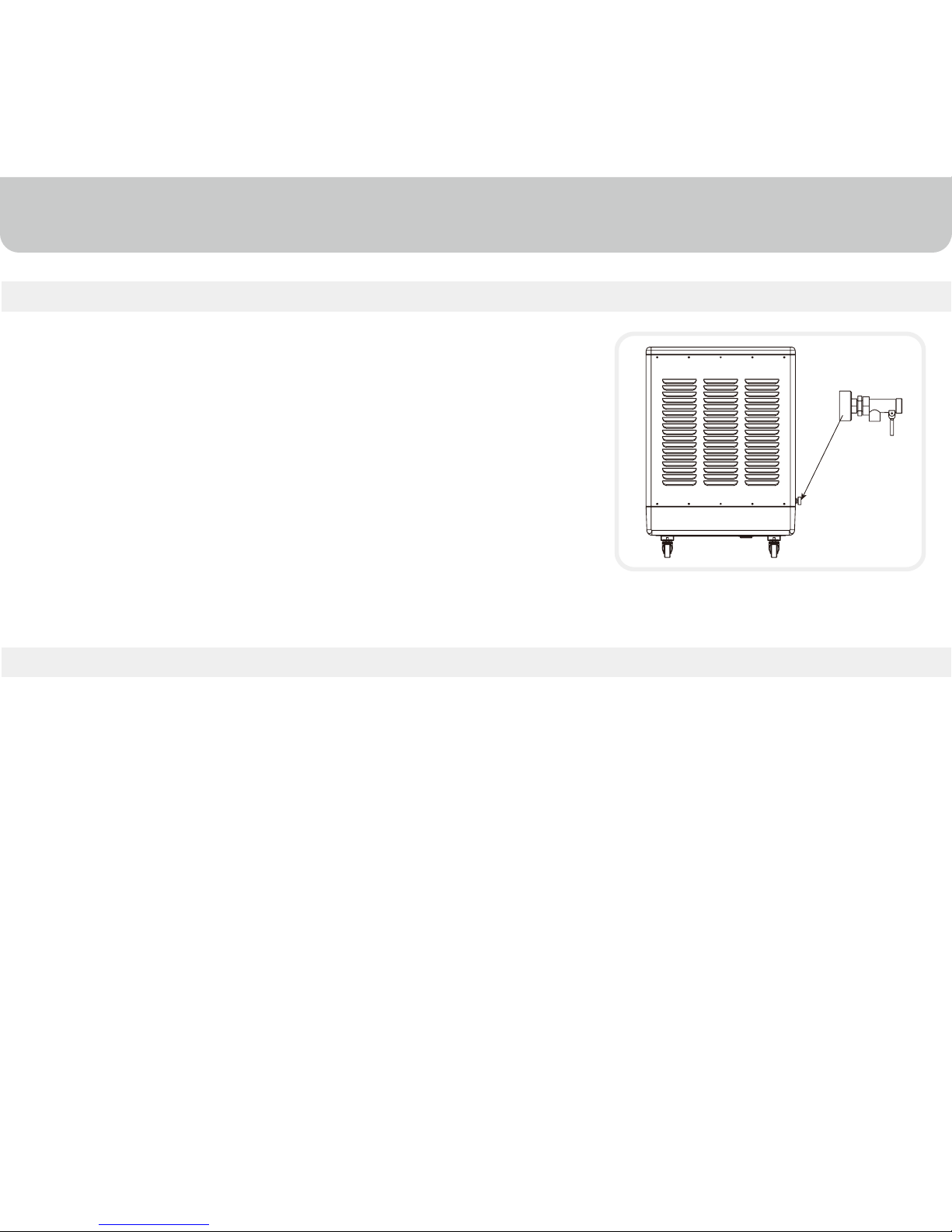

Filling with Water ( Continuous Water Supply Connection)
Filling with Water (Manual Water Fill Hole)
13
Water inlet valve
Connect a garden hose connector to the water inlet valve,
Make sure garden hose connector is well screwed with water
inlet valve.
Connect water supply to the garden hose, and turn on water
supply.
Water inside the tank will automatically refill once, it reaches
the Min. Level.
Similarly, the water supply to the tank will stop, once the tank
is full, and reaches Max. Level.
•
•
•
•

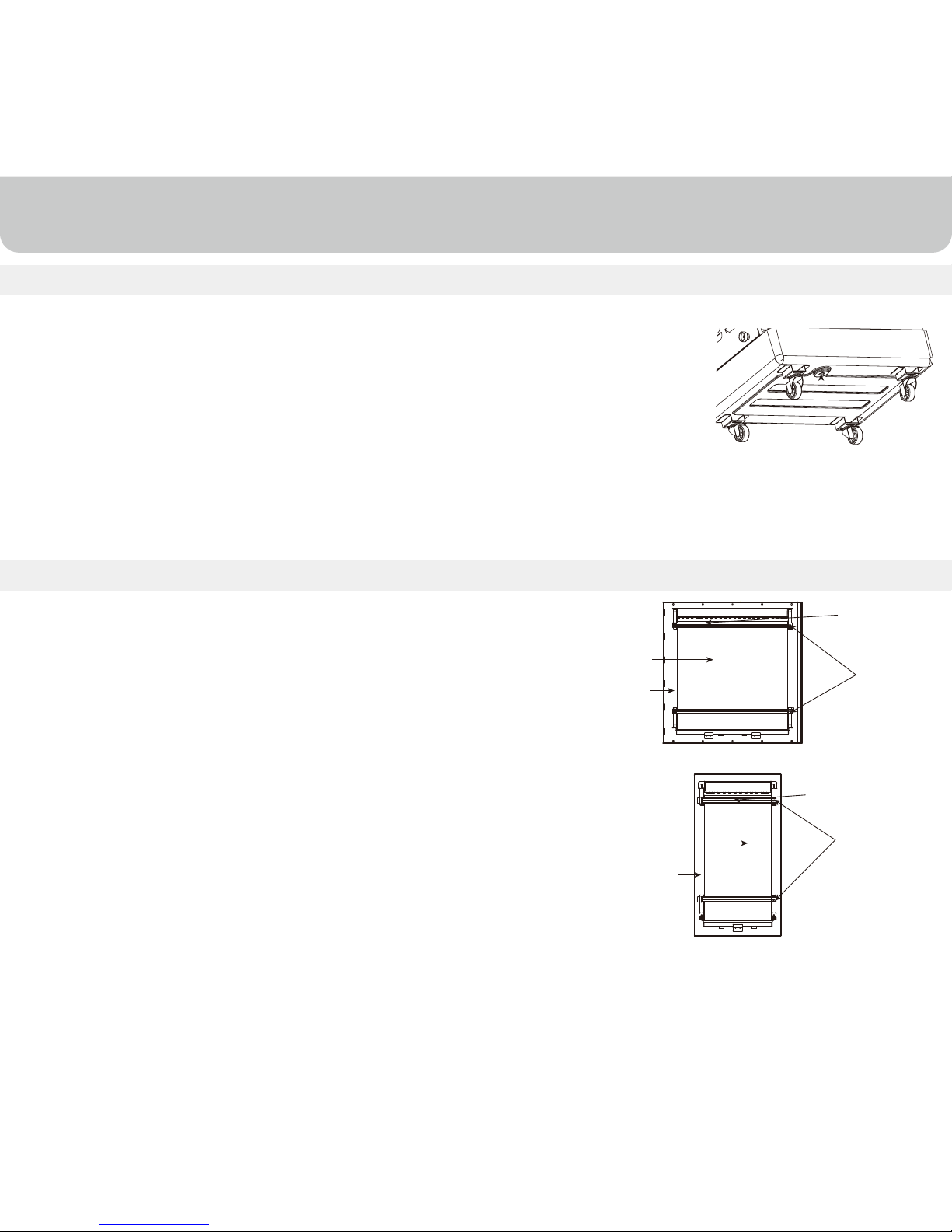

CLEANING & MAINTENANCE
14
Important
WARNING
•
•
•
•
•
•
•
•
The cooler is supplied with Honeycomb Cooling Media.
The cleaning frequency for the Honeycomb Media depends on local air and
water conditions. In areas where the mineral content of water is high, mineral deposits
may build up on the Honeycomb Cooling Media and restrict air flow. Draining the
water reservoir and refilling with fresh water at least once a week will help reduce
mineral deposits. If mineral deposits remain on the Honeycomb Media, the Media
should be removed and washed under fresh water. The Media should be cleaned
every two months or sooner, depending on your needs.
Do not run the unit in COOL mode with stale water in the tank. Empty the tank and
refill it with fresh water if the water has been standing in the tank for an extended
period of time.
For best results, allow the Honeycomb Cooling Media to dry after each use by turning
off the cool function 15 minutes before turning the unit off.
Before cleaning the unit, switch it to the ''off'' position and unplug from the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.

15
Draning and Cleaning the Water Tank
•
•
•
•
•
•
•
Water Drain Plug
Honeycomb
Holder
Honeycomb
Holder
Screw
Screw
Honeycomb
Back Panel
Back Panel
Side Panel
Cleaning the Honeycomb Cooling Media
•
•
•
•
•
•
•
Fig.1
Turn the power “off” and disconnect the air cooler from the power
supply.
Move the unit to a location where it can be drained.
Remove the drain plug and allow the tank to empty(refer page 10, part
13).
Refill the water tank up to the maximum level with clean water and
drain it completely.
Fill water tank and rinse at least 2-3 times before use.
After cleaning ensure that the drain plug is back in place.
Plug into the power supply and turn on unit.
CLEANING & MAINTENANCE
Turn off the unit, and unplug the power cord from wall
outlet.
Rotate the unit facing the back panel, and locate the Rear
Grill Removal Screws (refer page 10, part 14). Remove all
the screws with a screw driver.
Pull the rear grill panel, until it is completely removed.
The Honeycomb Cooling Media can now be seen. Clean
the carbon filter & honeycomb with clean cloth to remove
all the dust & dirt particles.
Once cleaning is finished, reassemble the unit as
described above.
Plug into the power supply and turn on unit.
The air cooler is now ready to be used. This cleaning
process should be repeated monthly to maintain the
integrity of the unit and to remove particles filtered from
the air.

16
TROUBLESHOOTING GUIDE
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch is on.
Power is not on. Turn the unit ON by pressing
button on the control panel.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, turn COOL
FUNCTION to “ON”.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odors When the Cooler is new.
If the Cooler has been used.
Damaged Pump or Calcium
deposits on blower.
Contact service center.
Problem Possible Cause Solution
When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate within
a few hours of initial use.
There may be an algae issue.
Replace the Honeycomb
Cooling Media.

MODEL NO. CO25MM
220V
50Hz
190 Watts
25 Litre
Honeycomb
610(L) x 480(W) x 825(H)
21 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
TECHNICAL SPECIFICATIONS
17

ELECTRICAL WIRING DIAGRAM
18
220V 50Hz
