Honeywell CL70PE User manual

Portable Evaporative Air Cooler
User Manual (Web)
Read and save these instructions before use
Model:
CL70PE/ CO70PE

1
1) Louvers 10) Washable Mesh Filter
2) Water Level Indicator 11) Rear Grill Screw
3) Casters 12) Honeycomb Cooling Media
4) Control Panel 13) Rear Grill
5) Handle 14) Water Regulator
6) Ice Compartment Lid 15) Water Fill Door
7) Power Cord Wrap 16) Water Inlet Valve
8) Water Tank 17) Drain Plug
9) Power Cord & Plug
PARTS DESCRIPTION
EN
4
5
6
7
8
9
3
2
1
15
16
17
10
11
12
13
14
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.

2
HML0.5 124SC
MODE SPEED POWER TIMER SWING(H)
SWING(V)
USE & OPERATION
EN

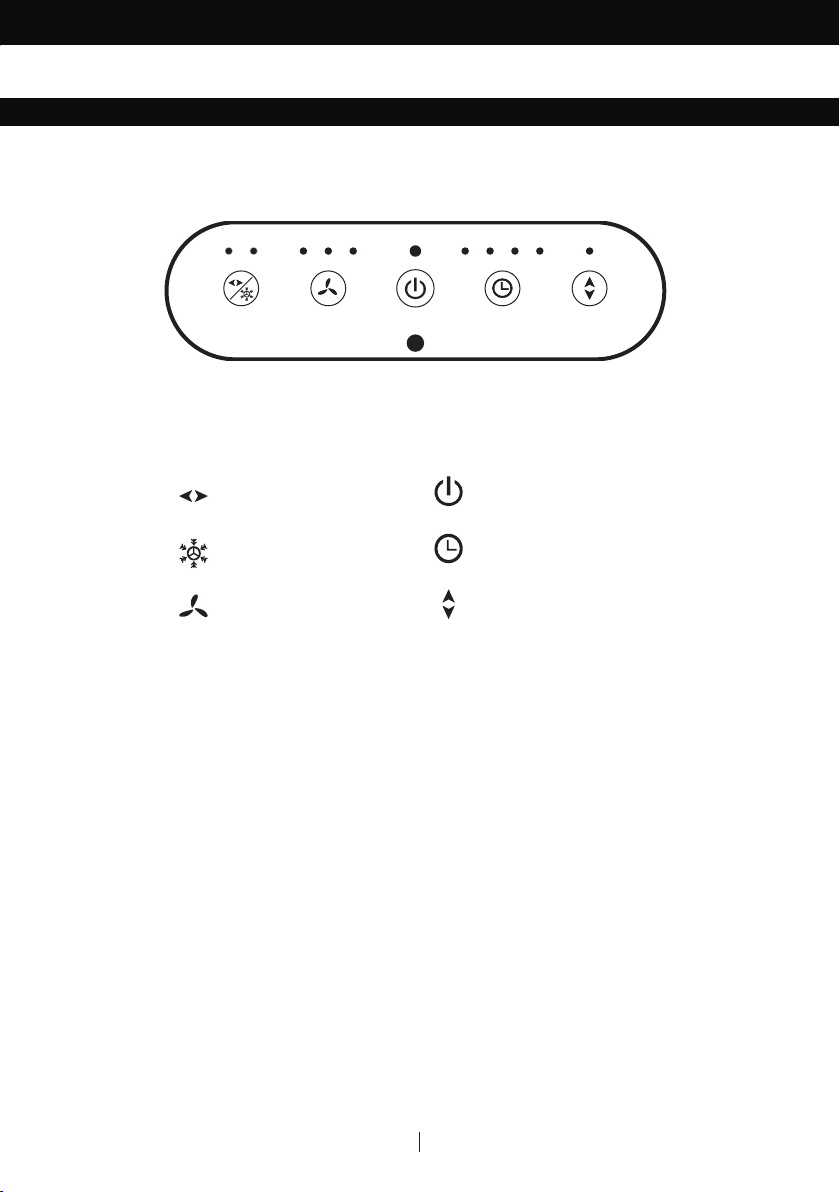

Icons on Display Screen
CONTROL PANEL
Swing
(Vertical Louvers)
Cool
Speed
Power
Timer
Swing
(Horizontal Louvers)
IMPORTANT: Honeywell Outdoor Air Cooler models are designed to IPX4 product standards and not
recommended to be placed outdoors during heavy rain or snow.
FOR OUTDOOR MODEL CO70PE:
WARNING: Use only on GFCI Protected outlets/ sockets (for USA only).
Press the TEST button (then RESET button) every month to ensure proper operation.
Power cords must be secured to avoid tripping.
The wiring and connections must be protected from water. The electrical plug and Air Cooler
connections must be dry at all times. When used outdoors, insert the air cooler electrical plug
into an IP44 compliant outdoor electrical outlet.
Set the unit on a solid flat surface.
•
•
•
•

3
USE & OPERATION (CONTINUED)
EN

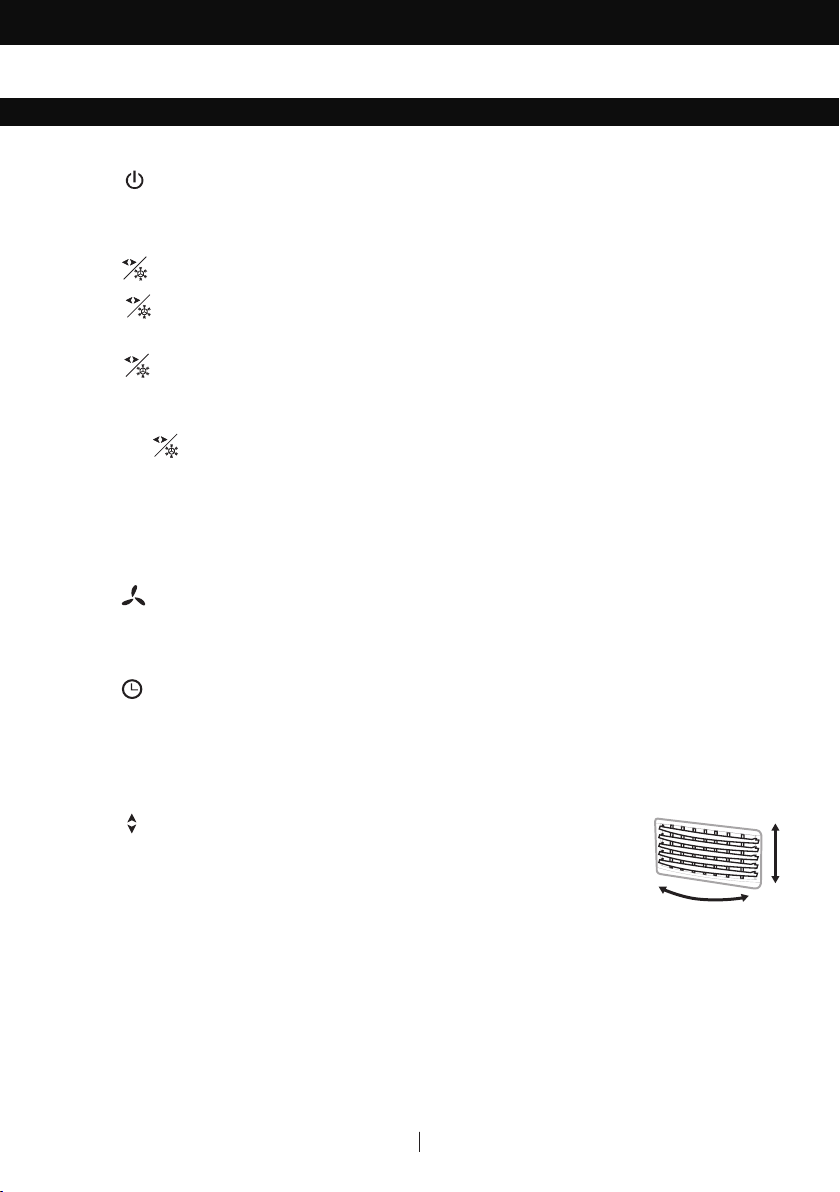

POWER
Press the button to turn the unit on. The cooler will start automatically at medium speed. After a
few seconds the speed will switch to low. To turn the unit off, press the button again.
MODE
Press the button to activate evaporative cooling and/or louver swing modes.
Press the button until the “S” indicator light is illuminated on the control panel. The Vertical
Louvers will begin to move left to right automatically.
Press the button until the “C” indicator light is illuminated to activate evaporative cooling. The
water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is
completely wet.
Pressing the button until both “S” and “C” are illuminated will activate both Swing (Vertical
Louvers) and Cool modes simultaneously.
Note: When the “C” mode is not selected, the unit functions in a fan only mode, without evaporative
cooling.
FUNCTION BUTTONS
SPEED
Press the button repeatedly to change the speed between High - Medium - Low.
The indicator light will show the selected speed.
TIMER
Press the button until the desired time duration setting is selected. When the set time has passed,
the unit will automatically turn off (unit remains in Standby mode until power cord is unplugged from
electrical socket). The TIMER function allows you to program the unit for up to 7.5 hours of use.
SWING(H)
Press the button until the indicator light turns on. This activates the
Horizontal Louvers and they will begin to move up and down automatically.
LOUVER
MOVEMENT

4
In cooling mode, Honeywell Air Coolers provide cool, moist air through the
evaporation of water. There is a manual Water Regulator knob located behind
the ice compartment of the unit. This allows you to adjust the amount of water
pumped over the Honeycomb Cooling Media, thus helping to control cooling
and humidification levels.
When the Water Regulator is set to MIN, the water pump distributes a minimal
amount of water to the Honeycomb Cooling Media. This results in less water
evaporation and reduces the cooling effect.
When the Water Regulator is set to MAX, the water pump distributes the maximum amount of water
to the Honeycomb Cooling Media. This results in maximum water evaporation and greater cooling
performance.
USE & OPERATION (CONTINUED)
EN
ROOM COOLING AND HUMIDIFYING
REMOTE CONTROL
NOTE:
•
•
•
•
•
•
•
•
The remote control requires AAA (2 x 1.5V) batteries for replacement.
Open the battery compartment at the back of the remote control and insert the batteries inside.
Care must be taken to insert the batteries according to the correct polarity (+ / –) markings
shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
SWING (H)
SPEED
TIMER MODE
ON/OFF POWER :
:
:
:
:
ON / OFF
Controls the motion of the horizontal louvers
Controls the Timer function for automatic off
Controls the motion of the vertical louvers and
evaporative Cooling On / Off
Controls timer function for automatic off
SWING
TIMER
SPEED
MODE
Water Regulator
MAX
MIN

5
It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time
without refilling the tank. This also helps prevent pump failure in case the cooler is running with
inadequate water in the tank.
CAUTION:
Unplug the unit from the electrical power outlet before filling or emptying the water tank.
Continuous Water Supply Connection:
For a continuous water supply, you will need a garden hose that is connected to a main water supply.
Note: The garden hose is not included. Please make use of a garden hose which is compatible with
the unit connection.
FILLING WITH WATER
Locate the male connector at one end of the garden hose. Insert the garden hose connector into
the water inlet valve of the cooler. Screw and tighten the water inlet valve onto the threaded part
of the garden hose connector, making sure the hose connector is secured to ensure there will be
no leaks. If there is leakage, the hose and the water inlet valve may not be connected properly. Try
to disconnect, replace and tighten the water inlet valve again.
When the connection is secured, turn ON the water supply and the
water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically.
When the water tank is full, the water inlet valve will
automatically stop the water supply from overflowing.
WARNING: The maximum water inlet pressure is 0.5 MPa.
•
•
•
•
USE & OPERATION (CONTINUED)
EN
REMOTE CONTROL (CONTINUED)
COOLER LOCATION
•
•
Exhausted batteries are to be removed from the product and safely disposed of as per local
regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
WARNING: Caution for ingestion of the small battery. Keep away from children and animals.
Make sure to position the air cooler correctly before you set up and start using the product.
Please refer to the COOLER LOCATION (IMPORTANT TO READ) section of the separate Safety &
Maintenance Guide.
Garden Hose
Water
Inlet Value

6
USE & OPERATION (CONTINUED)
EN
FILLING WITH WATER (CONTINUED)
LOW WATER ALARM
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the indicator light will flash continuously. The unit
will automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and
switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the
unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water
Alarm will sound again if the COOL function is activated while the water tank is still empty.
Water
Fill Door
Manual Water Tank Refill:
Open the Water Fill Door located on the side of the unit.
The Water Level Indicator is located at the front of the unit. Refill the
water tank when water level is low. Do not fill water above the "Max."
water level mark to avoid water droplets collecting on the louvers.
Check the water level in the tank before running the COOL function.
Make sure that the water in the tank is above the minimum water level
mark. Running the unit in COOL mode with inadequate water may
cause pump failure.
WARNING: Always ensure the water in the water tank is above the minimum (Min.) water level mark
for both Continuous & Manual Water Refill. Running the unit in Cool mode with inadequate water
may cause pump failure.
Note: The water capacity refers to the total volume of water that can
be contained within the air cooler water tank and water distribution
system. The water capacity in the tank at the “Max.” indicator level may
be lower than the actual water capacity of the air cooler.
Note: If ice is available, you may add ice in the ice tray to enhance the
cooling performance.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and Honeycomb
media.
Ice Tray

7
CLEANING & DRAINING THE WATER TANK
Move the unit to a location where the water can be drained. Remove the cap from the Drain plug
located at the bottom of the unit. Allow the tank to empty.
Refill the water tank with clean water, up to the maximum level and drain it completely.
Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE
GUIDELINES located in the separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.
•
•
•
•
USE & OPERATION (CONTINUED)
EN

8
USE & OPERATION (CONTINUED)
EN

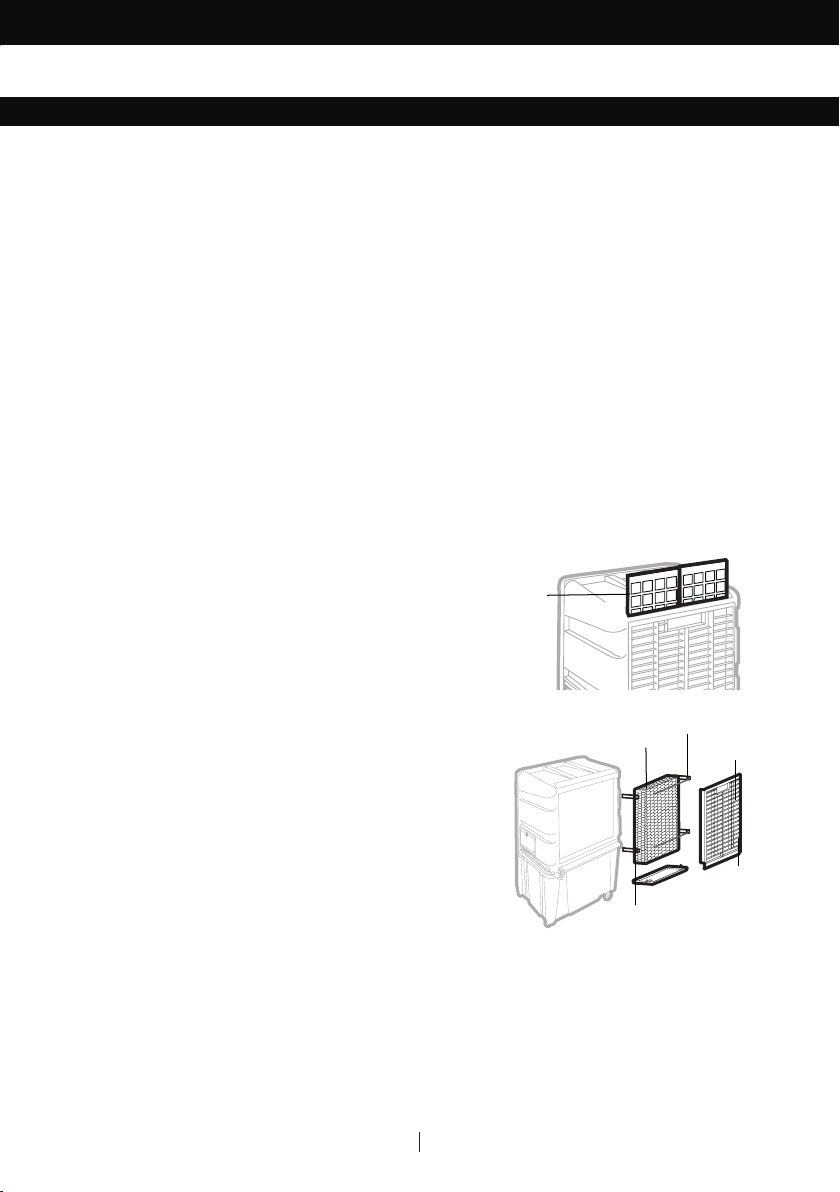

CLEANING THE WASHABLE MESH FILTER AND HONEYCOMB COOLING MEDIA
The appliance is supplied with a Washable Mesh Filter and Honeycomb Cooling Media.
The Washable Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill (See
Figure 1 and 2) and see below for instructions on how to remove them from the unit for cleaning.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on
the Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•
Slide out the Washable Mesh Filter and clean with
water.
Remove all the screws from the Rear Grill of the Air
Cooler.
Carefully pull out the rear grill from the cooler.
Carefully pull out the Honeycomb Cooling Media
from the rear grill.
There are two Horizontal Bars holding the
Honeycomb Cooling Media in place. Remove all the
screws from the Horizontal Bars and then pull the
bars off of the Honeycomb Cooling Media.
Replace or clean media with water and a damp
cloth as needed.
1.
2.
3.
4.
5.
6.
Removing the Washable Mesh Filter/ Honeycomb Cooling Media:
WARNING: Switch the unit OFF and disconnect from the electrical socket.
WARNING: DO NOT operate the Air Cooler when
the Rear Grill or Honeycomb Media is removed from
the Air Cooler, or if there is a loose-fitting Rear Grill
or Honeycomb Cooling Media. Doing so can cause
serious injury or dangerous electrical shock.
Honeycomb
Cooling Media
Horizontal Bar
Screws
Screws
Rear Grill
Washable
Mesh
Filter
Figure 1:
Figure 2:
