OWNER’S MANUAL
Read these instructions before use
Voltage rating: 115V~60Hz
Power rating : 800W
Portable Air Conditioner
Model: MF08CESWW
Customer Support : 1-800-474-2147
For product inquiries or support : www.honeywellportableac.com Made in China
MODE ALARM
8

1
INDEX
Read all instructions carefully before setting up and operating the unit. Keep this
instruction manual for future reference. This manual is designed to provide important
information needed to setup, operate, maintain and troubleshoot your portable air
conditioner. Failure to follow these instructions may void the warranty.
THANK YOU.....................................................................................................
INDEX .............................................................................................................. 1
2
3
4
6
7
13
15
16
USER TIPS........................................................................................................
SAFETY ............................................................................................................
PARTS DESCRIPTION.....................................................................................
INSTALLATION.................................................................................................
10
USE & OPERATION..........................................................................................
CLEANING & MAINTENANCE..........................................................................
TROUBLESHOOTING GUIDE...........................................................................
14
WATER CONDENSATION DRAINAGE............................................................
TECHNICAL SPECIFICATIONS.........................................................................
17
SERVICE AND WARRANTY .............................................................................
2.
1.
3.
4.
5.
6.
7.
8.
10.
9.
11.
12.
SECTION PAGE

Congratulations on your purchase of this versatile Honeywell Portable Air Conditioner.
Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor, condenser
and evaporator are housed in a compact unit. The air is filtered, dehumidified and cooled while
a flexible air outlet hose sends heat outside. The air conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a
truly flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the air
outlet hose. There is no need to empty the drainage tank except in very high humidity conditions.
Read and follow the instructions carefully.
2
THANK YOU

3
USER TIPS
To ensure optimal efficiency of the product, keep doors and windows closed when it
is used as an air conditioner or dehumidifier.
If the product is being used with the fan function only, an open window could improve
air circulation.
Important : Before installing the unit, place it UPRIGHT for 20 minutes
before use to allow the refrigerant to stabilize.
•Follow installation instructions to set up the unit.
•Plug the unit into a properly grounded circuit.
Cooling and Dehumidifying Operation Fan Operation

WARNING
READ AND SAVE THESE INSTRUCTIONS
Improper handling can cause serious damage to the appliance.
DO NOT operate the unit with a damaged plug or loose wall outlet. If the power
cord is damaged, it must be replaced by the manufacturer or an authorized service agent.
DO NOT cover the air intake and exhaust when in use.
This appliance is not intended for use by children. Children should be supervised
and should not play on or around the appliance.
DO NOT place objects on or sit on the unit.
Always turn off and unplug the unit when cleaning or servicing.
If service is needed contact an authorized service agent.
Unplug the unit when stored or not in use.
1.
2.
3.
4.
5.
6.
7.
4
SAFETY

DO NOT run the power cord under carpeting and rugs.
Use caution to prevent tripping on cord.
DO NOT use in areas where gasoline, paint or other flammable goods are stored.
Basic safety precautions should always be followed when using electrical appliances.
8.
9.
10.
11.
5
SAFETY

6
PARTS DESCRIPTION
124
5
3
x 1
x 1
x 2 x 1
Installation Kit :
1. Window Bracket Kit.............................
2. Window Bracket Panel Adapter..........
3. Plastic Pin...........................................
4. Hose Connector..................................
5. Plastic Hose........................................
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
Mode
Up
Down

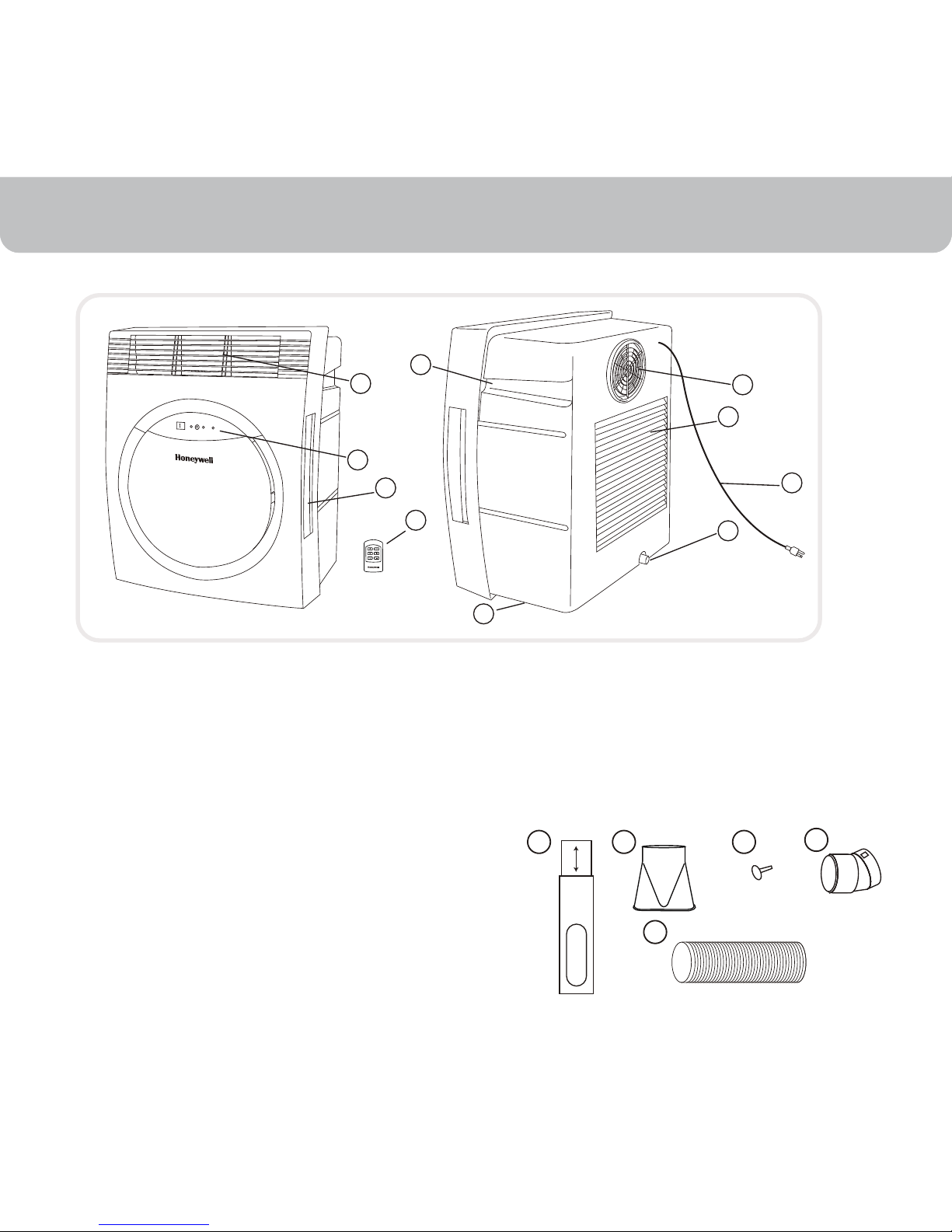

1. Control Panel (Incl. Signal Receptor)
2. Air Outlet
3. Handle
4. Casters
5. Air Filter
6. Back Grill
7. Water Drain Cap
8. Power Supply Cord
9. Exhaust Hose Connector
10. Remote Control
1
2
6
4
3
5
9
10
8
7
MODE ALARM
8
ON/OFF
FanSpeed
Timer

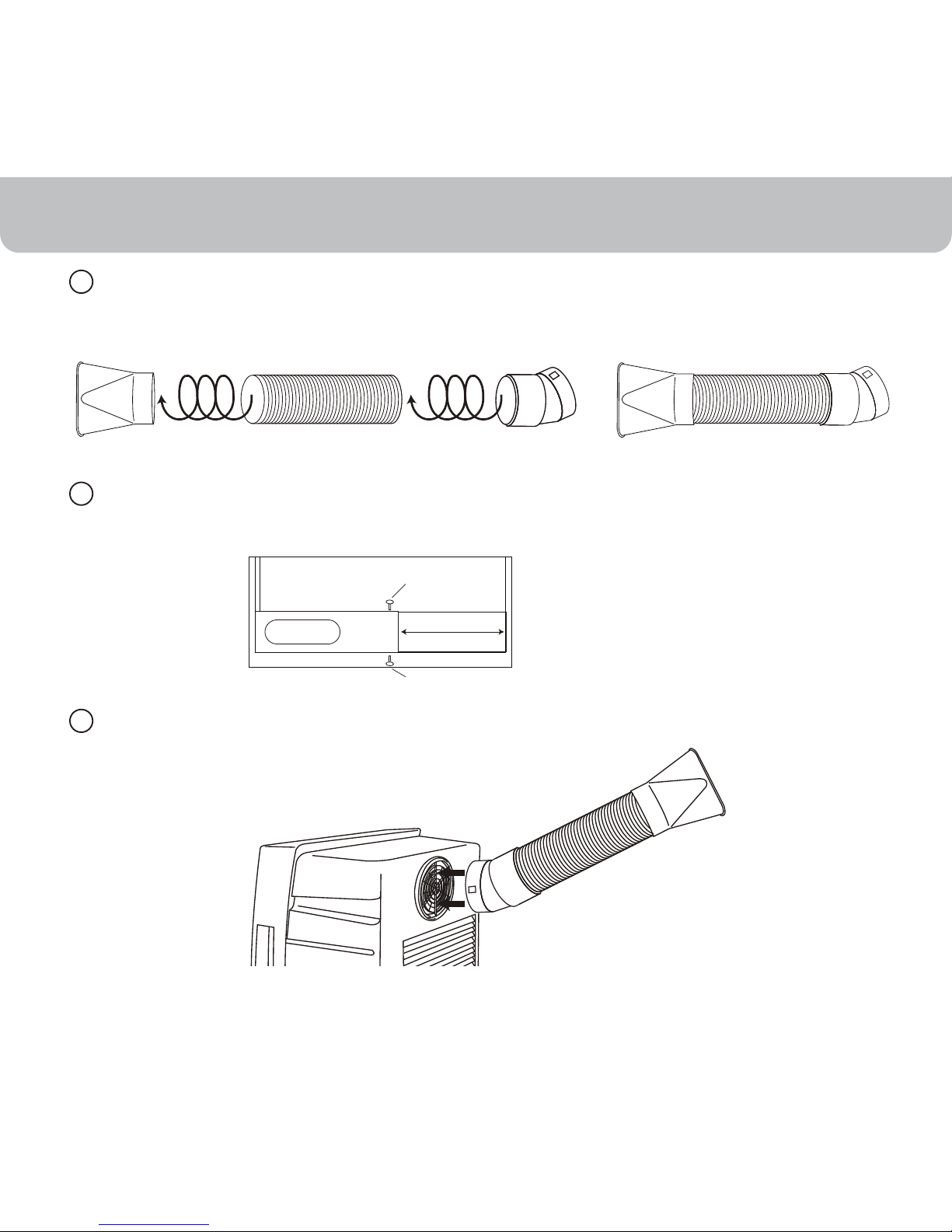

Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
Adjust the window bracket as per width or height of your window and insert the plastic
pins to fix at the desired position.
Note : Do not install the window
bracket to your window. This step is
required only to adjust it to the
size of your window. The bracket
should be removed from the window
after the size is adjusted.
7
INSTALLATION
1
2
3
=
Connect the plastic hose to the hose connector on back of the unit. Push-in then rotate
clockwise.
Plastic Pin
Plastic Pin

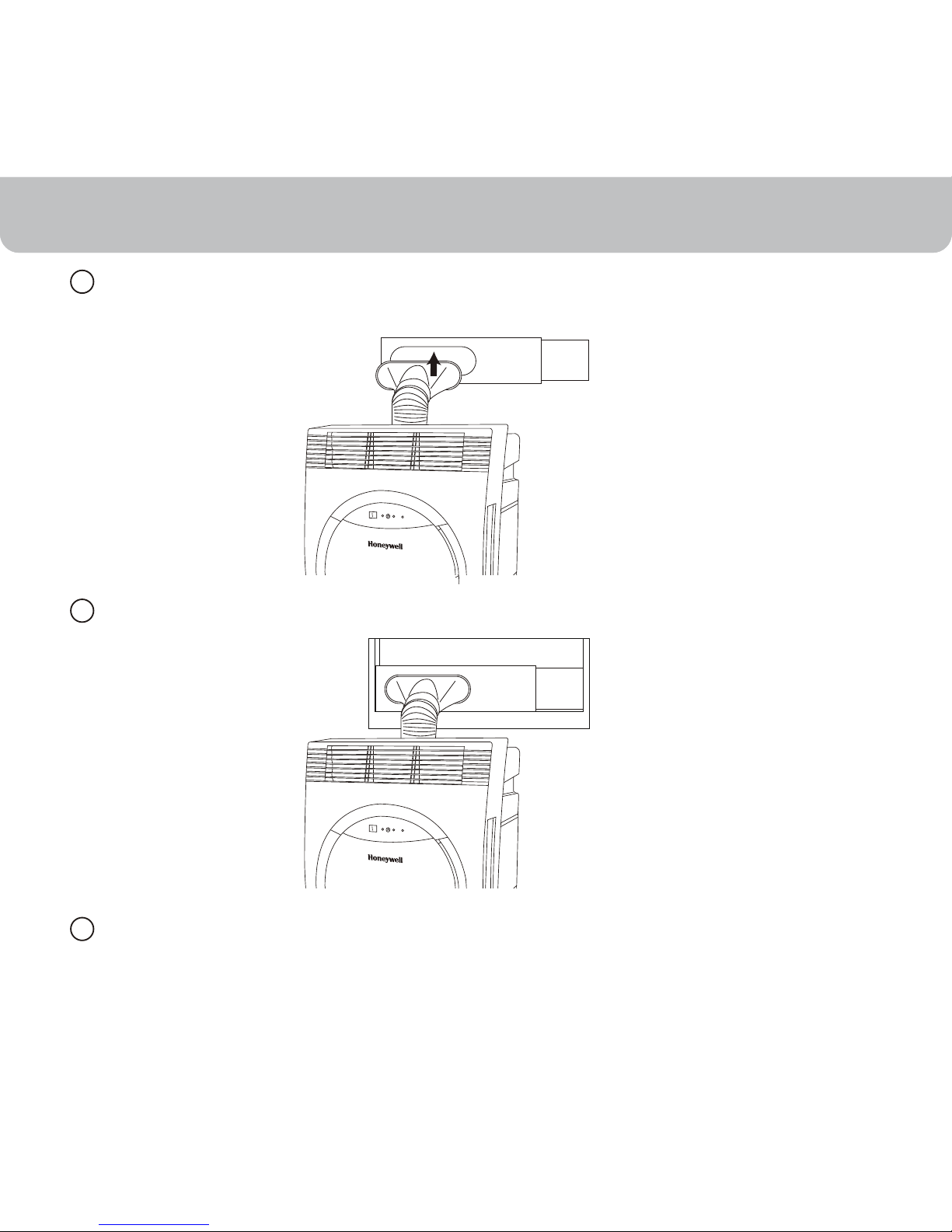

Connect the window bracket to the opposite end of the plastic hose. Ensure that
all connections are tight and installed properly.
8
INSTALLATION
4
5Connect the window bracket to the window.
6The Portable Air Conditioner is now ready to use.
MODE ALARM
8
MODE ALARM
8

The supplied exhaust hose can be extended from 12 inches (1 foot) to 47 inches
(3.9 feet).
Do not bend (to the extent shown below) the exhaust hose.
A bent hose will block exhaust air and cause the unit to malfunction or shut-off.
The length of the exhaust hose is determined by the product specifications. Do not
replace or lengthen it as this could cause the unit to malfunction.

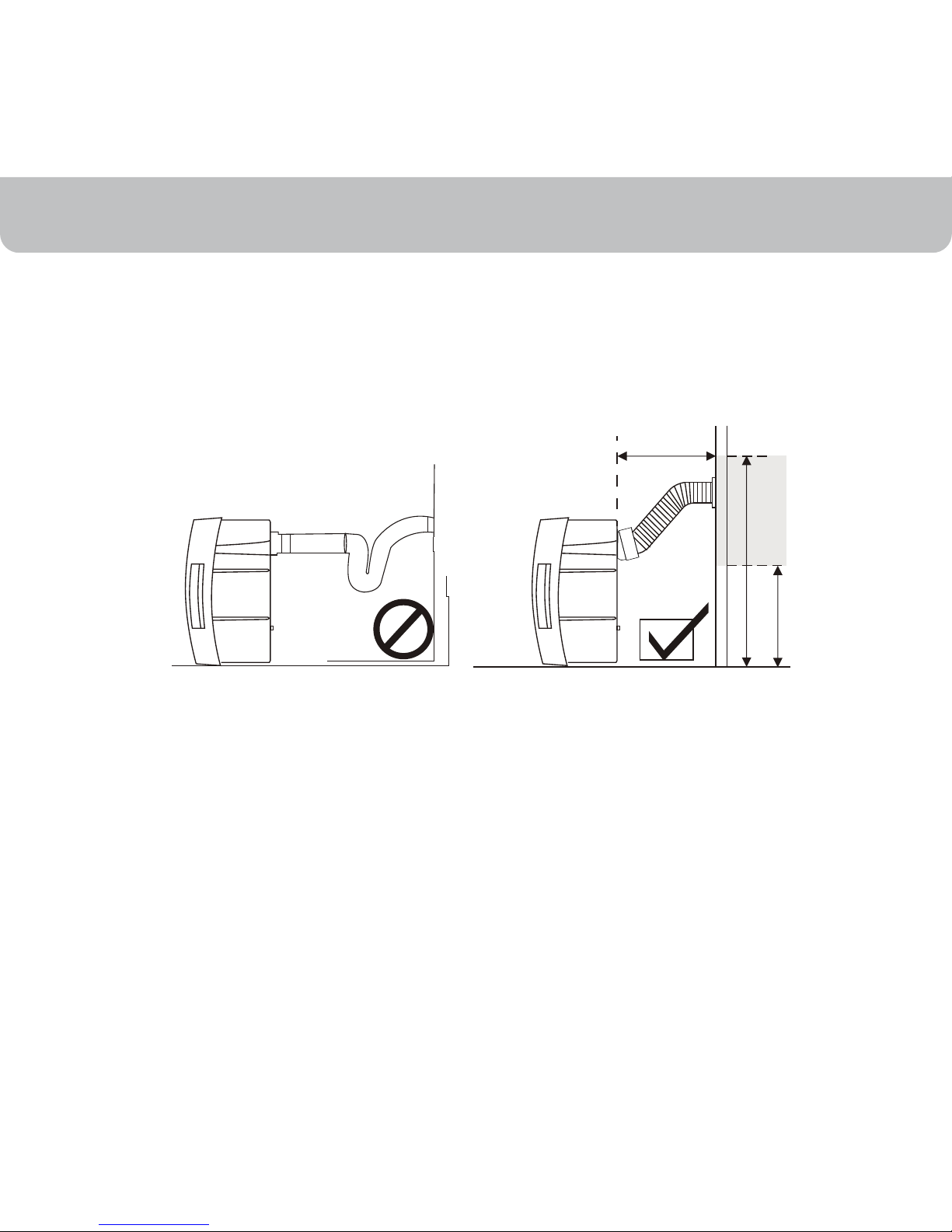

Make sure the back of the unit is at least 20 inches away from a wall.
Do not place the unit in front of curtains or drapes as this could obstruct the
airflow.
9
INSTALLATION
Note:
1.
2.
Warning:
•
•
RECOMMENDEDNOT RECOMMENDED
MIN. 14”
20”
MAX. 40”

10
USE & OPERATION
After switching the air conditioner off, wait 3 minutes before switching it back on again.
O/I
MODE ALARM
Warning Light
Power Control
Mode Indicator
Receiving SensorTemperature and Time Setting Indicator
Power Control
The Power Control turns the unit on and off. When switched
on the unit will start on Auto mode.
Warning Light
Condensed water may accumulate in the unit. If the internal
tank becomes full, the Warning Light will shine red and the
unit will not operate until the unit has been drained.
LED Operating Mode Indicator
Cooling Mode - Blue
Dehumidifying Mode - Orange
Fan Mode - Green
Once thermostat or timer has been set the indicator
will continue to display ambient temperature after 5
seconds.
When setting the thermostat or timer the indicator
will be flashing.
Temperature and Timer Setting Indicator Display
The indicator displays:
• Current temperature.
• Thermostat setting while changing the temperature.
• Hours while setting the timer.
When ambient temperature is higher than 122°F, the
indicator shows "HI".
When ambient temperature is lower than 32°F, the
indicator shows "LO".
Note:
•
•

11
USE & OPERATION
Remote Control
Note :
• Do not place the remote control in direct sunlight.
All functions can be accessed only from the remote control.
Mode
Up
Down
ON/OFF
Fan Speed
Timer
Power Control
ON / OFF
Mode Control
Fan Speed Control
Auto, High, Medium, and Low.
Temperature / Timer Setting Controls
24 Hours On / Off Timer Control
In running mode:
Auto switch off
In stand-by mode:
Auto switch on
Press ”+” or “-” button to adjust the
time setting for 1 hour intervals.
Cool Dehumidify
Fan
Press this button to change the operation
mode in the order of:
Note:
If the unit will be used mainly as a
dehumidifier, do not connect the exhaust
hose and let the warm air return in the room.
Continuous drainage is then necessary and
more efficient.
• Used for adjusting the timer and
temperature.
• The default display on the indicator is room
temperature.
• When “+“ or “-“ key is pressed in cool
mode, the set temperature is displayed
and may be adjusted. After 5 seconds
the display will revert back to room
temperature.
• Temperature setting range is 61°F ~ 90°F.
• Timer setting range is 1-24 hours.

Battery Installation: Remove the cover on the back of the remote control and insert two AAA
batteries with ‘‘+’’ and ‘‘-’’ pointing in the proper direction.
• Use only two AAA or IEC R03 1.5V batteries.
• Remove the batteries if the remote control is not in use for a month or longer.
• All batteries should be replaced at the same time, do not mix with old batteries.
• Properly dispose of used batteries.
12
USE & OPERATION
Caution

Appliance Maintenance:
1. Turn off the appliance before disconnecting the power supply.
2. Always clean the appliance with a soft dry cloth.
Air Filter Maintenance:
The air filter should be cleaned every two weeks.
Clean it as follows:
1.
2.
Turn off the appliance and remove the air filter. (refer to page 6, #5)
Rinse it in lukewarm water. After cleaning, dry in a shaded and cool place, then
reinstall.
If the appliance will not be used for a long time, be sure to drain the left-over
water condensation.
Remove the water drain cap (refer to page 14) and use a shallow pan to collect the
water.
To dry excess moisture, run the unit in fan mode for 30 minutes before storing.
Clean and reinstall air filter.
Remove air hose and window bracket and store with the portable air conditioner.
13
CLEANING & MAINTENANCE
Maintenance After Use:
1.
2.
3.
4.
5.

When there is excess water condensation inside the unit, the air conditioner stops running and
shows a warning light (refer to diagram below). This indicates that the water condensation needs to
be drained using the following procedure:
Unplug the unit from power source.
Place a shallow pan under the drain plug. See diagram.
Remove the drain plug.
Water will drain out and collect in the tray.
After the water is drained, replace the cap firmly.
You can now turn on the unit.
WATER CONDENSATION DRAINAGE
14
Water Condensation Drainage
1.
2.
3.
4.
5.
6.
Drain
Plug
Shallow Pan
(Not included)
O/I
MODE ALARM
Warning Light
Power Control
Mode Indicator
Receiving SensorTemperature and Time Setting Indicator

The following troubleshooting guide addresses the most common problems. If problems
persist, call customer service. Unplug and disconnect the appliance from the power
source before attempting to troubleshoot.
15
TROUBLESHOOTING GUIDE
Will not run and
water full indicator
light is ON
• No electricity.
• Batteries in the remote control need
to be replaced.
• The power cord is not properly
plugged in.
• The safety GFI plug has tripped.
• The thermostat temperature setting
is too close to room temperature.
• Air outlet is blocked.
• There are tight bends in the air
exhaust hose.
• A door or window is open.
• Clean the air filter
Reinstall exhaust hose properly
(refer to page 9, Installation)
Reduce temperature setting on
control panel.
Drain the water through the drain
plug (refer to page 14, Water
Condensation Drainage).
Make sure the window or door
is closed.
• The exhaust hose is detached.
• The air filter is dirty.
• Temperature setting is too high.
• Air outlet or intake is blocked.
• Excess water condensation inside
the tank.
• Check for power.
• Change remote control batteries.
•Remove and reconnect the power
cord.
Reset the safety GFI plug, if
problem persists contact our
customer support.
•
•
The air conditioning
unit does not start
Problem Possible Cause Solution
Runs a short while
only
Runs but no cooling
• Lower the set temperature.
Connect exhaust hose as per
instructions on page 9.
• Make sure the exhaust hose is
properly connected.
•
•
•
•
• Remove blockage.

Portable Air Conditioner
MF08CESWW
115 V~ 60 Hz
TECHNICAL SPECIFICATIONS
16
Electrical products should be properly disposed.
Please recycle where facilities exist. Check with your local authority
or retailer for recycling.
Description of Product
Model
Voltage/Frequency
Power Consumption
Cooling capacity
Dehumidifying capacity
R-410ARefrigerant Type
24 hour (ON / OFF)Timer
Dimensions (W) x (D) x (H) (inches)
Weight (Kg)
800W
8000 BTU
50.7 pints/24 hours
19.5 X 14.2 X 24.4 inches
52 lbs (23.6 Kg)

17
SERVICE AND WARRANTY
5-YEAR LIMITED WARRANTY
1st year parts and labor.
5 years on all parts of the sealed system, consisting of the compressor,
evaporator, condenser and factory connected refrigerant tubing.
This warranty does not apply to any damage resulting from abusive, unreasonable use or
damage. Defects that are the result of normal wear and tear will not be considered
manufacturing defects under this warranty.
JMA NORTH AMERICA LLC IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an applied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights which vary from jurisdiction to jurisdiction. This warranty
applies only to the original purchaser of this product from the original date of purchase.
At its option, JMA NORTH AMERICA LLC will repair or replace this product if it is found to be
detective in material or workmanship.
This warranty does not cover damage resulting from any unauthorized attempts to repair or
from any use not in accordance with the instruction manual.
A.
B.
C.

SERVICE AND WARRANTY
18
Please read the Instruction Manual carefully before setting up or using this product. If you
believe this product to be suffering from a manufacturing fault, or if you have inquiries about
this product, please contact our Customer Support:
When contacting our Customer Support, please have the information below along with the
proof of purchase. All warranty requests must be accompanied by a proof of purchase, which
is a copy of the original receipt.
Model : .......................................................................................................................
Date of purchase : .......................................................................................................................
Purchased from : .......................................................................................................................
D.
CUSTOMER SUPPORT
JMA North America LLC
Ramsey, New Jersey 07446
Phone: [phone]
Email: [email protected]

MF08CESWW_IM_Eng_USA_5
January 2013
© 2013 AirTek Int’l Corp. Ltd.
(JMATEK Int’l Group of Companies)
The Honeywell Trademark is used under license from
Honeywell International Inc.
Honeywell International Inc. makes no representation or
warranties with respect to this product.
This product is Manufactured by Airtek International
Corporation Limited.
JMA North America LLC
Ramsey, New Jersey 07446
Customer Support: 800-474-2147
E-mail: [email protected]
www.honeywellportableac.com
