Honeywell CO30XE User manual

Model: CO30XE
Modelo: CO30XE
Power rating: 288 Watts
Potencia: 288W
Voltage rating: 120 Volt AC, 60Hz
Tensión: 120V~60Hz
Made in China
Fabricado en China
Customer Support : 1-800-474-2147
Centro de servicios al cliente: 1-800-474-2147
For product inquiries or support, visit www.honeywellaircoolers.com
Para consultas sobre productos o soporte técnico visite: www.honeywellaircoolers.com
Portable Evaporative Air Cooler
for Outdoor, Indoor & Commercial Use
Enfriador de aire portátil por evaporación
Ideal para Uso Externo, Interno y Comercial
OWNER’S MANUAL
Read and save these instructions before use
MANUAL DEL USUARIO
Lea y guarde estas instrucciones antes de usar

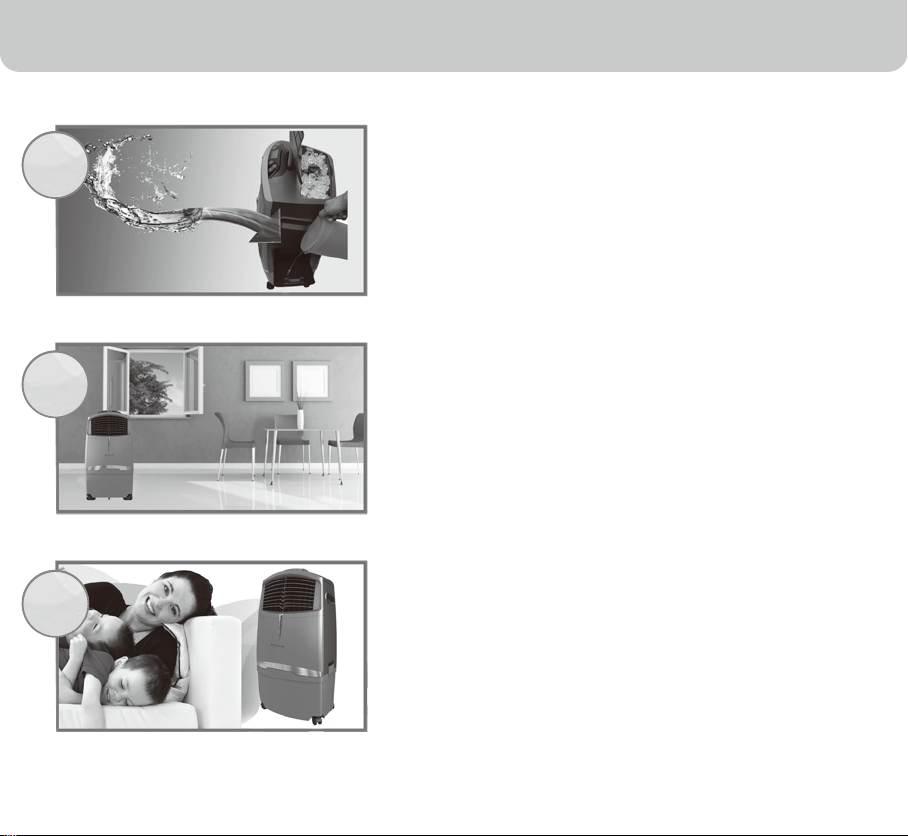

Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3
QUICK START GUIDE
1
2
3

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY INSTRUCTIONS ...................................................................................................
4. PARTS DESCRIPTION ........................................................................................
5. USE & OPERATION .............................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
8
9
16
18
20
20
10. SERVICE AND WARRANTY ................................................................................ 21
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
Fill Water ......................................................... .................... ...............
Function Buttons .................................................................................................
Low water alarm and cooler location ...................................................................
Remote Control ...................................................................................................
.... ............ 15
Control Panel..................................................................................................... 9
10
12
Room Cooling and Humidifying ........................................................................... 13
14

2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside
the ice compartment before you turn on your air cooler.
Cooler Location – Indoors (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

USER TIPS
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
3
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler through the Honeycomb Cooling Media. Water pumped from
the tank pours over the honeycomb media. As the warm air passes through the media, the
water absorbs the heat, naturally cooling and humidifying the air. A fan propels the cooled air
out into the room. This no-compressor system cools naturally, efficiently and inexpensively.

4
USER TIPS
NOTE
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a few hours or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
Unit should be placed a minimum 10 inches away from any wall.
Indoor Use
Outdoor Use

READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
SAFETY RULES
120 Volt AC, 60 Hz
SHOCK HAZARD
WATER LEVEL INDICATOR
5
Your cooler runs on 120 Volt AC, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it may
be tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the COOL setting, check the water tank to
ensure that it is full. Operation of this cooler on the COOL
setting with an empty tank may result in damage to the water
pump.
•
•
•
•
•
•
•
•
•
Warning: To reduce the risk of fire or electric shock, do not
use this appliance with any solidstate speed control device.
•

SAFETY RULES
FLOOR LEVEL
6
•
•
•
•
•
•
•
•
•
•
•
•
•

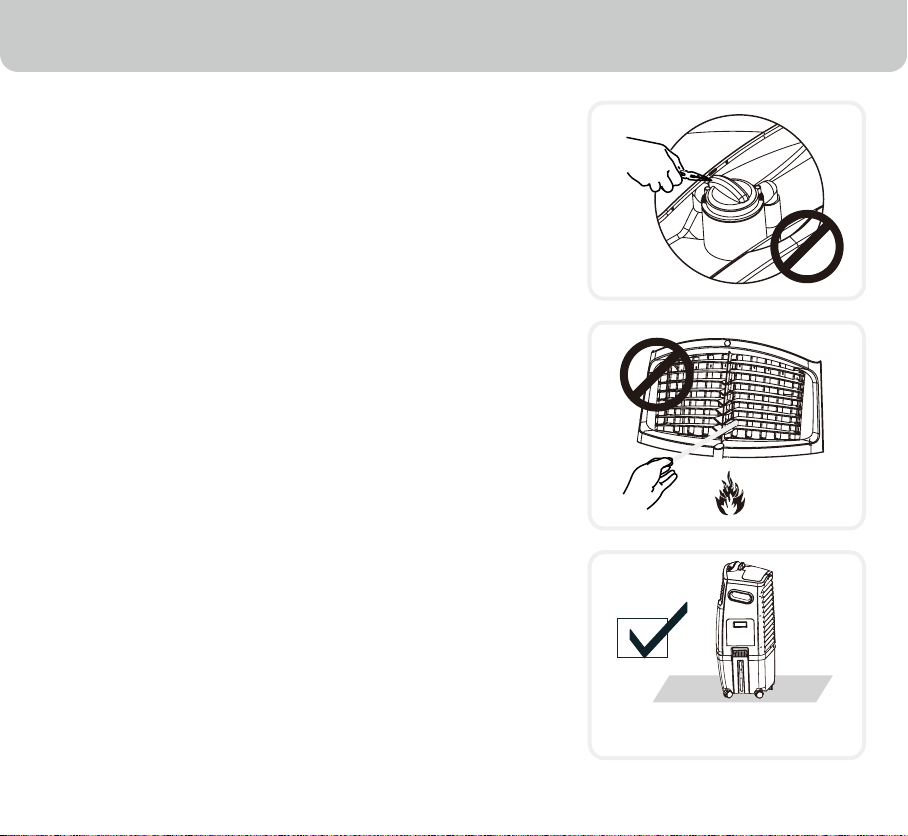

DO NOT attempt to repair or adjust any electrical or mechan-
ical functions of the cooler, as this may void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause electrical shock or fire.
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or if it malfunctions, do not continue to
use it. Refer to the Troubleshooting Guide (page 18) and
contact the service center.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.

7
Use Only on GFCI Protected Receptacles.
Power cords have to be contained. If they must run along the ground, make sure every inch
of them is secured so they will not be tripped over.
The wiring and connections must be waterproof. Be sure the connections (to the air cooler)
never get wet. Your unit is waterproof, but everything attached to it must be waterproof, too.
Set up your unit so it cannot be tripped over or wobble loose. It must rest on a solid
Warning: To reduce the risk of fire or electric shock, do not use this appliance with any solidstate
speed control device.
support.
•
•
•
•
SAFETY RULES

8
6

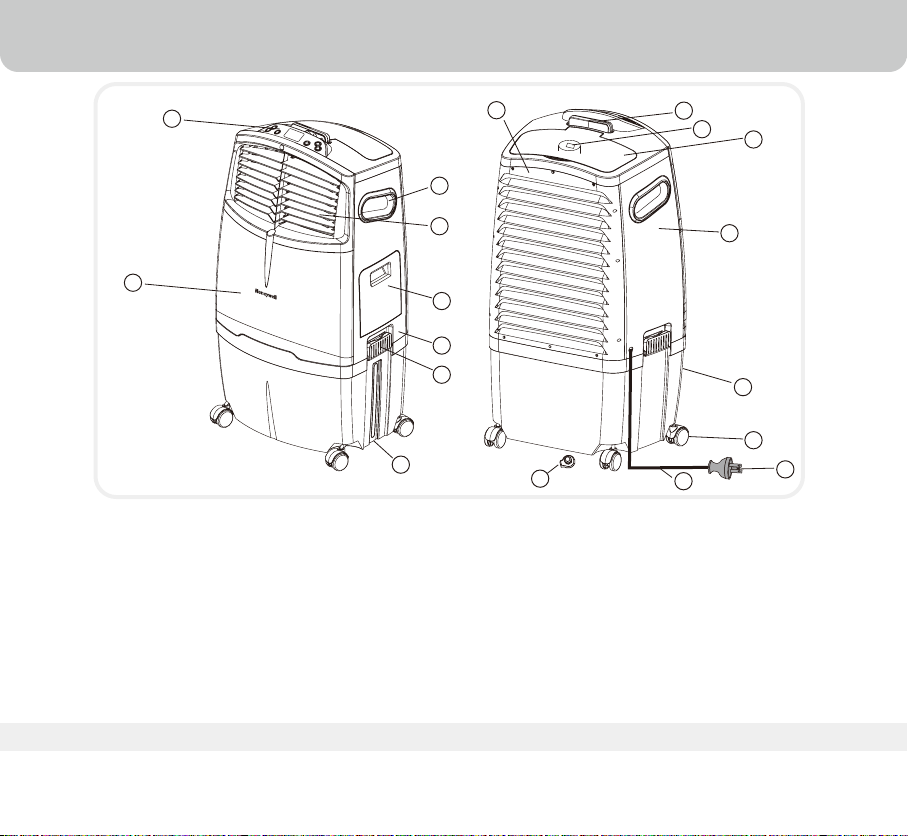

Control Panel
Handle
Louvers
Left Side Panel
Water Tank
Power Cord
Power Plug
Casters
Back Grill
Front Panel
Water Level Indicator
Remote Control
Latch
Right Side Panel
Water Fill Door
1
2
3
4
5
6
7
8
Ice Compartment Lid
9
10
11
12
13
14
15
16
17
Water Regulator (under part 9)
18
PARTS DESCRIPTION
1
11
12 17
14
15
16
13
2
4
3
5
8
9
18
10
ACCESSORIES:
Remote Control (2 AAA Batteries not included)
7
Drain Plug

9
CONTROL PANEL
USE & OPERATION
Lighted Display Icons
Low water level in tank
Cool
Speed Natural
Low speed
Medium speed
High speed
Swing
Time delay set
NATURAL

10
USE & OPERATION
FUNCTION BUTTONS
POWER
Press the button to turn the unit on. To turn the unit
off, press the button again. The cooler will start automatically at
medium speed. After a few seconds the speed will switch to low.
SPEED
Press the FAN or SPEED button repeatedly and the speed
will change. The indicator light will show the selected speed.
COOL
To begin cooling the desired area press the COOL
button. The indicator light will come on and the water
pump will operate. You will feel the cooler air after the
Honeycomb Cooling Media is completely wet.
COOL
SPEED
Low Speed
Medium Speed
High Speed

NATURAL
When the NATURAL button is pressed, the fan speed
will change in between HIGH / MEDIUM / LOW / STOP
to simulate a natural wind effect and will repeat the same
cycle at every 24 seconds. When the NATURAL button is
pressed, the symbol will illuminate in the display.
TIMER
Press the TIMER button until the indicator light comes on to
your desired timer. Once the set time has passed, the unit will
automatically shut off. The Timer function allows you to program
the unit for up to 8 hours of use.
TIMER

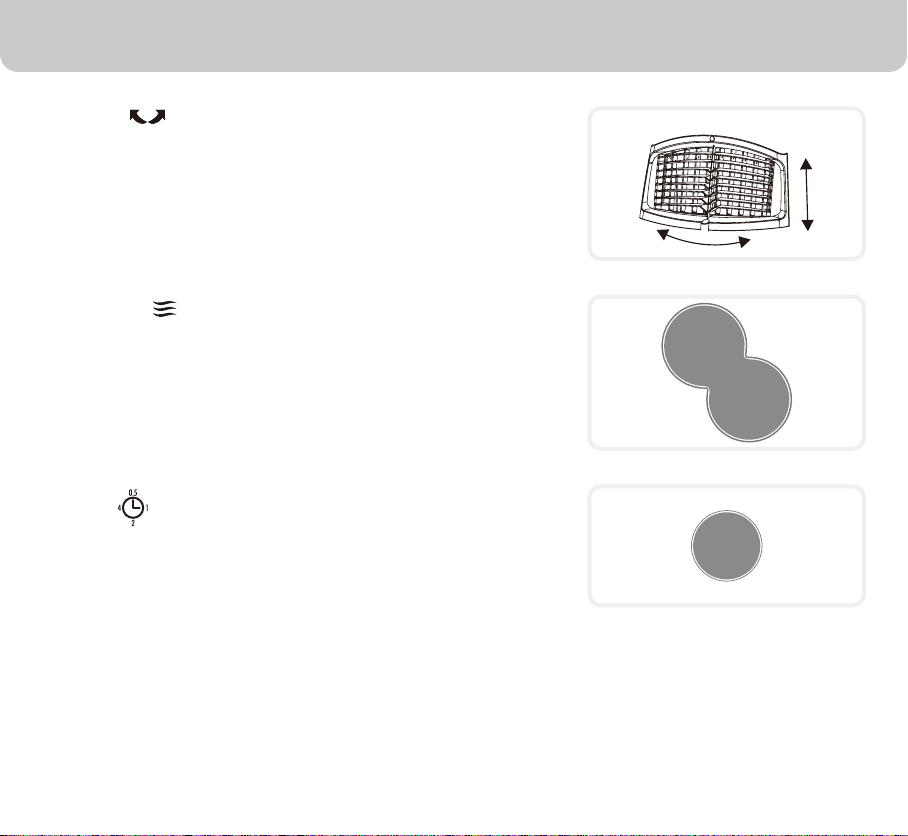

SWING
Press the SWING button. The indicator light will come on
and the louvers will begin to move from right to left automatically.
Manually adjust the horizontal louvers to change vertical airflow.
LOUVER MOVEMENT
NATURAL
SWING
USE & OPERATION
11

LOW WATER ALARM FUNCTION
The unit is equipped with a low water sensor. When water in the tank is below the
minimum level, you will hear 10 beeps and the COOL indicator light will flash
continuously. At the same time the power to the pump inside the unit will be cut off
to protect the life of the pump.
To disengage the alarm function, turn off and unplug the unit from the power
outlet, and fill the tank with water above the minimum level.
To turn off the alarm function and continue to use it in FAN mode, turn off the unit
and turn the unit on. If the COOL button is pressed again without filling the tank with
water, the low water alarm will activate again.
USE & OPERATION
12

ROOM COOLING AND HUMIDIFYING
When the Water Regulator is set to MIN, the water pump
distributes a minimal amount of water to the Honeycomb
Cooling Media. This results in less water evaporation and
reduces the effect.
When the Water Regulator is set to MAX, the water pump
distributes the maximum amount of water to the Honeycomb
Cooling Media. This results in maximum water evaporation
and the cooling performance improves. Water Regulator
USE & OPERATION
13

REMOTE CONTROL
Power: On /Off
Speed: Low / Medium / High
Cool/Fan: Controls cooling or fan option
Swing: Controls the motion of the louvers
Timer:
When the NATURAL button is pressed,
the fan speed will change in between
HIGH / MEDIUM / LOW / STOP to simulate a
natural wind effect and will repeat the same
cycle at every 24 seconds. When the NATURAL
button is pressed, the symbol will illuminate
in the display.
Natural:
Remote Control (2 AAA Batteries not included)
Controls timer function for automatic shut off
NOTE
Open the battery compartment at the back of the remote control and insert two new
AAA dry cell batteries. Care must be taken to insert the batteries according to the
correct polarity (+ / –) markings shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating.
Make sure that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Exhausted batteries are to be removed from the product.
•
•
•
•
•
•
•
•
NATURAL
TIMER
SPEED
POWER
COOL
SWING
USE & OPERATION
14

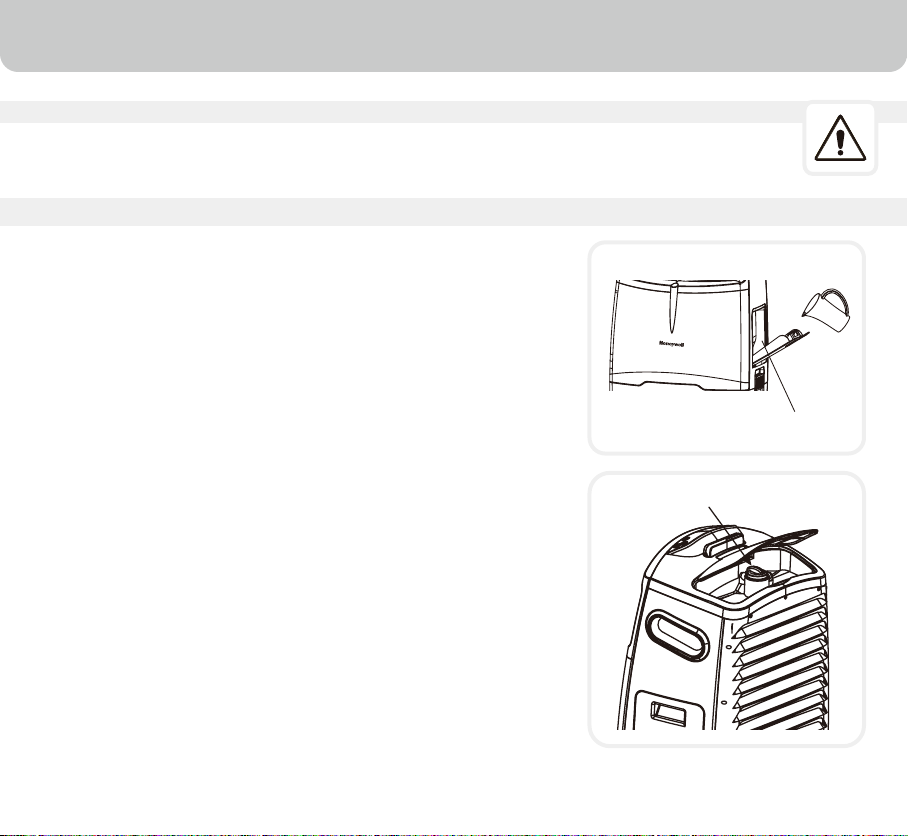

Filling With Water
Unplug from power when refilling.
Unplug the air cooler from power supply.
Check water level indicator located on the front of the unit to
determine the level of water inside the water tank. The water
tank of this cooler holds up to 8 gallons of water. Be sure
water in the tank is always above the minimum water level
mark.
To refill the water tank, open the Water Fill Door located below
the right side panel and fill water to the Max Level, as indicated
on the Water Level Indicator. Do not fill water above the Max
water level mark.
For better cooling performance, it is recommended to put ice
cubes inside the ice compartment located on the top of the
cooler.
After refilling the water tank and loading ice, close the water fill
door, connect the power supply and turn on.
Note :
Running the unit with inadequate water may cause pump
failure.
CAUTION
Water Fill Door
Top Ice Loading Compartment
USE & OPERATION
15

WARNING
Before cleaning the unit, switch it to the OFF position and remove the plug from the
power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals toclean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.

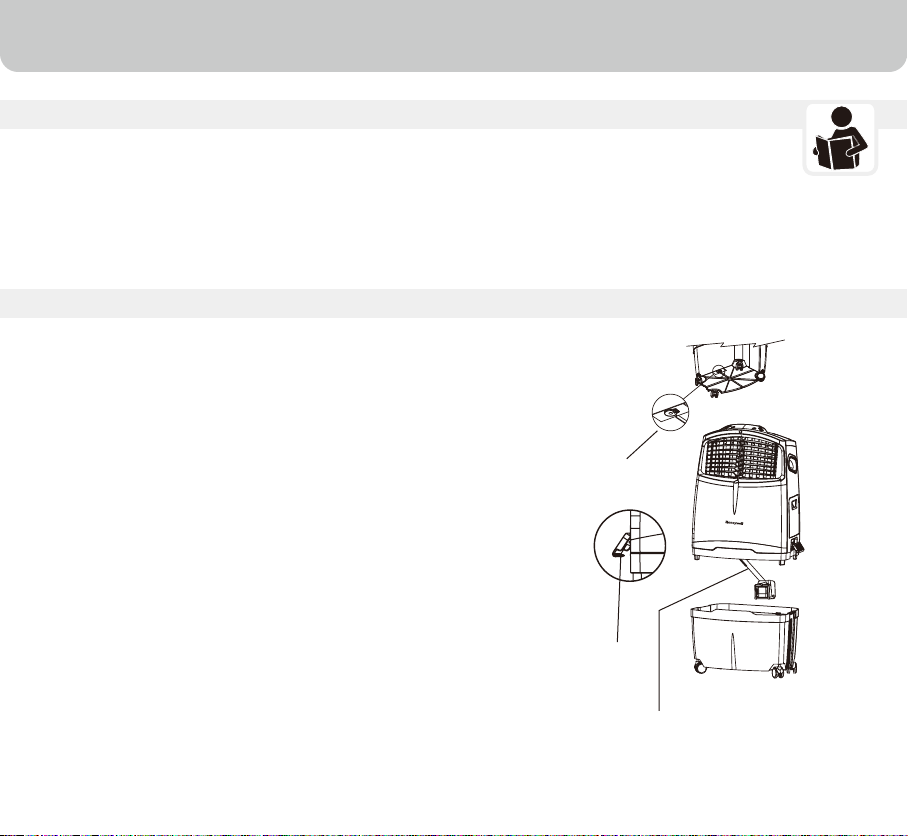

DRAINING AND CLEANING THE WATER TANK
•
•
•
•
•
•
•
•
•
•
•
•
Latch
Water Pick Up Tube
Turn the power OFF and disconnect the air cooler from the
power supply.
Move the unit to a location where it can be drained. Remove
the drain plug from the drainage tube and allow the tank to
empty. (see parts description on page 8).
Once the tank is empty, unlock the latches on both sides
and lift off the cooler top section as shown in the figure and
place it vertically on the floor. Be careful not to bend the
water pickup tube that hangs below the unit.
Refill the water tank with clean water and drain it completely.
Clean the water tank with detergent or a damp cloth and
rinse it thoroughly.
Place the unit top carefully on the tank and lock the latches.
Refill the water tank with clean water, up tothe maximum level.
The air cooler is now ready to be used. This cleaning
process should be repeated weekly to maintain the integrity
of the unit and to remove particles filtered from the air.
Drain Plug
CLEANING & MAINTENANCE
16

CLEANING THE HONEYCOMB COOLING MEDIA
The appliance is supplied with Honeycomb Cooling Media.
The Honeycomb Cooling Media is located inside the back panel.
Open the back panel by using a star screw driver to clean or
replace the Honeycomb Cooling Media. It is recommended
that the Honeycomb Cooling Media be replaced every year,
depending on use and environment.
Draining the water reservoir and refilling with fresh water at
least once a week will greatly reduce mineral deposits in the
pads and help to extend the life of Honeycomb Cooling Media.
Do not run the unit in COOL mode with stale water in the tank.
You must empty the water tank and refill with fresh water,
especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb Cooling Media
depends on local air and water conditions. In areas where
the mineral content of water is high, mineral deposits may build
up on the Honeycomb Cooling Media and restrict air flow.
Draining the water reservoir and refilling with fresh water
at least once a week will help reduce mineral deposits. If
mineral deposits remain on the Honeycomb Cooling
Media, the media should be removed and washed under
fresh water. The media should be cleaned every two months or
sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry
after each use by turning off the cool function 15 minutes
before turning the unit off.
•
•
•
•
•
•
Open Screws
Back Panel
Honeycomb Cooling Media
CLEANING & MAINTENANCE
17

No discharge of air Cord is not plugged in. Make sure power cord is
plugged in and the supply
switch is on.
Power is not on. Turn the unit ON by pressing
button on the control panel.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, turn COOL
FUNCTION to ON.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odors When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a few hours of initial use.
If the Cooler has been used. There may be an algae issue.
Replace the Honeycomb Cooling
Media.
Damaged Pump or Calcium
deposits on blower.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Customer Support: 1-800-474-2147
TROUBLESHOOTING GUIDE
18
