OWNER’S MANUAL
Read and save these instructions before use
Manual del Usuario
Leer y guardar estas instrucciones antes de usar
Model: CS071AE
Modelo: CS071AE
Power rating: 50 Watts
Voltage rating: 120 Volt AC, 60Hz
Potencia: 50 Watt
Voltage: 120 Volt AC, 60Hz
Para consultas sobre productos o soporte técnico visite: www.honeywellaircoolers.com
For product inquiries or support, visit www.honeywellaircoolers.com
Portable Evaporative Air Cooler
for Indoor Use
Enfriador de Aire Portátil por Evaporación
Para Uso En El Interior
Customer Support : 1-800-474-2147
Centro de servicios al cliente: 1-800-474-2147
Made in P.R.C.
Fabricado en China

Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3
QUICK START GUIDE

SECTION PAGE
........................................
...........................................
..................................
.........................
................................
............................................................................ ...............
...........................................................................................................
1. THANK YOU ..................................................................
2. USER TIPS .................................................................
3. SAFETY ...............................................................................
4. PARTS DESCRIPTION .................................................................
5. USE & OPERATION ...............................................................
Function Buttons
Control Panel
............
2
3
5
7
8
9
8
Read all instructions carefully before setting up and operating the cooler, and
please keep this instruction manual for future reference. This manual is designed to
provide you with important information needed to setup, operate, maintain, and
troubleshoot your cooler. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
.............................................................................. ...............
..........
..................
............
Remote Control
6. CLEANING & MAINTENANCE .....................................................................
7. TROUBLESHOOTING GUIDE ...............................................................
8. TECHNICAL SPECIFICATIONS .................................................................
9. ELECTRICAL WIRING DIAGRAM ..........................................................................
............
.................................................................................. ...............
Filling Water ............ 12
11
13
15
17
17
10.SERVICE AND WARRANTY ................................................................................... 18
1
INDEX

2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guideline will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

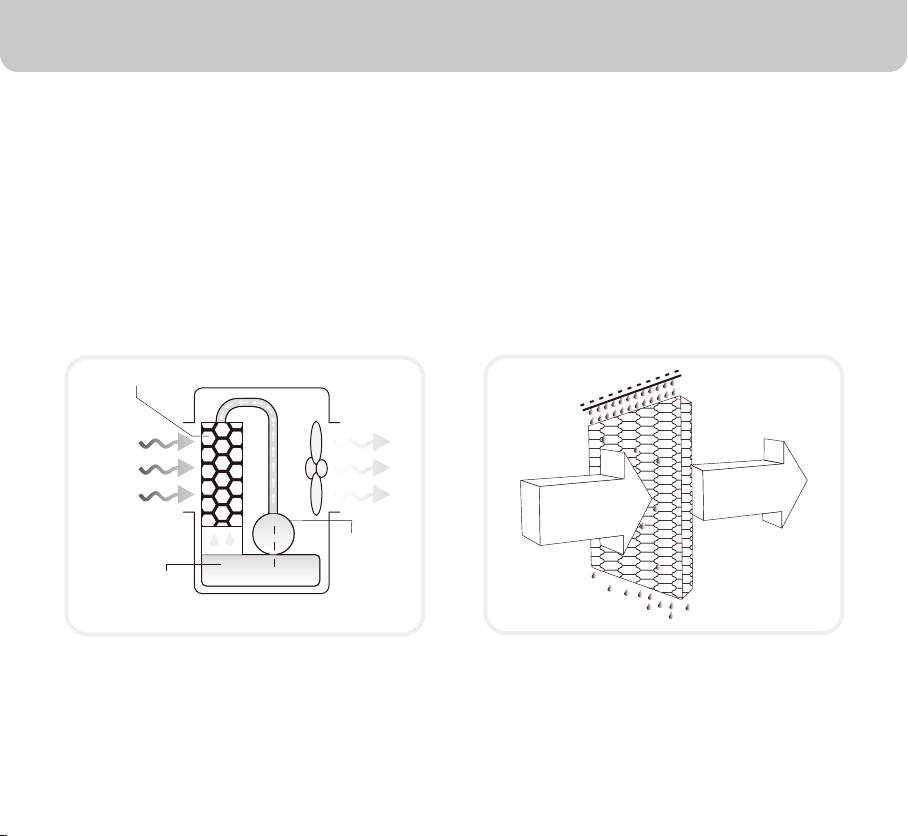

Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
3
USER TIPS
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the
Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media.
As the warm air passes through the media, the water absorbs the heat, naturally cooling and
humidifying the air. A fan propels the cooled air out into the room. This no-compressor system
cools naturally, efficiently and inexpensively.

NOTE
4
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a few hours so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
USER TIPS

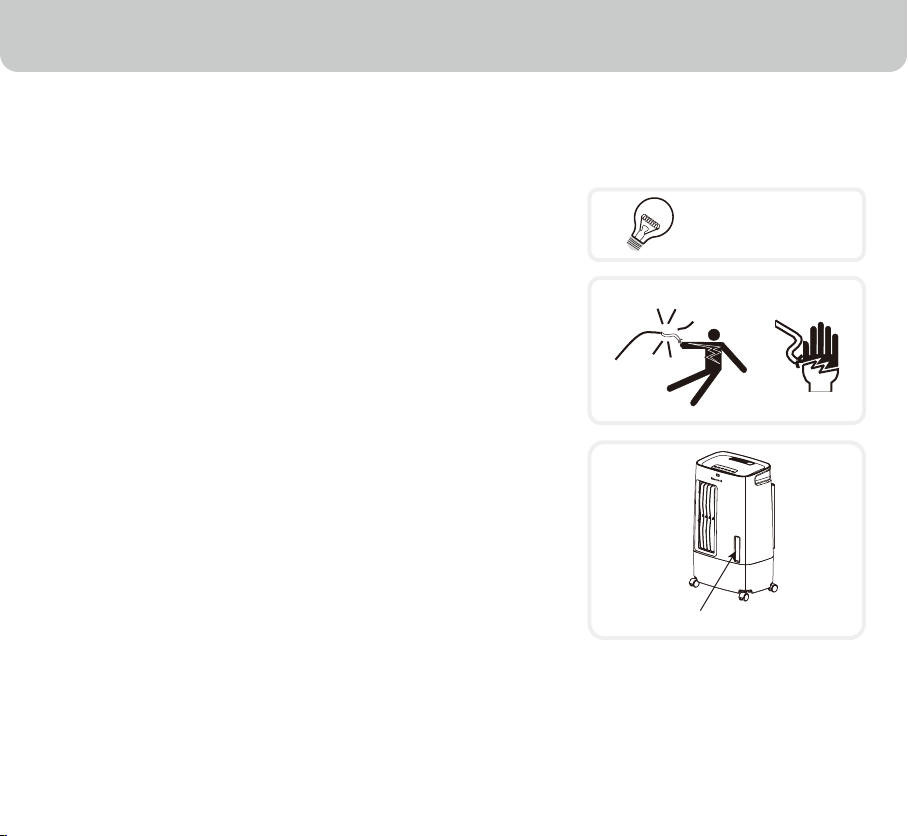

120V - 60 Hz
Shock Hazard
Water Level Indicator
5
SAFETY
READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Your cooler runs on 120 Volt AC, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this appli-
ance.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.

Floor Level
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT attempt to repair or adjust any electrical or mechani-
cal functions of the cooler, as this may void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb Media removed as this
will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.
•Warning: To reduce the risk of fire or electric hock, do not use
this appliance with any solid- state speed control device.
6
SAFETY

7

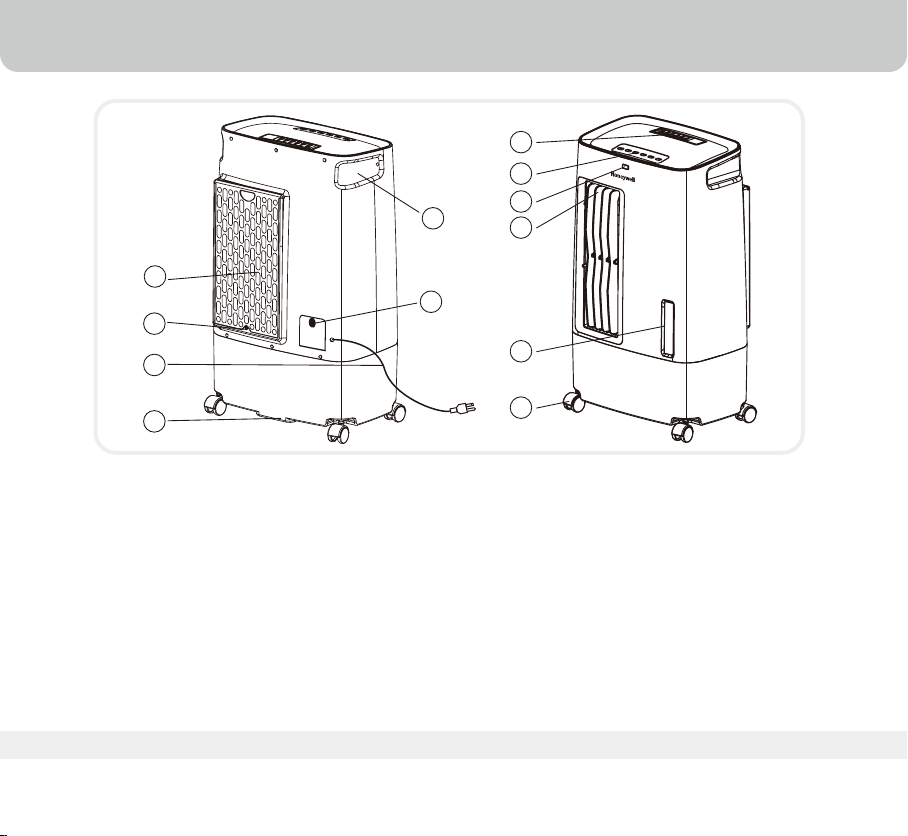

ACCESSORIES:
Remote Control (1pc Li batteries CR2032 included)
1 Remote Control
2 Control Panel
3 Remote Control Receptor
4 Vertical Louvers
(Automatic Movement with SWING)
5 Drain Plug
6 Water Level Indicator
7 Casters
8 Side Handle
9 Back Grill
10 Water Fill Door
11 Power Cord & Plug
12 Rear Grill Removal Screw
1
2
3
4
6
7
8
9
10
11
12
5
PARTS DESCRIPTION

Control Panel
USE & OPERATION
8
SWINGSLEEP TIMER SPEED COOL POWER
Lo Med Hi

9
USE & OPERATION
POWER
Press the POWER button to turn the unit on. The cooler will start
automatically at medium speed. After a few seconds the speed will
switch to low. To turn the unit off, press the button again.
SPEED
Press the 'SPEED' button repeatedly and the speed will change. The
indicator light will show the selected speed. High (Hi), Medium (Med)
& Low (Lo).
COOL
To begin cooling the desired area, press the COOL button. The indicator
light will come on and the water pump will operate. You will feel the cooler
air after the honeycomb media is completely wet.
SPEED
POWER
COOL
Function Buttons

USE & OPERATION
10

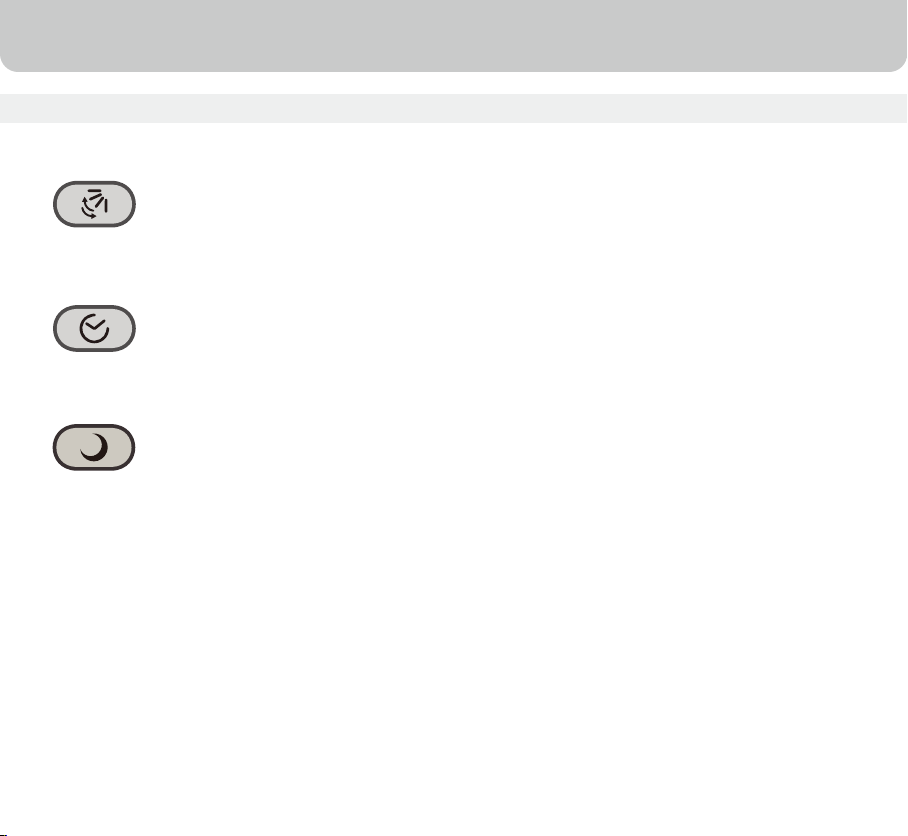

SWING
Press the ''SWING '' button. The indicator light will come on and the louvers
will begin to move from right to left automatically. Manually adjust the
horizontal louvers to change vertical airflow.
TIMER
Press the ''TIMER'' button until the indicator light comes on to your desired
timer. Once the set time has passed, the unit will automatically shut off. The
Timer function allows you to program the unit for up to 7.5 hours of use.
SLEEP
Sleep setting is for comfort during the night; cooler runs on high speed for
1 hr, medium speed for 1 hr and then remains in low speed.
TIMER
SWING
SLEEP
Function Buttons

Power : On/ Off
Speed : Low / Medium / High
Cool : Controls cooling or fan option
Swing : Controls the motion of the vertical louvers
Timer : Controls timer function for automatic shut off
Sleep : Turns on the sleep mode

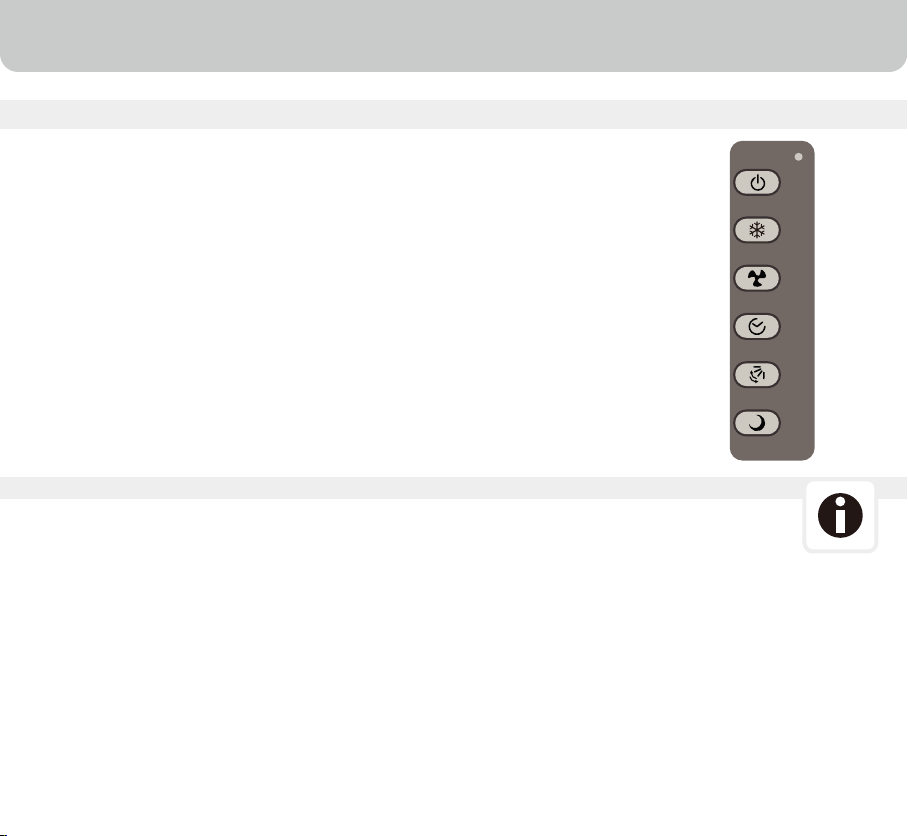

Open the battery compartment at the back of the remote control and insert 1pc Li
batteries CR2032. Care must be taken to insert the batteries according to the
correct polarity (+ / –) markings shown inside the battery compartment.
Remote Control
NOTE
•
Remote Control (1pc Li batteries CR2032 included)
11
USE & OPERATION
POWER
COOL
SPEED
TIMER
SWING
SLEEP
Always point the remote control signal transmitter towards the unit when operating.
Make sure that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
•
•
•
•Non-rechargeable batteries are not to be recharged.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Exhausted batteries are to be removed from the product.
•
•
•
•

12

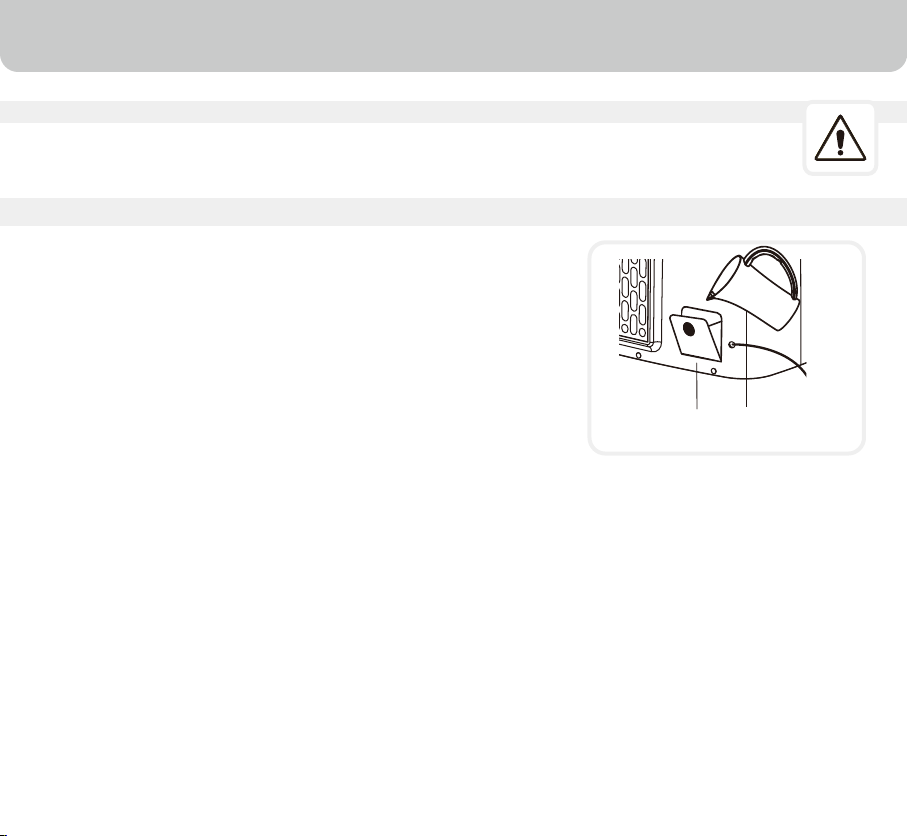

Water Fill Door
Filling With Water
Unplug from power when refilling.
Unplug the air cooler from power supply.
Check water level indicator located on the front of the unit to
determine the level of water inside the water tank. The water
tank of this cooler holds up to 1.8 gallons of water. Be sure
water in the tank is always above the minimum water level mark.
To refill the water tank, open the Water Fill Door located on
the backside panel and fill water to the Max Level, as indicated
on the Water Level Indicator. Do not fill water above the Max
water level mark.
After refilling the water tank close the water fill door, connect the
power supply and turn on.
Note :
Running the unit with inadequate water may cause pump
failure.
CAUTION
USE & OPERATION

Important
WARNING
•
•
•
•
•
•
•
•
Before cleaning the unit, switch it to the ''off'' position and unplug from the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
The cooler is supplied with Honeycomb Cooling Media.
The cleaning frequency for the Honeycomb Media depends on local air and water
conditions. In areas where the mineral content of water is high, mineral deposits may build up
on the Honeycomb Cooling Media and restrict air flow. Draining the water reservoir and refilling
with fresh water at least once a week will help reduce mineral deposits. If mineral deposits
remain on the Honeycomb Media, the Media should be removed and washed under fresh water.
The Media should be cleaned every two months or sooner, depending on your needs.
Do not run the unit in COOL mode with stale water in the tank. Empty the tank and refill it with
fresh water if the water has been standing in the tank for an extended period of time.
For best results, allow the Honeycomb Cooling Media to dry after each use by turning off the
cool function 15 minutes before turning the unit off.
13
CLEANING & MAINTENANCE

CLEANING & MAINTENANCE
Cleaning The Honeycomb Cooling Media & Carbon Filter
Draining and Cleaning The Water Tank
•
•
•
14

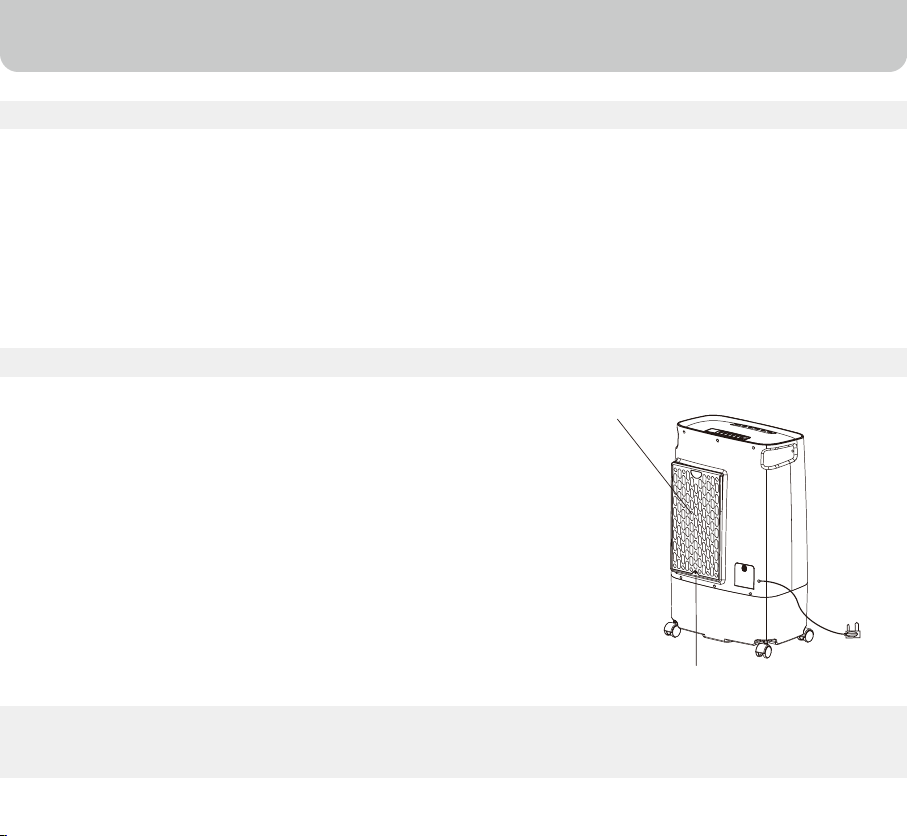

Rear Grill Removal Screw
Back Grill
•
•
•
•
•
•
Turn the power “off” and disconnect the air cooler from the power supply.
Move the unit to a location where it can be drained.
Remove the cap from the water drain plug and allow the tank to empty (see parts description on
page 7).
Refill the water tank up to the maximum level with clean water and drain it completely.
Fill water tank and rinse at least 2-3 times before use.
Plug into the power supply and turn on unit.
Turn off the unit, and unplug the power cord from wall
outlet.
Rotate the unit facing the back panel, locate the Rear
Grill Removal Screw (refer page 7, #12) and remove with
the help of a screw driver.
Pull the back grill panel upwards, until it is completely
removed.
•
•
•
The air cooler is now ready to be used. This cleaning process should be repeated monthly to
maintain the integrity of the unit and to remove particles filtered from the air.
Plug into the power supply and turn on unit.
The Honeycomb cooling media & carbon filter can now be
seen. Clean the carbon filter & honeycomb with clean cloth
to remove all the dust & dirt particles.
Once cleaning is finished, reassemble the unit as
described above.

TROUBLESHOOTING GUIDE
15
No discharge of air Cord is not plugged in. Make sure power cord is
plugged in and the supply
switch is on.
Power is not on. Turn the unit ON by pressing
button on the control panel.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, turn COOL
FUNCTION to “ON”.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odors When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a few hours of initial use.
If the Cooler has been used. There may be an algae issue.
Replace the Honeycomb Cooling
Media.
Damaged Pump or Calcium
deposits on blower.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Customer Support: 1-800-474-2147

TROUBLESHOOTING GUIDE
16
The unit does not respond
to remote control
Remote control batteries. Check batteries. Replace if
needed. Try to operate using
the control panel.
Damaged PCB. Try with remote control. If the
unit responds, PCB board
fasteners may be loose.
Contact service center.
If neither remote control nor
control panel works, PCB
board may be damaged.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Customer Support: 1-800-474-2147

TECHNICALSPECIFICATIONS
MODEL NO. CS071AE
Electrical Wiring Diagram
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension (Inches)
Net Weight
17
120V
120V
60Hz
60Hz
50 Watts
Ampere 0.45A
1.8 Gallons
Honeycomb
15 (W) x 9.8 (D) x 25.4 (H) inches
12.3 lbs (5.6 kg)

18
SERVICE AND WARRANTY
1-YEAR LIMITED WARRANTY
Read all the instructions before attempting to use this product.
This 1 year limited warranty applies to repair or replacement product found to be defective in
material or workmanship.
At its option, JMA NORTH AMERICA LLC will repair or replace this product if it is found to be
detective in material or workmanship.
This warranty does not cover damage resulting from any unauthorized attempts to repair or
from any use not in accordance with the instruction manual.
This warranty does not apply to any damage resulting from commercial, abusive, unreasonable
use or supplemental damage. Defects that are the result of normal wear and tear will not be
considered manufacturing defects under this warranty.
JMA NORTH AMERICA LLC IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an applied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights which vary from jurisdiction to jurisdiction. This warranty
applies only to the original purchaser of this product from the original date of purchase.
A.
B.
C.
