Honeywell CL48PM User manual

Portable Evaporative Air Cooler
INSTRUCTION MANUAL
Read and save these instructions before use
Model: CL48PM
www.ushainternational.com

Fill with water and plug into standard
power outlet.
Place near open door or window.
Note : Please make sure that the power outlet is set to
correct settings as per product specifications.
Note : Evaporative Air Coolers work on evaporative
cooling mechanism which requires cross ventillation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Quick Start Guide

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY RULES ...................................................................................................
4. PARTS DESCRIPTION .........................................................................................
5. USE & OPERATION .............................................................................................
Installing Hose Adapter And Float Valve ..............................................................
Filling Water .......................................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
7
8
8
8
Control Panel ........................ ........................................................................... 9
Control Knobs ................................................................................................... 10
11
13
15
16
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.

THANKYOU
2
COOLER LOCATION (IMPORTANT TO READ)
Place the cooler in front of an open door or window. Ensure thatthere is adequate cross -
ventillation in the room by leaving adoor or window open opposite from the cooler.
Following these rules will ensure your cooler will work aseectively as possible.
Dear Customer,
Congratulations!
You are now the proud owner of an Usha Honeywell Evaporative Air Cooler.
Innovatively designed, using only the highest quality material and components, your
Usha Honeywell Air Cooler is designed for years of trouble free performance.
Please read this Instruction Manual carefully before using the product and keep it
carefully after reading for future reference.
For optimum cooling performance from your unit, please ll the tank with water & ice,
if available, to increase the cooling power.
Best Wishes

USER TIPS
NATURAL ENERGY EFFICIENT COOLING
3
Pump
Water
Honeycomb Cooling Media

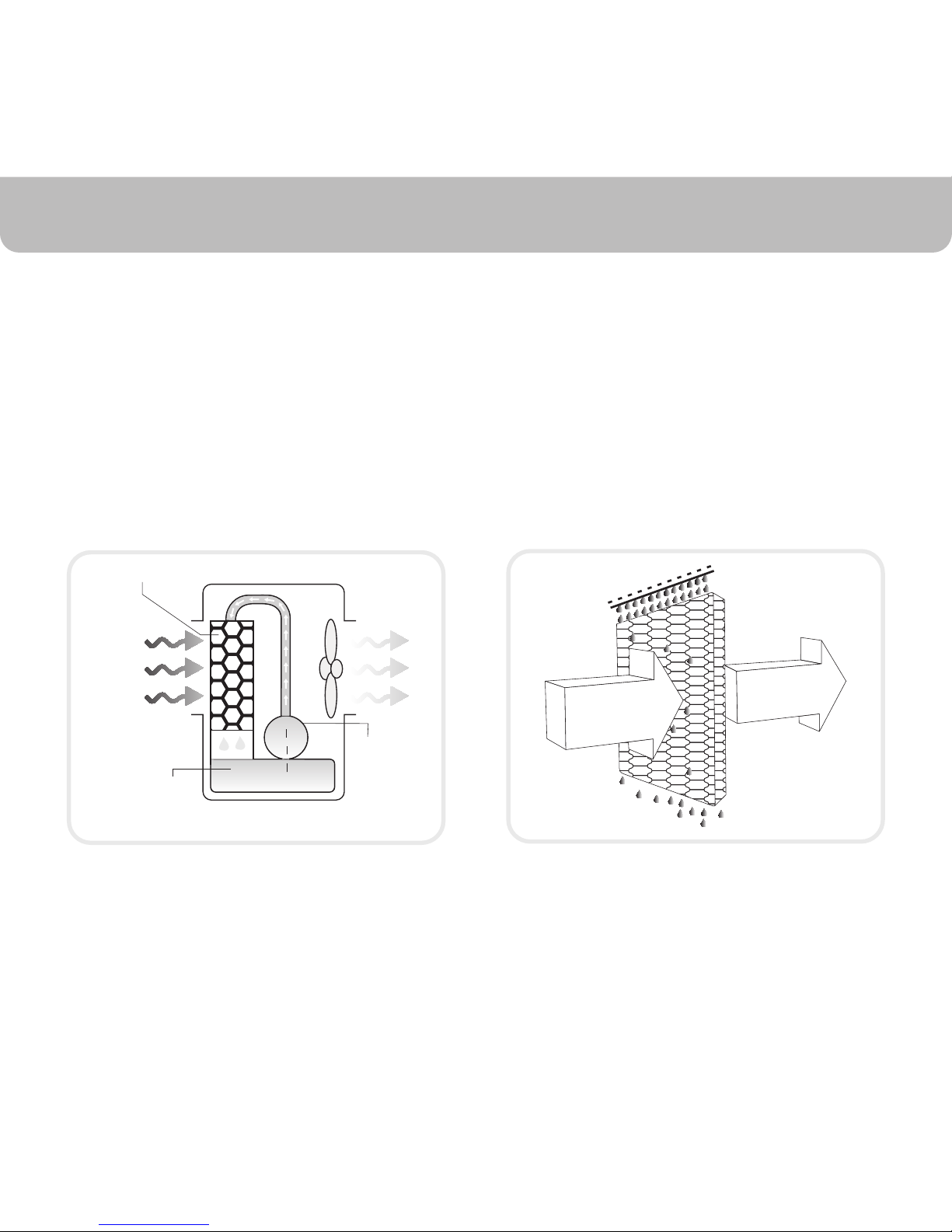

Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This
breeze drops the temperature and has a relaxing cooling eect.
The evaporative air cooler cools the air by means of the evaporation of water. When water
evaporates into the air, the result is a mixture of air and water molecules. This chemical change
requires heat which is taken from the water molecules, resulting in cooler air propelled from the
unit.

NOTE
4
USER TIPS
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened to
allow free air ow. The evaporative air cooler works best when
placed near an open window, so that outside air is drawn into the
evaporative air cooler, the air circulates in the room, then exits via
the door. The maximum cooling eect is felt when a person is in
the ow of air coming out of the evaporative air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidication the windows
and doors should be closed to allow the humidied air to accumu-
late. The evaporative air cooler is not an air conditioner as it does
not use a compressor or refrigerant gas.
When the product is used for the rst time the Honeycomb
cooling media will have an odour which will dissipate within a week
of initial use.
Room with open windows & door
Room with closed windows & door

READ AND SAVE THESE INSTRUCTIONS:
SAFETY RULES
230 Volt AC 50Hz
SHOCK HAZARD
WATER LEVEL INDICATOR
5
When using electrical appliances, basic safety precautions should always be followed:
Always unplug the product before relling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other ammable goods and objects are stored.
When using the ''COOL'' setting, please check the water tank
to ensure it is full. Operation of this unit on the ''COOL'' setting
with an empty tank may result in damage to the water pump.
•
•
•
•
•
•
•
•
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
•
Your cooler runs on 230V AC, 50 Hz current. Check the house-
hold voltage to ensure it matches the appliance's rate specica-
tion.
Before operating the product remove it from its packaging and
check it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not to use an extension cord with this
appliance.

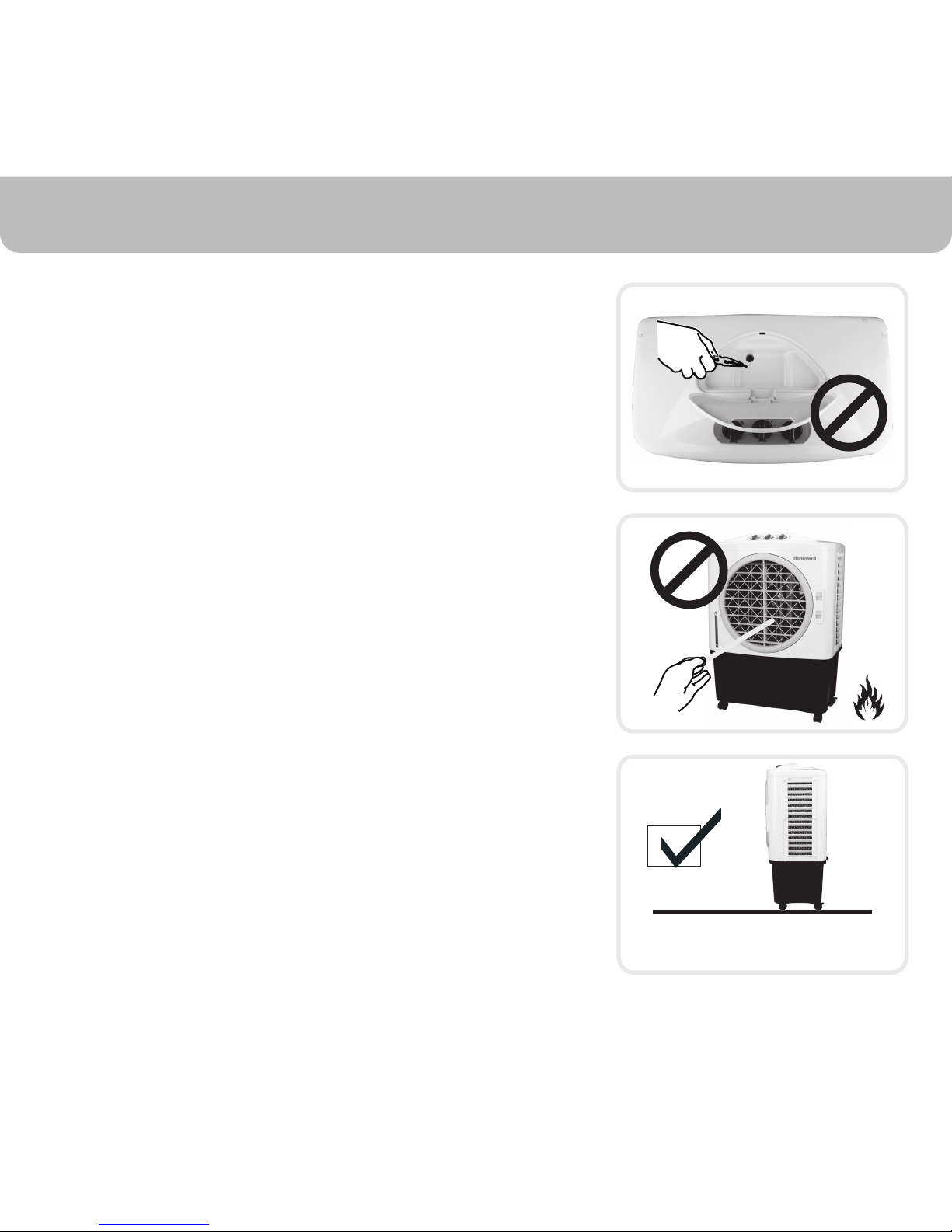

SAFETY RULES
FLOOR LEVEL
6
may cause motor damage.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
When the unit is not in use always store in a dry area.
•
This product is not intended for use in wet or damp locations.
•
DO NOT let children play with this appliance, packaging or
plastic bags.
•
DO NOT leave the appliance operating unattended for any
extended period of time.
•
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
•
DO NOT attempt to repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
•
DO NOT cover the air inlet or outlet on the appliance as this
•
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and /or please
seek professional advice.
•
Place the unit on a level floor.
•
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
•
Always grip the side handles to move the unit.
•

PARTS DESCRIPTION
7
1 Water / Ice Inlet
2 Handle
3 Right Panel
4 Lever for Horizontal Louvers
5 Water Tank
6 Castors
7 Horizontal Louvers
8 Water Level Indicator
9 Control Panel
10 Left Panel
11 Drain Plug
12 Water Fill Door (Manual Water Inlet)
13 Back Panel
13
1
2
9
8
3
10
12
11
4
5
6
7

USE & OPERATION
8
Open (Slide-out) the water fill door located on the back-
side of the unit and fill water inside the tank.

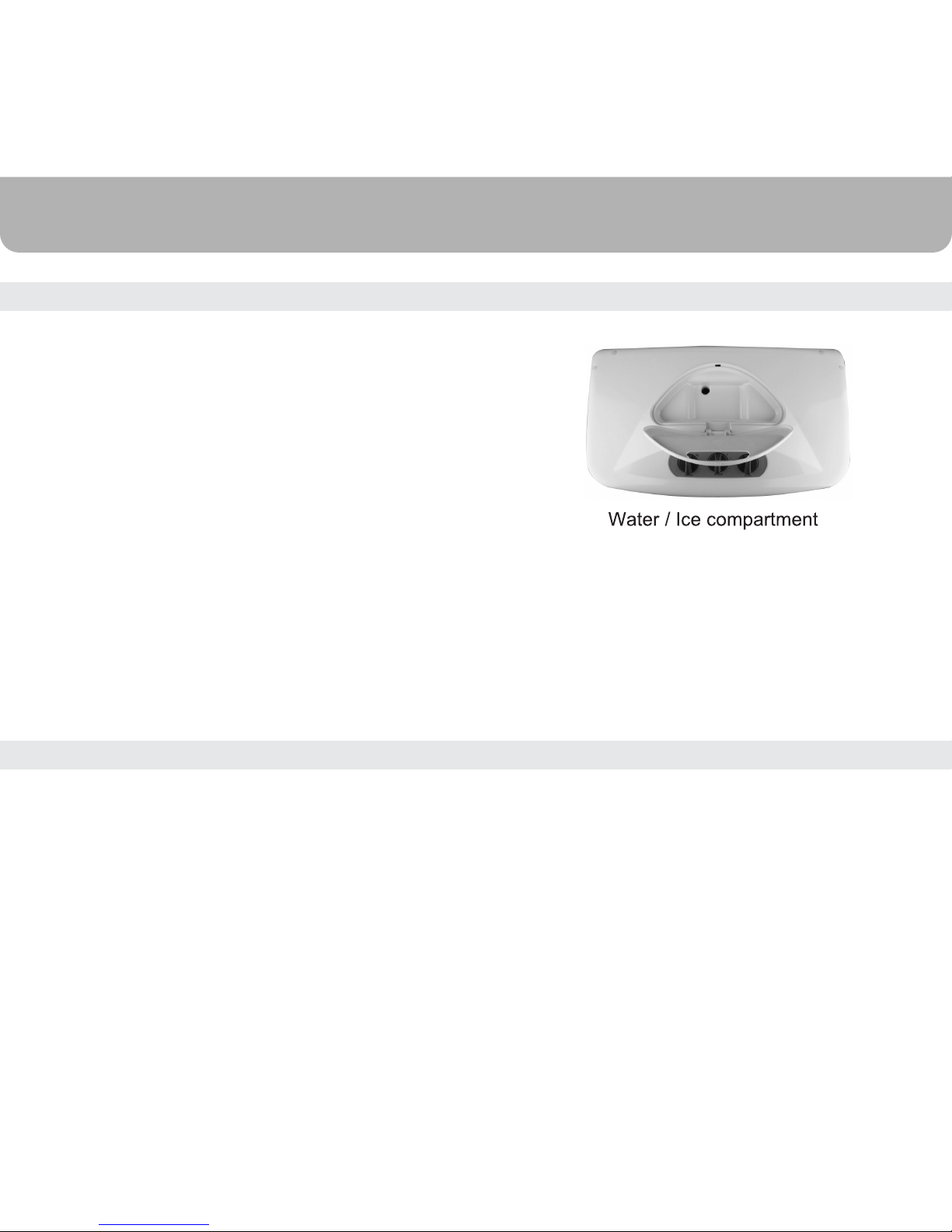

Optionally, you may also fill water or load ice from the
water/ice inlet located on the top besides the control
panel. Loading the ice in the ice inlet compartment, will
help to improve the cooling efficieny.
Check Max. Level of water on the Water Level Indicator.
Always check water level in the tank before running the
"COOL" function.
Always make sure water in the tank is above the Min.
Water level mark.
Running the unit with inadequate water may cause pump
failure.
FILL WATER ( Manually )
Unplug from power when refilling.
CAUTION

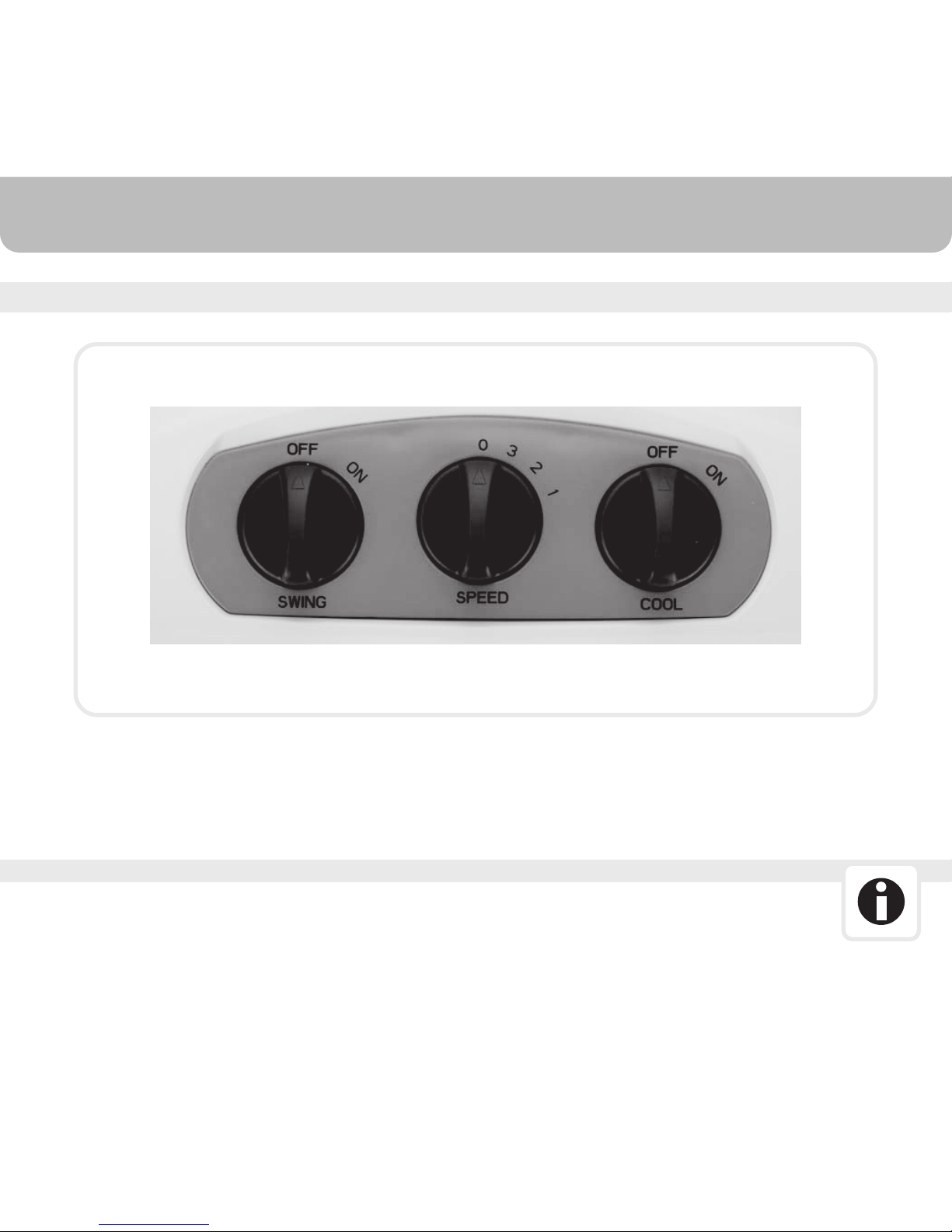

CONTROL PANEL
9
USE & OPERATION
NOTE:
Speed control may be marked as High / Med / Low in certain units.

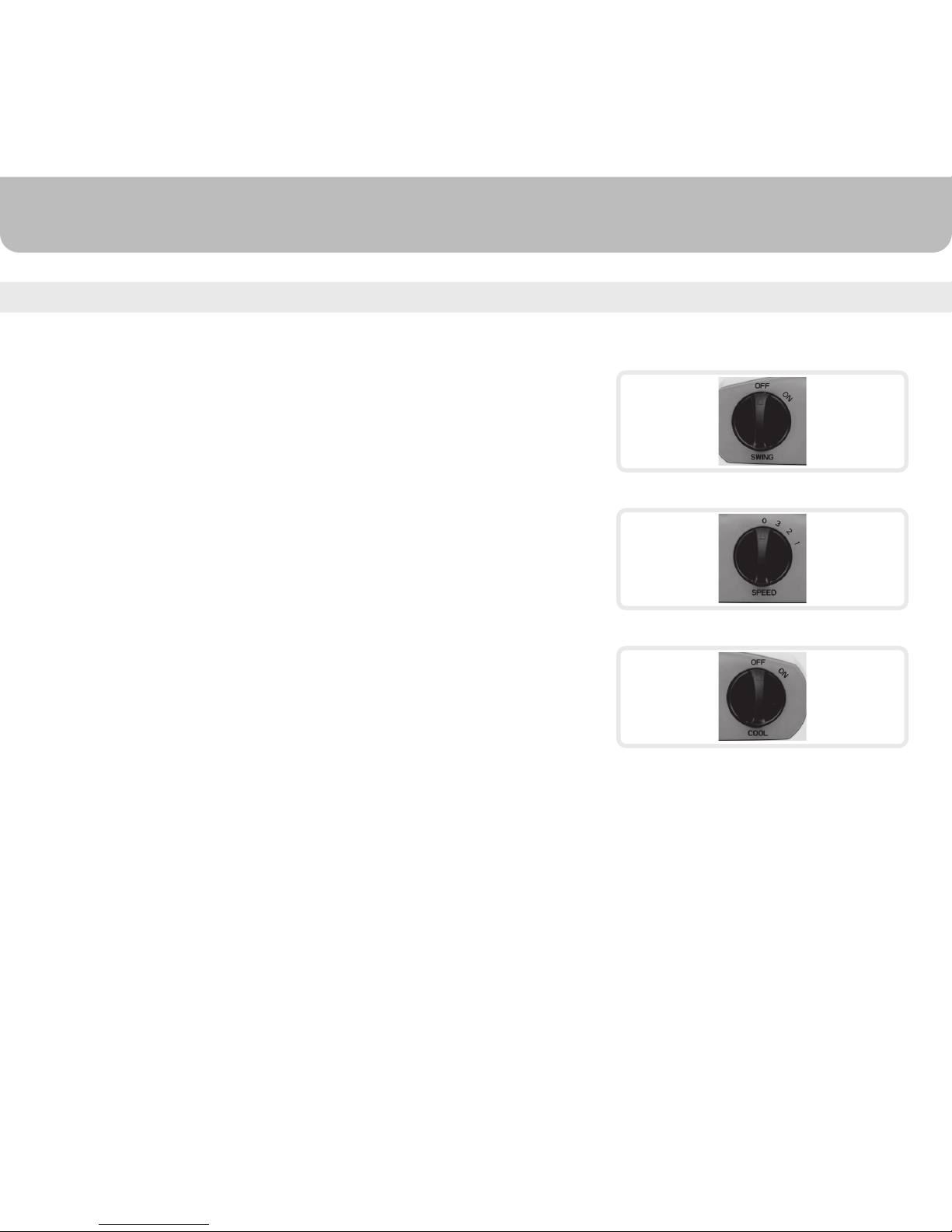

CONTROL KNOBS
SPEED / ON - OFF
Connect to the power supply and turn the Speed knob. The fan
will start. Change the speed from 1 for Low to 2 for Medium to
3 High. To switch OFF the unit turn the Speed to "0".
COOL
Turn the Cool knob ON to start the cooling. It takes a few
minutes to obtain the full eect from this mode.
SWING
Vertical Louvers
Turn the SWING knob to 'ON'. The louvers will begin to move
from right to left automatically.
Horizontal Louvers
Manually adjust the horizontal louvers to change vertical airow.
COOL
OFF ON
SWING
OFF ON
10
USE & OPE RATIO N
SPEED
03
2
1

WARNING
CLEANING & MAINTENANCE
Before cleaning the unit, switch it to the ''o'' position and remove the plug from
the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use detergents, corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
CLEANING AND DRAINING THE WATER TANK
•
•
•
•
•
•
•
•
11
Turn the power "o" and disconnect the unit from power supply.
Move the unit to a location where it can be drained and remove the drainage
tube/cap (see parts description on page 7).
Once the tank is empty, rell with clean water and drain it again.
This should be repeated weekly to maintain the integrity of the unit and to remove
particles ltered from the air.
Once the tank is clean, rell the water tank. The unit is now ready to be used again.

CLEANING & MAINTENANCE
The appliance is supplied with Honeycomb cooling media.
The cleaning frequency for the Honeycomb media depends on local air and water
conditions. In areas where the mineral content of water is high, mineral deposits
may build up on the honeycomb cooling media and restrict air ow. Draining the
water reservoir and relling with fresh water at least once a week will help reduce
mineral deposits. If mineral deposits remain on the Honeycomb media, the media
should be removed and washed under fresh water. The media should be cleaned
every two months or sooner, depending on your needs.
Do not run the unit in COOL mode with stale water in the tank. It is recommended
to empty the tank and rell it with fresh water if the water has been standing in the
tank for an extended period of time.
For best results, allow the honeycomb cooling media to dry after each use by turning
o the cool function 15 minutes before turning the unit o.

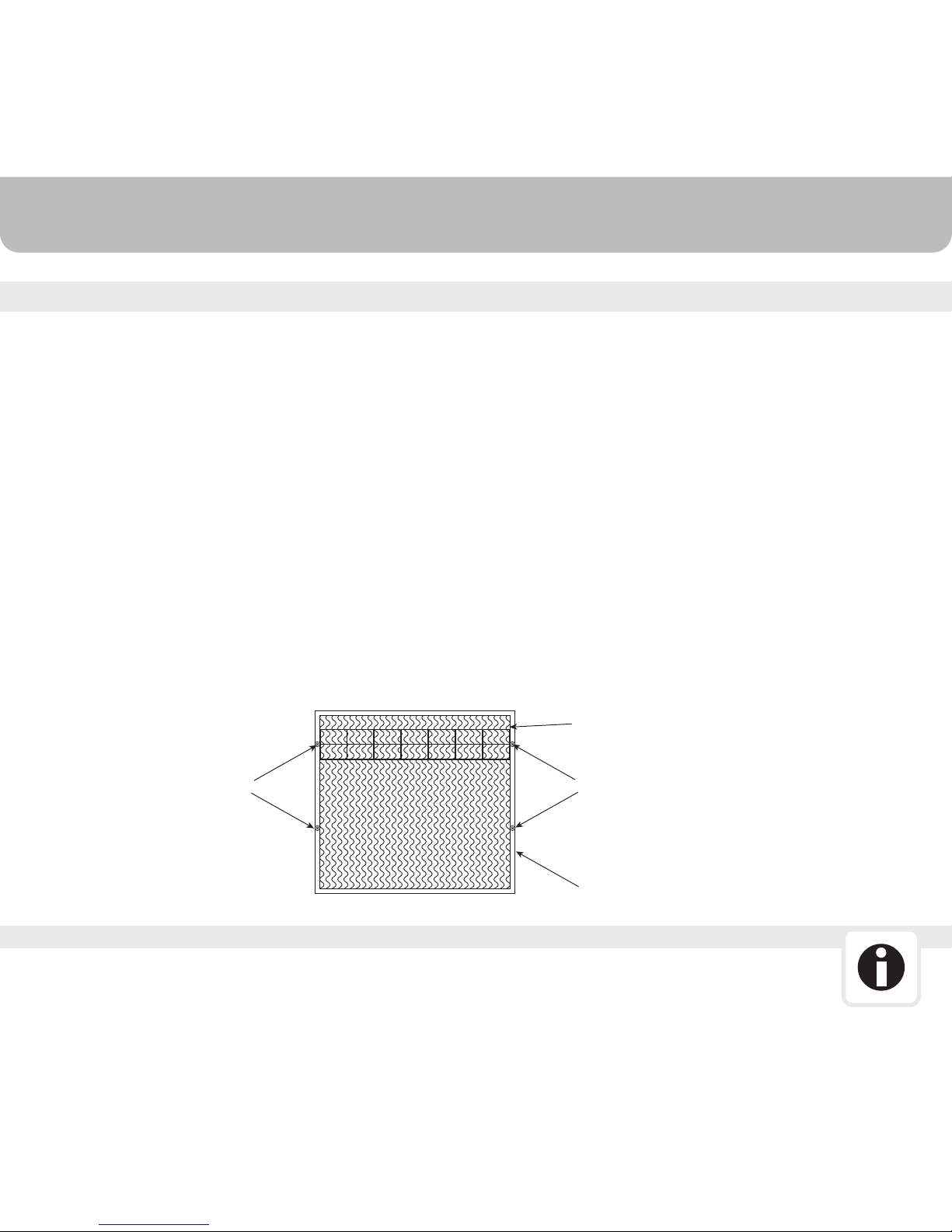

MAINTAINING & CHANGING THE HONEYCOMB
•
•
•
•
To change the Honeycomb, remove the hand screws which hold the side panel
(Refer Fig.1). Remove the Honeycomb holder and replace the Honeycomb.Rex the
Honeycomb holder and screw back the panel to the unit.
•
12
This unit is supplied with three (3) Honeycomb Cooling Media's located on the back &
two sides. The removal procedure for all the media's is same as explained above.
NOTE:
Hand ScrewHand Screw
Honeycomb Holder
Side Panel
Fig.1

13
TROUBLESHOOTING GUIDE:
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch in ON.
Power is not ON. Try to turn the unit ON by
pressing buttons on control
panel or remote control.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
remote or control panel.
Low or no water in tank,
when COOL is selected.
Rell water tank.
Odour omission New Unit. When the unit is used for the
rst time, the Honeycomb
cooling media will have an
odour, which will dissipate
within a week of initial use.
Old Unit. There may be an algae issue,
Replace the honeycomb cooling
media. Contact service centre.
Damaged Pump or Calcium
deposits on blower.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION

TROUBLESHOOTING GUIDE
The unit does not respond Remote control batteries. Check batteries, Replace if
needed. Try to operate using
the control panel.
Damaged PCB Try with remote control. If the
unit responds, PCB board
fasteners may be loose.
Contact service centre.
If neither remote control nor
control panel works, PCB
board may be damaged.
Contact service centre.
14
PROBLEM POSSIBLE CAUSE SOLUTION

MODEL NO. CL48PM
230V
50Hz
140 Watts
40 Litres
Honeycomb
600 x 490 x 830 mm
13.3 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension (L) x (W) x (H)
Net Weight
TECH NICAL SPEC IFICA TION S
15

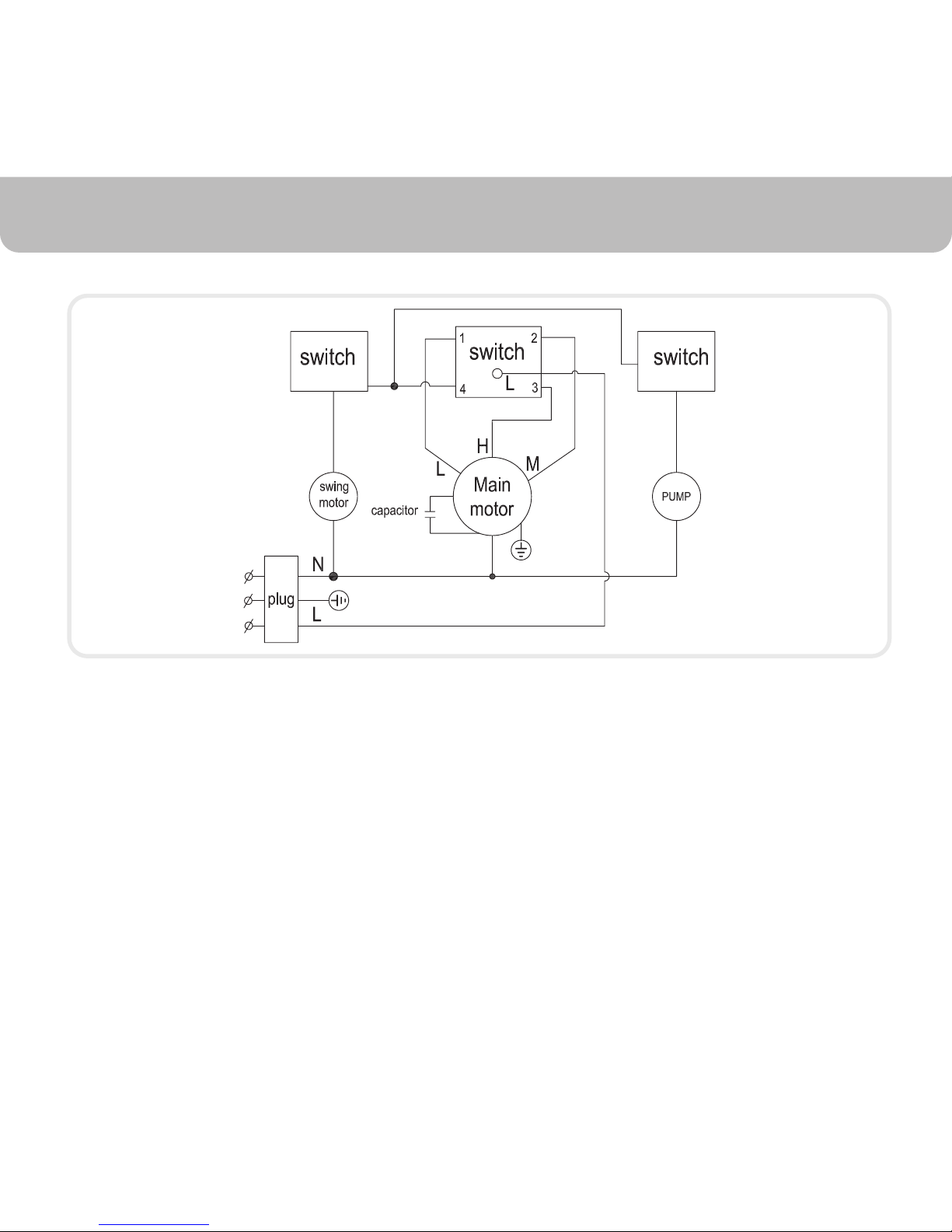

ELECTRICAL WIRING DIAGRAM
16

This appliance is warranted for one year against all manufacturing defects from the date of sale.
In the event of any complaint, please contact your nearest Company Service Centre or call at our
Toll Free no: 1800-1033-111
This Warranty is valid only when…
1. The appliance has not been opened or tempered with, by any unauthorized person.
2. The warranty card or cash memo duly signed by the authorized dealer are presented
with the complaint.
3. The appliance has been installed, used and maintained in accordance with the instructional
manual.
This Warranty does not apply for…
1. Damages due to chipping, peeling, plating and denting.
2. Breakage or damage to components made out of Bakelite, Urea, ABS, SAN and such plastic,
materials, rubber parts and cord.
3. Normal wear and tear of parts.
4. Damage resulting from accidents, mishandling or negligence on part of the customer.
Liability for consequential loss or damage is neither accepted nor implied.
S.NO: _________________________________________________________________
CASH MEMO ____________________________________________________________
DATE: __________________________________________________________________
DEALER’S NAME AND ADDRESS: _____________________________________________
________________________________________________________________________
________________________________________________________________________
OWNER’S NAME & ADDRESS: ________________________________________________
__________________________________________________________________________
SERVICE AND WARRANTY
SERVICE AND WARRANTY
17
