Honeywell CL48PM User manual

Portable Evaporative Air Cooler
OWNER'S MANUAL
Read and save these instructions before use
for Outdoor, Indoor & Commercial Use
Model: CL48PM
Power rating: 140 Watts
Voltage rating: 220 Volt AC, 50Hz
For product inquiries or support, visit www.honeywellaircoolers.com
Made in P.R.C.
TES Scandinavia AB
www.tesscandinavia.se, [phone]
OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED SWING
MAX
MIN

QUICK START GUIDE
Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note: Please make sure the household power voltage
matches the product specifications.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY RULES ...................................................................................................
4. PARTS DESCRIPTION ........................................................................................
5. USE & OPERATION .............................................................................................
Control Panel ....................................................................................................
Control buttons ................................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
8
9
9
10
Filling water ...................................................................................................... 11
13
15
16
17
INDEX
1
Read all instructions carefully before setting up and operating the cooler, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.

THANK YOU!
THANK YOU!
2
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum
cooling from your cooler, fill the water tank to maximum level and load ice inside the ice
compartment before you turn on your air cooler.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -ventilation
in the room by leaving a door or window open opposite the cooler. Following these guideline will
ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or refrigerant
gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

Energy Efficient, No Compressor
3
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler and enters the Honeycomb Cooling Media. Water pumped from
the tank pours over the honeycomb media. As the warm air passes through the media, the water
absorbs the heat, naturally cooling and humidifying the air. A fan propels the cooled air out into the
room. This no-compressor system cools naturally, efficiently and inexpensively.
USER TIPS

Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
Note:
4
USER TIPS
When the product is used for the first time the Honeycomb
Cooling Media will have an odor which will dissipate in a few
hours or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, the air circulates in the room,
then exits via the door. The maximum cooling effect is felt
when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidification the windows
and doors should be closed to allow the humidified air to
accumulate.

OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED SWING
MAX
MIN
READ AND SAVE THESE INSTRUCTIONS:
SAFETY RULES
220 Volt AC 50Hz
SHOCK HAZARD
5
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Your cooler runs on 220 Volt AC, 50Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging and
check it is in good condition.
DO NOT operate any product with a damaged cord or plug.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.
Water Level Indicator

OFF
COOL
ON
OFF
SWING
ON
0
123
Water / Ice compartment
SAFETY RULES
FLOOR LEVEL
6
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb Media removed as this
will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where it
may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.

SAFETY RULES
7
•
•
•
•
Look for extension cords specifically marked for outdoor use. Look for extension cords that have
a GFCI (Ground Fault Circuit Interrupter) built in.
Make sure the amperage rating for the extension cord is higher than the amperage rating for the
appliance. Check labels and owner's manuals on the appliance and the extension cord for
amperage ratings.
Power cords have to be contained. If they must run along the ground, make sure every inch of
them is secured so they will not be tripped over.
The wiring and connections must be waterproof. Be sure the connections (to the air cooler) never
get wet. Your unit is waterproof, but everything attached to it must be waterproof, too.
Set up your unit so it cannot be tripped over or wobble loose. It must rest on a solid support.

OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED SWING
MAX
MIN
10
1
2
9
8
3
4
5
6
7
11
16
15
12
13
14
1 Water Inlet and Ice
Loading Compartment
2 Handle
3 Left Honeycomb Panel
4 Lever for Horizontal Louvers
5 Water Tank
6 Casters
7 Horizontal Louvers
8 Water Level Indicator
9 Control Panel
10 Right Honeycomb Panel
11 Continuous Water Supply Connection
12 Drain Plug
13 Backside Honeycomb Panel
14 Power Cord & Plug
15 Rear Grill Removal Screws
16 Water Fill Door
PARTS DESCRIPTION
8

Control Panel
COOL SPEED SWING
OFF ON OFF ON
03
2
1
USE & OPERATION
9

Function Buttons
Speed / On - Off
COOL
OFF ON
SWING
OFF ON
SPEED
03
2
1
Connect to the power supply and turn the Speed knob. The fan
will start. Change the speed from 1 for Low to 2 for Medium to
3 High. To switch OFF the unit turn the Speed know to "0".
SPEED
Press the 'SPEED' button and to the speed from High to Low.
COOL
To begin cooling the desired area turn the "COOL" switch ON.
The water pump will operate. You can feel the cooler air after
the Honeycomb media is completely wet.
SWING
Turn the "SWING" switch ON. The louvers will begin to move
from right to left automatically. Manually adjust the horizontal
louvers to change vertical airflow.
Horizontal Louvers
Manually adjust the horizontal louvers to change vertical
airflow.
USE & OPERATION
10

Hose Connector
USE & OPERATION
CAUTION
Water Inlet (Manually)
Unplug from power when refilling.
Filling With Water
Water can be filled into the air cooler by:
Water Inlet (Manually)
Water / Ice can be put into the tank through the top
opening.There is a hole for water to flow into the tank.
Continuous water supply (Auto Refill)
Connect a garden hose to the continuous water supply inlet.
To refill the water tank, pull out the Water Fill Door located on
the top of the unit (#16 on Page 8) and fill water to the Max, as
indicated on the Water Level Indicator (#8 on Page 8)
Do not fill water above the Max water level mark.
For maximum cooling performance, put ice cubes inside the Ice
Loading Compartment located on the top of the Air Cooler (#1
on Page 8).
11
Water Inlet
Water Fill Door Ice Loading
Compartment

Hose Connector
USE & OPERATION
Filling With Water ( Continuous Water Supply Connection)
12
CAUTION
Unplug from power source before filling
This automated process eliminates the need to manually refill the water tank.
Securely connect the continuous water supply connector (located on the lower left side panel
#11 on Page 8) to the water supply.
Turn on the water.
The water tank will refill automatically.
The water float valve will detect the water level and will automatically start or stop the water
flow.
Plug the unit into the power supply and turn the unit on.

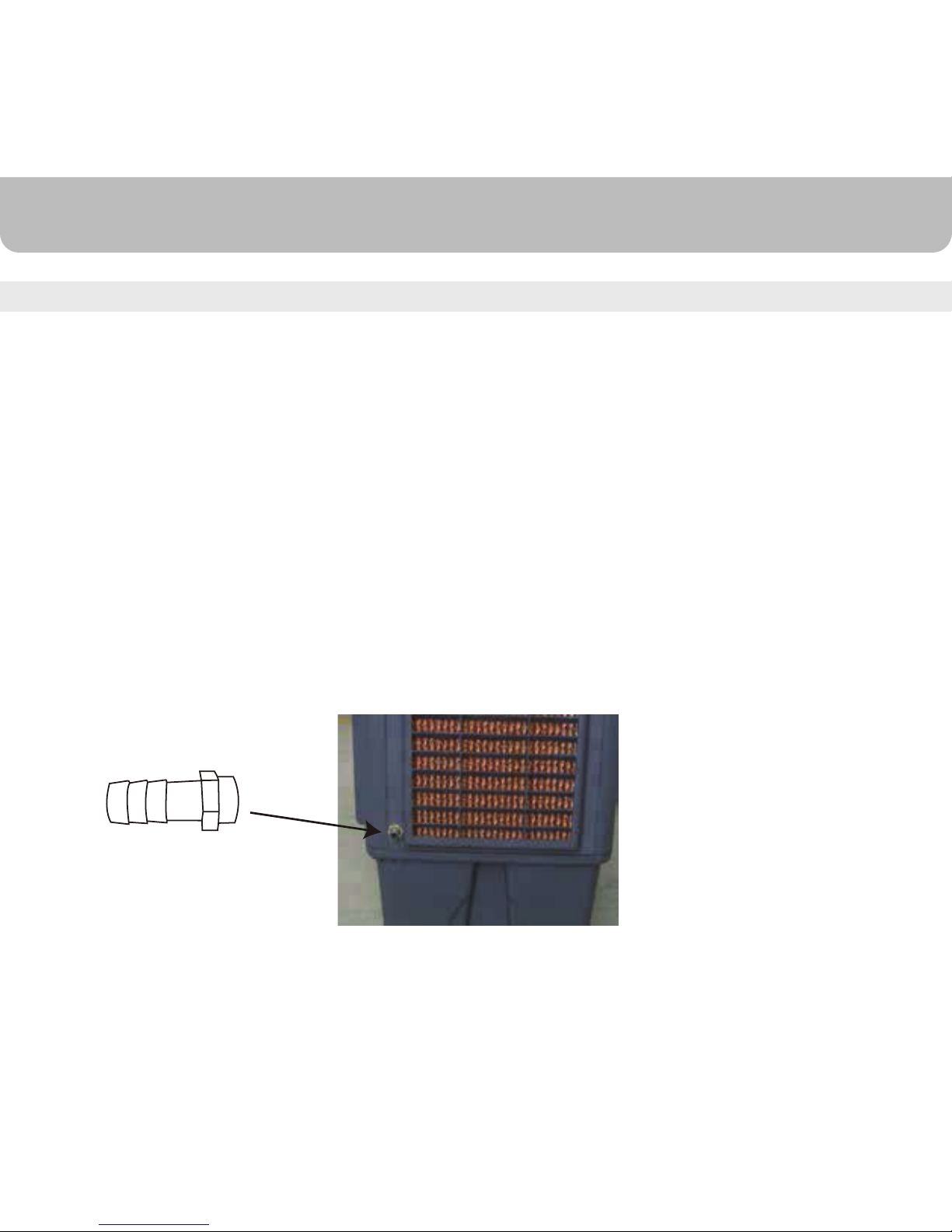

Installing Hose Adapter And Float Valve
Connect the garden hose to the water supply connector (# 11 on Page 8)
Verify that connections are secure and turn on the water.
Hose Connectora

Important - Please Read!
WARNING
•
•
•
•
•
•
•
•
13
Before cleaning, turn the unit off and disconnect from the power source.
Use a damp cloth to remove dirt and dust from the outside of the unit.
Never use abrasive cleaners.
When the unit is not in use, store it in a dry place, out of direct sunlight.
CLEANING & MAINTENANCE
The cooler is supplied with Honeycomb Cooling Media.
The cleaning frequency for the Honeycomb media depends on local air and water
conditions. In areas where the mineral content of water is high, mineral deposits may
build up on the Honeycomb Cooling Media and restrict air flow. Draining the water
reservoir and refilling with fresh water at least once a week will help reduce mineral
deposits. If mineral deposits remain on the Honeycomb media, the media should be
removed and washed under fresh water. The media should be cleaned every two
months or sooner, depending on your needs."
Do not run the unit in COOL mode with stale water in the tank. Empty the tank and refill
it with fresh water if the water has been standing in the tank for an extended period of
time.
For best results, allow the Honeycomb Cooling Media to dry after each use by turning
off the cool function 15 minutes before turning the unit off.

CLEANING & MAINTENANCE
Draning and Cleaning The Water Tank
Cleaning the Honeycomb Cooling Media
•
•
•
•
•
•
14
Turn the power “off” and disconnect the air cooler from the power
supply.
Move the unit to a location where it can be drained.
Remove the drain plug and allow the tank to empty(refer page 8,
part 12).
Refill the water tank up to the maximum level with clean
water and drain it completely.
Fill water tank and rinse at least 2-3 times before use.
After cleaning ensure that the drain plug is back in place.
Plug into the power supply and turn on unit.
•
•
•
•
•
•
•
•
•
Turn off the unit, and unplug the power cord from wall outlet.
Rotate the unit facing the back panel, and locate the Rear Grill
Removal Screws (refer page 8, #15). Remove all the screws
with a screw driver.
Pull the rear grill panel, until it is completely removed.
The Honeycomb Cooling Media can now be seen. Clean the
carbon filter & honeycomb with clean cloth to remove all the
dust & dirt particles.
Once cleaning is finished, reassemble the unit as described
above.
Plug into the power supply and turn on unit.
The air cooler is now ready to be used. This cleaning process
should be repeated monthly to maintain the integrity of the unit
and to remove particles filtered from the air.
Water Drain
Plug
Open Screws

TROUBLESHOOTING GUIDE
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch is on.
Power is not on.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, turn COOL
FUNCTION to “ON”.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odors
Customer Support: [phone]
When the Cooler is new.
If the Cooler has been used.
Damaged Pump or
Calcium deposits on blower.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Turn the unit ON by pressing
button on the control panel.
When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a few hours of initial
use.
There may be an algae issue.
Replace the Honeycomb
Cooling Media.
15

MODEL NO. CL48PM
220V
50Hz
140 Watts
48 Litre
Honeycomb
620 (L) x 375 (D) x 868 (H)
13.3 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
TECHNICAL SPECIFICATIONS
16

ELECTRICAL WIRING DIAGRAM
17

1-YEAR LIMITED WARRANTY
SERVICE AND WARRANTY
Read all the instructions before attempting to use this product.
This 1 year limited warranty applies to repair or replacement product found to be defective in
material or workmanship.
This warranty does not apply to any damage resulting from commercial, abusive, unreasonable
use or supplemental damage. Defects that are the result of normal wear and tear will not be
considered manufacturing defects under this warranty.
TES Scandinavia AB IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF
ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an applied warranty lasts, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you also may have other rights
which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of
this product from the original date of purchase.
At its option, TES Scandinavia AB will repair or replace this product if it is found to be detective in
material or workmanship.
This warranty does not cover damage resulting from any unauthorized attempts to repair or from
any use not in accordance with the instruction manual.
Please read the Instruction Manual carefully before setting up or using this product. If you believe
this product to be suffering from a manufacturing fault, or if you have inquiries about this product,
please contact our Customer Support:[phone]
CUSTOMER SUPPORT
When contacting our Customer Support, please have the information below along with the proof
of purchase. All warranty requests must be accompanied by a proof of purchase, which is a copy
of the original receipt.
Model: ..............................
Date of purchase: ..............................
Purchased from: ..............................
18
