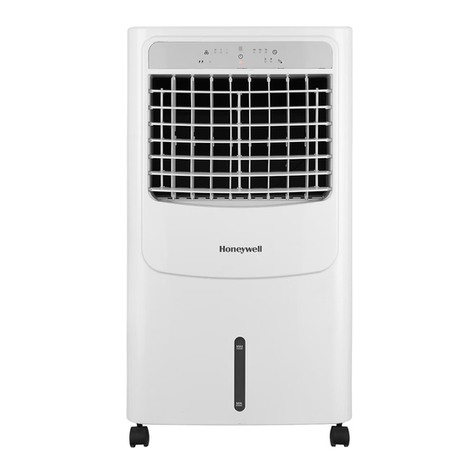

Honeywell MN series IM User manual

Wpmubhf!sbujoh!0!Ufotjôo!0!Ufotjpo!opnjobmf;
!
Gps!qspevdu!jorvjsjft!ps!tvqqpsu!0!Qbsb!dpotvmubt!efm!qspevdup!p!tpqpsuf!0
Qpvs!mft!rvftujpot!tvs!mft!qspevjut!pv!qpvs!ev!tpvujfo;
xxx/ipofzxfmmqpsubcmfbd/dpn
Dvtupnfs!Tvqqpsu!0!Bufodjôo!bm!dmjfouf!0!Tpvujfo!bv!dmjfou;!
VTB!2.911.585.3258!!DBOBEB!2.999.31:.1:::
Qpsubcmf!Bjs!Dpoejujpofs
Bjsf!Bdpoejdjpobep!Qpsubcmf
Dmjnbujtfvs!Qpsubcmf
PXOFSȷT!NBOVBM
Sfbe!boe!tbwf!uiftf!jotusvdujpot!cfgpsf!vtf
NBOVBM!EFM!QSPQJFUBSJP
Mfb!z!hvbsef!ftubt!jotusvddjpoft!bouft!ef!vtbs!mb!vojebe
NPEF!E(FNQMPJ
Mjsf!fu!dpotfswfs!dft!jotusvdujpot!bwbou!vujmjtbujpo
Npefm!0!Npefmp!0!Npeémf;!
NO!tfsjft!JN
Nbef!jo!Dijob
Ifdip!fo!Dijob
Gbcsjrvê!fo!Dijof
9
120V-60Hz

THANK YOU.....................................................................................................
INDEX .............................................................................................................. 1
2
3
4
6
7
13
15
16
USER TIPS........................................................................................................
SAFETY ............................................................................................................
PARTS DESCRIPTION.....................................................................................
INSTALLATION.................................................................................................
10
USE & OPERATION..........................................................................................
CLEANING & MAINTENANCE..........................................................................
TROUBLESHOOTING GUIDE...........................................................................
14
WATER CONDENSATION DRAINAGE............................................................
TECHNICAL SPECIFICATIONS.........................................................................
17
SERVICE AND WARRANTY .............................................................................
2.
1.
3.
4.
5.
6.
7.
8.
10.
9.
11.
12.
SECTION PAGE
1
INDEX
Read all instructions carefully before setting up and operating the unit. Keep this
instruction manual for future reference. This manual is designed to provide important
information needed to setup, operate, maintain and troubleshoot your portable air
conditioner. Failure to follow these instructions may void the warranty.

2
THANK YOU
r.Congratulations on your purchase of this versatile Honeywell Portable Air Conditioner.
Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor, condenser
and evaporator are housed in a compact unit. The air is filtered, dehumidified and cooled while
a flexible air outlet hose sends heat outside. The air conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a
truly flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the air
outlet hose. There is no need to empty the drainage tank except in very high humidity conditions.
Read and follow the instructions carefully.

Fan Operation
3
USER TIPS
To ensure optimal efficiency of the product, keep doors and windows closed when it
is used as an air conditioner or dehumidifier.
If the product is being used with the fan function only, an open window could improve
air circulation.
Important : Before installing the unit, place it UPRIGHT for 20 minutes
before use to allow the refrigerant to stabilize.
Manually adjust the air vent located at the top of the unit to adjust the direction
of air flow.
Follow installation instructions to set up the unit.
Plug the unit into a properly grounded circuit.
Cooling and Dehumidifying Operation

4
SAFETY
WARNING
READ AND SAVE THESE INSTRUCTIONS
Improper handling can cause serious damage to the appliance.
DO NOT operate the unit with a damaged plug or loose wall outlet. If the power
cord is damaged, it must be replaced by the manufacturer or an authorized service agent.
DO NOT cover the air intake and exhaust when in use.
This appliance is not intended for use by children. Children should be supervised
and should not play on or around the appliance.
DO NOT place objects on or sit on the unit.
Always turn off and unplug the unit when cleaning or servicing.
If service is needed contact an authorized service agent.
Unplug the unit when stored or not in use.
1.
2.
3.
4.
5.
6.
7.

DO NOT run the power cord under carpeting and rugs.
Use caution to prevent tripping on cord.
DO NOT use in areas where gasoline, paint or other flammable goods are stored.
Basic safety precautions should always be followed when using electrical appliances.
This appliance has been manufactured for use in domestic environments and
must not be used for other purposes.
8.
9.
10.
11.
12.
5
SAFETY

6
PARTS DESCRIPTION
1. Control Panel (Incl. Signal Receptor)
2. Air Outlet
3. Handle
4. Casters
5. Upper Drain Plug (De-humidifier Mode)
6. Air Filter
7. Back Grill
8. Lower Drain Plug (Air Conditioning Mode)
9. Power Supply Cord
10. Exhaust Hose Connector
11. Remote Control
12
5
3
x 1
x 1
x 2 x 1
Installation Kit :
1. Window Bracket Kit.............................
2. Window Bracket Panel Adapter..........
3. Plastic Pin...........................................
4. Hose Connector..................................
5. Plastic Hose........................................
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
4
1
2
8
6
7
5
4
3
10
11
9
8

7
INSTALLATION
Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
Adjust the window bracket as per width or height of your window and insert the plastic pins
to fix at the desired position. There is a hole where the Plastic Hose will be inserted later.
Make sure this hole is not blocked.
Note : Do not install the window
bracket to your window. This step is
required only to adjust it to the
size of your window. The bracket
should be removed from the window
after the size is adjusted.
1
2
3
=
Connect the plastic hose to the hose connector on the back of the unit.
Push-in until it is locked in place.
Plastic Pin
Hole for Plastic Hose

Connect the window bracket to the opposite end of the plastic hose. Ensure that
all connections are tight and installed properly.
8
INSTALLATION
8
8
4
5Connect the window bracket to the window.
6The Portable Air Conditioner is now ready to use.

The supplied exhaust hose can be extended from 12 inches (1 foot) to 47 inches
(3.9 feet).
Do not bend (to the extent shown below) the exhaust hose.
A bent hose will block exhaust air and cause the unit to malfunction or shut-off.
The length of the exhaust hose is determined by the product specifications. Do not
replace or lengthen it as this could cause the unit to malfunction.
Make sure the back of the unit is at least 20 inches away from a wall.
Do not place the unit in front of curtains or drapes as this could obstruct the
airflow.
9
INSTALLATION
Note:
1.
2.
RECOMMENDEDNOT RECOMMENDED
Warning:

MIN. 14”
20”
MAX. 40”

10
USE & OPERATION
Touch Screen Control Panel
Timer Control
Fan Speed Control Timer / Temperature Set Controls
Warning Light (when flashing)
Power Control
Mode Control
Power Control
The Power Control turns the unit on and off.
Mode Control
3 settings: Cool, Dehumidify and Fan
A light will indicate which setting is currently being used.
The unit works as an air conditioner. Adjust fan speed
and air temperature to suit your desired comfort level.
Temperature setting range is 61°F~89°F.
฀฀฀฀Air is dehumidified as it passes through the unit, without
being in full cooling mode. If room temperature is higher
than 77°F fan speed can be adjusted; otherwise fan
speed is preset "LOW".
With machine in running mode, press timer button to
select the number of hours you want the unit to run in air
conditioning mode.
Note : If the unit will be used mainly as a dehumidi-
fier, do not connect the exhaust hose and let the
warm air return in the room. Continuous drainage is
then necessary and more efficient (refer page 14,
฀฀฀For air circulation without cooling.
฀฀฀3 settings: High, Medium and Low.
Timer Control
Auto turn off:
With machine in stand by mode, press the timer button
to select the number of hours until you want the unit to
automatically start running.
Auto turn on:
฀฀฀฀฀฀฀฀฀฀฀฀฀In cooling mode, when “ “ or “ “ button is pressed,
the set temperature is displayed and may be adjusted.
After 10 seconds the display will revert back to room
temperature.Temperature is only adjustable in cool
mode.
The time is adjustable between 1~24 hours.
Note : By pressing both “ “ / “ “ set buttons at the same
time, the display will toggle between Celsius and
Fahrenheit.
Temperature / Timer Set Controls
Condensed water may accumulate in the unit. If the
internal tank becomes full, the Power Light will flash and
the unit will not operate until the unit has been drained
(refer page 14, Water Condensation Drainage).
Warning Light
After switching the air conditioner off, you must wait 3 minutes before switching it back on again.

11
USE & OPERATION
Remote Control
The functions work the same as the portable air conditioner’s touch
controls. All key functions can be accessed from the remote control.
Caution
Do not place the remote control in direct sunlight.
Timer Control
Temperature / Timer Set
Mode Control
Cool Dehumidify
Fan
In running mode:
Auto switch off
In stand-by mode:
Auto switch on
Press “ ▼ “ or “▲“ button
to adjust the time
setting for 1 hour intervals.
Control
฀Used for adjusting the timer
and temperature.
฀The default display is room
temperature.
฀When “ ▼ “ or “▲“ key is
pressed in cool mode, the set
temperature is displayed and
may be adjusted. After 10
seconds the display will revert
back to room temperature.
฀Timer setting is available from
1-24 hours by pressing the
key “ ▼ “ or “▲“
Press this button to change the
operation mode in the order of:
Power Control
ON / OFF
Fan Speed Control
฀HIGH ฀MEDIUM ฀LOW

Battery Installation: Remove the cover on the back of the remote control and insert two AAA
batteries with + and - pointing in the proper direction according to the polarity markings.
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀12
USE & OPERATION
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
FCC Statement:
NOTE:
FCC RF Radiation Exposure Statement Caution:
To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.

13
CLEANING & MAINTENANCE
Appliance Maintenance:
1. Turn off the appliance before disconnecting the power supply.
2. Always clean the appliance with a soft dry cloth.
฀฀The air filter should be cleaned every two weeks.
Clean it as follows:
1.
2.
Turn off the appliance and remove the air filter (refer to page 6, #6).
Rinse it in lukewarm water. After cleaning, dry in a shaded and cool place, then reinstall.
Be sure to drain the left-over water condensation. Remove the lower drain plug and use a
shallow pan to collect the water (make sure to replace the drain plug when finished).
To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing.
Turn off and unplug the air conditioner from the power supply.
Remove the air filter and clean with water. Dry the air filter and then reinstall onto the unit.
Disconnecting the Window Installation Kit:
- Remove the Plastic Hose from the unit by rotating it slightly clockwise and pulling
away from the unit at the same time.
- Remove the Window Bracket, Window Bracket Panel Adapter and Hose Connector.
- It is recommended to store the Window Kit parts in a bag together with the Remote
Control and placing them together with the air conditioner unit.
- If needed, you can clean the Window Kit with a damp cloth and water before storing.
Make sure all parts of the Window Kit are dry before storage.
Cover the air conditioner with a cloth/ plastic bag before storage, to protect from dust and
scratches collecting on the surface of the unit.
It is recommended to coil the power cord and store it away from the floor to ensure the
cord is protected from bents and creases.
End of Season Storage & Maintenance:
If the appliance will not be used for a long time:
1.
2.
3.
4.
5.
6.
7.

When there is excess water condensation inside the unit, the air conditioner stops running and
shows a warning light (refer to page 10). This warning light indicates that the water condensation
needs to be drained using the following procedures:
WATER CONDENSATION DRAINAGE
14
Continuous Draining
While using the unit in dehumidifier mode, continuous drainage is
recommended.
Unplug the unit from power source.
Place a shallow pan under the lower drain plug. See diagram.
Remove the lower drain plug.
Water will drain out and collect in the shallow pan.
After the water is drained, replace the lower drain plug firmly.
You can now turn on the unit.
Manual Draining
Water Condensation Drainage
1.
2.
3.
4.
5.
6.
Unplug the unit from the power source.
Remove the upper drain plug. While doing this operation some
residual water may spill so please have a pan to collect the water.
Connect the drain connector to a ¾” hose (not included).
See diagram.
The water can be continuously drained through the hose into a
floor drain or bucket.
You can now turn on the unit.
1.
2.
3.
4.
5.
Water may need to be drained in high humidity areas
Drain Plug
(De-Humidifier
Mode)
Water Drain Pipe
Drain Plug
(AC Mode)
Shallow Pan
(Not included)
