Honeywell CL15AM User manual

Portable Evaporative Air Cooler
OWNER’S MANUAL
Read and save these instructions before use
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
Model: CL15AM
Power rating: 95 Watts
Made in P.R.C.
Voltage rating:
230 Volt, 50Hz

QUICK START GUIDE
Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.

SECTION PAGE
.............................................
................................................
.......................................
.............................
....................................
.................................................................................. ...............
........................................................................................................
..............
....................
................
THANK YOU ..................................................................
USER TIPS .................................................................
SAFETY ...............................................................................
PARTS DESCRIPTION .................................................................
USE & OPERATION ...............................................................
Filling Water
Function Knobs
CLEANING & MAINTENANCE .....................................................................
TROUBLESHOOTING GUIDE ...............................................................
TECHNICAL SPECIFICATIONS .................................................................
ELECTRICAL WIRING DIAGRAM ..............................................................................
............
2
3
5
7
8
10
8
11
13
14
14
INDEX
1
Read all instructions carefully before setting up and operating the cooler, and
please keep this instruction manual for future reference. This manual is designed to
provide you with important information needed to setup, operate, maintain, and
troubleshoot your cooler. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
............
SERVICE AND WARRANTY .......................................................................... 16

THANK YOU
2
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside
the ice compartment before you turn on your air cooler.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guideline will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or refrig-
erant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

USER TIPS
3
Pump
Water
Honeycomb Cooling Media

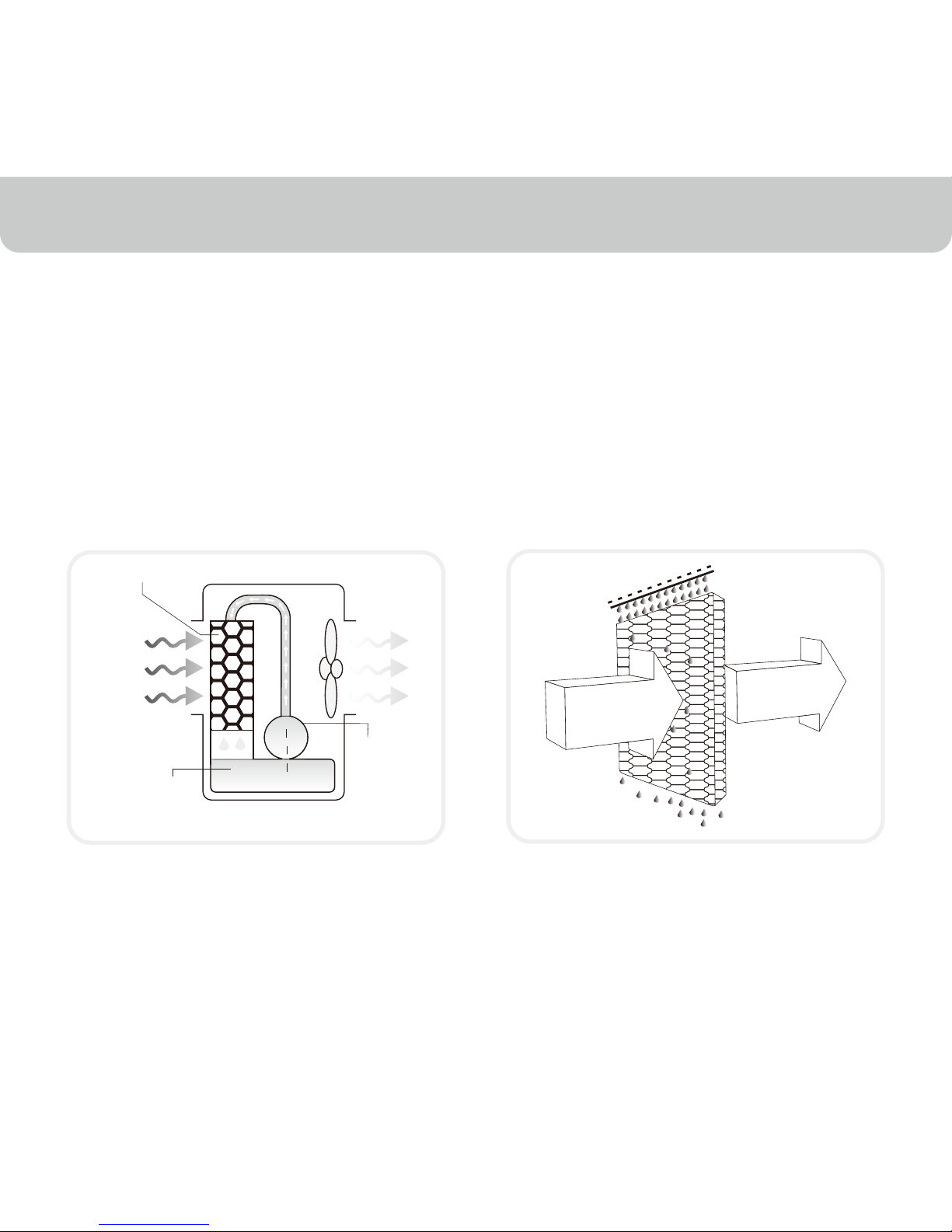

Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy efficient, No compressor
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the
Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media. As
the warm air passes through the media, the water absorbs the heat, naturally cooling and humidi-
fying the air. A fan propels the cooled air out into the room. This no-compressor system cools
naturally, efficiently and inexpensively.

NOTE
4
USER TIPS
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a week or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.

OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
READ AND SAVE THESE INSTRUCTIONS:
SAFETY
230V AC 50Hz
SHOCK HAZARD
WATER LEVEL INDICATOR
5
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Your cooler runs on 230 Volt AC, 50 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this appli-
ance.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.

OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
SAFETY
FLOOR LEVEL
6
•
•
•
•
•
•
•
•
•
•
•
•
•
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
DO NOT attempt to repair or adjust any electrical or mechani-
cal functions of the cooler, as this may void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.

1 Outlet Louvers
(Horizontal-Manual &
Vertical-Automatic Swing)
2 Control Panel
3 Front Panel
4 Front Casters / Wheels
5 Side Handle
6 Left Side Panel
7 Water Fill Door
8 Water Level Indicator
9 Top Panel
10 Rear Panel Grill
11 Right Side Panel
12 Air Inlet Louvers
13 Honeycomb Media
14 Water Tank (Cannot be Removed)
15 Rear Casters / Wheel
16 Water Drain Plug
17 Rear Grill Removal Screws
18 Power Cord & Plug
19 Low Water Warning Signal
PARTS DESCRIPTION
7
17
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
1
4
5
6
7
8
2
3
9
10
11
13
15
17
12
14
16 18
19

USE & OPERATION
8
FUNCTION KNOBS
COOL
FAN / POWER
OFF ON
SWING
OFF
FAN
HM
L
OFF
FAN
HM
L
OFF ON
COOL
OFF ON
COOL
To begin cooling the desired area, turn the knob to the ON
position. The pump starts operating after turning the knob to
this postion. You will feel cooler air after the Honeycomb
media is completely wet.
The unit turns ON when the knob is changed to any of the
speed levels. This unit is provided with four options to vary the
speed of the fan. OFF -- H (High) -- M (Medium) -- L (Low)
Switch the knob between these 4 options to vary the speed of
the fan. You can feel the change in airflow as you switch
between these options.

USE & OPERATION
9
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L

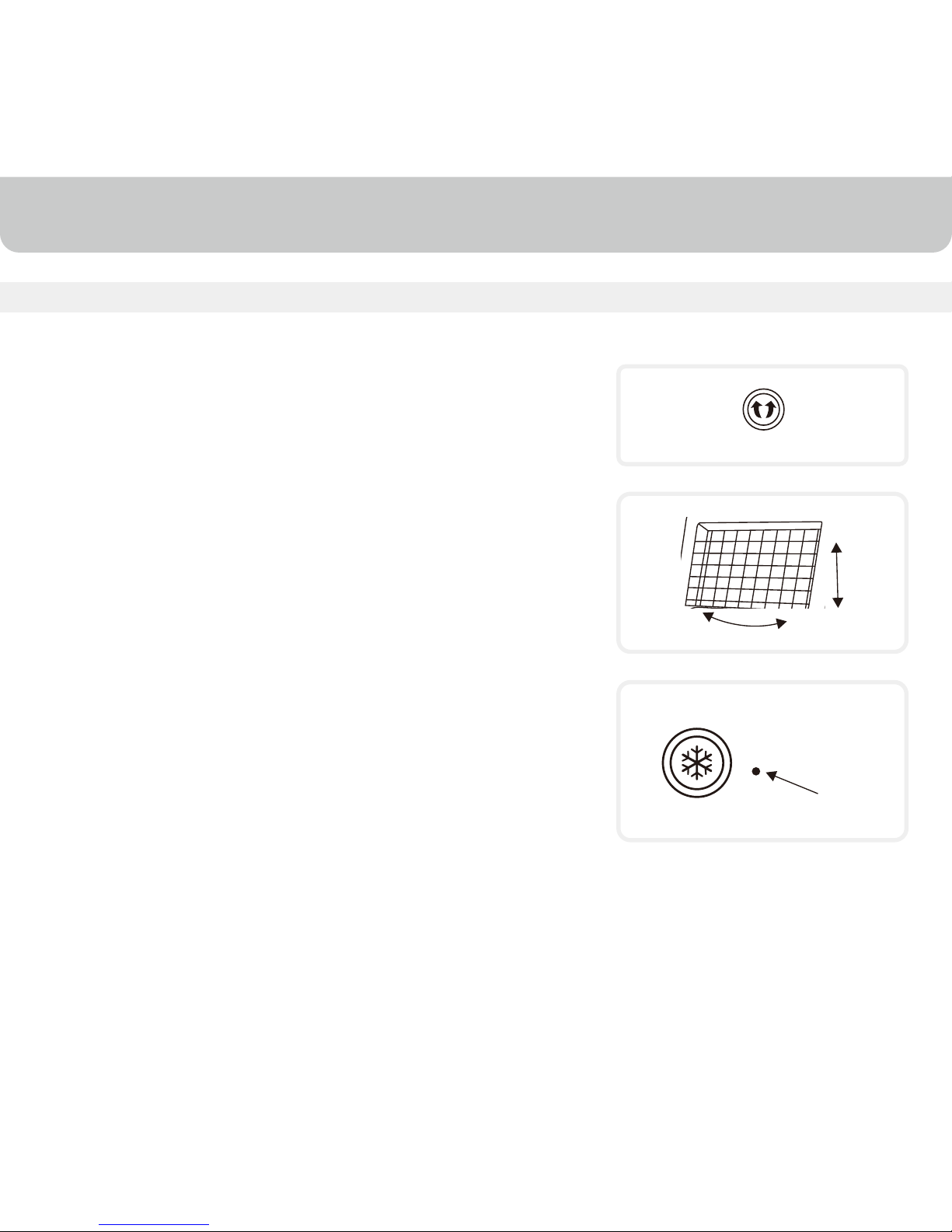

SWING
LOUVERS MOVEMENT
FUNCTION KNOBS
OFF ON
SWING
This knob is provided with two options, ON and OFF. Turning
LOW WATER WARNING SIGNAL
When COOL is selected and water is above minimum level
this LED light will be ON. But when COOL is selected and water
is below minimum level, LED light will turn off automatically.
the knob to the ON position will start the movement of the
vertical louvers. This movement is automatic. You can also
manually adjust the horizontal louvers to the desired air flow.
OFF ON
COOL
Low Water
Warning Signal

USE & OPERATION
10
FILLING WATER
CAUTION
Unplug from power when refilling.
Water Fill Door
Unplug the air cooler from power supply.
Check water level indicator located on the front of the unit to
determine the level of water inside the water tank. The water
tank of this cooler holds up to 15 Litres of water. Please be
sure water in the tank is always above minimum water level
mark.
To refill the water tank, open the Water Fill Door located below
the left side panel (see page 7) and fill water to the Max Level,
as indicated on the Water Level Indicator. Do not fill water
above the Max water level mark.
After refilling the water tank, close the water fill door, connect the power supply and turn on.
Note :
Running the unit with inadequate water may cause pump failure.
Note:
Back wheel castors do not
come pre-installed in this unit.
Please follow instructions as
shown in Fig 1, 2 & 3 for
installing the castor wheels. Fig. 1 Fig. 2 Fig. 3
ASSEMBLY INSTRUCTIONS FOR CASTOR WHEELS.

IMPORTANT
WARNING
CLEANING & MAINTENANCE
•
•
•
•
•
11
•
•
•
•
Before cleaning the unit, switch it to the ''off'' position and remove the plug from the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
The cooler is supplied with Honeycomb Cooling Media.
The cleaning frequency for the Honeycomb media depends on local air and water
conditions. In areas where the mineral content of water is high, mineral deposits may build up
on the Honeycomb Cooling Media and restrict air flow. Draining the water reservoir and refilling
with fresh water at least once a week will help reduce mineral deposits. If mineral deposits
remain on the Honeycomb media, the media should be removed and washed under fresh water.
The media should be cleaned every two months or sooner, depending on your needs.
Do not run the unit in COOL mode with stale water in the tank. Empty the tank and refill it with
fresh water if the water has been standing in the tank for an extended period of time.
For best results, allow the Honeycomb Cooling Media to dry after each use by turning off the
cool function 15 minutes before turning the unit off.
Draining the water reservoir and refilling with fresh water at least once a week will greatly
reduce mineral deposits in the pads and help to extend the life of Honeycomb Cooling Media.

CLEANING & MAINTENANCE
CLEANING THE HONEYCOMB FILTER
DRAINING AND CLEANING THE WATER TANK
•
•
•
•
•
12
Rear Grill Removal Screws
•
•
•
•
•
•
•
The air cooler is now ready to be used. This cleaning process should be repeated weekly to
maintain the integrity of the unit and to remove particles filtered from the air.
Water Drain Plug
Turn the power “off” and disconnect the air cooler from the
power supply.
Move the unit to a location where it can be drained.
Remove the cap from the water drain plug and allow the
tank to empty (see parts description on page 7).
Refill the water tank with clean water and drain it
completely.
Refill the water tank with clean water, up to the maximum
level.
Plug into the power supply and turn on unit.
Turn off the unit, and unplug the power cord from wall
outlet.
Rotate the unit facing the back panel, and locate the Rear
Grill Removal Screws (refer page 7., #17). Remove both
the screws with a screw driver.
Pull the rear grill panel upwards, untill it is completely
removed.
Now, the Honeycomb filter can be seen. Clean the filter with
clean cloth to remove all the dust & dirt particles.
Once the cleaning has been completed, assemble the unit
as described above.
Plug into the power supply and turn on unit.

TROUBLESHOOTING GUIDE
13
No discharge of air Cord is not plugged in. Make sure power cord is
plugged in and the supply
switch is on.
Power is not on. Turn the unit ON by pressing
buttons on the control panel.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, Turn COOL
FUNCTION to “ON”.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odor omission When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a week of initial use.
If the Cooler has been used. There may be an algae issue,
Replace the Honeycomb Cooling
Media. Contact service center.
Damaged Pump or Calcium
deposits on blower.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION

MODEL NO. CL15AM
230V
15 Liters
Honeycomb
380(L) x 380(W) x 795(H) mm
9.6 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
TECHNICAL SPECIFICATIONS
ELECTRICAL WIRING DIAGRAM
50Hz
95 Watts
14
230V 50Hz

© 2012 AirTek International Corporation Limited
The Honeywell Trademark is used under license from
Honeywell International Inc.
Honeywell International Inc. makes no representation or
warranties with respect to this product.
Manufactured by AirTek International Corporation Limited.
:
