Honeywell MN09 Series User manual

Portable Air Conditioner
Refurbished Models Include: "R-"
MN09 Series: MN09CES, MN09CESBB, MN09CESWW, MN09CHES, MN09CHESBB, MN09CHESWW
MN10 Series: MN10CES, MN10CESBB, MN10CESWW, MN10CHES, MN10CHESBB, MN10CHESWW
MN12 Series: MN12CES, MN12CESBB, MN12CESWW, MN12CHES, MN12CHESBB, MN12CHESWW
MN13 Series: MN13CES, MN13CESBB, MN13CESWW, MN13CHES, MN13CHESBB, MN13CHESWW
Refurbished Portable Air Conditioner
User Manual
Read and save these instructions before use
EN

USER TIPS
THANK YOU
Congratulations on your purchase of this refurbished Honeywell Portable Air Conditioner.
For warranty information, visit: https://www.arcaugusta.com/consumer-warranty.htm
Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and
evaporator are housed in a compact unit. The air is filtered, dehumidified and cooled while a flexible air
outlet hose sends heat outside. The air conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a truly
flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the air
outlet hose. There is no need to empty the drainage tank except in very humid conditions.
Read and follow the instructions carefully.
•
•
Follow installation instructions to set up the unit.
Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.
Important:
Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize.
Manually adjust the air vent located at the top of the unit to adjust the direction of air flow.
USER TIPS
To ensure optimal efficiency of the product, keep doors and windows closed when it is used as an air
conditioner or dehumidifier. If the product is being used with the fan function only, an open window could
improve air circulation.

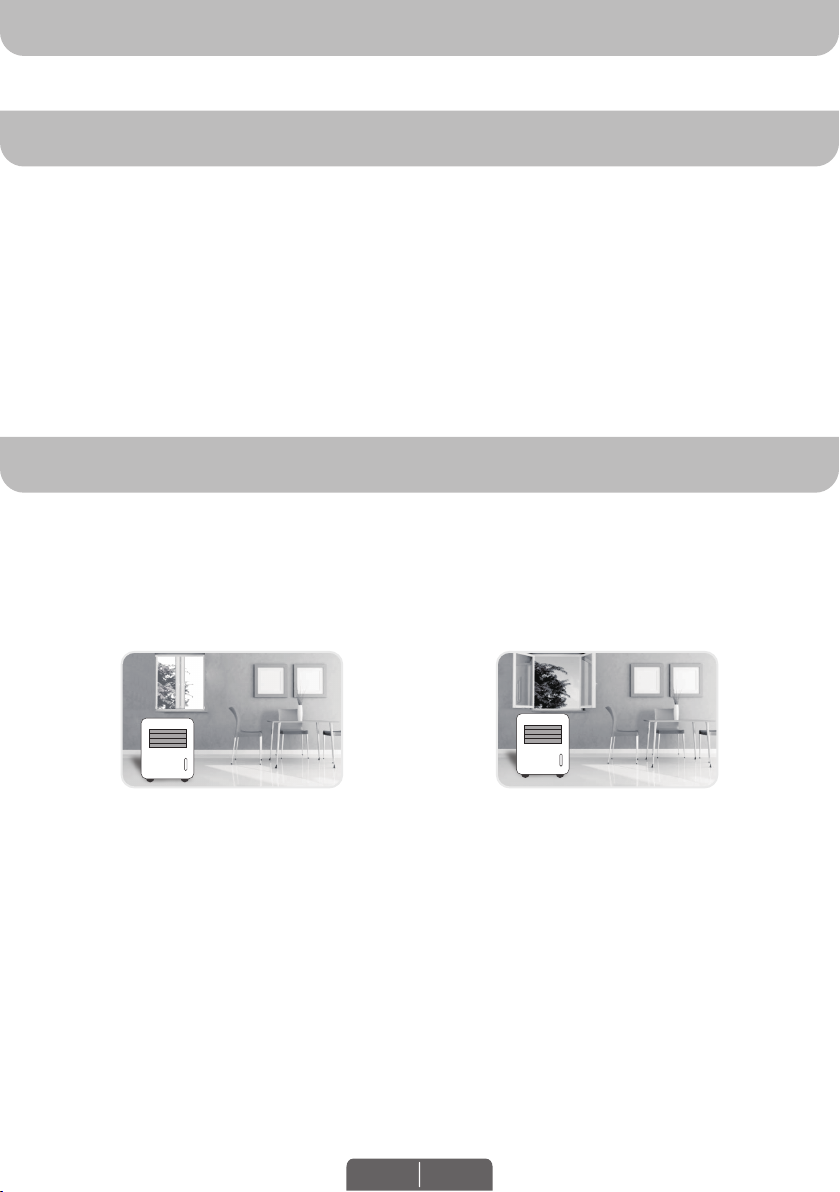

Cooling and Dehumidifying Operation Fan Operation
EN 1

READ AND SAVE THESE INSTRUCTIONS
Improper handling can cause serious damage to the appliance.
WARNING:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT operate the unit with a damaged plug or loose wall outlet. If the power cord is damaged, it
must be replaced by the manufacturer or an authorized service agent.
DO NOT cover the air intake and exhaust when in use.
This appliance is not intended for use by children. Children should be supervised and should not play
on or around the appliance.
DO NOT place objects on or sit on the unit.
Always turn off and unplug the unit when cleaning or servicing.
If service is needed contact an authorized service agent.
Unplug the unit when stored or not in use.
DO NOT run the power cord under carpeting and rugs.
Use caution to prevent tripping on cord.
DO NOT use in areas where gasoline, paint or other flammable goods are stored.
Basic safety precautions should always be followed when using electrical appliances.
This appliance has been manufactured for use in domestic environments and should not be used for
other purposes.
Only use the installation kit provided to install this unit. DO NOT attempt to extend the exhaust hose or
install this unit using other methods other than that provided in this manual. Improper installation could
void any existing warranties.
DO NOT use an extension cord with this unit.
SAFETY
PARTS DESCRIPTION
5) Air Filter
6) Back Grill
7) Exhaust Hose Connector
8) Power Supply Cord
9) Remote Control
10) Lower Drain Plug with
Plastic Cap
(Air Conditioning Mode)
11) Upper Drain Plug
(De-humidifier Mode)
1) Control Panel
(Incl. Signal Receptor)
2) Air Outlet
3) Handle
4) Casters
EN 2
(1)
(2)
(9)
(4)
(5)
(6)
(11)
(7)
(8)
(3)
(10)

It is important that the installation instructions below are followed for successful installation of this
portable air conditioner. Please call Customer Support if you have any difficulties or queries regarding
these installation procedures.
1. Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
2. Adjust the window bracket as per width or
height of your window and insert the plastic pins
to fix at the desired position. There is a hole
where the Plastic Hose will be inserted later.
Make sure this hole is not blocked.
3. Connect the plastic hose to the hose
connector on back of the unit.
Push-in until it
is locked in place.
4. Connect the window bracket to the opposite
end of the plastic hose. Ensure that all
connections are tight and installed properly.
Note:
After setting the window bracket to the size of your
window, please remove it from the window and
follow the instructions below.
INSTALLATION
1.
2.
3.
4.
5.
Window Bracket Kit.............................
Window Bracket Panel Adapter...........
Plastic Pin............................................
Hose Connector..................................
Plastic Hose........................................
Installation Kit:
Installation Steps:
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
Plastic Pin
Hole for Plastic Hose20" to 47" (50.5cm to 119cm)
5. Connect the window bracket to the window.
6. The Portable Air Conditioner is now ready to use.
12
5
3
x 1
x 1x 1
x 2 x 1
4
EN 3
Plastic Hose:
Dia. 5" (12.7cm)
Length: 12" to 47" (30cm~120cm)

INSTALLATION - ALT ER NAT E K ITTIN G




f ()
xl

 (l Set)
 
  

xl
@(-
 

xl
xl


 

 i  
of 

 


 

0 
 �He/ 38.2·
2 p,Hl
EN I 3

•Cooling Mode
The unit works as an air conditioner. Adjust fan speed and air temperature to suit your desired comfort
level. Temperature setting range is 16°C- 32°C (61°F- 89°F).
INSTALLATION (CONTINUED)
IMPORTANT:
•The length of the exhaust hose is determined by the product specifications. Do not replace or
lengthen it as this could cause the unit to malfunction.
WARNING: Any warranties included with this product will be voided if an extra extension hose is added
to the originally provided installation kit or if the installation is performed differently than the manufactur-
er's instructions, without proper consultation. Please contact Customer Support for help with installation
procedures if needed.
RECOMMENDEDNOT RECOMMENDED
•
•
•
The supplied exhaust hose has a diameter of 5 inches (12.7cm) and can be extended from 12 inches
to 47 inches (30cm to 120cm).
Do not bend (to the extent shown below) the exhaust hose. A bent hose will block exhaust air and
cause the unit to malfunction or shut-off.
Make sure the back of the unit is at least 50 cm / 20 inches away from the wall. Do not place the unit
in front of curtains or drapes as this could obstruct the airflow.
USE & OPERATION
TOUCH SCREEN CONTROL PANEL
POWER CONTROL
The Power Control turns the unit on and off. When
the unit is plugged in, this button lights up indicating
it is in a Standby Mode ready to be switched on
anytime.
MODE CONTROL
3 settings: Cool, Dehumidify, Fan.
A light will indicate which setting is currently
being used.
(1) Timer Control
(4) Mode Control
(2) Fan Speed Control
(5) Power Control / Standby Mode
(3) Timer / Temperature Set Controls
(6) Warning Light (when flashing)
50 cm / 20”
MIN. 36 cm / 14”
MAX. 102 cm / 40”
EN 4
(1) (2) (3) (3) (4) (5) & (6)
•Heating Mode*
When heating mode is selected the indicator light will shine. Heating is activated only when the ambient
temperature is below 25°C (77°F). In this mode, the desired temperature can be set between 16°C- 25°C
(61°F- 77°F). Note: The air exchange hoses must vent outside the room when using heating mode.
4 settings: Cool, Heater*, Dehumidify & Fan.

•
•
Dehumidifying Mode
Air is dehumidified as it passes through the unit, without being in full cooling mode. If room tempera-
ture is higher than 25°C (77°F) fan speed can be adjusted; otherwise fan speed is preset to LOW.
Note: If the unit will be used mainly as a dehumidifier, do not connect the exhaust hose and let the
warm air return in the room. Continuous drainage is then necessary and more efficient (refer to
Continuous Draining).
Fan Mode
For air circulation without air conditioner cooling.
USE & OPERATION (CONTINUED)
FAN SPEED CONTROL
3 settings: High, Medium and Low.
TIMER CONTROL
While the unit is turned on, press the timer button then press the ▼or ▲to select the number of hours
you would like the unit to continue to run. The unit will turn off automatically.
AUTO TURN OFF:
While unit is running, press the press the ▼or ▲button to select the number of hours you want the unit
to run in air conditioning mode.
AUTO TURN ON:
When unit is in a standby mode (plugged in with power light on), then press the ▼or ▲button to select
the number of hours until you want the unit to automatically start running.
TEMPERATURE / TIMER SET CONTROLS
WARNING LIGHT
Condensed water may accumulate in the unit. If the internal tank becomes full, the Power Control light
will flash and the unit will not operate until the unit has been drained (refer Water Condensation
Drainage).
After switching the air conditioner off, you must wait 3 minutes before switching it back on
again.
•
•
•
Used for adjusting the timer and thermostat.
The default display is room temperature.
In cooling mode, when ▼ or ▲button is pressed, the set temperature is displayed and may be
adjusted. After 10 seconds the display will revert back to room temperature. Temperature is only
adjustable in cool mode. The time is adjustable between 1~24 hours.
Note: By pressing both ▼/ ▲set buttons at the same time, the display will toggle between Celsius
and Fahrenheit.
FUNCTION BUTTONS (CONTINUED)
EN 5
*Applicable for models with Heating feature only.

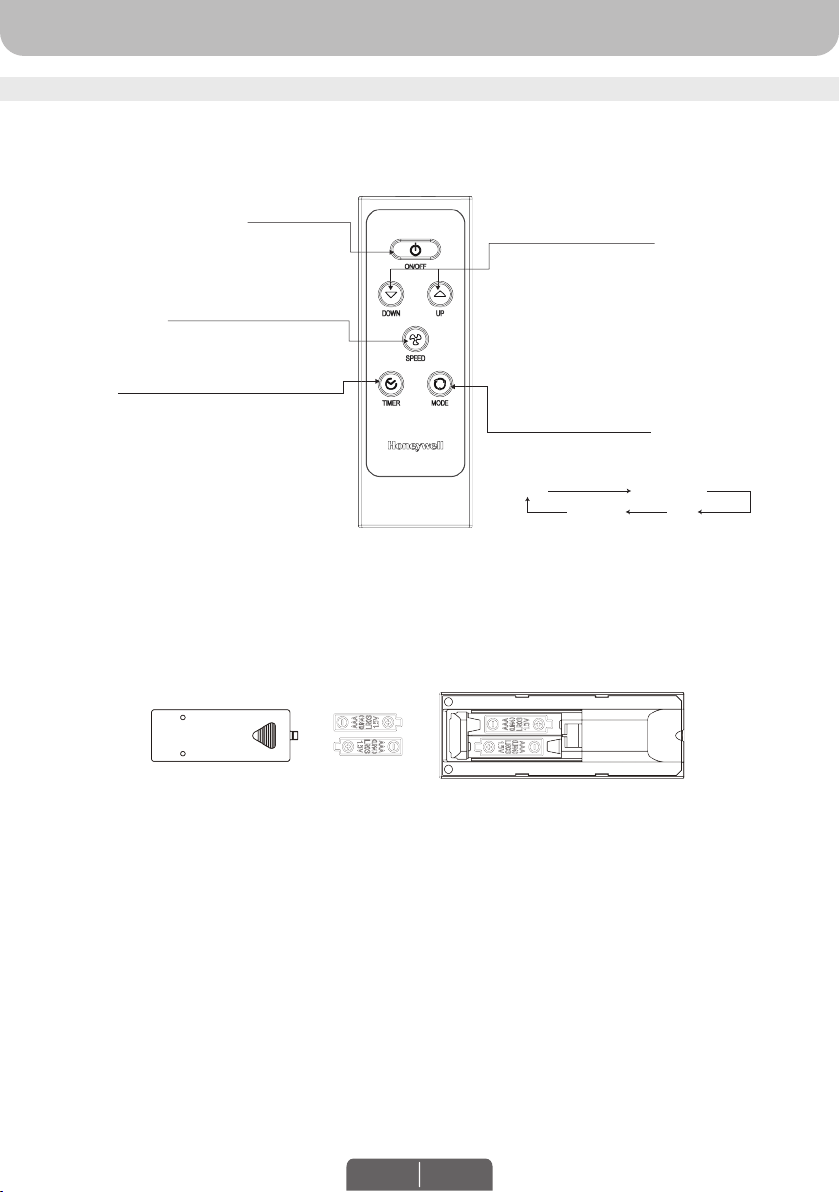

REMOTE CONTROL
The functions work the same as the portable air conditioner's Touch Screen Control Panel.
All key functions can be accessed from the remote control.
USE & OPERATION (CONTINUED)
•
•
•
Used for adjusting the timer and temperature.
When ▼or ▲key is pressed in cool mode, the
set temperature is displayed and may be
adjusted. After 10 seconds the display will
revert back to room temperature.
Timer setting is available from 1-24 hours by
pressing the key ▼or ▲
Press this button to change the operation mode
in the order of:
ON / OFF
• HIGH • MEDIUM • LOW
In running mode: Auto switch off
In stand-by mode: Auto switch on
Press ▼or ▲button to adjust the
time setting for 1 hour intervals.
Temperature / Timer Set
Mode Control
Power Control
Fan Speed Control
Timer Control
Battery Installation: Remove the cover on the back of the remote control and insert two AAA batteries
with + and - pointing in the proper direction according to the polarity markings.
Use only two AAA or IEC R03 1.5V batteries.
Remove the batteries if the remote control is not in use for a month or longer.
All batteries should be replaced at the same time, do not mix with old batteries.
Properly dispose of used batteries.
•
•
•
•
•
Note:
Caution:
Cool Dehumidify
Fan
EN 6
*Applicable for models with Heating feature only.
Heater*
This device complies with part 15 of the FCC Rules. Operation is subject to following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment info an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.

CLEANING & MAINTENANCE
Appliance Maintenance:
Air Filter Maintenance:
The air filter should be cleaned every two weeks. Clean it as follows:
1.
2.
Turn off the appliance before disconnecting the power supply.
Always clean the appliance with a soft dry cloth.
1.
2.
Turn off the appliance and remove the air filter .
Rinse it in lukewarm water. After cleaning, dry in a shaded and
cool place, then reinstall.
End of Season Storage & Maintenance:
If the appliance will not be used for a long time:
1.
2.
3.
4.
5.
6.
7.
8.
Be sure to drain the left-over water condensation. Remove the lower drain plug and use a
shallow pan to collect the water (make sure to replace the drain plug when finished).
To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing.
Turn off and unplug the air conditioner from the power supply.
Remove the air filter and clean with water. Dry the air filter and then reinstall onto the unit.
Disconnecting the Window Installation Kit:
Cover the air conditioner with a cloth/ plastic bag before storage, to protect from dust and scratches
collecting on the surface of the unit.
It is recommended to coil the power cord and store it away from the floor to ensure the cord is
protected from bents and creases.
Store the air conditioner in a cool, dry place, away from direct sunlight.
Remove the Plastic Hose from the unit by pulling away from the unit at the same time.
Remove the Window Bracket, Window Bracket Panel Adapter and Hose Connector.
It is recommended to store the Window Kit parts in a bag together with the Remote Control and
placing them together with the air conditioner unit.
If needed, you can clean the Window Kit with a damp cloth and water before storing. Make sure all
parts of the Window Kit are dry before storage.
•
•
•
•
EN 7

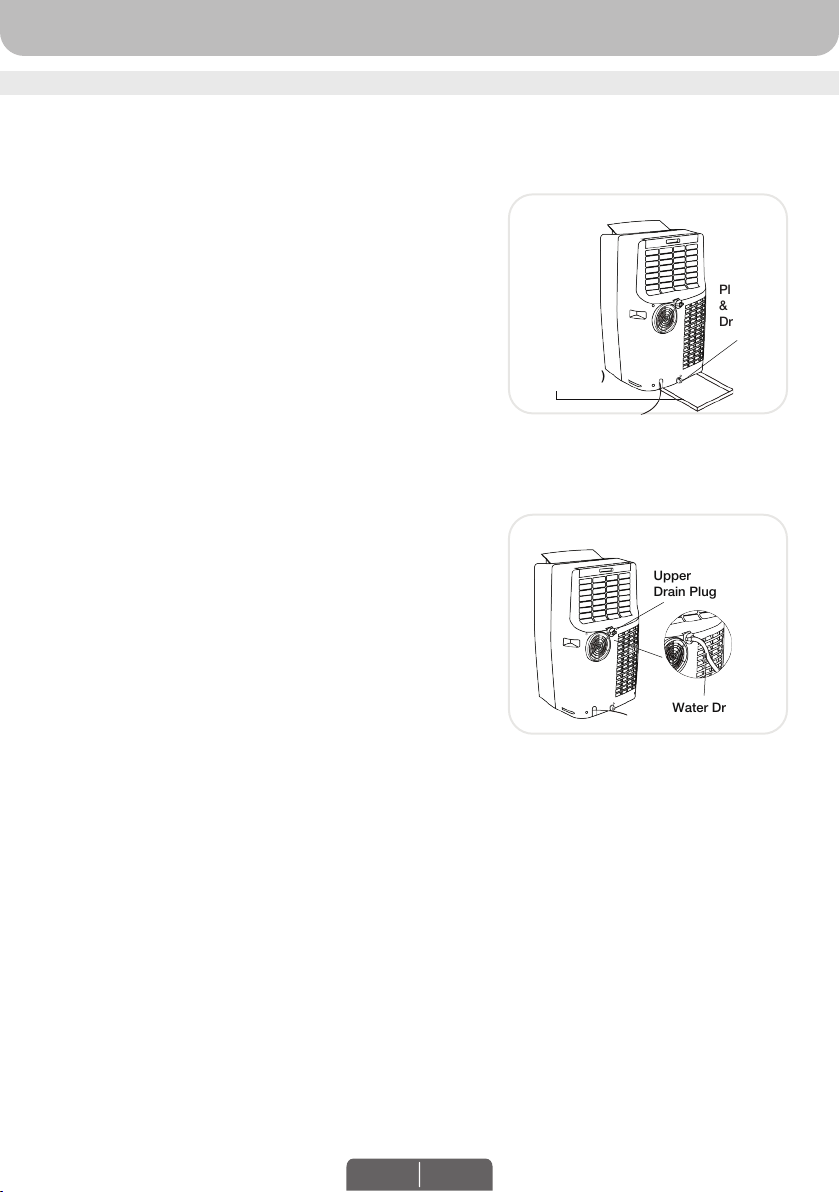

WATER CONDENSATION DRAINAGE
When there is excess water condensation inside the unit, the air conditioner stops running and shows a
warning light (the Power Control button flashes with a red light). This warning light indicates that the
water condensation needs to be drained using the following procedures:
Manual Draining for AC & Dehumidifier Mode
Water may need to be drained in high humidity areas.
Continuous Draining for Dehumidifier Mode
While using the unit in dehumidifier mode, continuous
drainage is recommended.
WATER CONDENSATION DRAINAGE
1.
2.
3.
4.
5.
6.
Unplug the unit from power source.
Place a shallow pan under the lower drain plug. See
diagram.
Remove both the plastic cap and lower drain plug.
Water will drain out and collect in the shallow pan.
After the water is drained, replace the lower drain plug
firmly.
You can now turn on the unit.
1.
2.
3.
4.
5.
Unplug the unit from the power source.
Remove the upper drain plug. While doing this
operation some residual water may spill so please
have a pan to collect the water.
Connect the drain connector to a ¾” hose or standard
garden hose (not included). See diagram.
The water can be continuously drained through the
hose into a floor drain or sink.
You can now turn on the unit.
Plastic Cap
& Lower
Drain Plug
Shallow Pan
(Not included)
Water Drain Pipe
Upper
Drain Plug
EN 8

TROUBLESHOOTING GUIDE
The following troubleshooting guide addresses the most common problems. If problems persist, call
customer service. Unplug and disconnect the appliance from the power source before attempting to
troubleshoot.
The air conditioning
unit does not start
Runs a short while
only
No electricity.
Batteries in the remote control need
to be replaced.
The power cord is not properly
plugged in.
The safety LCDI plug has tripped
(USA / Canada / Mexico only).
•
•
•
•
The thermostat temperature setting
is too close to room temperature.
Air outlet is blocked.
There are tight bends in the air
exhaust hose.
•
•
•
Check for power.
Change remote control batteries.
Remove and reconnect the
power cord.
Reset the safety LCDI plug, if
problem persists contact our
customer support (USA /
Canada / Mexico only).
•
•
•
•
Lower the set temperature.
Make sure the exhaust hose is
properly connected.
Connect exhaust hose as per
instructions on page 4.
•
•
•
Runs but not cooling A door or window is open.
The air filter is dirty.
The exhaust hose is detached.
Temperature setting is too high.
Air outlet or intake is blocked.
•
•
•
•
•
Make sure the window or door
is closed.
Clean the air filter.
Reinstall exhaust hose properly
(refer to Installation section).
Reduce temperature setting on
control panel.
Remove blockage.
•
•
•
•
•
Excess water condensation inside
the tank.
•Drain the water (refer to Water
Condensation Drainage).
•
PROBLEM POSSIBLE CAUSE SOLUTION
EN 9
Will not run and Power
button is blinking
(water full indicator)
Heater is not
switching ON
(This may only be
applicable for
Portable Air
Conditioner models
with built-in Heating
function only).
Heating function not activated yet.
The ambient temperature is too high.
Heating is activated only when the
ambient temperature is below 25°C
(77°F).
•
•
Check that the Heating function
has been activated. will be
illuminated when the Heater is
switched ON.
Switch on the Heating function
when the ambient temperature
reaches below 25°C (77°F).
•
•
