Honeywell CL610PE User manual

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
Model:
CL610PE / CL810PE
www.honeywellaircomfort.com
Email: [email protected]

CASTER WHEEL COVER INSTALLATION
Caster wheel with brake
Figure 2. Bottom View
LB - Left Back Side, RB - Right Back Side, LF - Left Front Side, RF - Right Front Side
Figure 1.
Location of caster wheels after installing caster wheel covers.
RF
RB
LF
LB
Caster wheels
Front
Back
Installation kits included:
1. Body
(caster wheels are pre-installed
without caster wheel covers)
X 1 4. Caster Wheel Covers X 4
2. Caster Wheels
(without lock)
X 2 5. Screws X 32
3. Caster Wheels
(with lock)
X 2
1
x1
2 3 4
x32
5
x4x2 x2
CL810PM / CO810PM / CL810PE / CO810PE

CASTER WHEEL COVER INSTALLATION
Step 6:
Tighten the 4 screws on each caster wheel
12
3
4
Step 4:
Tighten the 4 screws on each caster wheel
12
3
4
Step 2:
Install the caster cover with caster wheel
Step 5:
Assemble the 2 caster wheels (with lock)
with LB & RB caster bracket
Step 3:
Assemble the 2 caster wheels (without
lock) with LF & RF caster bracket
Step 1:
Unscrew all 4 caster wheels
CL810PM / CO810PM / CL810PE / CO810PE

1
PARTS DESCRIPTION
EN
FOR MODEL: CL610PE/ CO610PE
FOR MODEL: CL810PE/ CO810PE
12
8
7
6
5
1
2
4
13
14
11
10
9
3
12
8
7
6
5
1
2
4
13
14
11
10
9
3

2
PARTS DESCRIPTION (CONTINUED)
EN
WARNING: FOR OUTDOOR MODEL CO610PE/ CO810PE, USE ONLY ON GFCI PROTECTED
RECEPTACLES.
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.
1) Control Panel 8) Casters
2) Lever for Horizontal Louvers 9) Rear Grill Screws
3) Louvers 10) Rear Grill
4) Water Level Indicator 11) Water Tank
5) Water Fill Door 12) Drain Plug
6) Handle 13) Water Inlet Valve
7) Side Grill 14) Power Cord & Plug

3
COOL
POWER
SWINGSPEED TIMER
4
2
1
0.5
H
M
L
SLEEP
USE & OPERATION
EN
CONTROL PANEL
FUNCTION BUTTONS
POWER
Press the POWER button to turn the unit on. The cooler will start automatically at medium speed. After
a few seconds the speed will switch to low. To turn the unit off, press the button again.
SPEED
Press the SPEED button repeatedly to change the speed between High (H) - Mid (M) - Low (L) -
Sleep (SLEEP). When the Sleep mode is selected, the fan will randomly change between High, Medium,
Low and off (5 seconds each) to mimic a natural breeze.
TIMER
Press the TIMER button until the desired time duration setting is selected. When the set time
has passed, the unit will automatically turn off (unit remains in Standby mode until power cord is
unplugged from electrical socket). The TIMER function allows you to program the unit for up to 7.5
hours of use.
SWING
Press the SWING button until the SWING indicator light is illuminated on the
control panel. The louvers will begin to move left to right automatically.
Vertical Air Flow - You can manually adjust the louvers to change vertical air flow.
Louver
Movement
COOL
Press the COOL button until the COOL indicator light is illuminated on the control panel. This activates
evaporative cooling. The water pump will operate and you will feel the cooler air after the Honeycomb
Cooling Media is completely wet. When the COOL indicator light is switched OFF, the unit can still
function in a fan only mode (without evaporative cooling).

4
USE & OPERATION (CONTINUED)
EN
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION
REMOTE CONTROL
NOTE:
MODE
SPEED
TIME
RS
WING
ON/OFF
•
•
•
•
•
•
•
•
•
•
The remote control requires AAA (2 x 1.5V) batteries for replacement.
Open the battery compartment at the back of the remote control and insert the batteries
inside. Care must be taken to insert the batteries according to the correct polarity (+ / –)
markings shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
Exhausted batteries are to be removed from the product and safely disposed of as per local
regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
WARNING: Caution for ingestion of the small battery. Keep away from children and animals.
POWER :
:
:
:
:
ON / OFF
Low / Medium / High / Sleep
Evaporative Cooling On / Off
Controls the motion of the louvers
Controls the Timer function for automatic off
SPEED
MODE
TIMER
SWING

5

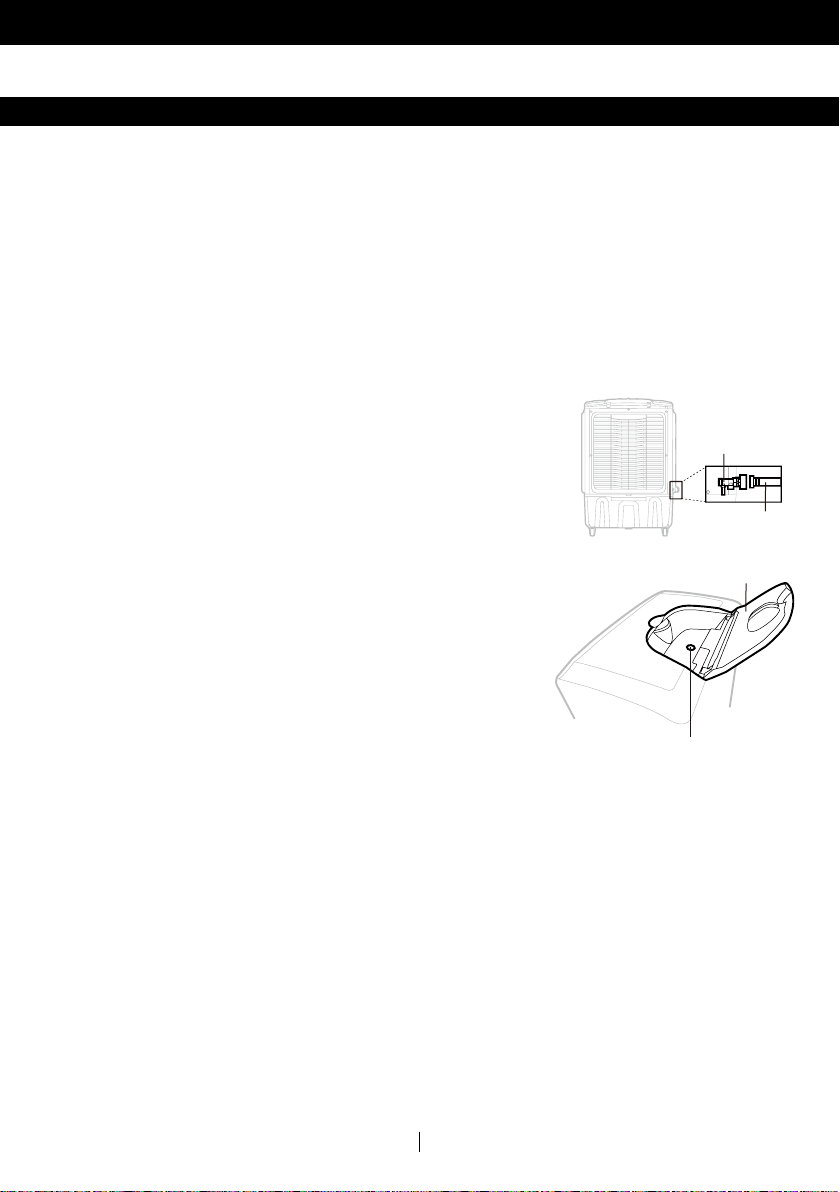

Locate the male connector at one end of the garden hose.
Insert the garden hose connector into the water inlet valve of
the cooler. Screw and tighten the water inlet valve onto the
threaded part of the garden hose connector, making sure the
hose connector is secured to ensure there will be no leaks. If
there is leakage, the hose and the water inlet valve may not be
connected properly. Try to disconnect, replace and tighten the
water inlet valve again.
When the connection is secured, turn ON the water supply and
the water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically when
the water tank is empty, or when the water reaches below a
minimum level.
When the water tank is full, the water inlet valve will
automatically.
Please open the water valve for minimum flow as too
much pressure could damage the inlet pressure control system.
WARNING: The maximum water inlet pressure is 0.5 MPa.
USE & OPERATION (CONTINUED)
EN
It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time
without refilling the tank. This also helps prevent pump failure in case the cooler is running with
inadequate water in the tank.
CAUTION: Unplug the unit from the electrical power outlet before filling or emptying the water tank.
Continuous Water Supply Connection:
For a continuous water supply, you will need a garden hose that is connected to a main water supply.
Note: The garden hose is not included. Please make use of a garden hose which is compatible with
the unit connection.
Manual Water Tank Refill:
FILLING WITH WATER
•
•
•
•
•
•
•
Using a portable container or a garden hose, you can refill the water tank manually by pouring
water into the water tank through the water inlet hole located at the top of the air cooler.
Check the water level indicator to know when the water tank is full. Do not fill water above the
"Max." water level mark to avoid water droplets collecting on the louvers.
WARNING: Always ensure the water in the water tank is above the minimum (Min.) water level mark
for both Continuous & Manual Water Refill. Running the unit in Cool mode with inadequate water
may cause pump failure.
Garden Hose
Water Inlet Value
Water Fill
Door
Water Inlet Hole

6
USE & OPERATION (CONTINUED)
EN
LOW WATER ALARM*
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the indicator light will flash continuously. The unit
will automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and
switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the
unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water
Alarm will sound again if the COOL function is activated while the water tank is still empty.
*Applicable for models with Low Water Alarm feature only.
Note: The water capacity refers to the total volume of water that can be contained within the air
cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and Honeycomb
media.
FILLING WITH WATER (CONTINUED)

7
USE & OPERATION (CONTINUED)
EN
If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE
GUIDELINES located in the separate Safety & Maintenance Guide.
CLEANING & DRAINING THE WATER TANK
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect from the power outlet.
•
•
•
•
Move the unit to a location where the water can be drained. Remove the cap from the Drain plug
located at the bottom of the unit. Allow the tank to empty.
Refill the water tank with clean water, up to the maximum level and drain it completely.
Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
CLEANING THE HONEYCOMB COOLING MEDIA
The appliance is supplied with three Honeycomb Cooling Media pads.
The Honeycomb Cooling Media are located inside the Rear and Side Grills. Follow Steps 1 to 5 for
instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•

8
USE & OPERATION (CONTINUED)
EN
Remove the screws from the Rear Grill of the Air Cooler.
Carefully pull out the Rear Grill from the Air Cooler.
The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are fixed in
place by two screws on the Left and Right Sides of these Horizontal Bars. Remove these screws
to release the Horizontal Bars.
Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill. Replace with the new
Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it fits comfortably and
securely in place on the grill. Replace the Horizontal Bars back onto the Rear Grill by replacing the
Left and Right Side screws and tightening them in place. This secures the Honeycomb Cooling
Pad in place on the Rear Grill.
Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills.
1.
2.
3.
4.
5.
Removing the Honeycomb Cooling Media:
WARNING: DO NOT operate the Air Cooler when any or all of the Rear or Side Grills are removed
from the Air Cooler, or if there is a loose-fitting Rear or Side Grill. Doing so can cause serious injury or
dangerous electrical shock.
CLEANING THE HONEYCOMB COOLING MEDIA (CONTINUED)
Step 2:
Rear Grill
Step 1:
Rear Grill
Rear Grill
Screws
Step 3:
Rear
Honeycomb Pad
Screws
Horizontal
Bars
Step 4:
Rear
Honeycomb
Pad
Rear Grill

Jmatek India Private Limited
Unit No. 507, 5th Floor,
Vipul Business Park, Sohna Road,
Sector-48, Gurugram-122018, Haryana
Website: www.jmatek.com
email: [email protected]
Made in India
© 2022 JMATEK Limited. All rights reserved.
The Honeywell Trademark is used under license
from Honeywell International Inc.
Honeywell International Inc. makes no
representations or warranties with respect to this product.
This product is manufactured by Airtek Int'l Corp. Ltd.
(subsidiary of JMATEK Ltd.).
