Honeywell CL30XC User manual

OFF ON
COOL
OFF ON
SWEEP
OFF H
M
L
Portable Evaporative Air Cooler
INSTRUCTION MANUAL
Read and save these instructions before use
Model: CL30XC
With Remote
www.ushainternational.com

This page is intentionally left blank

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY RULES ...................................................................................................
4. PARTS DESCRIPTION ........................................................................................
5. USE & OPERATION .............................................................................................
Fill Water ......................................................... .................... ...............
Function Knobs .................................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................

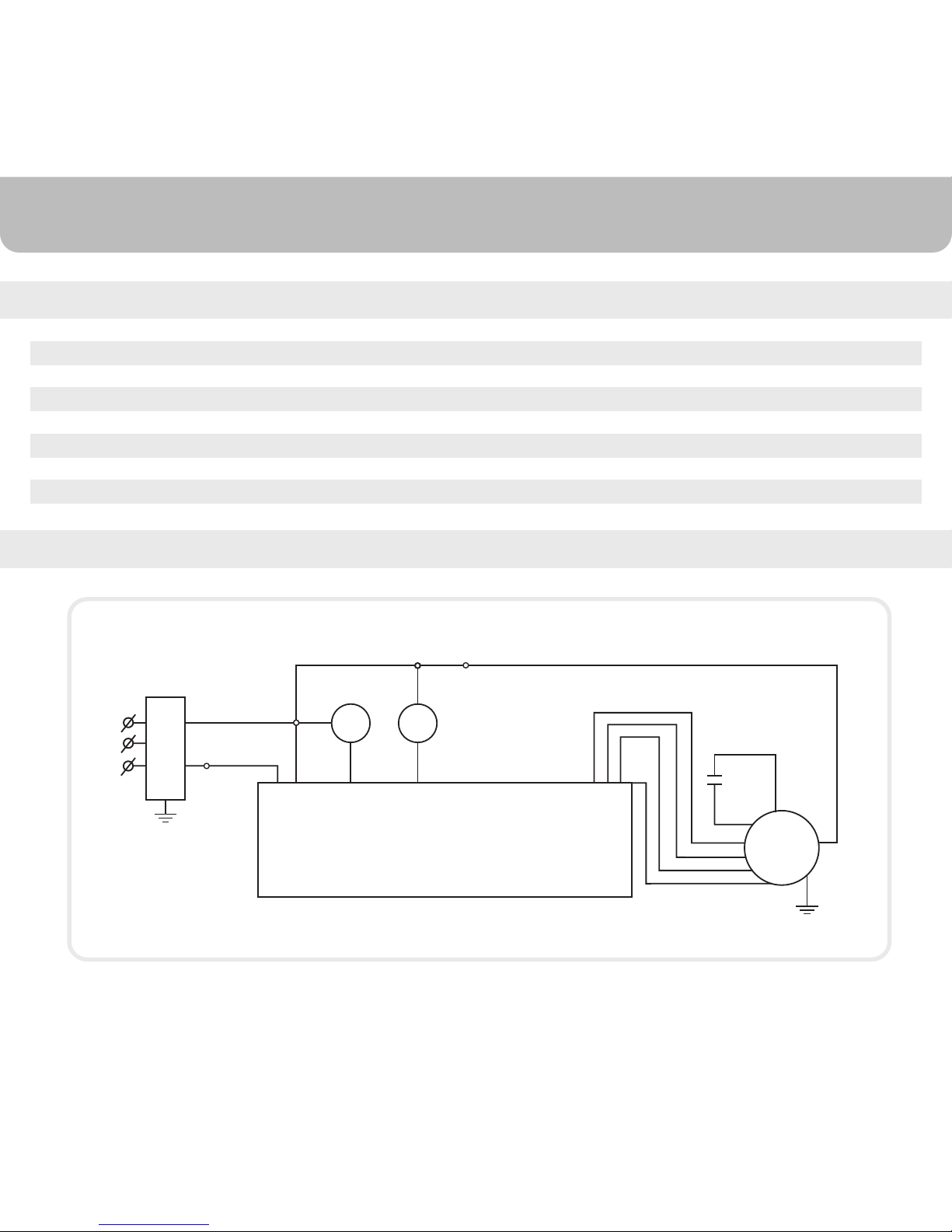

9. ELECTRICAL WIRING DIAGRAM ........................................................................
.... ............
2
3
5
7
8
8
Assembly Instructions For Castor Wheels ............................................................ 8
9
11
13
15
15
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.

THANK YOU
2
Dear Customer,
Congratulations!
You are now the proud owner of an Usha Honeywell Evaporative Air Cooler.
Innovatively designed, using only the highest quality material and components, your
Usha Honeywell Air Cooler is designed for years of trouble free performance.
Please read this Instruction Manual carefully before using the product and keep it
carefully after reading for future reference.
For optimum cooling performance from your unit, please ll the tank with water & ice,
if available, to increase the cooling power.
Best Wishes

USER TIPS
NATURAL ENERGY EFFICIENT COOLING
3
Pump
Water
Honeycomb Cooling Media

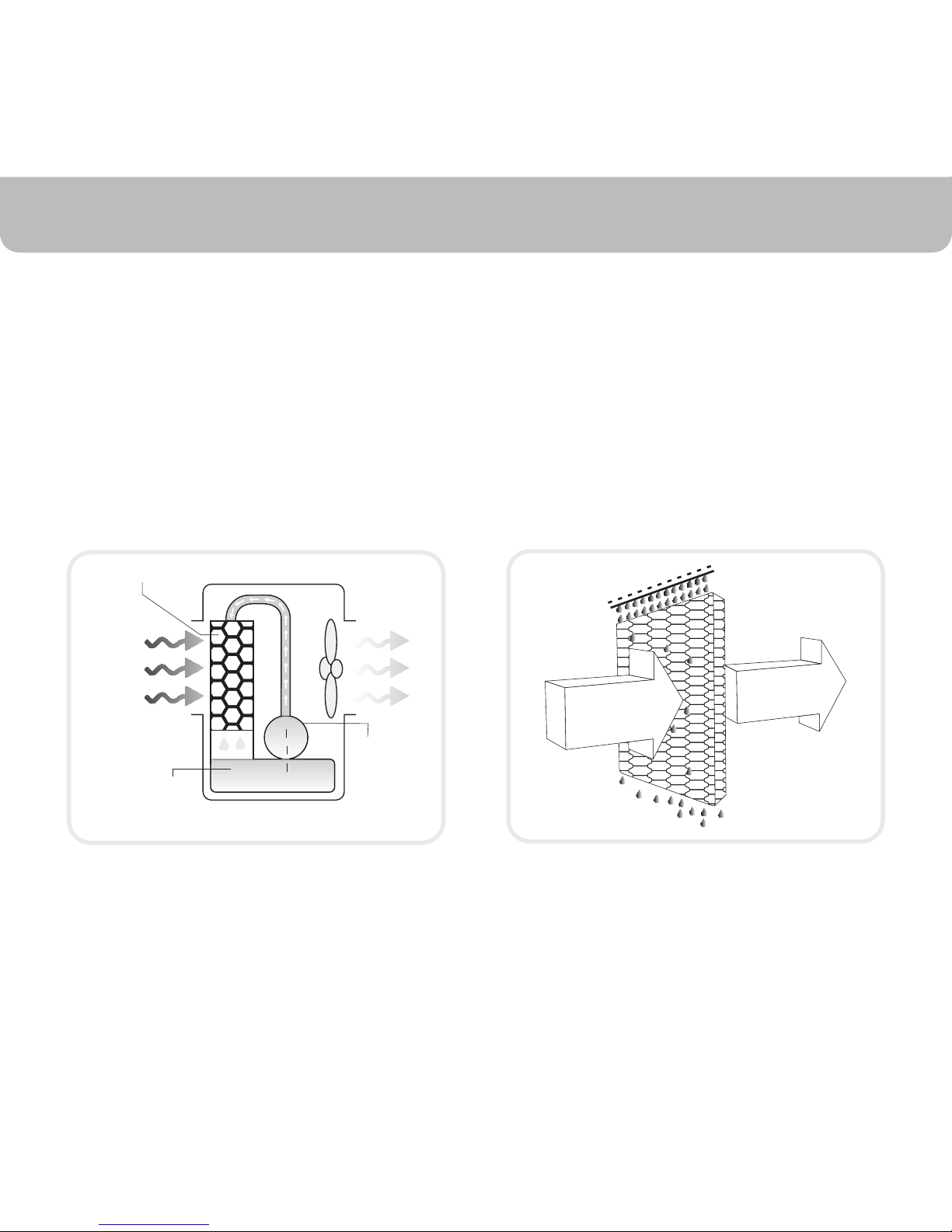

Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This
breeze drops the temperature and has a relaxing cooling eect.
The evaporative air cooler cools the air by means of the evaporation of water. When water
evaporates into the air, the result is a mixture of air and water molecules. This chemical change
requires heat which is taken from the water molecules, resulting in cooler air propelled from the
unit.

NOTE
4
USER TIPS
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened to
allow free air ow. The evaporative air cooler works best when
placed near an open window, so that outside air is drawn into the
evaporative air cooler, the air circulates in the room, then exits via
the door. The maximum cooling eect is felt when a person is in
the ow of air coming out of the evaporative air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidication the windows
and doors should be closed to allow the humidied air to accumu-
late. The evaporative air cooler is not an air conditioner as it does
not use a compressor or refrigerant gas.
When the product is used for the rst time the Honeycomb
cooling media will have an odour which will dissipate within a week
of initial use.
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L
OFFON
COOL
OFF ON
SWEEP
OFF H
M
L

OFF ON
COOL
OFF ON
SWEEP
OFF H
M
L
READ AND SAVE INSTRUCTIONS:
SAFE TY RU LES
230V AC 50Hz
SHOCK HAZARD
WATER LEVEL INDICATOR
5
When using electrical appliances, basic safety precautions should always be followed:
Always unplug the product before relling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other ammable goods and objects are stored.
When using the ''COOL'' setting, please check the water tank
to ensure it is full. Operation of this unit on the ''COOL'' setting
with an empty tank may result in damage to the water pump.
•
•
•
•
•
•
•
•
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
•
Your cooler runs on 230 V AC, 50 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specication.
Before operating the product remove it from its packaging and
check it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not to use an extension cord with this
appliance.

OFFON
COOL
OFF ON
SWEEP
OFF HM
L
OFFON
COOL
OFF ON
SWEEP
OFF HM
L
SAFETY RULES
FLOOR LEVEL
6
may cause motor damage.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•When the unit is not in use always store in a dry area.
•
This product is not intended for use in wet or damp locations.
•
DO NOT let children play with this appliance, packaging or
plastic bags.
•
DO NOT leave the appliance operating unattended for any
extended period of time.
•
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
•
DO NOT attempt to repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
•
DO NOT cover the air inlet or outlet on the appliance as this
•
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and /or please
seek professional advice.
•
Place the unit on a level floor.
•
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
•
Always grip the side handles to move the unit.
•
OFFON
COOL
OFF ON
SWEEP
OFF HM
L

1 Outlet Louvers
(Horizontal-Manual &
Vertical-Automatic Swing)
2 Control Panel
3 Front Panel
4 Front Castors / Wheels
5 Side Handle
6 Left Side Panel
7 Water Fill Door
8 Water Level Indicator
9 Top Panel
10 Rear Panel Grill
11 Right Side Panel
12 Air Inlet Louvers
13 Honeycomb Media
14 Water Tank (Cannot be Removed)
15 Rear Castors / Wheel
16 Water Drain Plug
17 Rear Grill Removal Screws
18 Remote
PART S DES CRIPT ION
7
17
OFF ON
COOL
OFF ON
SWEEP
OFF H
M
L
1
2
3
4
5
6
7
8

USE & OPERATION
8
FILLWATER
CAUTION
Note:
Back wheel castors do not come pre-installed in this unit.
Please follow instructions as shown in Fig 1, 2 & 3 for installing the castor wheels.
Pull out the Water Fill Door located below the left side panel
(refer page 7) and fill water till the Max. Level, as indicated on
the Water Level Indicator. The water tank of this unit holds up
to 15 Litres of water.
Water level display window is located on the front of the unit.
Refill the water tank when water level is low. Do not fill water
above the Max water level mark. Check water level in the tank
before running the ''COOL'' function. Please be sure water in
the tank is always above minimum water level mark. Running
the unit with inadequate water may cause pump failure. If ice is
available you may add ice in the top compartment to enhance
the cooling performance.
Water Fill Door
Fig. 1 Fig. 2 Fig. 3
Unplug from power when refilling.

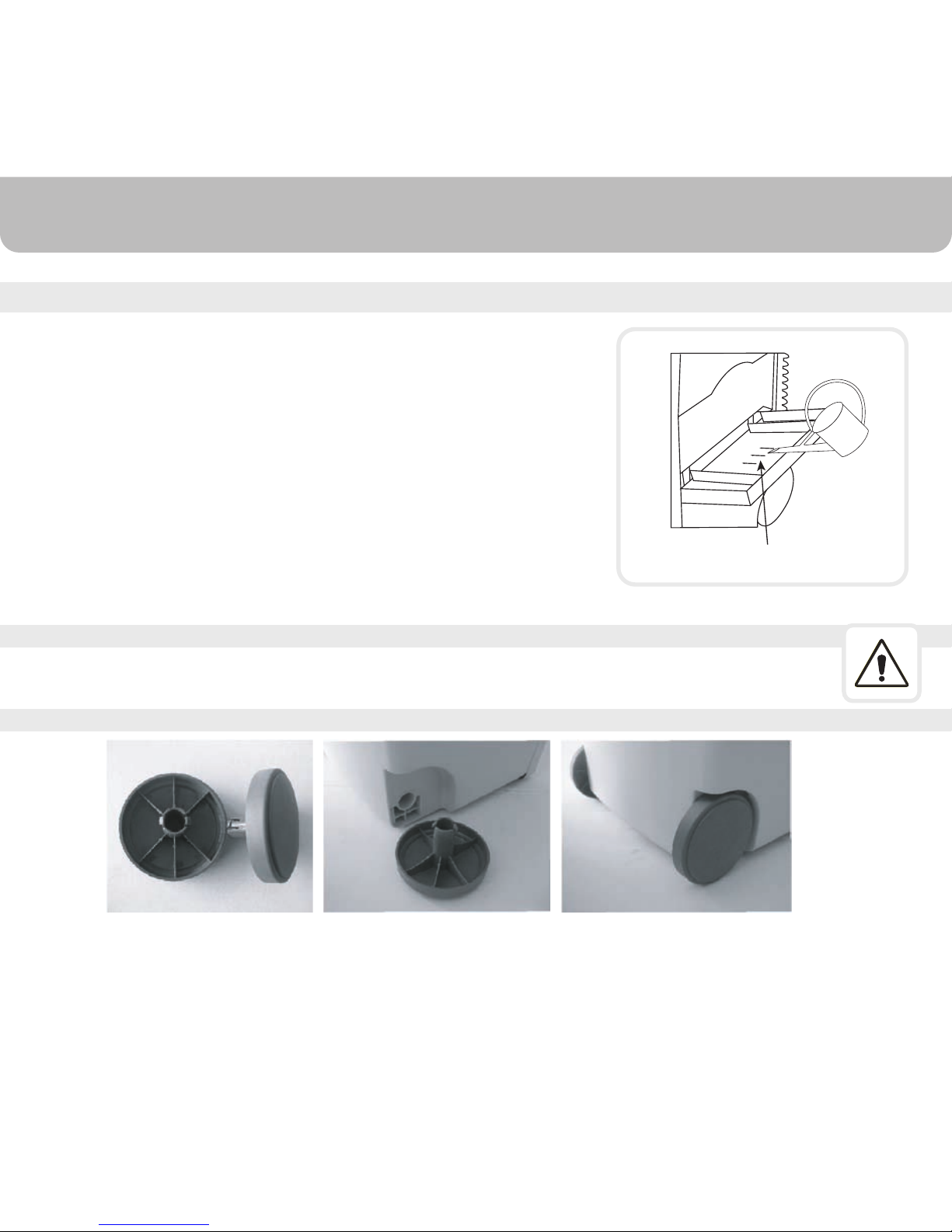

ASSEMBLY INSTRUCTIONS FOR CASTOR WHEELS.

FUNCTION KNOBS
USE & OPERATION
COOL
To begin cooling the desired area, turn the knob to the ON
position. The pump starts operating after turning the knob to
this postion. You will feel cooler air after the Honeycomb media
is completely wet.
FAN / POWER
The unit turns ON when the knob is changed to any of the
speed levels. This unit is provided with four options to vary the
speed of the fan. OFF -- H (High) -- M (Medium) -- L (Low)
Switch the knob between these 4 options to vary the speed of
fan. You can feel the change in airflow as you switch between
these option.
OFF ON
SWEEP
OFF
FAN
HML
OFF
FAN
HML
OFF ON
COOL
OFF ON
COOL
9

OFFON
COOL
OFF ON
SWEEP
OFF HM
L
USE & OPERATION
SWING

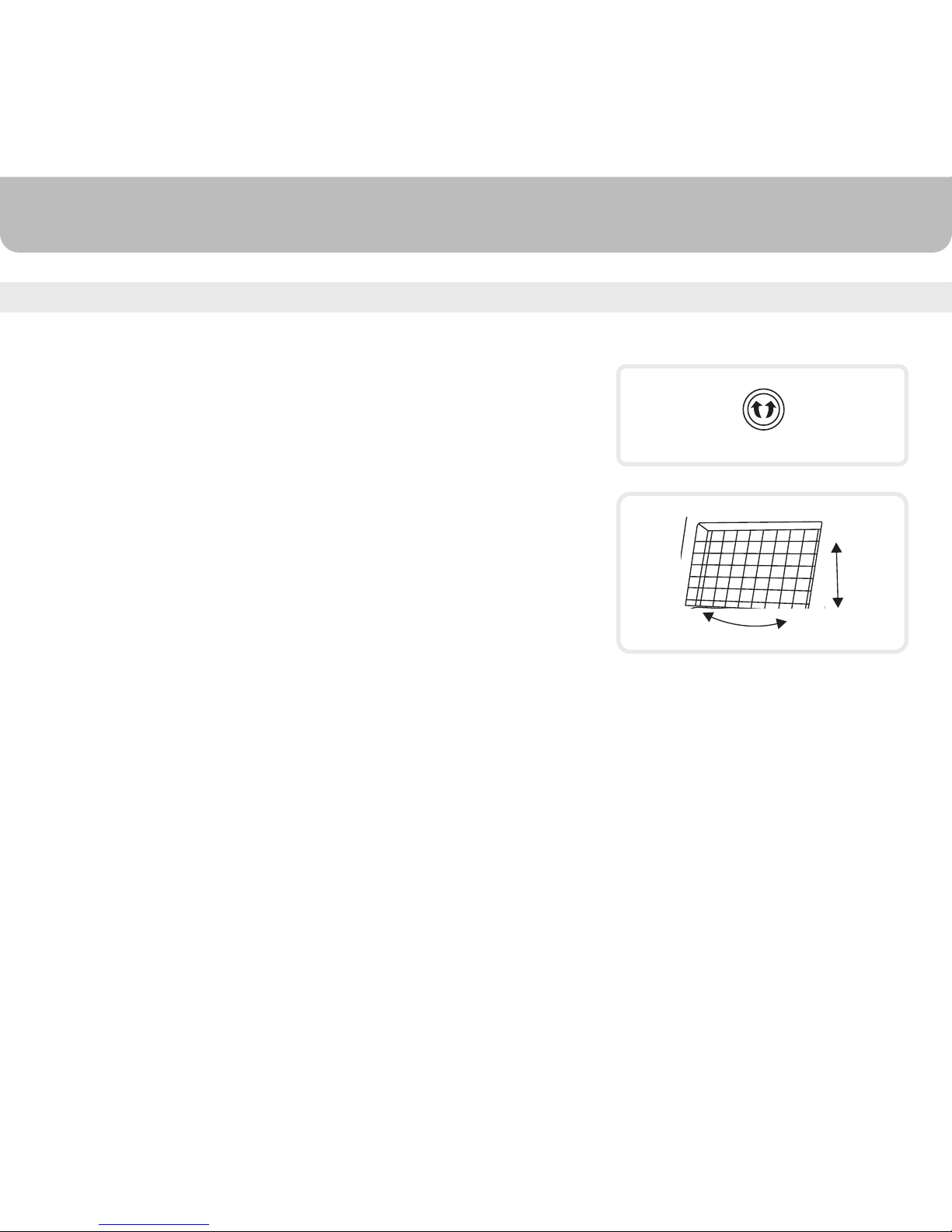

This knob is provided with 2 options ON and OFF. Changing
the knob to the ON postion will start the movement of vertical
louvers, this movement is automatic. You can manually adjust
the horizontal louvers depending on the requirement of air throw.
LOUVERS MOVEMENT
FUNCTION KNOBS
OFF ON
SWEEP
10

WARNING
CLEA NING & MA INTEN ANCE
CLEANING & DRAINING THE WATER TANK:
Turn the power "o" and disconnect the unit from power supply.
Move the unit to a location where it can be drained and remove the drainage
tube/cap (see parts description on page 7).
Once the tank is empty, rell with clean water and drain it again. This should
be repeated weekly to maintain the integrity of the unit and to remove particles
ltered from the air.
Once the tank is clean, rell the water tank. The unit is now ready to be used
again.
Before cleaning the unit, switch it to the ''o'' position and remove the plug from
the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use detergents, corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
•
•
•
•
•
•
•
•
11

CLEA
CLEANING THE HONEYCOMB FILTER
Turn o the unit, and unplug the power cord from wall outlet.
Rotate the unit facing the back panel, and locate the Rear Grill Removal Screws (refer page
7., No. 17). Remove both the screws with a screw driver.
Pull the rear grill panel upwards, untill it is completely removed.
Now, the Honeycomb lter can be seen. Clean the lter with clean cloth to remove all the dust
& dirt particles.
Once, the cleaning has been performed, assemble the unit back in the same fashion as
described above.
The appliance is supplied with a honeycomb cooling media lter.
Always keep the Honeycomb media clean. Wash the lter at least twice a year or as necessary.
Draining the water tank and relling it with fresh water atleast once a week will greatly reduce
mineral deposits in the pads and help extend the life of the honeycomb cooling media.
Do not run the unit in COOL mode with stale water in the tank.It is recommended to empty the
tank and rell it with freshwater, if the water has been standing inside the tank for an extended
period of time.
Cleaning frequency depends on local air and water conditions. For example, in areas where
mineral content of water is high, deposits may build up in the honeycomb cooling media,
restricting air ow. In this case, it is recommended to clean the honeycomb cooling media every
two months.
For best results, allow the honeycomb cooling media to dry after each use by turning o the cool
function 15 minutes before turning the unit o.
•
•
•
•
•
•
•
•
•
•
•
12

TROU BLES HOOT ING G UIDE
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch in ON.
Power is not ON. Try to turn the unit ON by
pressing buttons on control
panel or remote control.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
control panel or remote.
Low or no water in tank,
when COOL is selected.
Rell water tank.
Odour omission New Unit. When the unit is used for the
rst time, the Honeycomb
cooling media will have an
odour, which will dissipate
within a week of initial use.
Old Unit. There may be an algae issue,
Replace the honeycomb cooling
media. Contact service centre.
Damaged Pump or Calcium
deposits on blower.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
13

TROU BLES HOOT ING G UIDE
The unit does not respond Remote control batteries. Check batteries, Replace if
needed. Try to operate using
the control panel.
Damaged PCB Try with remote control. If the
unit responds, PCB fasteners
may be loose. Contact service
centre.
If neither remote control nor
control panel works, PCB
may be damaged. Contact
service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
14

MODEL NO. CL15AM
230V
50Hz
105 Watts
15 Litres
Honeycomb
380 x 380 x 795 mm
9.6 Kg
Voltage
Frequency
Wattage
Water Tan k Capacity
Cooling Me dia
Product Di mension (L) x (W) x (H)
Net Weight
TECH NICAL SPEC IFICA TION S
ELECTRICAL WIRING DIAGRAM
COOL SWEEP
PLUG-IN
PLUG
COOL F/R
L N
PCB
H M L N
MM
M
P700 230 V AC 50Hz
15

This appliance is warranted for one year against all manufacturing defects from the date of sale.
In the event of any complaint, please contact your nearest Company Service Centre or call at our
Toll Free no: 1800-1033-111
This Warranty is valid only when…
1. The appliance has not been opened or tempered with, by any unauthorized person.
2. The warranty card or cash memo duly signed by the authorized dealer are presented
with the complaint.
3. The appliance has been installed, used and maintained in accordance with the instructional
manual.
This Warranty does not apply for…
1. Damages due to chipping, peeling, plating and denting.
2. Breakage or damage to components made out of Bakelite, Urea, ABS, SAN and such plastic,
materials, rubber parts and cord.
3. Normal wear and tear of parts.
4. Damage resulting from accidents, mishandling or negligence on part of the customer.
Liability for consequential loss or damage is neither accepted nor implied.
S.NO: _________________________________________________________________
CASH MEMO ____________________________________________________________
DATE: __________________________________________________________________
DEALER’S NAME AND ADDRESS: _____________________________________________
________________________________________________________________________
________________________________________________________________________
OWNER’S NAME & ADDRESS: ________________________________________________
__________________________________________________________________________
SERVICE AND WARRANTY
SERVICE AND WARRANTY
17
