Honeywell Eclipse ImmersoPak IP005 User manual

Eclipse ImmersoPak
Burners
Model IP004 - 012
Version 3
Operating Instructions Edition 9-16
32-00055-01

232-00055—01
Copyright
Copyright 2007 by Honeywell Interanational Inc. All rights
reserved worldwide. This publication is protected by
federal regulation and shall not be copied, distributed,
transmitted, transcribed or translated into any human or
computer language, in any form or by any means, to any
third parties, without the express written consent of
Honeywell Eclipse.
Disclaimer Notice
In accordance with the manufacturer’s policy of continual
product improvement, the product presented in this
brochure is subject to change without notice or obligation.
The material in this manual is believed adequate for the
intended use of the product. If the product is used for
purposes other than those specified herein, confirmation
of validity and suitability must be obtained. Honeywell
Eclipse warrants that the product itself does not infringe
upon any United States patents. No further warranty is
expressed or implied.
Liability & Warranty
We have made every effort to make this manual as
accurate and complete as possible. Should you find errors
or omissions, please bring them to our attention so that we
may correct them. In this way we hope to improve our
product documentation for the benefit of our customers.
Please send your corrections and comments to our
Technical Documentation Specialist.
It must be understood that Honeywell Eclipse’s liability for
its product, whether due to breach of warranty,
negligence, strict liability, or otherwise is limited to the
furnishing of replacement parts and Honeywell Eclipse will
not be liable for any other injury, loss, damage or
expenses, whether direct or consequential, including but
not limited to loss of use, income, or damage to material
arising in connection with the sale, installation, use of,
inability to use, or the repair or replacement of Honeywell
Eclipse’s products.
Any operation expressly prohibited in this manual, any
adjustment, or assembly procedures not recommended or
authorized in these instructions shall void the warranty.
Document Conventions
There are several special symbols in this document. You
must know their meaning and importance.
The explanation of these symbols follows below. Please
read it thoroughly.
How To Get Help
If you need help, contact your local Honeywell Eclipse
representative. You can also contact Honeywell Eclipse
at:
1665 Elmwood Rd.
Rockford, Illinois 61103 U.S.A.
Phone: [phone]
Fax: [phone]
http://www.eclipsenet.com
Please have the information on the product label available
when contacting the factory so we may better serve you.
Product Name
Item #
S/N
DD MMM YYYY
www.eclipsenet.com
This is the safety alert symbol. It is used to alert you to potential personal
injurt hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
Indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
Indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
Is used to address practices not related to personal injury.
Indicates an important part of text. Read thoroughly.
NOTE
NOTICE
CAUTION
WARNING

Table of Contents
332-00055—01
Introduction............................................................................................................................... 4
Product Description .............................................................................................................. 4
Safety ......................................................................................................................................... 5
Safety ................................................................................................................................... 5
Capabilities........................................................................................................................... 5
Operator Training ................................................................................................................. 5
Replacement Parts...............................................................................................................5
Installation ................................................................................................................................. 6
Handling ............................................................................................................................... 6
Storage................................................................................................................................. 6
Approvals of Components .................................................................................................... 6
Checklist Before Installation ................................................................................................. 7

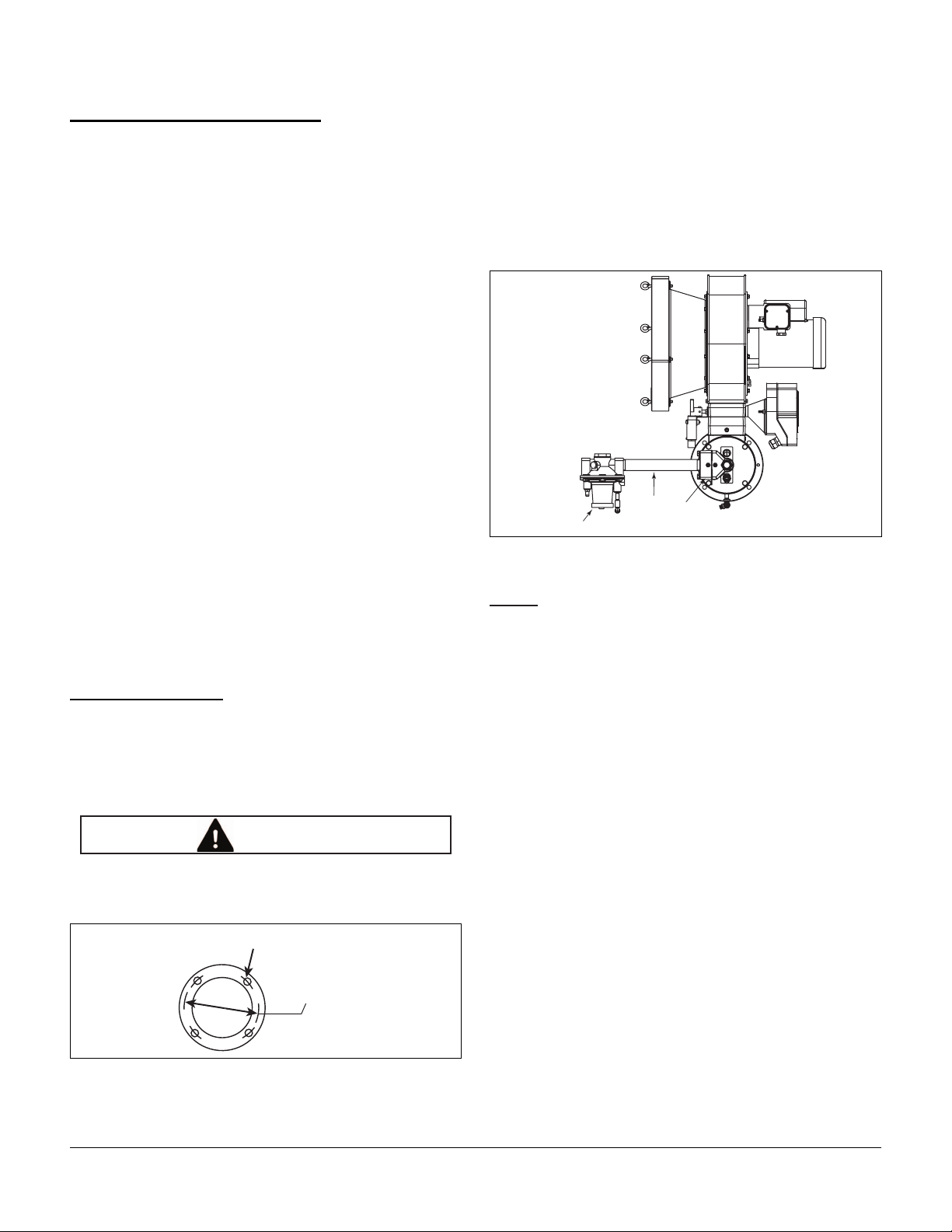

Burner Installation ................................................................................................................ 7
Flame Sensor Installation..................................................................................................... 8
Checklist After Installation ....................................................................................................8
Adjustment, Start & Stop ......................................................................................................... 10
Step 1: Reset the System..................................................................................................... 10
Step 2: Verify the Air Flow.................................................................................................... 11
Step 3: Set Low Fire Air ....................................................................................................... 11
Step 4: Ignite the Burner ...................................................................................................... 11
Step 5: Verify the Settings.................................................................................................... 13
Maintenance & Troubleshooting ............................................................................................. 15
Maintenance......................................................................................................................... 15
Monthly Checklist ................................................................................................................. 15
Yearly Checklist.................................................................................................................... 15

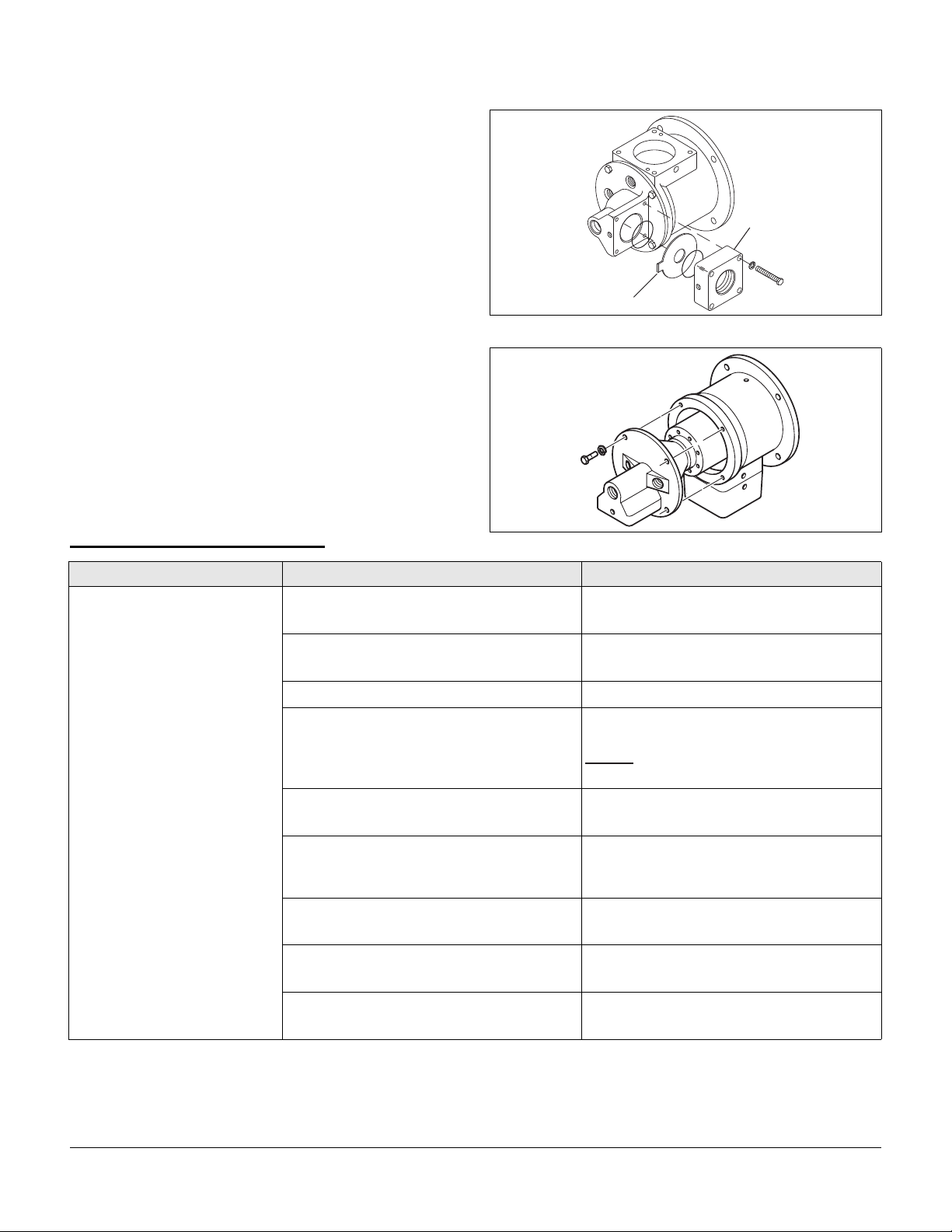

Troubleshooting Procedures ................................................................................................ 16
Appendix ................................................................................................................................... i
Conversion Factors ..............................................................................................................i

Introduction
432-00055—01
Product Description
The ImmersoPak burner (IP Series) is a nozzle-mix
burner with a packaged combustion air blower that is
designed to fire on-ratio (proportional air/gas control) or
fixed air on smaller models over a turndown of 10:1.
Integral gas and air orifices are provided to ease burner
setup. The burner is designed for:
• efficient ratio controlled combustion
• reliable burner operation
• simple burner adjustment
• direct spark ignition
• multiple fuel capability
A wide variety of options and configurations are available
due to the modular design of the burner.

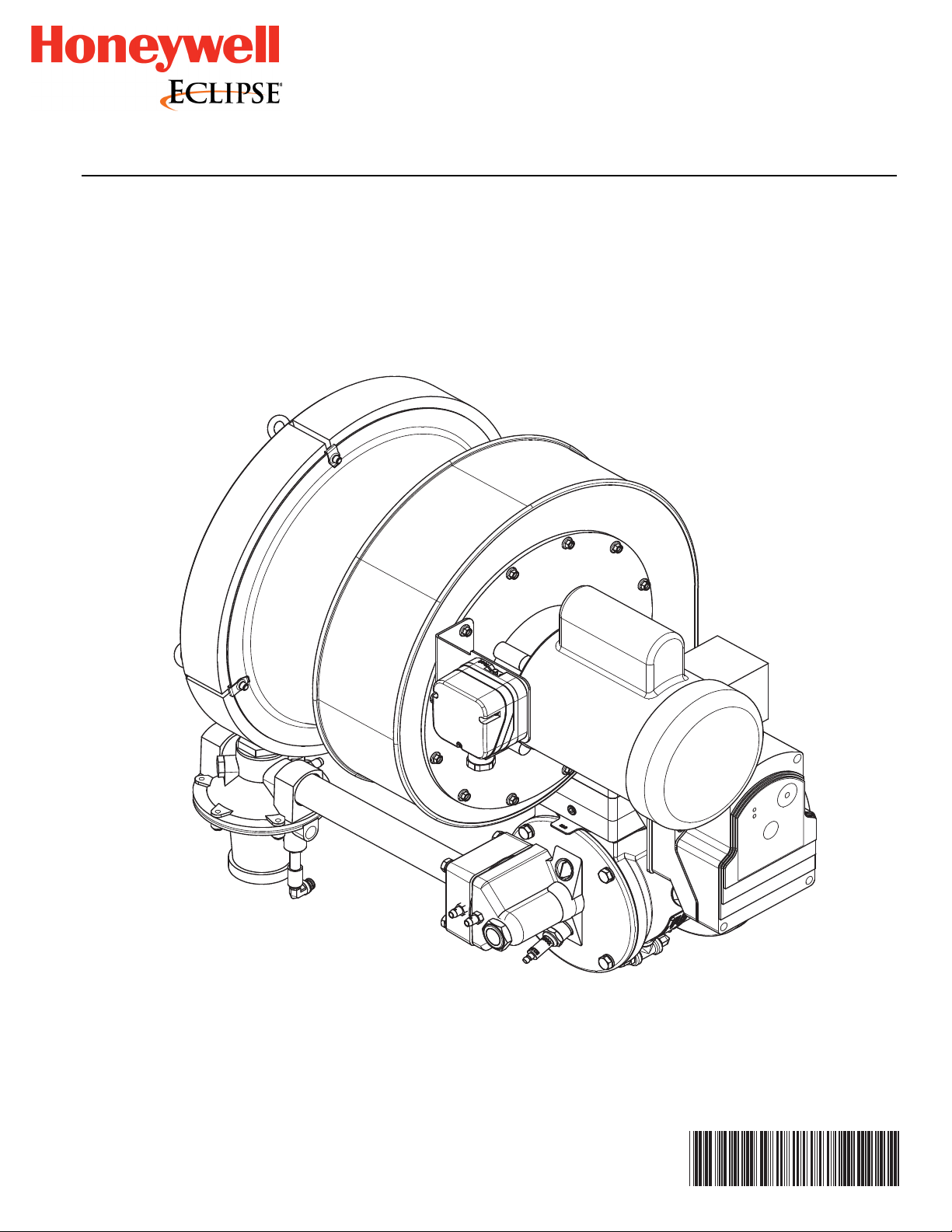

Figure 1.1. ImmersoPak Burner
Audience
This manual has been written for people who are already
familiar with all aspects of a nozzle-mix burner and its
add-on components, also referred to as “the burner
system”.
These aspects are:
• Installation
• Use
• Maintenance
The audience is expected to have previous experience
with this type of equipment.
ImmersoPak Documents
Installation Guide No. 360
• This document
Datasheet, Series No. 360
• Available for individual IP models
• Required to complete installation
Design Guide No. 206
• Used with Datasheet to complete installation
Related Documents
• EFE 825 (Combustion Engineering Guide)
• Eclipse Bulletins and Info Guides: 710, 732, 760,
818, 832, 852, 854, 856, 610, 620, 630, 826, 820,
930, I-354
Purpose
The purpose of this manual is to ensure that you carry out
the installation of a safe, effective, and trouble free
combustion system.
1

Safety
532-00055—01
Important notices which help provide safe burner
operation will be found in this section. To avoid personal
injury and damage to the property or facility, the following
warnings must be observed. All involved personnel should
read this entire manual carefully before attempting to start
or operate this system. If any part of the information in this
manual is not understood, contact Eclipse before
continuing.
Safety Warnings
■The burners, described herein, are designed to mix
fuel with air and burn the resulting mixture. All fuel
burning devices are capable of producing fires and
explosions if improperly applied, installed,
adjusted, controlled or maintained.
■Do not bypass any safety feature; fire or explosion
could result.
■Never try to light a burner if it shows signs of
damage or malfunction.
■The burner and duct sections are likely to have
HOT surfaces. Always wear the appropriate
protective equipment when approaching the
burner.
■Eclipse products are designed to minimize the use
of materials that contain crystalline silica.
Examples of these chemicals are: respirable
crystalline silica from bricks, cement or other
masonry products and respirable refractory
ceramic fibers from insulating blankets, boards, or
gaskets. Despite these efforts, dust created by
sanding, sawing, grinding, cutting and other
construction activities could release crystalline
silica. Crystalline silica is known to cause cancer,
and health risks from the exposure to these
chemicals vary depending on the frequency and
length of exposure to these chemicals. To reduce
the risk, limit exposure to these chemicals, work in
a well-ventilated area and wear approved personal
protective safety equipment for these chemicals.
■This manual provides information regarding the
use of these burners for their specific design
purpose. Do not deviate from any instructions or
application limits described herein without written
approval from Eclipse.
Capabilities
Only qualified personnel, with sufficient mechanical
aptitude and experience with combustion equipment,
should adjust, maintain or troubleshoot any mechanical or
electrical part of this system. Contact Eclipse for any
needed commissioning assistance.
Operator Training
The best safety precaution is an alert and trained
operator. Train new operators thoroughly and have them
demonstrate an adequate understanding of the
equipment and its operation. A regular retraining schedule
should be administered to ensure operators maintain a
high degree of proficiency. Contact Eclipse for any needed
site-specific training.
Replacement Parts
Order replacement parts from Eclipse only. All Eclipse
approved valves or switches should carry UL, FM, CSA,
CGA and/or CE approval where applicable.
DANGER
WARNING
NOTICE
2

Installation
632-00055—01
In this section you will find the information and instructions
that you need to install the burner.
Handling
• Make sure that the area is clean.
• Use the appropriate support and handling
equipment when lifting the burner.
• Protect the components from the weather, damage,
dirt and moisture.
• Protect the components from excessive
temperatures and humidity.
• Take care not to drop or damage components.
Storage
• Make sure that the components are clean and free
of damage.
• Store the components in a cool, clean, dry room.
• After you have made sure that everything is present
and in good condition, keep the components in the
original package as long as possible.
Approval of Components
Limit Controls & Safety Equipment
All limit controls and safety equipment must comply with
all applicable local codes and/or standards and must be
listed for combustion safety by an independent testing
agency. Typical application examples include:
• American: NFPA 86 with listing marks from UL, FM,
CSA
• European: EN 746-2 with CE mark from TuV,
Gastec, Advantica
Electrical Wiring
All the electrical wiring must comply with all applicable
local codes and/or standards such as:
• NFPA Standard 70
• ANSI-C11981
• EN 746-2
Gas Piping
All the gas piping must comply with all applicable local
codes and/or standards such as:
• NFPA Standard 54
• ANSI Z223
• EN 746-2
Where to Get the Standards:
The NFPA Standards are available from:
National Fire Protection Agency
Batterymarch Park
Quincy, MA 02269
www.nfpa.org
The ANSI Standards are available from:
American National Standard Institute
1430 Broadway
New York, NY 10018
www.ansi.org
The UL Standards are available from:
333 Pfingsten Road
Northbrook, IL 60062
www.ul.com
The FM Standards are available from:
1151 Boston-Providence Turnpike
PO Box 9102
Norwood, MA 02062
www.fmglobal.com/approvals
Information on the EN standards and where to get
them is available from:
Comité Européen de Normalisation
Stassartstraat 36
B-1050 Brussels
Phone: [phone]
Fax: [phone]
www.cen.eu
Comité Européen de Normalisation Electronique
Stassartstraat 36
B-1050 Brussels
Phone: [phone]
Fax: [phone]
www.cenelec.org
3

732-00055—01
Checklist Before Installation
Intake
To admit fresh combustion air from outdoors, provide an
opening in the room of at least one square inch per 4,000
BTU/hr (6 cm2per 1 kW). If there are corrosive fumes or
materials in the air, then supply the burner with clean air
from an uncontaminated area, or provide a sufficient air
filtering system.
Exhaust
Do not allow exhaust to accumulate in the work area.
Provide some positive means for exhausting them from
the furnace and the building.
Access
Make sure that you install the burner in such a way that
you can get easy access for inspection and maintenance.
Environment
Make sure the local environment matches the original
operating specifications. Check the following items:
• Voltage, frequency and stability of the electrical
power
• Type and supply pressure of the fuel
• Availability of enough fresh, clean combustion air
• Humidity, altitude and temperature of air
• Presence of damaging corrosive gases in the air
• Prevent direct exposure to water
Install the Burner
Dimensions
Bolt the burner to the immersion tank wall or immersion
tube flange. For bolt hole patterns, see the datasheet for
your ImmersoPak model.
■If adapters are used, burner flange should not be
spaced further than 4" from tank wall.
Figure 3.1. Bolt Hole Pattern
Tank wall
Make sure that the wall of the tank is strong enough to
carry the weight of the burner. If necessary, reinforce the
tank wall area where you plan to install the burner.
Burner Piping
The burner is factory assembled and shipped as ordered.
Figure 3.2.
NOTE: It is not recommended to redirect piping. If
necessary, be sure the:
• Ratio regulator spring column is pointing down.
• Arrow on the ratio regulator points in the direction of
gas flow.
• Integral fuel orifice and o-rings are re-installed.
• Same straight runs of pipe remains between the
ratio regulator and the burner.
• IP004 and IP005 burners may contain BSP or NPT
transition piping.
Supply Piping
Install the piping using the following steps:
• Locate the valve train close to the burner. The gas
must reach the burner during the fixed trial for
ignition.
• Sufficiently size shut off valves in the valve train.
• Make sure piping is large enough.
• Minimize piping elbows.
Pipe Connections
• Installation of a pipe union in the gas line is
recommended to simplify burner removal.
• Use of flexible pipe is optional.
CAUTION
4 x Ø 12mm (0.47")
Bolt Circle Ø
(See appropriate
Datasheet)




832-00055—01
Control Motor
Install a control motor to modulate the air butterfly valve if
not previously installed on the burner.
Figure 3.3.
NOTE: Be sure the control motor shaft and air butterfly
valve shaft are aligned properly. If using an Eclipse
Actuator Mounting Parts Kit, the supplied washers may be
used as shims (stacked 0, 1, or 2 high) to ensure proper
alignment. Additionally, a flexible coupling can be used to
handle minor misalignment.
Install the Flame Sensor
1. Install the flame sensor into the 1/2" NPT opening in the
rear cover.
2. Make sure that you connect the flame sensor of a
burner to the electrical circuit of that burner.
■If you connect the flame sensor of a burner to the
electrical circuit of the wrong burner, then you can
cause fires and explosions.
There are two different types of flame sensors: UV
scanner and flamerod.
■Adjustments may vary from Eclipse published
values if the flame controls other than those
recommended in the Design Guide are used.
Consult with the engineer who specified the
alternate control for limitations.
UV Scanner
For detailed information on how to install and connect a
UV scanner, refer to scanner information guide.
Flame Rod
If the flame rod option was selected when the burner was
ordered, the burner will be delivered with the flame rod
already installed on the burner.
NOTE: Only specific burner sizes are capable of using a
flame rod. These models are IP004, 005, and 006.
For detailed information on how to install and connect a
flame rod, refer to:
• Bulletin / Info Guide 832
Figure 3.4.
Checklist After Installation
To verify proper system installation, do the following:
1. Make sure that there are no leaks in the gas and air
lines.
2. Make sure all the components of the flame monitoring
control system are properly installed. This includes
verifying that all switches are installed in correct
locations and all wiring, pressure and impulse lines are
properly connected.
3. Make sure components of spark ignition system are
installed and functioning properly.
4. Make sure that the blower rotates in the correct
direction. If incorrect, have a qualified electrician rewire
the blower to reverse its rotation.
5. Make sure all valves are installed in the proper location
and correctly oriented relative to the gas or air flow
direction.
Set
Screws
Motor
Shaft
Control
Motor
Coupling
Washers
BV
Shaft
DANGER
NOTICE
Spark Rod
Spark Rod
Flame Rod or
UV Scanner
Location

9
Adjustment, Start
and Stop
32-00055—01
In this chapter you will find instructions on how to adjust a
system, and how to start and stop a system.
■Do not bypass any safety feature. You can cause
fires and explosions.
Step 1: Reset the System
1. Set the air flow switch so that it drops out at 20% below
the maximum pressure of the combustion air blower.
2. Set the low gas pressure switch at 20% below the gas
pressure measured at the inlet to the main gas valve
train.
3. Set the high gas pressure switch at 20% above the gas
pressure measured at the inlet to the main gas valve
train.
4. Close all the burner (and by-pass pilot, if applicable)
gas valves, manual and automatic.
5. Start the combustion air blower.
6. Try to ignite the burner; be sure the flame monitoring
system indicates a flame failure.
■Make sure blower rotates in the correct direction.
If incorrect, have a qualified electrician rewire the
blower to reverse it.
7. Activate the pressure switches and other limit
interlocks. Be sure the switches fail as intended in the
event of a power failure.
■If simulated limits or simulated flame failures do
not shut down the fuel system within the required
failure response time, immediately correct the
problem before proceeding.
8. Adjust main gas inlet pressure to the ratio regulator
within the range specified in the appropriate datasheet.
■Gas inlet pressures must stay within the specified
range. Pressure above the specified range can
damage the ratio regulator.
■Pressure below the specified range can impair the
ability of the ratio regulator to control the gas flow.
■Operating the system outside the specified range
can cause excess fuel consumption and the
possible accumulation of unburned fuel in the
tube.
■In extreme cases, this accumulation of unburned
fuel may cause fires or explosions.
9. With modulating air burners, verify that the actuator
opens the air BV towards the back of the burner as
shown. If it doesn’t, refer to the actuator’s literature for
instructions on how to reverse the direction.
Figure 4.1. Air BV
DANGER
CAUTION
DANGER
WARNING
Back
Open
Closed
Open in this
direction only
4

1032-00055—01
Step 2: Verify Air Flow
Figure 4.2. Pressure Tap Locations
1. Set the system to high fire, but DO NOT ignite the
burner(s).
2. Start the combustion air blower.
3. Use the data from the appropriate ImmersoPak
datasheet to find the static air pressure at high fire. This
is now the target value for high fire.
NOTE: Tube back pressure may limit the burner from
reaching the datasheet value.
NOTE: A pressure tap is open when the screw inside the
tap is unscrewed approximately half a turn.
a.Make sure that pressure tap A is open.
b.Connect the manometer to tap A.
c.Verify target value from step 3 above. Verify that the
slot on the end of the butterfly valve shaft (if
applicable) is parallel to flow (fully open). If
necessary, adjust the control motor travel for high
fire.
Step 3: Set low fire air
Figure 4.3. Air BV Adjustment
1. Start combustion air blower.
2. Drive control motor to low fire position.
3. Set low fire air.
a.Loosen the set screw on burner side of coupling
.
NOTE: There is a slot in the end of the BV shaft that is
parallel to the air damper. This slot is used for visual
indication of the BV position. The BV is closed when the
shaft slot is perpendicular to the direction of air flow
through the BV.
Figure 4.4. Air BV Shaft
b.Rotate air BV shaft to fully closed position. (Holes in
BV damper will supply low fire air.)
c.Hold BV shaft firmly in place and tighten set screw
.
4. Verify high fire air.
5. Return the control motor to the low fire position.
6. Close the pressure taps.
Step 4: Ignite the burner
■This procedure is written with the assumption the
burner has a flame monitoring control system
installed and operating. A proper purge cycle must
be part of the system and purge timing should not
be bypassed.
Determine system layout and use the applicable ignition
procedure. See Figure 4.5.
Tap "B"
8
(0.31)
Tap "D"
Tap "A"
Fixed Air
(Options 1,3 & 4)
Tap "A"
Modulating Air
(Option 2)


BV shaft shown in
closed position
WARNING

1132-00055—01

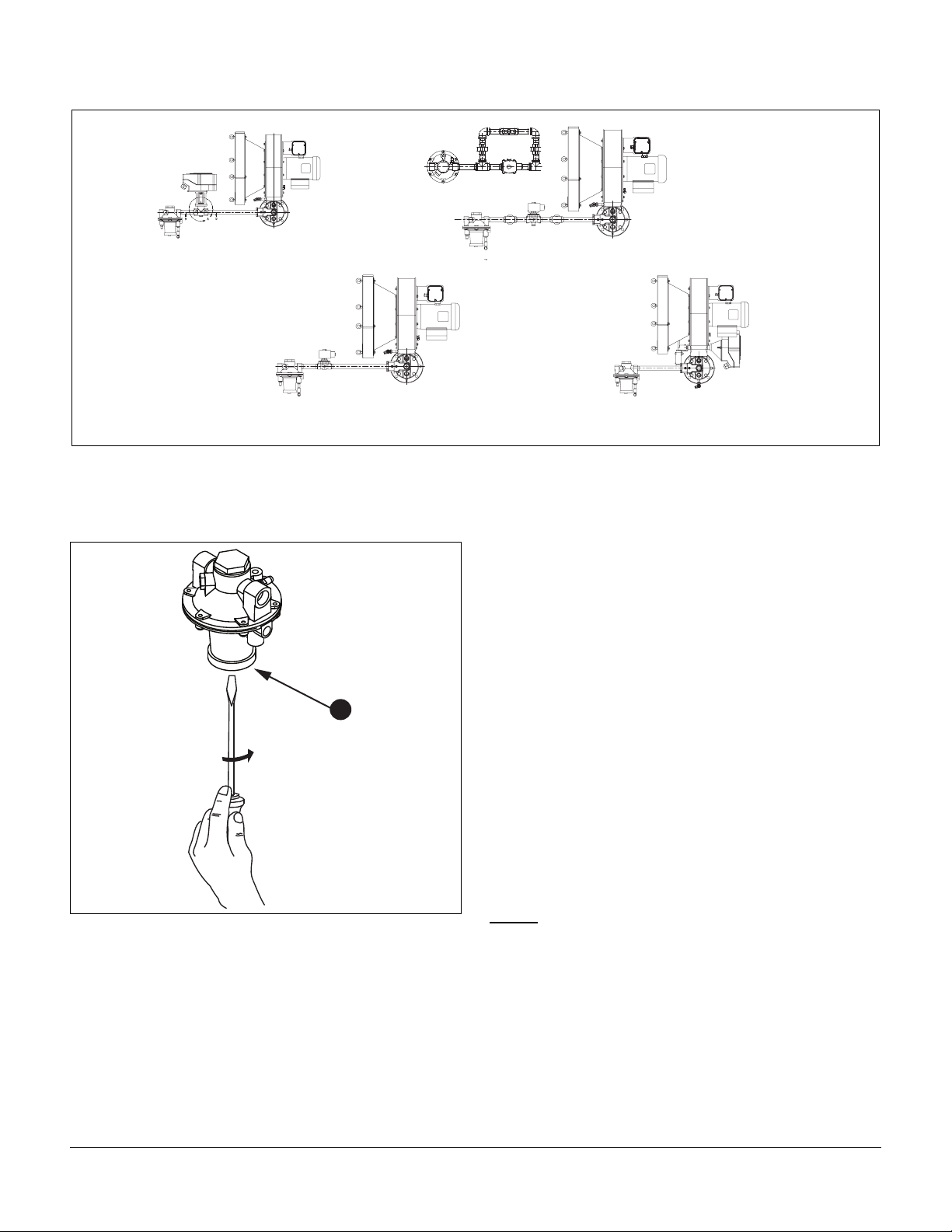

Figure 4.5. System Layout
Procedure A: Low fire start
(Modulating Air or Gas)
Figure 4.6. Ratio Regulator
1. Drive air or gas control motor to low fire.
2. Be sure combustion air blower is running.
3. Open main gas manual shut off valves.
4. Set system control to stay at low fire during and after
ignition sequence.
5. Attempt to ignite burner.
6. If burner does not ignite:
a.Attempt to ignite burner again to purge air from the
gas piping.
b.(Modulating Air)If burner still does not ignite, turn
bias adjusting screw a half turn counterclockwise
to increase gas flow.
(Modulating Gas)If burner still does not ignite,
adjust the control motor to incrementally increase
gas flow.
c.Attempt to ignite burner.
d.Repeat steps b and c until burner ignites. If
necessary, refer to Chapter 5 for troubleshooting
tips.
8. Flame signal strength: Adjust gas flow as described
above in step 7b to maintain a stable flame signal and
reliable ignition.
NOTE: If viewing the flame, it should be blue with flashes
of yellow. When firing propane or butane, a proper low fire
flame may have sustained flashes of yellow.
9. Verify low fire flame:
a.Shut off gas. Allow process to cool.
b.Verify repeatability of ignition and low fire flame
signal at cold conditions.
Modulating Air (Ratio Control)
Procedure A
Modulating Gas (Fixed Air)
Procedure A
Top View
(Low fire by-pass)
High-Off (Fixed Air)
Procedure B
High-Low (Fixed Air)
Procedure B
1
Bias
adjusting
screw
CCW for
more gas

1232-00055—01
Procedure B: Fixed Air
(High/Low or High/Off)
1. Be sure combustion air blower is running.
2. Be sure the main gas manual shut off valves are
closed.
3. Open adjustable limiting orifice gas cock in the low
fire bypass (if applicable).
4. Open the main gas manual shut off valves.
5. Attempt to ignite burner.
NOTE: Gas solenoid valve must be open for high/off
and closed for high/low.
6. If burner does not ignite:
a.Attempt to ignite burner again to purge air from the
gas piping.
b.(High/Low) If burner still does not ignite, turn
adjusting screw 4 a half turn counterclockwise to
increase gas flow.
(High/Off) There is no adjustment.
c.Attempt to ignite burner.
d.Repeat steps a, b and c until burner ignites. If
necessary, refer to Chapter 5 for troubleshooting
tips.

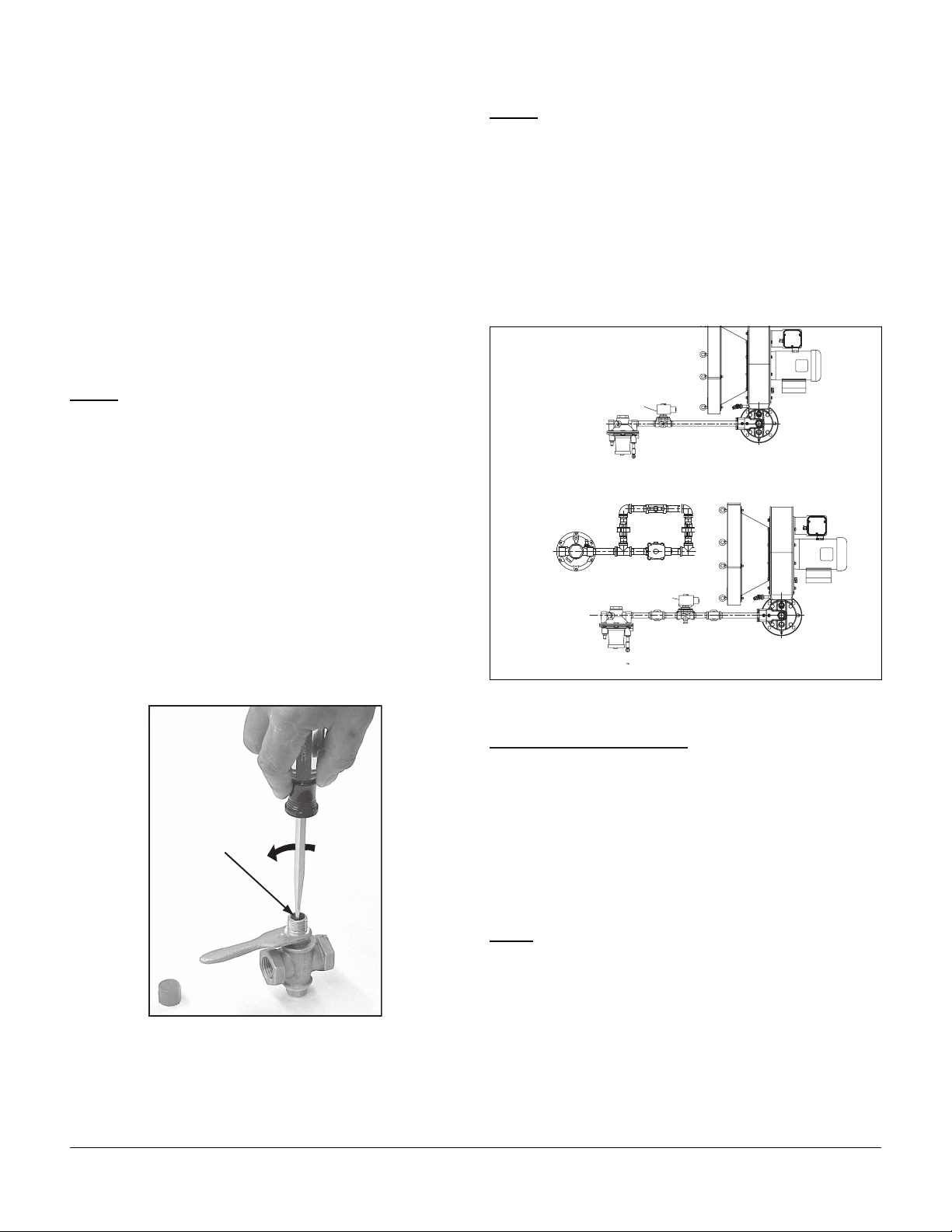

Figure 4.7. Adjustable Limiting Orifice, Gas Cock
8. Flame signal strength: Adjust bypass gas flow with
adjusting screw (if applicable) to maintain a stable
flame signal and reliable ignition.
NOTE: If viewing the flame, it should be blue with flashes
of yellow. When firing propane or butane, a proper low fire
flame may have sustained flashes of yellow.
9. Verify low fire flame (if applicable):
a.Shut off gas. Allow process to cool.
b.Verify repeatability of ignition and low fire flame
signal at cold conditions.
10.Shut down the system.
Figure 4.8.
Step 5: Verify Settings
1. With burner lit, go to high fire.
2. Wait for the process to reach normal operating
conditions.
3. Measure high fire fuel differential pressure between tap
“D” and tap “B”. Compare this to the “Fuel Orifice ∆P vs.
Input” graph in the datasheet for your burner.
NOTE: If modulating air or gas, adjustment of the control
motor to set high fire gas to the desired input /efficiency
calculated for your process is necessary.
4. Measure high fire air static pressure tap “A”. Compare
this pressure to the datasheet for your burner.
5. Go to low fire (if applicable) and verify low fire flame
signal and flame appearance (if viewing).
CCW for
more gas
Adjusting
Screw

Cap


High-Off (Fixed Air)
Top View
(Low fire by-pass)
High-Low (Fixed Air)

1332-00055—01
NOTE: Gas pressure at low fire will be too low to measure
and verify the fuel settings.
6. Cycle burner from high to low (if applicable) several
times to check repeatability of settings.
7. Readjust burner if the settings do not repeat as
expected. If necessary, refer to Chapter 5,
Maintenance & Troubleshooting.
8. Record all setup data as an aid for future
troubleshooting and setup operations.
■Do not turn the combustion air blower off
immediately.
■Allow time for the process to cool. This will
prevent hot gases from back flowing into the
burner and blower causing damage to the burner.
9. Stop the burner.
CAUTION

14
Maintenance and
Troubleshooting
32-00055—01
This chapter is divided into two sections:
• Maintenance procedures
• Troubleshooting guide
Maintenance
Preventive maintenance is the key to a reliable, safe and
efficient system. The core of any preventive maintenance
system is a list of periodic tasks. The following are
suggestions for a monthly list and a yearly list.
NOTE:The monthly list and yearly lists are an average
interval. If your environment is dirty, the intervals may be
shorter.
Monthly Checklist
1. Inspect flame-sensing devices for good condition and
cleanliness.
2. Check for proper inlet air/gas ratios.
3. Test all the alarm systems for proper signals.
4. Check ignition spark plugs and check proper gap.
5. Check valve motors and control valves for free, smooth
action and adjustment.
6. Check for proper operation of the ventilating
equipment.
7. Test the interlock sequence of all safety equipment;
manually make each interlock fail, noting that related
equipment closes or stops as specified by the
manufacturer.
8. Test flame monitoring control system by manually
shutting off gas to burner.
9. Test main fuel hand-valves for operation.
10.Clean or replace the combustion air blower filter.
Yearly Checklist
1. Test (leak test) safety shut-off valves for tightness of
closure.
2. Test air pressure switch settings by checking switch
movements against pressure settings and comparing
with actual impulse pressure.
3. Visually check ignition cable and connectors.
4. Inspect impulse piping for leaks.
5. Clean and inspect all the burners.
6. Remove and clean the orifice plates .
7. Make sure that the following components are not
damaged or distorted:
• burner nozzle
• spark plugs
• flame sensors
• flame tube or combustion block
5

1532-00055—01
The nozzle and combustion tube/block can be inspected
without removing the burner from the chamber wall or
entering the chamber. Perform the following:
a.Shut the burner off and manually close the main gas
shut off cocks.
b.Allow the chamber temperature to cool down to
250°F (121°C).
c.Disconnect the gas piping at a union or the gas inlet
flange provided on the burner.
d.Remove the four bolts .
e.Remove the rear cover from the burner housing
.
f.To re-assemble, follow this sequence in the reverse
order.
Troubleshooting Procedures




Problem Possible Cause Solution
Start-up sequence runs but
burner does not light.
No ignition; there is no power to the
ignition transformer.
Restore the power to the ignition
transformer.
No ignition; open circuit between the
ignition transformer and the igniter.
Repair or replace the wiring to the igniter.
No ignition; the igniter needs cleaning. Clean the igniter.
No ignition; the igniter is not correctly
grounded to the burner.
Clean the threads on the igniter and the
burner.
NOTE: Do not apply grease to the threads
on the igniter.
No ignition; igniter insulator is broken.
Igniter is grounding out.
Inspect the igniter. Replace if broken.
Not enough gas; the gas pressure going
into the ratio regulator is too low.
Check the start-up settings. Measure the
gas pressures and adjust where
necessary.
Not enough gas; the impulse line to the
ratio regulator is leaking.
Repair any leaks.
Not enough gas; the pilot adjusting valve
or bypass valve is not open far enough.
Adjust bypass or low fire gas.
Not enough gas; start gas solenoid valve
does not open.
Check the solenoid valve coil for proper
operation. Replace it if necessary.

1632-00055—01
Start-up sequence runs but
burner does not light.
(Continued)
Not enough gas; gas valve does not open. Check the wiring to the automatic gas
shut-off valve.
Check the output from the flame
safeguard.
Open manual gas cock.
Not enough gas; ratio regulator is
incorrectly set.
Adjust the ratio regulator to the proper
setting.
No flame signal; Broken flamerod or Dirty
UV scanner lens.
Inspect and clean sensor.
Replace if necessary.
No flame signal; spark plug and flamerod
reversed.
Exchange spark plug/flamerod or their
wiring.
Too much gas; wrong or missing burner
fuel orifice.
Check ImmersoPak Datasheets, series
360 for fuel orifice and the given fuel.
The low fire flame is weak or
unstable.
Not enough gas flowing to the burner. Adjust the ratio regulator to increase the
gas flow.
Not enough air. Check for proper blower rotation.
Check air filter for blockage.
Compensate for chamber by opening the
low fire air butterfly valve position.
The burner goes out when it
cycles to high fire.
Not enough gas pressure into the ratio
regulator.
Check the start-up settings.
Measure the gas pressures and adjust
them where necessary.
Check for valve train pressure loss.
Loading line to the ratio regulator is leaking. Repair the leak in the loading line.
The burner is erratic and does
not respond to adjustment.
Internal damage to the burner; some parts
inside the burner are loose, dirty, or
burned out.
Contact your Eclipse representative or
Eclipse for further information.
The burner is unstable or
produces soot, smoke, or
excessive carbon monoxide.
The air/gas ratio is out of adjustment. Measure all the gas pressures and air
pressures. Compare these pressures to
the documented initial start-up settings and
adjust them where necessary.
The burner cannot achieve full
capacity.
Air filter is blocked. Clean or replace the air filter.
Gas pressure going into the ratio regulator
is too low.
Adjust the gas pressure.
Tube back pressure is limiting
performance.
Review system design.
Problem Possible Cause Solution

1732-00055—01
Cannot initiate a start
sequence.
Air pressure switch has not made contact. Check air pressure switch adjustment.
Check air filter.
Check blower rotation.
Check outlet pressure from blower.
High gas pressure switch has activated. Check incoming gas pressure.
Adjust gas pressure if necessary.
Check pressure switch setting and
operation.
Low gas pressure switch has activated. Check incoming gas pressure.
Adjust gas pressure if necessary.
Check pressure switch setting and
operation.
Malfunction of the flame safeguard system
(e.g., shorted-out flame sensor or electrical
noise in the sensor line).
Have a qualified electrician troubleshoot
and correct the problem.
No power to the control unit. Have a qualified electrician troubleshoot
and correct the problem.
Main power is off. Be sure the main power to the system is
switched to the “on” position.
Problem Possible Cause Solution

Appendix
32-00055—01 18
Conversion Factors
Metric to English
Metric to Metric
English to Metric
From To Multiply By
actual cubic meter/h (am³/h) actual cubic foot/h (acfh) 35.31
normal cubic meter/h (Nm³/h) standard cubic foot /h (scfh) 38.04
degrees Celsius (°C) degrees Fahrenheit (°F) (°C x 9/5) + 32
kilogram (kg) pound (lb) 2.205
kilowatt (kW) Btu/h 3415
meter (m) foot (ft) 3.281
millibar (mbar) inches water column ("w.c.) 0.402
millibar (mbar) pounds/sq in (psi) 14.5 x 10-3
millimeter (mm) inch (in) 3.94 x 10-2
MJ/Nm³ Btu/ft³ (standard) 26.86
From To Multiply By
kiloPascals (kPa) millibar (mbar) 10
meter (m) millimeter (mm) 1000
millibar (mbar) kiloPascals (kPa) 0.1
millimeter (mm) meter (m) 0.001
From To Multiply By
actual cubic foot/h (acfh) actual cubic meter/h (am³/h) 2.832 x 10-2
standard cubic foot /h (scfh) normal cubic meter/h (Nm³/h) 2.629 x 10-2
degrees Fahrenheit (°F) degrees Celsius (°C) (°F - 32) x 5/9
pound (lb) kilogram (kg) 0.454
Btu/h kilowatt (kW) 0.293 x 10-3
foot (ft) meter (m) 0.3048
inches water column ("w.c.) millibar (mbar) 2.489
pounds/sq in (psi) millibar (mbar) 68.95
inch (in) millimeter (mm) 25.4
Btu/ft³ (standard) MJ/Nm³ 37.2 x 10-3

Notes
32-00055—01 19

Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
customer.honeywell.com
® U.S. Registered Trademark
© 2016 Honeywell International Inc.
32-00055—01 M.S. 09-16
Printed in United States
