Series 41 and 81
Modutrol IV™ Motors
APPLICATION
The Series 41 and Series 81 Modutrol IV Motors are
2-position (line- and low- voltage, respectively) spring-return
motors. They are used to operate dampers or valves in
applications where it is necessary or desirable to have the
controlled element return to the starting position in the event
of power failure or interruption.
FEATURES
• Used to replace M445, M845 and M865 motors.
• Models rated for 25 lb.-in. or 60 lb.-in. torque.
• Integral spring return returns motor to normal position
(open or closed) when power is interrupted.
• Oil immersed motor and gear train for reliable
performance and long life.
• Wiring box provides NEMA 3 weather protection.
• Motor operates from 24 Vac. Models are available
with factory installed transformer, or an internal
transformer can be field added.
• Quick-connect terminals are standard—screw terminal
adapter is available.
• Adapter bracket for matching shaft height of older
motors is standard with TRADELINE motors.
• TRADELINE motors have field adjustable stroke
(90° to 160°).
• Die-cast aluminum housing.
• Motors are designed for either normally open or
normally closed valves and dampers.
• Integral auxiliary switches are available factory
mounted, or can be field added to TRADELINE models.
• TRADELINE motors may operate valve linkages from
the power end or auxiliary end shafts for normally
closed or normally open valve applications.
Contents
Application ........................................................................ 1
Features ........................................................................... 1
Specifications ................................................................... 2
Ordering Information ........................................................ 2
Installation ........................................................................ 4
Settings and Adjustments ................................................. 7
Operation and Checkout .................................................. 10
Replacement .................................................................... 11

SERIES 41 AND 81 MODUTROL IV™ MOTORS
63-2187—3 2
ORDERING INFORMATION
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the
TRADELINE® Catalog or price sheets for complete ordering number.
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Home and Building Control Sales Office (check white pages of your phone directory).
2. Home and Building Control Customer Relations
Honeywell, 1885 Douglas Drive North
Minneapolis, Minnesota 55422-4386 [phone]
In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.
International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,
Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
SPECIFICATIONS
Models: TRADELINE models are selected and packaged to
provide ease of stocking, ease of handling and maximum
replacement value. TRADELINE model specifications are the
same as those of standard models unless specified otherwise.
TRADELINE models have auxiliary switch cams.
NOTE: Auxiliary switches can only be added to motors that
include auxiliary switch cams. (These cams cannot
be field-added.)
Modutrol IV Order Number Guide: See Table 1.
Dimensions: See Fig. 1.
Crankshaft: 3/8 in. (9.5 mm) square.
Electrical Ratings: See Table 2.
Controller Type: Two wire, on-off switching action.
Auxiliary Switch Ratings: See Table 3.
Table 1. Series 41 and Series 81 Modutrol IV Order Number Guide.
aElectrically normally closed. Shaft rotates clockwise (viewed from the power end) with control signal increase.
Motor drives to normally closed position when powered with control wiring not connected.
bElectrically normally open. Shaft rotates counter-clockwise (viewed from the power end) with control signal increase.
Motor drives to normally open position when powered with control wiring not connected.
MMotor
41 Series 41, line voltage, two-position control
81 Series 81, low voltage, two-position control
725 lb-in. torque
860 lb-in. torque
2Normally ClosedaSpring Return, single-ended shaft
5Normally ClosedaSpring Return, dual-ended shaft
6Normally OpenbSpring Return, dual-ended shaft
A0 Auxiliary Switches Fixed Stroke Normally Closeda
B1 Auxiliary Switch
C2 Auxiliary Switches
D0 Auxiliary Switch Adjustable Stroke
E1 Auxiliary Switch
F2 Auxiliary Switches
G0 Auxiliary Switch Fixed Stroke Normally Openb
H1 Auxiliary Switch
J2 Auxiliary Switches
K0 Auxiliary Switch Adjustable Stroke
L1 Auxiliary Switch
M2 Auxiliary Switches
M 81 8 5 A XXXX See Catalog for Complete O.S. Number

SERIES 41 AND 81 MODUTROL IV™ MOTORS
3 63-2187—3
Fig. 1. Series 41 and Series 81 Modutrol IV Motor mounting dimensions in in. (mm).
Dead Weight Load On Shaft (maximum):
Power or Auxiliary End: 200 lb. [90.8 kg].
Combined Load: 300 lb. [136 kg]. (Dual-stroke motors only.)
Maximum Damper Rating [B Dimension]:
25 lb.-in. Models: 68 in.
60 lb.-in. Models: 34 in.
NOTE: The B dimension is the length of the damper side
perpendicular to the drive shaft.
Ambient Temperature Ratings:
Maximum: 150°F (66°C).
Minimum: -40°F (-40°C).
Torque and Timing: See Table 4.
Approvals:
Underwriters Laboratories Inc. Listed: File No. E4436, Guide
No. XAPX.
Canadian Standards Association Certified: General listed File
No. LR1620, Guide No. 400-E.
Accessories:
198162AA Internal Transformer; 120/208/240 Vac 50/60 Hz
primary, 24 Vac secondary.
198162EA Internal Transformer; 120 Vac 50/60 Hz primary,
24 Vac secondary.
198162GA Internal Transformer; 220 Vac 50/60 Hz primary,
24 Vac secondary.
198162JA Internal Transformer; 24 Vac 50/60 Hz primary,
24 Vac secondary (for electrical isolation).
220736 Internal Auxiliary Switch Kit can be field-installed
on TRADELINE models. One- (220736A) and Two-
(220736B) switch kits available.
220738A Adapter Bracket raises motor shaft height by 19 mm
to match that of previous Modutrol®Motor models.
220741A Screw Terminal Adapter converts the standard
quick-connect terminals to screw terminals.
221455A Infinitely Adjustable Crank Arm approximately
0.75 in. shorter than the 4074ELY Crank Arm, can rotate
through downward position and clear motor base without
requiring adapter bracket.
4074ERU Weatherproofing Kit provides NEMA 3 rating for
Modutrol IV Motors mounted in position other than upright.
M17711
4-7/8
(124)
5-1/2
(140)
13/16
(20)
4-1/16 (103)
1/4
(7)
1-1/2 (37)
4-1/16 (103)
WIRING
BOX
BASE
MOTOR
AUXILARY
END
POWER
END
ADAPTER
BRACKET
2-9/16
(66)
5-3/8
(137)
6-7/16
(164)
9/16 (15)
3/4
(19)
TOP VIEW OF BRACKETTOP VIEW
4-5/8
(116)
4-1/4
(107)
2-5/16
(58)
11/16
(17)
4-7/8 (124)
5-9/16 (141)
1/4 (7)
5-13/16
(148)
2
POWER END
SOME MODELS DO NOT HAVE AN AUXILIARY
SHAFT. ALL OTHER DIMENSIONS ARE THE SAME.
FOR HIGH TORQUE (60 LB-IN.) SPRING RETURN
MODELS 8-3/4 (222); FOR LOW TORQUE (25 LB-IN.)
SPRING RETURN MODELS 8-1/4 (210).
FOR HIGH TORQUE (60 LB-IN.) SPRING
RETURN MODELS (SHOWN).
FOR LOW TORQUE (25 LB-IN.) SPRING
RETURN MODELS.
1
2
3
4
1
3
4

SERIES 41 AND 81 MODUTROL IV™ MOTORS
63-2187—3 4
Accessories (continued):
4074EZE Bag Assembly with parts to provide CE compliance.
7617ADW Crank Arm approximately 0.75 in. shorter than
7616BR Crank Arm. Can rotate through downward position
and clear motor base without requiring adapter bracket.
ES650-117 Explosion-Proof Housing encloses motor for use
in explosive atmospheres. Not for use with Q5001 (or any
other valve linkages). Order separately from O-Z/Gedney
Inc. To order, contact: O-Z/Gedney, Nelson Enclosures and
Controls, [phone] or [phone]; or write to:
O-Z/Gedney, Nelson Enclosures and Controls
P.O. Box 471650
Tulsa, OK 74147-1650
Requires Honeywell 7617DM Coupling.
Q100 Linkage connects Modutrol®motor to V51 Butterfly
Valve. Requires the 220738A Adapter Bracket (packed
with TRADELINE Modutrol IV motors).
Q5001 Bracket and Linkage Assembly connects Modutrol
motor to a water or steam globe valve.
Q605 Damper Linkage connects motor to damper. Includes
motor crank arm.
Q607 External Auxiliary Switch controls auxiliary equipment
as a function of motor position.
Table 2. Electrical Ratings.
Table 3. Auxiliary Switch Ratings.
a40 VA pilot duty, 120/240 Vac on opposite contact.
Table 4. Torque and Timing.
INSTALLATION
When Installing this Product...
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous
condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short equipment
circuitry.
Disconnect all power supplies before installation.
Motors with auxiliary switches can have more than
one disconnect.
CAUTION
Equipment Damage Hazard.
Can damage the motor beyond repair.
Never turn the motor shaft by hand or with a wrench.
Forcibly turning the motor shaft damages the gear
train and stroke limit contacts.
Location
Allow enough clearance for installing accessories and motor
servicing when selecting a location (see Fig. 1). If located
outdoors, use liquid-tight conduit connectors with the junction
box to provide NEMA 3 weather protection. If mounted
outdoors in a position other than upright, install a 4074ERU
Weatherproofing Kit and liquid-tight connectors to provide
NEMA 3 protection.
CAUTION
Motor Damage Hazard.
Deteriorating vapors and acid fumes can damage
metal parts.
Install motor in areas free of acid fumes and other
deteriorating vapors.
In excessive salt environments, mounting base and screws
should be zinc or cadmium plated, not stainless steel or
brass. Use the 220738A Adapter Bracket for mounting on
these surfaces.
Voltage (at
50/60 Hz)
Current
Draw (A)
Power Consumption
(VA) (W)
Without
Transformer
24 0.86 21 20
With Internal
Transformer
24 1.25 30 25
120 0.25
208 0.14
240 0.13
One Contact Ratinga(Amps) 120 V 240 V
Full Load 7.2 3.6
Locked Rotor 43.2 21.6
Torque lb-in.
(N-m)
Timing (sec.)
90°Stroke 160°Stroke
M8175 25 (2.8) 30 60
Other models 60 (6.8)

SERIES 41 AND 81 MODUTROL IV™ MOTORS
5 63-2187—3
Mounting
Use the following guidelines for proper motor mounting:
• Always install motors with the crankshaft horizontal.
• Mounting flanges extending from motor housing base are
drilled for 6.4 mm machine screws or bolts.
• Motors are shipped from the factory in their normal position:
— Normally closed models are shipped at the counter-
clockwise rotation limit (viewed from the power end).
— Normally open models are shipped at the clockwise
rotation limit, (viewed from the power end).
NOTE: Refer to Fig. 2 for graphical representation of
fully-open and fully-closed positions.

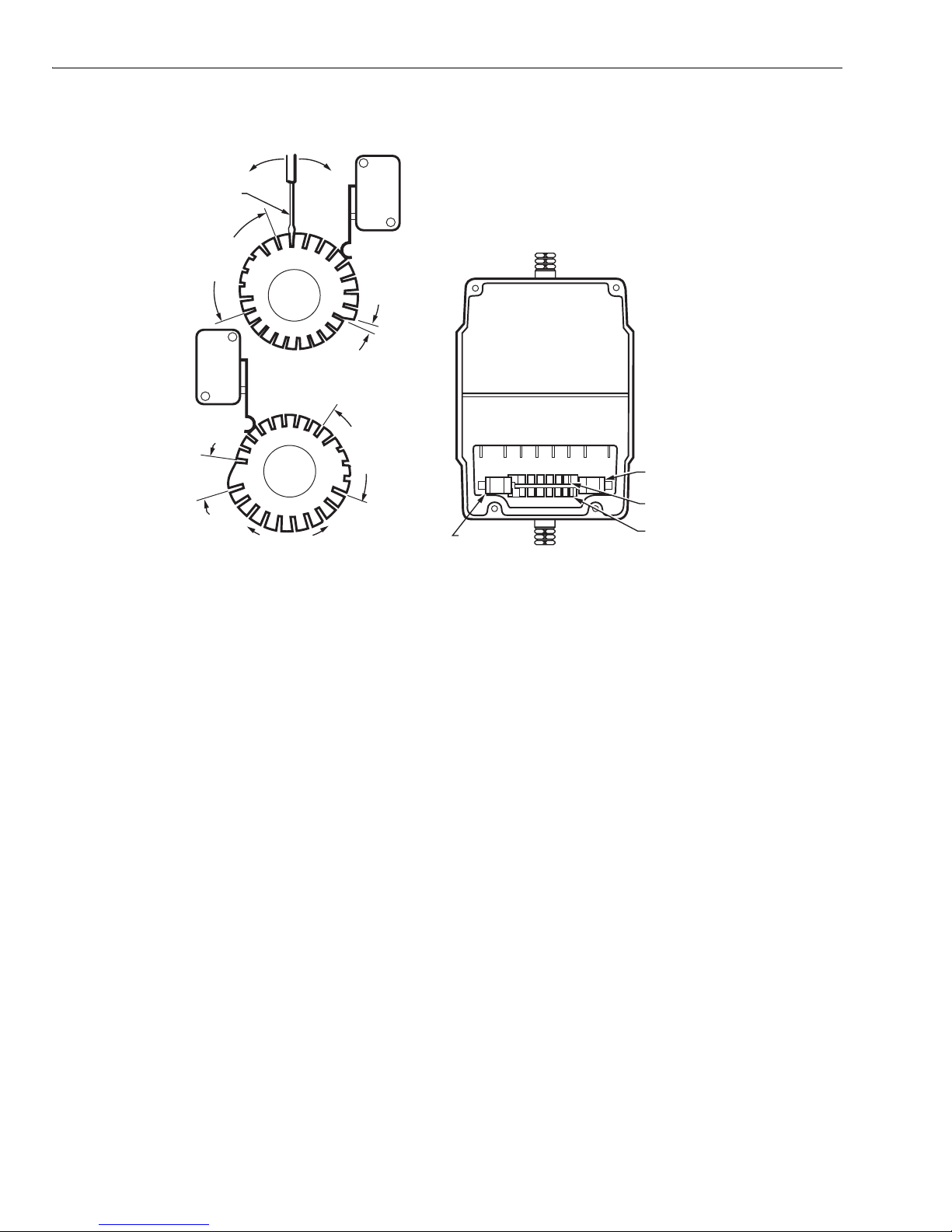

Fig. 2. Motor shaft positions at stroke limits
(viewed from power end).
Adapter Bracket
The 220738A Adapter Bracket, positioned between the motor
and the equipment, raises motor shaft height by 19 mm to
match that of previous Modutrol®Motor models.
The following applications require this bracket:
• Q607 External Auxiliary Switch.
• Damper linkage applications require added clearance to
allow:
— Crank arm rotation through the downward position.
— Sufficient damper linkage to reach the motor shaft.
• All valve linkages except the Q5001.
NOTE: When the bracket is not used in a replacement
application, the damper linkage can require
adjustment for the new shaft position.
To mount the motor with the bracket:
1. Mount the bracket to the equipment with existing or
standard bolts.
2. Using the provided bolts, mount the motor to the bracket
threaded holes. See Fig. 3.
For valve linkage applications (other than the Q5001):
1. Mount the bracket to the linkage.
2. Position the motor on the bracket to align the motor
shaft with the linkage.
3. Attach the motor to the bracket with the four bolts
(provided).
NOTE: The bolts go through the motor flange holes
and into the threaded holes of the bracket.
Fig. 3. Mounting the motor with an adapter bracket.
FULLY
OPEN
FULLY
CLOSED
VERTICAL
REFERENCE
10
90
90 DEGREE STROKE
FULLY
OPEN
FULLY
CLOSED
VERTICAL
REFERENCE
10
160
160 DEGREE STROKE
M17712
EQUIPMENT
BASE
ADAPTER
BRACKET
STANDARD
BOLTS (4)
MOTOR
BOLTS
PROVIDED (4)
No. 12 OR 1/4 in. ZINC PLATED
MACHINE SCREWS OR BOLTS
1
1
POWER END
POWER END
M17715
WIRING BOX

SERIES 41 AND 81 MODUTROL IV™ MOTORS
63-2187—3 6
Damper Linkages
A 220738A Adapter Bracket is packed with TRADELINE
motors. Use of this bracket is optional for many damper
applications. This bracket or a 221455A Crank Arm might be
needed in applications that require the crank arm to rotate
through the motor bottom plane.
NOTE: Replacement applications where the shaft height
changes require damper linkage adjustment.
The motor is supplied without a crank arm. The crank arm is
included in the Q605 Linkage or can be ordered separately
(see Accessories in the Specifications section).
For detailed instructions on specific linkage assembly, refer to
the instruction sheet packed with the linkage. In general,
however, check the following points of operation when
installing a motor and linkage:
— The motor must be permitted to complete its full stroke.
Damper or valve induced motor stall can damage the
motor. Adjust valve and louver-type damper linkages so
that the damper or valve moves through no more than the
maximum required distance when the motor moves
through its full stroke.
— Maximum damper opening should be no more than 60°.
Little additional airflow is provided beyond this point.
— Do not exceed the motor ratings in any installation.
— Do not turn the motor shaft manually or with a wrench.
This damages the motor.
Valve Linkages
Use the 220738A Adapter Bracket with the Q100 Linkage in
all valve applications. The 220738A Adapter Bracket is not
required with the Q5001 Valve Linkage (see Fig. 4).

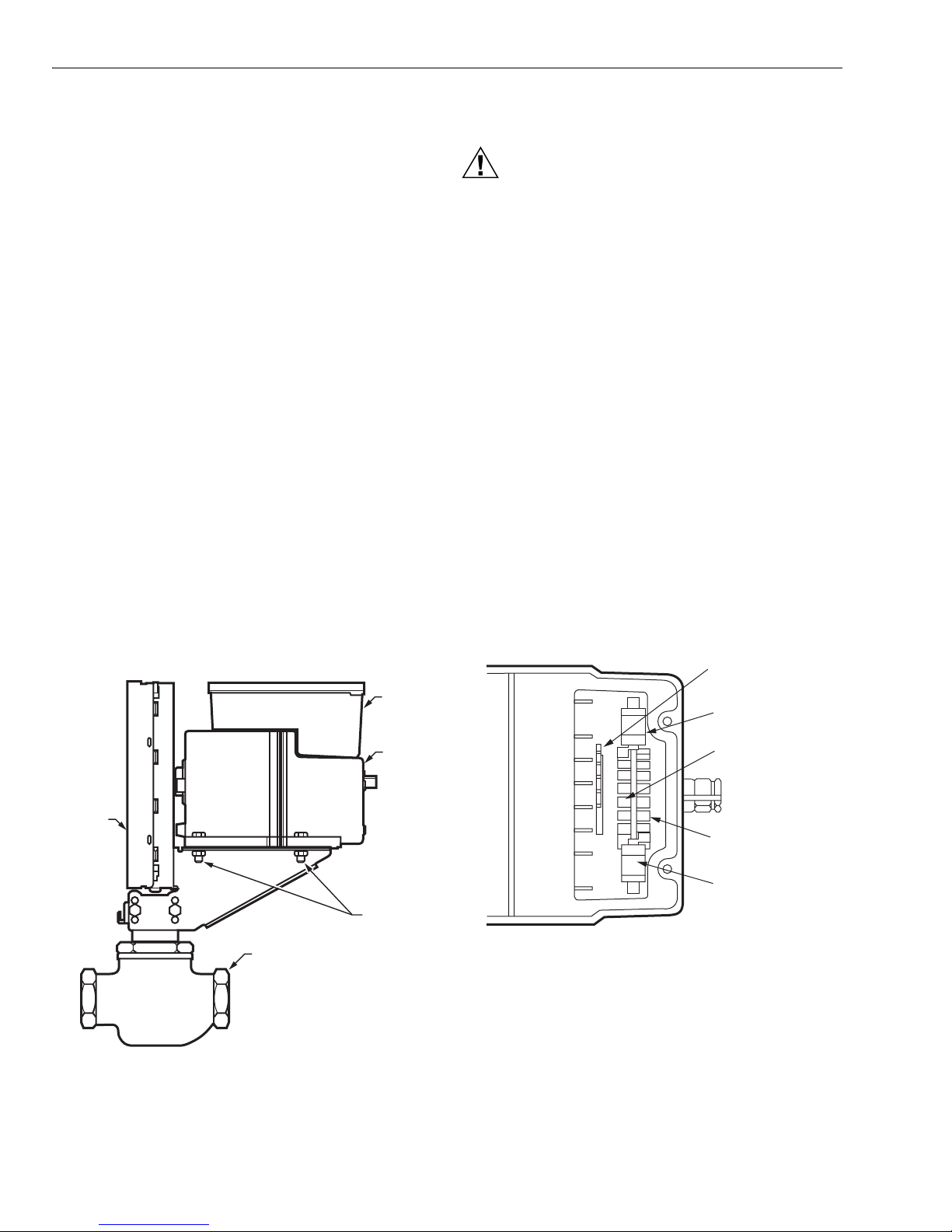

Fig. 4. Mounting the motor on a Q5001 valve linkage.
Wiring
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short equipment
circuitry.
Disconnect all power supplies before installation.
Motors with auxiliary switches can have more than
one disconnect.
IMPORTANT
All wiring must agree with applicable codes,
ordinances and regulations.
Make sure that the voltage and frequency stamped on the
motor correspond to the power supply characteristics.
Fig. 5 shows the motor terminals (quick-connects located on
top of the printed circuit board). Wiring compartment access is
gained by removing the four screws from the wiring box top
and lifting off the cover.
See Fig. 6 through 10 for typical system wiring. Fig. 12 shows
auxiliary switch connections.
Wiring Box
When used with liquid-tight conduit connectors, the wiring box
provides NEMA 3 weather protection for the motor. The box
also provides knockouts for wiring conduits and encloses
terminals. The wiring box is required for housing an internal
transformer or internal auxiliary switches.
Fig. 5. Terminals and adjustments.
1/4-20 UNC
1 in. LONG
MOUNTING
BOLTS
Q5001
VALVE
LINKAGE
M17092
MOTOR
WIRING
BOX
POWER
END OF
MOTOR
VALVE
RIGHT INNER
AUXILIARY
SWITCH
INNER AUXILIARY
SWITCH CAM (BLUE)
POWER
END
OUTER AUXILIARY
SWITCH CAM (RED)
LEFT OUTER
AUXILIARY
SWITCH
Note: Features available on some models only. M860
T2
T1
STROKE ADJUSTMENT
CAM (BROWN)

SERIES 41 AND 81 MODUTROL IV™ MOTORS
7 63-2187—3

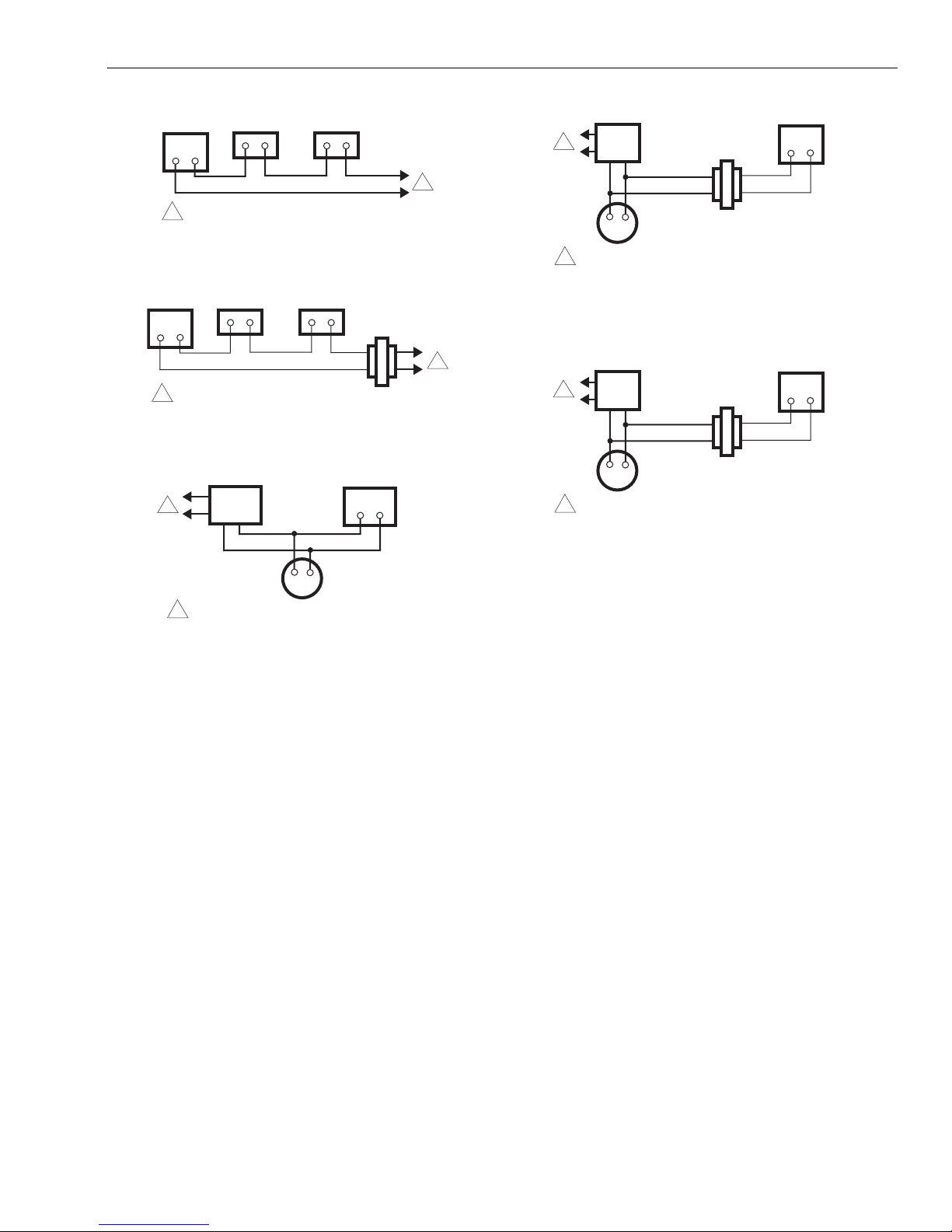

Fig. 6. Typical connections for Series 41 Motors.
Fig. 7. Typical connections for Series 81 Motors.
Fig. 8. Power connections for Series 41 Line Voltage
Motors controlling two-position outside air dampers.
Fig. 9. Power connections for Low Voltage Motors
controlling two-position outside air dampers.
Fig. 10. Wiring connections for Series 81 Motors
controlling two-position pre-heat coil valves.
SETTINGS AND ADJUSTMENTS
Stroke Setting
On adjustable stroke motors, the stroke is field adjustable and
can be set between 90° and 160°. A mechanical adjustment
(cam) establishes the fully open (clockwise, viewed from the
power end) and fully closed positions of the motor shaft
(see Fig. 2). TRADELINE motors are factory set for 160°.
IMPORTANT
— Detach linkage from motor before adjusting stroke.
— Instructions are for normally closed models. Reverse
for normally open.
Before Setting Stroke
1. Remove top cover from motor.
2. Disconnect controller from motor.
MOTOR
1
1
M806
A
THERMOSTAT LIMIT CONTROL
POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
MOTOR
1
M807A
THERMOSTAT LIMIT CONTROL
TRANSFORMER
1POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
MOTOR
1
M808A
MOTOR
STARTER
BLOWER
1POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
24V
MOTOR
1
M809A
TRANSFORMER
MOTOR
STARTER
BLOWER
POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
1
24V
MOTOR
1
M809A
TRANSFORMER
MOTOR
STARTER
BLOWER
POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
1

SERIES 41 AND 81 MODUTROL IV™ MOTORS
63-2187—3 8
Setting Stroke (Fig. 11)
CAUTION
Motor Damage Hazard.
Pressing screwdriver against sides of cam slots or
use of excessive force can damage the cams.
Set cams by moving top of screwdriver only.
1. Drive the motor to its fully open position by applying
24 Vac across terminals T1 and T2.
2. Insert 1/8 in. screwdriver blade into brown cam slot and
move top of screwdriver handle clockwise, to the right,
(allowing motor to reposition after each adjustment) until
motor reaches desired position.
NOTE: Each cam click is approximately a 2° rotation.
3. If motor turns beyond desired position, do not move
the cam:
a. Allow the motor to spring return fully closed by
disconnecting power.
b. Move the cam back to the left (counterclockwise).
c. Repeat steps 1, 2 and 3.
4. Replace the motor cover.
Fig. 11. Stroke adjustments.
Auxiliary Switches
The auxiliary switches are spdt switches that are actuated by
adjustable cams. The cams are factory-mounted on the motor
shaft at the power end of the motor. The cam settings
determine the point in motor shaft rotation at which the
auxiliary equipment will be switched on or off. These cams
can be set to actuate the switches at any angle within the
motor stroke.
NOTE: For auxiliary switch wiring, see Fig. 12.
With a 1° differential, the N.C. switch contacts make and the
N.O. switch contacts break on a counterclockwise (closed)
rotation. If a 10° differential is chosen, the operation is
reversed, the N.O. switch contacts make and the N.C. switch
contacts open on a counterclockwise (closed) rotation.
NOTE: When the slow-rise portion of the cam is used, the
switching differential is approximately 10° of rotation.
When the fast-rise portion of the cam is used, the
switching differential is approximately 1° of rotation.
Do not use the fast rise portion of the cam if fast
cycling of auxiliary equipment is undesirable.
Switching action is different depending on whether 1° or 10°
differential is chosen. See Table 3.
Fig. 12. Auxiliary switch schematic.
WARNING
Fire or Explosion Hazard.
Incorrect auxiliary switch wiring can allow the
burner to come on at high fire causing severe
injury or death.
Check auxiliary switch wiring and cam adjustment
before turning on the system.
Watch controlled equipment through a complete cycle.
Shut the system down immediately if switches do not
sequence the equipment correctly.
Auxiliary Switch Adjustment
Adjustable cams actuate the auxiliary switches. These cams
can be set to actuate the switches at any angle within the
stroke of the motor. Select switch differential of 1° or 10°.
OUTER STROKE
ADJUST CAM
OUTER STROKE ADJUST CAM IS ONLY
PRESENT ON HIGH TORQUE MOTORS.
M17100
POWER END
OF MOTOR
INNER STROKE
ADJUST CAM
AUXILIARY
SWITCH CAMS
MOVE SCREWDRIVER AT
TOP ONLY TO ADJUST CAM.
1/8 INCH
STRAIGHT-BLADE
SCREWDRIVER
CAM
1
2
1
2
TORQUE
NO. OF
CAMS
CAM
COLOR
HIGH
LOW
2
1
YELLOW
BROWN
BLUE LEAD YELLOW LEAD
RED LEAD
USE NEC CLASS 1 WIRING UNLESS POWER SUPPLY
MEETS CLASS 2 REQUIREMENTS. TAPE UNUSED LEADS.
ENSURE THE CURRENT DRAW OF THE EXTERNAL CIRCUIT
IS LESS THAN SWITCH CONTACT RATING.
ON TWO-SWITCH MOTORS, SECOND SWITCH HAS BLACK
LEADS WITH BLUE, YELLOW, AND RED TRACERS.
SOME AUXILIARY SWITCH ASSEMBLIES INCLUDE ONLY
RED AND YELLOW LEADS. SOME OTHERS DO NOT INCLUDE
THE YELLOW LEAD.
M17099
1
1
1
2
2
2
2
3
3

SERIES 41 AND 81 MODUTROL IV™ MOTORS
9 63-2187—3
CAUTION
Equipment Damage Hazard.
Can damage the motor beyond repair.
Never turn the motor shaft by hand or with a wrench.
Forcibly turning the motor shaft damages the gear
train and stroke limit contacts.
NOTES:
— Auxiliary switches can only be added to motors
that include auxiliary switch cams. (These cams
cannot be field-added.)
— Normally Closed motors are shipped in the closed
position (counterclockwise, viewed from the
power end) with auxiliary switch cams set to
operate switches 30° from closed position with a
1° differential. With motor in fully closed position,
the N.C. auxiliary switch contacts are closed.
— Normally Open motors are shipped in the open
position (clockwise, viewed from the power end).
— See Fig. 12 (or the auxiliary switch Instruction
Sheet) for auxiliary switch wiring.
— TRADELINE motors are shipped with auxiliary
switch cams that permit acceptance of 220736A,B
Internal Auxiliary Switch Kits. Refer to form 63-
2228 for kit installation instructions.
To rotate a cam, insert a small screwdriver (1/8 in. or 3 mm
blade) through the wiring box into the slot on the cam and
move the screwdriver at the top of the handle. The inner cam
actuates the right switch and the outer cam actuates the left
switch (viewed from the power end). Refer to Fig. 11. Each
division on the cam represents 15° of motor rotation.
1. Turn off the power and remove the wiring box cover.
2. Determine the amount of shaft rotation, in degrees,
desired before the switch is to be energized.
3. Note the cam slot positions.
4. With a screwdriver, rotate the cam to the desired angle
for switching action. As noted above, each cam division
represents 15° of motor rotation. Therefore, if 60° of
motor rotation is desired before the switch operates,
rotate the cam four divisions from the reference point.
5. Turn on the power.
6. Check for proper switch differential and switching of
auxiliary equipment by driving the motor though full
stroke (in both directions). If necessary, repeat steps 3
and 4 until correct switching action is obtained, turning
off the power before readjusting the cam.
7. When adjustments are complete, replace the wiring box
cover.
Table 5. Auxiliary Switch Position with Motor Shaft Rotated to Either Side of Auxiliary Switch Operating Point
Switch
Differential
Auxiliary Switch Contact Positions (Viewed from the Power End)
N.O. Contact N.C. Contact
Shaft Rotated ccw of
Switch Point
Shaft Rotated cw of
Switch Point
Shaft Rotated ccw of
Switch Point
Shaft Rotated cw of
Switch Point
1° Open Closed Closed Open
10° Closed Open Open Closed

SERIES 41 AND 81 MODUTROL IV™ MOTORS
63-2187—3 10
Fig. 13. Auxiliary switch adjustments.
OPERATION AND CHECKOUT
Operation
In an operational circuit, a single-pole, single-throw controller
or fan starter (line voltage for Series 41, or low voltage for
Series 81) is wired in series with the motor circuit. When the
controller switch closes, the motor is energized and runs to
the end of its stroke. At this point, the internal motor limit
switch opens, de-energizing the motor. The brake solenoid is
energized, however, and remains so as long as the controller
is closed. The brake holds the motor in the energized position
until the controller opens. At this point, the brake is released
and the spring returns it to the starting position.
Checkout
After the installation is complete, check the entire system for
the following points of operation:
• Motor operates the load properly.
• Motor responds properly to the controller.
• Motor returns to starting position when power is interrupted.
Damper Application
1. Check the entire motor-damper linkage to ensure that
the mechanical connections are secure and properly
made. Be certain the ball joint on the damper crank arm
is properly placed to give the required amount of travel.
2. Energize the motor and run it to the end of its stroke.
Check the damper linkage while the motor is running to
see that there are no loose or binding connections.
3. If the motor does not run, check the control circuit for an
open or short, the presence of power, and voltage at the
motor. Voltage at the motor must be at least 85 percent
of the rated voltage (specified on nameplate.) Ensure
that the maximum motor net load is not exceeded.
4. Interrupt the power to de-energize the motor and allow
the spring to return the motor to the starting position. If
the motor does not return, check to ensure that power is
actually interrupted and that the return load is not
exceeding the rated motor load.
RIGHT/INNER
AUXILIARY
SWITCH
FAST RISE
PORTION
(APPROX.
1 DIFF.)
SLOW RISE
PORTION
(APPROX.
10 DIFF.)
INNER
AUXILIARY
CAM
(BLUE)
NOTE: CAMS ARE OFFSET
VERTICALLY TO PROVIDE
BETTER VIEW OF BACK CAM.
FAST RISE
PORTION
(APPROX.
1 DIFF.)
SLOW RISE
PORTION
(APPROX.
10 DIFF.)
MOTOR
OPEN
MOTOR
CLOSE
POWER
END
OUTER
AUXILIARY
CAM
(RED)
LEFT/OUTER
AUXILIARY
SWITCH
M17101
POWER END
OF MOTOR
OUTER AUXILIARY
CAM (RED)
INNER AUXILIARY
CAM (BLUE)
RIGHT/INNER
AUXILIARY SWITCH
LEFT/OUTER
AUXILIARY
SWITCH
MOVE SCREWDRIVER AT
TOP ONLY TO ADJUST CAM.
1/8 INCH
STRAIGHT-BLADE
SCREWDRIVER

11 63-2187—3
Valve Application
1. Check entire motorized valve assembly to ensure that
the mechanical connections (among motor, linkage, and
valve) are proper and secure. Be certain that the linkage
is adjusted according to the linkage instructions. Leave
the linkage cover off until the checkout is completed.
2. Be certain the load does not exceed the motor rating.
When using a Q5001 Linkage, no lubrication is
required. Install the plastic washer on the motor shaft
between the motor and cam to avoid motor binding and
stalling. Check to ensure that the linkage spring
compression is within the limits specified in the Q5001
Installation Instructions.
3. Energize the motor by setting the controller so that its
contacts close.
NOTES:The motor should start and run smoothly,
moving the valve stem to the opposite end of
its stroke. If this is not the case:
—Ensure there is power to the motor.
—If there is not power, check the controller
circuit for open or short circuits.
—If the trouble still cannot be found, measure
the voltage at the source.
—Line voltage must be at least 85 percent of
rated voltage stamped on motor nameplate.
4. De-energize motor by resetting the controller so its
contacts open, or remove one wire from a controller
terminal. Spring power should return the valve to normal
position. If this does not happen, check the linkage for
binding, or in the case of normally closed valves, check
for fluid pressure in excess of the close-off rating.
5. Replace the linkage cover.
REPLACEMENT
Damper Application
1. Turn off power and remove wiring from the old motor.
2. Remove crank arm from the old motor shaft and remove
the old motor.
3. Check to determine whether or not the mounting
bracket is needed. If the linkage can reach the new
motor lower shaft position and the crank arm has
clearance for the necessary rotation, then the bracket is
not required. Use the 220738A Adapter Bracket or the
221455A Crank Arm if the crank arm must rotate
through the motor bottom plane.
4. If no bracket is required, mount the new motor directly
to the equipment and refer as necessary to Installation,
Settings and Adjustments, and Operation and Checkout
sections of these instructions.
5. If the bracket is required, refer to the Adapter Bracket
section and see Fig. 3 in addition to the Installation,
Settings and Adjustments, and the Operation and
Checkout sections of these instructions.
6. Use old mounting bolts to mount the new motor.
7. Mount the damper crank arm and linkage to the shaft of
the new motor.
8. Use the Checkout procedures to test proper adjustment
of the crank arm and linkage.
Valve Application
When replacing a motor in a valve application that has a
Q100, Q601 or Q618 Linkage, it will be necessary to use the
220738A Adapter Bracket provided to raise the motor shaft to
the same height as that of the old motor. In valve applications
that have a Q5001 Linkage, the 220738A Adapter Bracket is
unnecessary. Ensure motor stroke is 160° to operate
Honeywell V5011 Two-way or V5013 Three-way Valves.

63-2187—3 B.B. Rev. 10-00 www.honeywell.com/building/components
Home and Building Control Home and Building Control Honeywell Asia Pacific Inc. Honeywell Europe S.A. Honeywell Latin American
Honeywell Honeywell Limited-Honeywell Limitée Room 3213-3225 3 Avenue du Bourget Region
1985 Douglas Drive North 35 Dynamic Drive Sun Hung Kai Centre 1140 Brussels 480 Sawgrass Corporate Parkway
Golden Valley, MN 55422 Scarborough, Ontario No. 30 Harbour Road Belgium Suite 200
M1V 4Z9 Wanchai Sunrise FL 33325
Hong Kong
