Honeywell NOTIFIER AM-8000 User manual

AM-8000
Intelligent Addressable Fire detection
Pl
Installation
manual

AM8000 Installation Manual INDEX
AM8000_ind Doc. 160.1-AM8000-ENG Rev A.3 NOTIFIER ITALIA
INDEX
Limits of Fire Detection Systems 1
EN 54 : Informations – Option with Requirements 2
General Description 3
INSTALLATION: Dimensions for wall assembly 4
Front Panel indications 5
Electrical features 6
Earthing 6
Mains power supply 6
PowerSupply 6
Battery Charger section 6
Batteries 6
Power supply and battery operation 7
Mains and Batteries connection 8
User power supply output 9
Fuselist 9
RelayOutputs 10
Sounder Output 11
System Components 12
Black-Box 12
AM-8000 CPU card 12
CNU – CNU terminal block 13
DIP SWITCH on CPU CARD 14
AM-8000Front Panel LCD 14
DIP SWITCH on LCD CARD 16
LCD-8000 installation 16
CAN-LCD-8000 card 17
SystemWiring 19
System Wiring example 21
CAN Bus Wiring: Cables 22
LIB-8000 card 23
LIB-8000 CNU terminal Block 23
Communication lines with Detectors / Modules 24
Technical specifications of analogue line connection cables 24
SENSORS & MODULES Connection 25
Test procedure for analogue system lines 26
System Test and Commissioning 27
SYSTEM PERIODICAL MAINTENANCE 28
Power Supply : Current and Battery calculation 29
Summary of Current consumption of Loop devices 31

AM-8000 Manuale di installazione PAGE - 1
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
NOTE: Do not try to install the control unit and devices connected without reading this manual.
DETECTION SYSTEM LIMITS
An alarm or fire detection system can be very useful for the prompt warning of any dangerous event, such as fire, a
robbery or a simple burglary, in some cases it can automatically manage events (transmission of messages for
room evacuation, automatic fire-extinguishing, TVCC system interface, access route or door blockage, automatic
warning to authorities, etc.), but in any case, it does not ensure protection against damages to propriety or
damages caused by fires or robberies).
Moreover, each system may not properly operate if it is not installed and maintained according to the
manufacturer’s instructions.
PRECAUTIONS
These instructions contain procedures to be followed in order to avoid damages to
equipment. It is assumed that the user of this manual has performed a training
course and that he knows the applicable rules in force.
The system and all its components must be installed in an environment having the
following features:
Temperature: -5 °C ¸ +40 °C.
Humidity: 10 % - 93 % (without condensation).
Peripheral devices (sensors, etc.) which are not perfectly compatible with the
control unit may cause damages to the same control unit, and a bad operation of
the system in any moment. Therefore, it is essential to only use material which is
guaranteed by NOTIFIER and is compatible with its own control units.
Please consult NOTIFIER Technical Service for any doubt.
This system, like all solid state components, may be damaged by induced
electrostatic voltages: handles the boards keeping them among the edges and
avoid to touch the electronic components.
An appropriate earthing connection ensures, in any case, a sensitivity reduction to
disturbances.
Please consult NOTIFIER Technical Service if you cannot solve installation
problems.
Any electronic system does not operate if it is not powered.
If power supply from the mains fails, the system ensures its operation through
battery, but only for a limited period of time.
During the system planning phase, take into account the autonomy required to
appropriately dimension the power supply and batteries.
Skilled personnel shall periodically check the state of batteries.
Disconnect the MAINS and the batteries BEFORE removing or inserting any board.
Disconnect ALL power supply sources from the control unit, BEFORE performing
any servicing.
The control unit and the connected devices (sensors, modules, repeaters, etc.)
may be damaged, if a new board is inserted or removed, or if the powered cables
are connected.
The most common cause for malfunctioning is inappropriate maintenance.
Take special care of these aspects since you start the system planning phase; this
will facilitate future servicing and will reduce cost.
1293
This panel is market with the CE 1293 label to comply with the following European Directives :
Construction Products Directive 89/106/EEC (Including EMC Directive 2004/108/EC
and LVD Directive 2006/95/CE)
Nazional Rules Compliants
This device must be installed and must operate in accordance with these instructions
and to the rules in force in the installation place.

PAGE - 2 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst
EN 54 : Informations
EN54

This fire detection control unit is in accordance with the requirements of rule
EN54-2/4 .
In addition to the basic EN 54 requirements, the control unit is in conformity with the
following optional operation requirements
Optional Functions EN 54.2 reference
Output to fire alarm devices
Output to fire protection equipment
Fault monitoring of fire protection equipment
Delays to outputs
Dependencies on more than one alarm signal
Fault signals from point
Total loss of power supply
Disablement of addressable points
Test Condition
Indication of the test condition
Indication of zones in the test state
7.8
7.10
7.10
7.11
7.12 ( type A )
8.3
8.4
9.5
10
10.2
10.3
EN54

The power supply section of the AM-8000 control unit is in conformity with the
following EN54-4 requirements.
Function EN 54.4 reference
Power supply from main source
Power supply from battery source in standby
Re-charging and check of the battery source
Power supply fault detection and signalling
5.1
5.2
5.3
5.4
EN54
!
EN54-2 13.7
Max 512
Sensors / Manual
Call Points per
microprocessor.
The AM-8000 control unit has a maximum capacity of : 636 sensors
and 636 addressable modules .
If this function is not appropriately used, it can contravene the EN54
requirements.
This limit includes the possible conventional sensors and buttons
connected to the system with zone modules.
Therefore, check the number of installed devices and ensure their types
are in conformity with the rule
.
1293
Notifier Italia S.r.l. Via Grandi, 22 -20097 San Donato
Milanese (MI), Italy
12
1293 – CPD - 0316
EN 54-2, EN 54-4
Analog Addressable Fire Detection Panel AM-8000
type: BB-8000 with terminal LCD-8000-F or LCD-8000-L
Option with requirements: EN-54-2: 7.8, 7.10, 7.10, 7.11,
7.12 ( type A ), 8.3, 8.4, 9.5, 10, 10.2, 10.3

AM-8000 Manuale di installazione PAGE - 3
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
GENERAL DESCRIPTION
AM-8000 control unit is a fire detection control unit manufactured in conformity with the EN.54.2 and EN.54.4 rules.
Technical features :
Multi-microprocessor system
LCD-8000-L / LCD-8000-F with display TFT 7” (800 x 480 with backlit ) and 256 colors and touch-screen with
keyboard simulation to program and configure the system.
Keys dedicated to specific functions : Evacuation, Reset delays, Buzzer Silencing, Silencing / Siren Reset,
System Reset.
LINES:
2 analogue lines programmable to closed or open loop for the connection of the field elements
Each line can drive 159 sensors + 159 input and output modules
max 4 loop each panel using the optional 2 loop LIB-8000 card.
SERIAL INTERFACES:
- 1 x RS.485 to drive remote LCD repeaters.
- 2 x Can-Bus lines to connect to closed loop ring for a network of up to 8 panels and 8 LCD-8000 terminals
POWER SUPPLY:
Standard 27,6Vdc - 4A total.
Battery charger 27,6 Vdc – 1,5A (with temperature compensation).
User output 28Vdc (+3% ÷ -17%) 1.5A, to power external loads such as sirens, bells, etc. .
OUTPUTS:
1 Supervised Siren Output
1 General Alarm Output with contacts free from voltage
1 General Fault Output with contacts free from voltage
Mechanics
The control unit mechanics is suitable for wall installations
Sizes 403mm (L) x 408mm (H) x 240mm (P)
Protection grade : IP 30
Operation temperature : -5 °C a +40 °C
Stockage temperature: -10 °C a +50 °C
Weight: 7.5 Kg
Main Functions
3 password levels (Operator - Maintenance – Configuration)
4 total access levels in conformity with the EN.54 rules
Programmable text : point description through 32 characters; zone description through 32 characters
500 physical zones and 400 logical groups
CBE Control Equations (Control-by event) for activation with logical operators (And,Or, Xor , etc.).
Event historical file with the last 2000 events in non-volatile memory
Real time clock
Line self-programming with automatic recognition of the type of the connected devices.
Automatic recognition of points having the same address.
Decision algorithms for the alarm and fault criteria.
Automatic sensitivity change Daytime /Night.
Signaling of need for sensor cleaning
Signaling of poor sensor sensitivity
Programmable alarm threshold for sensors
Pre-defined software function programming for the various devices used
Walk-Test function for zones.

PAGE - 4 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst
Installation
Dimensions for wall assembly
Moreover, if the control unit must
be installed to the wall beside a
corner wall, the minimum distance
from the latter must be at least
280 mm, so as to avoid the
opening of the front panel.
The control unit is designed to be
installed to the wall through self-
blocking cleats (masonry walls) or self-
tapping screws (pre-fabricated panels).
It is recommended not to install the
panel near heat sources (radiators,
etc.)
Use screws of max 5 mm.
The control unit must be installed to the
wall so as to allow a clear view of the
display and easy access by the
operator. For example, it allows an
optimal view of the display at 1.5 m
height ,
.
It is recommended not to install the control unit near heat sources (radiators, etc.).
The control unit can be opened by unscrewing the two cover fixing screws.
View from Hi
g
h
View from bac
k
View from low
400mm
External sizes
403mm (L) x 408mm (H) x 240mm (P)
View from bac
k

AM-8000 Manuale di installazione PAGE - 5
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
Extractable labels on the front panel
AM-8000 control unit is provided with extractable labels to indicate
the functions Status via LED and some function buttons.

PAGE - 6 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst
ELECTRICAL FEATURES
Operation temperature: - 5° C ÷ + 40°C.
Relative humidity: 10 % ÷ 93 % (without condensation).
Storage temperature: - 10°C÷ + 50°C.
Earthing
The earthling system must be performed in conformity with CEI and ISPELS rules or rules valid in the country
where the panel is installed.
In any case, must have a resistance lower than 10 Ohm (measured at the well with disconnected users). This
complies the CEI 68-12 rule for TN installations.
The earth connection to the control unit is compulsory and it must be performed on the CNAL terminal block. (refer
to basic board topography).
Main power supply
The control unit is powered by the mains voltage and, in case of mains breakdown it can continue to normally
operate due to the re-chargeable battery contained in the same control unit.
The required features for the mains supply are:
Voltage: 230 Vac single-phase -15% ÷ +10%.
Frequency: 50/60Hz.
Current 1.5A.
N.B.: particular care must be taken when the installation is performed near powerful electromagnetic
sources (ex. repeaters, radio relays, motors, etc.).
Power supply
The power supply has the following output: 28,5Vdc – 28,9Vdc,4 A ripple max. 500mVpp
(Power supply for control unit, user output, external load power supply).
Battery charger section
Output voltage = 27,5 Vdc 500mA Vpp max (temperature compensation).
Output current = 1.5A ca
Number of batteries that can be connected = 2 x 12 V – min.7Ah max.27Ah max.
The battery charger section has the following signalling thresholds
Exhausted battery threshold = 21.5 Vdc.
Re-charge Fault threshold = 3.4 Vdc (voltage difference between the two batteries).
Battery release threshold = 19.5 Vdc
Batteries
Average duration declared by the manufacturer - 3-5 years at an ambient temperature of 20 C°
N.B. Life decreases in accordance with a higher operating temperature and possible discharging-recharging cycles
Recommended Batteries:
Capacity 7 Ah ( Min. stand-by capacity )
Yuasa tipo NP7-12B o NP7-12FR (UL94) Faston - Capacity (20hr) = 12V 7Ah – Dimensions: 151 x 65 x 98.
Fiamm tipo FG20721 o FGV20721 (UL94) Faston- Capacity (20hr) = 12V 7Ah – Dimensions: 151 x 65 x 98.
Capacity 17-18 Ah ( max. stand-by capacity )
Yuasa tipo NP18-12B o NP7-12FR (UL94) Bullone - Capacity (20hr) = 12V 24Ah – Dimensions: 181 x 77 x 167.
Fiamm tipo FG21803 o FGV21803 (UL94) Bullone- Capacity (20hr) = 12V 27Ah – Dimensions: 181 x 77 x 167.
These are respectively the Min. and the Max battery capacity compatible with the Battery Charger.
Depending from the Stand-by time required in the System and from Loads calculation, the user can select an intermediate
value.

AM-8000 Manuale di installazione PAGE - 7
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA

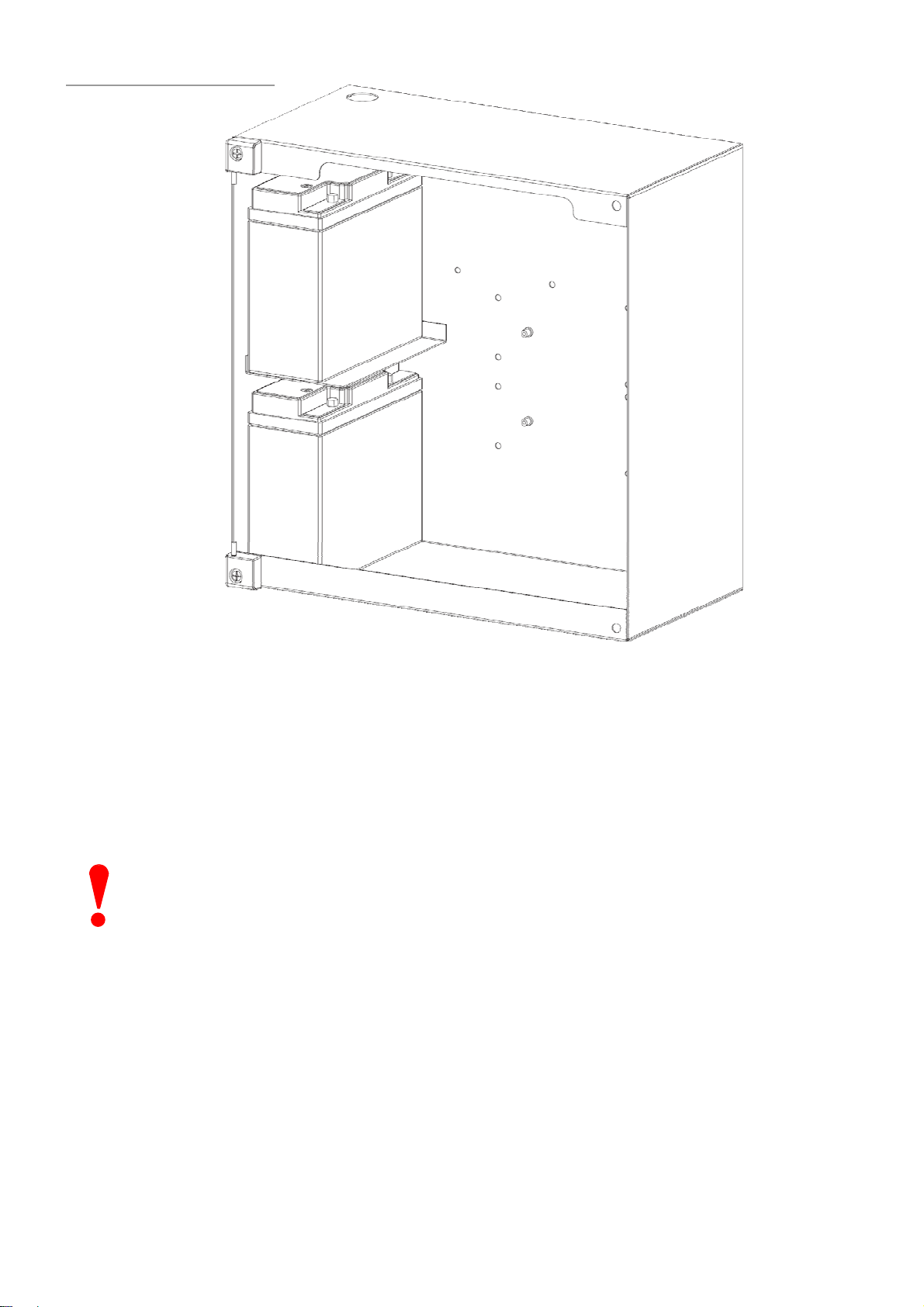

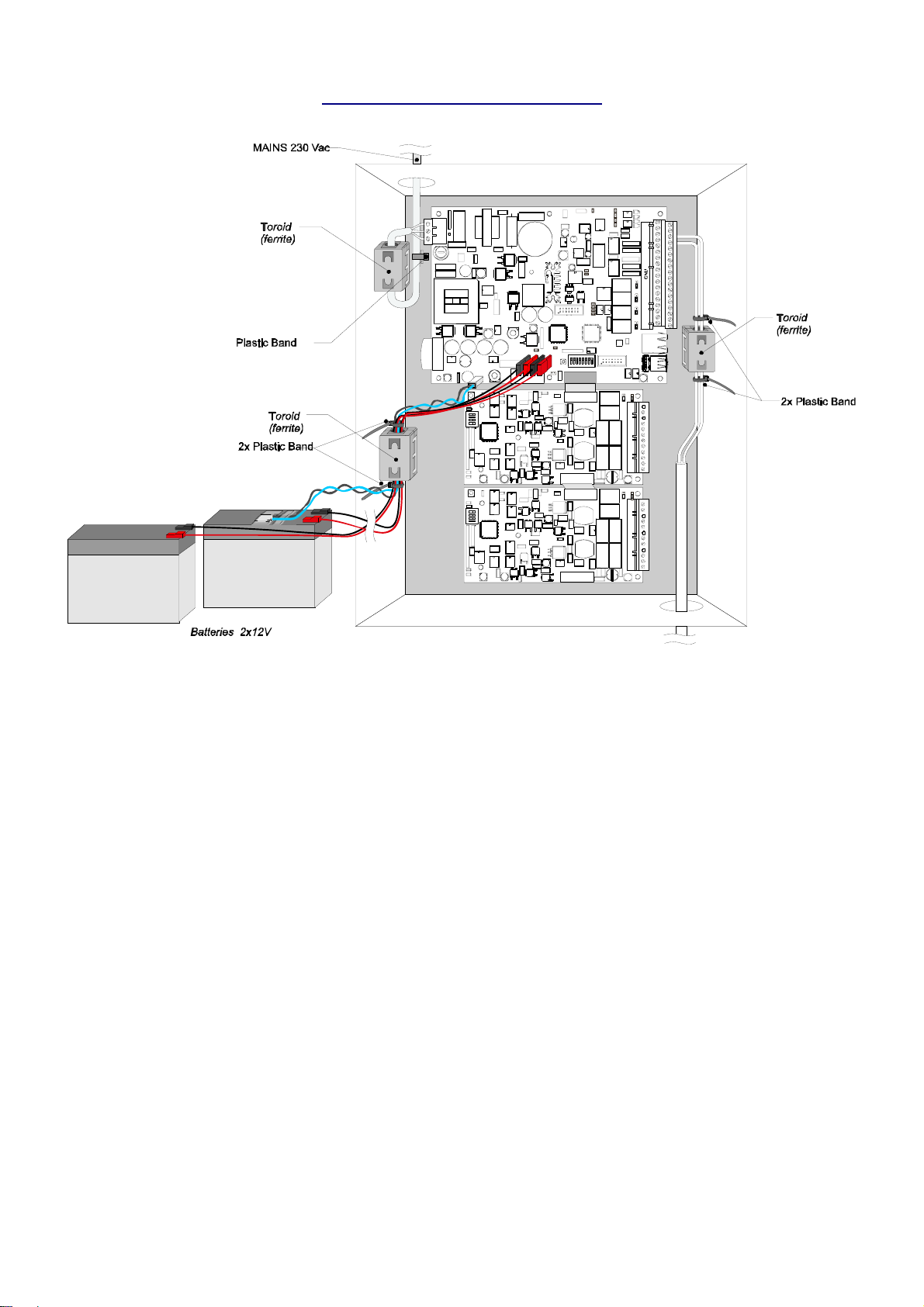

BATTERIES Installation
Power supply and battery operation
The main microprocessor of the control unit periodically checks the state of the main AC power supply source, batteries and
the recharging circuit. The control unit will automatically switch on the stand-by battery source when AC mains fails.
When the control unit operates through AC mains, the main microprocessor controls the battery charger output and the
presence of them. To perform this test, the output battery charger is temporarily switched off and the battery voltage is read
(signalling of missing batteries<15.0V).
When the control unit operates as a battery (in the absence of the AC mains) “Low Battery” breakdown will be
indicated when their voltage is <21.5V and, to prevent irreversible damages the voltage will be automatically
switched off, by disconnecting the batteries, when the voltage is < 19,5V.
All wirings MUST be checked BEFORE they are connected to the control unit.
It is recommended to perform at least the following checks:
Check the continuity of all cables used (including the shield )
Ensure that, in alarm conditions, any possible voltage drops do not compromise the
operations of the various devices.
Ensure that the electrical characteristics of all cables used come within the
manufacturer’s specifications (refer to the various sections of this manual)
Check the insulation between all cables and between cables and shield and the
earthing. minimum of 2MΩinsulation is required.
Check that the screen of all signal cables is not earthed in positions other than the
prescribed ones.
Check that the signal cables do not travel together with the power lines..

PAGE - 8 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst
Mains and Batteries connection
The 230 Vac mains power supply cable must preferably pass near the relevant terminal block.
The connection to the 230 Vac power supply mains must be performed through three-conductor cable (phase-
neuter- earth).
The identification of the earth conductor coming from the mains must be performed on the CNAL terminal block
(refer to basic board topography) and must be fixed at the cabinet by means of cable –tightening strip so that it
cannot be accidentally stripped off from the terminal block.
The 230 Vac power supply cable must be fixed inside the control unit by means of an appropriate cable fixing
device.
NOTE: The cable fixing collars must be HB flammability class.
The mains supply conductors shall not be consolidated by means of a soft welding..
A sectioning device external to the control unit must be provided for the 230 Vac power cable (contact separation: 3
mm min.) The sectioning device must be omni-polar or must disconnect the line phase
Power Supply connection must be done following this procedure: (Refer to Base Board)
1 – Turn off the main power switch of the 230 Vac mains.
2 – Disconnect the CNAL terminal block from the control unit.
3 – Connect the mains cable.
4 – Re-connect the CNAL terminal block
5 – Turn on the mains switch
6 – Install and connect the batteries as indicated in this manual.
N.B.: Once the control unit has been powered, it will automatically start operating.
However, in accordance with the battery storage period, it is necessary to wait some hours before the
batteries are completely re-charged.
7 – Check the operation of the LED indicators on the panel, according to the paragraph “TEST AND STARTING
OPERATION”.
8 – Close the control unit.

AM-8000 Manuale di installazione PAGE - 9
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
Current consumption from battery
Current from battery in Normal Condition in the absence of mains voltage 230Vac:
CPU-8000 Card at nominal voltage (24Vdc): 83mA if the Card is connected to LCD-8000-L (or LCD-
8000-F); 91mA if the Card is not connected to LCD.
1x LIB-8000 at nominal voltage (24Vdc): 67mA
LCD-8000-L at nominal voltage (24Vdc) and backlight low: 111mA if the LCD is connected to the CPU-
8000 Card; 148mA if LCD have remote connection (by CAN-LCD-8000 adaptor)
LCD-8000-F at nominal voltage (24Vdc) and backlight low: 178mA if the LCD is connected to the
CPU-8000 Card; 236mA if LCD have remote connection (by CAN-LCD-8000 adaptor)
+ external loads
Current from battery in Alarm Condition in the absence of mains voltage 230 Vac:
CPU-8000 Card at nominal voltage (24Vdc): 100mA with LCD-8000-L (or LCD-8000-F) connected
on-board; 108mA LCD not connected
1x LIB-8000 at nominal voltage (24Vdc): 75mA
LCD-8000-L at nominal voltage (24Vdc) and full backlight : 169mA if the LCD is connected to the CPU-
8000 Card; 218mA if LCD have remote connection (by CAN-LCD-8000 adaptor)
LCD-8000-F at nominal voltage (24Vdc) and full backlight : 215mA if the LCD is connected to the CPU-
8000 Card; 274mA if LCD have remote connection (by CAN-LCD-8000 adaptor)
+ external loads
See the appendix at the end of this manual for proper battery calculation in Stand-by and in Alarm
condition.

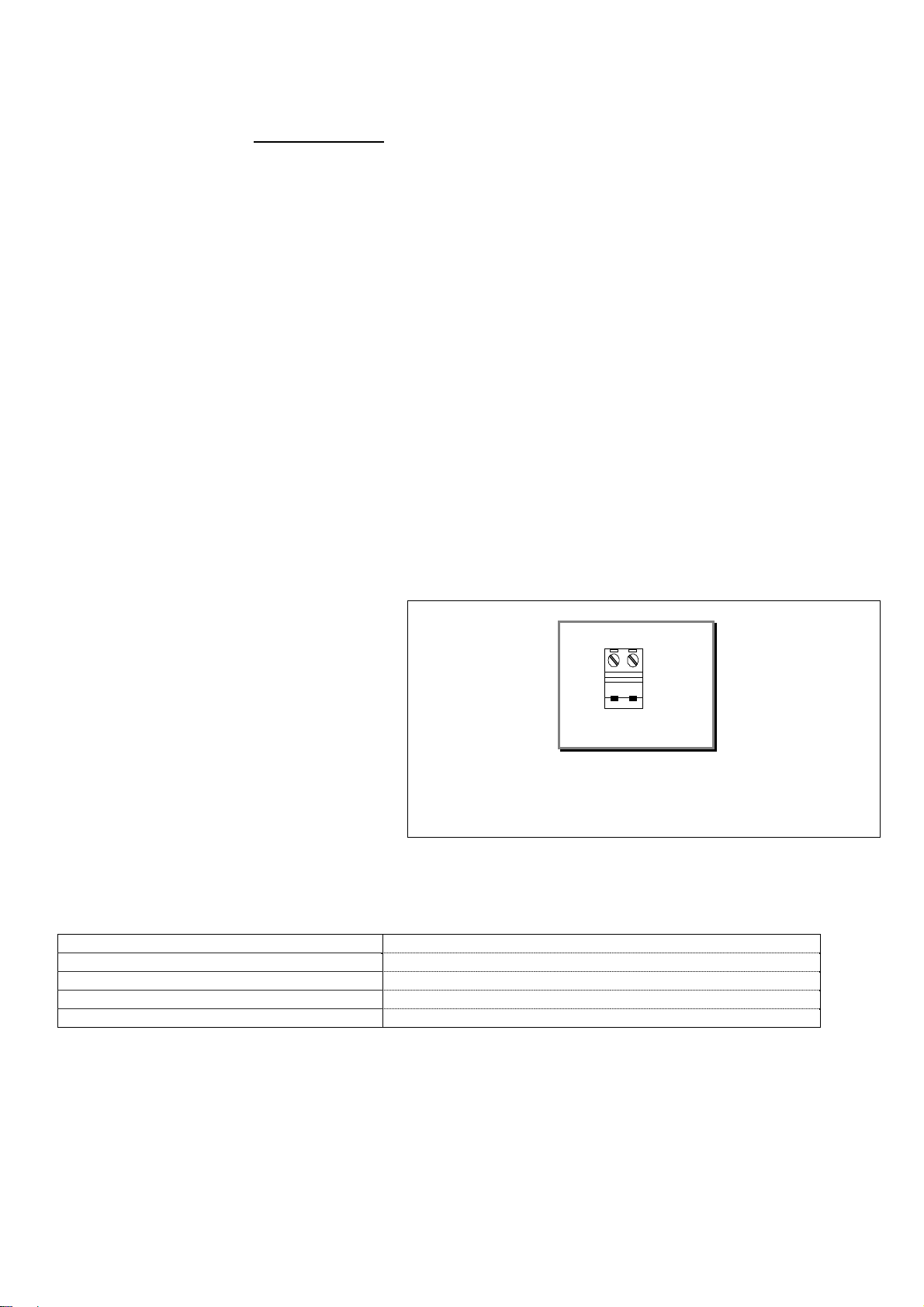

User power supply output
The AM-8000 control unit has one 24 Vdc
fixed output
The output is protected by 4 A FAST fuse
Use the fixed voltage output to power
external loads such as, for example, LCD
repeaters displays.
User Output + Sounder Output:
28 Vdc + 3% - 17%, max ripple 500mV
3,5A (the sum of the current MUST NOT
EXCEED THE MAXIMUM CURRENT
available from the power supply)
Fuse list
230 V mains voltage 3,15 AL
Battery Output 7 A RESETTABLE
User power supply output 4 A RESETTABLE
Sounder output 1,35 A RESETTABLE
User power supply output connection
(refer to basic board topography)
CNU
GND
24V
01 02

PAGE - 10 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst

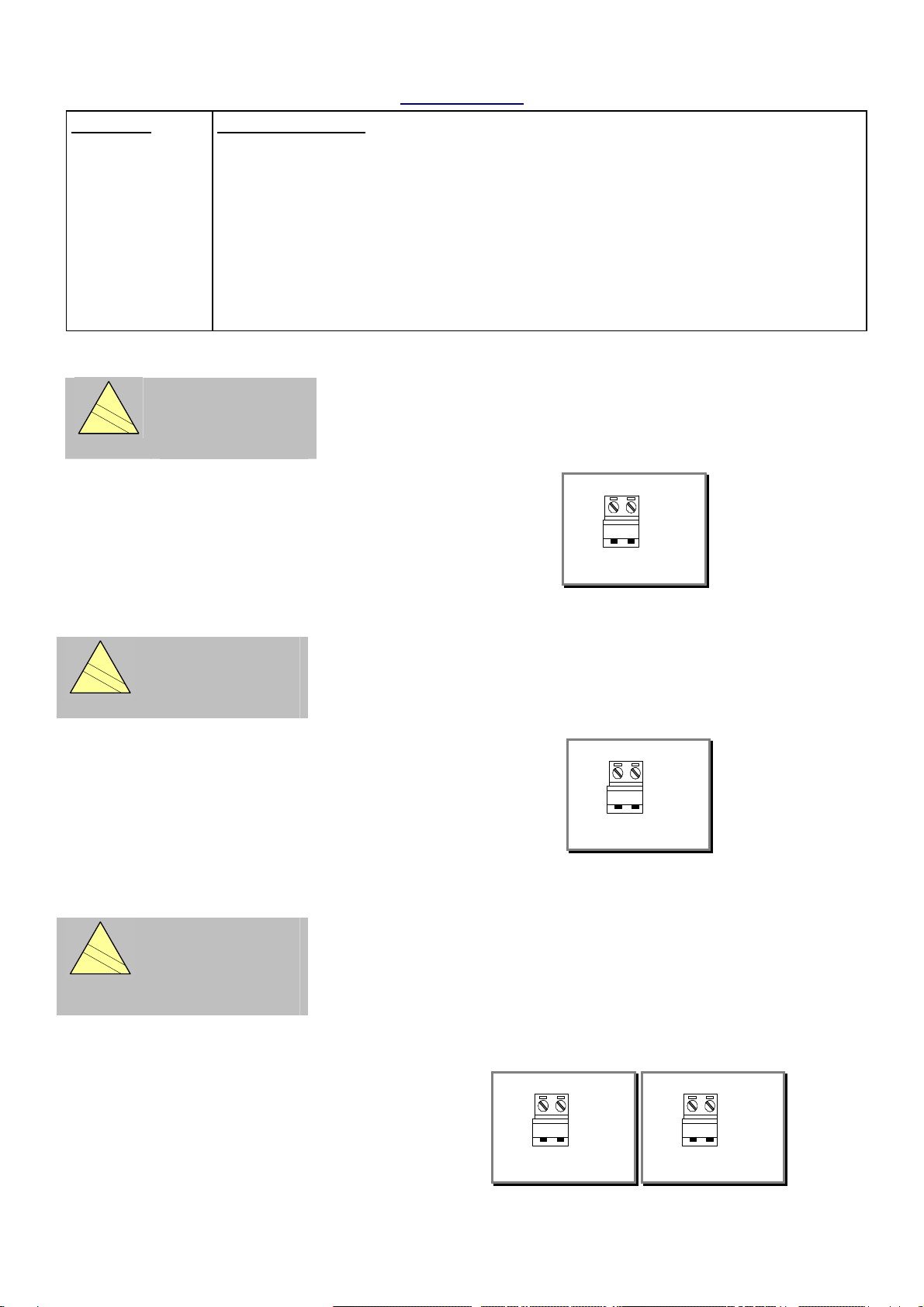

Relay outputs
EN54
!
EN54-2 8.8
General Fault Output
The General Fault relay is usually in energized state. It is de-energized in Fault
condition.
NOTE: do not connect to this output any alarm remote control, such as a
telephone dial (EN 54.2. 7.7) because the output line is not controlled
Contact range: max 30 VAC/DC, 2A,
Non-inductive loads
Selection of type of contact (Normally open or
Normally closed) through JGST Jumper on
board (refer to basic board topography)
EN54
!
EN54-2 7.7
General Alarm Output
The main Alarm relay is available in free voltage contacts
NOTE: do not connect to this output any alarm remote control, such as a telephone
dial (EN 54. 2. 7.7) because the output line is not controlled.
Contact range: max 30 VAC/DC, 2A,
Non-inductive loads
Selection of type of contact (Normally open or
Normally closed) through JALL Jumper on board
(refer to basic board topography)
CNU
NC/ NO COM
21 22
EN54
!
EN54-2 7.7
Outputs
USR1and USR2
The USR1 and USR2 relays are available in free voltage contacts
NOTE: do not connect to this output any alarm remote control, such as a telephone
dial (EN 54. 2. 7.7) because the output line is not controlled.
Contact range: max 30 VAC/DC, 2A,
Non-inductive loads
Selection of type of contact (Normally open or
Normally closed) through JURS1 e JUSR2
Jumpers on board (refer to basic board
topography)
NOTE:
To program the activation of these outputs refer
to “Am-8000 Programming Manual”
CNU
USR1
NC/ NO COM
23 24
CNU
USR2
NC/ NO COM
25 26
FUNCTION
Siren
General Alarm
General Fault
USR1
USR2
CHARACTERISTICS
1 contact controlled by 24Vcc / 2A resistive
Max 2A resistive 30 Vdc, NA-NC selectable through Jumper JALL
(refer to basic board topography)
Max 2A resistive 30 Vdc, NA-NC selectable through Jumper JGST
(refer to basic board topography)
Max 2A resistive 30 Vdc, NA-NC selectable through Jumper JUSR1
(refer to basic board topography)
Max 2A resistive 30 Vdc, NA-NC selectable through Jumper JUSR2
(
refer to basic board to
p
o
g
ra
p
h
y
)
Main Fault output connections
(refer to basic board topography)
CNU
NC/ NO COM
19 20
Main Alarm output connections
(refer to basic board topography)
URS1 e USR2 output connections
(refer to basic board topography)

AM-8000 Manuale di installazione PAGE - 11
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
NOTE:
Connect the 47K , ¼ W EOL
resistor only on last sounde
r
of the line
ATTENTION:
Polarity displayed are in
Alarm condition, at idle
condition, they are inverted

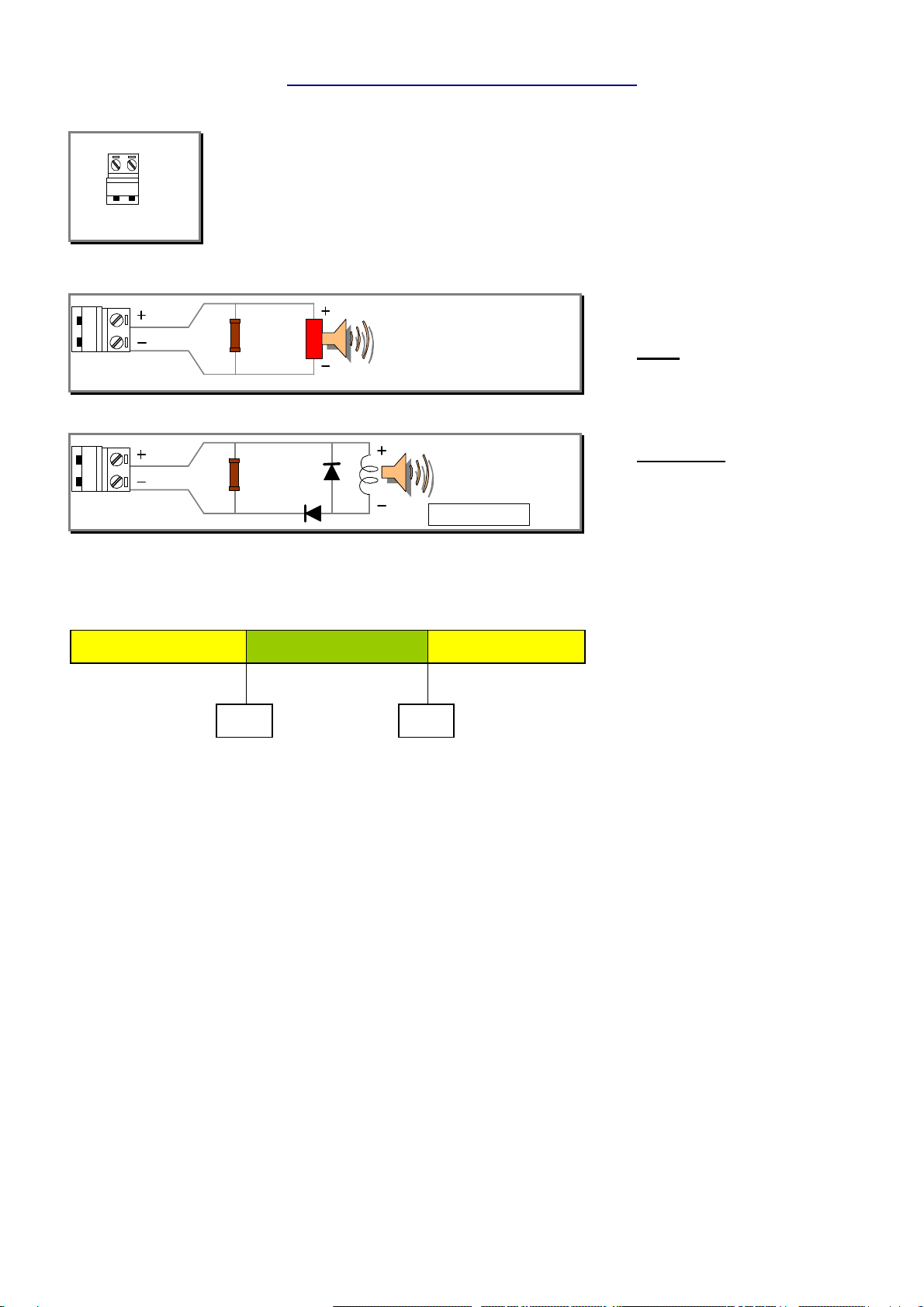

Sounder connection - controlled output
Polarized devices (electronic sirens, etc.)
47 K
¼ W
3
4
Non-polarized devices (Bells, relays, etc.)
47 K
¼ W
2 x 1N 4004
3
4
Sounder output operation window
CNU
43
Siren output connections
(refer to basic board topography)
IDLE CUTSHORTCIRCUIT
21K 61K

PAGE - 12 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst

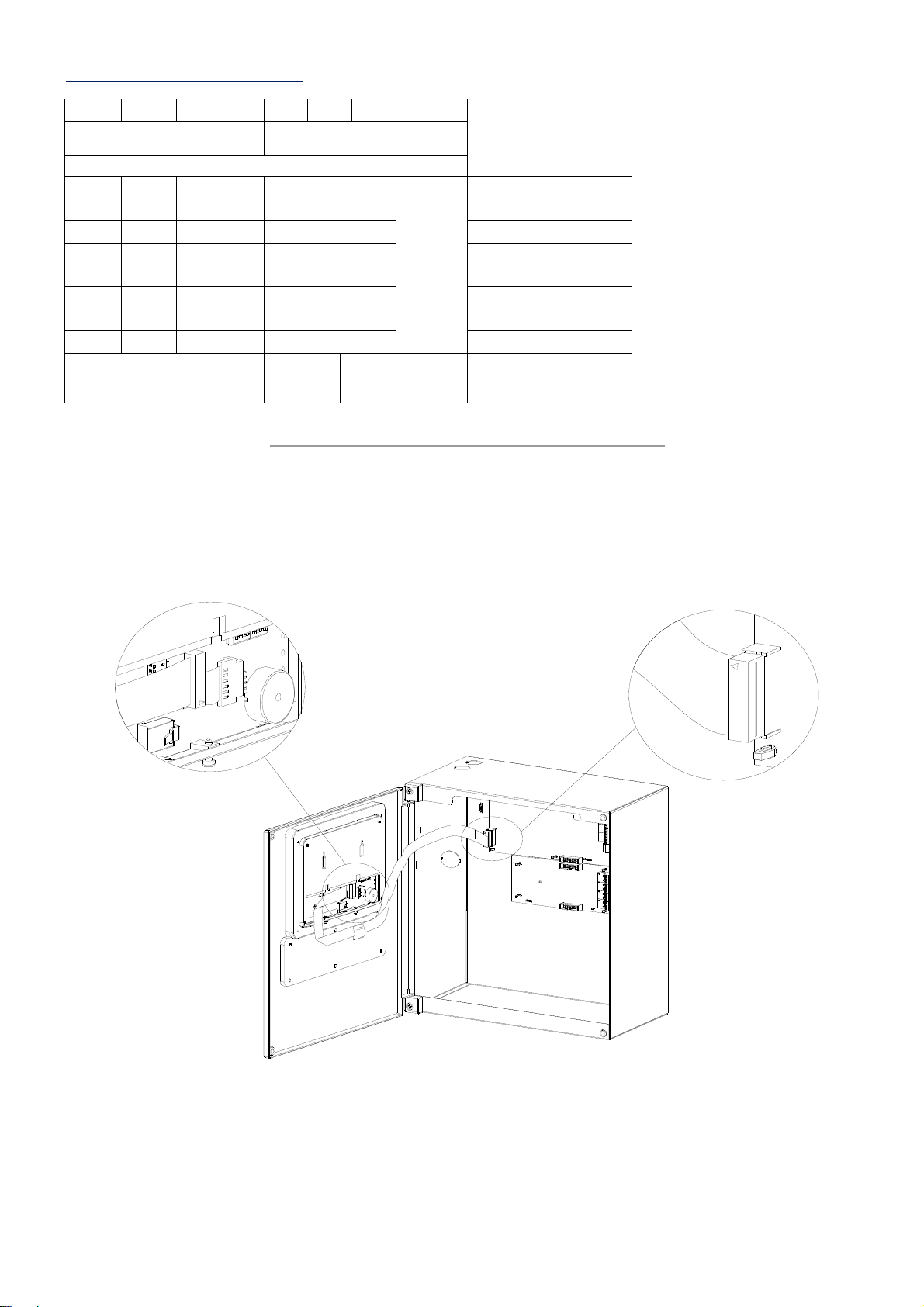

SYSTEM COMPONENTS

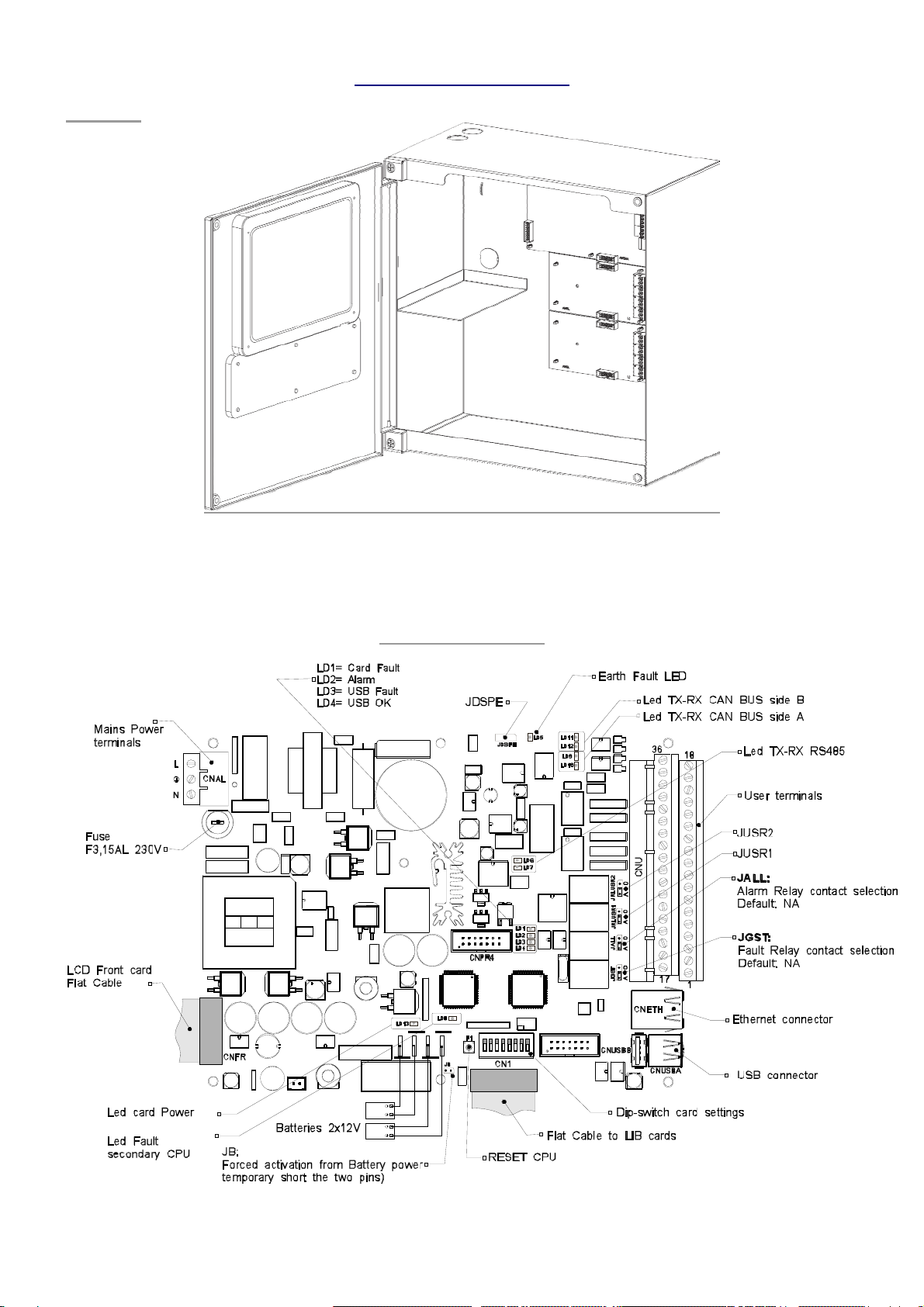

Black Box
Each Black Box is equipped of one CPU card and can contain up to 2 Loop Interface cards ( LIB-8000 )
Each LIB card can drive up to 2 ADV loop
Each ADV Loop line can connect up to 159 detector and 159 Modules in Advanced protocol or 99+99 in
CLIP mode.

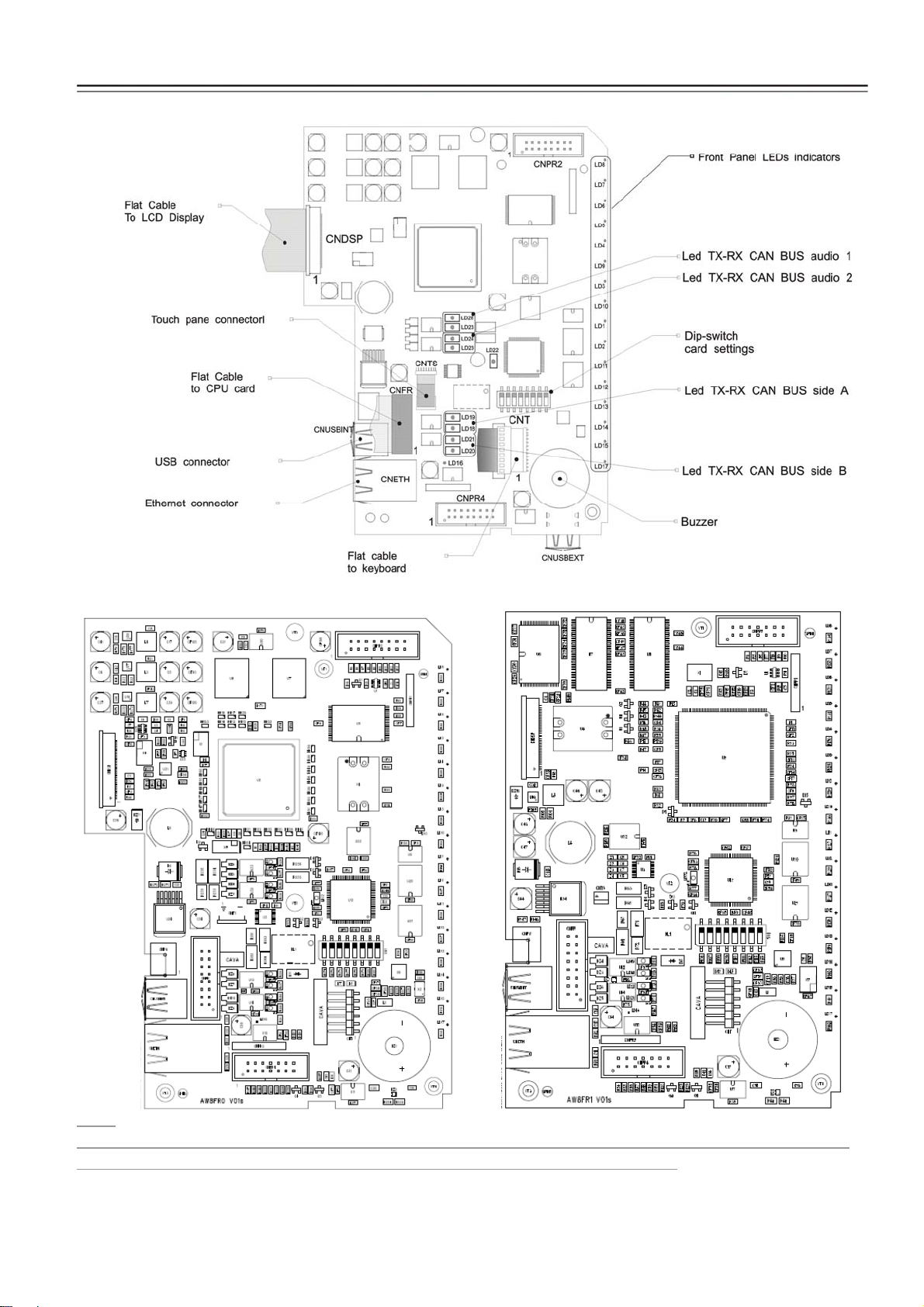

AM-8000 CPU card

AM-8000 Manuale di installazione PAGE - 13
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
CNA terminal block
N° description Function Note
1 Phase
2 Eatrh
3 Neutral
230Vac mains Power
Fused with 3,15 AL
CNU terminal block
N° Name description Note
1 +24V USR
2 GND USR Fused with 4 A fuse
3 Sounder/ Siren (positive in
non alarm)
4 Sounder/ Siren (Negative in
non alarm)
Fused with 1,35A resettable fuse (this is a
(polarity inversion output). EOL resistor = 47KΩ
5 Not used
6 LIN +
7 GNDIS
8 LIN - RS.485 Opto-insulated NO EOL Internal resistor
9 VPPLA
10 GNDP POWER supply line
for LCD CAN bus devices
11 CDAHA
12 GND
13 CDALA
Communication line (side A)
for CAN BUS NETWORK
Can-Bus (Output Line)
with internal EOL resistor
Power Supply line is
protected with a 4° Fuse
14 VPPL1
15 GND1 POWER supply line
for CAN bus AUDIO devices
16 CAN H1
17 GND
18 CAH L1
Communication line (side A)
for AUDIO CAN bus devices
AUDIO 1 Line
Can-Bus with internal EOL
resistor
Power Supply line is
protected with a 4° Fuse
19 General Fault : NO-NC
20 General Fault : C General Fault Relay
Contacts : 2A 30V
Normally-Open or Closed
selectable via JGST Jumper
21 General Alarm : NO-NC
22 General Alarm : C General Alarm Relay
Contacts : 2A 30V
Normally-Open or Closed
selectable via JALL Jumper
23 User1 : NO-NC
24 User1 : C User 1 Relay
Contacts : 2A 30V
Normally-Open or Closed
selectable via JUSR1
25 User2 : NO-NC
26 User2 : C User 2 Relay
Contacts : 2A 30V
Normally-Open or Closed
selectable via JUSR2
27 VPPLB
28 GNDP POWER supply line
for CAN bus LCD devices
29 CDAHB
30 GND
31 CDALB
Communication line (side B)
for CAN BUS NETWORK
Can-Bus (Input Line)
with internal EOL resistor
Power Supply line is
protected with a 4° Fuse
32 VPPL2
33 GND1 POWER supply line
for AUDIO CAN bus devices
34 CAN H2
35 GND
36 CAN L2
Communication line (side A)
for AUDIO CAN bus 2
AUDIO 2 Line
Can-Bus with internal EOL
resistor
Power Supply line is
protected with a 4° Fuse

PAGE - 14 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst
DIP SWITCH on CPU CARD
1 2 3 4 5 6 7 8
ADDRESS
Download
config. Load conf.
Tech
use only
SW
Upgrade
ON off off off Black Box n.1
off ON off off Black Box n.2
ON ON off off Black Box n.3
off off ON off Black Box n.4
ON off ON off Black Box n.5
off ON ON off Black Box n.6
ON ON ON off Black Box n.7
off off off
ON
off off off off
Black Box n.8
Box ID
=
proper
configuration ON off off off
Dip 5 = ON
from USB key loads configuration
previously prepared by PK-8000 SW Tool
Box ID
=
proper configuration off ON off off
Dip 6= ON
copy the configuration in the USB
memory key
Box ID
=
proper
configuration off off off ON
Dip 8= ON
Use only by authorized Technician
Note : Set the dip-SW 5-6-8 in ON for the time necessary to perform the function. Restore it in OFF position for
Normal operations.
AM-8000Front Panel LCD
1
8
7 mm
247 mm
31 mm

AM-8000 Manuale di installazione PAGE - 15
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
NOTE:
The two CPU cards of the two available LCD models ( LCD-800-F and LCD-8000-L differs in the component and in the software, but
maintain all end-user Connectors and Dip Switches in the same positions and with the same pin-out.

PAGE - 16 Manuale di installazione AM-8000
NOTIFIER ITALIA Doc. 160.1-AM8000-ITA Rev A.3 AM8000_manu-inst
DIP SWITCH settings on LCD CARD
1 2 3 4 5 6 7 8
ADDRESS OFF only
SW
Upgrade
ON off off off off LCD n.1 Normal Operation
off ON off off off LCD n.2 Normal Operation
ON ON off off off LCD n.3 Normal Operation
off off ON off off LCD n.4 Normal Operation
ON off ON off off LCD n.5 Normal Operation
off ON ON off off LCD n.6 Normal Operation
ON ON ON off off LCD n.7 Normal Operation
off off off ON off
off
LCD n.8 Normal Operation
ID: proper configuration
Off Off Off ON LCD n. ID Use only
under manufacturer autorization
LCD-8000-L /F installed in the Black-Box front door
To install the LCD on the Front Panel door:
Open the door
Take-off the plastic cover removing the front Label and cutting the 4 plastic connection
Fit the LCD in the square hole and fix it using 4 screw as illustrated
Connect the Flat Cable as schow in the picture.
1
1

AM-8000 Manuale di installazione PAGE - 17
AM8000_manu-inst Doc. 160.1-AM8000-ITA Rev A.3 NOTIFIER ITALIA
LCD-8000-L /F installed along the CAN-Bus Network : use CAN-LCD-8000 CARD
This card is necessary when the LCD is not installed in the same cabinet with the AM-8000 CPU
