Honeywell NOTIFIER AM-8000 Owner's manual

AM-8000
Programming
Manual
Intelligent Addressable Fire detection
Pl

AM-8000 Programming Manual INDEX
AM8000_ind Doc. M-160.2-AM8000-ENG Rev. A.1 NOTIFIER ITALIA

INDEX Programming Manual AM-8000
NOTIFIER ITALIA Doc. M-160.2-AM8000-ENG Rev. A.1 AM8000_ind
INDEX
Definitions 1
Front panel Comands 1
Front Panel LEDs 3
UserInterface 4
Keyboard and Function keys 4
NormalCondition 5
Alarm Condition 6
Fault Condition (Zone) 7
Fault Condition (System) 8
Test Condition (zone alarm in walk-test) 8
List of Disabled elements 9
PROGRAMMINGMenu 10
System 11
Line 12
Timings 12
Password 14
Panel Name 14
PointsProgramming 15
Detectors 15
Modules 22
Auto-Learn 26
Inputs Modules 28
Outputs Modules 28
GROUPS 32
ZONES 35
UTILITY 37
Date and Time 37
SpecialParameters 38
HistoryLOG 41
Display 42
CLEAR 42
Disable 42

AM-8000 Programming Manual INDEX
AM8000_ind Doc. M-160.2-AM8000-ENG Rev. A.1 NOTIFIER ITALIA
Display / Modify Status 43
DetectorsStatus 43
Modules Status 44
Groups Status 45
Zone Status 45
Display Active Modules 46
FIRMWARE version 47
DisabileMenu 48
Detectors 49
Modules 49
Zone 50
System 50
TEST menu 52
Zone 52
LED 53
LCD 53
APPENDIX –CONTROL BY EVENT Equations 54
CBE 54
Operators 55
Examples 59

AM_8000 Programming Manual PAGINA - 1
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
Do not try to use the control unit and devices connected without reading this manual
DETECTION SYSTEM LIMITS
An alarm or fire detection system can be very useful for the prompt warning of any dangerous
event
such as fire. In some cases it can automatically manage events (transmission of messages
for room evacuation, automatic fire-extinguishing, TVCC system interface, access route or
door blockage, automatic warning to authorities, etc.), but in any case, it does not ensure
protection against damages to propriety).
Moreover, each system may not properly operate if it is not installed and maintained
according to the manufacturer’s instructions.
It is assumed that the user of this manual has performed a training
course and that he knows the applicable rules in force.
The system and all its components must be installed in an
environment having the following features:
Temperature: -5 °C ¸ +40 °C.
Humidity: 10 % - 93 % (without condensation).
Peripheral devices (sensors, etc.) which are not perfectly compatible
with the control unit may cause damages to the same control unit,
and a bad operation of the system in any moment. Therefore, it is
essential to only use material which is guaranteed by NOTIFIER and
is compatible with its own control units.
Please consult NOTIFIER Technical Service for an
y
doubt.
.
A
AT TT TE EN NT TI IO ON N: :
T
Th hi is s m ma an nu ua al l r re ef fe er rs s t to o f fu un nc ct ti io on ns s a av va ai il la ab bl le e i in n t th he e s so of ft tw wa ar re e r re ev vi is si io on n i in nd di ic ca at te ed d
DEFINITIONS
LINE: Physical wiring where sensors, addressable Manual Call Points, Sirens, addressable input and
output modules are connected.
POINTS: they are the addressable sensors and modules that can be connected to Lines.
ZONES: they are point groups.
Used as basic indications as stated in EN 54.2 to identify the position of an event.
The maximum number of zones is: 500.
A maximum of 32 points can be associated to each zone.
GROUPS: A group is a software set of devices that can be used to program associations between
Inputs and Outputs and perform actions triggered by input or alarm events.
The control unit is provided with 400 groups.

Pag. 2 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG

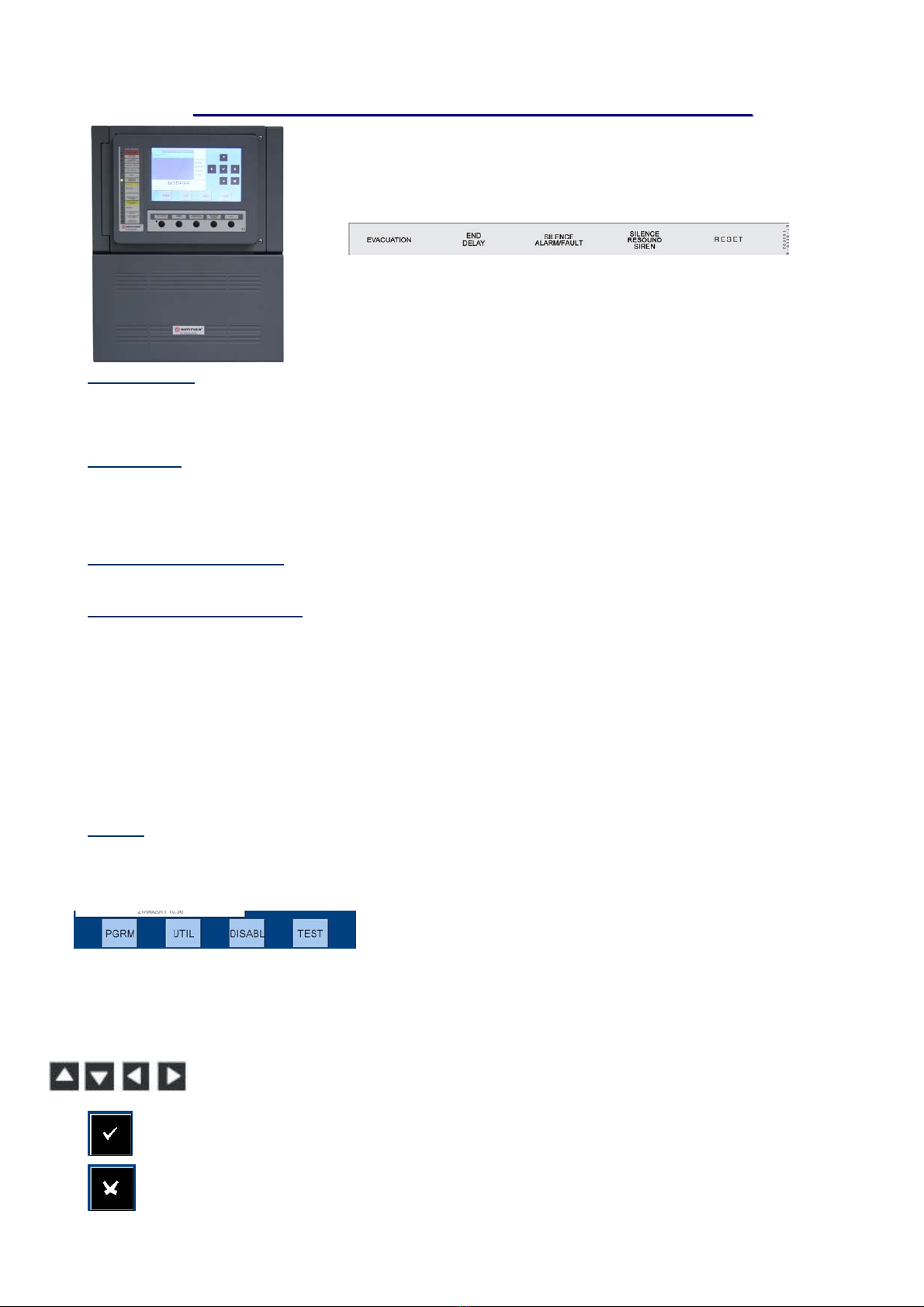

F
FR RO ON NT T P PA AN NE EL L C CO ON NT TR RO OL LS S A AN ND D S SI IG GN NA AL LL LI IN NG GS S
K Ke ey ys s w wi it th h d de ed di ic ca at
te ed d f fu un nc ct ti io on ns s
EVACUATION:
You must know the level 2 password to perform this operation..
Control for the activation of the Siren output and of all output modules programmed with SW-TYPE ID = HORN in absence
of Alarms and Faults. If you press this button once more all the previously activated outputs will be deactivated.
END DELAY:
This button is active only in case of alarm if the immediate activation of the siren outputs in the exclusions menu has been
excluded. The control unit delays the activation of the above-mentioned outputs for the programmed times in the
programmed menu. ( Prog\ Sist\Al. Output Timing ). During the delay time the Active Delay led flashes and it is possible to
re-set the current delay through the Delay Re-set key.
SILENCE ALARM / FAULT:
by pressing this key, the operator can silence the Panel buzzer and is enabled to perform a RESET.
SILENCE / RESOUND SIREN:
You must know the level 2 password to perform this operation..
In case of alarm the following devices are activated: Siren Output, Output modules programmed with SW-Type-ID=HORN ,
the output modules activated for CBE associations
By pressing this key, you can de-activate the following devices:
Siren Output
Output modules programmed through Type-ID HORN enabled for silencing
All output modules activated through CBE associations and enabled for silencing
A subsequent pressure of this key will re-activate :
Siren Output
Output modules programmed through Type-ID HORN
All the output modules de-activated from the previous Silencing
RESET:
the pressure of this key deletes the alarm or fault memory of the current points.
It de-activates the siren and turns off all light signalling of sensors in alarm.
To perform this operation you must know the level 2 password..
FUNCTION KEYS in LCD TOUCH SCREEN:
These keys are displayed in the bottom of the LCD screen.
Activate the corresponding functions. These functions change according to
the selected menus.
Example: in the system status display, these keys allow the access to the
Programming, Utilities, Exclusion menus or the Test menu.
Keys to be used: DURING THE PROGRAMMING or TO ENTER THE PASSWORDS
ARROWS: they are used to perform some selections.
NOTE: pressing and holding one of these keys for more than 1 second, you obtain the key automatic
repetition.
ENTER:after performing a selection, it confirms the entered datum.
ESCAPE:“Back”, it has the menu exit function

AM_8000 Programming Manual PAGINA - 3
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
LIGHT SIGNALLINGS OF THE FRONT PANEL
ALARM (Red):
It flashes if there is at least one device in alarm and it has not been recognized yet. It is
permanently lit if all alarm events have been recognized.
ACTIVE REMOTE ALARM (Red):
it is permanently lit if the output towards the fire alarm transmission devices (telephone dial) has
been activated.
SILENCE SOUNDER (Yellow):
It is lit after the Siren Silencing control is performed.
DELAY IN PROGRESS (Yellow):
It is lit if the immediate output activation has been disabled; apply to type C outputs (sounder
output) and type E (alarm transmission through telephone dial). Through this disablement, in case
of alarm the system delays the above mentioned outputs for the programmed times. During the
delay time the led flashes and it is possible to reset the current delay through the “reset delay”
key at lev.1.
ZONE/POINT MASK (Yellow):
It is lit when there is at least one Zone or a Point Disabled in the system.
TEST (Yellow):
It is lit during Zone Walk Test
POWER OK (Green):
It is permanently lit if the control unit is powered (by 230Vac or by batteries).
FAULT (Yellow):
It flashes if there is at least one fault of any type and it has not been recognized yet.
It is on if all faults have been recognized
SYSTEM (Yellow):
It is lit if there is at least a system fault (watch dog, CRC memory error, etc.)
POWER SUPPLIES (Yellow):
It is lit if there is a power supply Fault.
EARTH DISPERSION (Yellow):
It is permanently lit when the positive or negative is earthed.
SOUNDER (Yellow):
It is lit if the siren output is disabled.
It flashes when the siren output is in Fault condition
FAULTS TRANSMISSION (Yellow):
It is lit if the Fault transmission output is disabled (telephone dial).
It flashes when the Fault transmission output is in Fault condition.
ALARM TRANSMISSION (Yellow):
It is lit if the alarm transmission is disabled (telephone dial).
It flashes when the alarm transmission output is in Fault condition
EXTINGUISHING (Yellow):
It is lit if the output towards the automatic fire-fighting system (UDS) is disabled
It flashes when the fire-fighting control output is in Fault condition

Pag. 4 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG
U
US SE ER R I IN NT TE ER RF FA AC CE E D DE ES SC CR RI IP PT TI IO ON N
Functions and Access level
Functions EN.54 Level Factory default password
Alarm and Faults display Level 1 none
Alarm and Faults recognition Level 1 none
Delay Re-set (appropriate button) Level 1 none
Excluded Zones/Points display Level 1 none
Exclusions menu Level 2 22222
Test Menu Level 2 22222
Utility Menu Level 3 33333
Programming menu Level 3a 44444
Description of the keyboard operation to enter data in the programming folders:
Through the arrows 4 you can enter the adjacent folders (displays)
Through the arrows  you can scroll the fields inside the folder (the selected field is displayed with the
characters in REVERSE.)
If the folder has an index field, the first two function keys appear through which you can scroll
The selected field can be changed by entering in editing mode through the enter key .
According to the type of datum there are different editing modes:
Text entering (CBE, Labels associated with: devices, zones, etc.)
To enter the alphanumerical characters use the keyboard on Touch screen
“Alpha-Numeric” Keyboard on Touch Screen:
This keyboards will be available on the Panel Touch Screen when a Programmable Text have to be edit:
Selections (TYPE-ID, YES, NO, etc..) : type ENTER and through the arrows  all the selectable labels are
scrolled in sequence
The parameter is stored through the enter key ,
If you do not want to store the changes use the escape key
To quit the folder system use the escape key .
To enter the passwords, when they are requested, use the keyboard that appear on the screen.
Confirm the entered password by pressing the ENTER key.
If an invalid password is entered the following message will be
displayed: “Invalid password!: xxxxx “
where “xxxxx” is a 5-character code
This code is used to obtain the programmed password in case it has
been forgotten, by referring to this code to NOTIFIER technical
servicing.
- -

AM_8000 Programming Manual PAGINA - 5
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
Function associated with TEST key
input of the test menu.
Refer to Test Menu.
Function associated with DISAB key
input of the test menu.
Refer to Exclusion Men
Function associated with DISABL key
input of the test menu.
Refer to Utility Menu
Function associated with DISAB key
input of the test menu.
Refer to Programming Menu

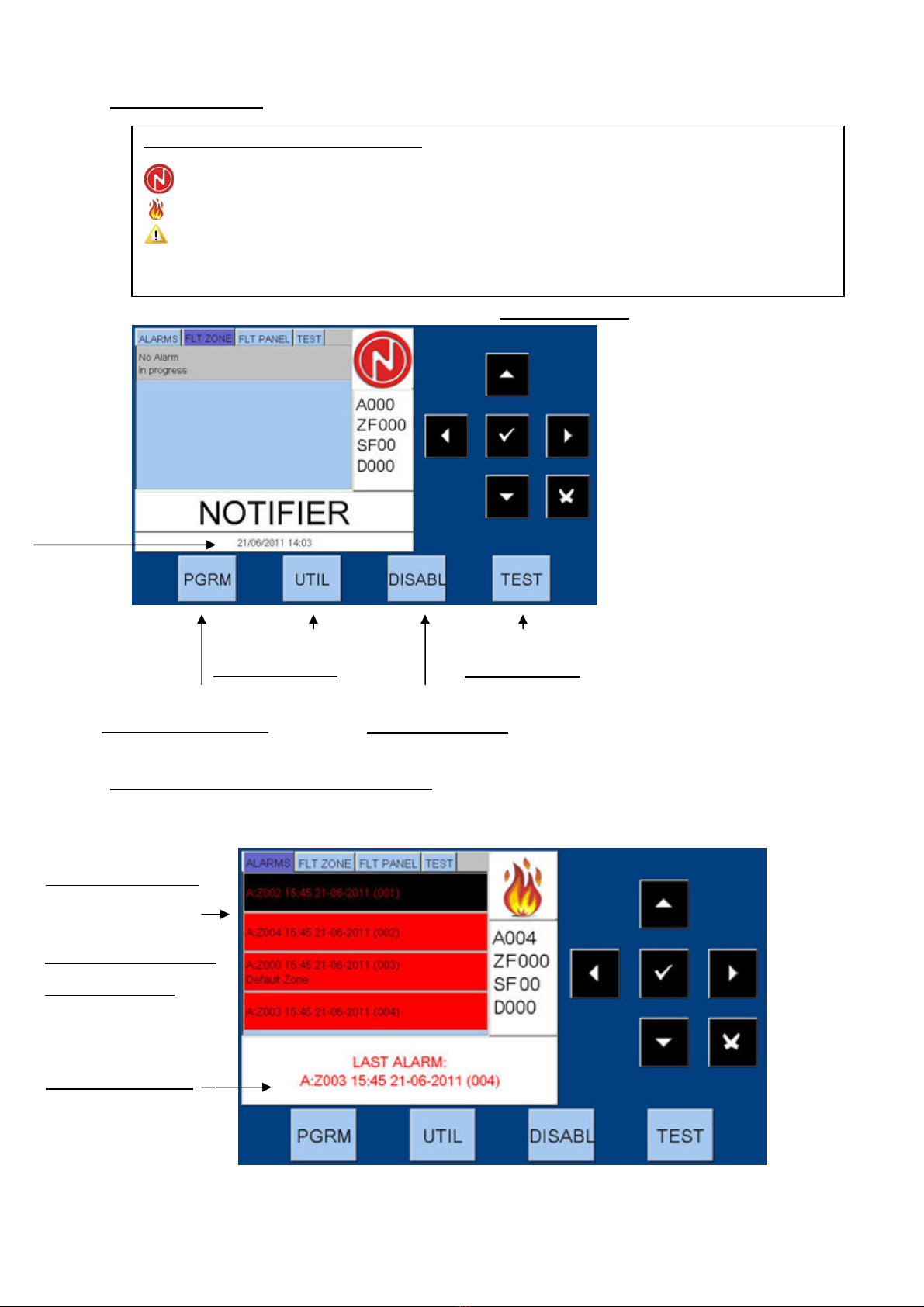

Normal condition
The following screen is displayed when the control unit is in Normal Condition
Alarm Condition ( with zone events )
The following display appears when the control unit is in condition of zone alarm.
Through the arrow keysyou can scroll the list of the zones containing Faults.
Icons which signals the Panel Conditions.
- The NOTIFIER brand symbol appears in the absence of alarms and Faults.
- If there are Alarms the Fire symbol is displayed
- If there are Faults the Triangle symbol is displayed.
N.B. The alarm state prevails if there are both Alarms and Faults in the control unit
Date - Time
Counter for alarm zones
Counter for Faulty zones
Counter for System Faults
Counter for Excluded zones
Counter for zones
in alarm
FIRST ZONE IN ALARM
Date and Time +
Event Number ID
Text for the Zone
If more zones are in Alarm :
3 ZONES IN ALARM
LAST ZONE IN ALARM
Date and Time +
Event
Number ID

Pag. 6 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG

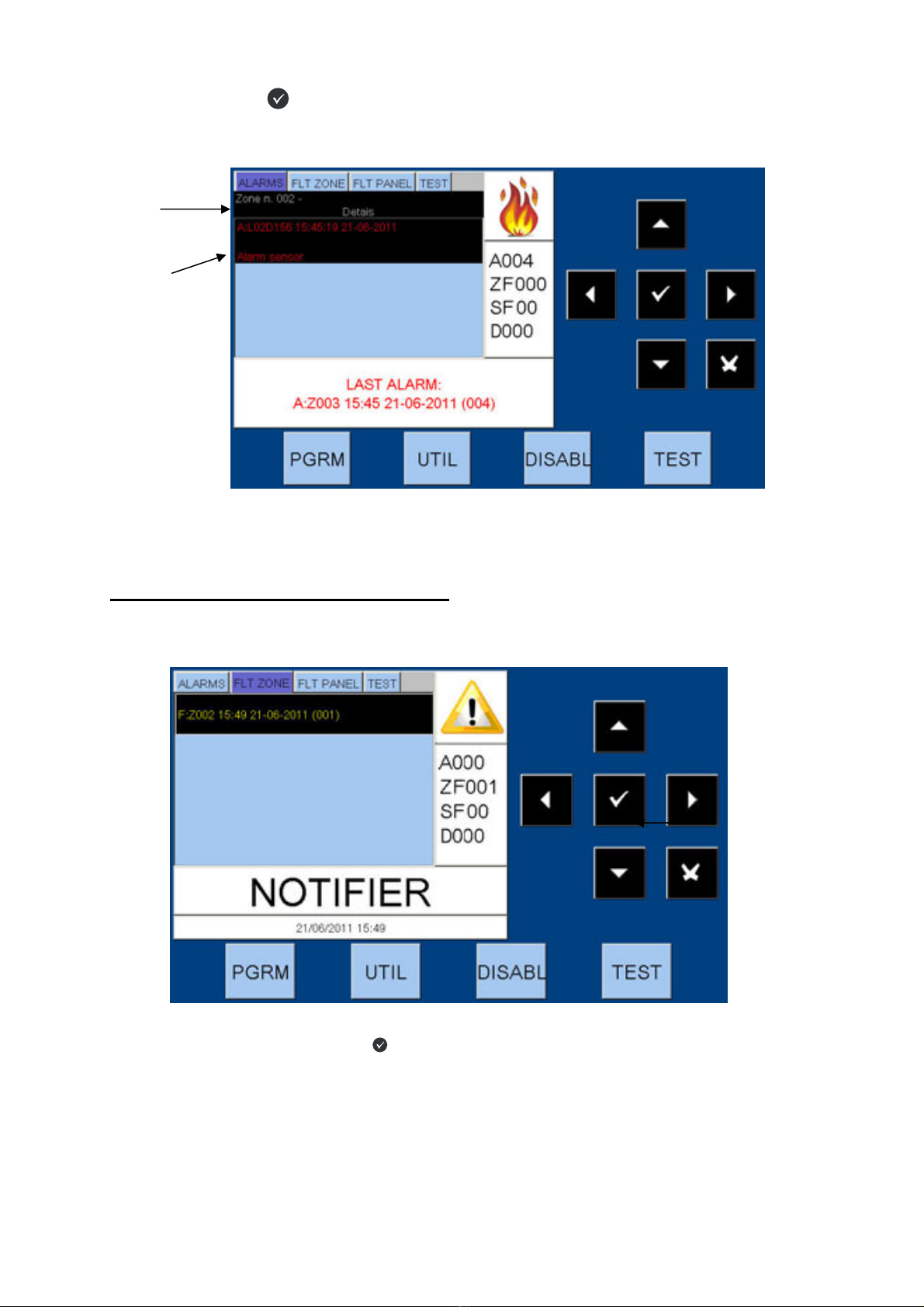

By pressing the enter key you can access the list of point in alarm of the zone selected on the display,
through the arrow keys you can scroll the list of the devices in alarm.
Condition with Fault zone events
The following display appears when the control unit is in condition of zone faults.
Fault events are also initially displayed for zone
Through arrow keys  you can scroll the list of the Zone Faults.
Through a first pressure of the enter key you can display the list of devices with the indication of the point
name; refer to the following figure:
Device in Alarm
D = Detector
M = module
Text programmed
For this Device
Counter
for Faulty zones
Zone with Fault events
Text programmed
for this zone

AM_8000 Programming Manual PAGINA - 7
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
Through further
pressures of the enter key the display of the point name alternates with one of the Faultdetail, refer to the
following figure:

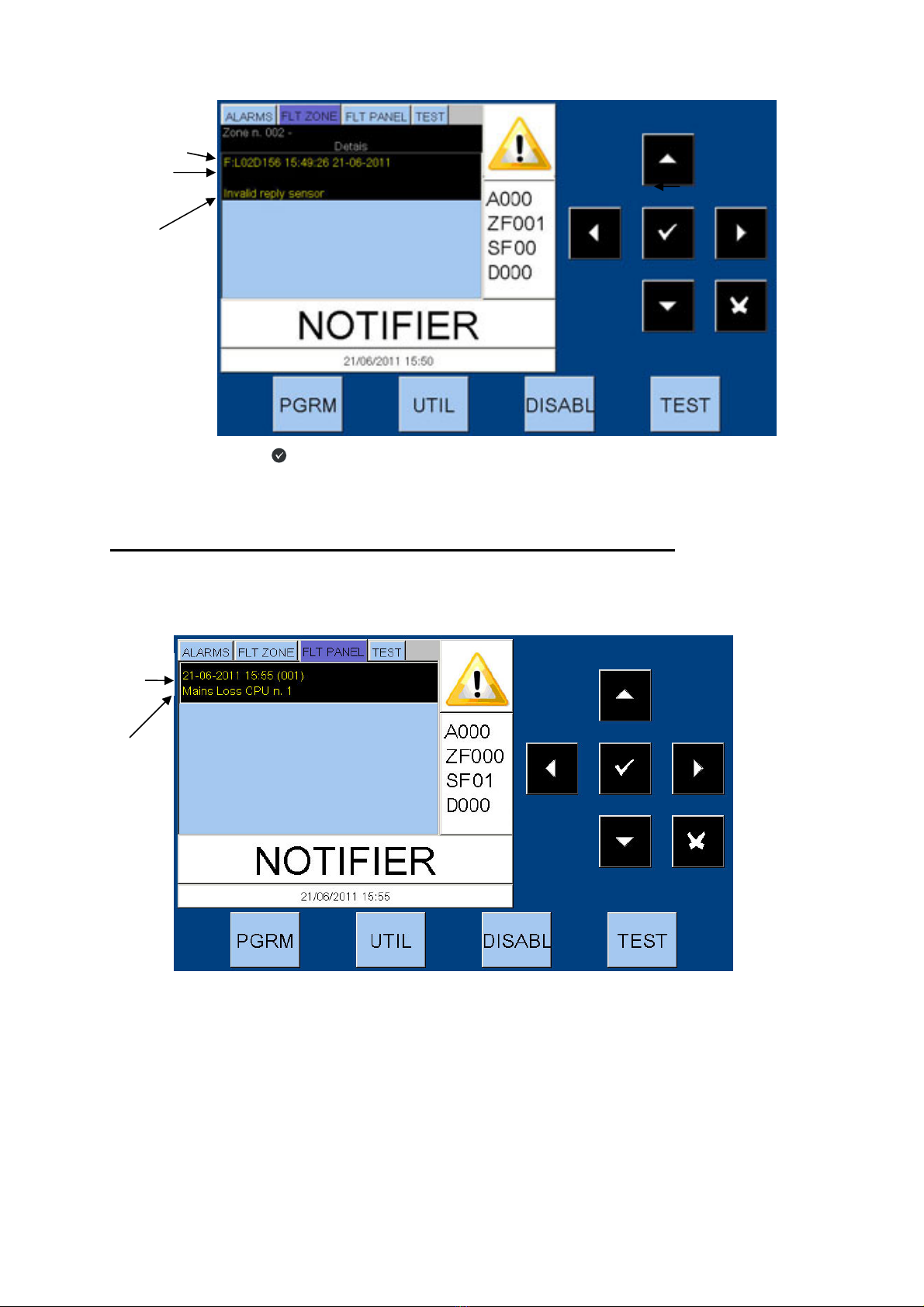

Condition with System fault events (control unit faults)
The Fault events relevant to the control unit are defined as “system Faults” (ex. discharged battery, no mains,
etc.).
The system Faults are displayed with the maximum detail level.
T
Th hr ro ou ug gh h a ar rr ro ow w k ke ey ys s    y yo ou u c ca an n s sc cr ro ol ll l t th he e l li is st t o of f t
th he e S Sy ys st te em m F Fa au ul lt ts s. .
Detail of the Device in
Fault Condition
Text programmed
for the device
Fault Type description
Date and Time of
the Event
Counter for
System Faults
Description of the
System Fault
Event
Counter
of Faulty zones

Pag. 8 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG

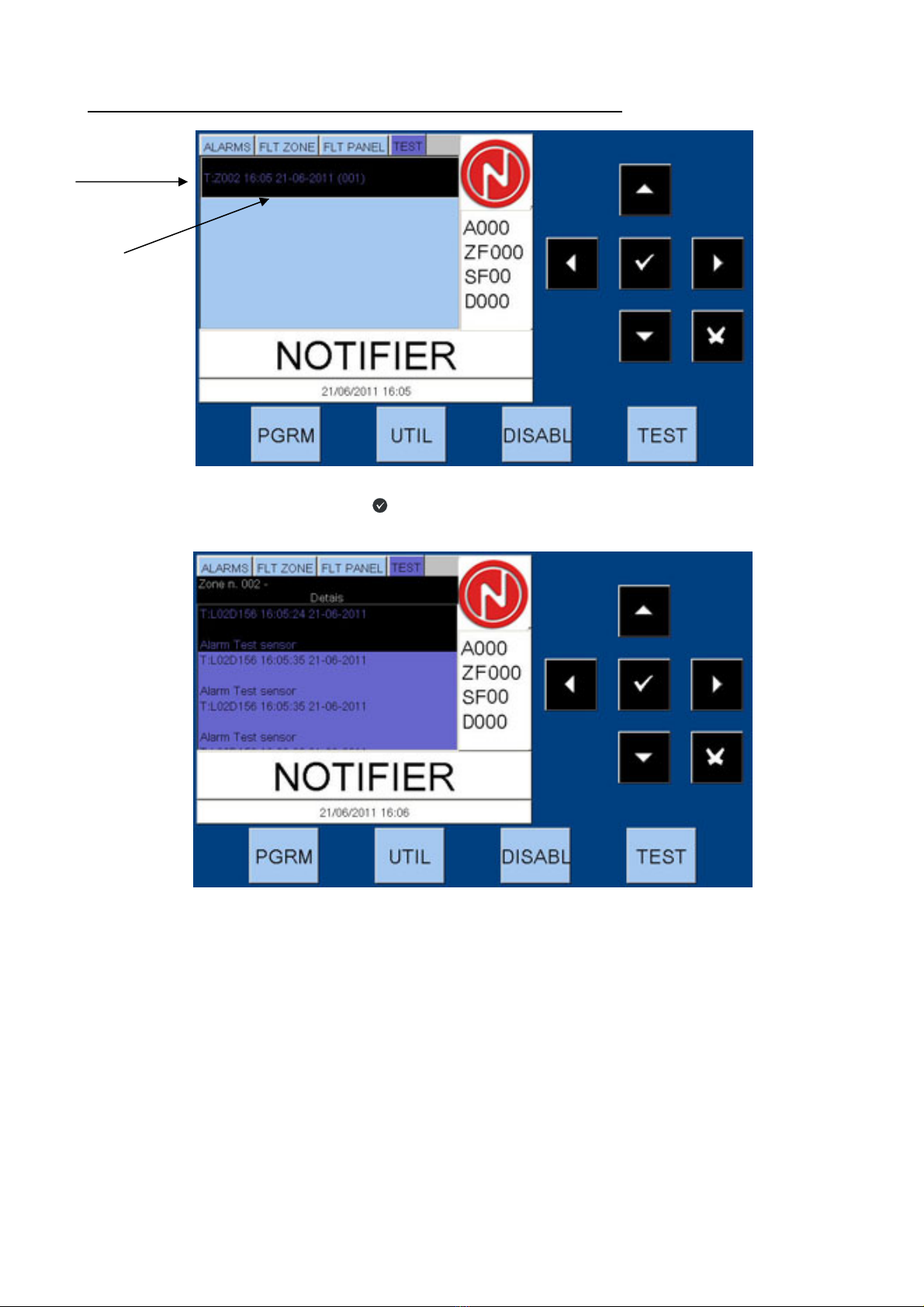

Condition with alarm events from a zone under Test
Through a first pressure of the enter key you can display the list of devices with the indication of the point
name; refer to the following figure:
through the arrow keys  you can scroll the list of the tested devices of the zone.
Alarm event
from zone under test
Date and Time
of the Event

AM_8000 Programming Manual PAGINA - 9
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
P
PR RO OG GR RA AM MM MI IN NG G M ME EN NU U
RECOMMENDED SEQUENCE TO PERFORM THE CONTROL UNIT PROGRAMMING
The following operation sequence is recommended to perform the initial programming of the control unit, to
prevent mistakes and consequent loss of time.
The details of each operation are pointed out in the following pages.
- Perform the wiring of the control unit lines and perform the appropriate tests as described in the
installation manual before powering the control unit.
- Make some photo-copies of the programming sheet that can be found at the end of this manual and
record on these sheets the necessary information for ALL sensors, modules, software zones, CBE and
groups.
From the Programming menu select the “System” menu.
Select the “Line” item and program the type of connection which has been performed on the installed
lines ( open line or closed loop ).
From the Programming menu select Point Programming
Select the Auto-Learn item, and press the enter key and subsequently enter the number of lines for
which the procedure must be started.
Through this operation all the devices installed on the lines are recognized and loaded in the control unit
memory according to their Hardware TYPE ID and with the default data.
At the end of the procedure check that the devices detected by the control unit during the Auto-
Learn are those really installed, and confirm.
This will record all data in the Panel memory.
In any case user can edit and modify the recorded data in case it needs.
From the Point Programming menu select “Detectors”
Associate the detector with the appropriate zone
Program the detector CBE ( Control by Event action).
From the Point Programming menu select the “Modules” item
Program the Software Type-ID (if it is different from the default value assigned )
Associate the module with the appropriate zone
Program the module CBE ( Control by Event action).
At the end of this programming steps the control unit is ready to manage the Alarm system
Additional details can be added to the mentioned, as for example a text description for each
detector, module or zone.
For further information or specific parameters description see the following paragraphs.

Pag. 10 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG
Refer to System Menu section
Refer to Point Programming section
Refer to Group Programming section
Refer to Zone Programming section
Refer to A AM M- -8 80 00 00 0 P Pr ro og gr ra am m section
Refer to D De el le et te e P Pr ro og gr ra am mm mi in ng gs s section
Programming menu
By pressing the “PGRM” function key you can access the programming menu, to perform the configuration of
the system or make changes to the programming.
To access the Programming menu
you must enter the Level 3A password
(44444 is the default password)
To enter the password use the keyboard that appears on the
screen.
The following screen is displayed:
Programming - System menu
By selecting “System” you can configure the configuration parameters which are valid for all the control unit.
Refer to System-Line section
Refer to System-Timing section
Refer to System-Password section
Refer to System-Installation section

AM_8000 Programming Manual PAGINA - 11
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
Programming – System - LINE
Style: OPEN LINE, CLOSED LOOP
This function allows to change (in memory) the type of line connection, according to the NFPA coding ( Open =
style 4, LOOP = style 6 ) and the scan priority of the devices connected to it.
Through a first pressure of the enter key the Line editing function is activated,
Through the arrow keys  select the line style (OPEN - LOOP)
Press the enter key to confirm the programming.

 Programming – System - Timings
In this sub-menu some delay times of the alarm outputs are programmed, the delay time for the sensor alarm
check, silencing inhibition, etc.
ALARM –OUT folder
Through the arrow keys select the item which is required to be changed (“Siren” or “Tx Alarm”)
Through pressure of the enter key the editing function is activated.
Through the arrow keys  or through keyboard the data are entered, by pressing the enter key you can
confirm entered data.
Sounder activation delay is programmable in seconds ( max. 600 sec)
The “Siren” and “TX Alarms” activation delay timings are active only in case of alarm if the immediate
activation of the outputs has been excluded in the exclusions menu.
The “TX Alarms” function is not implemented in this software revision.
Press one of these key to select the Previous or Next line

Pag. 12 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG

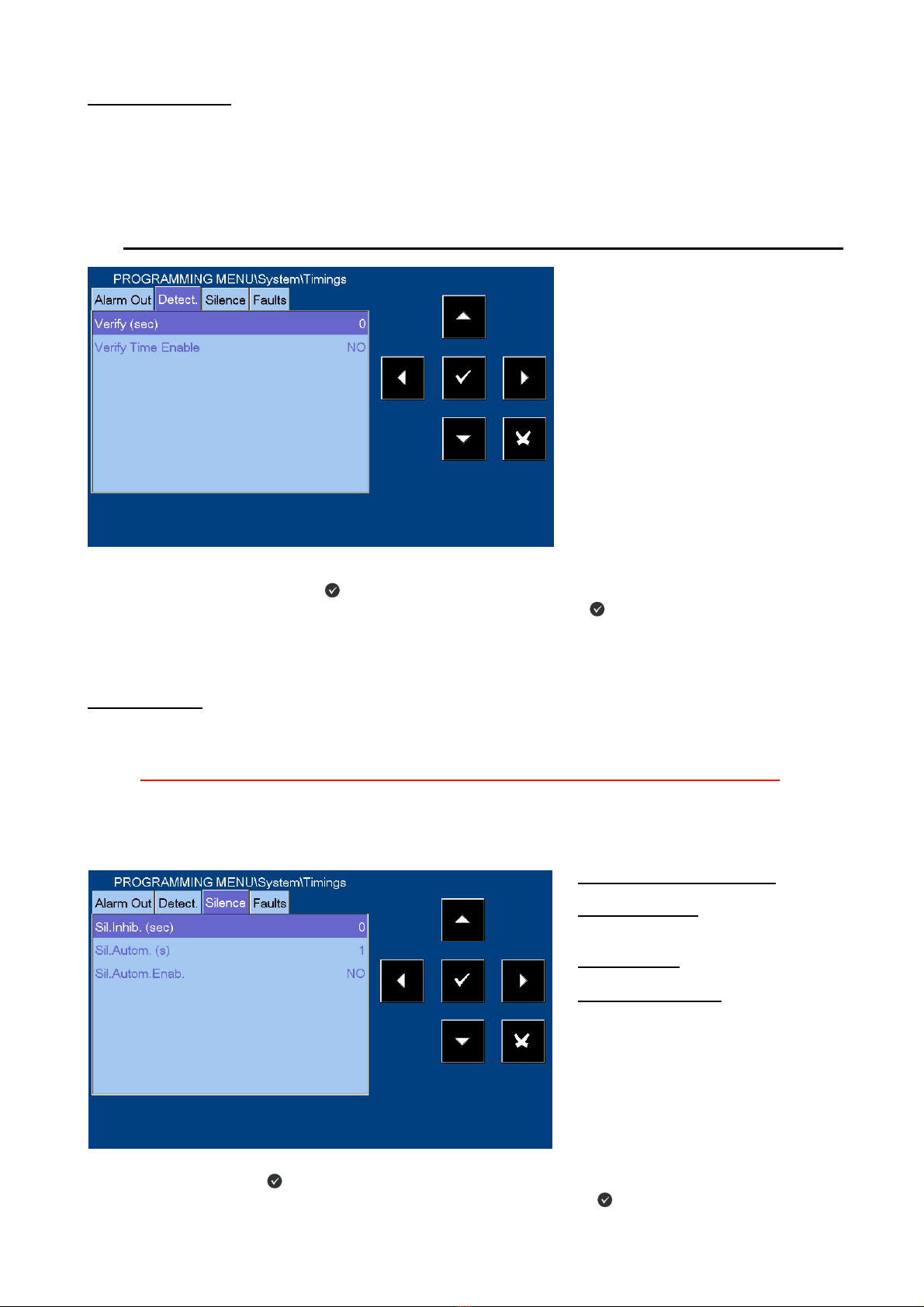

DETECTORS folder
Press the right Arrow key 4to change the time of check for the detectors:
Detectors verification time allows the control unit to perform a check for all installed sensors, for the set time,
before confirming the possible alarm.
Detectors Verification Time is programmable in seconds ( Max. 50 sec )
N.B. This function will be effective only on the enabled sensors (refer to the Point Programming menu)
Through the arrow keys select the item which is required to be changed (“Check “ or “Check Enabl.”)
through pressure of the enter key the editing function is activated.
Through the arrow keys  data are entered and through the enter key entered data are confirmed.
VERIFY ENABLE: selecting “YES” the verification Function is ACTIVE with the programmed verification Time (
in seconds)
SILENCE folder
SELF-SILENCING TIME is the time after which the output modules are reset, after being activated.
Press the right Arrow key 4to change the parameters to manage the Silencing:
NOTE: the self-silencing function of each output module must be enabled in the Point Programming .
(this function is not yet implemented in the current version)
Silence Inhibit time is the time that output modules will remain active without the ability to be Silenced by an
operator.
By pressing the enter key the editing function is activated.
Through the arrows keys  data are entered and through the enter key entered data are confirmed.
Siren / HORN Type-ID outputs
Silence Inhibition:
Time after activation when is not possible
to Silence
Silence Autom:
Minimum activation time
Silence Autom.Enabl:
Enabling of use the Activation time
( otherways outputs are active until
Reset)
All timings are expressed in seconds,
from a minimum of 0 sec. to a max. of
255 sec.

AM_8000 Programming Manual PAGINA - 13
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA

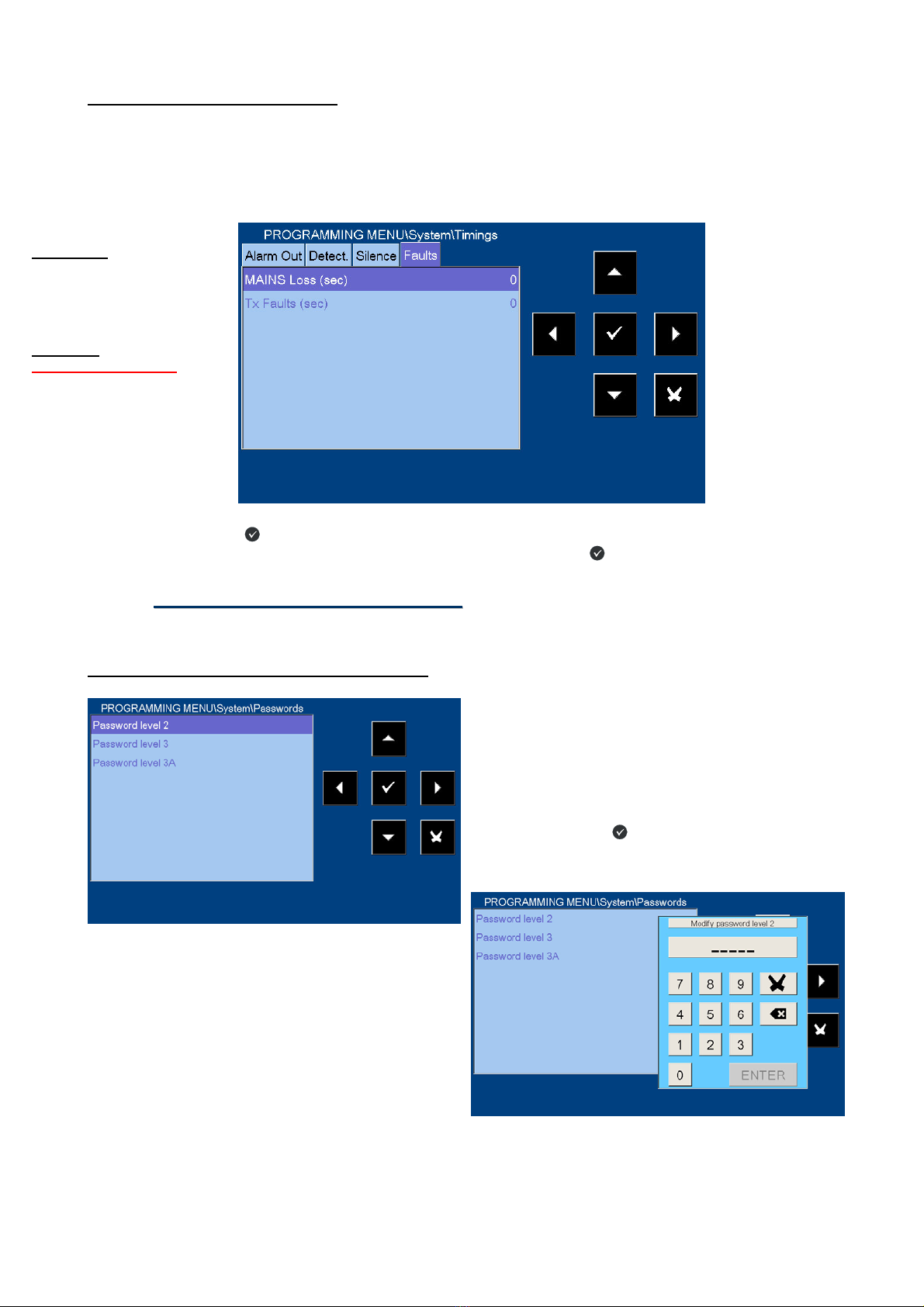

FAULTS signalings timings folder
Press the right Arrow key4to change the parameters to manage the Fault signallings: :
MAINS FAULT DETECTION TIME is the minimum time during which Mains Fault is signalled if there is
no mains
TX FAULT DELAY TIME (function not implemented)
Through the arrow keys select the item which is required to be changed (“Mains”, “Tx Faults” ) by
pressing the enter key the editing function is activated
Through the arrow keys  data are entered and through the enter key entered data are confirmed.

 P Pr ro og gr ra am mm mi in ng g - - S Sy ys st te em m - - P Pa as ss sw wo or rd d
This function allows to change the Password for the three access levels.
Each password consists of 5 numerical characters.
Through the arrow keys select the item which is
required to be changed.
Press the enter key to activate the Numeric
Keyboard to program the Password.
Type the NEW password and hit Enter
Re-type and confirm the password entered.
Mains Loss
Timings are expressed in
seconds, from a minimum of
0 sec. to a max. of 300 sec.
TX Faults:
(not yet implemented)
Timings are expressed in
seconds, from a minimum of
0 sec. to a max. of 600 sec.

Pag. 14 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG
S
Sy ys st te em m p pr ro og gr ra am mm mi in ng g : : I In ns st ta al ll la at ti io on n
This function allows to enter a programmable text for the Panel.
This text can have a maximum of 32 characters and is displayed on the screen in the absence of alarms and
faults (Normal Condition)
To enter the system name press the enter key and use the alphanumerical keyboard to enter the text.
At the end press the Enter key to store the text.
- -

AM_8000 Programming Manual PAGINA - 15
AM8000_manu-prog-ENG Doc. M-160.2-AM-8000-ENG Rev A1 NOTIFIER ITALIA
Programming - Points
From the Programming menu by selecting the “Points” item is displayed the following screen, where you can
manually configure each type of addressable device on field ( Detectors or Modules ).
Detectors
By selecting “DETECTORS” and by confirming the selection through the enter key
you enter the programming procedure for Addressable Sensors.
This procedure is composed of 4 programming folders (to access the folders use the arrow keys4)
The display shows by default the first device of the first line.
To select another device use the function keys “-L” “+L” ( Lines ) and “-D” “+D” ( detectors )
Detectors MAIN folder ( Type ID and Text associated with the Detector )
Protocol to use for this device
ADV = ADVANCED ( NFX serie)
CLIP= 700 SERIE
SW Type
see Type Id table above
HW Type
see Type Id table above
Name
Programmable Text for this device
Press key -L
to program a sensor of
the previous line
Press key +L
to program a sensor of
the subsequent line
Press key -D
to program the
previous sensor
Press key +D
to program the
subsequent sensor

Pag. 16 Programming Manual SERIEAM
NOTIFIER ITALIA Doc. M-160.2-AM-8000-ENG Rev A1 AM8000_manu-prog-ENG
Valid Types for ADVANCED Protocol Detectors
HW Type SW Type description
OPT PHOT NFXI-OPT
TFIX58 THER58 NFXI-TFIX58
TFIX78 THER78 NFXI-TFIX78
TDIFF THERDIFF NFXI-TDIFF
SMT2 OMNI NFXI-SMT2
SMT3 OMNIIR NFXI-SMT3
SMART4 OMNICIR IRX-751CTEM-W SMART4
Valid Types for CLIP Protocol Detectors
HW Type
V
ISUAL MESSAGE TYPE OF DEVICE
PHOT OPTICAL AN. Smoke optical detector
ION IONIC AN. Smoke ionization detector
THER THERMAL AN. Thermal detector
PINN PINNACLE “Laser” High sensitivity Smoke detector
OMNI OMNI “Omni Sensor” Detector
D
De et te ec ct to or rs s P PR RO OG GR RA AM M f fo ol ld de er r. . ( (P Pr ro og gr r. . o of f C CB BE E E Eq qu ua at ti io on ns s,
, Z Zo on ne e a as ss so oc ci ia at ti io on n) )
CBE = Control By Events
Are the programming instructions that set the actions to associated with a point event.
See the relative CBE Programming Appendix at the end of this manual for a description more in detail.
To change the “CBE” field in this folder select the parameter through the arrow keys ,
press the enter key .
Zone Number
Associated to this Detector
CBE for this point:
If a CBE is already
programmed it’s displayed
here, other ways the “CBE”
text is displayed as show.
