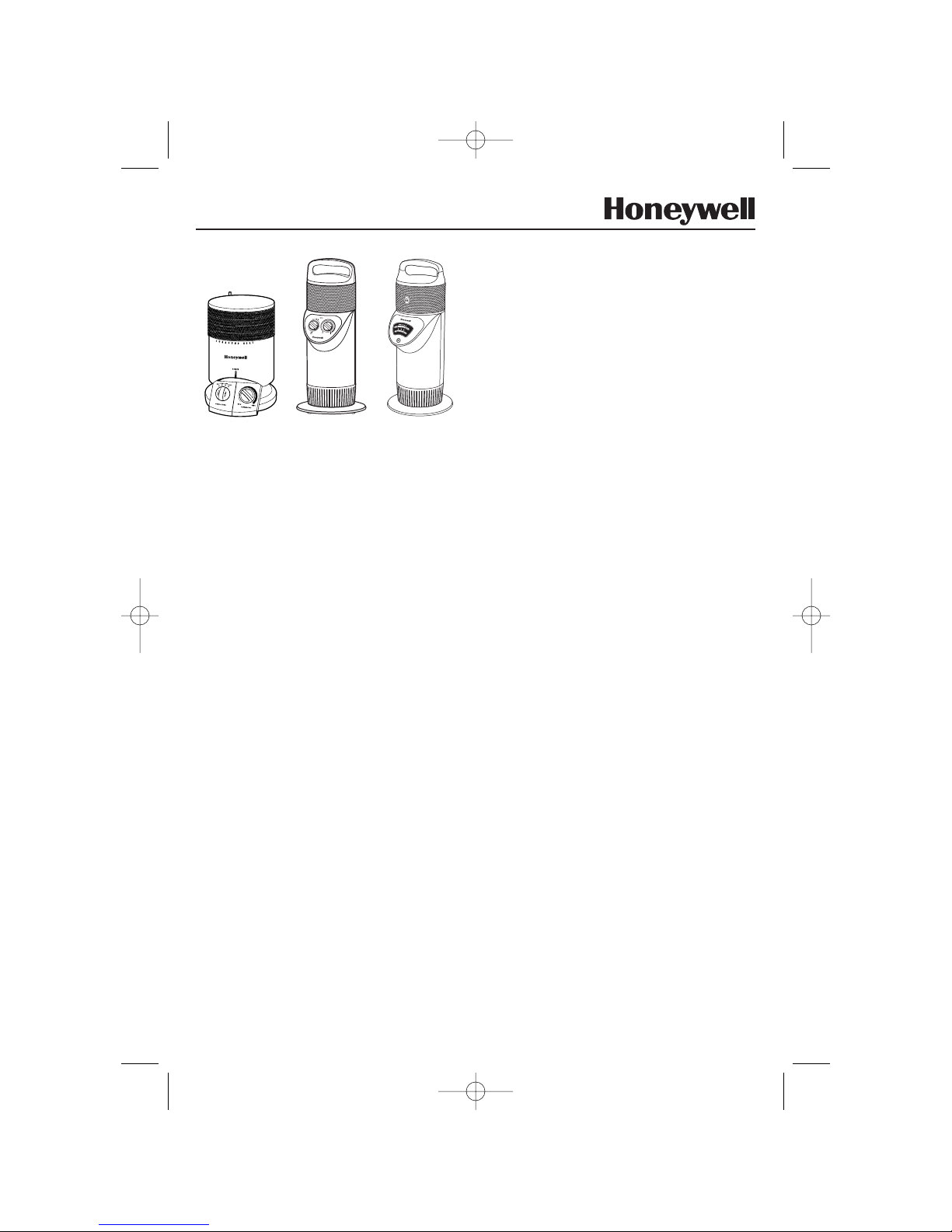

Honeywell HZ2206TGT - Mini Tower Surround Heater User manual

TOWER SURROUND HEATERS
Model HZ-2200 Series
Model HZ-3200 Series
Model HZ-3220 Series
IMPORTANT SAFETY
INSTRUCTIONS
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. If
provided, use handle when moving this heater.
Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at
least 3 feet (0.9 m) from the front of the heater
and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is
used by or near children, pets or invalids and
whenever the heater is left operating and
unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord
or plug or after the heater malfunctions, has been
dropped or damaged in any manner.
6. Do not use outdoors.
7. This heater is rated at 1500W, 120 VAC. It is
intended for use on tabletops, desktops and
floors. It is not to be used in wet or moist
locations, such as bathrooms and laundry areas.
If an extension cord must be used, it must be 14
gauge or larger and rated no less than 1875
watts.
8. Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or the like.
Arrange cord away from traffic area where it will
not be tripped over.
9. This appliance has a polarized plug (one blade is
wider than the other). To reduce the risk of shock,
this plug is intended to fit only one way in a
polarized outlet. If the plug does not fit securely
in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician. DO NOT
attempt to defeat this safety feature.
10. This heater draws 12.5 amps during operation
when in the high setting. To prevent overloading
a circuit, do not plug the heater into a circuit that
already has other appliances working.
11. It is normal for the plug to feel warm to the touch;
however, a loose fit between the AC outlet
(receptacle) and plug may cause overheating and
distortion of the plug. Contact a qualified
electrician to replace loose or worn outlet.
12. To disconnect the heater, first turn controls to the
OFF position, then grip the plug and pull it from
the wall outlet. Never pull by the cord.
13. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock or fire, or damage the heater.
14. To prevent a possible fire, do not block air intakes
or exhaust in any manner. Do not use on soft
surfaces, like a bed, where openings may
become blocked.
15. A heater has hot and arcing or sparking parts
inside. Do not use it in the areas where gasoline,
paint, or flammable liquids are used or stored.
16. Use this heater only as described in this manual.
Any other use not recommended by the
manufacturer may cause fire, electric shock, or
injury to persons.
17. The output of this heater may vary and its
temperature may become intense enough to burn
exposed skin. Use of this heater is not
recommended for persons with reduced
sensitivity to heat or an inability to react to avoid
burns.
18. SAVE THESE
INSTRUCTIONS
The Honeywell trademark is used by Kaz, Inc. under license from Honeywell Intellectual Properties, Inc.
HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 1

HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 2

• Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away
from any wall or any combustible material. DO NOT use on an unstable surface such as bedding or
deep carpeting. BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY
CHILDREN OR PETS.
SET-UP
HZ-2200 OPERATION
• Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away
from any wall or any combustible material. DO NOT use on an unstable surface such as bedding or
deep carpeting. BE SURE THE HEATER IS NOT IN A POSITION WHERE
IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.
• The Tower Surround Heater is designed to disperse heat in either a
360° range or in one direction only. To select the desired heating mode,
slide the Direction Control switch, located on the top of the heater, to
the position of your choice (Fig. 2):
– to the left ( ) for 360°Heating
– to the right ( ) for Forward Only Heating (One Direction Heating)
• With the Power knob in the OFF position, plug the heater into a
polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE
OUTLET; it will only fit one way.
• Turn the Thermostat control fully clockwise to the HIGH setting.
• This heater is equipped with three (3) settings: High, Low and Fan Only.
The High setting uses 1500 watts of power and the Low setting uses
750 watts of power. You can select the proper setting to accommodate
your comfort level. Because the Low setting does not require as much
electricity to operate, it is more energy efficient and may be a better
option if you are concerned about the amperage draw on a circuit when the heater is in the High
setting.
• Turn the heater on using the Child Resistant Switch (Power knob). To operate the switch, push in the
two sides of the Power knob while turning it clockwise to the desired position (Fig. 3). The power light
will illuminate. The Child Resistant Switch helps to keep the heater from being turned on
unintentionally; there is no way to disengage this safety feature.
• When the room reaches a comfortable temperature, slowly turn the Thermostat control counter-
clockwise until the heating element goes off (the power light will remain on). This is the point at which
the Thermostat setting equals the room temperature. At this setting, the Thermostat will automatically
turn the heater on and off to maintain the selected temperature.
• Push down and turn the Power knob to OFF and unplug the heater when you are finished using it.

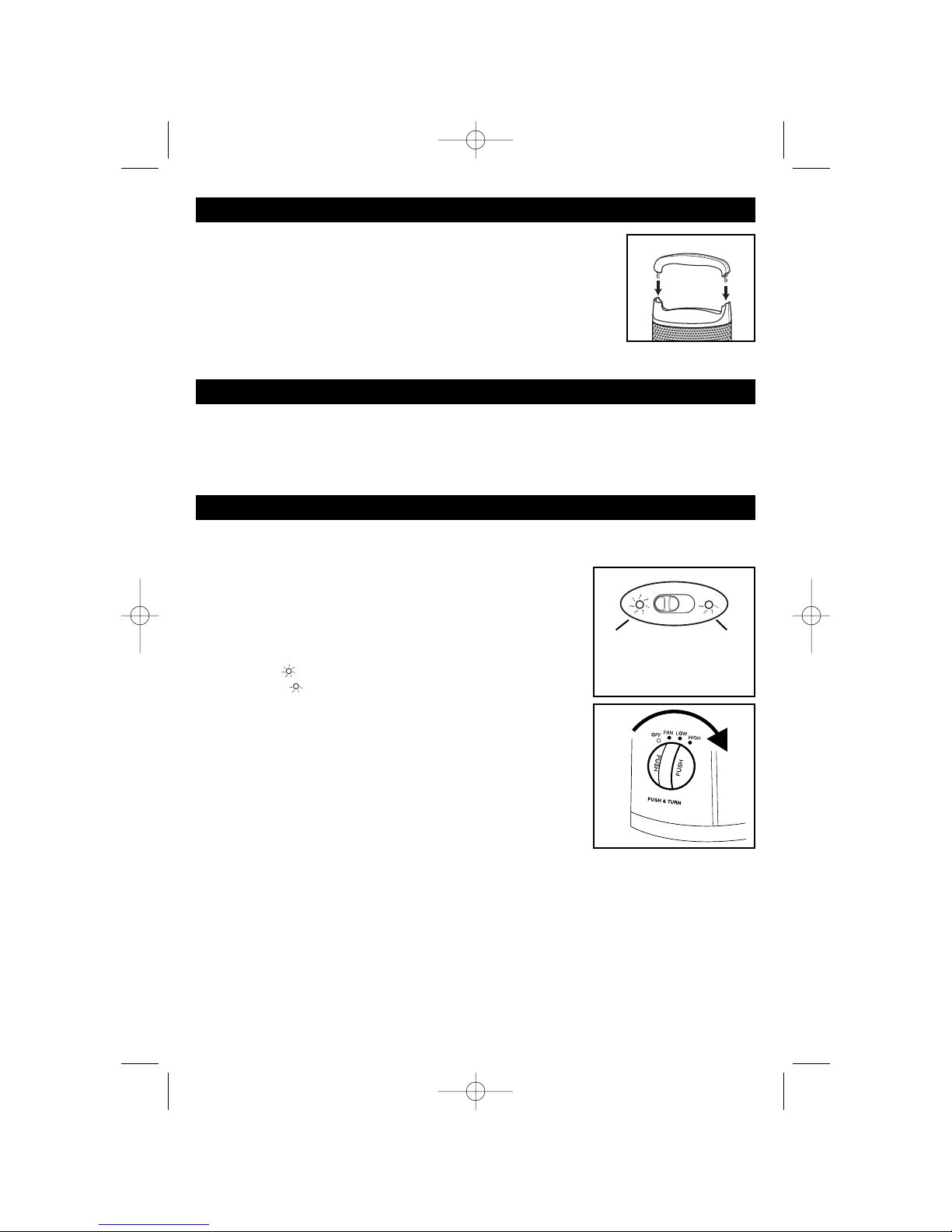

ASSEMBLY (HZ-3200 & HZ-3220 SERIES)
• Remove the Handle from the box, it may be nested in the styrofoam packing
material.
• Place the heater on a firm, level floor.
• Line up the prongs on the bottom of the handle with the openings on the top
of the heater and firmly push down (Fig. 1). The handle is now permanently
fastened to the top cover.
NOTE: The HZ-2200 Series does not require any assembly.
Fig. 1
Fig. 3
Forward Only
Heating
(One Direction
Heating)
360° Heating
Fig. 2
HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 3

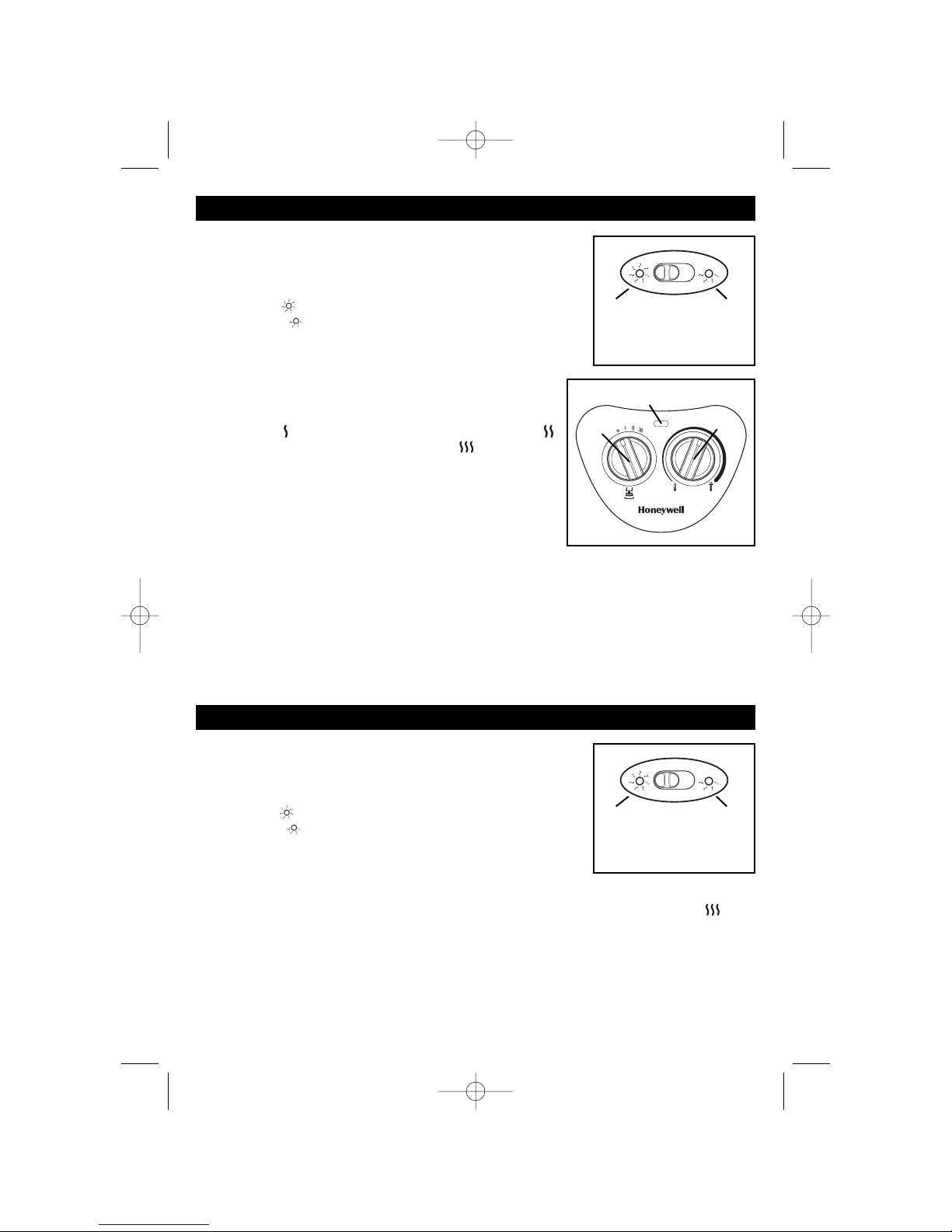

HZ-3200 OPERATION
• The Tower Surround Heater is designed to disperse heat in either a
360° range or in one direction only. To select the desired heating mode,
slide the Direction Control switch, located on the top of the heater, to
the position of your choice (Fig. 4):
– to the left ( ) for 360°Heating
– to the right ( ) for Forward Only Heating (One Direction Heating)
• With the Power knob in the OFF (O) position, plug the heater into a
polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE
OUTLET; it will only fit one way.
• Turn the Thermostat control fully clockwise to the HIGH setting.
• This heater is equipped with three different heat settings. The
Low setting ( ) uses 600 watts of power, the Medium setting ( )
uses 900 watts of power and the High setting ( ) uses 1500
watts of power. You can select the proper setting to accommodate
your comfort level. Because the Low and Medium heat settings do
not require as much electricity to operate, they are more energy
efficient and may be better options if you are concerned about the
amperage draw on a circuit when the heater is in the High setting.
• Turn the heater on using the Child Resistant Switch (Power knob).
To operate the switch, push in the two sides of the Power knob while turning it clockwise to the
desired position (Fig. 5). The power light will illuminate. The Child Resistant Switch helps to keep the
heater from being turned on unintentionally; there is no way to disengage this safety feature.
• When the room reaches a comfortable temperature, slowly turn the Thermostat control counter-
clockwise until the heating element goes off (the power light will remain on). This is the point at which
the Thermostat setting equals the room temperature. At this setting, the Thermostat will automatically
turn the heater on and off to maintain the selected temperature.
• Push down and turn the Power knob to OFF and unplug the heater when you are finished using it.
Fig. 5
HZ-3220 OPERATION
• The Tower Surround Heater is designed to disperse heat in either a 360°
range or in one direction only. To select the desired heating mode, slide
the Direction Control switch, located on the top of the heater, to the
position of your choice (Fig. 6):
– to the left ( ) for 360°Heating
– to the right ( ) for Forward Only Heating (One Direction Heating)
• Plug the heater into a polarized 120V outlet. DO NOT FORCE THE
POLARIZED PLUG INTO THE OUTLET; it will only fit one way.
STEP 1: POWER
• Press the Power button to start the heater. Your heater will automatically start on High power ( ),
continuous run (Fig. 7).
• To turn your heater OFF simply press the Power button again.
NOTE: When initially turned on, the heater will operate in continuous run mode. The heater will
continue to run regardless of the room temperature in this mode. The heater is running in this mode
when no LED lights are illuminated on the thermostat display.
Forward Only
Heating
(One Direction
Heating)
360° Heating
Fig. 4
Forward Only
Heating
(One Direction
Heating)
360° Heating
Fig. 6
Power
Knob Thermostat
Knob
Power
Light
HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 4

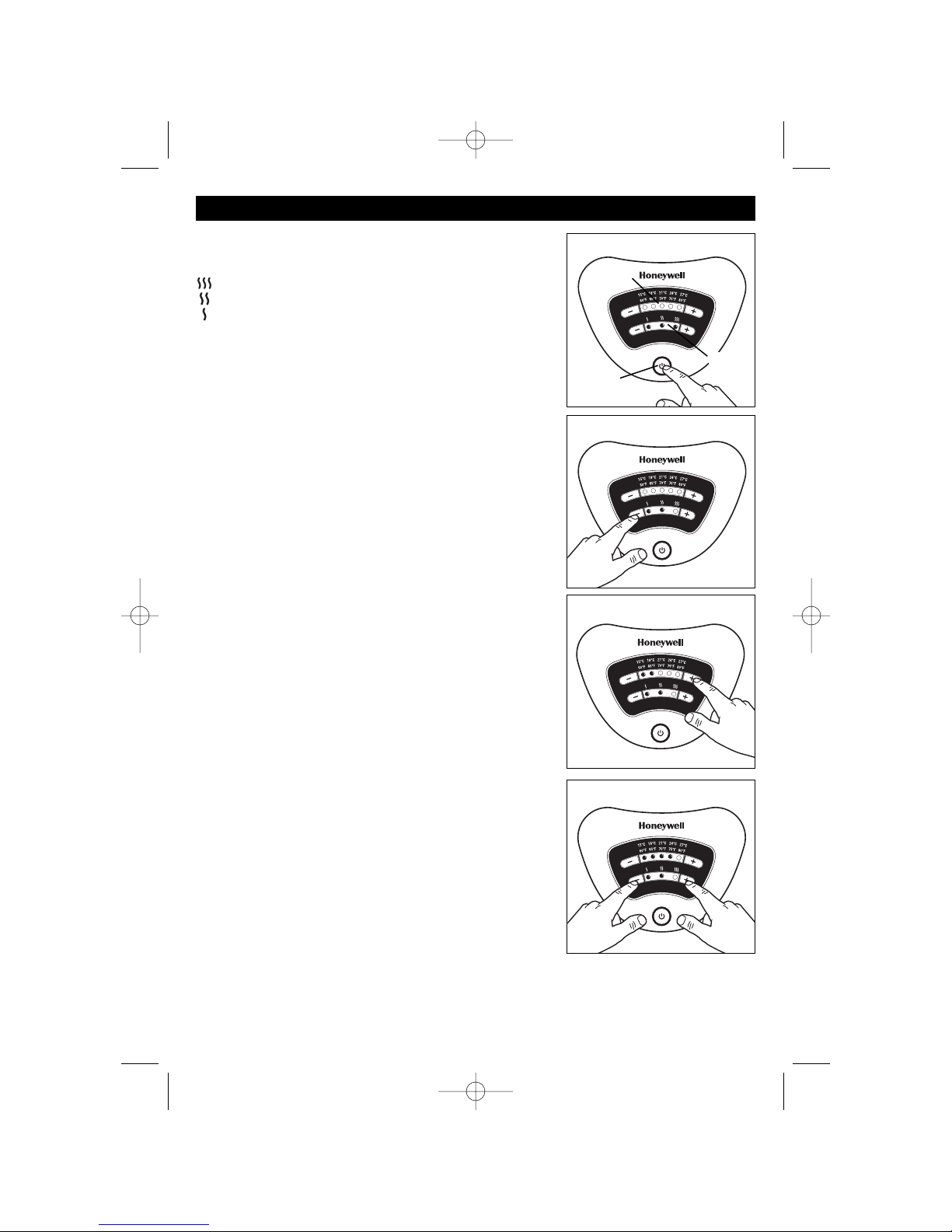

STEP 2: HEAT OUTPUT
Your unit has three output levels
HIGH: 1500 Watt Heating
MED: 900 Watt Heating
LOW: 600 Watt Heating
• Push the up button (+) to increase output level and push the down
button (–) to decrease output level. The LED's will illuminate to
reflect which output level you have selected (Fig. 8).
STEP 3: SET THERMOSTAT
• Adjust your thermostat anywhere between 60°F (15°C) and
80°F (27°C).
• Push the up button (+) to increase the desired temperature and
push the down button (–) to decrease the desired temperature
level. The LED's will illuminate to reflect the temperature you have
selected (Fig. 9).
For example: If you set your thermostat at 65°F (18°C), the 60°F
(15°C) and 65°F (18°C) LED’s will be illuminated.
• Once you have set your desired temperature, the unit will operate
under this desired setting until the unit is turned off.
• When the desired temperature has been reached, the unit will
automatically shut off. (The thermostat LED's will remain
illuminated)
• Your unit will turn back on when the current room temperature
decreases below your desired temperature.
STEP 4: CHILD-LOCK FEATURE
• This heater is equipped with a child-lock feature. This feature will
keep the established settings from being adjusted unintentionally.
To activate the child-lock, once the desired settings have been
established, depress the up button (+) and down button (–) at the
same time and hold for 3 seconds (Fig 10). To deactivate the
child-lock, depress the same up button (+) and down button (–) at
the same time and hold for 3 seconds.
NOTE: This feature will not keep the heater from being turned on.
It will, however, keep the controls from being adjusted once the
heater has been set.
HZ-3220 OPERATION (CONTINUED)
Fig. 9
Fig. 8
Fig. 7
Heat Output
Control
Thermostat
Control
Power
Button
Fig. 10
HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 5

SAFETY FEATURES
These heaters are equipped with several devices and features for added protection:
• SafeGuard™Alert Heat Indicator Badge visually indicates the grille is hot by turning from black to red
(HZ-3220 Series only). When the grille begins to cool after the heater is shut off the badge will turn
black again.
• Child Resistant push-to-turn power control knob (HZ-2200 Series and HZ-3200 Series) or a child-lock
feature (HZ-3220 Series).
• A tip-over switch that disables the heater if it is accidentally tipped forward or backward.
• A high temperature safety control prevents overheating (HI limit).
• This heater is also equipped with a thermal cut-off fuse that will permanently shut down the heater
should it operate at a higher than normal temperature.
• This heater was created using a high quality safety plastic.
CLEANING AND STORAGE
CLEANING
We recommend that the heater be cleaned at least once a month and before off-season storage.
• Turn the heater OFF and unplug it. Allow it to cool.
• Use a dry cloth only to clean the external surfaces of the heater. DO NOT USE WATER, WAXES,
POLISHES OR ANY CHEMICAL SOLUTION.
STORAGE
• Clean your heater using the above-mentioned steps, then store it in a cool, dry place.
• This heater does not disassemble.
TROUBLESHOOTING
If your heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been
activated to prevent overheating.
• Be sure it is plugged in and that the electrical outlet is working.
• Check your Thermostat setting. The unit may simply be off because you have reached your desired
heat setting.
• Check for any obstructions. If you find an obstruction, turn the heater OFF and unplug it. Allow the
heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then re-plug the
heater in and follow the OPERATION instructions.
ELECTRICAL RATING
This product is rated 12.5 Amps (1500 watts) @ 120V, 60Hz.
HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 6

You should first read all instructions before
attempting to use this product.
A. This 5 year limited warranty applies to repair
or replacement of product found to be
defective in material or workmanship. This
warranty does not apply to damage resulting
from commercial, abusive, unreasonable use or
supplemental damage. Defects that are the
result of normal wear and tear will not be
considered manufacturing defects under this
warranty. KAZ IS NOT LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY NATURE. ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED IN DURATION TO THE DURATION OF
THIS WARRANTY. Some jurisdictions do not
allow the exclusion or limitation of incidental or
consequential damages or limitations on how
long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights,
and you also may have other rights which vary
from jurisdiction to jurisdiction. This warranty
applies only to the original purchaser of this
product from the original date of purchase.
B. At its option, Kaz will repair or replace this
product if it is found to be defective in material
or workmanship. Defective product should be
returned to the place of purchase in
accordance with store policy. Thereafter, while
within the warranty period defective product
may be returned to Kaz.
C. This warranty does not cover damage resulting
from any unauthorized attempts to repair or
from any use not in accordance with the
instruction manual.
D. Return defective product to Kaz, Incorporated
with a brief description of the problem. Include
proof of purchase and a $10 US/$15.50 CAN
check or money order for handling, return
packing and shipping charges. Please include
your name, address and a daytime phone
number. You must prepay shipping charges.
Send to:
In U.S.:
Kaz, Incorporated
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA
In Canada:
Kaz, Incorporated
Attn: Returns Department
510 Bronte Street South
Milton, ON L9T 2X6
Canada
© 2005 Kaz, Incorporated. All Rights Reserved.
P/N: 31IM2200295
5 YEAR LIMITED WARRANTY
CONSUMER RELATIONS
Mail questions or comments to:
Kaz, Incorporated
Consumer Relations Dept.
250 Turnpike Road
Southborough, MA 01772
Call us toll-free at: 1-800-332-1110
E-mail: [email protected]
Or visit our website at: www.kaz.com
Please be sure to specify a model number.
NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST, RETURN
THE HEATER TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO
OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE
TO THE HEATER OR PERSONAL INJURY.
HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 7

HZ-2200-3200-3220_OM_Rev1.qx 6/8/05 1:19 PM Page 8
