Honeywell HZ-850 Series User manual

THERMAWAVE
CERAMIC HEATER
Model HZ-850 Series
Model HZ-860 Series
IMPORTANT SAFETY
INSTRUCTIONS
WARNING – READ AND SAVE
THESE OPERATING AND SAFETY
INSTRUCTIONS BEFORE USING
THIS HEATER.
Warning – Failure to follow any of these
safety instructions could result in fire, injury
or death.
YOUR RESPONSIBILITIES
Electrical appliances may expose people to
hazards that can cause severe injury as well
as death. The use of electrical products may
create hazards that include, but are not limited
to, injury, fire, electrical shock and electrical
system damage. These instructions are
intended to provide you with the information
you need to use the product and to avoid such
hazards.
When using electrical appliances, basic
precautions should always be followed
to reduce risk of fire, electric shock, and
injury to persons including the following:
1. Warning – Read all instructions before
using this heater.
2. Warning – This heater is hot when in
use. To avoid burns, do not let bare
skin touch hot surfaces. If provided, use
handles when moving this heater. Keep
combustible materials, such as furniture,
pillows, bedding, papers, clothes, and
curtains at least 3 feet (0.9 m) from the
front of the heater and keep them away
from the sides and rear.
3. Warning – Extreme caution is necessary
when any heater is used by or near
children or invalids, and whenever the
heater is left operating and unattended.
4. Warning – Always unplug heater when
not in use.
5. Warning – Do not operate any heater
with a damaged cord or plug or after the
heater malfunctions, has been dropped or
damaged in any manner. Discard heater or
return heater to manufacturer
6. Warning – For residential use only.
7. Warning – Do not use outdoors.
8. Warning – This heater is not intended
for use in bathrooms, laundry areas and
similar indoor locations. Never locate
heater where it may fall into a bathtub or
other water container.
9. Warning – Do not run cord under
carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not
route cord under furniture or appliances.
Arrange cord away from traffic area and
where it will not be tripped over.

10. CAUTION – THIS APPLIANCE HAS A
POLARIZED PLUG (ONE BLADE IS WIDER
THAN THE OTHER). TO REDUCE THE RISK
OF SHOCK, THIS PLUG IS INTENDED TO
FIT ONLY ONE WAY IN A POLARIZED
OUTLET. IF THE PLUG DOES NOT FIT
SECURELY IN THE OUTLET, REVERSE
THE PLUG. IF IT STILL DOES NOT FIT,
CONTACT A QUALIFIED ELECTRICIAN. DO
NOT ATTEMPT TO DEFEAT THIS SAFETY
FEATURE.
11. Warning – This heater draws 12.5 amps
during operation. To prevent overloading
a circuit, do not plug the heater into a
circuit that already has other appliances
working.
12. Warning – It is normal for the plug to
feel warm to the touch; however, a loose
fit between the AC outlet (receptacle)
and plug may cause overheating and
distortion of the plug. contact a qualified
electrician to replace loose or worn outlet.
13. Warning – To disconnect the heater,
first turn off the product, then grip the
plug body and pull it from the wall outlet.
Never pull by the cord.
14. Warning – Do not insert or allow foreign
objects to enter any ventilation or exhaust
opening as this may cause an electric
shock or fire, or damage the heater.
15. Warning – To prevent a possible fire, do
not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like
a bed, or where openings may become
blocked.
16. Warning – A heater has hot and arcing
or sparking parts inside. Do not use it in
areas where gasoline, paint or flammable
liquids are used or stored.
17. Warning – Use this heater only as
described in this manual. Any other use
not recommended by the manufacturer
may cause fire, electric shock, or injury to
persons.
18. Warning – Always plug heater directly
into a wall outlet/receptacle. Never use
with an extension cord or relocatable
power tap (outlet/power strip).
19. Warning – Never tamper with this
product or attempt to fix it. Any tampering
with, or modification of this product can
result in serious injury, death, or fire. Risk
of electric shock. Do not open. No user
serviceable parts inside.
20. Warning – Do not remove product
labels that contain warnings or safety
instruction.
21. Caution – The output of this heater may
vary and its temperature may become
intense enough to burn exposed skin. Use
of this heater is not recommended for
persons with reduced sensitivity to heat
or an inability to react to avoid burns.
22. Caution – Before cleaning or storage,
or when not in use, turn the product’s
controls to the OFF position and unplug
the heater from the electrical outlet and
allow to cool.
23. Caution – Place the heater on a firm,
level, open surface free from obstructions
and at least 3 feet (0.9 m) away from any
combustible materials. DO NOT use on
an unstable surface such as bedding or
deep carpeting. Be sure the heater is not
in a position where it may be tripped over
by small children or pets. The heater’s
rubber feet will hold it firmly in position.
24. Caution – If your home has aluminum
wiring have a licensed electrician check
your receptacle’s connections. When
using a 1500 watt heater, aluminum wire
connections can cause a safety issue.
25. SAVE THESE
INSTRUCTIONS

This heater requires simple, no tool assembly.
Unpack Main Body and Mounting Base (Fig. 1).
Place Mounting Base on a firm surface (upright in any direction). Place ThermaWave Main Body on
Mounting Base so Mounting Tabs are aligned with Base Slots. Press Main Body onto the Base until Tabs
snaps secure into the Slots (Fig. 2).
Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from
any wall or combustible material.
DO NOT use on an unstable surface such as bedding or deep carpeting.
BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR
PETS.
SET-UP
Turn off the heater.
Allow it to cool for ten (10) minutes.
Unplug heater and move. This heater is equipped with a Cool Touch Handle for your convenience.
MOVING THE HEATER
Ceramic heaters generate heat by passing electricity through heating wires embedded in ceramic plates.
This type of heating technology provides fast, even heating.
The ThermaWave Ceramic Heater has an organic industrial design that maximizes heat output. It is
designed with fan power to improve convection in order to provide both all around or directional heating
comfort to you and your room.
ABOUT CERAMIC TECHNOLOGY
Fig. 1 Fig. 2
ASSEMBLY
For best result, place heater on the floor to create warming room convection and allow heater to run for
5-10 minutes to reach maximum heat output.

Model HZ-850 Series - ThermaWave Ceramic Heater Operation
The Power Knob is equipped with two (2) settings:
1) Low ( ) – this setting uses 750 watts of power
2) High ( ) – this setting uses 1500 watts of power
NOTE: Because the Low ( ) setting does not require as much
electricity to operate, it is more energy efficient and may be a
better option if you are concerned about saving energy.
Turn heater on by turning the Power Knob to either Low
() or High ( ), the amber Power Light will come on.
Because the Low ( ) setting does not require as much
electricity to operate, it is more energy efficient and may be a
better option if you are concerned about the amperage draw on
a circuit when the heater is on the High ( ) setting.
To set the Thermostat, turn the Thermostat Control fully
clockwise to the highest ( ) setting.
When the room reaches a comfortable temperature, slowly turn the Thermostat Control counter-clockwise
until both the heating element and fan go off (the amber Power Light will remain on). This is the point
at which the Thermostat setting equals the room temperature. At this setting, the Thermostat will
automatically turn the heater back on and then off as needed to maintain the selected temperature.
Turn the Power Knob to OFF ( ) and unplug the heater when you are finished using it.
OPERATION
NOTE: NEVER LEAVE AN OPERATING UNIT UNATTENDED
With the Power Knob or Power Button in the OFF ( or ) position, plug the heater into a polarized
120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way.
The ThermaWave Ceramic Heater is versatile and designed to be placed in the center of the room or closer
to the wall (at least 3 feet away) for maximum convection room heating.
Model HZ-850
Power Light
Power Knob
Thermostat
Control

Model HZ-860 Series - EnergySmart™ ThermaWave
Ceramic Heater Operation
Turn heater on by pressing ON ( ) button.
The heater will default to the Constant HI
mode and the Current Temp Indicator will
display the current room temperature.
The Energy Usage Indicator will display the
power consumption used by the heater.
The Energy Usage Indicator will display
STAND BY when the heater has reached the
Desired Room Temperature. At this point,
the heater is most efficient and is drawing
only a few watts of energy while in STAND
BY mode.
Energy Usage Indicator Status:
• If HI, the heater is drawing 1500 watts
to quickly warm the room
• If LO, the heater is drawing 750 watts
to slowly warm the room or maintain
the temperature
• In STAND BY, the heater is drawing
no power as the room has reached
the Desired Temperature
To set the heater, the digital control
is equipped with two (2) modes:
Constant Heat Mode -
there are two (2) heat settings
1. For Constant Low, press ( ); this
setting uses 750 watts of power
2. For Constant High, press ( ); this
setting uses 1500 watts of power
NOTE: Because the Low ( ) setting does
not require as much electricity to operate,
it is more energy efficient and may be a
better option if you are concerned about
the amperage draw on a circuit when the
heater is on the High ( ) setting.
OPERATION (CONTINUED)

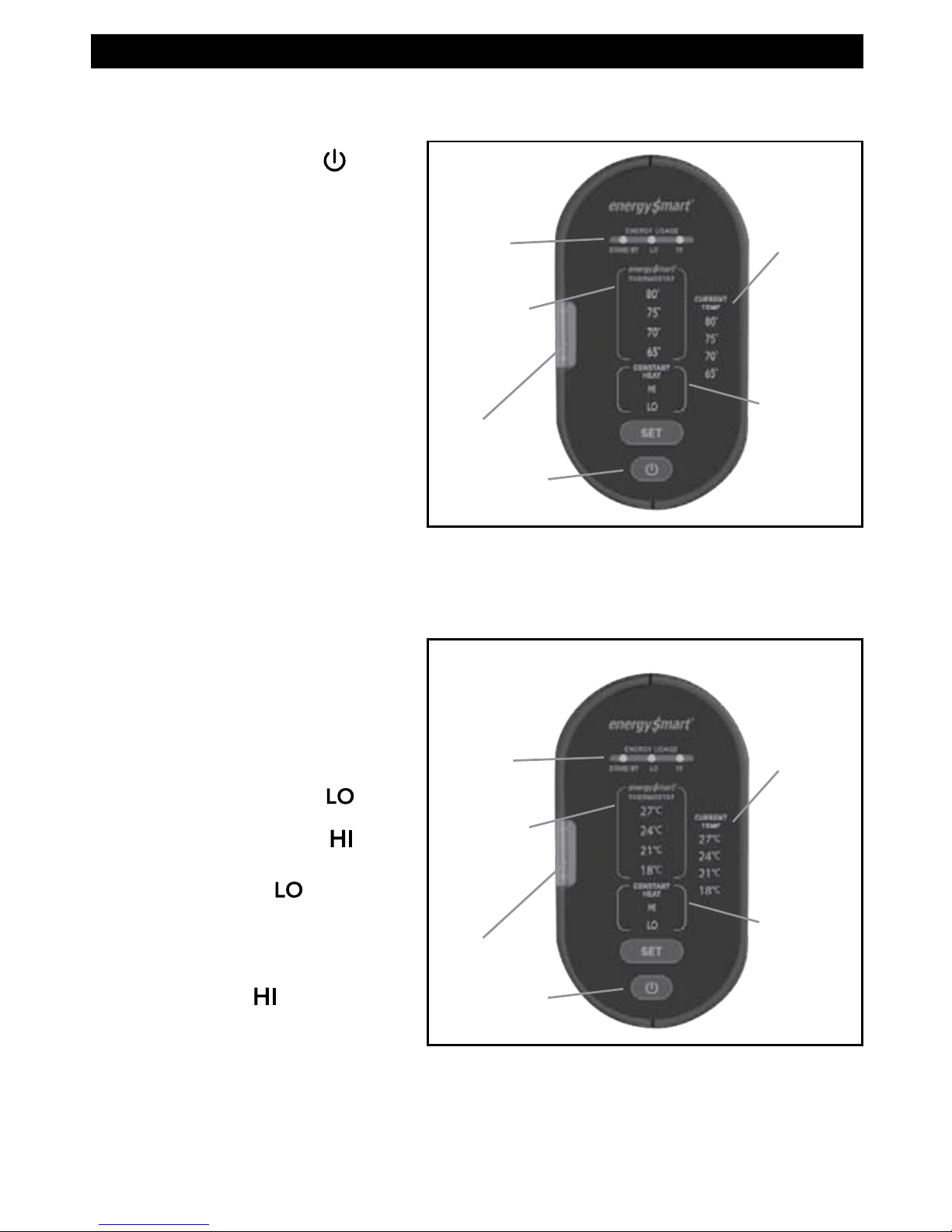

Model HZ-860
Power
Light
Power Button
Continuous
Heat Mode
EnergySmart™
Thermostat
Mode
Current
Temp
Indicator
Energy Usage
Indicator
Model HZ-860C Canada
Power
Light
Power Button
Continuous
Heat Mode
EnergySmart™
Thermostat
Mode
Current
Temp
Indicator
Energy Usage
Indicator

SAFETY FEATURES
This heater is equipped with several devices and features for added protection:
• A tip-over switch that disables the heater if it is accidentally tipped,
• Model HZ-850 Series - 2 way shut off disabled heater if tipped front or back directions
• Model HZ-860 Series - 4 way shut off disables heater if tipped front, back or side to side
directions
• A high temperature safety control prevents overheating.
• Equipped with a thermal cut-off fuse that will permanently shut down the heater should it operate at
a higher than normal temperature.
• This heater was created using a high quality safety plastic.
CLEANING AND STORAGE
We recommend that this heater be cleaned at least once a month and before off-season storage.
• Turn the heater OFF ( ) or ( ) and unplug it. Allow it to cool.
• Use a dry cloth only to clean the external surfaces of the heater. DO NOT USE WATER, WAXES,
POLISHES OR ANY CHEMICAL SOLUTIONS.
• Before storing, clean the ThermaWave Heater using the above-mentioned steps. Wrap the cord
around the unit. Place in its original box and store it in a cool, dry place.
• This heater does not disassemble.
EnergySmart™ Mode -
A smart thermostat that helps you save energy. Press SET to choose four (4) comfort settings of 65°
(18°), 70° (21°), 75° (23°), 80° (26°). This is your desired room temperature. The EnergySmart™
thermostat will automatically select the appropriate power level to best accommodate your Desired
Temperature. As the air temperature (Current Temp) in the room approaches the Desired Temperature,
the heater will automatically lower the power consumption to provide consistent warmth without wasting
energy.
The Current Temp Indicator will display the current room temperature.
To override the EnergySmart™ function, simply press SET to choose either OFF ( ), LOW or HIGH
Continuous Heat.
OPERATION (CONTINUED)

TROUBLESHOOTING
If your heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been
activated to prevent overheating.
• Be sure it is plugged in and that the electrical outlet is working.
• Check for any obstructions. If you find an obstruction, turn the heater OFF ( ) or ( ) and unplug
it.
• Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then plug
the heater in and follow the OPERATION instructions
PRODUCT SPECIFICATIONS
Model(s) HZ-850 Series, HZ-860 Series
Unit dims HZ-850/HZ-860 Series - 17.3” L x 8.5” W x 18” H (assembled)
Amps 12.5
Unit Voltage 120V, 60Hz
Max Watts 1500
Max BTUs 5118
Operation Cost*
To estimate the cost to operate this heater, multiply the watts used times .001 to convert into a kilowatts
measure and multiple by your local kilowatt electric rate for however long you run the heater.
NOTE: Because the Low ( ) or EnergySmart™ (HZ-860 Series) settings do not require as much
electricity to operate, they are more energy efficient and may be better options if you are concerned about
the amperage draw on a circuit when the heater is on the High ( ) setting.
*Calculation (Total Wattage x .001) x Cost per Kilowatt Hour = Cost to operate
**Average Retail Price of Electricity to Ultimate Customer by End-Use, US Energy Information Administration,
August 11, 2010
