Honeywell NXL Series User manual

NXL HVAC & COMPACT
USER’S MANUAL

AT LEAST THE 11 FOLLOWING STEPS OF THE START-UP QUICK GUIDE MUST BE PERFORMED
DURING THE INSTALLATION AND COMMISSIONING.
IF ANY PROBLEMS OCCUR, PLEASE CONTACT YOUR LOCAL DISTRIBUTOR.
Start-up Quick Guide
1. Check that the delivery corresponds to your order, see Chapter 3.
2. Before taking any commissioning actions read carefully the safety instructions in Chapter
1.
3. Before the mechanical installation, check the minimum clearances around the unit and
check the ambient conditions in Chapter 5.
4. Check the size of the motor cable, mains cable, mains fuses and check the cable
connections, read Chapter 6.
5. Follow the installation instructions, see Chapter 5.
6. Control cable sizes and the grounding system are explained in Chapter 6.1.1.
7. Instructions on using the keypad are given in Chapter 7.
8. All parameters have factory default values. In order to ensure proper operation, check
the rating plate data for the values below and the corresponding parameters of
parameter group P2.1. See Chapter 8.3.3. In all cases Honeywell NXL start up wizard is
recommended to ensure easy commissioning.
•nominal speed of the motor, par 2.1.7 (2.1.8 in NXL Compact)
•nominal current of the motor, par. 2.1.6 (2.1.9 in NXL Compact)
The following motor parameters need adjusting only if the motor voltage is different from
400 V or the equipment is installed to a electrical network which does not have the
frequency of 50 Hz (e.g. North America 60 Hz).
•nominal voltage of the motor, par. 2.1.11 (2.1.6 in NXL Compact)
•nominal frequency of the motor, par. 2.1.12 (2.1.7 in NXL Compact)
All parameters are explained in the Application Manuals.
9. Follow the commissioning instructions, see Chapter 8.
10. The Honeywell NXL Frequency Converter is now ready for use.
11. In the end of this manual, you will find a quick help with the default I/O, control panel
menus, monitoring values, fault codes and basic parameters
Honeywell is not responsible for the use of the frequency converters
against the instructions.

CONTENTS
NXL HVAC & COMPACT
USER’S MANUAL
INDEX
1 SAFETY
2 EU DIRECTIVE
3 RECEIPT OF DELIVERY
4 TECHNICAL DATA
5 INSTALLATION
6 CABLING AND CONNECTIONS
7 CONTROL KEYPAD
8 COMMISSIONING
9 FAULT TRACING
10 DESCRIPTION OF BOARD NXLOPTAA
11 DESCRIPTION OF BOARD NXLOPTAI
12 NXL HVAC BASIC SPEED CONTROL
OTHER NXL MANUALS:
NXL HVAC APPLICATION MANUAL
Programming Manual for NXL HVAC drives
MULTICONTROL APPLICATION MANUAL
Programming Manual for standard NXL and NXL Compact.

ABOUT THE NXL HVAC & COMPACT USER'S MANUAL
AND NXL APPLICATION MANUALS
Congratulations for choosing the Smooth Control provided by NXL frequency converters!
The User's Manual will provide you with the necessary information about the installation, commissioning
and operation of NXL Frequency Converter. We recommend that you carefully study these instructions
before powering up the frequency converter for the first time.
In the NXL HVAC Application Manual and the Multi-Control Application Manual you will find information
about the application used in Honeywell NXL drives.

Honeywell
HoneywellHoneywell
Honeywell Index 5(96)
NXL HVAC & COMPACT User's Manual
Index Date: 28.10.2008
1. SAFETY .................................................................................................................................. 7
1.1 Warnings ............................................................................................................................. 7
1.2 Safety instructions................................................................................................................ 7
1.3 Earthing and earth fault protection ....................................................................................... 8
1.4 Running the motor ............................................................................................................... 8
2. EU DIRECTIVE ....................................................................................................................... 9
2.1 CE marking.......................................................................................................................... 9
2.2 EMC directive ...................................................................................................................... 9
2.2.1 General ............................................................................................................................ 9
2.2.2 Technical criteria .............................................................................................................. 9
2.2.3 NXL frequency converter EMC classification.................................................................... 9

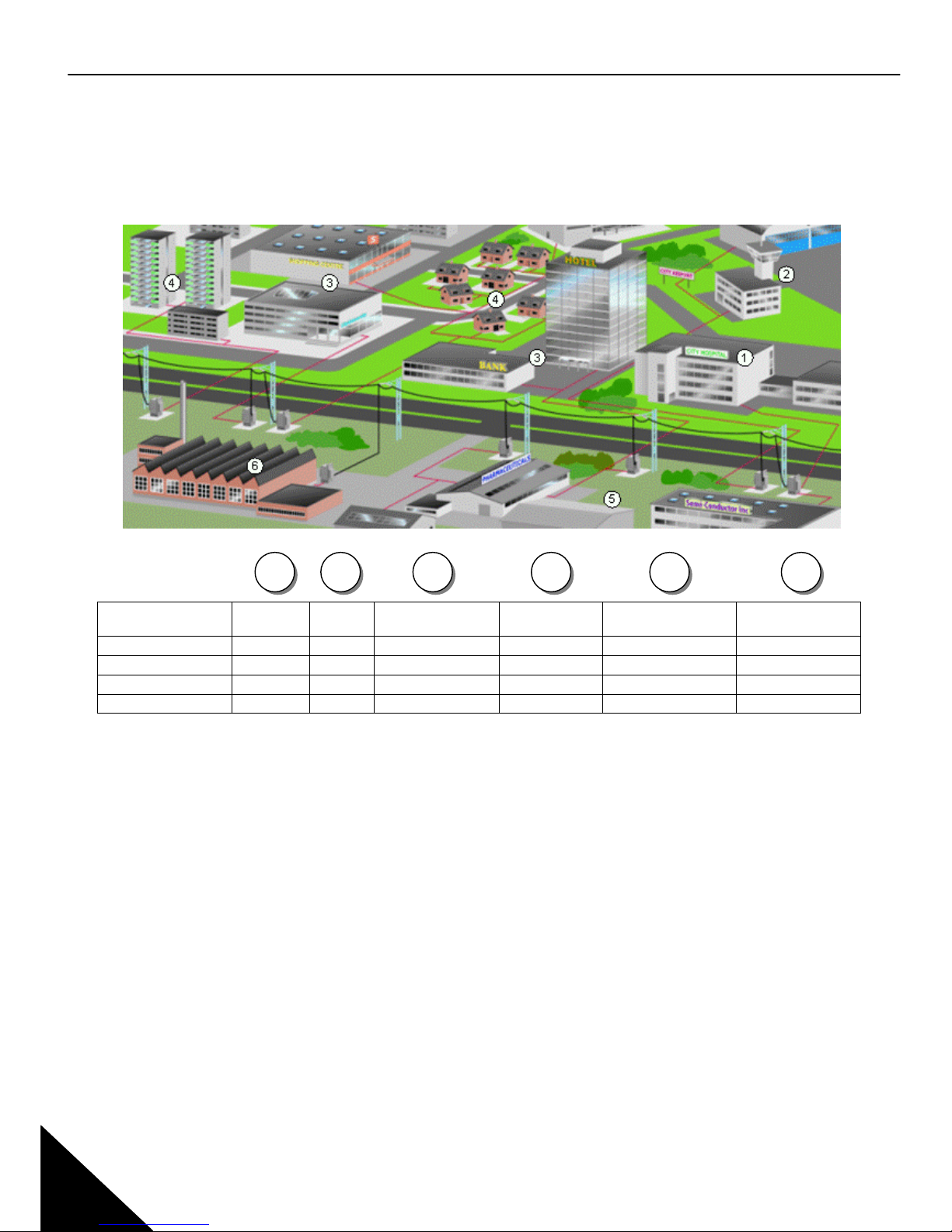

2.2.4 Honeywell EMC classes and market requirements......................................................... 10
2.2.5 Manufacturer's declaration of conformity ........................................................................ 10
3. RECEIPT OF DELIVERY ...................................................................................................... 13
3.1 Type designation code NXL Compact................................................................................ 13
3.2 Type designation code NXL HVAC .................................................................................... 14
3.3 Storage.............................................................................................................................. 14
3.4 Maintenance ...................................................................................................................... 14
3.5 Warranty............................................................................................................................ 15
4. TECHNICAL DATA ............................................................................................................... 16
4.1 Introduction........................................................................................................................ 16
4.2 Power ratings..................................................................................................................... 18
4.2.1 NXL Compact – Mains voltage 208 – 240 V & 380 – 500 V............................................ 18
4.2.1 NXL HVAC – Mains voltage 380 – 500 V ....................................................................... 19
4.3 Technical data ................................................................................................................... 20
5. INSTALLATION .................................................................................................................... 22
5.1 Mounting............................................................................................................................ 22
5.1.1 NXL Compact (MF2 and MF3)........................................................................................ 22
5.1.2 NXL HVAC (MF4 – MF6)................................................................................................ 25
5.2 Cooling .............................................................................................................................. 26
5.3 Changing EMC protection class from H/C to T in NXL HVAC ............................................ 27
6. CABLING AND CONNECTIONS .......................................................................................... 28
6.1 Power connections............................................................................................................. 28
6.1.1 Cabling........................................................................................................................... 29
6.1.1.1 Cable and fuse sizes .................................................................................................. 30
6.1.2 Mounting of cable accessories ....................................................................................... 31
6.1.3 Installation instructions ................................................................................................... 33
6.1.3.1 Stripping lengths of motor and mains cables .............................................................. 34
6.1.3.2 Installation of cables to NXL ....................................................................................... 35
6.1.4 Cable installation and the UL standards ......................................................................... 42
6.1.5 Cable and motor insulation checks................................................................................. 42
6.2 Control unit ........................................................................................................................ 43
6.2.1 NXL Compact (MF2 – MF3) ........................................................................................... 43
6.2.2 NXL HVAC (MF4 – MF6)................................................................................................ 43
6.2.2.1 Allowed option boards in NXL HVAC:......................................................................... 43
6.2.3 Control connections........................................................................................................ 44
6.2.4 Control I/O...................................................................................................................... 45

6(96) Index
6.2.5 Control terminal signals.................................................................................................. 46
6.2.5.1 Jumper selections on NXL basic board....................................................................... 47
6.2.6 Motor thermistor (PTC) connection................................................................................. 50
7. CONTROL KEYPAD ............................................................................................................. 51
7.1 Indications on the Keypad display...................................................................................... 51
7.1.1 Drive status indications................................................................................................... 51
7.1.2 Control place indications ................................................................................................ 52
7.1.3 Numeric indications........................................................................................................ 52
7.2 Keypad push-buttons......................................................................................................... 53
7.2.1 Button descriptions......................................................................................................... 53
7.3 Start-up wizard................................................................................................................... 54
7.4 Navigation on the control keypad....................................................................................... 55
7.4.1 Monitoring menu (M1) .................................................................................................... 58
7.4.2 Parameter menu (P2)..................................................................................................... 60
7.4.3 Keypad control menu (K3).............................................................................................. 62
7.4.3.1 Selection of control place............................................................................................ 62
7.4.3.2 Keypad reference ....................................................................................................... 63
7.4.3.3 Keypad direction......................................................................................................... 63
7.4.3.4 Stop button activation................................................................................................. 63
7.4.4 Active faults menu (F4)................................................................................................... 64
7.4.4.1 Fault types.................................................................................................................. 64
7.4.5 Fault codes..................................................................................................................... 65
7.4.6 Fault history menu (H5).................................................................................................. 67
7.4.7 System menu (S6).......................................................................................................... 68
7.4.7.1 Copy parameters........................................................................................................ 70
7.4.7.2 Security ...................................................................................................................... 70
7.4.7.3 Keypad settings.......................................................................................................... 71
7.4.7.4 Hardware settings....................................................................................................... 72
7.4.7.5 System information..................................................................................................... 73
7.4.7.6 AI mode...................................................................................................................... 76
7.4.8 Modbus interface............................................................................................................ 77
7.4.8.1 Modbus RTU protocol................................................................................................. 77
7.4.8.2 Termination Resistor .................................................................................................. 78
7.4.8.3 Modbus address area................................................................................................. 78
7.4.8.4 Modbus process data ................................................................................................. 78
7.4.8.5 Fieldbus parameters................................................................................................... 80
7.4.9 Expander board menu (E7) ............................................................................................ 81
7.5 Further keypad functions.................................................................................................... 81
8. COMMISSIONING................................................................................................................. 82
8.1 Safety ................................................................................................................................ 82
8.2 Commissioning of the frequency converter ........................................................................ 82
8.3 Basic parameters............................................................................................................... 85
8.3.1 Monitoring values (Control keypad: menu M1) ............................................................... 85
8.3.2 HVAC parameters in NXL HVAC (Control keypad: Menu P2 B2.1) ............................ 86
8.3.3 Basic parameters (Control keypad: Menu P2 B2.1 / B2.1.15)..................................... 87
9. FAULT TRACING.................................................................................................................. 88
10. DESCRIPTION OF EXPANDER BOARD NXLOPTAA ......................................................... 92
11. DESCRIPTION OF EXPANDER BOARD NXLOPTAI ........................................................... 93
12. NXL HVAC Basic Speed Control – Quick SETUP .............................................................. 95

        
HoneywellHoneywell
Honeywell
Safety 7(96)
1
1. SAFETY
1.1 Warnings
1
The components of the power unit of the frequency converter are live
when NXL is connected to mains potential. Coming into contact with
this voltage is extremely dangerous and may cause death or severe
injury. The control unit is isolated from the mains potential.
2
The motor terminals U, V, W (T1, T2, T3) and the DC-link/brake resistor
terminals –/+ (in NXL ≥1.1 kW) are live when NXL is connected to mains,
even if the motor is not running.
3
The control I/O-terminals are isolated from the mains potential. However,
the relay outputs and other I/O-terminals may have a dangerous control
voltage present even when NXL is disconnected from mains.
4
The frequency converter has a large capacitive leakage current.
5
If the frequency converter is used as a part of a machine, the machine
manufacturer is responsible for providing the machine with a main switch
(EN 60204-1).
6
Only spare parts delivered by Honeywell can be used.
HOT SURFACE
7
The heat sink of types MF2 and MF3 may be hot when the frequency
converter is in use. Coming into contact with the heat sink may cause
burns.
1.2 Safety instructions
1
The Honeywell NXL frequency converter is meant for fixed installations
only.
2
Do not perform any measurements when the frequency converter is
connected to the mains.
3
After disconnecting the frequency converter from the mains, wait until the
fan stops and the indicators on the display go out. Wait 5 more minutes
before doing any work on NXL connections.
4
Do not perform any voltage withstand tests on any part of NXL. There is
a certain procedure according to which the tests shall be performed.
Ignoring this procedure may result in damaged product.
5
Prior to measurements on the motor or the motor cable, disconnect the
motor cable from the frequency converter.
6
Do not touch the IC-circuits on the circuit boards. Static voltage discharge
may damage the components.
ONLY A COMPETENT ELECTRICIAN MAY CARRY OUT
THE ELECTRICAL INSTALLATION
WARNING

8(96) Safety Honeywell
HoneywellHoneywell
Honeywell
1
1.3 Earthing and earth fault protection
The Honeywell NXL frequency converter must always be earthed with an earthing conductor
connected to the earthing terminal .
The earth fault protection inside the frequency converter protects only the converter itself against
earth faults in the motor or the motor cable.
Due to the high capacitive currents present in the frequency converter, fault current protective
switches may not function properly. If fault current protective switches are used they must be tested
with the drive with earth fault currents that are possible to arise in fault situations.
1.4 Running the motor
Warning symbols
For your own safety, please pay special attention to the instructions marked with the following
symbols:
= Dangerous voltage
WARNING
= General warning
HOT SURFACE = Hot surface – Risk of burn
MOTOR RUN CHECK LIST
1
Before starting the motor, check that the motor is mounted properly and
ensure that the machine connected to the motor allows the motor to be
started.
2
Set the maximum motor speed (frequency) according to the motor and
the machine connected to it.
3
Before reversing the motor shaft rotation direction make sure that this
can be done safely.
4
Make sure that no power correction capacitors are connected to the
motor cable.
5
Make sure that the motor terminals are not connected to mains potential.
WARNING

        
                
        
EU Directive 9(96)
2
2. EU DIRECTIVE
2.1 CE marking
The CE marking on the product guarantees the free movement of the product within the EEA
(European Economic Area). It also guarantees that the product meets the various requirements
placed upon it (such as the EMC Directive and possibly other directives according to the so-called
new procedure).
NXL frequency converters carry the CE label as a proof of compliance with the Low Voltage
Directive (LVD) and the Electro Magnetic Compatibility (EMC). The company SGS FIMKO has acted
as the Competent Body.
2.2 EMC directive
2.2.1 General
The EMC Directive provides that the electrical apparatus must not excessively disturb the
environment they are used in, and, on the other hand, it shall have an adequate level of immunity
toward other disturbances from the same environment.
The compliance of NXL frequency converters with the EMC directive is verified with Technical
Construction Files (TCF) checked and approved by SGS FIMKO, which is a Competent Body.
2.2.2 Technical criteria
EMC compliance is a major consideration for NXL drives from the outset of the design. NXL
frequency converters are marketed throughout the world, a fact which makes the EMC requirements
of customers different. All NXL frequency converters are designed to fulfil even the strictest immunity
requirements.
2.2.3 NXL frequency converter EMC classification
NXL frequency converters are divided into two classes according to the level of electromagnetic
disturbances emitted. Later in this manual the division is made according to the mechanical sizes
(MF2, MF3, etc.). The technical data of the different sizes can be found in Chapter 0.
Class C (NXL HVAC IP54):
NXL HVAC drives with IP54 enclosure are delivered as class C products with an integrated RFI
filter. NXL HVAC drives IP54 selection fulfil the requirements of the product standard EN 61800-
3 (2004) category C1 (EN 55011 class B).
The emission levels correspond to the requirements of EN 61000-6-3.
Class N (NXL Compact):
No EMC emission protection. NXL Compact drives (frames MF2 and MF3) are delivered from the
factory without an integrated RFI filter as class N products. External RFI filters for these products for
class H are available.
Class H (NXL HVAC IP21):
NXL HVAC drives with IP21 enclosure are delivered as class H products with an integrated RFI
filter. NXL HVAC drives IP21 selection fulfil the requirements of the product standard EN 61800-
3 (2004) category C2 (EN 55011 class A).
The emission levels correspond to the requirements of EN 61000-6-4.
Class T:
The T-class converters have a small earth current and can be used with IT supplies only. If they are
used with other supplies no EMC requirements are complied with.

10(96) EU Directive Honeywell
HoneywellHoneywell
Honeywell
2
All NX frequency converters fulfil all EMC immunity requirements (standards EN 61000-6-1,
61000-6-2 and EN 61800-3).
2.2.4 Honeywell EMC classes and market requirements
NX EMC levels Hospital Airport Residential Area Commercial Light Industry
Area
Heavy Industry
C O O
H R R R R O O
L R R
T R (IT Network)
2.2.5 Manufacturer's declaration of conformity
The following page presents the photocopy of the Manufacturer's Declaration of Conformity assuring
the compliance of frequency converters with the EMC-directives.
O = Optional, R= Required
1 2 3 4 5 6

        
                
        
EU Directive 11(96)
2
EU DECLARATION OF CONFORMITY
We
Manufacturer's name: Vacon Oyj
Manufacturer's address: P.O.Box 25
Runsorintie 7
FIN-65381 Vaasa
Finland
hereby declare that the product
Product name: NXL Frequency Converter
Model designation: NXL 0001 V3 5…to 0061 V3 5…
NXL 0002 V3 2...to 0006 V3 2…
has been designed and manufactured in accordance with the following standards:
Safety: EN 50178 (1997), EN 60204-1 (1996)
EN 60950 (3rd edition 2000, as relevant)
EMC: EN 61800-3 (1996)+A11(2000), EN 61000-6-2
(2001), EN 61000-6-4 (2001)
and conforms to the relevant safety provisions of the Low Voltage Directive (73/23/EEC) as
amended by the Directive (93/68/EEC) and EMC Directive 89/336/EEC as amended by
92/31/EEC.
It is ensured through internal measures and quality control that the product conforms at all
times to the requirements of the current Directive and the relevant standards.
In Vaasa, 6th of September, 2002
Vesa Laisi
President
The year the CE marking was affixed: 2002

12(96) EU Directive Honeywell
HoneywellHoneywell
Honeywell
2
EU DECLARATION OF CONFORMITY
We
Manufacturer's name: Vacon Oyj
Manufacturer's address: P.O.Box 25
Runsorintie 7
FIN-65381 Vaasa
Finland
hereby declare that the product
Product name: NXL HVAC DRIVE
Model designation: HVAC03C… to HVAC61C…
has been designed and manufactured in accordance with the following standards:
Safety: EN 50178 (1997), EN 60204-1 (1996)
EN 60950 (3rd edition 2000, as relevant)
EMC: EN 61800-3 (1996)+A11(2000), EN 61000-6-2
(2001), EN 61000-6-4 (2001)
and conforms to the relevant safety provisions of the Low Voltage Directive (73/23/EEC) as
amended by the Directive (93/68/EEC) and EMC Directive 89/336/EEC as amended by
92/31/EEC.
It is ensured through internal measures and quality control that the product conforms at all
times to the requirements of the current Directive and the relevant standards.
In Vaasa, 10th of May, 2006
Vesa Laisi
President
The year the CE marking was affixed: 2002

        
                
        
Receipt of delivery 13(96)
3
3. RECEIPT OF DELIVERY
NXL frequency converters have undergone scrupulous tests and quality checks at the factory before
they are delivered to the customer. However, after unpacking the product, check that no signs of
transport damages are to be found on the product and that the delivery is complete (compare the
type designation of the product to the code below.
Should the drive have been damaged during the shipping, please contact primarily the cargo
insurance company or the carrier.
If the delivery does not correspond to your order, contact the supplier immediately.
3.1 Type designation code NXL Compact
NXL
0005
V3
5
C
1
N
1
S
Harware modifications:
S = Standard
D = DIN rail mountin
Brake chopper
0 = No brake chopper (MF2)
1 = Internal brake chopper
EMC emission level
N = No EMC emission protection
(External filters available for EN61800-3 cat. C2)
Enclosure classification
1 = IP20
Control keypad
B = No control keypad
C = Standard 7-se ment keypad
Nominal mains volta e
2 = 208-240Vac
5 = 380-500Vac
Input Phases
V3 = 3 Phase
Nominal current (low overload)
0005 = 5A etc.
Product ran e: NXL
Figure 3-1. NXL Compact type designation code for sizes MF2 and MF3

14(96) Receipt of delivery Honeywell
HoneywellHoneywell
Honeywell
3
3.2 Type designation code NXL HVAC
HVAC
03
C
2
Enclosure & EMC classification
2 = IP21, EMC class H (fulfils EN 61800-3 cat C2, EN 55011 class A)
5 = IP54, EMC class C (fullfils EN 61800-3 cat C1, EN 55011 class B)
Control keypad
C = Standard 7-se ment keypad
Nominal current (low overload)
03 = 3 A etc.
Product ran e: HVAC = NXL HVAC
Figure 3-2. NXL HVAC type designation code for (sizes MF4 - MF6).
3.3 Storage
If the frequency converter is to be kept in store before use make sure that the ambient conditions are
acceptable:
Storing temperature –40…+70 ° C
Relative humidity <95%, no condensation
3.4 Maintenance
In normal conditions, NXL frequency converters are maintenance-free. However, we recommend to
clean the heatsink (using e.g. a small brush) whenever necessary.
Most NXL drives are equipped with a cooling fan, which can easily be changed if necessary.

        
                
        
Receipt of delivery 15(96)
3
3.5 Warranty
Only manufacturing defects are covered by the warranty. The manufacturer assumes no
responsibility for damages caused during or resulting from transport, receipt of the delivery,
installation, commissioning or use.
The manufacturer shall in no event and under no circumstances be held responsible for damages
and failures resulting from misuse, wrong installation, unacceptable ambient temperature, dust,
corrosive substances or operation outside the rated specifications. Neither can the manufacturer be
held responsible for consequential damages.
Honeywell's time of warranty is 30 months from the delivery or 24 months from the commissioning
whichever expires first.
The local distributor may grant a warranty time different from the above. This warranty time shall be
specified in the distributor's sales and warranty terms. Honeywell assumes no responsibility for any
other warranties than that granted by Honeywell itself.
In all matters concerning the warranty, please contact first your distributor.

16(96) Technical data Honeywell
HoneywellHoneywell
Honeywell
4
4. TECHNICAL DATA
4.1 Introduction
Honeywell NXL is a compact frequency converter with the output ranging from 250 W to 30 kW.
The Motor and Application Control Block is based on microprocessor software. The microprocessor
controls the motor basing on the information it receives through measurements, parameter settings,
control I/O and control keypad. The IGBT Inverter Bridge produces a symmetrical, 3-phase PWM-
modulated AC-voltage to the motor.
The control keypad constitutes a link between the user and the frequency converter. The control
keypad is used for parameter setting, reading status data and giving control commands. Instead of
the control keypad, also a PC can be used to control the frequency converter if connected through a
cable and a serial interface adapter (optional equipment).
You can have your Honeywell NXL drive equipped with control I/O boards NXLOPTAA, NXLOPTAI,
NXOPTB_ or NXOPTC_. Honeywell NXL HVAC series already includes I/O board NXLOPTAI as
standard.
All other sizes but MF2 have an internal brake chopper. For closer information, contact Honeywell
see back cover). The input EMC filters are available as options externally for MF2 and MF3. In other
sizes the filters are internal and included as standard.

        
                
        
Technical data 17(96)
4
Figure 4-1. NXL block diagram

18(96) Technical data Honeywell
HoneywellHoneywell
Honeywell
4
4.2 Power ratings
4.2.1 NXL Compact – Mains voltage 208 – 240 V & 380 – 500 V
Mains voltage 208-240 V, 50/60 Hz, 1~/3~ Series NXL Compact
Loadability Motor shaft
power
Low High
Frequency
converter type
Rated
con-
tinuous
current
I
L
(A)
10%
over-
load
current
(A)
Rated
continuous
current I
H
(A)
50%
overload
current
(A)
Low
40°C
P(kW)
High
50°C
P(kW)
Nominal
input
current
1~/3~
Mechanical
size
Enclosure
and
protection
class
Dimensions
WxHxD
Weight
(kg)
NXL 0002 2 2,4 2,6 1,7 2,6 0,37 0,25 4,8/-- MF2/IP20 60x130x150 1,0
NXL 0003 2 3,7 4,1 2,8 4,2 0,75 0,55 7,4/5,6 MF3/IP20 84x184x172 1,9
NXL 0004 2 4,8 5,3 3,7 5,6 1,1 0,75 9,6/7,2 MF3/IP20 84x184x172 1,9
EMC-level N
NXL 0006 2 6,6 7,3 4,8 7,2 1,5 1,1 13,2/9,9 MF3/IP20 84x220x172 2,0
Table 4-1. Power ratings and dimensions of NXL, supply voltage 208-240V.
NOTE! NXL 0002 2 is suitable for single phase supply only
Mains voltage 380-500 V, 50/60 Hz, 3~ Series NXL Compact
Loadability Motor shaft power
Low High 400V supply 500V supply
Frequency
converter type
Rated
con-
tinuous
current
I
L
(A)
10%
over-
load
current
(A)
Rated
con-
tinuous
current
I
H
(A)
50%
over-
load
current
(A)
10%
over-
load
40°C
P(kW)
50%
over-
load
50°C
P(kW)
10%
over-
load
40°C
P(kW)
50%
over-
load
50°C
P(kW)
Nominal
input
current
Mechanical
size
Enclosure
and
protection
class
Dimensions
WxHxD
Weight
(kg)
NXL 0001 5 1,9 2,1 1,3 2 0,55 0,37 0,75 0,55 2,9 MF2/IP20
60x130x150
1,0
NXL 0002 5 2,4 2,6 1,9 2,9 0,75 0,55 1,1 0,75 3,6 MF2/IP20
60x130x150
1,0
NXL 0003 5 3,3 3,6 2,4 3,6 1,1 0,75 1,5 1,1 5,0 MF3/IP20
84x220x172
2,0
NXL 0004 5 4,3 4,7 3,3 5 1,5 1,1 2,2 1,5 6,5 MF3/IP20
84x220x172
2,0
EMC-level N
NXL 0005 5 5,4 5,9 4,3 6,5 2,2 1,5 3 2,2 8,1 MF3/IP20
84x220x172
2,0
Table 4-2. Power ratings and dimensions of NXL, supply voltage 380-500V.

        
                
        
Technical data 19(96)
4
4.2.1 NXL HVAC – Mains voltage 380 – 500 V
Mains voltage 380-500 V, 50/60 Hz, 3~ Series NXL HVAC
Loadability Motor shaft power
Low High 400V supply 500V supply
Frequency
converter type
Rated
con-
tinuous
current
I
L
(A)
10%
over-
load
current
(A)
Rated
con-
tinuous
current
I
H
(A)
50%
over-
load
current
(A)
10%
over-
load
45°C
P(kW)
50%
over-
load
50°C
P(kW)
10%
over-
load
45°C
P(kW)
50%
over-
load
50°C
P(kW)
Mechanical
size
Enclosure
and
protection
class
Dimensions
WxHxD
Weight
(kg)
HVAC03C2 3,3 3,6 2,2 3,3 1,1 0,75 1,5 1,1 MF4/IP21 128x292x190 5
HVAC04C2 4,3 4,7 3,3 5,0 1,5 1,1 2,2 1,5 MF4/IP21 128x292x190 5
HVAC05C2 5,6 5,9 4,3 6,5 2,2 1,5 3 2,2 MF4/IP21 128x292x190 5
HVAC07C2 7,6 8,4 5,6 8,4 3 2,2 4 3 MF4/IP21 128x292x190 5
HVAC09C2 9 9,9 7,6 11,4 4 3 5,5 4 MF4/IP21 128x292x190 5
HVAC12C2 12 13,2 9 13,5 5,5 4 7,5 5,5 MF4/IP21 128x292x190 5
HVAC16C2 16 17,6 12 18 7,5 5,5 11 7,5 MF5/IP21 144x391x214 8,1
HVAC23C2 23 25,3 16 24 11 7,5 15 11 MF5/IP21 144x391x214 8,1
HVAC31C2 31 34 23 35 15 11 18,5 15 MF5/IP21 144x391x214 8,1
HVAC38C2 38 42 31 47 18,5 15 22 18,5 MF6/IP21 195x519x237 18,5
HVAC46C2 46 51 38 57 22 18,5 30 22 MF6/IP21 195x519x237 18,5
EMC-level H
HVAC61C2 61 67 46 69 30 22 37 30 MF6/IP21 195x519x237 18,5
HVAC03C5 3,3 3,6 2,2 3,3 1,1 0,75 1,5 1,1 MF4/IP54 128x292x190 5
HVAC04C5 4,3 4,7 3,3 5,0 1,5 1,1 2,2 1,5 MF4/IP54 128x292x190 5
HVAC05C5 5,6 5,9 4,3 6,5 2,2 1,5 3 2,2 MF4/IP54 128x292x190 5
HVAC07C5 7,6 8,4 5,6 8,4 3 2,2 4 3 MF4/IP54 128x292x190 5
HVAC09C5 9 9,9 7,6 11,4 4 3 5,5 4 MF4/IP54 128x292x190 5
HVAC12C5 12 13,2 9 13,5 5,5 4 7,5 5,5 MF4/IP54 128x292x190 5
HVAC16C5 16 17,6 12 18 7,5 5,5 11 7,5 MF5/IP54 144x391x214 8,1
HVAC23C5 23 25,3 16 24 11 7,5 15 11 MF5/IP54 144x391x214 8,1
HVAC31C5 31 34 23 35 15 11 18,5 15 MF5/IP54 144x391x214 8,1
HVAC38C5 38 42 31 47 18,5 15 22 18,5 MF6/IP54 195x519x237 18,5
HVAC46C5 46 51 38 57 22 18,5 30 22 MF6/IP54 195x519x237 18,5
EMC-level C
HVAC61C5 61 67 46 69 30 22 37 30 MF6/IP54 195x519x237 18,5
Table 4-3. Power ratings and dimensions of NXL HVAC, supply voltage 380 – 500V.

20(96) Technical data Honeywell
HoneywellHoneywell
Honeywell
4
4.3 Technical data
Input voltage U
in
380 - 500V, -15%...+10% 3~
208…240V, -15%...+10% 3~
208…240V, -15%...+10% 1~
Input frequency 45…66 Hz
Mains
connection
Connection to mains Once per minute or less (normal case)
Output voltage 0—U
in
Continuous output
current
I
L
: Ambient peak temperature max. +45°C (with 24h
average ambient +40°C),*
overload 1.1 x IL (1min/10min)
I
H
: Ambient temperature max. +50ºC,
overload 1.5 x IH (1min/10min)
Starting torque 150% (Low overload); 200% (High overload)
Starting current 2 x IH 2 seconds every 20 seconds, if output frequency
<30Hz
and temperature of heatsink <+60ºC
Output frequency 0…320 Hz
Motor
connection
Frequency resolution 0,01 Hz
Control method Frequency Control U/f
Open Loop Sensorless Vector Control
Switching frequency
(See parameter 2.6.8)
1...16 kHz; Factory default 6 kHz
Frequency reference
Analogue input
Keypad reference
Resolution 0.1% (10bit), accuracy ±1%
Resolution 0.01 Hz
Field weakening point 30…320 Hz
Acceleration time 0.1…3000 sec
Deceleration time 0.1…3000 sec
Control
characteristics
Braking torque DC-brake: 30%*TN (without brake option)
Ambient operating
temperature
–10°C (no frost)…+45°C: I
L
(ambient temperature derating 1,5%/Cº)
–10°C (no frost)…+50°C: I
H
Storage temperature –40°C…+70°C
Relative humidity 0…95% RH, non-condensing, non-corrosive,
no dripping water
Air quality:
- chemical vapours
- mechanical particles
IEC 721-3-3, unit in operation, class 3C2
IEC 721-3-3, unit in operation, class 3S2
Altitude 100% load capacity (no derating) up to 1000m
1-% derating for each 100m above 1000m; max. 3000m
Vibration:
EN50178/EN60068-2-6
5...150 Hz
Displacement amplitude 1(peak) mm at 5...15.8 Hz
Max acceleration amplitude 1 G at 15.8...150 Hz
Shock
EN50178, IEC 68-2-27
UPS Drop Test (for applicable UPS weights)
Storage and shipping: max 15 G, 11 ms (in package)
Ambient
conditions
Enclosure class IP20; MF2 and MF3. IP21/IP54; MF4 – MF6
Technical data (continues on next page)
* In NXL Compact the maximum ambient operation temperature is +40°C. (+45°C only applies to NXL HVAC)
