Honeywell PRU0901 User manual

HONEYWELL .
LARGE SYSTEMS I
PRU0901/1201 .
PRINTER
OPERATION
HARDWARE

Large SystelDs
PRU0901/1201
Printer Operation
SUBJECT
General Description,Control and IndicatorInformation, and Operating and
Maintenance Proceduresfor the PRU0901/1201 Printers
The following notice isprovided in accordance with the United States Federal
CommunicationsCommission's (FCC)regulations.
Warning: This equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instructions manual,
may cause interference to radio communications. As temporarily permitted by
regulation it has not been tested for compliance with limits for Class A
computing devices
pursuant to Subpart J of Part 15 of FCC Rules, which are
designed to provide reasonable protection against such interference. Operation
of this equipment in a residential area is likely to cause interference in which
case
the user at his own expense will be required to take whatever measures
may be required to correct the interference.
ORDER NUMBER
CW99-00
August 1981
Honeywell

About ThisManual
This manual contains hardware-oriented descriptions and instructions for
operators of
the PRU0901/1201 printers for DPS Extended and DPS 8 systems.
Section 1 outlines
the device capabilities. Section 2 describes the various
controls and indicators with which an operator should become familiar before
operating the unit. Section3 explains the general operation of the printer.
Section4 describes the routine preventive maintenance and Section 5 the
printer online/offiine tests the operator can perform. Appendix A provides the
error code descriptions. Appendix B gives ordering information for print belts,
printer ribbons, and accessories.
Readers
are invitedtouse the TechnicalPublicationsRemarksForm at the endof the
manual tonote any publication errors ortooffer any suggestionsfor improvement.
The information and specifications in this document are
subject to change without notice. This document contains
information about Honeywell products
or services that may
not
be available outside the United States. Consult your
Honeywell MarketingRepresentative.
© HoneywellInformationSystemsInc., 1981 FileNo.:1B03, 1V03 CW99-00

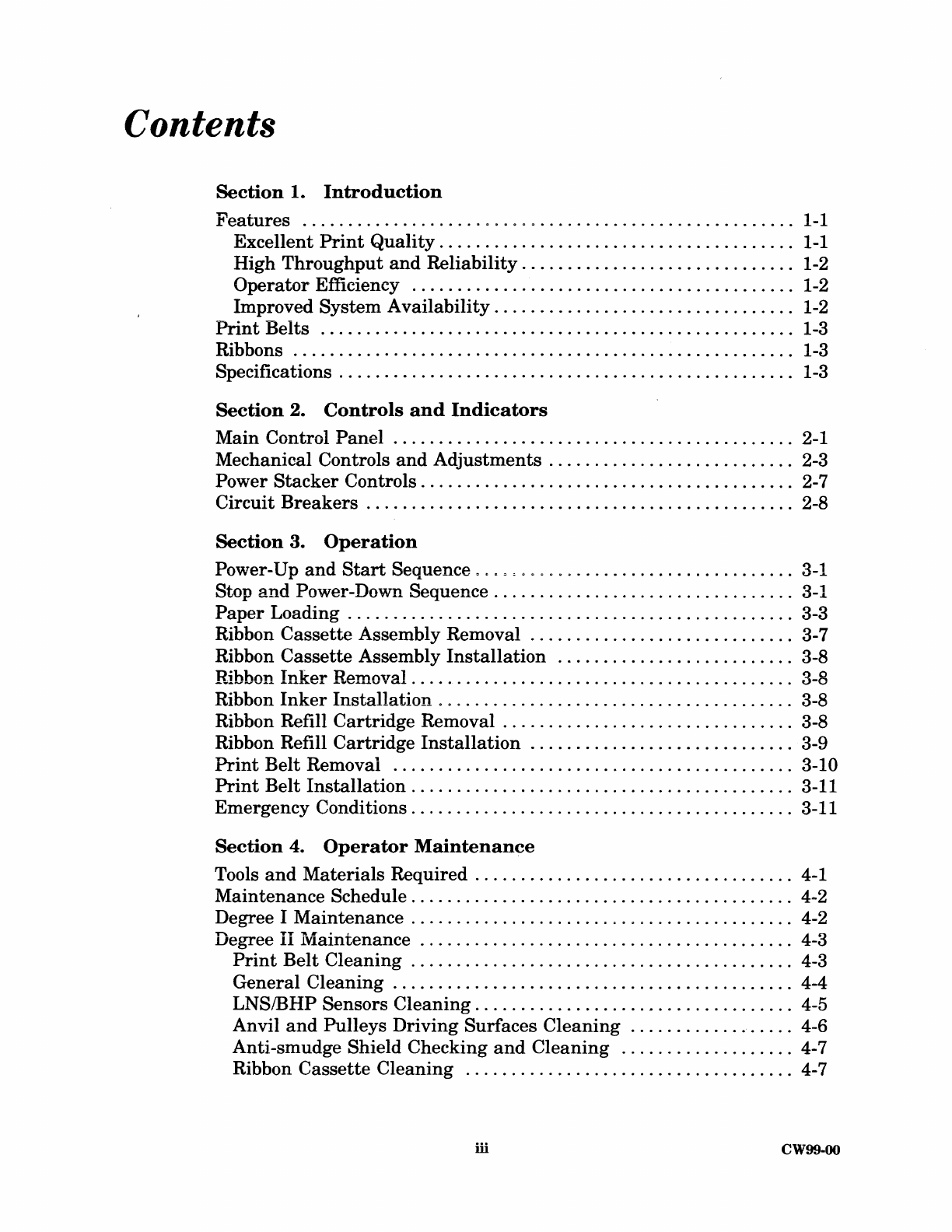

Contents
Section 1. Introduction
Features ...................................................... 1-1
Excellent
Print Quality ....................................... 1-1
High Throughput and Reliability .............................. 1-2
Operator Efficiency .......................................... 1-2
Improved
System Availability ................................. 1-2
Print Belts .................................................... 1-3
Ribbons
....................................................... 1-3
Specifications
.................................................. 1-3
Section 2. Controls and Indicators
Main Control Panel ............................................ 2-1
Mechanical Controls
and Adjustments ........................... 2-3
Power
Stacker Controls ......................................... 2-7
Circuit
Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-8
Section 3. Operation
Power-Up and Start Sequence ................................... 3-1
Stop and Power-Down Sequence ................................. 3-1
Paper Loading ................................................. 3-3
Ribbon
Cassette Assembly Removal ............................. 3-7
Ribbon
Cassette Assembly Installation .......................... 3-8
Ribbon
Inker Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-8
Ribbon
Inker Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-8
Ribbon Refill
Cartridge Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-8
Ribbon Refill
Cartridge Installation ............................. 3-9
Print Belt Removal ............................................ 3-10
Print Belt Installation .......................................... 3-11
Emergency Conditions
.......................................... 3-11
Section 4. Operator Maintenance
Tools and Materials Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 4-1
Maintenance Schedule .......................................... 4-2
Degree I
Maintenance .......................................... 4-2
Degree II lviaintenance
......................................... 4-3
Print Belt Cleaning .......................................... 4-3
General
Cleaning ............................................ 4-4
LNSIBHP Sensors Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 4-5
Anvil
and Pulleys Driving Surfaces Cleaning .................. 4-6
Anti-smudge Shield Checking
and Cleaning ................... 4-7
Ribbon
Cassette Cleaning .................................... 4-7
iii
CW99-00

Section 5. Printer Tests
Online Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-1
Omine Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-1
Power-on
Test ............................................... 5-1
Print Test ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-1
Appendix A. Error Codes
Appendix B. Print Belts, Printer Ribbons, and Accessories
Print Belts .................................................... B-1
Ribbons
....................................................... B-1
Accessories
..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Figures
2-1 Main Control Panel ....................................... 2-2
2-2 Mechanical Controls
and Adjustments (Belt Unit Open) ...... 2-5
2-3
Line and Column Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-6
2-4
Print Unit Control Panel .................................. 2-6
2-5
Power Stacker Control Panel .............................. 2-7
2-6
Circuit Breakers ......................................... 2-8
3-1
Printer Operating Areas .................................. 3-2
3-2
Power Stacker Operating Areas. . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-3
3-3 Opening the Belt Unit .................................... 3-4
3-4
Paper Path .............................................. 3-5
3-5
Tractor Adjustment ...................................... 3-6
3-6
Paper Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-6
3-7
Unlocking the Ribbon Cassette ............................ 3-7
3-8 Removing
the Ribbon Cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . .. 3-7
3-9 Ribbon Refill
Cartridge Release Tab. . . . . . . . . . . . . . . . . . . . . . .. 3-9
3-10 Installing the Ribbon Refill Cartridge ...................... 3-9
3-11
Releasing the Print Belt .................................. 3-10
4-1 Belt Cleaning ............................................ 4-3
4-2
General Cleaning Areas .................................. 4-5
4-3 Anvil
and Pulleys Driving Surfaces Cleaning ............... 4-6
4-4 Anti-smudge Shield
Cleaning ............................. 4-7
4-5 Ribbon
Cassette Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 4-8
Tables
2-1 Main Controls and Indicators a) .......................... 2-1
2-2 Main Controls and Indicators aI) .......................... 2-3
2-3 Mechanical Controls
and Adjustments . . . . . . . . . . . . . . . . . . . .. 2-4
2-4
Power Stacker Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2-7
A-I Error Codes ............................................. A-I
iv
CW99=OO

Sectionl
Introduction
The PRU0901 and PRU1201 are high-speed belt printers that can be con~
nected to DPS Extended and DPS 8 systems by using a peripheral device
serial interface (pDSI). The PRU0901/1201 can produce clear printed charac-
ters at nominal speeds of900 and 1200 lines per minute (lpm) respectively
with a 64-character print belt. To providefor future system needs, the
PRU0901 can be upgraded on site (via PRK0901 )to a PRU1201.
Features
Introduction
Designedto help meet current and future needs of the data processing user,
the PRU090111201 feature:
• Excellent print quality
• High throughput and reliability
• Operator efficiency
• Improved system availability
Excellent Print Quality
Smearless printing and precise alignment of printed characters are achieved
through the use of a print belt that is well suited forjobs demanding high-
quality appearance.
Each character on the print belt is mounted on a flexible ~~finge!'." During
printing, the belt passes continuously at high speed in front of the print ham-
mers. When a character is struck, the flexibility of the finger causes the
character to beimmobilized at the moment of impact. This elimination of drag
helps produce smearless, ghost-free, printed copy.
Depending upon the paper stock being used, an original and up to five carbon
copies can be produced.
1-1 CW99-00

Introduction
High Throughput and Reliability
The rated print speeds of the PRU0901/1201 are 900 and 1200 lpm respec-
tively for continuous single-spaced line operation with a 64-character set. The
printers feature paper skip speed of29 or 44 inches per second and software-
controlled
vertical line spacing of6 or 8 lines per inch.
Longer ribbon life ispossible as a result of reduced ribbon drag during the
printing process. Also, the life of the printer itself can be extended by an
Automatic Standby feature that deactivates the operating mechanism of the
device when it is not being used.
Operator Efficiency
Operator efficiency is enhanced by the automatic paper stacker, whichis
included
with the printer; the simplicity of paper loading and ribbon changing;
and the quick and easy exchange of the lightweight, easily accessible belt
cartridges. A special re-inking feature in the ribbon cartridge helps toreduce
ribbonchanges.
Clear alphanumeric error displays are easily visible to the
operator only when active. Improved acoustical design results in quiet and
efficientoperation. An optional static eliminator is available to improve paper
stacking.
IlDprovedSystelD Availability
Softwarecontrol of online error status reporting helps reduce:
• System time required for diagnosis
• Unit time required for oflline repair
• Servicecalls
1-2 CW99-00

Introduction
Print Belts
Two identical print belts are supplied with the printer. The customershould
complete
and return the belt warranty card that accompanies the printer.
Each print belt comes with a lightweight cartridgeto facilitate removal, inter-
change,
and storage. The system is programmedto recognize the beltbeing
usedfrom a code on the belt. (See Appendix B for a list of the available print
belts.)
Ribbons
The printers use a 2-inch-wide, 50-meter-longnylon ribbon having a ribbon
life of 4.5 to 6 million lines.
The ribbon system is composed
of a ribbon cassette assembly, ribbon refill
cartridge,
and ribbon inker. The operator can maximize print ribbon life by
performing Degree I maintenance (Section 4) and by monitoring the condition
of
the ribbon inker's felt wick to ensure the free flow of ink to the transfer
roller. When ribbon replacement is necess8.J.--j', both the ribbon refill cartridge
and the ribbon inker must be replaced. For order information, refer to
Appendix B in this manual; the Honeywell Computer Supplies Catalog, Order
No. BY62; or contact your Honeywell Marketing Representative.
Specifications
Data Format:
Printpositions per line -136
Characters per inch -10
Vertical Spacing- 6
or Slines per inch
Reproduction System: Hammer stroke against flexible belt ~finger"
Programmed Operations: Print and space, spaceonly, skip, and vertica1linespacing
Paper Stock:
Width-4.0 in. (10.2 em) to 19.0in. (48.3 em)
Length -3.0in. (7.6 em) to 11.0 in. (27.9 em)
Weight(single-partform) -15
Ib to 45 Ib card stock
Multiplecopies - 1 original
and up to 5 carbon copies
Printer Physical Characteristics:
Height -39.4 in. (100.1 em)
Width-36.3 in. (92.0 em)
Depth-26.0 in. (66.0 em)
Weight-
375lb (170 kg)
1-3
5182
CW99-OOA

Power Stacker Physical Characteristics::
Height -31.5 in. (80.0 em)
Width -28.7in. (72.9 em)
Depth -25.6 in. (65.0 em)
Weight -88.0 lb (39.6 kg)
Environmental Requirements:
Operating Temperature ~ 5O"F to lOOOF (lOOC to asoC)
Introduction
14
5182
CW99-00A

Section2
Controls and Indicators
Thissection describes the controls and indicatorson the main control panel
and the control panel on the power stacker, as well as the mechanicalcontrols
and adjustmentson the printing mechanism.
Main Control Panel
The controls and indicators on the main control panel(Figure 2-1) are
described in Tables2-1 and 2-2.
Table 2-1. Main Controls and Indicators (I)
ControJlIndicator
STOP/START
FORM FEED
READY
ALARM RESET
LINE FEED
Status
'Controls and Indicators
Function
This push button control changes the printer state from READY
(printorders
are accepted from system) to STANDBY (stops
printing)
or vice versa. The NORMAL indicatormust be lit to go
into the READY state.
Thispush
button control advances the paperto the top of the
nextform. The printer must be in the STANDBY state.
This indicatoris litwhen
the printer is in the READY
(operational) state.
This push
button control must be pressed after a recoverable
fault
or error is corrected. (The printer must be in the
STANDBY state.)
Thispush
button control advances the paperone line. The
printer must be in the STANDBY state.
This indicatordisplays a two-digit hexadecimal code. A display
of 00 indicates that there is no problem; any otherdisplay alerts
theoperatorto operatorcorrectableconditions or printerproblems.
(See Appendix A for errorcodes.) During
test execution the
displayprovide.s information about printercondition (see Section 5).
2-1 CW99-00

I
Table 2-1 (Cont)e Main Controls and Indicators (I)
ControJlIndicator
LOCAIlREMOTE
BELT SPEED
RIBBON JOINT
PRINTTEST
I (See Table2-1.)
Function
This switchplaces the printer in the REMOTE state for coma
munication with the system, or the LOCAL state for running
test programs that reside in the printer.
Thisswitch must be in the OCR positionfor high-qualityprinting
(900 lpm). In all other cases, it should be inthe NORMAL posi-
tion. This switch is not effective on the PRU0901 printer.
This indicator is lit when the ribbonweld is passing in front of
the print station. Printing is temporarily inhibitedwhile this
indicator is lit. (This occurs at 6-minuteintervals during continuous
operation of the printer.)
The printer runs the internal test programs when thisswitch is
in the TEST position and the printer is in the LOCAL state. An
error code is displayed ifa fault isfound.
II (SeeTable2-2.)
Figure2-1••Main Control Panel
Controls and Indicators
2 .. 2
5182
CW99-00A

Table2-2. Main Controls and Indicators (II)
ControllIndicator
NORMAL
PRINT ONE LINE
FORWARD SPACE
FORWARD TOPOF PAGE
INVALID LINE
REVERSE REWIND
BACKSPACE
BACKSPACE TOP OF
PAGE
Function
This push-button control releases the printer from the
STANDBY state. PressingNORMAL followed by START causes
printing to resume.
Note
The NORMAL button must be used to resume
printing after each of the following controls has been
used. (Each
of these controls places the printer in the
STANDBY state.)
This push-button control causes the next line of data to be
printed.
Thispush-button control causes
the printing of the message
OPERATOR KILLED THIS REPORT. Thesoftware then
proceedsto the next report.
Thispush-button control causes
the printing of the message
FORWARD SPACE T.O.P. The printer advancesto the next data
block ortop of page.
Thispush-button control causes
the printing of the message
INVALID LINE.
Thispush-buttoncontrol causes
the printing of the message
OPERATOR RESTARTED THIS REPORT and the report in
progress to be restarted.
This push-buttoncontrol causes
the printing of the BACK-
SPACE message. Printing resumes with the last line printed.
Thispush-button control causes
the printing of the message
BACKSPACE T.O.P. and the reprinting of the report in progress
from
the beginning of the current data block or the previous top
ofpage.
Mechanical Controls and
Adjustments
Several mechanical controls and adjustments are located in the printer
mechanism for the control of printing and paper feeding and for operator
maintenance. These controls and adjustments are shown in Figures 2-2,2-3,
and 2-4 and described in Table 2-3.
Controls and Indicators
2-3 CW99-00

Table2-3. MechanicalControlsandAdjustments
Control! Adjustment
BELT UNIT RELEASE
HANDLES
RIBBON CASSETTELOCK
PRINT BELT RELEASE
LEVER
END OF PAPER
SENSOR BAR
TRACTORLOCKS
LINE ADJUSTMENT
KNOB
HORIZONTAL
FINE
ADJUSTMENT SCREW
LINEINDICATOR
COLUMNINDICATOR
COPIESCONTROL
POTENTIOMETER
PHASE CONTROL
SWITCH
TRACTOR ENGAGE
SWITCH
Controls and Indicators
Function
These levers (see Figure 2-2)permit the operator to unlatch and
open the belt unit. An unlatched condition (errorcode 06)is
notified by a switch.
To remove
the ribbon cassette, this lock (see Figure 2-2) must be
set parallel to the opening in the cassette.
This lever (see Figure 2-2) permits the operator to release the
print belt for removal or to tighten the print belt during installa-
tion. The ribbon cassette must be removedto gain accessto the
lever.
When no paper is present between this bar (see Figure 2-2) and
the paper entry guide, an end of paper condition (errorcode 05)
is notified.
Loosening
the tractor locks (see Figure 2-2)allows the operator
tomove the tractors horizontally in order to change the form
width.
This knob (see Figure 2-2)allows the operator tomove the paper
manually through the printer for line adjustment. The tractor
clutch switch (see Figure 2-4) must be in the declutchedposition.
This screw (see Figure 2-2) permi ts the operator to adjust the
paper horizontally with the tractors locked. This device is pro-
vided
as an option.
The line indicator (see Figure 2-3), used together with the line
adjustment knob, permits the operator to position the first line
tobe printed.
The column indicator (see Figure 2-3) permits the operator to
position
the first column to be printed bymoving both tractors
horizontally or using the horizontalfine adjustment.
This control (see Figure 2-4) regulates the force of the print
hammers. The setting dependson the number ofcopiestobe
printed. The control must be set such that proper print quality is
obtained with the lowestpossible hammer force.
This switch (see Figure 2-4)controls the instant of hammer fir-
ing.
The switch must be set togive equal print density on both
sides of the characters.
This switch (see Figure 2-4) permits the operator to disengage
the tractor drive shaft in order tomove the paper manually
through the machine.
2-4 CW99-00

Figure2-2. Mechanical Controls andAdjustments (Belt UnitOpen)
Controls and Indicators
2-5 CW99-00

Figure 2-3. Line and Column Indicators
Figure 2-4.
Print Unit Control Panel
Controls and Indicators
2-6 CW99-00

Power Stacker Controls
The control panel on the power stacker is shown in Figure 2-5. The controls
are described in Table 2-4.
Table 2-4. Power Stacker Controls
Control
SKIP SPEED
LOWER TABLE
PAPER ADVANCE
Function
This switch should be in the FAST position when operating in
good climatic conditions and using good quality paper.
This switch controls the operation of the paper table motor. In
the MANUAL position, the paper table motor runs until the
lower position is reached. In the AUTO position, the paper table
motor operates to accommodate the printer output.
This push button control starts the stacker paper feed motor.
The motor runs for 6 seconds after the button is pressed. It is
used for
paper loading and removal.
Figure 2-5. Power Stacker Control Panel
Controls and Indicators
2-7 CW99-00

Circuit Breakers
The circuit breakers (Figure2-6) are located at the lower left of the back of the
printer. They permit the operator toconnect the printer electronicsto the main
powersupply.Thecircuit breakers should be switchedon/offsimultaneously.
Figure 2-6. Circuit Breakers
Controls and Indicators
2-8
OECONNECTER lE PRIMAIRE
AVANT DE OEMONTER
CE CAPOT
DISCONNECT PRIMARY POWER
BEFORE REMOVING
THIS COVER
CW99-00

Section3
Operation
This section presents the basic operating proceduresfor the PRU0901/1201
printers under normal conditions. Figures 3-1 and 3-2 show the operating
areas of the printer and powerstacker.
Power- Up and Start Sequence
Beforeswitchingon the power, ensure that the print belt and ribbon are
installed, that the printer isloaded with paper, that the belt unit isclosed,
and that the LOCALIREMOTE switchis set to REMOTEfor online printing.
1. Set bothcircuit breakers to the ONposition.
2. Press the STARTISTOP button on the controlpanel. The READYindicator
will
light after device initialization.
Stop and Power-Down Sequence
Operation
1. PresstheSTARTtSTOPbuttonon the controlpanelto change the printer's
statefrom READYto STANDBY.
2. Setthecircuitbreakers at the rear oftheprinterto the OFFposition.
3-1 CW99-00

Figure 3-1. Printer OperatingAreas
Operation
3-2 CW99-00

Figure3-2. PowerStacker OperatingAreas
Paper Loading
Operation
1. Raise the topcover and open the front door.
2. Open
the belt unit by using both belt unit release handles as shown in
Figure 3-3.
3. Unlock
both paper tractors by turning the tractor lockscounterclockwise
and swing open both tractor covers.
4. Disengage
the tractors by using the tractor engage switch.
5. Position
the tractors to approximately the width of the paper by moving
them along the drive and guide shaft.
3-3 CW99-00
