Honeywell ORBIT 7190G User manual
Orbit 7190g
Hybrid Presentation Scanner
Quick Start Guide
Rev A
1/17
Note: Refer to your user’s guide for information about cleaning
your device.
For localized language versions of this document, go to
www.honeywellaidc.com.
Getting Started
Turn off computer’s power before connecting the scanner, then
power up the computer once the scanner is fully connected.

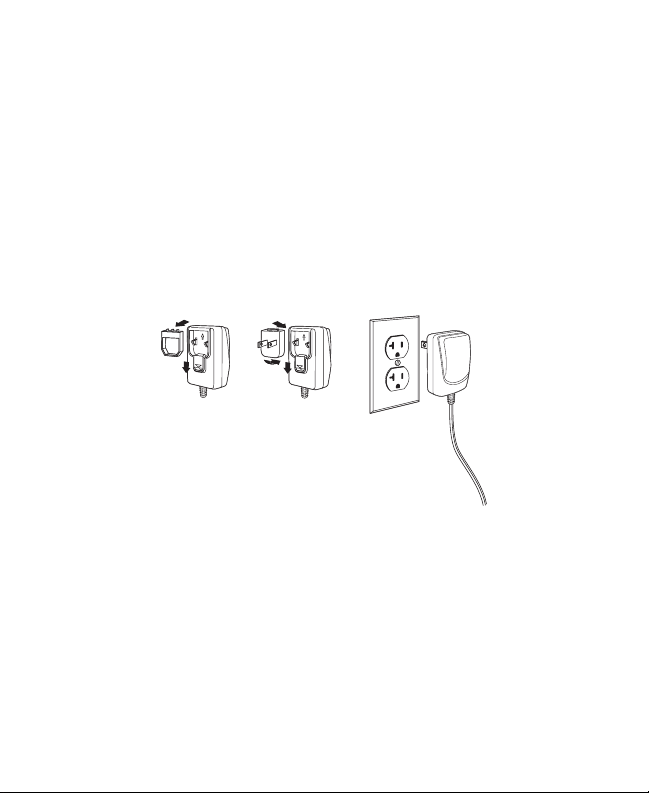

Power Supply Assembly (if included)
Note: The power supply must be ordered separately, if needed.

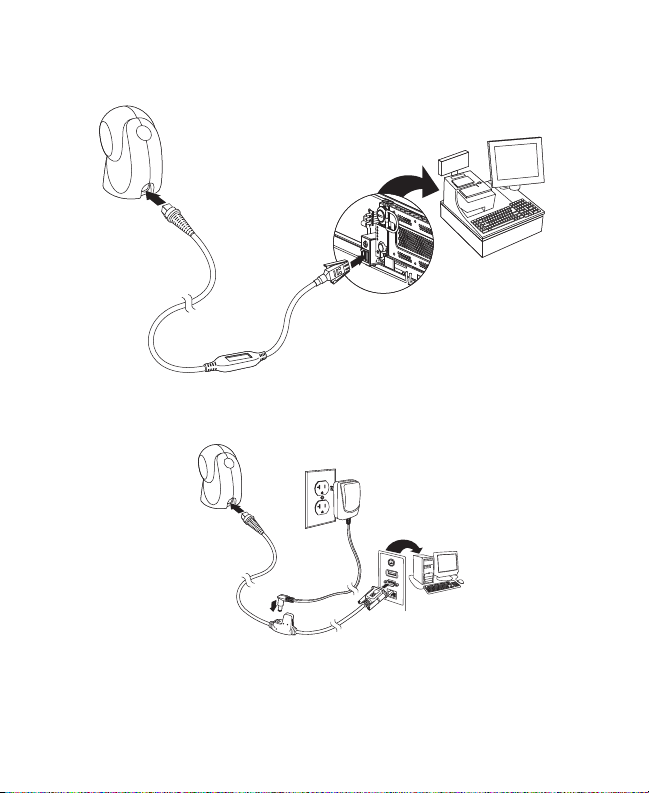

Connecting the Scanner
USB:
Keyboard Wedge:
RS485:
RS232 Serial Port:
Note: For RS232, you must use the power supply.
Reading Techniques
Present the bar code to the scanner. The aimer turns on and the
LEDs turn up to read the code. If the light level in the room is not
high enough, the code may not be read.
Standard Product Defaults
The following bar code resets all standard product default set-
tings.
USB PC Keyboard
Scan the following code to program the scanner for a USB PC
Keyboard.
RS485 Interface
The RS485 interface defaults to port 5B. If you have an IBM POS
terminal using port 9B, scan the appropriate code below to pro-
gram the terminal, then power cycle the cash register. If you
have an IBM POS terminal using port 17, scan IBM Port 17
Interface bar code below.
Standard Product Defaults
USB PC Keyboard
Note: For additional RS485 interface selections, see the User’s
Guide for your product at our website,
www.honeywellaidc.com.
USB Serial
If you are using a Microsoft® Windows® PC, you must
download a driver from the Honeywell website
(www.honeywellaidc.com). The driver will use the next
available COM Port number.
IBM Port 9B HHBCR-1
Interface
IBM Port 9B HHBCR-2
Interface
IBM Port 17 Interface
Scan the following code to program the scanner to emulate a
regular RS232-based COM Port. Apple® Macintosh computers
recognize the scanner as a USB CDC class device and automati-
cally use a class driver.
Note: No extra configuration (e.g., baud rate) is necessary.
Function Code Transmit
When this selection is enabled and function codes are con-
tained within the scanned data, the scanner transmits the func-
tion code to the terminal. Charts of these function codes are
provided in your User’s Guide. When the scanner is in keyboard
wedge mode, the scan code is converted to a key code before it
is transmitted.
USB Serial
Enable
(Default)
Disable
Keyboard Country
Scan the appropriate country code below to program the key-
board layout for your country or language. By default, national
character replacements are used for the following characters:
#$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart
in your User’s Guide to view the character replacements for each
country.
USA (Default)
Belgium
Denmark
Finland
France
Germany/Austria
Great Britain
Italy
Norway
Spain
For a complete list of country codes, see the User’s Guide for
your product at our website, www.honeywellaidc.com.
Turbo Mode
This selection is a keyboard modifier, so it may only be used
when your interface is USB Keyboard or Keyboard Wedge. The
scanner sends characters to a terminal faster using Turbo
Mode. If the terminal drops characters, do not use Turbo Mode.
Scan Modes
When in Presentation Mode, the scanner is activated when it
“sees” a bar code.
Switzerland
Turbo Mode On
Turbo Mode Off
When in Presentation - Mobile Phone mode, the scanner is
optimized to read bar codes from a Mobile phone or other LED
displays.
For additional scan modes, see the User’s Guide for your prod-
uct at our website, www.honeywellaidc.com.
Suffix
If you want a carriage return, a tab, or an ETX after the bar code,
scan one of the codes that follow. Otherwise, scan the Remove
Suffix bar code to remove the suffixes.
Presentation Mode
Presentation - Mobile Phone
Add CR Suffix
Add Tab Suffix
Add STX Prefix
If you want an STX before the bar code, scan the following bar
code.
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to
all symbologies at once.
Note: For a complete list of Code IDs, see the User’s Guide for
your product at our website, www.honeywellaidc.com.
Add ETX Suffix
Remove Suffix
Add STX Prefix
Add Code ID Prefix To All Symbologies
Poor Quality PDF Codes
This setting improves the scanner’s ability to read damaged or
badly printed PDF codes by combining information from multi-
ple images. When Poor Quality PDF On is scanned, poor quality
PDF code reading is improved, but the scanner’s snappiness is
decreased, making it less aggressive when reading good quality
bar codes. This setting does not affect 1D bar code reading.
Poor Quality PDF Reading On
Poor Quality PDF Reading Off
Programming Chart
0
1
2
3
4
5
6
7
8
9
A
B
Support
To search our knowledge base for a solution or to log into the Technical
Support portal and report a problem, go to www.hsmcontactsupport.com.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and click Get
Resources > Product Warranty.
Patents
For patent information, see www.hsmpats.com.
User Documentation
For the user guide and other documentation, go to www.honeywellaidc.com.
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether
any such changes have been made. The information in this publication does
not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the
furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written
consent of HII.
Copyright2017 Honeywell International Inc. All rights reserved.
