Honeywell GENT VIG-RPT-72 User manual

The repeat panel duplicates all of the control panel
indications and the essential controls.
The repeat panel has its own mains derived power
supply with battery for standby power in the event
of mains supply failure. A lockable front door
prevents unauthorised access to fire alarm controls
but allows all of the indicators to be seen. The
panel is designed for semi-flush or surface
mounting and facilitates both rear and top cable
entry points.
This repeat panel can be installed on a loop circuit
of an EN or BS Vigilon fire detection and alarm
system. It can be sited near an entry or exit point
of a building and fit in with the loop cable routing.
Compatibility
The repeat panel is compatible with system control
panel having card and software below:
Control panel
CARD
Control Panel Software
EN54 BS5839
LCC ³V4.00 ³3.42
LPC
New Shorter
Card ONLY
³V4.19 ³3.90
MCC ³V4.11 -
MCB ³V4.21 -
³means equal to or greater than
Technical Data
Panel dimensions height 403mm, width 338mm,
depth 101mm
Weight 9Kg with battery (approximate)
Storage temperature -10°C to +55ºC
Operating
temperature
0°C to +45ºC
Relative humidity
(Non condensing)
Up to 90% temperature
+5°C to +45°C
Battery 12V 7Ah sealed lead acid
Mains operating
voltage
230V -15% +10% 50/60Hz
Rated Current 0.2A
Emission BS EN61000-6-3 : 2001
Immunity BS EN50130-4 : 1996 : Part 4
LVD BS EN 60950-2006
Ingress protection IP31 (estimated)
Colour Door - Pantone 422
Back box - Graphite Grey (RAL 7024)
Controls
(with door closed)
Access level 1
Next and Previous buttons operable
during fire condition only.
Control buttons
(with door open)
Access level 2
Sound Alarms, Silence Alarms, Reset
Fire, Cancel Fault Buzzer, Verify,
F1-F4, Menu On/Off and U1-U4.
Indicators Fire, Verify, Power, Fault, Power Fault,
System Fault, Delay and CB253/254.
EN panel only: Sounder, Sounder,
Delay, Disablement Test and 32-Fire
Zone LEDs.
BS panel only: Commission and
Warning.
Display: 8 lines 40 characters per line,
back-lit LCD.
Loop connection 3-way connection to a loop circuit
EN54-17 data
Fire detection and
fire alarm system
short circuit isolators
Vmax 42V Vnom 40V
Vmin 24V VSO max 16V
VSO min 8V IC max 0.4A
IS max 1A IL max 20mA
ZC max 0.1W
4188-839_issue 8_07/14_pt1_EN/BS new Repeat_inst 1
Data and installation
Vigilon Repeat panel (EN/BS)
VIG-RPT-72
by Honeywell
Vigilon Fire System
GENT 2010
Panel healthy 15:45
www.acornfiresecurity.com
www.acornfiresecurity.com

Installation
The Repeat Panel Set consists of:
Parts Qty
jBackbox assembly 1
kOuter door assembly 1
lInner door assembly
(with membrane labels for BS panel)
1
m20 Way ribbon cable 1
n40 Way ribbon cable 1
Spares pack [Battery lead, Link wire (not used),
1 x 2A Fuse 20mm x 5mm QB,
2 x 3.15A Fuse 20mm x 5mm AB ceramic]
1
Battery 12V 7Ahr 1
Fuses on the Master Repeat Card
Fuse Rating
FS4 3.15A AS 20mm x 5mm
FS2 3.15A AS 20mm x 5mm
FS3 2A QB 20mm x 5mm

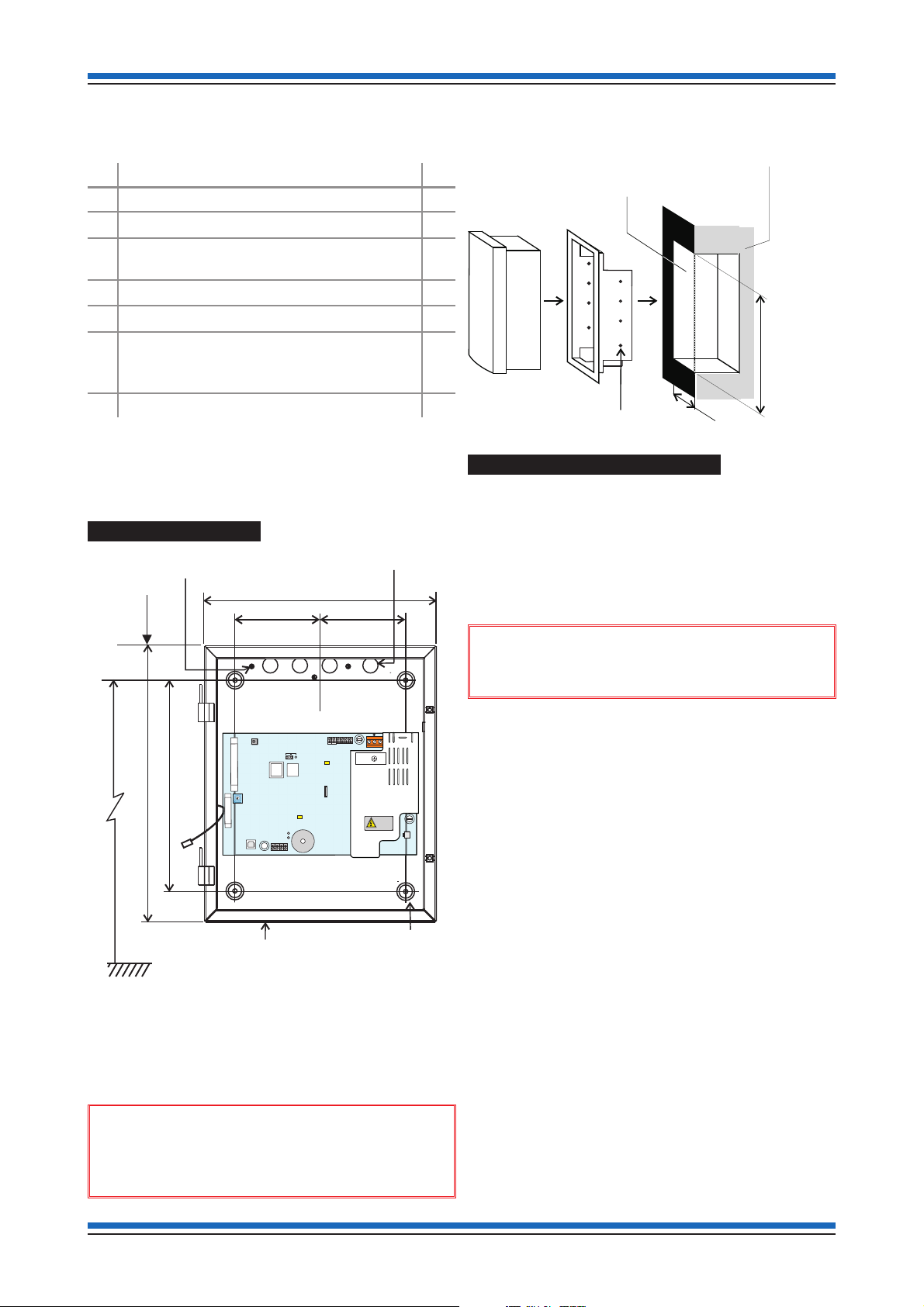

Back box mounting
aFind the Repeat panel Back box package and
remove the temporary cover.
bSecure the back box to the wall with suitable
fixings. If the backbox is to be semi-flushed then
use the optional semi-flush surround.
cTerminate the cable at the entry point leaving
400mm tail wire length.
&If mains supply cable ends are not
required to be connected then ensure the ends are
insulated for safety.
dRefit the temporary cover to protect the panel
until all building work is complete.
Doors, Cables and Power up
The doors and cables can be installed after the
building work has finished.
aRemove the protective cover from the backbox.
bFit the inner door to the panel enclosure
remembering to connect the earth lead from the
backbox to the inner door. Fit the outer moulded
door to the backbox.

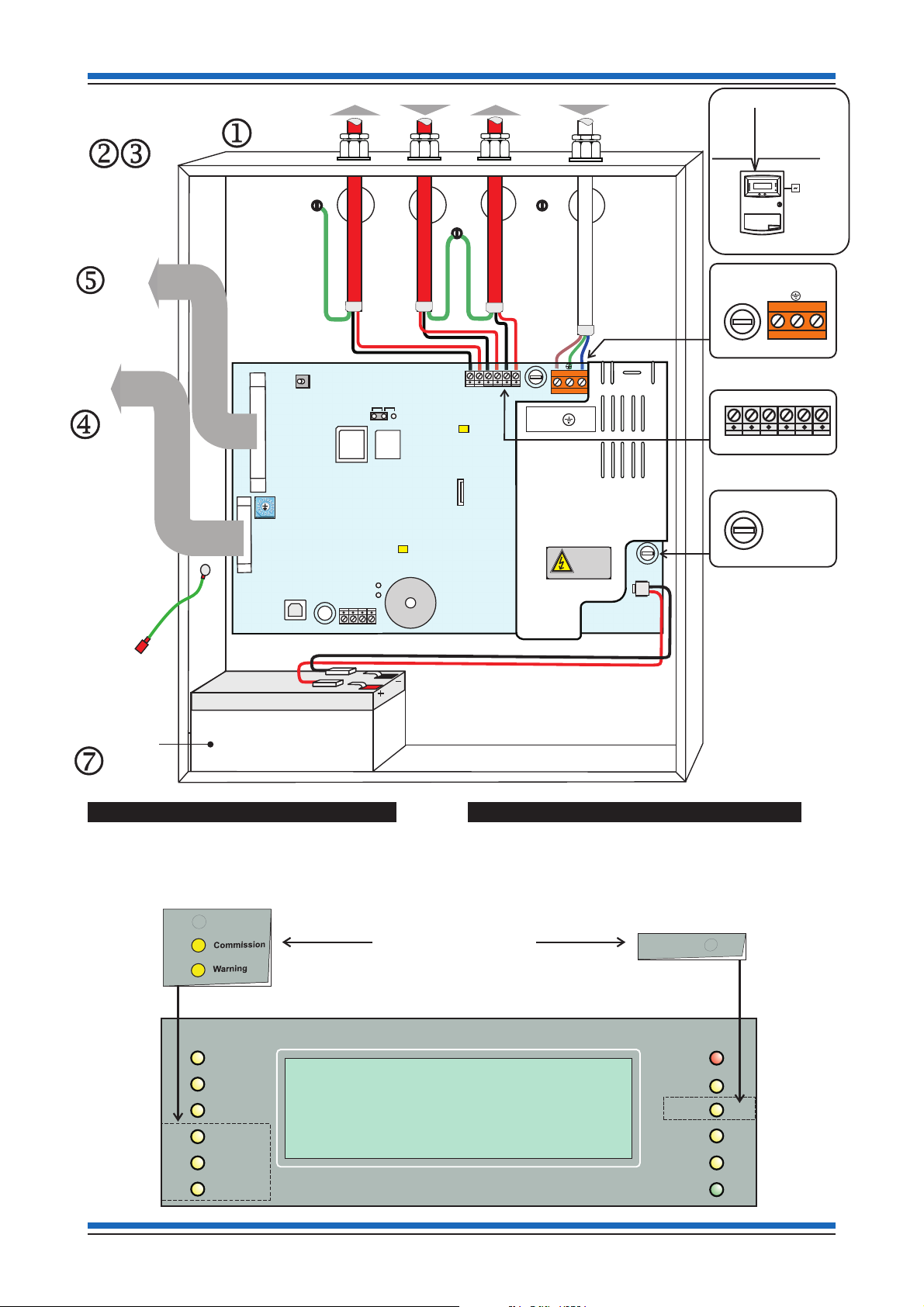

cWiring the panel:
&Ensure the mains supply is completely
powered down before wiring the mains cable ends.
•connect the mains cable to terminal block P9
on the Master Repeat Card.
•fit battery lead supplied in the spares to
connector P5 on Master Repeat Card.
•connect the loop cables to terminal block P16
on the Master Repeat Card.
•connect the 40 way ribbon cable to the
Master Repeat Card connector P2 and the
other end to Display Key Card on the top right
edge connector - P1.
•connect the 20 way ribbon cable to the
Master Repeat Card connector P1 and the
other end to Display Key Card on the top right
edge connector - P6.
dPower-up the panel by switching ON the mains
supply and then connect the battery leads to the
battery and note:
•all the LEDs on the panel are lit for a short
duration and a power up message displayed.
•the local buzzer sounds
•the display reads: Main panel is off Line
•the Fault and System Fault LEDs are lit.
Data and installation Vigilon Repeat panel (EN/BS)
2 4188-839_issue 8_07/14_pt1_EN/BS new Repeat_inst
c
L
310mm
115mm
115mm
370mm
285mm
45mm
Floor level
1.65m
Cable entry points
4-off - Back and 4-off - Top
3-off
Earth points
Backbox Fixing centres
4-off
01 L1 02 L2 0C LC P9
LN
N
P17
DANGER
BT+ BT-
+
RS485 0V 24V
-
WRITE PROTECT
BUZZER
DISABLE
P8
DANGER
DO NOT
REMOVE
L N
P5
FS2
FS4
P16
P4
P2
P1
SW3
PB2
WD1
P14
P7
USB
FS3
2A(QB)
RESET
DANGER
WARNING
Removal of
cover exposes
live parts.
Repeat Panel
Cross section of the wall to which
the panel is to be semi-flush mounted
Aperture
Flush
Surround
5mm diameter
fixing holes
Aperture Height:
380mm
Aperture Width: 320mm
Aperture depth should
not be less than: 59mm
Repeat panel
semi-flush surround
www.acornfiresecurity.com
www.acornfiresecurity.com

Auto detection of EN or BS system
The Repeat panel automatically detects its connection to either
an EN54 or BS5839 fire detection and alarm system.
Membrane labels for BS Repeat panel
It is ONLY necessary to fit the membrane labels toaBS
Repeat panel when it is installed in a BS5839 system, see
illustration below.
4188-839_issue 8_07/14_pt1_EN/BS new Repeat_inst 3
Vigilon Repeat panel (EN/BS) Data and installation
40-way
ribbon
to DKC
12V 7Ah battery
Earth to
Inner door
3.15A(T)
mains fuse
01 L1 02 L2 0C LC
P16
P9
LN
20-way
ribbon
to DKC
Red
Black
Repeat panel
inner and outer
doors not shown
Loop IN Loop OUT From Mains fused spur
FS4
3.15A(T)
mains fuse
FS2
3.15A(T)
Ceramic
(Anti Surge)
Battery Fuse
Loop COM
Master Repeat Card
01 L1 02 L2 0C LC P9
LN
N
P17
DANGER
BT+ BT-
+
RS485 0V 24V
-
WRITE PROTECT
BUZZER
DISABLE
P8
DANGER
DO NOT
REMOVE
L N
P5
FS2
FS4
P16
P4
P2
P1
SW3
PB2
WD1
P14
P7
USB
FS3
2A(QB)
RESET
DANGER
WARNING
Removal of
cover exposes
live parts.
mains
electrical
supply
Loop OUT
Previous Next
Spur Connection
XXXXX---Fire Alarm System
GENT2007
DesignedtoEN54 Pt 2 & 4
Panelhealthy 15:45
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 30 32
Zones
Fault
SystemFault
Delay
Test
Fire
Power
PowerFault Verifyfy
Disablement
Sounder
Loop IN
Repeat panel
Vigilon Fire System
GENT 2010
Main Panel Healthy 15:45
Fault
System Fault
Test
Fire
Power
Power Fault
CB254
Disablement
Sounder
Previous Next
Delay
Verify
CB253
Remove backing, align
and stick the label to
membrane.
Fit the labels to a
BS Repeat panel ONLY.
www.acornfiresecurity.com
www.acornfiresecurity.com

Zone indicators
The zone indicators are not used on a BS Repeat panel. The
links that disable the zone indicators are located on the bottom
edge of the DKC and must be set to 'Without zone indicators'
position. The links are factory set for EN Repeat panel that is
'With zone indicator', see illustration on the right.
Display selection
"The rotary switch SW3 is located on the Master
Repeat Card and must be set in the correct position for
the type of display used, factory set to position 4.
SW3
position Panel
0 A2/A3/A4 Mimic Panel only
1 3400 Repeat panel
(having a 4 line display)
2 32000 Repeat panel
(having a 16 line display)
3 Vigilon Repeat panel
(having a 16 line display)
4 Vigilon Repeat panel
(having an 8 line display)
5 to F Not used
Write protect link
The write protect link P4 on the Master Repeat Card is factory
set to protected. Normally it is not necessary to change the link
from the factory set position, see the diagram above.
Contrast and Emergency controls
The display contrast is set using Pot RV1 on the DKC and is
factory set for optimum contrast.
The emergency control buttons must always be left in an
enabled state, with the control buttons link fitted.
At the end of their useful life, the packaging,
product and batteries should be disposed of
via a suitable recycling centre and in
accordance with national or local legislation.
Do not dispose of with your normal household waste.
Do not burn.
WEEE Directive:
At the end of their useful life, the packaging,
product and batteries should be
disposed of via a suitable recycling centre.
P9
LN
N
P17
DANGER
BT+BT-
DANGER
NO NOT
REMOVE
3.15A(T)
mains fuse
L N
P5
FS2
FS4
P2
P1
SW3
01 L1 02 L2 LC
P16
WRITE PROTECT
P8
P4
RESET
0C
+
RS485 0V 24V
-
BUZZER
DISABLE
PB2
WD1
P14
P7
USB
FS3
2A(QB)
SW3
Write Protected
(Factory setting)
P4
NOT Write Protected
P4
Buzzer
Disable
Buzzer Not
Disable
P14 P14
SW1
RV1
Sound Alarms
Silence Alarms
Reset
Verify
Control buttons
Inner door
1234
17 18 19 20
Zones
With Zone
indicators
For keyswitch
application only.
Link is NOT USED
leave link fitted.
Display and
keyboard Card (DKC)
Without Zone
indicators
P6
P1
Buttons
enabled
Buttons
disabled
Factory setting
is with link fitted
8
7
6
5
4
3
2
1
ON
SW1
RV1
LCD Contrast adjust
OFF
Clockwise -
Darker
Anti-Clockwise -
Lighter
SW1
Leave all
switches
in the OFF
position
www.acornfiresecurity.com
www.acornfiresecurity.com

The following checks and tests should be
conducted on each installed Repeat panel to
ensure the basic functions are operating correctly.
Compatibility
The repeat panel is compatible with system
control panel having card and software stated
below:
Panel Card Software
CARD EN54 BS5839
LCC ³V4.00 ³3.42
LPC
New Shorter
Card ONLY
³V4.19 ³3.90
MCC ³V4.11 -
MCB ³V4.21 -
³means equal to or greater than
"For a BS Repeat panel ONLY:
Ensure the membrane labels supplied are
fitted. Also ensure the zonal LEDs are
disabled by setting the links on the DKC,
for details see part 1 of this leaflet.
Buzzer Disable Link
During system commissioning it may be necessary to fit a link (not suppllied)
across P14 on the MRC to disble the local buzzer at the repeat panel. On
completion of all commissioning work ensure the buzzer is enabled by
removing the link.
Test indications
Check to ensure the fault indications are given of typical failure conditions
such as local mains and battery disconnections:
¨display shows a the Fault event
¨LED indications are given
¨local buzzer sounds (Cancel the buzzer using the local
'Cancel buzzer' button).
Test functions
"When operating the SOUND ALARMS button it will
activate the alarm sounders in the system.
¨Display test (to ensure all LEDs are working)
¨Sound Alarms
¨Silence Alarms
¨Display of Fire events
¨Reset
¨Operation of U1-U4 Function keys (as configured at the
control panel)
¨Verify (as configured at the control panel)
4188-839_issue 7_08/12_pt2_EN/BS Repeat_inst 1
Commissioning information
Vigilon Repeat panel (EN/BS)
VIG-RPT-72
by Honeywell
Vigilon Fire System
GENT 2010
Panel healthy 15:45
Vigilon Fire System
GENT 2010
Main Panel Healthy 15:45
Fault
System Fault
Test
Fire
Power
Power Fault
CB254
Disablement
Sounder
12345678910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 30 32
Zones
Previous Next
Delay
Verify
Use the Menu On/Off
and the function keys (F1 - F4)
to navigate through the menus
CB253
1234567890
"
#
$%^
& *(+
:
,
-
;
.
)
QWERTYU I OP
U1
U2
U3
U4
Fire
ASDF GHJ KL
ZXCVBNM
Sound Alarms Silence Alarms Reset
Cancel Buzzer
Menu On/Off
F4
F3
F1 F2
!
Insert
Delete
SpaceShift
Enter
;
Verify
BS Repeat panel ONLY
BS Repeat panel ONLY
The Zone indicators are NOT
applicable for BS Repeat panel.
www.acornfiresecurity.com
www.acornfiresecurity.com

Password or PIN code
"The terms Password, PIN (Personal
Identification Number), Usercode and Access code
mean the same and are used interchangeably.
A password restricts access to the controls available to the
user at the Repeat panel.
There are four access levels to the controls.
¨The Access level 1 controls only allows
cycling through of multiple fire events
messages on the screen using the two
buttons on the outer door.
¨Access level 2a is for the CUSTOMER. Here
the person responsible for the system can
access the 'essential controls' by opening the
panel outer door using a key
¨Access level 2b is for the CUSTOMER. Here
the person responsible for the system can
access essential controls and some
configuration menus using the panel door key
plus a customer PIN.
¨Access level 3 is for the ENGINEER. Here
the person responsible for the system can
access essential controls and all system
menus using the panel door key plus Engineer
PIN.
¨Daily PIN
There is another PIN that changes daily,
which is available to the servicing
organisation. This daily PIN provides the same
access to controls as the Engineers' PIN. The
daily PIN is only used when the Engineer's
PIN is not known.
"Always make a note of the Customer and
Engineering PINs once they are created. Ensure the
Customer PIN is passed on to the person responsible
for the fire alarm system on the site.
How to create an Engineer PIN
"
All Vigilon panels leave the factory with no Engineer PIN code
(Access level 3 code). Therefore, on first power up there is an
open access to all the Access level 3 menus.
The menu options under the Engineer PIN provides access to access
level 3 controls that can alter the configuration of the system.
To create or change an existing Engineer PIN:
(You will need to be at Access level 3 if an Engineer PIN is already
set up.)
¨Press the Menu On/ Off button and select [Test/Eng]
->[UserCode]# -> then momentarily press <etc> to
select [Config] -> [New Pass] and then type a new
PIN or change an existing PIN and press the Enter
key.
# - will appear if a PIN is already setup.
¨It is recommended that the PIN is at least 4 numbers
and no greater than 15 numbers and letters in the
password code.
How to change the Customer PIN
"This repeat panel automatically sets up a
FACTORY DEFAULT CUSTOMER PIN:2222,that is after
an Engineer PIN is made active.
The Customer PIN provides access to access level 2 restricted menu
options that cannot alter the configuration of the system. To change a
Customer PIN:
You will need to be at Access level 2.
¨Press the Menu On/Off button and then [Test/Eng]
-> [UserCode] -> enter the existing Customer PIN
and select [Enter], select [New Pass] and then type
a PIN of less than 15 characters in length and press
the Enter key.
¨It is recommended that the PIN is at least 4 numbers
and no greater than 15 numbers for Vigilon compact
and Vigilon Compact VA panels. The Vigilon panels
can use numbers and letters in the password code.
How to erase a PIN
The Engineer or Customer PIN can be erased. To erase the PIN of
either Customer or Engineer level you will need to be at the
respective access level.
¨Press the Menu On/Off button and then [Test/Eng]
-> [UserCode] -> enter the existing Customer
PIN/Engineer PIN and select [Enter], select [New
Pass] and then just press the Enter key, this will
erase the PIN. If the Engineer PIN is erased then
Customer PIN is also erased giving open access to all
the menus.
Commissioning information Vigilon Repeat panel (EN/BS)
2 4188-839_issue 7_08/12_pt2_EN/BS Repeat_inst
www.acornfiresecurity.com
www.acornfiresecurity.com

Menu maps "The full repeat panel menu maps will only be
accessible following the allocation of the loop on which
the panel resides.
4188-839_issue 7_08/12_pt2_EN/BS Repeat_inst 3
Vigilon Repeat panel (EN/BS) Commissioning information
[Control] [Set Up] [Info] [ Test/Eng ]
[Sensing] [IO Line] <etc> [Zone] [MAlarm] [MSector] [Comms]
Params
1-8
{}
[E] [C] [Q]
Params
1-4
{}
[Device]
[Sounder]
Params
1-200
{}
[Loop] Params
1-128
{}
[E] [C] [Q]
<etc>
[E] [C] [Q]
Params
1-2
{}
<etc>
Params
0-15
{}
[E] [C] [Port]
<etc>
[Aux Rly] <etc> [Sounder] [Digital]
[Sound] [Silence] [Reset] <etc> [StartMA] [StopMA] [UserCode]
Params
1-207
{}
[Loop]
Params
1-207 [Loop]
Params
1-2
{}
[On] [Off]
[E] [C] [Q]
Params
1-207
{}
[Loop]
Params
1-8
{}
[Action]
Params
1-4
{}
[On] [Off] [Pulse]
Params
1-207
{}
[Loop]
[E] [C] [Q]
Params
1-8
{}
[Pause] <etc>
[E] [C] [Q]
Params
0-30sec
{}
[E] [C] [Q]
[Signal1]
[Off] [Signal2]
Params
0-15
{}
[Device]
[E] [C] [Q]
Params
1-8
{}
Params
1-207
{}
[Loop]
[Signal3]
[E] [C] [Q]
EN/BS Vigilon Repeat panel with Mk4 MRC
Menu map[Control]
[E] [C] [Q]
Key
[E] = [Enter]
[C] = [Cancel]
[Q] = [Quit]
[Verify] <etc>
~
Params
0-3
{}
[E] [C] [Q]
[Timeslot] <etc>
Params
1-16
{}
[Delay][On]
Params
HH:MM:SS
{}
[On]
[E] [C] [Q]
[Off]
[Off]
[DelayBlk]
Params
1-16
{}
[Delayed]
[E] [C] [Q]
Params
MM:SS
0-10min
{}
[End]
[E] [C] [Q]
[Stop]
[Group]
EN BS
EN
BS Option for BS Repeat panel only
Option for EN Repeat panel only
[Sector] [Build]
Params
1-255
{}
[E] [C] [Q]
[Aux Rly]
Params
1-2
{}
[E] [C] [Q]
Params
1-32
{}
[E] [C] [Q]
[Enable] [Disable] <etc>
~
[Sector]
Params
1-32
{}
[Loop]
Params
1-8
{}
[Action]
[Signal1]
[Off] [Signal2] [Signal3]
[E] [C] [Q]
[E]
[From] [C][Q]
[Sig1] [Sig2]
[Sig1]
[E]
[From] [C][Q]
[Off] [Off]
[Sig1]
[E]
[From] [C][Q]
[Sig2] [Sig3]
[MSector]
Params
1-255
{}
[Action]
[Signal1]
[Off] [Signal2] [Signal3]
[E] [C] [Q]
[Sig1] [Sig2] [Sig3]
[All]
[Build]
Params
1-255
{}
[On] [Off]
[E] [C] [Q]
Menus accessible with panel door open and AL2 password
Access level 2b
Menus accessible with panel door open and AL3 password
Access level 3
No menus are accessible at AL1
Access level 1
Menus accessible with panel door open
Access level 2a
Access level 2a
Access level 2b
Access level 3
Access level 2a
www.acornfiresecurity.com
www.acornfiresecurity.com

Commissioning information Vigilon Repeat panel (EN/BS)
4 4188-839_issue 7_08/12_pt2_EN/BS Repeat_inst
EN/BS Vigilon Repeat panel with Mk4 MRC Menu map[Set Up]
[Control] [Set Up] [Info] [Test/Eng]
[UserCode]
[Remove]
<etc> <etc>
[SetClock]
[Next] [Retard] [Advance] [E]
[Assign]
[Modify] [Enter] <etc>
{}
[Label]
[MCP] [IO Line]
[Device]
[Loop]
[Device]
Params
1-8
{}
Params
1-207
{}
Params
1-4
[C] [Q]
[E]
[Device] [MCP]
[Loop]
{}
Params
1-207
[IO Line]
{}
[Sector]
Params
1-8
[C] [Q]
[E]
{}
Params
1-32
[Device]
{}
Params
1-4
{}
[Loop]
Params
1-207
{}
Params
1-8
[C] [Q]
[E]
{}
Params
1-32
[Sector]
[SAFE]
[C] [Q]
[E]
{}
Params
0-255
[S Cubed]
[Signal1]
[Volume] [Soft St]
[Signal2]
[Find Dev] [Signal3]
[Step]
{}
Params
0-100
[Signal]
[C] [Q]
[E]
{}
Params
16-100
[C] [Q]
[E]
{}
Params
0-255
{}
Params
1-100
[C] [Q]
[E]
<etc>
{}
[State]
enable
Params
1-8
{}
Params
0-15
[C] [Q]
[E]
{}
Params
0-15
[State]
disable
[TimeBlok] <etc>
Voice/Tone
number
[Set Up]
[Loop]
{}
Params
1-207
[Device]
It is important to ‘back up’ the data at the main control panel following
any changes using the in Setup menus at the repeat panel.
Menus accessible with panel door open and AL2 password
Access level 2b
Menus accessible with panel door open and AL3 password
Access level 3
No menus are accessible at AL1
Access level 1
Menus accessible with panel door open
Access level 2a
Access level 2a
[AutoFire] [ManFire] [MCP;]
<etc> <etc>
[C] [Q]
[E]
Access level 2b
Access level 3
Access level 3
+ Freeblock ON
Key
[E] = [Enter]
[C] = [Cancel]
[Q] = [Quit]
www.acornfiresecurity.com
www.acornfiresecurity.com

4188-839_issue 7_08/12_pt2_EN/BS Repeat_inst 5
Vigilon Repeat panel (EN/BS) Commissioning information
Access level 2b
Access level 2a
Menus accessible with panel door open and AL2 password
Access level 2b
Menus accessible with panel door open and AL3 password
Access level 3
No menus are accessible at AL1
Access level 1
Menus accessible with panel door open
Access level 2a
Access level 2b
[Control] [Set Up] [Info] [Test/Eng]
<etc>
[DispTest] [UserCode]
[Config]
[Loop] [Card] [Test]
[PSU]
Mns 8V 27V BV1 BV2 BI1 BI2
214 204 207 211 211 0 0
[R] [Q]
Repeat
[On] [Off] [Q]
[FreeBlok]
EN/BS Repeat panel with Mk4 MRC [ ]
Menu map
Test/Eng
{}
Params
0-15
[C] [Q]
[E]
[Reset]
[Disable]
[N] [C]
[P]
[Fault] [Exception] [All]
[E]
<etc>
[Clear] [NewPass] [Language]
Enter an access code
English - Espanol - Portugues - Czechoslovakian - Brazilian
[N] [E]
[P]
[Label]
long labels
[C] [Q]
[E]
[On]
[Off]
<etc>
<etc>
[FindDev]
{}
Params
1-8 [Start]
{}
Params
1-207
[C] [Q]
[E]
[Gain]
[Device]
{}
Params
0-7 [Device]
{}
Params
0-63
[Flame] [Beam]
[Simulate]
[Align]
{}
Params
1-207
<etc> <etc>
[N] [Q]
[P]
1-8
{}
Params
[C] [Q]
[E]
{}
1-8
Params
[C] [Q]
[E]
[Loop]
{}
Params
1-207
[Device]
{}
Params
1-6
{}
Params
1-8
[C] [Q]
[E]
[N] [C]
[P]
[R]
{}
1-100
[Loop]
{}
Params
1-207
[E]
{}
Params
0-15
[Q]
[C]
[E] [E]
Params [C] [Q]
{}
1-207
[Loop]
Params
[Fault] [Disable] [Exceptions]
[Sub Faults]
[HistFire]
<etc> <etc>
[Warning]
[Device]
{}
1-4
{}
1-32
Params [Loop]
Params
{}
1-255 [E] [C]
Params [Q] [MCP] [IO Line] [Device] [Device] [Sector] [Card]
<etc>
{}
Params
1-207
[C] [Q]
[E]
{}
1-8
[Device]
Params
[Q]
[E]
<etc>
[Active] [Historic] [Events] [Label] [UserCode] [TimeAvg] [Status] <etc>
[Loop Map]
[Control] [Set Up] [Info] [Test/Eng]
EN/BS Repeat panel with Mk4 MRC [ ] Menu mapInfo
EN
BS
EN
BS
BS Option for BS Repeat panel only
EN Option for EN Repeat panel only
The language is automatically updated
at the repeat panel to that set at the
control panel, when the loop on which
the repeat resides is allocated.
+
+
+
[Supervis]
{}
Params
1-255
[C] [Q]
[E]
[Active] [Log]
[E]
[Zone] [Local] <etc>
{}
1-128
Params
[C] [Q]
[E]
[C] [Q]
[E]
[Allocate] [Stop]
[Test]
[Off] [On]
{}
1-128
Params
[C] [Q]
[E]
Access level 2a
[Device]
[AutoGain] [Repair]
{}
Params
1-8
[C] [Q]
[E]
[Fire] [Superfire] [All]
[PreFire]
[Loop]
{}
Params
1-207
[Device]
{}
Params
0-6
{}
Params
1-8
[C] [Q]
[E]
Access level 2b
Access level 3
<etc>
[Test]
[E] [Card]
[E]
{}
Params
0-15
[Device]
[Zone]
[Loop]
{}
Params
1-207
{}
Params
1-8
[C] [Q]
[E]
Access level 3
+ Freeblock ON
<etc>
EN
BS
[Group]
[N] [Q]
[P]
[Loop]
{}
Params
1-207
{}
Params
1-8
[C] [Q]
[E]
Gain Clock
period 40185
Key
[E] = [Enter]
[C] = [Cancel]
[Q] = [Quit]
www.acornfiresecurity.com
www.acornfiresecurity.com
