Honeywell equIP Series S User manual

Document 800-16795 – Rev A – 02/2014
equIP®Series S
3-inch/4-inch Minidome Camera
Wall Mounts Installation Guide
For more flexibility Honeywell offers these optional wall-mount kits.
This guide is for installers and integrators.
Note This guide describes how to install the 3-inch and 4-inch minidome cameras with
their appropriate wall mounts. More thorough installation instructions for your
camera are found in the Quick Installation Guide that came with your camera.
3-inch Minidome Installation
3-inch Minidome Camera Wall Mount Kit
H3SIP-WK, the 3-inch camera wall mount kit, includes the following components:
Figure 1 H3SIP-WK: 3-inch Minidome Wall Mount Kit
3-inch Minidome Pendant Mount Silicone Rubber Ring
M4x8 P Head
Mechnical Screw
x6
M3x9.5 P Head
Mechanical Screw
x1
Pendant Arm Cover Pendant Arm

2 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
Preparing for Installation
Check the package contents:
Before you begin, check that you have received all of the parts listed below. If any parts are
missing or damaged, contact your dealer immediately.
H3SIP-WK

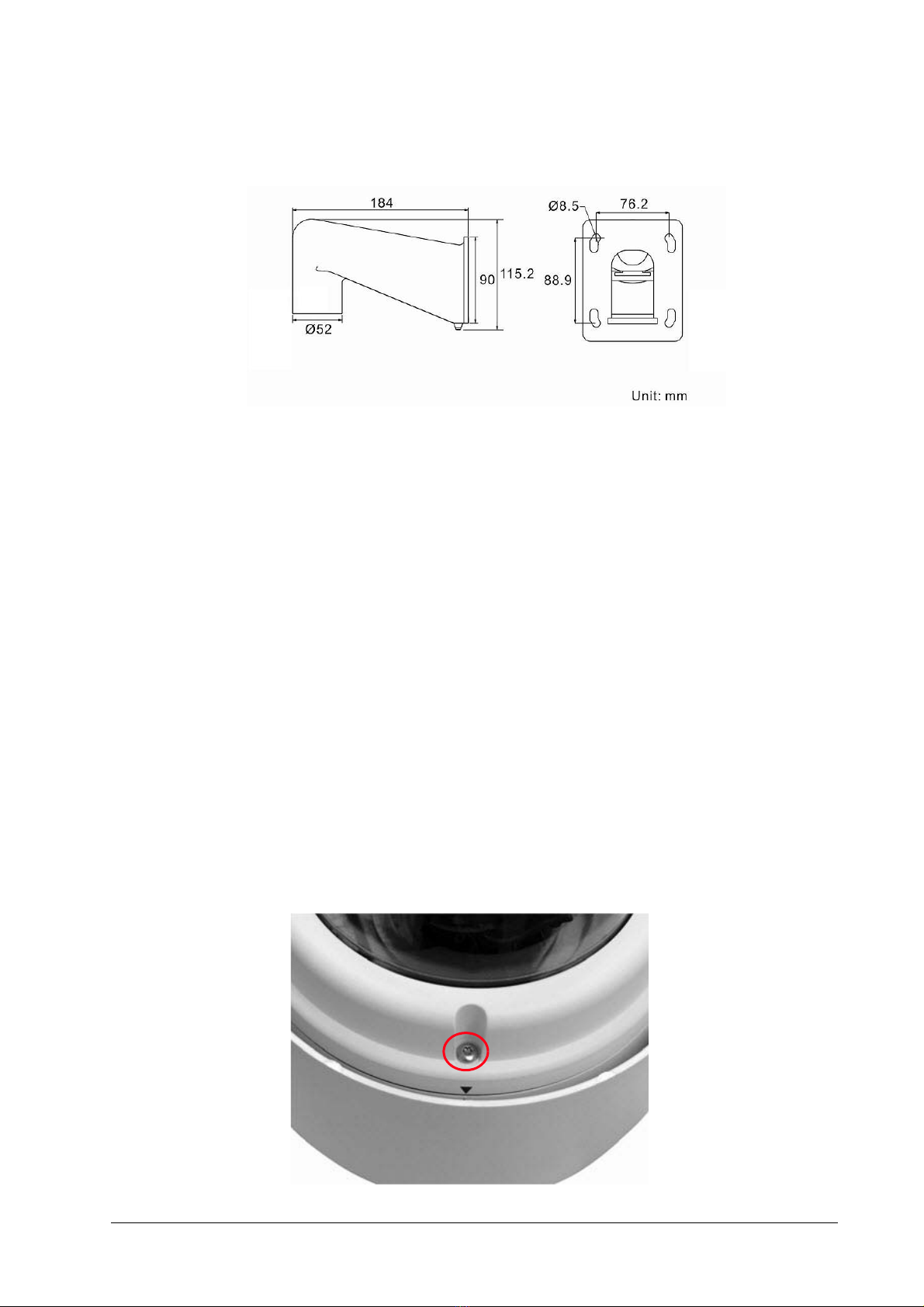

Figure 2 Pendant Arm Dimensions
• Pendant Mount
• Pendant Arm (including the Pendant Arm Cover)
• M4x8 P Head Mechanical Screws (x6)
• Silicone Rubber Ring (x1)
• M3x9.5 P Head Mechanical Screw (x1)
Required Additional Items:
• Ethernet cable
• DC jack cable (required without PoE)
Required Tools:
• Screwdriver (+, –)
• Tools for drilling
• Security Torx tool (supplied with the camera)
Removing the Camera from the Camera Housing
1. Use the supplied Security Torx tool to loosen the two captive security screws on the dome
cover, then remove it from the camera. Set the cover aside.

800-16795 - A - 02/2014
| 3

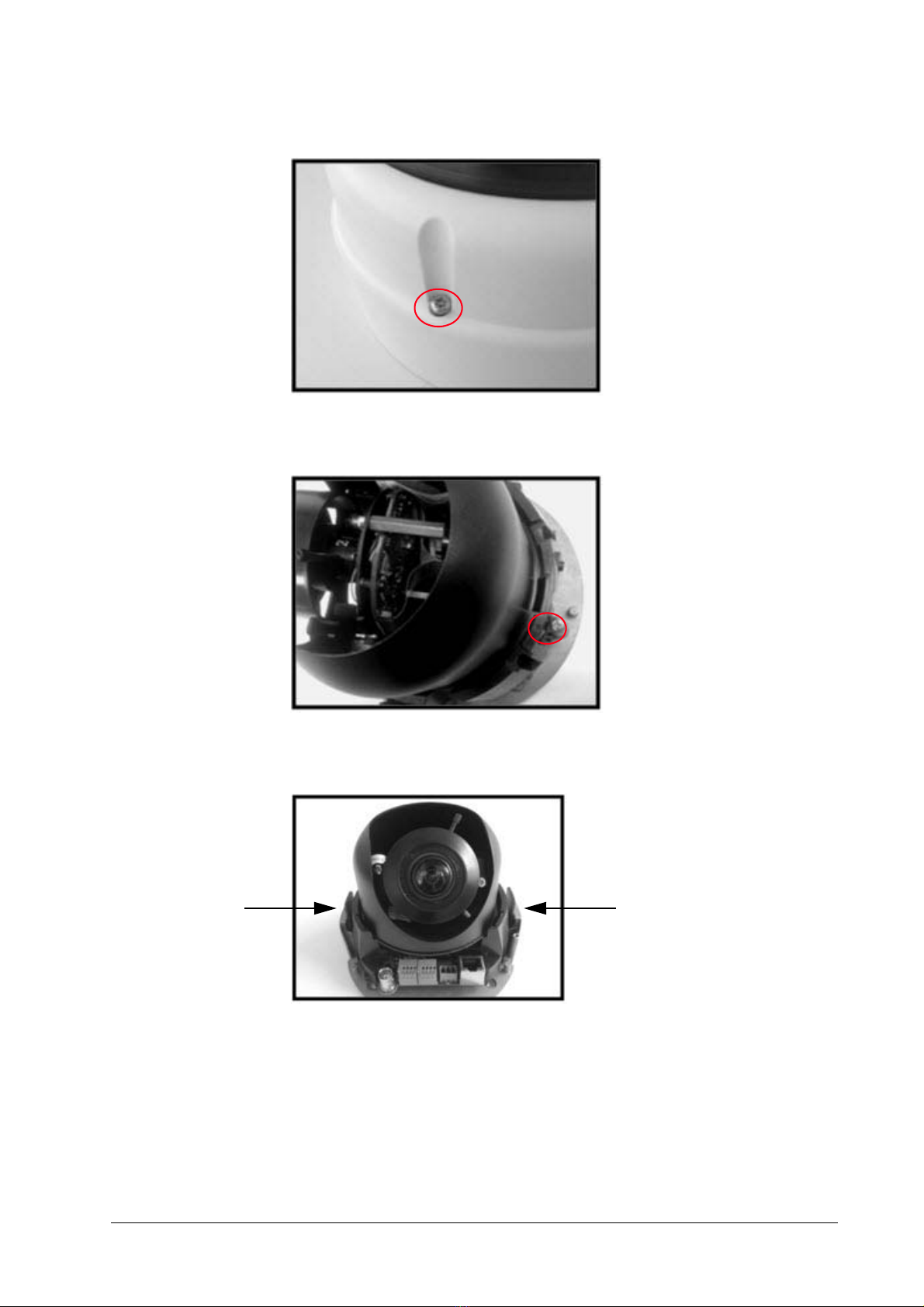

Figure 3 Loosening the Captive Screws
2. Use a Phillips screwdriver (not supplied) to loosen the screw that secures the camera
assembly to the camera housing.
Figure 4 Loosening the Screw That Secure the Camera Assembly to the Housing
3. Press and hold the tabs on either side of the camera assembly while pulling it from the
minidome camera’s base.
Figure 5 Removing the Camera From the Base
4. Place the camera assembly in the product box.
Installing the Camera Base onto the Pendant Mount
1. Use the pendant arm to mark holes on the mounting surface for the mounting screws.
2. Use an appropriate drill bit to drill holes for the pendant arm mounting screws. Also drill an
appropriately sized hole in the mounting surface for the RJ45 cable.
3. Remove the pendant arm cover plate from the pendant arm by loosening the M3x9.5 P
Head Mechanical Screw that keeps it securely in place.

4 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
4. Thread the RJ45/PoE ethernet cable through the pendant arm.
Figure 6 Threading the Ethernet Cable Through the Pendant Arm
5. Use appropriate screws (not supplied) to securely fasten the pendant arm to the wall.
6. Install the pendant arm cover plate on the pendant arm. Slide the tab into the hole on the
pendant arm, then lay the cover flush with the pendant arm’s surface. Use the M3x9.5 P
Head Mechanical Screw to secure the cover in place.
Attaching the Pendant Mount to the Pendant Arm
1. Thread the ethernet cable through the conduit entry on the pendant mount.

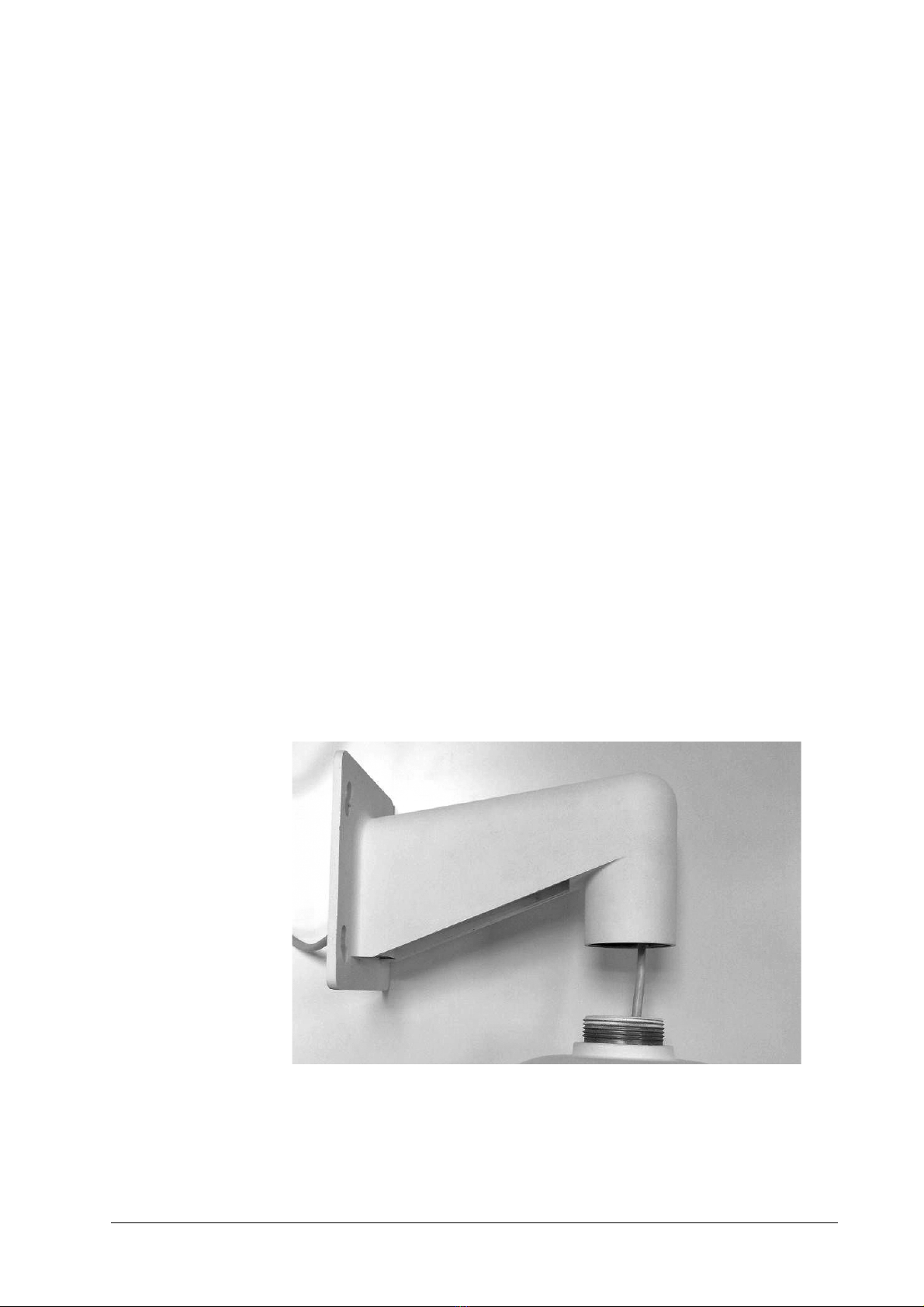

Figure 7 Threading the Ethernet Cable Through the Camera Pendant Mount
2. Align the pendant mount with the pendant arm, and screw the pendant mount securely
into place.

800-16795 - A - 02/2014
| 5
Attaching the Camera Base to the Pendant Mount
Use the four supplied M4x8 machine screws to securely attach the camera base to the pendant
mount.

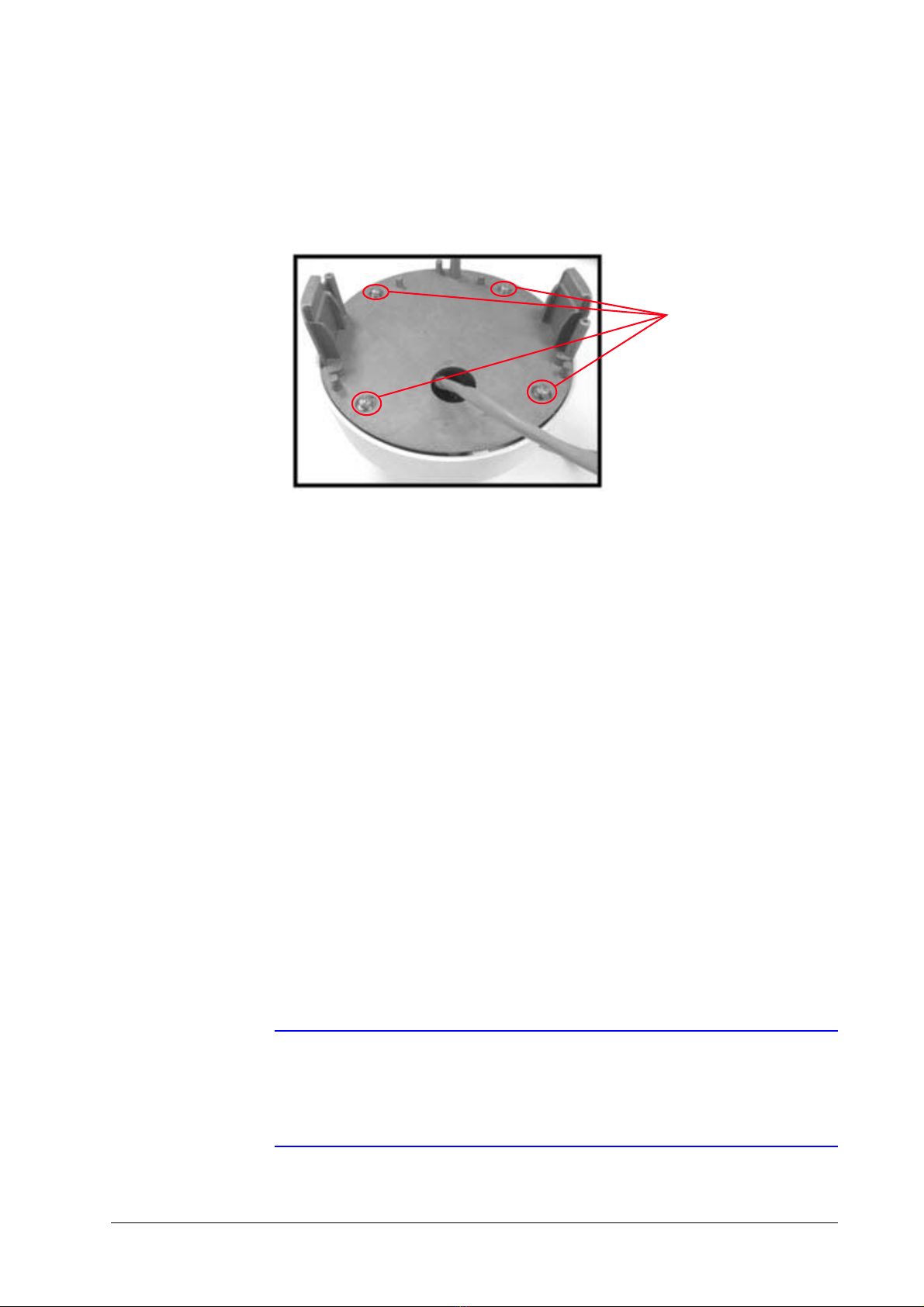

Figure 8 Attaching the Base to the Pendant Mount

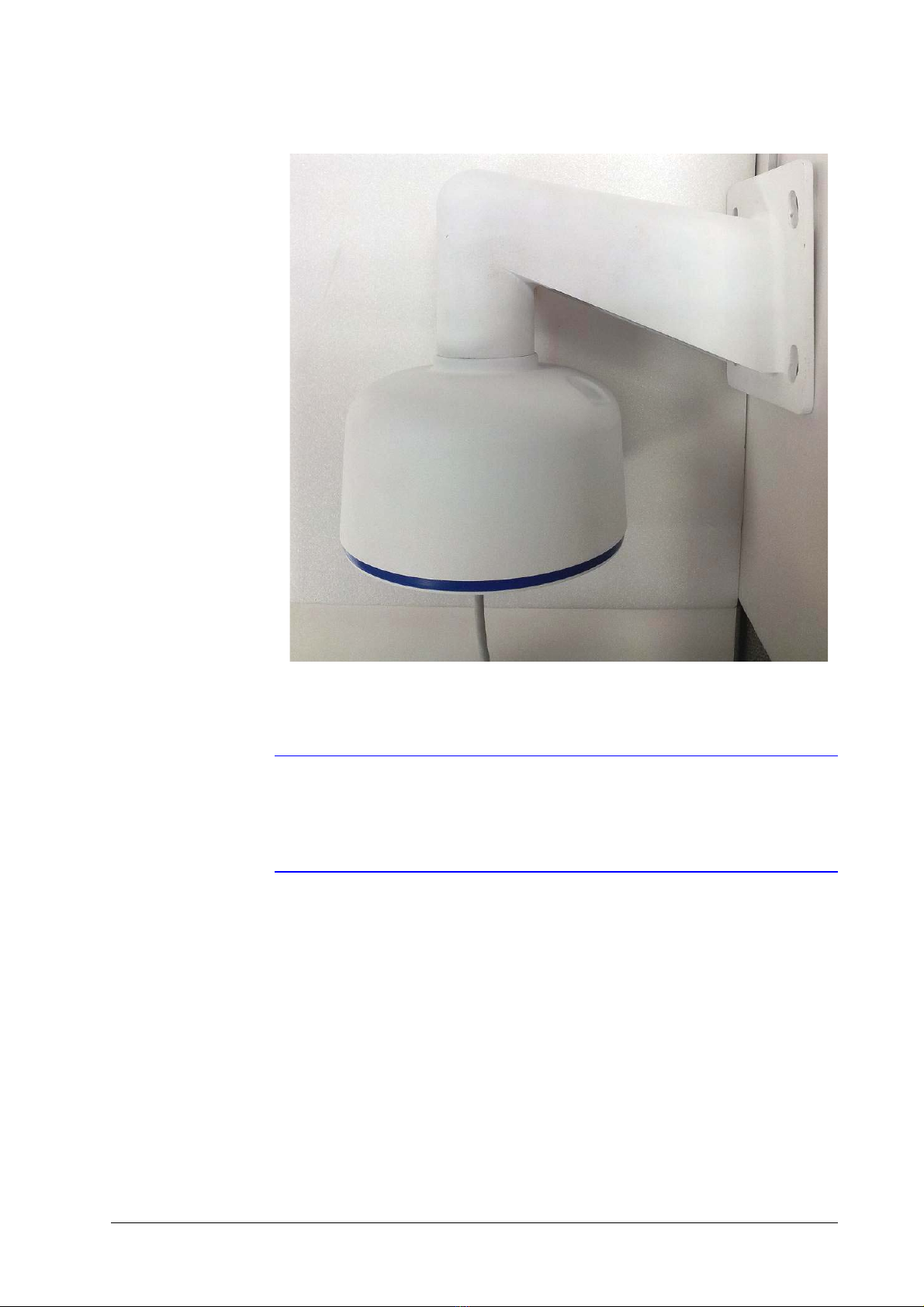

Figure 9 Camera Base Installed on the Pendant Arm
Installing the Camera
Note (Optional) If you want to use a microSDHC card to record video clips, then insert
the microSDHC card into the card slot located at the base of the camera
assembly before installing the camera assembly into the camera base. Refer to
the Quick Installation Guide for your camera for more information about the
microSDHC card.
Screws

6 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
1. Snap the camera assembly into place. Line up the tabs on the camera assembly with the
guides on the camera base that is attached to the pendant arm. Slide the camera
assembly onto the camera base until the tabs lock securely in place.
2. Secure the camera assembly in place by tightening the securing screw (which was
loosened in step 2 in Removing the Camera Assembly from the Camera Housing on
page 2.
Figure 10 Securing the Camera to the Base
3. Connect the RJ45 ethernet cable to the camera assembly to access the camera for
viewing video, and then adjust the minidome camera lens to a desired angle.
Figure 11 Connecting the Ethernet Cable
Note Zoom and focus can be affected by the dome cover. We recommend that you
adjust the focus and zoom with the dome cover on.
Note Refer to the Quick Installation Guide that came with your camera for instructions
about the other camera connections.
4. Replace the dome cover, then use the Security Torx tool to tighten the captive security
screws.

800-16795 - A - 02/2014
| 7
4-inch Minidome Installation
4-inch Minidome Camera Wall Mount Kit
H4SIP-WK, the 4-inch camera wall mount kit, includes the following components:
Figure 12 H4SIP-WK: 4-inch Minidome Wall Mount Kit
Preparing for Installation
Check the package contents:
Before you begin, check that you have received all of the parts listed below. If any parts are
missing or damaged, contact your dealer immediately.
Silicone Rubber Ring
M4x8 P Head
Mechanical Screw
x2 M3x9.5 P Head
Mechanical Screw
x1
Pendant Arm
Pendant Arm Cover
4-inch Minidome Pendant Mount
+ Sunshield

8 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
H4SIP-WK
Figure 13 Pendant Arm Dimensions
• Pendant Mount+Sunshield
• Pendant Arm (including the Pendant Arm Cover)
• Silicone Rubber Ring (x1)
• M4x8 P Head Mechanical Screws (x2)
• M3x9.5 P Head Mechanical Screw (x1)
Required Additional Items:
• Ethernet cable
• DC jack cable (required without PoE)
Required Tools:
• Tools for drilling
• Screwdriver (+, –)
• Security Torx (supplied)
Removing the Camera Assembly from the Camera Housing
1. Use the supplied Security Torx tool to loosen the two captive security screws on the dome
cover.
Figure 14 Loosening the Two Captive Security Screws on the Dome Cover

800-16795 - A - 02/2014
| 9
2. Use a Phillips screwdriver to loosen the screw that attaches the anti-drop chain on the
dome cover to the camera base. Remove the cover and set it aside.
Figure 15 Loosening the Screw that Attaches the Anti-drop Chain
3. Remove the turret cover from the camera assembly. Press both sides of the turret cover to
release it from the camera assembly. Set it aside.
Figure 16 Removing the Camera From the Housing
4. Use a Phillips screwdriver (not supplied) to remove the screw securing the camera
assembly to the camera base.
5. Remove the camera assembly from the camera base by pressing the tabs on either side to
release. See Figure 16.
6. Place the camera assembly into the product box.
Mounting the Pendant Arm to either a Wall or to a Pole
Depending on the requirements of your situation, you can mount the pendant arm to either a
wall or to a pole.
Press tabs
to release
camera
from base
Remove
screw
securing
assembly
Turret cover

10 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
Preparing the Wall for the Pendant Arm
1. Use the pendant arm to mark holes on the mounting surface for the mounting screws.
2. Use an appropriate drill bit to drill holes for the pendant arm mounting screws. Also drill an
appropriately sized hole in the mounting surface for the RJ45 cable.
Preparing the Pole for the Pendant Arm
To mount your 4-inch minidome camera to a pole. you will have to buy the optional pole
mounting kit, Honeywell part HSWK-PM.
Figure 17 HSWK-PM: 4-inch Minidome Wall Mount Kit
1. Decide where to place the pole mount on the pole. Consider the height of the equipment
that you are installing.
2. Pull the RJ45 cable through the opening on the HSWK-PM pole mount.
3. Place the HSWK-PM pole mount on the pole, and secure in place with the stainless steel
straps (provided).
Mounting the Pendant Arm
1. Remove the pendant arm cover plate from the pendant arm by loosening the M3x9.5 P
Head Mechanical Screw that keeps it securely in place.
2. Thread the ethernet cable through the pendant arm.
Figure 18 Threading the Ethernet Cable Through the Pendant Arm
Pole Mount Stainless Steel Straps
x2

800-16795 - A - 02/2014
| 11
3. Securely fasten the pendant arm to a mounting surface.
• Use appropriate screws (not supplied) to securely fasten the pendant arm to the wall,
which you prepared in Preparing the Wall for the Pendant Arm.
OR
• Use appropriate screws, nuts, and washers (not supplied) to securely fasten the
pendant arm to the pole mount, which you prepared in Preparing the Pole for the
Pendant Arm.
4. Install the pendant arm cover plate on the pendant arm. Slide the tab into the hole on the
pendant arm, them lay the cover flush with the pendant arm’s surface. Use the M3x9.5 P
Head Mechanical Screw to secure the cover in place.
Attaching the Pendant Mount+Sunshield to the Pendant Arm
1. Thread the ethernet cable through the entry in the pendant mount+sunshield.
Figure 19 Threading the Ethernet Cable Through the Pendant Mount+Sunshield
2. Align the pendant mount+sunshield with the pendant arm, and screw the pendant
mount+sunshield securely into place.

12 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
Figure 20 Pendant Arm with the 4-inch Pendant Mount+Sunshield Attached
Installing the Camera
Note (Optional) If you want to use a microSDHC card to record video clips, then insert
the microSDHC card into the card slot located at the base of the camera
assembly before installing the camera assembly into the camera base. Refer to
the Quick Installation Guide for your camera for more information about the
microSDHC card.
1. Align the sides of the snap-on camera assembly with the slots on the pendant
mount+sunshield, and push the camera assembly until it clicks securely into place.

800-16795 - A - 02/2014
| 13
Figure 21 Installing the Snap-on Camera into the Pendant Mount+Sunshield
2. Secure the camera assembly in place by tightening the securing screw that was loosened
in step 4 in Removing the Camera Assembly from the Camera Housing on page 9.
Figure 22 Securing the Camera Assembly in the Pendant Mount+Sunshield
3. Connect the RJ45 cable to the camera assembly to access the camera for viewing video,
and then adjust the minidome camera lens to a desired angle.
Figure 23 Connecting the RJ45 Cable
Note Zoom and focus can be affected by the dome cover. We recommend that you
adjust the focus and zoom with the dome cover on.

14 | equIP Series S Cameras 3-Inch/4-Inch Minidome Camera Wall Mounts Installation Guide
www.honeywell.com/security
Note Refer to the Quick Installation Guide that came with your camera for instructions
about the other camera connections.
4. Replace the camera’s turret cover. Ensure that is snaps securely into place.
Figure 24 Replacing the Turret Cover
5. Use a Phillips screwdriver to attach the anti-drop chain on the dome cover to the pendant
mount, and then tighten the screw.
Figure 25 Attaching the Anti-Drop Chain to the Pendant Mount
6. Align the arrow on the dome cover with the arrow on the pendant mount, then press on the
dome cover until it clicks securely in place.
Note Ensure that the anti-drop chain is not in the way when replacing the dome cover.
7. Use the Security Torx tool to fasten the two security screws on the dome cover to
complete the wall mount installation.

800-16795 - A - 02/2014
| 15

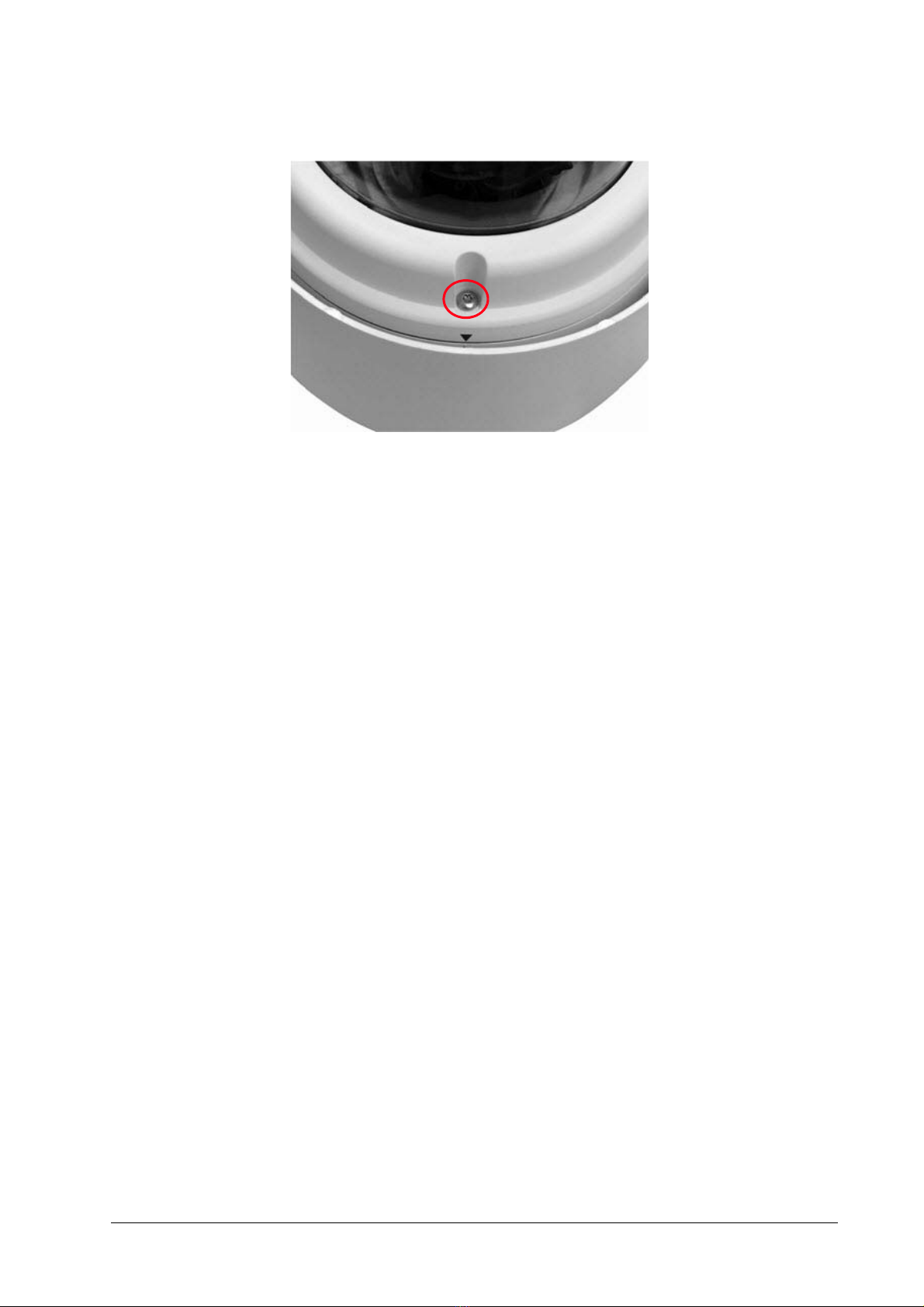

Figure 26 Securing the Outdoor Cover in Place

www.honeywell.com/security
[phone] (North America only)
https://www.honeywellsystems.com/ss/techsupp/index.html
© 2014 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written
permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot
assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change
without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
Document 800-16795 – Rev A – 02/2014
