Honeywell HEGS5300 User manual

MXMU000933 – July 2004 – Rev. A
HEGS5300
CCTV Control Keyboard
User Manual

Rev. A ii MXMU000933
07/07/04
ISSUE DATE REVISIONS
A July 2004 Initial Release (PCN 1752).

Rev. A iii MXMU000933
07/07/04
FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at
his own expense.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: NOT FOR OUTDOOR USE UNLESS
ENCLOSED IN WATERPROOF HOUSING.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
UNLESS ENCLOSED IN A WATERPROOF HOUSING.

Rev. A iv MXMU000933
07/07/04
NOTES:

Rev. A v MXMU000933
07/07/04
TABLE OF CONTENTS
SECTION 1: INTRODUCTION .................................................................................................................. 1
1.1 PRODUCT DESCRIPTION ............................................................................................................... 1
1.2 KEYBOARD OVERLAY..................................................................................................................... 1
1.3 ICONS .............................................................................................................................................. 2
SECTION 2: SETUP AND WIRING ........................................................................................................... 3
2.1 SETUP MODE .................................................................................................................................. 3
2.2 JOYSTICK ........................................................................................................................................ 4
2.3 KEYCODE TABLE ............................................................................................................................ 4
2.4 WIRING CONNECTIONS ................................................................................................................. 6
2.5 CABLE LENGTHS ............................................................................................................................ 6

Rev. A vi MXMU000933
07/07/04
NOTES:

Rev. A 1 MXMU000933
07/07/04
SECTION 1:
INTRODUCTION
1.1 PRODUCT DESCRIPTION
The HEGS5300 Keyboard interfaces to the HMXAT200 and supports all power
standards. The interface board in the HMXAT200 provides 12VDC at RJ11 connectors 3
and 4 (ports 3 and 4) to power a HEGS5300 keyboard. All keyboards connected to
other ports must have their own power supply. All HEGS5300 Keyboard models are
shipped with a universal power supply for 110 or 220VAC input to +12VDC output.
1.2 KEYBOARD OVERLAY
The illustration below is the standard default overlay on a HEGS5300 keyboard.
Overlays are exchangeable and can be customized so they may vary from site to site.
MAX1000 System Controller HEGS5300
5
9
13
6
10
14
12
BA
7
11
15
34
8
12
16
DC
S1 S2 S3 S4 S5 S6 S7 S8
4
7
1
56
89
0
23
T
A
POWER
COM
MAX

Rev. A 2 MXMU000933
07/07/04

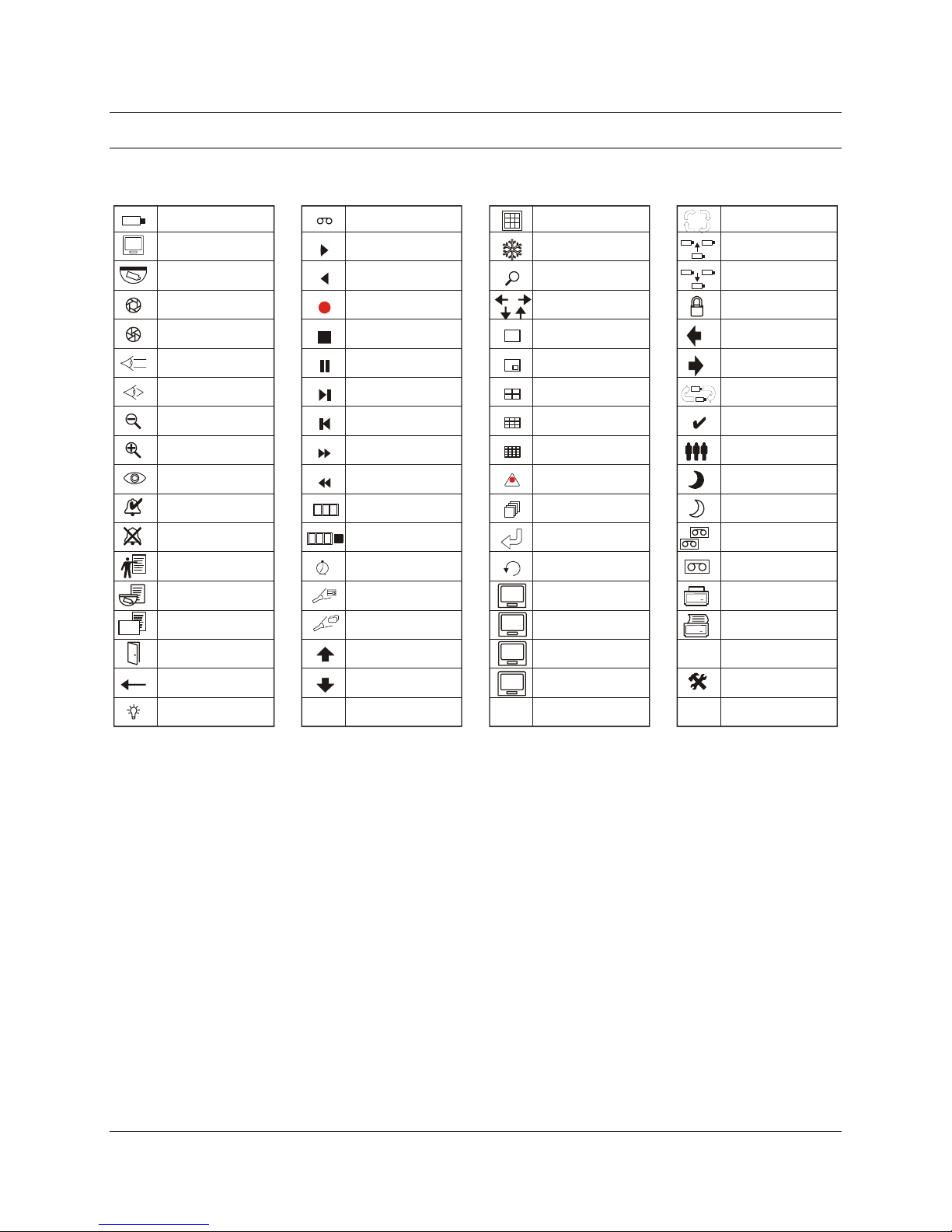

1.3 ICONS
The following icons and their descriptions may or may not be on your specific controller.
Dome Macro
User Macro
Alarm Clear
Alarm Acknowledge
View / Preshot
Zoom In (tele)
Zoom Out (wide)
Focus Near
Focus Far
Iris Close
Iris Open
Dome / PTZ
Monitor
Camera
MAX
Maxpro Menu
Door Open
Clear
Aux
Video Recorder
Play
Reverse Play
Record
Stop
Pause
Frame Forward
Frame Back
Rewind
Fast Forward
Counter Reset
000
Counter Memory Stop
123
Time Mode
Time Date Search
Index Search
Next
Previous
Scan Select
Insert camera into
scan
Delete camera from
scan
Lock Scan
Previous Step in
Scan
Next Step in Scan
Alternate Camera
Group
Night Shot
A
Auto Exposure
Dub
+
Review
Printer Select
Print
T
Te x t
Function
Set
D
Select Monitor D
C Select Monitor C
B Select Monitor B
A Select Monitor A
Last / Undo
Enter
1
Sequence
Live Record
4 x 4 Display
3 x 3 Display
2 x 2 Display
Picture in picture
Full Screen
Multiplexer Cursor
Multiplexer Zoom
Freeze
Multiplexer

Rev. A 3 MXMU000933
07/07/04
SECTION 2:
SETUP AND WIRING
2.1 SETUP MODE
HEGS5300 keyboards are setup using the keyboard keys.
There are three user-defined settings.
1. Keyboard ID – valid ID’s 1 to 99. (Default = ID 1).
2. Baud Rate – 19K2 or 9600.
(Default = 19K2. Data format is fixed at 7 data bits, 1 stop bit, even parity).
3. Joystick speed range – There are 2 ranges of pan/tilt speeds from the analog
joystick.
The default is a range of 5 speeds (0=STOP to 5=Maximum speed).
Speed 5 is generated when the joystick is at its maximum pan or tilt position.
The second range is from 0 to 26. As before, 0=STOP and the speeds
generated are from A (slowest) through Z (fastest). Speed Z is equivalent to
speed 5 in that it is generated when the joystick is at its maximum pan or tilt
position. This feature is available when using MAX1000, version 4.27 or later.
To enter the SETUP MODE hold down the MENU key
MAX
or the ©key (to the left-of
the LCD) as the keyboard is powered up.
NOTE: If the keyboard has a custom overlay, the MENU key may be located in a
different position. Therefore, the ©key next to the LCD is always the preferred
option.
In SETUP MODE, the LCD guides the user in entering required information using the
numeric keypad. Press the Enter key (↵)or the ªkey to the next screen.
Press the ©key to return to the previous setup screen.
When the keyboard ID, baud rate, and joystick speed range have been entered, the final
setup stage stores the settings and the joystick reference position. The keyboard should
be flat on the desk when pressing the enter key (↵) at this final stage to ensure the
joystick is zeroed. Setup information is stored in non-volatile memory so the settings will
be retained if the keyboard is unplugged.

Rev. A 4 MXMU000933
07/07/04
2.2 JOYSTICK
The HEGS5300 keyboard is equipped with a 3-dimensional joystick which allows
zoom-in and zoom-out functions to be performed by twisting the top of the joystick either
clockwise (zoom-in) or counterclockwise (zoom-out). The “ZOOM IN” and “ZOOM-OUT”
buttons located on the keyboard still operate as normal.
2.3 KEYCODE TABLE
Keycode Key Name Command Keycode Key Name Command
#001 ALARM ACK #026
#002 #027 Logical Group 9
#003 SCAN S #028 Logical Group 10
#004 HALT H #029 Logical Group 11
#005 PAUSE P #030 Logical Group 12
#006 #031 DOME MENU
#007 Logical Group 1 #032
#008 Logical Group 2 #033
#009 Logical Group 3 #034
#010 Logical Group 4 #035
#011 ALARM CLEAR A #036
#012 #037 Logical Group 13
#013 SCAN INSERT I #038 Logical Group 14
#014 SCAN DELETE D #039 Logical Group 15
#015 SET KEY T #040 Logical Group 16
#016 #041 MAX MENU ?
#017 Logical Group 5 #042
#018 Logical Group 6 #043 MULTIPLEXER Q
#019 Logical Group 7 #044 FULL SCREEN
#020 Logical Group 8 #045 MULTISCREEN
#021 USER MACRO U #046
#022 #047 VCR KEY R
#023 LEFT ARROW < #048 FUNCTION KEY
#024 LOCK KEY #049 UNDO
#025 RIGHT ARROW > #050 ALTERNATE

Rev. A 5 MXMU000933
07/07/04
2.3 KEYCODE TABLE, CONTINUED
Keycode Key Name Command Keycode Key Name Command
#051 DOOR OPEN #077 [vcr-stop] s
#052 #078 [vcr-play] p
#053 PRINT SELECT #079 [vcr-record] r
#054 PRINT FREEZE #080 [vcr-rewind w
#055 COLOR PRINT #081 [vcr-pause] u
#056 B/W PRINT #082 [vcr-forward] f
#057 MON A #083 TEXT B
#058 MON B #084 DUB
#059 MON C #085 REVIEW
#060 MON D #086 [zoom-in] G
#061 <MON> M #087 [zoom-out] H
#062 <1> 1 #088 [focus-far] B
#063 <2> 2 #089 [focus-near] A
#064 <3> 3 #090 [iris-open] I
#065 [up-arrow] + #091 [iris-close] E
#066 <4> 4 #092 NIGHT SHOT
#067 <5> 5 #093 AUTO EXPOSURE
#068 <6> 6 #094 CALL PTZ X
#069 [down-arr] - #095 PTZ TOUR
#070 <7> 7 #096 [tilt-up] K
#071 <8> 8 #097 [tilt-down] j
#072 <9> 9 #098 [pan-left] d
#073 <CAM> C #099 [pan-right] c
#074 <VIEW> V #100 [scroll-up]
#075 <0> 0 #101 [scroll-down]
#076 <ENTER> . #102 PTZ aux x

Rev. A 6 MXMU000933
07/07/04

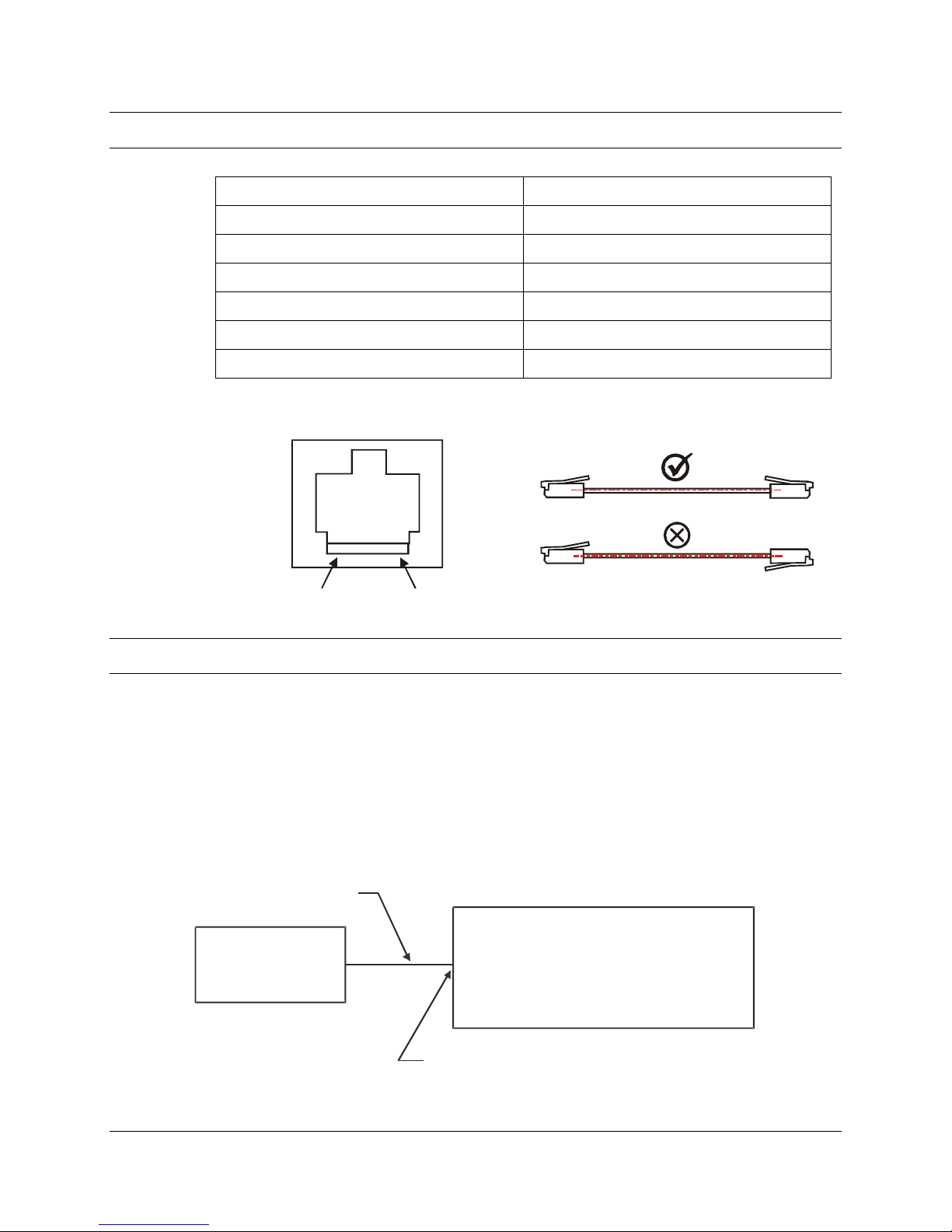

2.4 WIRING CONNECTIONS
RJ11 Socket on rear of keyboard RJ11 Socket on rear of HMXAT200
Pin 1 – Power GND Pin 6 – Power GND
Pin 2 – TX Data Pin 5 – RX Data
Pin 3 – Signal GND Pin 4 – Signal GND
Pin 4 – RX Data Pin 3 – TX Data
Pin 5 – N/C Pin 2 – N/C
Pin 6 – 12Vdc Pin 1 – 12Vdc
RJ11 Socket on Keyboard
Pin 6 Pin 1
RJ Leads for Connecting Keyboards
2.5 CABLE LENGTHS
Refer to the following illustrations for examples of wiring connections.
NOTE: The HEGS5300 CCTV Keyboard is supplied with a standard 7-foot flat telephone
cable. It is strongly recommended that twisted-pair data cable is used from the
RJ11 Termination Box when long cable lengths are required to eliminate any
data problems. Any cable length in excess of RS232 standards (50 feet)
requires line driver units (model number PTE102).
Example 1
HMXAT200 SYSTEM
CONTROLLER
7-FOOT FLAT TELEPHONE CABLE
(PROVIDED WITH HEGS5300)
HEGS5300
KEYBOARD
POWER PROVIDED FOR CONTROLLER ON PORTS 3 & 4
NOTE: ONLY PORT 4 ON MINIMAX UNITS

Rev. A 7 MXMU000933
07/07/04
2.5 CABLE LENGTHS, CONTINUED
Example 2
HMXAT200 SYSTEM
CONTROLLER
7-FOOT FLAT TELEPHONE CABLE
(PROVIDED WITH HEGS5300)
2-JACK JUNCTION BOX
(PROVIDED WITH HEGS5300)
7-FOOT FLAT TELEPHONE CABLE
(PROVIDED WITH HEGS5300)
POWER SUPPLY
(PROVIDED WITH MODELS
HEGS5300X, A, B, & E)
HEGS5300
KEYBOARD
12VDC
@1A
Example 3
HMXAT200 SYSTEM
CONTROLLER
HEGS5300
KEYBOARD
7-FOOT FLAT TELEPHONE CABLE
(PROVIDED WITH HEGS5300)
2-JACK JUNCTION BOX
(PROVIDED WITH HEGS5300)
TWISTED PAIR DATA CABLE
(MAX DISTANCE = 50 FEET
SUPPLIED BY INSTALLER)
POWER SUPPLY
(PROVIDED WITH MODELS
HEGS5300X, A, B, & E)
12VDC
@1A
7-FOOT FLAT TELEPHONE CABLE
(PROVIDED WITH HEGS5300)
2-JACK JUNCTION BOX
(PROVIDED WITH HEGS5300)

Rev. A 8 MXMU000933
07/07/04
2.5 CABLE LENGTHS, CONTINUED
642
531
642
531
642
531
642
531
TO KEYBOARD TO HMXAT200
KEYBOARD RJ11 CONNECTOR
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
WHITE
BLACK
RED
GREEN
YELLOW
BLUE
12V
NC
Tx
SIG. GND
Rx
PWR GND
HMXAT200 RJ11 CONNECTOR
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
WHITE
BLACK
RED
GREEN
YELLOW
BLUE
PWR GND
Tx
SIG. GND
Rx
NC
12V

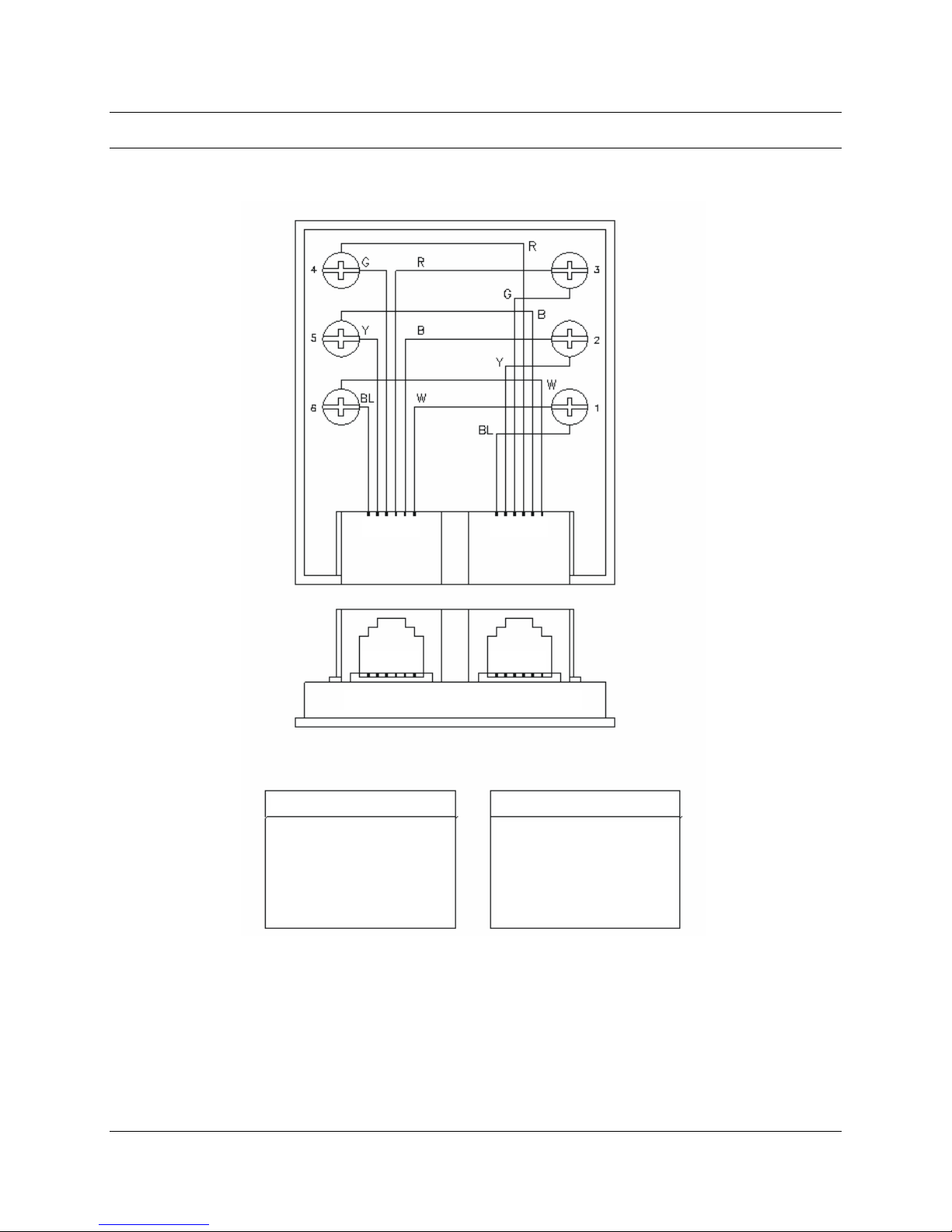

Figure 1: MAX1000 Keyboard RJ11 Two-Way Junction Box (0365-0009)
Drawing MG10075

Rev. A 9 MXMU000933
07/07/04
2.5 CABLE LENGTHS, CONTINUED
Figure 2: MAX1000 Keyboard RJ12 Terminal Box Pin Utilization
Drawing MG10023

Video Systems
www.honeywellvideo.com
1-800-796-CCTV
