Honeywell ScanDome III HSDC-252 Series Owner's manual

ScanDomellITM DomeCamera
HSDC-252 Series
HSDC-362 Series
HSDC-363 Series
Operation &Programming Manual
Pleaseread this manualthoroughly beforeuseand keepit handyfor futurereference.
Rev.110303

2
Warningsand Cautions
TOREDUCE THE RISK OFFIRE ORELECTRIC SHOCK, DONOTEXPOSE THISPRODUCTTO RAIN
OR MOISTURE. DONOTINSERTANYMETALLIC OBJECTS THROUGHTHE VENTILATIONGRILLSOR
OTHEROPENINGS ON THE EQUIPMENT.
EXPLANATIONOFGRAPHICALSYMBOLS
The lightning flash witharrowhead symbol,withinan equilateraltriangle,is intended to
alerttheusertothepresence ofuninsulated "dangerous voltage"withinthe product's
enclosure thatmay be of sufficient magnitude to constitute arisk of electricshock to
persons.
The exclamation pointwithinan equilateral triangleisintended to alerttheusertothe
presence of importantoperating andmaintenance(servicing) instructionin the literature
WARNING
CAUTION
accompanyingtheproduct.

3
FCCCOMPLIANCESTATEMENT
FCC INFORMATION: THISEQUIPMENTHASBEENTESTEDAND FOUND TO
COMPLY WITH THELIMITSFORACLASS ADIGITALDEVICE,PURSUANT TO
PART15OFTHEFCC RULES.THESELIMITSAREDESIGNEDTOPROVIDE
REASONABLEPROTECTIONAGAINSTHARMFULINTERFERENCEWHEN
THEEQUIPMENTISOPERATEDIN ACOMMERCIAL ENVIRONMENT. THIS
EQUIPMENTGENERATES,USES,AND CANRADIATERADIOFREQUENCY
ENERGYAND IF NOTINSTALLEDAND USEDIN ACCORDANCEWITHTHE
INSTRUCTIONMANUAL,MAYCAUSEHARMFULINTERFERENCETORADIO
COMMUNICATIONS.OPERATIONOFTHISEQUIPMENT IN ARESIDENTIAL
AREA ISLIKELY TOCAUSE HARMFULINTERFERENCEINWHICH CASE THE
USERWILLBE REQUIREDTOCORRECTTHEINTERFERENCEATHISOWN
EXPENSE.
CAUTION: CHANGESORMODIFICATIONSNOTEXPRESSLYAPPROVEDBY
THEPARTYRESPONSIBLEFORCOMPLIANCECOULDVOIDTHEUSER'S
AUTHORITYTOOPERATETHEEQUIPMENT.
THISCLASSADIGITALAPPARATUSCOMPLIESWITHCANADIANICES-003.
CETAPPAREILNUM RIQUEDELACLASSEBESTCONFORME ÀLANORME
NMB-003DU CANADA.
CECOMPLIANCESTATEMENT
WARNING
THISISACLASS APRODUCT.INADOMESTICENVIRONMENTTHIS
PRODUCT MAY CAUSERADIOINTERFERENCEIN WHICHCASE THEUSER
MAY BEREQUIRED TOTAKEADEQUATEMEASURES.

4
IMPORTANTSAFEGUARDS
1.Read theseinstructions.
2.Keep theseinstructions.
3.Heed allwarnings.
4.Followallinstructions.
5.Donot usethisapparatusnearwater.
6.Cleanonlywithdrycloth.
7.Donot blockanyventilationopenings.Install inaccordancewiththe
manufacturer'sinstructions.
8.Donotinstallnearanyheatsourcessuchasradiators, heat
registers,stoves, orother apparatus(includingamplifiers) that
produceheat.
9.Donot defeatthesafetypurposeofthepolarizedorgrounding-type
plug. Apolarizedplughastwobladeswithone wider than theother.
Agroundingtypeplughastwobladesandathirdgroundingprong.
The widebladeor thethirdprongisprovided foryour safety. If the
providedplugdoesnot fitintoyouroutlet,consult anelectricianfor
replacementofthe obsoleteoutlet.
10.Protectthe powercordfrombeingwalked onor pinchedparticularly
atplugs,conveniencereceptacles,andthe pointwheretheyexitfrom
theapparatus.
11.Onlyuseattachments/accessoriesspecified bythe manufacturer.
12.Unplugthisapparatusduring lightning stormsorwhenunusedfor
long periodsoftime.
13.Refer allservicing toqualifiedservicepersonnel.Servicingis
required whentheapparatushasbeendamaged inanyway, suchas
whenthepower-supplycordor plughasbeen damaged, liquidhas
beenspilledorobjectshavefallenintotheapparatus, the apparatus
hasbeen exposedtorainor moisture, doesnotoperatenormally,or
hasbeen dropped.
14.CAUTION- THESESERVICING INSTRUCTIONSAREFORUSE
BYQUALIFIEDSERVICEPERSONNELONLY.TO REDUCE THE
RISKOFELECTRICSHOCK DO NOTPERFORM ANYSERVICING
OTHERTHANTHATCONTAINEDINTHEOPERATING
INSTRUCTIONS UNLESSYOUAREQUALIFIEDTO DOSO.
15.UseCertified/ListedClass 2power supplytransformeronly.
16.Warrantydoesnotcover theproductdamagescausedbyinstallation
carelessnessornaturaldisastersuchaslighting.

5
Table ofContents
Chapter1 Introduction...................................................................................................................7
1.1Features.....................................................................................................................................................7
1.2TypicalSystemConfiguration...............................................................................................................8
Chapter2 Installation andConfiguration....................................................................................9
2.1Unpackingthebox...................................................................................................................................9
2.2BasicConfigurationofScanDomeTM CameraSystem......................................................................9
2.3PrincipleofTermination......................................................................................................................10
2.4DomeCameraAddress(ID)................................................................................................................11
2.5SettingProtocols....................................................................................................................................12
2.6Connections............................................................................................................................................12
2.7Mountingthe DomeCamera...............................................................................................................14
2.8Poweronand Boot-upSequence........................................................................................................14
Chapter3 ProgramandOperation..............................................................................................16
3.1FUNCTION............................................................................................................................................16
3.1.1HOMEFUNCTION(MENU =>FUNCTION=>HOMEFUNCTION).......................................................17
3.1.2PRESET(MENU => FUNCTION=>PRESETShortCut: PRST ).............................................................18
3.1.3PATTERN(MENU => FUNCTION=>PATTERNorShortcut: PTRN).....................................................19
3.1.4SCAN(MENU => FUNCTION=>SCANorShortcut: SCAN)....................................................................21
3.1.5TOUR(or MENU =>FUNCTION=>TOUR, ShortCut: TOUR).................................................................22
3.2ALARM (MENU => ALARM)..............................................................................................................23
3.3SCREEN.................................................................................................................................................25
3.3.1LANGUAGE(MENU =>SCREEN=>LANGUAGE)..................................................................................25
3.3.2PRIVACYZONE(MENU =>SCREEN=>PRIVACYZONE)...................................................................26
3.3.3NORTHDIRECTION(MENU =>SCREEN=>NORTHDIRECTION)....................................................27
3.3.4ZONETITLE(MENU =>SCREEN=>ZONETITLE).................................................................................27
3.3.5CAMERATITLE(MENU =>SCREEN=>CAMERATITLE)...................................................................28
3.4CAMERA(MENU =>CAMERA)........................................................................................................29

6
3.4.1FOCUSCONTROL(MENU =>CAMERA=>FOCUSCONTROL)..........................................................29
3.4.2WB(whitebalance)(MENU => CAMERA=>WBCONTROL).................................................................29
3.4.3AECONTROL(MENU => CAMERA=>AECONTROL)..........................................................................30
3.4.4BLCSETUP(MENU => CAMERA=>BLCSETUP)...................................................................................30
3.4.5MOTION SETUP(MENU=>CAMERA=>MOTIONSETUP)................................................................31
3.4.6SHARPNESS CONTROL(MENU =>CAMERA=>SHAPENESS)...........................................................32
3.4.7DIGITALZOOM(MENU =>CAMERA=>DIGITALZOOM)...................................................................32
3.4.8NIGHTSHOTMENU (MENU =>CAMERA=>NIGHTSHOT)................................................................32
3.4.9CAMERADEFAULT(MENU =>CAMERA=>CAMERADEFAULT)....................................................33
3.5SETUP (MENU =>SETUP)..................................................................................................................33
3.5.1FLIP (MENU=> SETUP=>FLIP)................................................................................................................33
3.5.2SPEED (MENU =>SETUP=>SPEED)..........................................................................................................33
3.5.3PRESETFREEZE (MENU =>SETUP=>PRESET FREEZE).....................................................................33
3.5.4PANNINGRANGE (MENU =>SETUP=> PANNING RANGE)...............................................................33
3.5.5TILTOVERANGLE (MENU => SETUP=> TILTOVERANGLE)..........................................................34
3.5.6CALIBRATION (MENU =>SETUP=>CALIBRATION)...........................................................................34
3.5.7FACTORYDEFAULT(MENU =>SETUP=>FACTORYDEFAULT)....................................................35
3.5.8ERASEDATA(MENU => SETUP=> ERASEDATA)................................................................................35
3.5.9SYSTEMINFORMATION (MENU =>SETUP=> SYSTEMINFORMAION)........................................35
AppendixA Specifications............................................................................................................36
AppendixB Troubleshooting.......................................................................................................39

7
Chapter1 Introduction
1.1Features
The ScanDomeIIITM domecamerafeatures ahighresolution SuperHAD CCD imagerfor
enhancedlowlight sensitivity. Userfriendly, on-screen pull-downmenusandshort-cuts makeit
easy tosetupand programfunctions.
System informationaidestroubleshootingby displayingthehardwareand software version of
thedomedriver, baudrate, and protocol.
•Built-in25xor 36xtimesopticalpower zoomcamera.
TrueNight Shot functionwithSuper HADand IR cut filterremoval mechanism
•248 Presets programmedwithviewdirection,Zoom, Focus, IRIS,BLC,Motion
•4 Patterns recordandplay backuser preferenceof surveillancepathupto240 sec.
•16 Scans: 8speedstepsfromslowtomediumpanning withsmooth DiagonalScan.
•8 Tours: Eachtour consists upto64 Preset,Pattern, Scan andother Tours.
Tourcanbeexpanded up tomorethan500differentfunctions usingnested Tours.
Smooth DiagonalScan mode andprogrammableIndividual dwell timecamerafunctions.
(Speed,Dwelltime,BLC, BMB,Motion, Focus, IRISof the preset)
•8Alarminputs with0~8priority / 2AuxiliaryoutputsprogrammableNC &NO.
•8 Privacy Zones : Videooffor up to8masked blocks and 8mask colorselectable
•64stepsof variablespeedfrom0.1°/secto120°/sec.
Maxmanual speed480°/secwith Turbo keypressed, Preset speed is420°/sec.
Minimumadjustableangleis0.009375°with SingleStep movefunction.
•Programmableuser preferencesof speed(Slow, Medium, Fast).
•Addressableupto999 camera IDs (Extendableupto3999in factorymode).
•Built-inRS-485/422receiver driver.
•On-sitesoftwareupgradeand upload/download of programmeddataintotheKBD/Dome.
•Built-inpower-linesurgeprotectionand lightningprotection.
•Capableoffail-safeHotSwap.
•Optional TintedBubble, Indoor &Outdoor pendanthousingwithheater &blower,Indoor Flush
Mount, Parapetmount&RoofTopmount.

8
1.2TypicalSystemConfiguration
Additional ScanDomeTM joystickcontrollersandavariety of external switching devicessuchas
multiplexers(MUX)andDigital Video Recorders(DVRs)may beincorporatedtoaccommodate
theneedsfromthe small tolargesurveillance/securitysystem.Figure1illustratesasmall
sampleinstallation.
Figure1 TypicalSystem Configuration

9
FULL DUPLEXMODE
RS-422
TXB(DOME1-) TXA(DOME1+)
STP AWG#22
VIDEO
BNC MONITOR
AC24V
POWER
TXB
AC-
AC+
FGND
TXA
RXB RXA
AC 24V
POWER
TXB(TX-)
RXA(RX+) RXB(RX-)
TXA(TX+)
RS-422 HALF DUPLEX MODE
RS-485 or
RXA RXB
TXA TXB TXB TXA
RXB RXA TXA(TX+)
TXB(TX-)
SW1
SW2
J5J7
J2 J1
24V~ 24V~
FG
RX+ RX- TX+ TX- GND
TERMINATION
ON
AL5
AL6
AL7
AL8
GND
COM
NC2
NO2
AL4
AL3
AL2
AL1
NC1
GND
COM
NO1
Chapter2 InstallationandConfiguration
2.1Unpackingthebox
Thepackagecontains thefollowing.
Quantity Component
1 ScanDome IIITM (DomeCamera)
1 InstructionManual (thisdocument)
3 AssemblyScrewsfor AttachingScanDomeTM
3 PlasticAnchor
1 3-Pin Connector
1 5-Pin Connector
2 8-Pin CableAssembly
3 3-BoltSpacer(UseforHSGN-502 and HSG-502Fonly)
2.2BasicConfigurationofScanDomeTM CameraSystem.
Figure2 Basicinstallationdiagram

10
S1 S2 S3
S6S5S4
0
9
8
7
6
5
4
3
2
1 1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
12
ON
SW2
The domecameramustbeinstalledby qualifiedservicepersonnel.Beforeinstalling thedome
camera system thisinstructionmanualmustbereadthoroughlyand understoodfully. Dome
camerasmustbesetup properlybeforestarting the installation.This involvesproperly setting
configurationswitches. Figure 3showsthe locationoftheseswitches.
Figure3 LayoutofSwitches
2.3Principleof Termination
Everydevicewhichisconnectedat theend ofthecommunicationdatalinemust beterminated
byeitherDIPswitchsettingor appropriatedevicessuchasatermination jumper toprevent
potentialcontrolsignal errors.
SeeFigure 4forterminationswitchsettingsand Figure5for examplesofdevices requiring
termination.Note: Total lengthofthecablefor communicationshouldnot exceed1.2Km.
Figure4 Setting Dome CameraTermination
SW2 1 2
Terminated ON ON
Notterminated OFF OFF
Address(ID)
SelectionSwitches
ProtocolSelectionSwitches
Address(ID)
SelectionSwitches

11
Figure5- Termination Diagram
2.4DomeCameraAddress (ID)
Eachdomecameramusthaveauniqueaddress (ID).IdenticalIDs onthe sameline may
damage thecontrol circuit caused byanelectricalshort. When installingmultipledomecameras
or aDVR,itisrecommendedthat thedomecameraIDsbeidentical tothe cameraport of the
DVR.
Cam Port1=DomeID1,CamPort 2=DomeID2 CamPort16=DomeID16.
If morethan 16 domecamerasare installedusingtwoor moreDVRs thefollowingformulais
useful todetermine theDomeID: ID=16x(n-1)+m(wheren=numberofDVR,m=CameraPort)
SW2:TerminationON
SW2:TerminationON
TERMINATIONON
SW2:TerminationON
DVRTerminationON
S1:Dome1 portTermination ON
S1:Dome1 portTerminationON
SW2:TerminationON SW2:TerminationON
DVRTerminationON
SW2:TerminationON
SW2:TerminationON
SW2:TerminationON
S1:Dome1 portTermination ON S4:DVRportTerminationON
DVRTermination ON
DVRTerminationON
SW2:TerminationON
S1:Dome1 portTerminationON
S3:Dome2 portTerminationON
SW2:Termination ON
SW2:Termination ON

12
ExtendedDomeID D12
0~999 On
1000~3999 Off
VIDEO D1
NTSC Off
PAL On
COMMUNICATION D2
RS-422 On
RS-485 Off
RefertoFigures6for setting thedomecamera address (ID)andprotocol selection.
Figure6 SettingDome CameraAddress (ID)and Protocol
2.5Setting Protocols
A ScanDomeTM camera is capable ofnegotiating withmultipleprotocolsifthe communication
speedismatched(samebaudratei.e.,9600bps).SeeFigure7for the appropriateprotocol
switchsettings.
Note: Consult servicepersonnelifadomecamerais installedwithadeviceotherthan a
ScanDome Controller.
Figure7 Protocol Selection tables
2.6Connections
•HowtoConnectRS485/422
Thedomecamera hasabuilt-in RS-485/422receiversothatitcan be controlled
remotelyby anexternalcontroldevicesuchas ajoystick controlleror DVR.
RS-485:ConnecttheTXA(Tx+)and TXB(Tx-)oftheRS485 controldevices (KDB,
DVR…)toRX+,RX-ofthedomecamera.
1
2
3
4
5
678
9
0
S1 S2 S3
S6
S5
S4
32
6
5
4
8
7
9
1
0
32
6
5
4
8
7
9
1
0
on on on
Function
D1 VIDEO
D2 COMM.
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12ExtendedID
Protocol
Baudrate
Camera
S6
S5
Dip s/w
S4
OFF
ON
Camera
D3 D4
Default
Off
Off
RESERVED
On
Off
Off
On
RESERVED
On On
RESERVED
Protocol D5 D6D7 D8
AUTO(S2/E,PL,ER,PH(No))
Off
Off
Off
Off
S2/E,PL,ER,PH(Even) On
Off
Off
Off
PP
Off
On
Off
Off
EZ
On On
Off
Off
S2
Off
Off
On
Off
PD On
Off
On
Off
VN
Off
On On
Off
SN On On On
Off
DC
Off
Off
Off
On
RESERVED
On
Off
Off
On
RESERVED
Off
On
Off
On
RESERVED
On
On
Off
On
RESERVED
Off
Off
OnOn
VCL On
Off
OnOn
KD6
Off
On OnOn
FactoryDefault On On OnOn
Baudrate D9D10 D11
2400bps
Off
Off
Off
4800bps
Off
Off
On
9600bps
Off
On
Off
19200bps
Off
OnOn
38400bps On
Off
Off
57600bps On
Off
On
DOME ID S3 S2 S1
1 0 0 1
2 0 0 2
. . . .
999 9 9 9

13
RS-422:Connect TXA(Tx+)andTXB(Tx-)ofthecontrol devicetoRX+,RX-and
TX+, TX-of thedomecamera respectively.YouneedtoselectRS-422modeat S4.
RS-485 doesnotallowfor astar connection layout.Asplitter isrequiredifastar
connectionlayout is desired.RS-485guarantees1.2Km ofdatalinerouting. A
repeateris recommended toextendover 1.2Km.
ConnectingVideooutput
Seepage 9 Figure2 Basicinstallationdiagram
•ConnectingAlarms
AL1to8(Alarm In)
Magnetic, PIRor other external sensordevicescanbeusedtosignal thedome
camera reactingtoanevent.
SeeChapter 3 —Programand Operation forconfiguring alarm input.
Pinconfigurationofthesuppliedalarm cableJ1andJ2
GND(Ground)
NOTE: All the connectorsmarked GND arecommon.
Connectthegroundof theAlarm inputand/or alarmoutputtotheGND connector.
NO/ NC (NormallyOpenedorNormallyCloseddrycontactrelayoutput)
Thedomecamera canactivateexternal devicessuchasbuzzersorlights usingdry
contactrelays.Connect thedevicetotheNO(NC)(AlarmOut)and COM(Common)
connectors. SeeChapter3 —ProgramandOperationfor configuringalarmoutput.
•ConnectingthePower
ConnectAC 24V 1000mApowertothedomecamera.
Usecertified/ Listed Class2power supplytransformeronly.
SW1
SW2
J5J7
J2 J1
GND
24V~ 24V~
FG
RX+ RX- TX+ TX- GND
AL5
AL6
AL7
AL8
GND
COM
NC2
NO2
NC1
AL4
AL3
AL2
AL1
COM
NO1

14
2.7MountingtheDomeCamera
Onceall DIPswitchesaresetappropriately andall external connectionsare made,thedome
camera canbe mounted.
The ScanDomeTM cameraisdesigned tomount onastructural surfacesupportingloadsupto5
Kg. See Figure8.
o
c
o
c

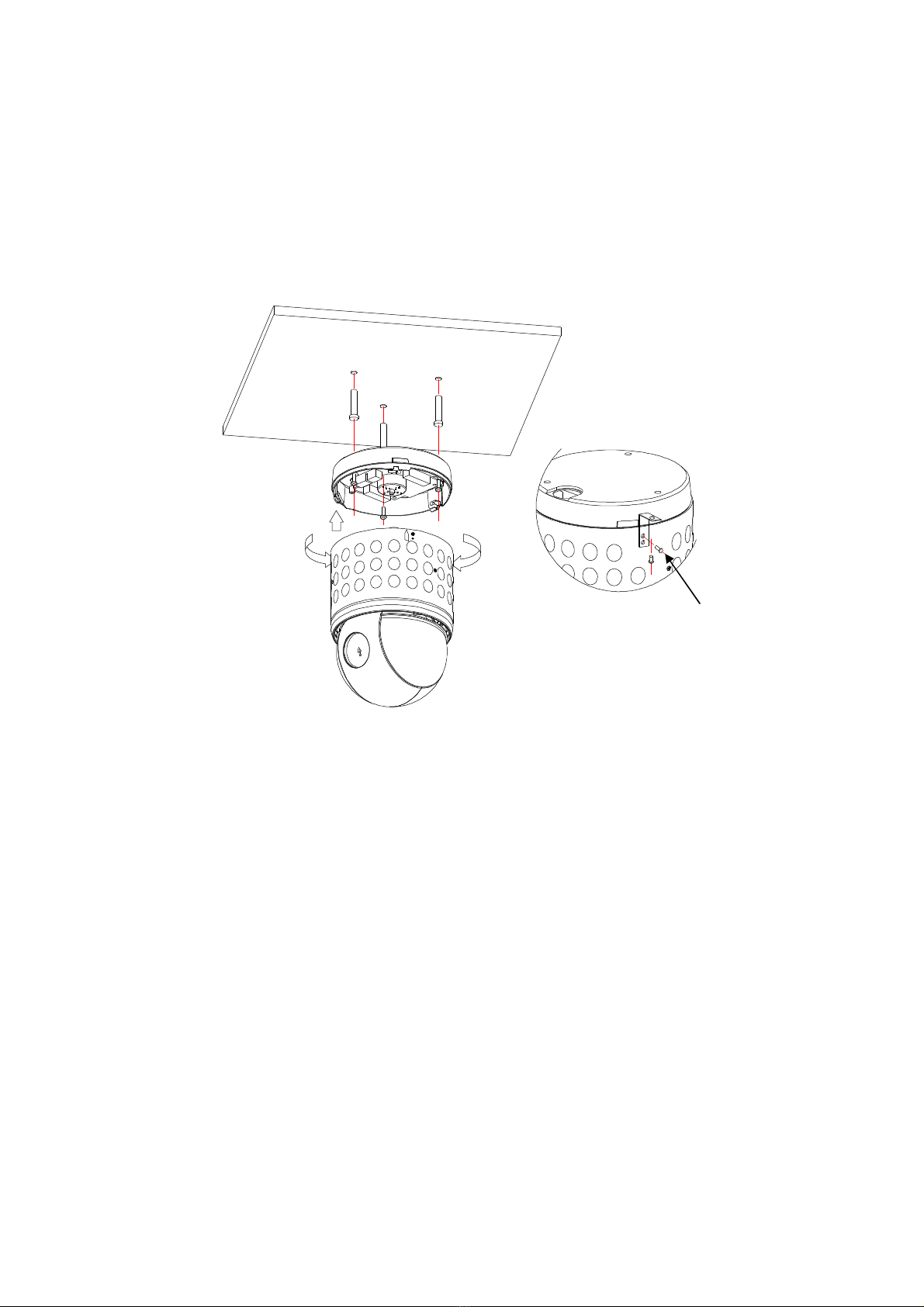

Figure8 Exampleofaceiling mounted installation
2.8PoweronandBoot-upSequence
Whenthe poweris appliedtothedomecamera,itwillstartaboot-upsequence.When boot-up
isdone, thefollowinginformationisdisplayedon themonitorscreen.
FastenScrew
Lock CW
UnlockCCW

15
OnScreenDisplayinnormal control mode
RAM TEST
CHECKNO.:OK!
CHECKAAAA: OK!
CHECK5555:OK!
SCANDOMEIIIRVx.xxx
CAMERATYPE xxxx
WAITDOMESETTING.
INITTILTORIGINSETOK
INIT PANORIGINSET OK
INITCAMERASETOK
001 PRESET W
EMPTYDATA!
ALARM:1
360.0,090.0 DOME NO.
:0001
Preset No.
Information
Alarm Display
DomeCamera Title
DomeCameraID
CompassDirection
Pan&TiltAngle
Preset Title
Or Area Title

16
Chapter3 ProgramandOperation
DomeCameraSelection
Beforeyoustartprogramming or operatingadomecamera,youshouldmakethedomecamera
beundercontrolof thejoystickcontroller. Inotherwords,the domecamera that youwantto
effect changesmust be currently selected.
Example:Pressing 1, 6and CAM keysequentiallywillselect domecamera16.Theselected
domecameraID willbedisplayedonthe monitor.
Principleofjoystick usage intheprogramming(editing)mode
Button or Joystickmovement inmenu Function
Joystick left orright
Gointothesub-menu items.
Executethe command(exit)
Changevalue.
Navigatethrough the menu items.
Joystick up or down Navigatethrough the menu items.
Joystick down Finishediting title.
Zoom handletwist Changevalue.(Increase/Decrease)
Enter editingtitlemode.
SHFT+Joystick PTZcontrol mode.
ESC Escape fromthe menuwithoutchange.
Home or Off button Deletevalue ornameofthe field.
3.1FUNCTION
Pressingthe MENU buttononthekeyboardcontroller,the following On-screen MAIN MENU will
beshownon your monitor screen.
MainMenu
Function
Alarm
Screen
Camera
Setup
Exit

17
Locatethecursor onthe FUNCTION itemandthenpushthejoystick totheright toenter
FUNCTION menu.
3.1.1HOMEFUNCTION (MENU =>FUNCTION=> HOMEFUNCTION)
After HOMEFUNCTION itemhas been selected,follow the directionsbelow toset HOME
function.
FUNCTION:Tour/Preset/ Pattern/ AutoScan
NUMBER :---
TIME :10~240Seconds
OPERATION :ENABLE/DISABLE
The HOME functioninvokespredefinedfunctionssuchasPreset,Tour, Pattern,or Scan
function after the keyboardcontrollerhas been idlefor aprogrammedtime.
Followthestepsbelow toprogramthe Home function:
1.Selectthecameranumber bypressing No. and CAM
2.Press MENU todisplaythe mainmenu onthemonitor.
3.Pushthe Joystick totherighton “FUNCTIONS”.
4.Enter HomeFunction menu bypushing the Joystick tothe right.
5.Pushthe Joystick totheright/left(ortwist CCW/CW)toscrollTour,Pattern, AutoScan
and Presetfunctions.
6.SelectFunctionNumber bypushingthe Joystick down, and twistthe Joystick tothe
CCW/CW(or pushright/left). Theexecutablefunctionnumber will be scrolled.Ifselected
functionis notprogrammed,it won’tchange.Go tosetupfunction first.
Function
HomeFunction
Preset
Pattern
Scan
Tour
Exit
HomeFunction
Function :NONE
Number:---
Time:240 SEC
Operation :DISABLE
SaveAnd Exit

18
7.Pushingthe Joystick downandtwist the Joystick toCCW/CW (orpushthestick to
right/left)tosetwaitingtime.
8.Locatethecursor on OPERATION optionbypushing the Joystick down.Choose
operation statusEnableor Disableby pushingthe Joystick totherightor totheleft (or
twist CCW/CW).
3.1.2PRESET (MENU => FUNCTION=>PRESET Short Cut: PRST )
Presetmemorizespan,tilt,zoom, focusandiris settings. Onceprogrammed,pressing
combinationof 0~9numbersanda Preset button onyour controllerautomatically callsupthe
presetposition.Presetsmay beassignedtoalarmactionsorasthe “home”position forthe
domecamera.
Locatethecursor onthe PRESET itemand thenpushthe joystick totherighttoenter PRESET
menu.
Thereare31pagesofpresetprogramming menu.Eachpage can hold 8presets.Locatethe
cursor on “PREV NEXT ,presetmenu pagescan be scrolledbypushingthe Joystick to
theLeftor Right on the “PREVNEXT .
F:FOCUSI :IRISB :BLC M:MOTION
X:16digitofpreset title
-: notdefined
█: Currentcursorposition
F: A(AutoTracking)/M(Manual Tracking)
I: A(AutoIris)/M(Manual Iris)
B:F(BLCOFF)/O(BLC ON)/A(AutoBLC)/B(BMB)/W(WDR)
Function
HomeFunction
Preset
Pattern
Scan
Tour
Exit
Preset 01/31
No.F I BMTitle
001A A FFxxxxxxxxxxxxxxxx
002M M OF----------------
003- - ------------------
004- - ------------------
005- - ------------------
006- - ------------------
007- - ------------------
008- - ------------------
PrevNext
SaveAnd Exit

19
M : Motionarea1(All),2(Upper),3(Lower),4(Left),5(Right),F(Free)
Followthestepsbelow toprogramthePresetpositions.
1.Selectthecameranumber bypressing 0~9and CAM.
2.Simplypress PRST buttontoenterpresetmenu. ( MENU => FUNCTION=>PRESET)
3.Selecttheempty preset locationtobeprogrammedusingthe Joystick up/down.If
selectedlocationisnot empty,pressing PRST button willshow your predefinedposition.
4.Afterselectinganempty position,pressand hold SHFT/PGM thenusethe Joystick to
controlthe direction ofthe cameraandlens.(Ortwist zoomhandle or hitzoom buttonto
startPTZ controlforviewselection.)
5.Afteraimingthe camera(viewdirection andlenscontrol)atspecificposition, release
SHFT/PGM button(or hitthe focusbutton).The selectedlocationNo.fieldwillbefilled with
“AAFF”.Pushthejoysticktothe right toselect eachFocus/ Iris/BLC/Motion mode using
zoomhandle.
6.Movethe cursortothetitlefieldtoedit/enterthetitle.Rotatethe handleCWandCCWto
scrollthroughthealphanumericcharacters. Pushthehandle torightorleft toselect next
or previousdigit.
7.Tofinishenteringthe title,pushthe Joystick up/downward.
8.Locatethecursor on “PREV NEXT item toselect theprevious/nextpageof presets,
scrollthe page bypushingthe Joystick tothe Left on “PREV NEXT .
9.Repeat steps2through8foreachadditionalpresetposition.
10. Select Saveand Exit by pushing theJoysticktotheright. Press ESC toexit thePreset
menuwithoutsaving.
NOTE:Press the Home or OFF buttonatprogrammedpositiontodeleteaprogrammedpresetview.
ShortcutofPresetProgram.
Selectdirectionofthecamera,zoomandfocustobeprogrammed, thenpress No.(1~248),and
thenpress SHFT, PRST subsequently. Thecurrentviewwillbestored tothe selectedpreset
number ifposition is empty. If selectedpresetnumberisnot empty, “PRESET EXISTING”
message willbe displayedon themonitor andyouwillbeprompted tooverwrite.
Example: 1, 0+ PGM + PRST will memorizecurrentviewaspreset No. 10.Inthiscase, focus
and Irismode will bememorizedasautoand dwelltimewillbesetto3sec.
3.1.3PATTERN (MENU =>FUNCTION =>PATTERN orShortcut: PTRN)
ThePatternfunctionstoresuser’scontrol ofthe selected domecamerafor upto240 ~243
seconds.4patternscanbestoredin240~243 secondsoftotal recordingspace. Stored pattern
isplayed back by pressing No.+ PTRN buttonssubsequently.

20
Followthestepsbelow toprogramthePattern:
1.Simplypress the PTRN key. (or MENU => FUNCTION=>PATTERN)
2.Selecttheempty Patternnumber tobeprogrammedbypushingthe Joystick Upor Down.
If SEC columnisnot000, then theselected No. ofpatternisalreadyrecorded.
3.Pressandholddownthe SHFT/PGM key while controllingthe cameradirection andzoom
withthe Joystick.Your controlswillbe automaticallyrecorded until youreleasethe
SHFT/PGM key. You can repeatthisprocedure until you are satisfied withthepattern
recorded. (Or twist zoomhandleorhitzoombutton tostart PTZcontrol for viewselection
and hittheFocusbuttontostop.)
4.Scroll downtotheSaveand Exitoptionandpushthe Joystick totherighttosaveand
exit.
5.You cantitletheselectedPatternbytwisting the Joystick.Rotatethehandle clockwise
or counterclockwisetoscroll throughthealphanumericcharacters, pushthehandletoright
or left toselect next or previous space.
6.Pressing ESC willnot savecurrently recordeddataandexits totheprevious menumode.
Pressthe HOME or OFF buttonatany programmedpositiontodeletetheprogrammed
pattern.
NOTE:Iftotal recordingtimereaches240~243 seconds, itwill automaticallystop andgo toOSD
menu.
PatternSetup
No.TitleSec
01:xxxxxxxxxxxxxxxx000
02:xxxxxxxxxxxxxxxx041
03:xxxxxxxxxxxxxxxx010
04:xxxxxxxxxxxxxxxx020
TOTAL :
071
SaveAnd Exit
