Honeywell RTH2410B User manual

RTH2410
5-1-1 Programmable Thermostat
Operating
Manual
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page -1 Monday, October 19, 2009 4:04 PM

Read and save these instructions.
CAUTION: EQUIPMENT DAMAGE HAZARD
To prevent possible compressor damage, do not use Cooling mode when the
outdoor temperature is below 50°F (10°C).
Need Help?
For assistance with this product please visit http://DIYthermostats.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 0 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
Overview
Thermostat features ..............................2
Quick start .............................................3
Quick reference to controls ...................4
Quick reference to display.....................5
Programming & Operation
Setting the clock....................................6
System switch (Heat/Cool)....................7
Fan switch (Auto/On).............................8
Using the schedule...........................9-11
Temporary schedule override..............12
Permanent schedule override .............13
Adaptive Intelligent Recovery (AIR) ....14
Compressor protection........................14
Appendices
Battery replacement ........................... 15
In case of difficulty .............................. 16
Customer assistance .......................... 17
One-year limited warranty .................. 18
Table of contents
Your new thermostat is pre-programmed
and ready to go!
See page 3 for quick start.
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 1 Monday, October 19, 2009 4:04 PM

Operating Manual
2
Your new thermostat has been designed to give you many years of reliable service and
easy-to-use, push-button climate control.
Features
• Backlit display is easy to read
• Displays ambient (measured) temperature at all times
• One-touch access to setpoint temperature
• ENERGY STAR®compliant to greatly reduce your heating/cooling expenses
• Separate programmable weekday/Saturday/Sunday schedules (5-1-1 programming)
• Temporary and permanent override of schedule
• Adaptive Intelligent RecoveryTM ensures right temperature at the right time
• Built-in compressor protection
About your new thermostat
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 2 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
3
Simply perform the three steps below and the thermostat is in operation:
nSet the clock ................................................................................................ See page 6
oSelect whether to heat or cool...................................................................... See page 7
pSelect whether to run the fan continuously or only when needed................ See page 8
Your thermostat is pre-programmed with ENERGY STAR®settings. If you do not wish to
use these settings, you can:
Modify the schedule ....................................................................................See page 11
Temporarily override the schedule ............................................................. See page 12
Permanently override the schedule............................................................ See page 13
This thermostat is ready to go
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 3 Monday, October 19, 2009 4:04 PM

Operating Manual
4
Quick reference to controls
System switch (see page 7)
•Cool: System is in Cooling mode.
•Off: System is off.
•Heat: System is in Heating mode.
Fan switch (see page 8)
•On: Fan runs continuously.
•Auto: Fan runs only when
heating or cooling is activated.
Up/Down buttons
Press to adjust temperature.
Screen
Lit for 12 seconds when
you press any button.
Press to set clock, day or
schedule (see pages 6 & 11).
Press to override schedule and
hold temperature (see page 13).
Press to run (follow) schedule
(see page 9).
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 4 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
5
Quick reference to display
* When Heat On or Cool On is flashing, compressor protection is engaged (see page 14).
Temperature
The ambient (measured) temperature is
normally displayed. To view the setpoint
temperature, press the Up or Down
button once. The setpoint temperature
will appear for five seconds.
System status
• Cool On: Cooling is activated. *
• Heat On: Heating is activated. *
• Aux On: Auxiliary heat is activated.
Low-battery warning
(see page 15)
Setpoint indicator
Appears when the setpoint
temperature is displayed.
Clock
Schedule period
Permanent schedule override
(see page 13)
Temporary schedule override
(see page 12)
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 5 Monday, October 19, 2009 4:04 PM

Operating Manual
6
nPress the Set button. Set Time will appear on the screen and the
time display will flash.
oPress the Up or Down button to set the time.
pPress the Set button again. Set Day will flash on the screen.
qPress the Up or Down button to select the day of the week.
rPress the Run button to save the changes & exit. (The changes
are also saved if you do not press any button for 60 seconds.)
NOTE: The clock has lost its settings when the time display flashes. If the thermostat is
following the schedule, it will use the temperature settings programmed for the Wake
period of the weekdays until you readjust the clock.
Set the clock
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 6 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
7
System switch (Heat/Cool)
Use the System switch to place the system in
one of the following modes:
•Cool: System is in Cooling mode.
•Off: System is off.
•Heat: System is in Heating mode.
CAUTION: EQUIPMENT DAMAGE HAZARD.
Do not use Cooling mode when the outdoor temperature is below 50°F (10°C).
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 7 Monday, October 19, 2009 4:04 PM

Operating Manual
8
Fan switch (Auto/On)
Use the Fan switch to select the fan operation.
•Auto: The fan runs only when heating or
cooling is activated (commonly used setting).
•On: The fan runs continuously.
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 8 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
9
Press the Run button to follow the programmed schedule. For maximum energy savings
while maintaining comfort, you can program the schedule such that the temperature is at
an economical level when you sleep or leave for work and at a comfortable level when you
are awake and at home. You can program up to four periods per day:
To program a period, you need to set its start time and its two temperature settings (one
when the thermostat is in cooling mode and another one when it is in heating mode). You
can set 3 different programs: one for the weekdays (Monday to Friday), one for Saturday
and one for Sunday.
Using the schedule
Wake Starts when you wake up
Leave Starts when you leave for work
Return Starts when you return home
Sleep Starts when you go to sleep
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 9 Monday, October 19, 2009 4:04 PM

Operating Manual
10
The thermostat has been programmed with ENERGY STAR®settings (see table below).
See next page if you wish to modify the settings.
Energy Star®settings
Period
Weekdays Saturday Sunday
Start time Heat Cool Start time Heat Cool Start time Heat Cool
Wake 6:00 AM 70°F (21°C) 78°F (25.5°C) 6:00 AM 70°F (21°C) 78°F (25.5°C) 6:00 AM 70°F (21°C) 78°F (25.5°C)
Leave 8:00 AM 62°F (16.5°C) 85°F (29.5°C) 8:00 AM 62°F (16.5°C) 85°F (29.5°C) 8:00 AM 62°F (16.5°C) 85°F (29.5°C)
Return 6:00 PM 70°F (21°C) 78°F (25.5°C) 6:00 PM 70°F (21°C) 78°F (25.5°C) 6:00 PM 70°F (21°C) 78°F (25.5°C)
Sleep 10:00 PM 62°F (16.5°C) 82°F (27.5°C) 10:00 PM 62°F (16.5°C) 82°F (27.5°C) 10:00 PM 62°F (16.5°C) 82°F (27.5°C)
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 10 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
11
nPress the Set button 3 times until Set Schedule appears. The Wake period is
displayed.
NOTE : To set another period, press the Set button as many times as needed until the
desired period and the desired day(s) are displayed and its time or temperature is flashing.
oWhen the time flashes, press the Up or Down button to set the time.
pPress the Set button.
qTo set the temperature for cooling mode, first place the System switch in Cool. To
set the temperature for heating mode, first place the System switch in Heat.
rWhen the temperature flashes, press the Up or Down button to set the temperature.
sPress the Set button.
tRepeat steps 2 through 6 to set each of the remaining periods.
uOnce all changes are made, press the Run button to save them and return to
normal display. (The changes will automatically be saved if you do not press any
button for 60 seconds.)
Modifying the schedule
Wake period for the
weekdays is set to
6 a.m. and 70°F
To skip a period
(except Wake),
press the Hold
button for 4 seconds
while that period is
displayed.
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 11 Monday, October 19, 2009 4:04 PM

Operating Manual
12
To temporarily ignore the schedule, press the Up or
Down button until the desired temperature is displayed.
The word Temporary will appear on the screen and the
period display will flash to indicate that the current period
has been overridden. The new temperature will be used
until the next period begins.
NOTE: Pressing the Up or Down button once will display the setpoint temperature. To
change the setpoint temperature, press either button more than once.
Press the Run button if you wish to cancel the temporary setting before the beginning of
the next period.
Temporary override of schedule
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 12 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
13
To permanently ignore the schedule, press the Up or
Down button until the desired temperature is displayed.
Then, press the Hold button to maintain the new
temperature indefinitely. The word Hold will appear on
the screen.
Press the Run button if you wish to cancel the override
and resume the schedule. The word Hold will disappear
and the thermostat will be set to the temperature
programmed for the current period.
Permanent override of schedule
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 13 Monday, October 19, 2009 4:04 PM

Operating Manual
14
Adaptive Intelligent Recovery™ allows the thermostat to “learn” how long your furnace or
air conditioner takes to reach the set temperature. Simply program the desired times and
desired temperatures into the schedule. The thermostat will determine when to activate
heating or cooling so that the desired temperature is attained at the desired time.
Example: If you set the Wake time to 6 a.m. and the temperature to 70 °F (21 °C), the heat will
come on before the set time, so the temperature is 70 °F (21 °C) by the time you wake at 6 a.m.
Your thermostat has a feature that helps prevent damage to the compressor of your air
conditioning or heat pump system. Because damage can occur if the compressor is
restarted too soon after shutdown, this feature forces the compressor to wait 5 minutes
before restarting. During the wait time, the message Cool On or Heat On flashes on the
screen. When the safe wait time has elapsed, the message stops flashing and the
compressor turns on.
Adaptive Intelligent Recovery (AIR)
Built-in compressor protection
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 14 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
15

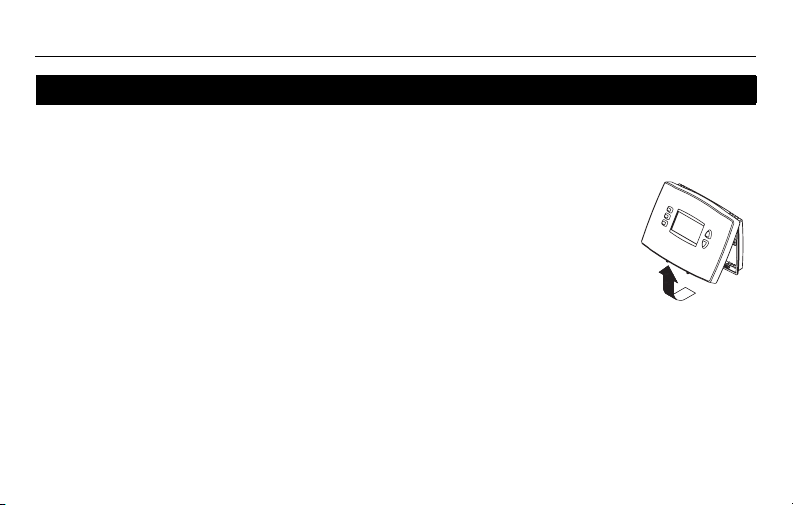

Install two fresh AAA batteries when Lo Batt flashes on
the screen. Lo Batt appears for 60 days before the
batteries are depleted.
Replace batteries once a year, or when you will be away
for more than a month.
Most settings are stored in non-volatile (permanent)
memory. Only the clock and the day must be set after you
replace the batteries.
Battery replacement
Set the System switch to Off before removing the batteries. Otherwise, the
heating/cooling system could remain activated even when batteries are
removed.
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 15 Monday, October 19, 2009 4:04 PM

Operating Manual
16
In case of difficulty
Screen is blank. • Ensure two fresh AAA alkaline batteries are correctly installed.
Temperature settings cannot be
changed.
• The System switch is off.
• You are setting the temperature outside its allowable range:
• Heat: 40°F to 90°F (4.5°C to 32°C)
• Cool: 50°F to 99°F (10°C to 37°C)
Cool On or Heat On is flashing. • The compressor protection delay is underway. Wait for the delay
to end (maximum of 5 minutes).
HI appears on the screen. • The ambient (measured) temperature is above 122°F (50°C).
LO appears on the screen. • The ambient (measured) temperature is below 32°F (0°C).
E1 appears on the screen. • The temperature sensor circuit is opened. Replace the thermostat.
E2 appears on the screen. • The temperature sensor circuit is shorted. Replace the thermostat.
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 16 Monday, October 19, 2009 4:04 PM

Programmable Thermostat RTH2410
17
For assistance with this product, please visit http://DIYthermostats.honeywell.com.
Or call Honeywell Customer Care toll-free at 1-800-468-1502.
To save time, before calling, proceed as follows:
1) Loosen the locking screw at the bottom of the thermostat. Note that
the screw is captive and cannot be removed from the wallplate.
2) Separate the thermostat from the wallplate as per figure on the right.
3) Note your model number and date code on the thermostat’s
wallplate.
Customer assistance
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 17 Monday, October 19, 2009 4:04 PM

Operating Manual
18
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or
materials, under normal use and service, for a period of one (1) year from the date of purchase by the
consumer. If at any time during the warranty period the product is determined to be defective or
malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased
it; or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination
whether the product should be returned to the following address: Honeywell Return Goods, Dock 4
MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product
can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown
by Honeywell that the defect or malfunction was caused by damage which occurred while the product
was in the possession of a consumer.
One-year limited warranty
69-2383ES-01 (RTH2410 5-1-1 OM) ENG USA.fm Page 18 Monday, October 19, 2009 4:04 PM
