Honghui Electronic s3523 User manual

GSM SMS Alarm
TMPI
User Manual
Ver 1.1 Date Issued: 2012-10-08

- 1 -
Table of contents
1. System Introduction ...............................................................................................2
2. Features..................................................................................................................2
3. Installation .............................................................................................................3
4. System Setup..........................................................................................................5
5. Use Method..........................................................................................................10
6. System Configurations .........................................................................................11
7. Technical Specifications.......................................................................................11
8. Trouble Shooting..................................................................................................12

- 2 -
Dear Client:
Thank you for purchasing our GSM dual-frequency (four-frequency)alarm system.to enable you to
use the product correctly and conveniently. Please read the operating instructions carefully before
using the product. The product shall be subject to improve without any further notice, please consult
agent for any question.
1. System Introduction
This GSM alarm system adopts GSM dual-frequency (four-frequency) mobile communication
network and related digital processing technologies. It's a good alarm control system for conducting
remote control and monitoring to houses, stores, offices, electric appliances and cars. The unit
through the SMS data transmission mode and voice platform of GSM dual-frequency
(four-frequency) mobile communication network really realizes the application that is not limited by
time or space. Backup power is provided(not less than 12 hours).It thoroughly solves the problems in
the wired transmission or other wireless transmission modes such as troubled wire arrangement, bad
stability and easy to be damaged.
Well-designed circuit structure ,user-friendly operating interface and remote control embody the
human-oriented design concept and make your convenient and easy to use and operate the unit.
2. Features
1) GSM dual-frequency (four-frequency) network are applicable all countries and regions in the
world.
2) Back up power ensures smooth transmission even if in case of power fail.
3) The power of the host is equipped with remote monitoring function (out-power-fail and
incoming call alerting).
4) Three phone numbers of receiving alarm message may be preset and five calling alarm numbers
for auto dialing.
5) The contents of defense area may be flexibly edited.
6) The system adopts old-state memory circuit that it's unnecessary for the user to re-set the
system in case of power-fail.
7) The system may arm/disarm the unit and set up the parameters of the host via message or
phone call.
8) Mute/alarm sound is available for external alarm horn.
9) The system may monitor the on-site sound through remote control.
10) The input mode of wired defense area (short circuit/open circuit) may be flexibly edited by
phone call or message.

- 3 -
11) The system may arm/disarm the unit and set up the parameters of the host via message or
phone call.
12) The system may add/reduce the quantity of controllers and detectors as required (8-channel
wireless defense area and 2-channel wired defense area),can use all kinds of detectors such as
smog, gas vibration and IR opposite-type detectors GSM platform.
3. Installation
3.1 Cautious for installation
1) It should get permission of the public security department before setting up the alarm number
of local commanding center.
2) The host should be placed at the concealed area where is protected and monitored by the
detector, away from strong electromagnetic interruption, don't place it together with other
objects, the alarm horn should be installed at the proper position, the emergency button and
foot-touch switch should be installed at the convenient positions.
3) The power cable of the host should be concealed and connected in good condition，good heat
emission is required, keep it away from flammable materials.
4) Switch off the power before removing/installing SIM card.
5) The batteries of detectors and controller should be regularly checked and replaced in time if they
are used up.
6) Check the SIM card regularly (such as network signal and fee).
7) Test the working status of the alarm system regularly.
8) The unit is designed for usage in indoor environment only.

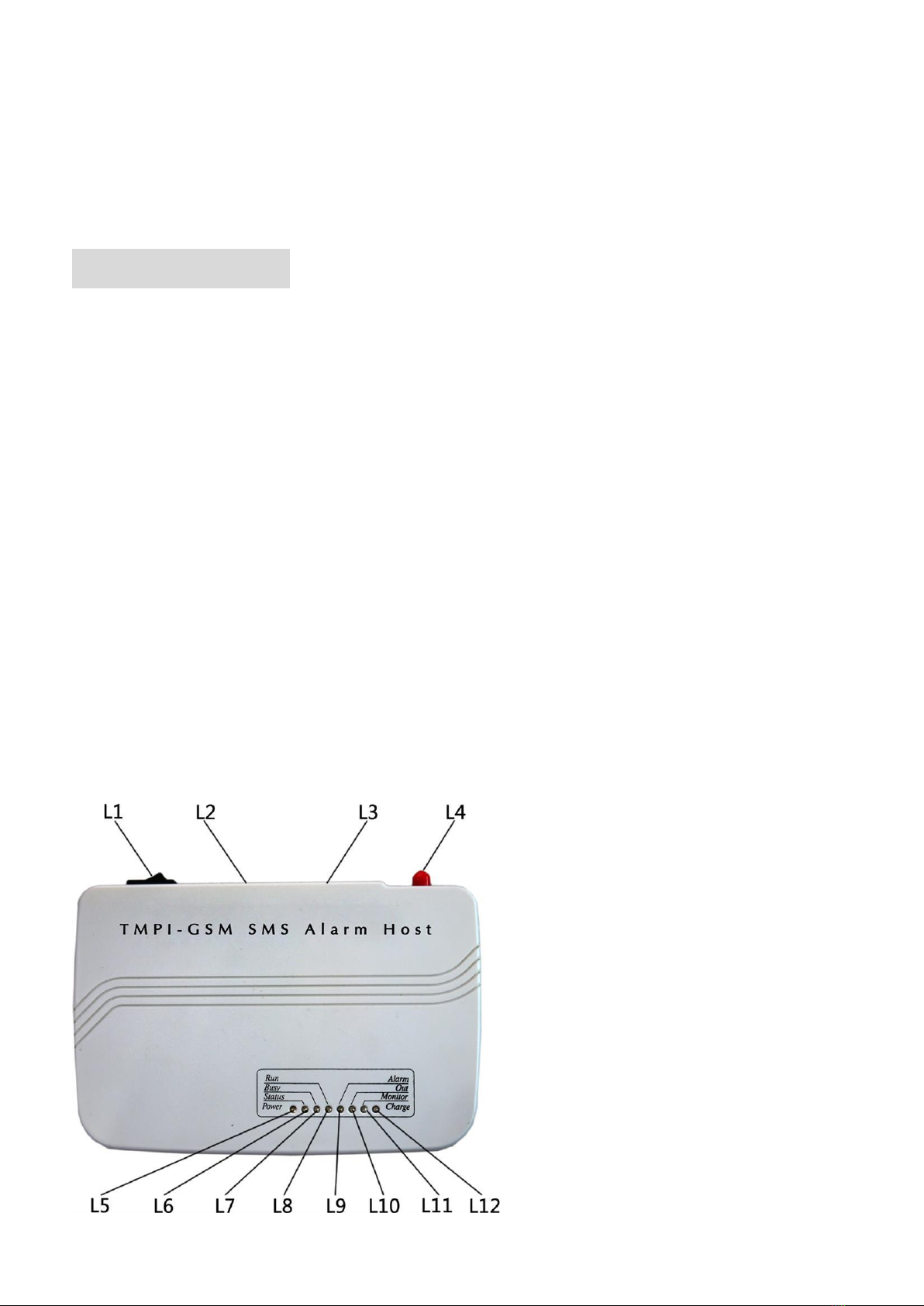

3.2 Description of the the panel.
L1: Power switch
L2: DC12V socket
L3: Interface of alarm horn and wired
defense area
L4: GSM antenna
L5: External power supply indicator
L6: Arm/disarm status indicator
L7: Alarm status indicator.
L8: Network signal indicator
L9: Running status indicator of the host.
L10: Linkage output indicator
L11: Microphone monitoring status
indicator.

- 4 -
L12: Charging status indicator.
3.3 Description of L3 ports
3.4 installation of the host
Switch off the power. Open the cover at the bottom and insert a GSM SIM card (has the functions
of calling and receiving /sending message and incoming caller display), install the antenna and finally
connect the power cable.
3.5 Installation of the detector
Passive IR wireless detector should be visibly installed at the central position of defense area, with
proper height and angle, the wireless door-magnet detector should be installed as per the minimum
angle of opening the door, the distance between the magnet and magnetic switch should be shorter
Note:
L5: Turn on in case of external power supply, turn off of no external power supply
L6: It is means arming status if the green indicator blinks and means disarming status if always
lighted.
L7: Red indicator means the host is busy (alarming, sending message and calling)
L8: Network signal indicator, at means it's in searching status if the indicator blinks with time
interval of on a second.it means the network signal is normal if the indicator keeps on for one
second and keeps off for three seconds. If not, the SIM card or network is not n normal use.it
means it's in calling status if it always keeps on.
L9: Running status indicator of the host, when alarm is activated, the indicator is turned on with
beep sound.
L10: Linkage output indicator, the indicator always keeps on when the linkage relay is closed.
L11: Microphone one monitoring status indicator, it means it's in monitoring status if the
indicator is turned on, and it's means the monitoring function is closed if the indicator is turned
off.
L12: Charging status indicator, the indicator always keeps on when charging till it's fully charged.

- 5 -
than 10mm.
3.6 Relay linkage interface
It may be for connection to the lighting device or camcorder or other devices, when the host sets
up the linkage output in three minutes, the lighting device or camcorder will be activated
immediately alarm signal is received (relay touch closes for three minutes).
4. System Setup
Notice:
The host would reply the user by message if the message sent to the host by the user is valid; the
host would give off a long beep sound if the setup by phone call is effective, two beep sounds mean
setup is invalid and please set up again.
4.1 Detector matching to the host
The wireless detector and controller inside the host have been matched with the host before
leaving the factory. The added detector(s) must be match before use. Method: Open the back cover
of the detector, adjust the oscillation resistance (4.7MHZ) and emission frequency (315MHz or
433MHz) of the detector consistently to the host.
The codes on the back of the remote controller should be same as A0-A7 on the detector, 0
means the connection of N and L/H. Set up codes from A0 to A7 at the coding area of the detector
consistent to the ones of the remote controller and other wireless detector/controller that is matched
with this host, A0 responds to the thirteen pin of 2262 code IC....D3 to the tenth pin.
Set up defense area code: set up the code from D0 to D3 consistent to this host. If the host is reset
(zero clearing), it needs to rematch, please set up all wireless detectors and controllers (see the
coding bar on the back of controller) as the above methods and then, in normal working status of the
host, press RESET button under the back cover, at this moment the BUSY indicator turns red and
makes wireless detectors emit. the BUSY indicator blinks and the host gives off beep sound, it means
the operation is not finished if no sound.

- 6 -
4.2 Code Hopping Method of the Wireless Detector
Table I
Type
code
12(D3)
11(D2)
10(D1)
9(D0)
Arm
0xC0
H
L
L
L
Disarm
0x0C
L
L
H
L
Emergency alarm
0x30
L
H
L
L
Wireless defense 1
0xCC
H
L
H
L
Wireless defense 2
0xCF
H
L
H
H
Wireless defense 3
0xF0
H
H
L
L
Wireless defense 4
0xF3
H
H
L
H
Wireless defense 5
0xFC
H
H
H
L
Wireless defense 6
0xFF
H
H
H
H
Wireless defense 7
0xC3
H
L
L
H
Wireless defense 8
0x33
L
H
L
H
Notice:
It's 1 when hopping N and H, it's 0 when hopping N and L, it's 2 when N, H and L are not hopped.
Example 1: set up the first defense area of 12-pin wireless detector:
Code on the back of the controller Setup the first defense area of 12-pin

- 7 -
Example 2: set up the eighth defense area of 12-pin wireless detector:
Code on the back of the controller Setup the first defense area of 12-pin
4.3 Operation Code
Table II
01#
Arm the host(default)
01*
Disarm the host
02#
Three minutes of linkage output
02*
Close the linkage output
03#
Give off alarm sound for three minutes
03*
The host stops the alarm sound
11#
The host will give off alarm sound when
receiving an alarm(default)
11*
The host will not give off alarm
sound when receiving an alarm
12#
The host will reply the three alarm
numbers by message(host's status) when
arming/disarming defense by the
controller
12*
Close the function of replying the
alarm number by message(default)
21#
Set up the wired defense area as open
circuit alarm
21*
Set as closed circuit alarm (default)
31#
Change the password. Ex.: change to
5678,edit and send 1234#5678#to the
host
40#
Inquire the preset message receiving
number(s)
41#
Set up the first message alarm
receiving number
42#
Set up the second message alarm
receiving number
43#
Set up the third message alarm
receiving number
50#
Inquire the preset call alarm receiving
number(s)
51#
Set up the first auto dialing alarm
number

- 8 -
52#
Set up the second auto dialing alarm
number
53#
Set up the third auto dialing alarm
number
54#
Set up the four auto dialing alarm
number
55#
Set up the fifth auto dialing alarm
number
70#
Inquire the alarm message contents of
the wired defense area
71#
Set up the message contents of
wired defense area 1,six characters
at most, initial defaulted contents:
wired defense area 1
72#
Set up the message contents of wired
defense area 2,six characters at most,
initial defaulted contents: wired defense
area 2
80#
Inquire the alarm message contents of
the wireless defense area
81#
Set up the message contents of
wireless defense area 2, six
characters at most, initial defaulted
contents: wireless defense area 2
82#
Set up the message contents of wireless
defense area 1, six characters at most,
initial defaulted contents: wireless
defense area 1
83#
Set up the message contents of
wireless defense area 3, six
characters at most, initial defaulted
contents: wireless defense area 3
84#
Set up the message contents of wireless
defense area 4, six characters at most,
initial defaulted contents: wireless
defense area 4
85#
Set up the message contents of
wireless defense area 5, six
characters at most, initial defaulted
contents: wireless defense area 5
86#
Set up the message contents of wireless
defense area 6, six characters at most,
initial defaulted contents: wireless
defense area 6
87#
Set up the message contents of
wireless defense area 7, six
characters at most, initial defaulted
contents: wireless defense area 7
88#
Set up the message contents of wireless
defense area 8, six characters at most,
initial defaulted contents: wireless
defense area 8
4.4 Setup of the Host by SMS
4.4.1 Setup of message alarm receiving number
After powering on the host (the network signal indicator is in normal status), edit and send
1234#4*#message alarm receiving number# to the host,*means a number from 1 to 3, it means
which group number is , Ex.: set up 13902345678 as the first alarm receiving number, edit
1234#41#13902345678# to the host, and the host will reply the mobile phone by message after

- 9 -
receiving, repeat the above operations or use one message to edit several orders to finish the setup
of three alarm numbers.
Note: if the first message alarm receiving number is not set up, it's unable to know whether the setup
is correct or not, so it's advised to set up the first message alarm receiving number before setting up
the host
4.4.2 Inquiry of message alarm receiving number
Edit and send 1234#40# to the host, and the host will reply the mobile phone by message after
receiving.
4.4.3 Deletion of message alarm receiving number
If you want to delete the former message alarm receiving number(s), edit and send 1234#4*## to
the host (*means a number from 1 to 3, it means which group number is), and the host will reply the
mobile phone by message after receiving, Ex.: delete the first number, edit and send 1234#41## to
delete the first message alarm receiving number.
Note: If the first alarm number is not set up, you would not know whether the setup is correct or not,
consequently it's advised to set up the first message alarm receiving number before setting up the
host.
4.4.4 Setup of auto dialing alarm receiving number
Edit and send 1234#5*#alarm number"host number# (if no host number, directly edit
1234#5*#alarm number# , *means a number from 1 to 5, it means which group number is) to the
host, and the host will reply the mobile phone by message after receiving, Ex.: set up 21000000 as
the first auto dialing alarm number and the host number is 0001, edit and send
1234#51#21000000*0001# to the host, the host will reply the mobile phone by message after
receiving, repeat the above operations or use one message to edit several orders to finish the setup
of five auto dialing alarm numbers.
4.4.5 Inquiry of auto dialing alarm number
Edit and send 1234#50# to the host, and the host will reply the mobile phone by message after
receiving. Ex.: edit and send 1234#50# to the host, the host will reply the mobile phone by message
after receiving.
4.4.6 Deletion of alarm receiving number
If you want to delete the former message(s), edit and send 1234#5*## (*means a number from 1
to 5, it means which group the alarm number is) to the host, and the host will reply the mobile phone
by message after receiving, Ex.: delete the first number, edit and send 1234#51## to the host to
delete the first alarm number.
4.4.7 Flexible edit of defense area message
(1) Setup of the wired defense area message(flexible edit): the message of the wired defense area
(two) sent by the host to the alarm receiving mobile phone may be flexibly edited, the default is
wired defense 1 alarm and wired defense area 2 alarm, edit and send 1234#7*#message# to the
host (*means 1 or 1 on behalf of the first and second defense area),and the host will reply the mobile

- 10 -
phone by message after receiving, Ex.: edit wired defense area1 as home alarm, edit and send
1234#71#home alarm# to the host, the host will reply the mobile phone by message after receiving.
Seethe table of Operation Code for details.
(2) Setup of the wireless defense area message (flexible edit): the message of the wireless defense
area (eight) sent by the host to the alarm receiving mobile phone may be flexibly edited, the default
is wireless defense 1 alarm and wireless defense area 2 alarm...wireless defense area 8alarm, edit and
send 1234#8*message# (*means1-8,1 represents the first defense area) to the host, and the host
will reply the mobile phone by message after receiving, Ex.: edit wireless defense area 1 as alarm
storehouse, edit and send 1234#81#alarm storehouse# to the host, and the host will reply the
mobile phone by message after receiving. See the table of Operation Code for details.
4.4.8 Inquiry of wireless defense area message
If you want to inquire the message by the host to the wireless defense area, edit and send
1234#80# to the host, and the host will reply the mobile phone by message after receiving.
4.4.9 Setup of open circuit/short circuit alarm of the wired alarm terminal
Open circuit or short circuit may be selected for alarm, it is defaulted to alarm when the wired
terminal occurs short circuit, if you want switch to open circuit, edit and send 1234#21# to the host,
and the host will reply the mobile phone by message after receiving, if you want to switch to short
circuit, edit and send 1234#21* to the host, and the host will reply the mobile phone by message
after receiving.
4.4.10 Change of the host's password
When the host is in normal use,edit and send 1234#31#new password# to the host, the initial
password is 1234. Ex.: change the password into 4321, edit and send 1234#31#4321# to the host,
and the host will reply the mobile phone by message after receiving.
4.4.11 Setup of the host's reply via the controller
When you use the remote controller to operate the host, you may set up whether to reply the
message alarm receiving numbers, it's defaulted not reply, if you want the host to reply ,edit and
send 1234#12# to the host, if not, edit and send 1234#12* to the host.
4.5 Setup of the host by phone call
Dial the host number and then press operation codes after hearing a beep sound. It means the
operation is successful if you hear a long beep sound, two beep sounds mean the operation fails and
please repeat the operation.
5. Use Method
5.1 Arm/disarm by remote controller
When the master leaves the defense area, press Lock Key on the remote controller, the host will
give off a beep sound, and the arming status indicator blinks, when the master gets back, press
Unlock Key to close the system, the host will give off a beep sound and the indicator keeps lighting

- 11 -
on.
5.2 Operate the host remotely
All functions of the host may be conducted via message or phone call, dial the host number and
then press 1234+operation code after hearing the alert from the host, a long beep sound means the
successful operation, two beep sounds mean the operation is not completed and please repeat the
operation.
5.3 Emergency alarm
In case of accident, press Speaker key on the controller, the host will enter emergency alarming
status immediately and start the external alarm born(automatically stop in 90 seconds), and
meanwhile the host will send an emergency alarm message to the mobile phone and call the three
alarm numbers circularly.
5.4 Fault alarm of external power supply
When the host detects the external power supply has fault or power-fail for over two seconds, the
host will enter emergency alarming status immediately and meanwhile send a power-fail alarm
message to the mobile phone and call the three alarm receiving numbers circularly. When the power
supply is recovered, the host will send a message to the mobile phone to tell the recovery of power
supply and call the three alarm receiving numbers circularly.
5.5 Alarm treatment
In case of alarm, the host will automatically start the alarm horn for 90 seconds to alert the
people ,and meanwhile send message(shows the name of the defense area) and call the preset alarm
receiving number and monitor the on-site conditions. The user may answer the phone and then
press 01# to arm defense or press 01* to disarm, if the master's phone is busy or couldn't get
through, the system will automatically call the next alarm number till the master answers (call the
three alarm receiving numbers circularly).
Note: the host will still keep in arming status if no operation is made after receiving the alarm.
6. System Configurations
One GSM dual-frequency (four-frequency) alarm host, one power adapter, one GSM antenna, two
wireless gate-magnetic detectors, two remote controllers, one alarm horn.
7. Technical Specifications
1) Dimensions:177mm*117mm*26mm(host excluding the antenna holder and the ledge)
2) Weight: 0.27kg
3) Working voltage: AC 100V-250V, DC9V-12V
4) Working current: Idle status<100MA,alarming status<2.500MA
5) Backup power supply: 7.2V1000MA/H(idle status>12hours)
6) Contact current of the linkage relay: 2A

- 12 -
7) Maximum power: AC≤40W
8) Wired defense area: two
9) Wireless defense area: Eight
10) Working temperature: -30~+50
11) GSM module: Industrial communication module, working frequency: 900MHZ/1,800MHZ
(optional: 850/1900)
12) Effective distance of the remote controller: 30M(open field)
8. Trouble Shooting
1) The host fails to turn on the green indicator: No GSM SIM card is inserted or the antenna is not
installed or the GSM SIM card is wrongly inserted.
2) The remote controller or gate-magnetic detector is not available: the ID code of the controller or
detector is wrongly hopped or the defense area code fails to match to the host, please repeat the
operation of code hopping or matching, or rematch after resetting.
3) The host has no response but only the green indicator blinks for a while after the remote
controller or detector emits signal: the host number is not set up or the host has not order
received.
4) The user couldn't receive message or call from the host: the GSM SIM card has no money or has
been out of the validity, or the communication signal is not good.
5) The alarm horn has no sound: the alarm horn is wrongly or badly connected.
6) The added detector refuses working: refer to the frequency and code hopping mode of detector
and then repeat the operation, if a new detector is used, please check whether the frequency,
resistance and other parameters of the detector are consistent to the ones of the host or not.
The End!
Any questions please help to contact us feel free.
