Hooker Furniture 1618-75906A-DKW User manual

1/2
ALLEMBLY INSTRUCTION
(for connecting the wire of the light on this cabinet)

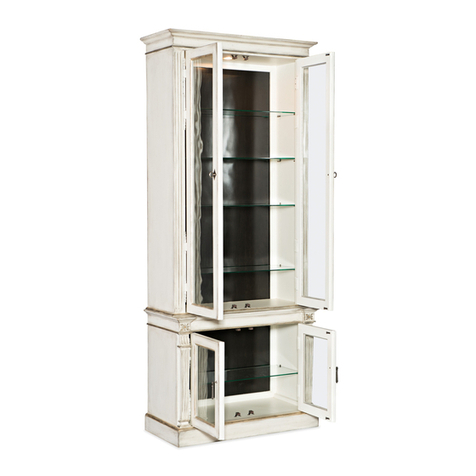

Item# 1618-75906A-DKW Bunching Display Cabinet
*** Caution: Please read all instructions carefully before starting the assembly process.
Please note this cabinet can be used alone with can light on by a touch dimmer. Also, when
two or more are bunched together, you can control all can lights by touching one dimmer.
Assembly Steps:
1. When each piece of cabinet is used alone, attach male connector of the power switch (A) to a
wall plug. (See Diagram 1)
2. Touch dimmer is at the inside of right post.
Diagram 1
Diagram 2

2/2
3. If you want to bunch two or more cabinets together, place them all side by side in a desired
location.
4. Leave male connector of the can light (C) and female connector of power switch (B) for the first
cabinet (#1) as it is. Keep male connector of the can light (C) and female connector of power
switch (B) off for the rest cabinets (#2, #3, and so on). (See Diagram 2)
5. Connect female connector of the can light (D) (#1 cabinet) with male connector of power wire
(E), then have female connector of power wire (F) connected to male connector of the can light
(C) (the #2 cabinet). (See Diagram 3)
6. Repeat step 5 for the 3rd cabinet and the rest of ones when more than two are bunched
together till each one is connected.
7. Plug in male connector of power switch (A) (#1 cabinet).
8. Touch the dimmer of the #1 cabinet, all can lights connecting together will be on at the same
time.
Cleaning instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
Diagram 3
