Hope Industrial Systems HIS-ML21-*** D series User manual

Hope Industrial Systems, Inc.
User Manual
21.3” Panel Mount Industrial Monitor
Model No. HIS-ML21
1
Copyright 2003 Hope Industrial Systems, Inc.

TABLE OF CONTENTS
Safety and Regulatory Information............................................3
Using the LCD Display
Setting the Timing Mode.....................................................4
Self-Test Feature Check.....................................................4
User Controls......................................................................5
Automatic Save...................................................................6
Direct Access Features.......................................................6
OSD Lock/Unlock................................................................6
OSD Functions....................................................................7
Power Saver .....................................................................10
Troubleshooting................................................................11
Display Modes ..................................................................12
Installation Instructions............................................................13
Cleaning ..................................................................................14
Drawings..................................................................................15
Specifications ..........................................................................16
Warranty Statement.................................................................18
2

Safety and Regulatory Information
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dan-
gerously high voltages are present inside the unit. Do not disassemble the unit.
Refer servicing to qualified personnel only.
This equipment is not intended for use in critical applications where its failure to
operate would create immediate life threatening circumstances. Applications in-
cluding, but not limited to, nuclear reactor control, aerospace navigation systems
and life support systems are not appropriate for this product.
This product is intended to be mounted in a suitable cabinet or other enclosure.
The NEMA 4, 4x or 12 ratings are applicable only when properly installed in a like
rated enclosure.
This product is a UL Recognized Component and must be used with a listed com-
puter.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference when the equipment is operated in a commercial environment.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio com-
munications. Operation of this equipment in a residential area is likely to cause harmful inter-
ference in which case the user will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the grantee of this device could void
the user’s authority to operate the device.
3

Using the LCD Display
Setting the Timing Mode
Setting the timing mode on the PC is important for maximizing the quality of the screen
image and minimizing eye strain. The timing mode consists of the resolution (example
1280 x 1024) and refresh rate (or vertical frequency; example 75 Hz). After setting the
timing mode, use the controls to adjust the screen image.
For the best picture quality set your LCD display timing mode to: VESA 1600 x 1200 @
60Hz.
To set the Timing Mode:
1 Set the resolution: Right-click on the Windows desktop > Properties > Settings
> set the resolution.
2 Set the refresh rate: See your graphic card's user guide for instructions.
WARNING: Do not set the graphics card in your computer to exceed the maximum re-
fresh rate of 85Hz; doing so may result in permanent damage to your LCD display.
Self-Test Feature Check (STFC)
Your monitor provides a self-test feature that allows you to check whether your monitor
is functioning properly. Make sure that PC is selected as a primary source by checking if
the source indicator LED labeled “PC” is on. If your monitor and computer are properly
connected but the monitor screen remains dark and the power indicator is blinking, run
the monitor self-test by following the steps given below:
Power Indicator
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a white box with a large blue
oval logo and an error message “CHECK SIGNAL CABLE.” in black color.
This box also appears during normal operation if the video cable becomes discon-
nected or damaged.
4

4. Turn off your monitor and reconnect the video cable; then turn on both your com-
puter and the monitor.
If your monitor screen remains blank after following the previous procedure, check your
video controller and computer system; your monitor is functioning properly.
User Controls
Your LCD monitor allows you to easily adjust the characteristics of the image being dis-
played. All of these adjustments are made using the control buttons on the rear of the
monitor. While you use these buttons to adjust the controls, an OSD shows you their
numeric values as they change.
Rear Control Buttons and Indicators
Button Functions

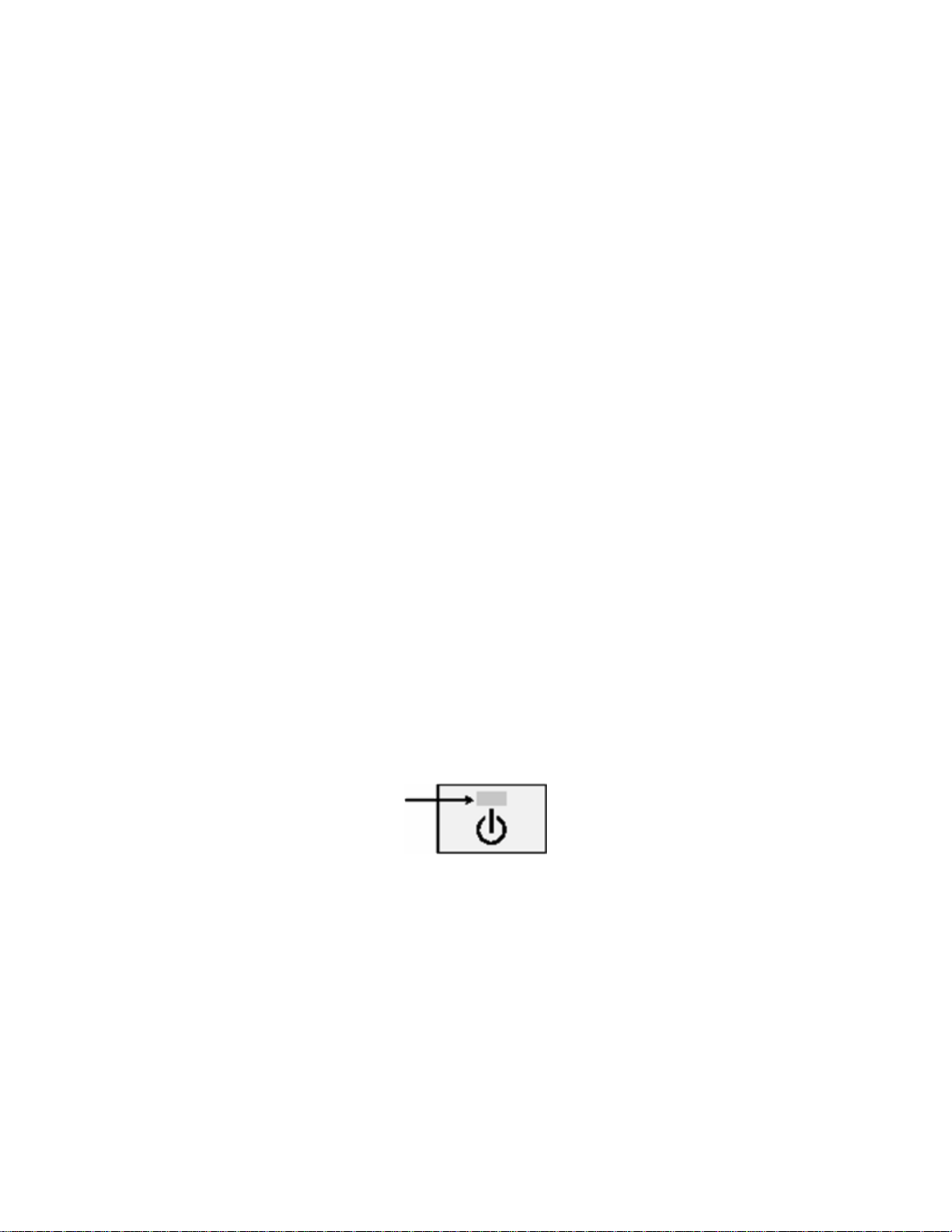

POWER
•
•-
Turns ON/OFF the monitor.
Indicates the status of the monitor
Green: Normal Operation
oAmber: Power Saving Mode or Dis-
connected Signal Cable
MENU •Opens the OSD and selects the highlighted
function.
+ , - •
•Use this button to change Brightness When OSD is active, use “-“ and “+” buttons to
navigate through menus
EXIT •
•
•
Exits from menus and sub-menus
Exits from the OSD system.
Turns the PIP off.
AUTO •Use this button to optimize image quality auto-
matically
PIP
•
•
•
Activates PIP (Picture in Picture) window di-
rectly.
PIP to Full screen video
PIP off
SOURCE
•
•Selects Video Source Two source indicators below the control button
indicated currently active Video source, as fol-
lows:
oPC Indicator Light
oVideo Indicator light
5

Automatic Save
Whenever you open the OSD and allow an adjustment window to remain active for
about 3 seconds without pressing other buttons, the monitor automatically saves any
adjustment you have made. These changes are saved into a user area in the monitor.
The monitor can save adjustments for up to 4 user modes. It has 13 factory preset or
preload modes, one for each signal frequency. If you have made no adjustments, the
on screen display disappears and the monitor does not save anything.
Direct Access Features
Brightness Adjustment
1. With the menu off, push the “-“ or “+” button to display the brightness adjustment
menu.
2. Push the “+” button to increase the brightness; push the “-“ button to decrease
the brightness.
OSD Lock/Unlock
This function allows you to secure the current settings so that they cannot be inadver-
tently changed, while still allowing you to adjust the Brightness and Contrast. You can
unlock the OSD controls at any time by using the same procedure.
With the OSD screen off, push and hold the Menu button for at least 5 seconds to lock
or unlock the controls. When locked, a 'LOCKED!' message will be displayed along the
bottom of each OSD menu except for these screens:
oBrightness
oContrast

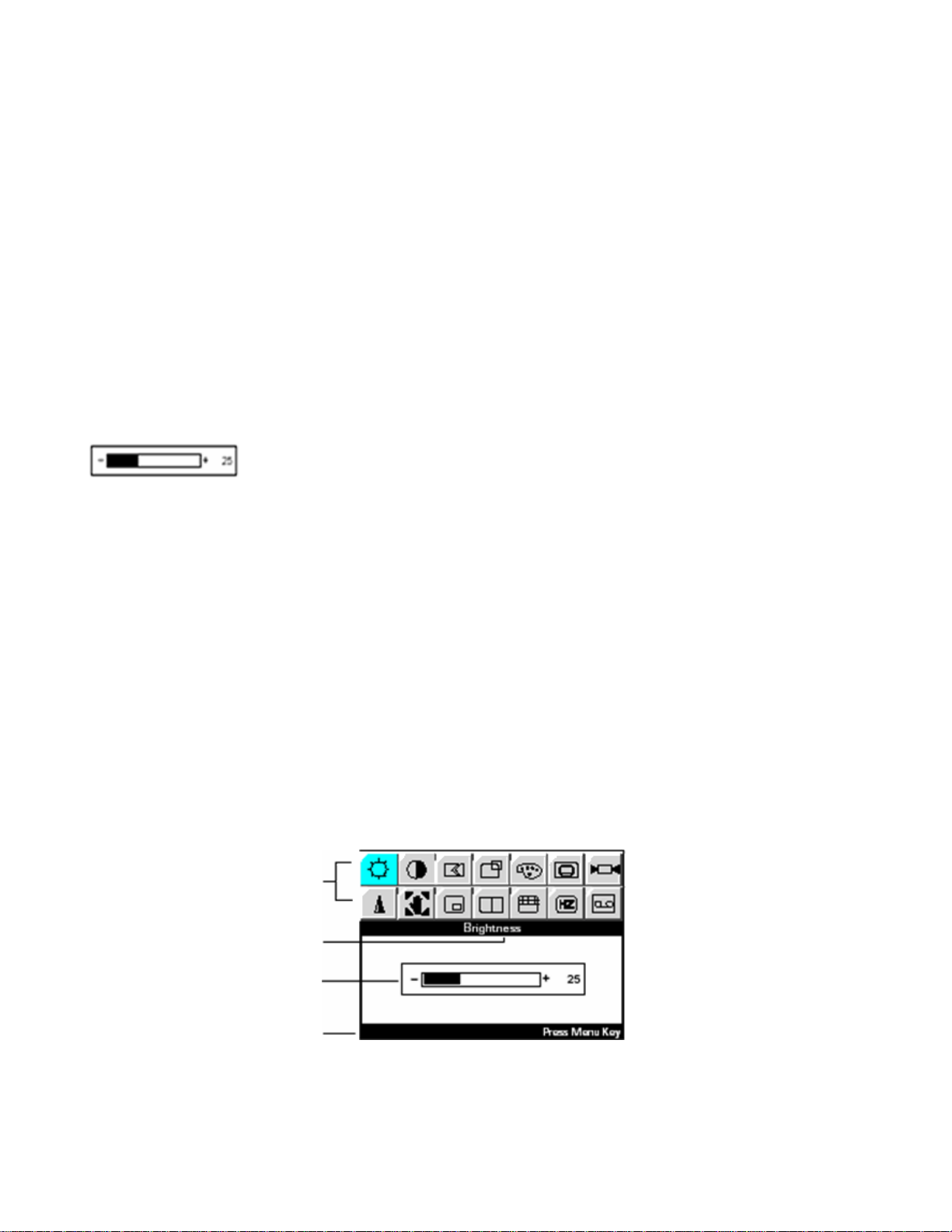

On Screen Display (OSD)
Function Icons
Function Name
Settin
g
bar
Tool ti
p
6

Accessing the menu system
1. Push the Menu button to display the main OSD menu.
2. Use the "– , +" buttons to move from one function to another. As you move from one icon
to another, the Function Name changes. See the Table starting on the next page to view
a complete list of all of the functions available for the monitor.
3. Press the Menu button once to activate the highlighted function and then follow the Tool
Tips to select the function and adjust the value.
4. Use "–" and "+" buttons to select the sub-menu, and press the Menu button once to acti-
vate the selected sub-menu.
5. After selecting a function, use the "–" and "+" buttons to make necessary adjustments.
The setting bar moves and the numeric value indicator changes to reflect your adjust-
ments.
NOTE: The numeric value indicator is provided as a point of reference only and has
nothing to do with a real measurement.
6. Push the Exit button a couple of times to return to the main menu to select another func-
tion or to exit from the OSD.
OSD Functions and Adjustment
Icon Menus and
Sub-menus Function Descriptions
Brightness Changes the overall light intensity of the images being displayed.
Contrast Changes the ratio of light intensity between the brightest white and the
darkest black. If “CONTRAST” ratio is set too high, color saturation
occurs resulting in loss of details.
It works only with Analog source.
Image Lock
Note: this function should only be used if “Auto Adjustment”
does not yield satisfactory results.
Image lock is used to fine tune and get the best image by removing
noise that creates unstable images with jitters and shimmers.
It works only with Analog source.
The FINE and COARSE adjustments allow you to fine tune the image
quality of the monitor. Use “-“ and “+” buttons to set the corresponding
values to remove or minimize horizontal and vertical noise shown in
Figure A and Figure B respectively.
!Fine
!Coarse
Figure A Figure B
7

Icon Menus and
Sub-menus Function Descriptions
Although “Auto Adjustment” automatically finds the optimum values of
FINE and COARSE parameters as well as images position, it may be
necessary for you to adjust those parameters manually. It is recom-
mended for you to use “Auto Adjustment” first. If the adjustment results
are not satisfactory, then use COARSE and FINE adjustment features
to get the best adjustment results. Bear in mind that COARSE and
FINE adjustments may change the width and affect image position as
well. If the image is clear while out of center by a couple pixels, use
image position to center the image.
H-Position
V-Position
Note: these functions should only be used if “Auto Adjustment”
does not yield satisfactory results.
!Changes the location of the image.
!If the image is off center, use this function to center the image.
!Works only with Analog source.
!H-Position
“-“ : Move to the LEFT
“+” : Move to the RIGHT
!V-Position
“-“ : Move to the BOTTOM
“+” : Move to the TOP
Color Control Color can be changed from bluish white to reddish white. The individual
color components are also user customizable.
Mode 1 Reddish white
Mode 2 Plain white
Mode 3 Bluish white
User Mode User customizable
Reset Replace color parameters with factory default values.
Image Size Note: this function should only be used if “Auto Adjustment”
does not yield satisfactory results.
Aspect ratio is the proportion of vertical versus horizontal resolution,
and it varies depending on the video resolution. For example 640x480,
800x600 and 1024x768 have the aspect ratio of 4:3, and 1280x1024
has the aspect ratio of 5:4. To view original image without geometrical
distortion, aspect ratio must be preserved.
!Expand 1 Performs full screen image expansion regardless of the aspect ratio of
the input video resolution
!Expand 2 Performs image expansion while keeping the aspect ratio of the original
video resolution. Usually there will be some unfilled space to the hori-
zon direction.
!Normal Performs no image expansion. In this mode, input video is displayed at
the center of the monitor as is.
RECALL Discards current setting and replaces corresponding parameters with
the factory default values.
8

Icon Menus and
Sub-menus Function Descriptions
!Geometry
Replace H-Position and V-Position values with the factory default
values
!Color
Replace R, G and B values with the factory default values.
Mode 1, Mode 2 and User Mode will be initialized.
Image Effect !Performs digital image quality compensation.
!Used when the video image is not the same resolution as the native
resolution of the monitor (1600 x 1200)
!Sharpen – makes image look sharper
!Medium – Makes image look sharper but not as sharp as “Sharpen”
!Soften – makes image look smoother

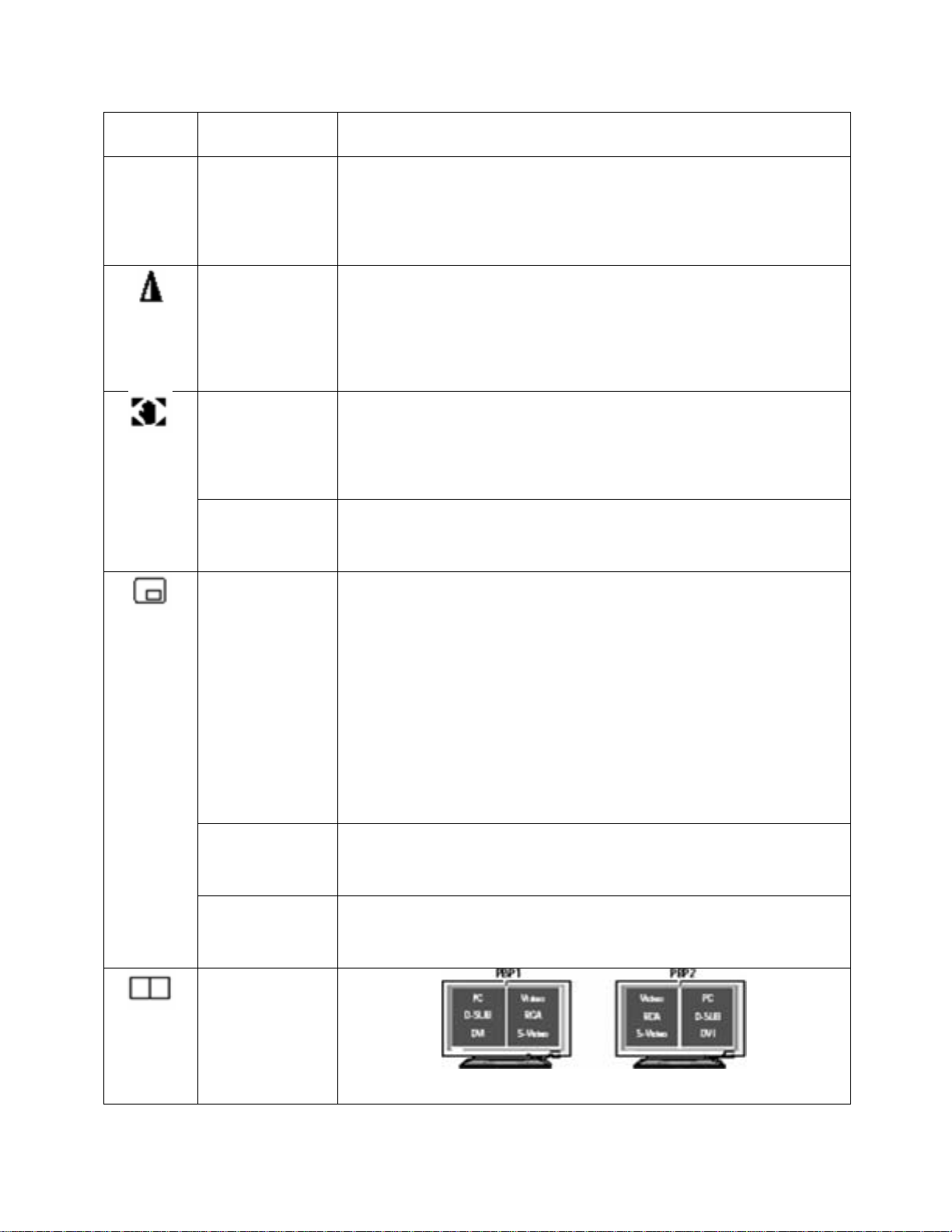

Zoom !Performs digital zoom
!Any part of an image can be magnified by the ZOOM feature and
the center of magnification can be arbitrarily changed by the PAN
feature
!Magnifies an image
!Works only with PC source
Pan !H-Pan
Moves magnified image in horizontal directions
!V-Pan
Moves magnified image in vertical directions
PIP
(Picture-in-
Picture)
!Shows a small sub-window superimposed on Video or PC
!When Video is a full screen video source, the PC will be shown in a
small window. Likewise, when PC is a full screen video source, the
Video will be shown in a small window.
!The monitor remembers the previous state of Video and PC. Thus
if the previous state of PC was S-Video, and currently PC video is
displayed in full screen, then S-Video will appear in the PIP window.
!When powered on, PIP source is from DVI and Video is from S-
Video. If your PC connects Analog or Video connects RCA, change
source like below.
!When you depress the SOURCE when the PIP feature is active,
PIP source will be changed from RCA or S-Video to S-Video or
RCA respectively, and from D-Sub or DVI to DVI or D-Sub respec-
tively.
Size !Off: Disables PIP
1: 400 x 300
2: 640 x 480
3: 800 x 600
Position !H-Position
Moves the PIP window in the horizontal direction
!V-Position
Moves the PIP window in the vertical direction
PBP
(Picture by Pic-
ture)
!PC Source 1: PC Video Signal Analog (D-Sub)
9

Icon Menus and
Sub-menus Function Descriptions
!PC Source 2: PC Video Signal Digital (DVI)
!Video Source 1: Normal Composite Video Signal (RCA)
!Video Source 2: Super Video Signal (S-Video)
!The method for changing source is the same as PIP.
Information !Shows information about the current video signal, including the fol-
lowing
-Video signal type: Analog/Digital
-Sync: types and frequencies with polarities
-Resolution
Video Control !The color characteristic of Composite Video is often different from
that of the PC signal.
!Use Video Control to adjust color characteristics of Composite
Video independently of the PC video.
!Brightness: increases or decreases the light intensity of composite
video
!Contrast: increases or decreases the ratio of light intensity be-
tween the brightest white and the darkest dark
!Saturation: increases or decreases the color purity
!Hue: changes the color tone
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy by
switching your monitor into a low-power mode when it has not been used for a certain period of time. The
available modes are “On”, “Standby”, “Sleep”, and “Deep Sleep”. Power Saver operates with a VESA
DPMS compliant video card installed in your computer. You use a software utility installed on your com-
puter to set up this feature. See Table 2 below for details.
Table 2. Power-saving modes
Power-Saving Function Mode (EPA/NUTEK)
State Normal
Operation Standby
Mode Sleep Mode Position 1
Deep Sleep
Mode
Position 2
Horizontal
Sync
Vertical Sync
Video
Active
Active
Active
Inactive
Active
Blanked
Active
Inactive
Blanked
Inactive
Inactive
Blanked
Power Indica-
tor Green Amber Amber Blinking (0.5 sec interval) Amber Blinking (1 sec. interval)
Power
Consumption 90W (Max.) Less than 5W Less than 5W Less than 5W
NOTE: This monitor automatically returns to normal operation when horizontal and vertical sync return.
This occurs when you move the computer’s mouse or press a key on the keyboard.
10

*This monitor is EPA ENERGY STAR® compliant and NUTEK compliant when used with a computer
equipped with VESA DPMS functionality. For energy conservation, turn your monitor OFF when you are
not using it or when leaving it unattended for long periods.
NOTE: Maximum power consumption is measured after letting the monitor turned on for 30 minutes that
is the time required for the unit to be thermally stable.
Troubleshooting
If you have a problem setting up or using your LCD monitor, you may be able to solve it yourself. Before
contacting customer service, try the suggested actions that are appropriate to your problem.
What you see… Suggested Actions
Screen is blank and power indicator is
off !Ensure that the power cord is firmly connected and the LCD monitor is
ON.
“Check Signal Cable” message !Ensure that the signal cable is firmly
connected to the PC or Video
sources.
!Ensure that the PC or Video sources
are turned on.
“Sync. Out of Range” message !Check the maximum resolution and
the frequency of the video adapter.
!Compare these values with the data
in the Display Modes Timing Chart.
The image is too light or dark !Adjust the Brightness and Contrast.
Horizontal bars appear to flicker, jitter
or shimmer on the image !Adjust the Fine function.
Vertical bars appear to flicker, jitter or
shimmer on the image !Adjust the Coarse function and then adjust the Fine function.
Screen is blank and the power light is
steady amber or blinks every 0.5 or 1
second.
!The monitor is using its power man-
agement system
!Move the computer’s mouse or press
a key on the keyboard
Image is not stable and may appear to
vibrate !Check that the display resolution and frequency from your PC or Video
board is an available mode for your
monitor. On your computer check
Control Panel, Display, and Settings.
!If the setting is not correct, use your
computer utility program to change
the display settings.
Image is not centered on the screen !Adjust the horizontal and vertical po-
sitions
11

Display Modes
If the signal from the computer system is the same as one of the monitor’s standard
signal modes, the screen is adjusted automatically. If the signal from the computer is
not the same as one of the standard signal modes, the screen may not display properly
or it may not display at all. In this case adjust the mode on the computer system. For
the display modes listed below, the screen image has been optimized during manufac-
ture.
Table: Preset Timing Modes
Mode Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
Frequency
(MHz)
Sync
Polarity
(H/V)
720 x 400 31.469 70.087 28.322 -/+
31.469 59.940 25.175 -/-
37.500 75.000 31.500 -/-
VGA 640 x 480
43.269 85.008 36.000 -/-
46.875 75.000 49.500 +/+SVGA 800 x 600 53.674 85.061 56.250 +/+
48.363 60.004 65.000 -/-
60.023 75.029 78.750 +/+
XGA 1024 x 768
68.677 84.997 94.500 +/+
SXGA 63.981 60.020 108.000 +/- . +/-
1280 x 1024 79.976 75.025 135.000 +/+
UXGA
(Analog Only) 1600 x 1200 75.000 60.000 162.000 +/- . +/-
12

Installation Instructions
Preparing for Installation
Important! Perform the following steps BEFORE Installation of the monitor into the panel.
1. Ensure that sufficient power is available.
2. Ensure that sufficient space is available to allow for proper airflow into and out of the unit.
3. Ensure that the air temperature around the unit (top and bottom) will not exceed the rated specifi-
cations of the unit.
"The maximum rated temperature of the HIS-ML21 is 50
° C (122 ° F) with the fan kit
installed and with use of an equally rated power supply.
"Remember that heat rises – the temperature at the top of the cabinet will be much
hotter than at the bottom when the air is not circulating.
"Also, remember that even though this product is designed to operate at 50
° C with
proper ventilation, the life span of any electronic device is shortened when it is
consistently operated at high temperatures. Therefore it is wise to take steps to
keep the temperature of the ambient air around the unit as low as possible.
4. Ensure that the ambient humidity of the air around the unit does not exceed the rated specifica-
tions for the unit
"The maximum rated humidity for the HIS-ML21 is 80% non-condensing
13

Installation into Panel

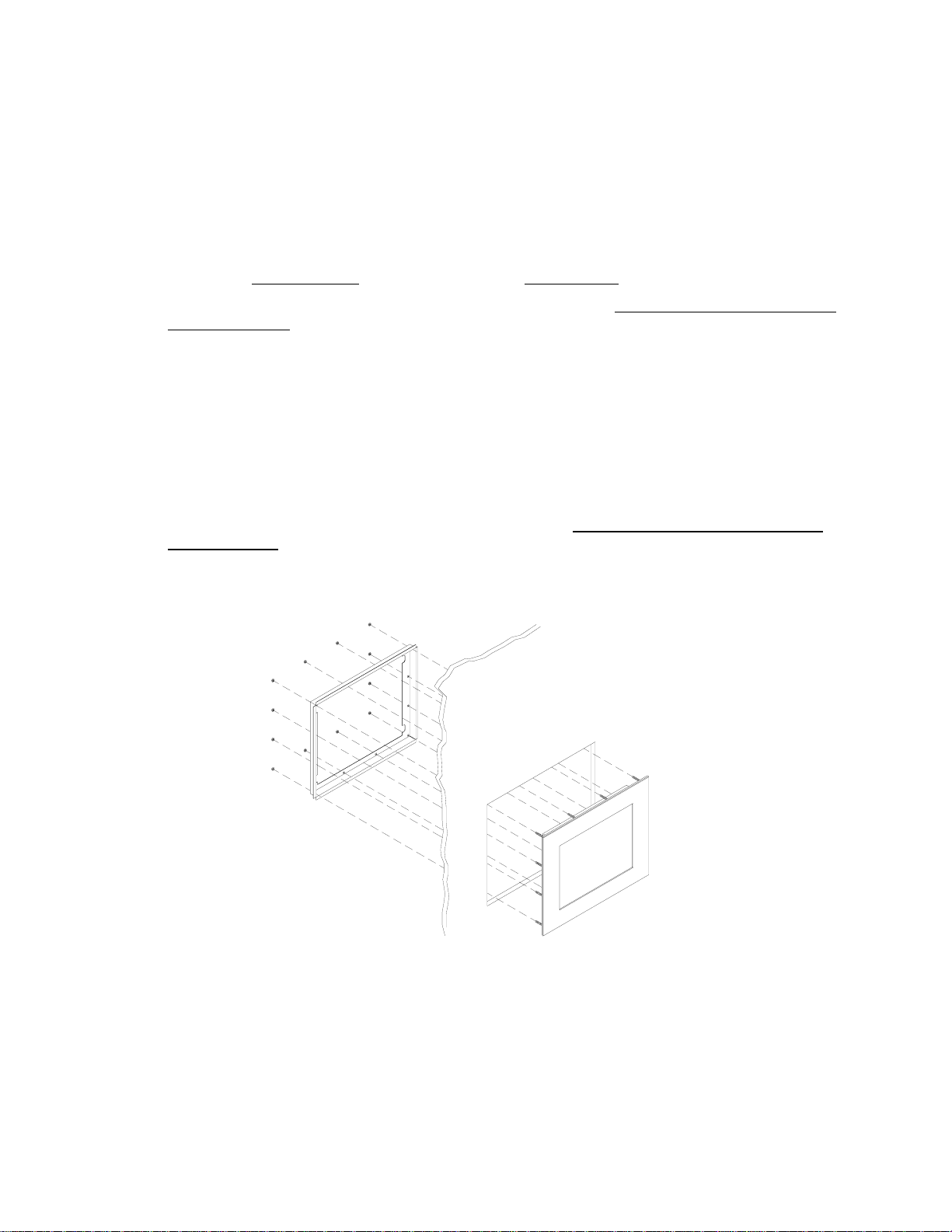

1. Refer to the drawing above.
2. Locate position in panel for mounting of the monitor. Assure that there is
adequate space begin the panel. Allow extra space (0.5 in. behind and on
each side) for air ventilation.
3. Cut a rectangular hole in the panel. Clean and deburr.
Dimensions: 21.13” (536mm) W x 16.70” (424mm) H ; +/- .020”
4. Separate the rear collar from the unit by removing the 14 nuts.
5. Insert the unit into the front of the panel and re-attach the collar.
6. Tighten all 14 nuts to a torque of 24 inch-pounds to assure a water-tight seal between the poron bezel
gasket on the monitor and equipment panel. HIS will not assume liability for damage to internal elec-
tronics due to improper installation.
Cleaning
Any standard glass cleaner can be used to clean the touchscreen or pro-
tective safety glass window. Always spray the glass cleaner on the cloth or
towel and then clean the touchscreen. Glass cleaner sprayed directly on
the monitor could possibly leak inside a non-sealed unit and cause dam-
age.
Vinegar or ammonia will not hurt the touchscreen. Again, spray the cloth and
then clean the touchscreen.
14

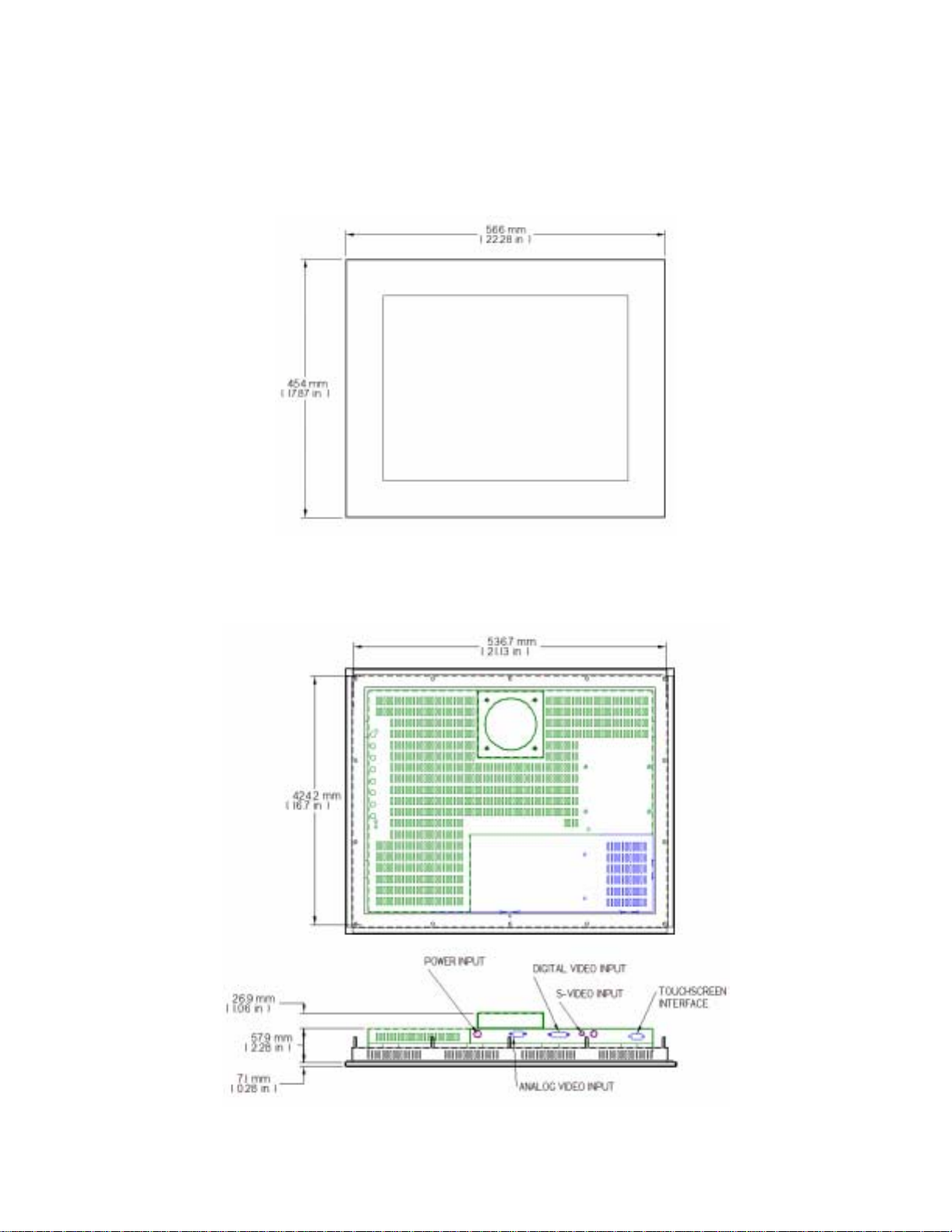

Drawings
Front View
Bottom and Rear View
(Showing cutout dimensions)
15

Specifications
Display
Type Thin-film transistor (TFT) Active Matrix Liquid Crystal
Size 21.3” diagonal
Image size 17.00” (432mm) x 12.75” (324mm)
Native resolution SXGA (1600 x 1200) @ 60 Hz
Plug and Play DDC1/2B compatible
Minimum resolution VGA (640 x 480), operation in native resolution will ensure
best results
Pixel pitch 0.27mm (H) x 0.27 mm (V)
Number of colors 16M (24 bit)
Viewing Angle (Hori/Vert) 160°/ 160°, typical
Brightness (white) 250 nits (cd/m2)
Contrast ratio 500:1
Back light 6 CCFTs (Cold Cathode Fluorescent Tube)
Screen protector (when
not shipped with touch-
screen)
Tempered glass to ANSI-Z97.1 SPEC; AR coated on both
sides; 98% Transmission of light; 99% Reduction of glare;
53% UV blocking; 30% NIR Blocking; proprietary hydropho-
bic coating on outside reduces fingerprint smears, repels
liquid spills and makes glass easy to clean.
Video
Input connector HD-15 plus DVI digital input
Input signal format Analog RGB signals, DVI Analog/Digital, S-Video, 0.7 Vp-p
Horizontal scan 30kHz – 93kHz
Supported Video Stan-
dards VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768),
SXGA (1280 x 1024), UXGA (1600 x 1200)
Note: Native mode is 1600 x 1200
Vertical scan 50 Hz – 85 Hz
Response rate (typical) 20ms rising, 15ms falling, typical
Electrical
Monitor input 85-132 VAC / 170-265 VAC (47-63 Hz)
Power consumption 90 watts (max.)
Power management DPMS/energy star, < 5W
Compliance UL 1950, cUL 959; FCC Class A
Environmental
Temperature 0-50°C (with fan kit and equally rated power supply)
Humidity 10% to 80% non-condensing
Shock 30g (1/2 sine, 11 msec.)
Vibration 0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine
Altitude Operating: up to 10,000 feet; Non-operating: up to 40,000
feet
16

Functional
Panel controls (rear ac-
cess) Power (soft), Menu, Exit, -, +, Auto, PIP, Source
OSD (On Screen Display)
controls Auto image adjust, contrast, brightness, color adjust
(9300K, 6500K-default, 5400K, 5000K, user color), manual
image adjust (H/V size/position, fine tune, sharpness, scal-
ing), setup menu (language, resolution notice, OSD posi-
tion, OSD timeout, OSD background), memory recall)
Touch screen option 5-wire resistive system; emulates a mouse; DB-9, RS-232
interface to host computer
Enclosure
Type Panel mount; rear collar compresses gasket against panel,
held by 14 10-32 studs
Panel rating NEMA 12/4/4X (with proper installation) – built to IP65 stan-
dards
Physical
Depth 2.25” (57mm) behind panel, fan kit adds another 1.2”
Bezel Stainless Steel
Front bezel outside di-
mensions 22.28” (566mm) W x 17.87” (454mm) H x 0.28” (7mm) thick
(not including gasket)
Cutout dimensions 21.13” (537mm) W x 16.70” (424mm) H ; +/- .020”
Net weight 31 lbs.
Shipping weight 39 lbs.
VGA Pin assignment
Pin No. Signal Pin No. Signal
1 Red 9 No pin
2 Green 10 Ground
3 Blue 11 Ground
4 Ground 12 SDA
5 Ground 13 H. sync
6 Ground 14 V. sync
7 Ground 15 SCL
8 Ground
17

Warranty Statement
Who is Covered?
This warranty covers the purchaser of this product only and is not transferable without our written consent.
What Does This Warranty Cover and What is the Period of Coverage?
We warrant this product to be free from defects in material and workmanship, subject to the conditions set forth below.
This warranty remains in force for a three-year period beginning on the date we invoice you for the product. If HIS
repairs or replaces a product under warranty, its warranty term is not extended.
What Will We Do to Correct Problems and How Do You Get Service?
We will repair or replace (at our sole option) any part of the unit which proves to be defective. Replacement parts
may be new or refurbished and will meet the same specifications of the original parts or unit. We will return the prod-
uct to you, by the shipping method we choose in the U.S.A. at our expense. You must pay for shipments to locations
outside of the U.S.A. In order to receive warranty service you must get prior approval from HIS. To request warranty
service you can telephone us at 770-992-0297 or send an email to [e-mail]. If we determine that
warranty service is needed we will give you a Return Material Authorization (RMA) number. This RMA number must
be conspicuously marked on the outside of the shipping box. HIS will not accept shipments not accompanied by the
RMA number. You must ship or deliver the product to HIS Freight prepaid.
Pixel Faults
Permanently dark or bright pixels can happen to TFT displays. Five or less permanently dead pixels (out of 1.3 mil-
lion) do not make a good case for exchanging the unit. Please contact our Customer Service Department if the num-
ber of pixel faults exceeds the above-mentioned figure.
What Does This Warranty Not Cover?
This warranty does not cover equipment which has been damaged due to misuse, abuse or accident such as: operat-
ing the equipment outside of published specifications; displaying fixed images for long periods of time resulting in af-
terimage effects; improper or unauthorized repair by anyone other than HIS or a service agency authorized by HIS to
perform such repairs; fire, flood, “acts of God”, or other contingencies beyond the control of HIS.
HIS’ RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN
THIS WARRANTY STATEMENT.HIS SHALL NOT BE LIABLE FOR DIRECT,INDIRECT,INCIDENTAL,CONSEQUENTIAL,OR OTHER TYPES
OF DAMAGES RESULTING FROM THE USE OF ANY HIS PRODUCT OTHER THAN THE LIABILITY STATED ABOVE.THESE WARRANTIES
ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED,INCLUDING,BUT NOT LIMITED TO,THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.You are cautioned that the performance of this product can be af-
fected by many factors, such as system configuration, software, application, and operator control of the system. It is
your responsibility to determine suitability of this product for your purpose and application.
18
