Hope Industrial Systems HIS-RL15- ***D Series User manual

Hope Industrial Systems, Inc.
User Manual
15” Rack Mount Industrial Monitor
Revision D
Model Numbers: HIS-RL15- _ _ _ D

2
TABLE OF CONTENTS
Safety and Regulatory Information 3
Factory Preset Timing 4
Control Panel Buttons and Indicators 5
Direct Functions 7
OSD Functions 8
Picture 8
Color 8
Image 8
On-Screen Display (OSD) 9
Setup 9
Information 9
Information for Resistive Touchscreen Monitors 10
Installation Instructions 11
Cleaning 12
Troubleshooting 13
Drawings 14
Specifications 16
Display 16
Video 16
Electrical 17
Environmental 17
Functional 17
Enclosure 18
Physical 18
Warranty Statement 19

3
Safety and Regulatory Information
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dange-
rously high voltages are present inside the unit. Do not disassemble the unit. Refer
servicing to qualified personnel only.
This equipment is not intended for use in critical applications where its failure to op-
erate would create immediate life threatening circumstances. Applications including
but no limited to nuclear reactor control, aerospace navigation systems and life
support systems are not appropriate for this product.
This product is a UL Recognized Component and must be used with a listed com-
puter.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interfe-
rence in which case the user will be required to correct the interference at his own
expense. Any changes or modifications not expressly approved by the grantee of
this device could void the user’s authority to operate the device.

4
Factory Preset Timing
Resolution
Horizontal
Frequency
(KHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz) Sync Polarity (H/V)
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
-/-
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
*VESA, 1024 x 768
48.363
60.004
65.000
-/-
*VESA, 1024 x 768
56.476
70.069
75.000
-/-
*VESA, 1024 x 768
60.023
75.029
78.750
+/+
* Factory recommended timings for best picture quality

5
Control Panel Buttons and Indicators
Control Panel
Button Mode Description
MENU Always Opens the OSD menu. Also used to exit the OSD menu
or return to the previous menu.
-
When the OSD
Menu is NOT
Displayed
MagicBright
Provides an optimum viewing environment depending
on the contents of the image you are watching. Cur-
rently four different modes are available. Each mode
has its own pre-configured brightness value. You can
easily select one of four settings by simply pressing
MagicBright control buttons.
1) Text: Normal Brightness
For documentation or work involving heavy text.
2) Internet: Medium Brightness
For working with a mixture of images such as text
and graphics.
3) Entertain: High Brightness
For watching motion pictures such as a DVD or
VCD.
4) Custom
Although the values are carefully chosen by our
engineers, the pre-configured values may not be
comfortable to your eyes depending on your taste.
If this is the case, adjust the Brightness and Con-
trast using the OSD menu.
When the OSD
Menu is Being
Displayed
Adjusts items in the menu DOWN.

6
Control Panel
Button Mode Description
+
When the OSD
Menu is NOT Dis-
played Push to adjust brightness.
When the OSD
Menu is Being
Displayed
Adjusts items in the menu UP.
ENTER When the OSD
Menu is Being
Displayed
Activate a highlighted menu item.
AUTO Always Use this button for auto adjustment of the display. (See “Di-
rect Functions” section)
POWER Use this button to turn the monitor on and off.
POWER INDICATOR This light glows green during normal operation, and blinks
green once as the monitor saves your adjustments.

7
Direct Functions
Menu
Description
AUTO
When the ‘AUTO’ button is pressed, the Auto Adjustment screen ap-
pears as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automati-
cally.
To make the automatic adjustment function sharper, execute the
‘AUTO’ function while the
AUTO PATTERN is on.
IMPORTANT NOTE: LOCKING CONTROL PANEL BUTTONS
The control panel buttons can be locked by simultaneously pressing the
AUTO and MENU buttons for 5 seconds. Repeating this operation will
unlock the buttons.
MagicBright
Push the MagicBright repeatedly to circle through four available pre-
configured modes.
Brightness
Adjust brightness.

8
OSD Functions
Important Note: Except for Brightness and Contrast, all of these functions are au-
tomatically set by using the AUTO Button.
Menu
Description
Brightness Direct Access Feature: When OSD is not on the screen, push the but-
ton to adjust brightness.
Contrast
Adjust the contrast.
Color
Menu
Description
Color Tone
The tone of the color can be changed and one of four modes can be
selected – Cool, Normal, Warm and Custom.
Color Control
Follow these steps to adjust individual R,G,B color balance.
Gamma
Select one of three pre-defined gammas.
Menu
Description
Coarse
Removes noise such as vertical stripes. Coarse adjustment may move
the screen image area. You may relocate it the center using the Hori-
zontal Control menu.
Fine
Removes noise such as horizontal stripes. If the noise persists even
after fine tuning, repeat it after adjusting the frequency (clock speed).
Sharpness
Sets the clearness of the image.
H-Position
Changes the horizontal position of the display.
V-Position
Changes the vertical position of the display.

9
On-Screen Display (OSD)
Menu
Description
Language
Changes the language used in the Menu.
H-Position
Changes the horizontal position of the OSD.
V-Position
Changes the vertical position of the OSD.
Transparency
Changes the translucency of the background of the OSD.
Display Time
The menu will automatically turn off if no adjustments are made for a
certain time period.
You can set the amount of time the menu will wait before it turns off.
Setup
Menu
Description
Image Reset
Image parameters are replaced with the factory default values.
Color Reset
Color parameters are replaced with the factory default values.
Information
Menu
Description
Information
Shows the video source and display mode.

10
Information for Resistive Touchscreen Monitors
The enclosed CD-ROM contains documentation and drivers for all major operating systems
(touchscreen monitors only). To assure you have the most current information, check the
following Internet addresses:
http://www.hismonitors.com/Touchscreen_Drivers.htm

11
Installation Instructions
Preparing for Installation
Important! Perform the following steps BEFORE Installation of the monitor into
the panel.
1. Ensure that sufficient power is available.
2. Ensure that sufficient space is available to allow for proper air flow into and out of
the unit.
3. Ensure that the air temperature around the unit (top and bottom) will not exceed the
rated specifications of the unit.
The maximum rated temperature of the HIS-RL15 is 50 ° C (132 ° F)
Remember that heat rises – the temperature at the top of the cabinet
will be much hotter than at the bottom when the air is not circulating.
Also, remember that even though this product is designed to operate
at 50
° C, the life span of any electronic device is shortened when it is
consistently operated at high temperatures. Therefore it is wise to
take steps to keep the temperature of the ambient air around the unit
as low as possible.
4. Ensure that the ambient humidity of the air around the unit does not exceed the
rated specifications for the unit
The maximum rated humidity for the HIS-RL15 is 90% non-condensing

12
Cleaning
CAUTION! DO NOT USE ABRASIVE MATERIALS SUCH AS PAPER TOWELS OR
DIRTY SHOP RAGS ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE
COATING. ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON.
Resistive Touchscreen model
Any standard glass cleaner can be used to clean the touchscreen. Always
spray the glass cleaner on the cloth or towel and then clean the touch-
screen. Glass cleaner sprayed directly on the monitor could possibly leak
inside a non-sealed unit and cause damage.
Vinegar or ammonia will not hurt the touchscreen. Again, spray the cloth and then
clean the touchscreen.
Tempered Anti-Reflective Glass, Acrylic, or NEMA1 (no safety window)
Use any standard glass cleaner as long as there is no abrasive or oily content.
Acrylic Bezel
The acrylic front bezel can be cleaned in the same manner as the touchscreen or
glass window.

13
Troubleshooting
Blank Screen After installing the power adapter and connecting I/O cable to a PC,
the monitor displays a blank screen.
•Press the power button and check to see if the power LED is lit.
•If the LED turns green, make sure the PC is powered on.
Make sure all cables are connected.
•If the LED turns orange, check to see if the PC is in the power
saving mode by pressing any keys on the keyboard.
Rolling Screen
•Change PC display resolution to 1024x768 at 60 Hz refresh.
•Unplug the power adapter to monitor and then plug it in again.
•Press monitor power button again.
•Reset the monitor to the original factory setting.
•Press “Auto” button.
Unstable Screen
•Press the “Auto” button.
•Make sure the PC display resolution is not set greater than
1024x768 at 75hz.
•Make sure the PC display resolution matches one of the facto-
ry preset timings in this manual.
•Change the PC display resolution to 1024x768 at 60hz.
•Reset the monitor to the factory setting.
•Press the “Auto” button.
Screen is not perfect
•Make sure the PC display resolution matches one the factory
preset timings shown in this manual.
•Recall factory setting. Refer to panel controls and OSD func-
tions in this manual.
•Fine tune the picture by performing the following adjustments
in this order – pitch, phase, and position. Refer to OSD func-
tions in this manual.
Auto Adjustment Locked
•To unlock press the MENU and AUTO buttons simultaneously
for at least 5 seconds. (see page 7)

14

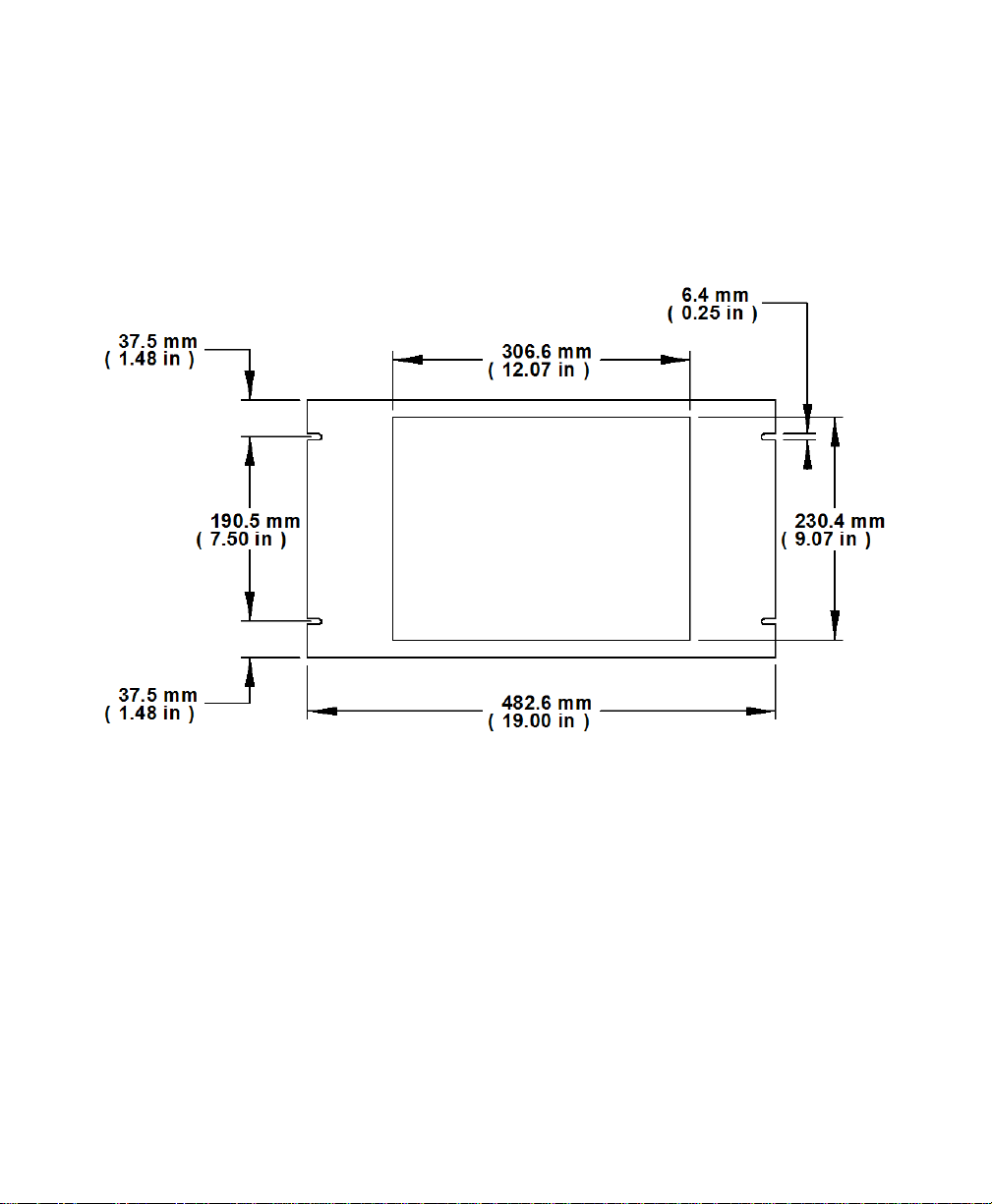

Drawings
Front View

15
Rear View

16
Specifications
Display
Type
Thin-film transistor (TFT) Active Matrix Liquid Crystal
Size
15” diagonal
Image size
12.0” (304mm) x 9.0” (228mm)
Native resolution
XGA (1024 x 768)
Plug and Play
DDC1/2B compatible`
Minimum resolution
VGA (640 x 480)
Pixel pitch
0.297mm x 0.297mm
Number of colors
16 million
Viewing Angle (Hori/Vert)
140
°
/ 110
°
, typical
Brightness (white)
250 nits (cd/m2) max
Contrast ratio
450:1 (typical)
Back light
Two CCFTs (Cold Cathode Fluorescent Tube); 35,000
hours brightness half-life; replaceable
Screen protector (when
not shipped with touch-
screen)
Tempered glass to ANSI-Z97.1 SPEC; AR coated on both
sides; 98% Transmission of light; 99% Reduction of glare;
53% UV blocking; 30% NIR Blocking; proprietary hydro-
phobic coating on outside reduces fingerprint smears, repels
liquid spills and makes glass easy to clean.
Video
Input connector
HD-15 (optional BNC input)
Input signal format
RGB Analog video 0 – 0.7V p-p – separate V and H sync

17
Horizontal scan 30kHz – 61kHz
Supported Video Stan-
dards Std VGA – 640x480 @ 60Hz SVGA – 800x600 @ 60Hz
XGA – 1024x768 @ 60Hz (Native)
Vertical scan 56Hz – 75Hz
Response rate (typical) 16ms
Electrical
Monitor input
90VAC – 264VAC, 50/60Hz (+/- 3Hz)
Power consumption
Less than 25W
Power management
DPMS/energy star, < 1W
Compliance
UL 60950 3rd Edition; cUL recognized component; FCC
Class A
Environmental
Temperature
0-50°C (consult factory for installation instructions when con-
tinuous 24/7 operation exceeds 40
°
C)
Humidity
20% to 90% non-condensing
Shock
30g (1/2 sine, 11 msec.)
Vibration
0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine
Altitude
Operating: up to 10,000 feet; Non-operating: up to 40,000
feet
Functional
Panel controls (rear
access) Menu, MagicBright, Brightness, Adjust, Enter, Auto, Power,
Power Indicator
OSD (On Screen Display)
controls Brightness, contrast, color tone, color control, gamma,
coarse, fine, sharpness, H-position, V-position, OSD lan-
guage, OSD H-position, OSD V-position, OSD transparency,
OSD display time, image reset, color reset, information
Touch screen option
5-wire resistive system; emulates a mouse; Serial RS-232 or

18
USB interface to host computer
Enclosure
Type
Rack mount; Standard EIA 19" rack width; 6U height with 4
mounting holes
Panel rating
Enclosure rating - NEMA 1
Physical
Depth
2.15" behind panel
Bezel
Powder coated carbon steel – matte finish
Front bezel outside di-
mensions
19.0" (459.8mm) W x 10.45" (265.43mm) H x 0.125" thick
Net weight
11 lbs.
Shipping weight 15 lbs.
VGA Pin assignment
Pin No. Signal Pin No. Signal
1
Red
9
No pin
2
Green
10
Ground
3
Blue
11
Ground
4
Ground
12
SDA
5
Ground
13
H. sync
6
Ground
14
V. sync
7
Ground
15
SCL
8
Ground

19
Warranty Statement
Who is Covered?
This warranty covers the purchaser of this product only and is not transferable without our written
consent.
What Does This Warranty Cover and What is the Period of Coverage?
The warranty remains in force for a three year period beginning on the date we invoice you for the
product unless it is a keyboard, for which the warranty period is one year. If HIS repairs or replaces a
product under warranty, its warranty term is not extended.
What Will We Do to Correct Problems and How Do You Get Service?
We will repair or replace (at our sole option) any part of the unit which proves to be defective. Re-
placement parts may be new or refurbished and will meet the same specifications of the original
parts or unit. We will return the product to you by the shipping method we choose in the U.S.A. at
our expense. You must pay for shipments to locations outside of the U.S.A. In order to receive war-
ranty service you must get prior approval from HIS. To request warranty service you can telephone
us at 678-762-9790 or send an email to ser[email protected]. If we determine that warranty
service is needed we will give you a Return Material Authorization (RMA) number. This RMA num-
ber must be conspicuously marked on the outside of the shipping box. HIS will not accept ship-
ments not accompanied by the RMA number. You must ship or deliver the product to HIS Freight
prepaid.
What Does This Warranty Not Cover?
This warranty does not cover equipment which has been damaged due to misuse, abuse or accident
such as: operating the equipment outside of published specifications; exposure to chemicals or
gasses not covered by specified NEMA standards; displaying fixed images for long periods of time
resulting in afterimage effects; improper or unauthorized repair by anyone other than HIS or a ser-
vice agency authorized by HIS to perform such repairs; fire, flood, “acts of God”, or other contingen-
cies beyond the control of HIS.
HIS’ responsibility for malfunctions and defects in hardware is limited to repair and replacement as
set forth in this warranty statement. HIS shall not be liable for direct, indirect, incidental, consequen-
tial, or other types of damages resulting from the use of any HIS product other than the liability
stated above. These warranties are in lieu of all other warranties express or implied, including, but
not limited to, the implied warranties of merchantability or fitness for a particular purpose. Some
states do not allow the exclusion of implied warranties or the limitation or exclusion of liability for
incidental or consequential damages so the above exclusions or limitations may not apply to you.
You are cautioned that the performance of this product can be affected by many factors, such as
system configuration, software, application, and operator control of the system. It is your responsi-
bility to determine suitability of this product for your purpose and application.
Hope Industrial Systems

20
Hope Industrial Systems, Inc.
1325 Northmeadow Parkway
Suite 100
Roswell, GA 30076
www.HISmonitors.com
Publication RL15D September, 2006 2006 Hope Industrial Systems, Inc.
