User Manual
17” Universal Mount Industrial Monitor
Model No. HIS-UM17-___A

2
TABLE OF CONTENTS
Safety and Regulatory Information...........................................3
Factory Preset Timing..............................................................4
Monitor Adjustment Functions
Direct Functions................................................................5
OSD Functions.................................................................8
Installation Instructions...........................................................10
Cleaning.................................................................................15
Troubleshooting......................................................................16

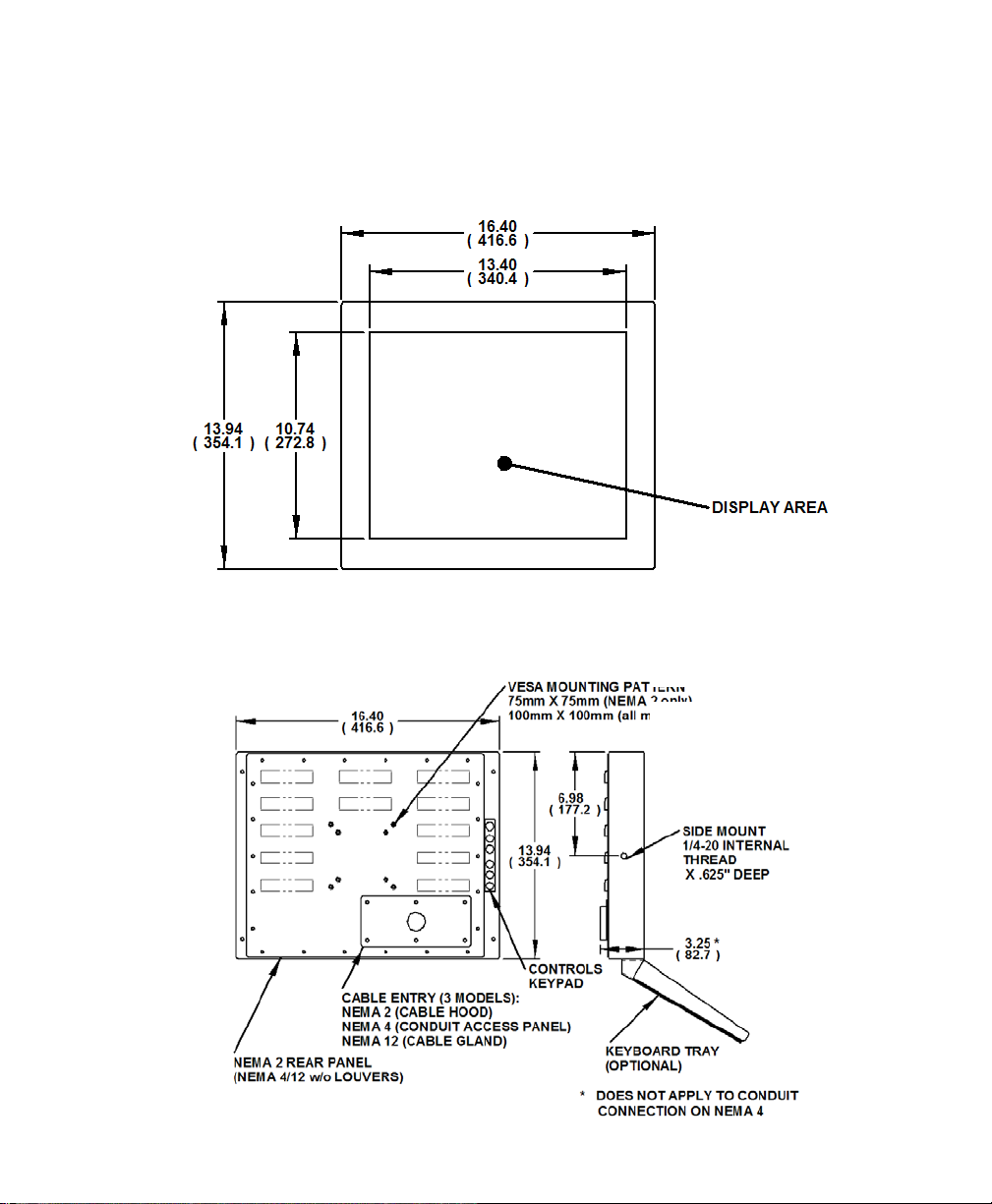

Drawings ................................................................................17
Specifications.........................................................................18
Warranty Statement...............................................................21

3
Safety and Regulatory Information
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dan-
gerously high voltages are present inside the unit. Do not disassemble the unit.
Refer servicing to qualified personnel only.
This equipment is not intended for use in critical applications where its failure to
operate would create immediate life threatening circumstances. Applications in-
cluding, but not limited to, nuclear reactor control, aerospace navigation systems
and life support systems are not appropriate for this product.
This product is a UL Listed Component and must be used with a listed computer.
A readily accessible disconnect device shall be incorporated in the building instal-
lation wiring. Installation shall be in accordance with the National Electric Code
and authorities having jurisdiction.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be re-
quired to correct the interference at his own expense. Any changes or modifications not expressly ap-
proved by the grantee of this device could void the user’s authority to operate the device.

4
Factory Preset Timing
Resolution
Horizontal
Frequency
(KHz)
Vertical
Frequen-
cy
(Hz)
Pixel
Clock
(MHz)
Sync
Polari-
ty
(H/V)
IBM, 640 x 350 31.469 70.086 25.175 +/-
IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 -/-
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.00 +/+
*VESA, 1280 x 1024 63.981 60.020 108.00 +/+
*VESA, 1280 x 1024 79.976 75.025 135.00 +/+
* Factory recommended timings for best picture quality

5
Control Panel Buttons and Indicators
Control Panel
Button Mode Description
MENU Always Opens the OSD menu. Also used to exit the OSD
menu or return to the previous menu.
+
When the
OSD Menu is
NOT Dis-
played
MagicBright
Provides an optimum viewing environment depend-
ing on the contents of the image you are watching.
Currently four different modes are available. Each
mode has its own pre-configured brightness value.
You can easily select one of four settings by simply
pressing MagicBright control buttons.
1) Text: Normal Brightness
For documentation or work involving heavy text.
2) Internet: Medium Brightness
For working with a mixture of images such as
text and graphics.
3) Entertain: High Brightness
For watching motion pictures such as a DVD or
VCD.
4) Custom
Although the values are carefully chosen by our
engineers, the pre-configured values may not be
comfortable to your eyes depending on your
taste. If this is the case, adjust the Brightness
and Contrast using the OSD menu.
When the
OSD Menu is
Being Dis-
played
Adjusts items in the menu DOWN.

6
Control Panel
Button Mode Description
- When the
OSD Menu is
NOT Dis-
played
Push to adjust brightness.
When the
OSD Menu is
Being Dis-
played
Adjusts items in the menu UP.
ENTER When the
OSD Menu is
Being Dis-
played
Activate a highlighted menu item.
AUTO Always Use this button for auto adjustment of the display.
POWER Use this button to turn the monitor on and off.
POWER
INDICATOR This light glows green during normal operation, and
blinks green once as the monitor saves your adjust-
ments.

7
Direct Functions
Menu
Description
AUTO
When the ‘AUTO’ button is pressed, the Auto Adjustment screen ap-
pears as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automati-
cally.
To make the automatic adjustment function sharper, execute the
‘AUTO’ function while the
AUTO PATTERN is on.
IMPORTANT NOTE: LOCKING CONTROL PANEL BUTTONS
The control panel buttons can be locked by simultaneously pressing the
AUTO and MENU buttons for 5 seconds. Repeating this operation will
unlock the buttons.
Menu
Description
MagicBright
Push the MagicBright repeatedly to circle through four available pre-
configured modes.
Brightness
Adjust brightness.

8
OSD Functions
Important Note: Except for Brightness and Contrast, all of these func-
tions are automatically set by using the AUTO Button.
Menu
Description
Brightness Direct Access Feature : When OSD is not on the screen, push the
button to adjust brightness.
Contrast
Adjust the contrast.
Color
Menu
Description
Color Tone
The tone of the color can be changed and one of four modes can be
selected – Cool, Normal, Warm and Custom.
Color Control Follow these steps to adjust individual R,G,B color balance.
Gamma
Select one of three pre-defined gammas.
Menu
Description
Coarse
Removes noise such as vertical stripes. Coarse adjustment may move
the screen image area. You may relocate it the center using the Horizon-
tal Control menu.
Fine Removes noise such as horizontal stripes. If the noise persists even af-
ter fine tuning, repeat it after adjusting the frequency (clock speed).
Sharpness
Sets the clearness of the image.
H-Position
Changes the horizontal position of the display.
V-Position
Changes the vertical position of the display.

9
On-Screen Display (OSD)
Menu
Description
Language
Changes the language used in the Menu.
H-Position
Changes the horizontal position of the OSD.
V-Position
Changes the vertical position of the OSD.
Transparency
Changes the translucency of the background of the OSD.
Display Time
The menu will automatically turn off if no adjustments are made for a cer-
tain time period.
You can set the amount of time the menu will wait before it turns off.
Setup
Menu
Description
Image Reset
Image parameters are replaced with the factory default values.
Color Reset
Color parameters are replaced with the factory default values.
Information
Menu
Description
Information
Shows the video source and display mode.
Color Reset
Color parameters are replaced with the factory default values.

10
Installation Instructions
Preparing for Installation
Important! Perform the following steps BEFORE Installation of the monitor.
1. Ensure that sufficient power is available.
2. Ensure that sufficient space is available to allow for proper airflow around the
enclosure.
3. Ensure that the air temperature around the unit (top and bottom) will not ex-
ceed the rated specifications of the unit.
The maximum rated temperature of the HIS-WL17 is 45 ° C (113 ° F).
Also, remember that even though this product is designed to operate
at 45 ° C , the life span of any electronic device is shortened when it is
consistently operated at high temperatures. Therefore it is wise to
take steps to keep the temperature of the ambient air around the unit
as low as possible.
4. Ensure that the ambient humidity of the air around the unit does not exceed the
rated specifications for the unit
The maximum rated humidity for the HIS-WL17 is 90% non-condensing.
Installation using VESA mounting
All units come standard with a 100mm square VESA mounting pattern with M4
threads (75mm VESA pattern is also available on the NEMA 12 version). If this
mounting method is used, consider the following:
M4 screws should not protrude into the rear cover by more than 1/4”.
The capacity of the arm or mounting plate selected should take into account the
total weight of the monitor and its center of gravity.
For NEMA 4/4X applications, the mounting interface should be properly
sealed to prevent egress of water.

11
Installation using the Bench Top mounting option
1. Prepare the mounting surface for installation of the bench mounting plate
referring to the illustration above.
2. Free the bench mounting plate from the assembly by removing the cotter
pin, yoke locking nut and stainless steel washer.
3. Install the bench mounting plate into the mounting surface using the ¼ - 20
screws provided or longer screws as required.
4. Reassemble the yoke to the bench mounting plate per the illustration above.
For NEMA 4/4X applications, replace the cotter pin with a 6-32 x ¾” long
screw and sealing washer. Also insure that the bench mounting plate is
sealed between itself and the mounting surface.

12

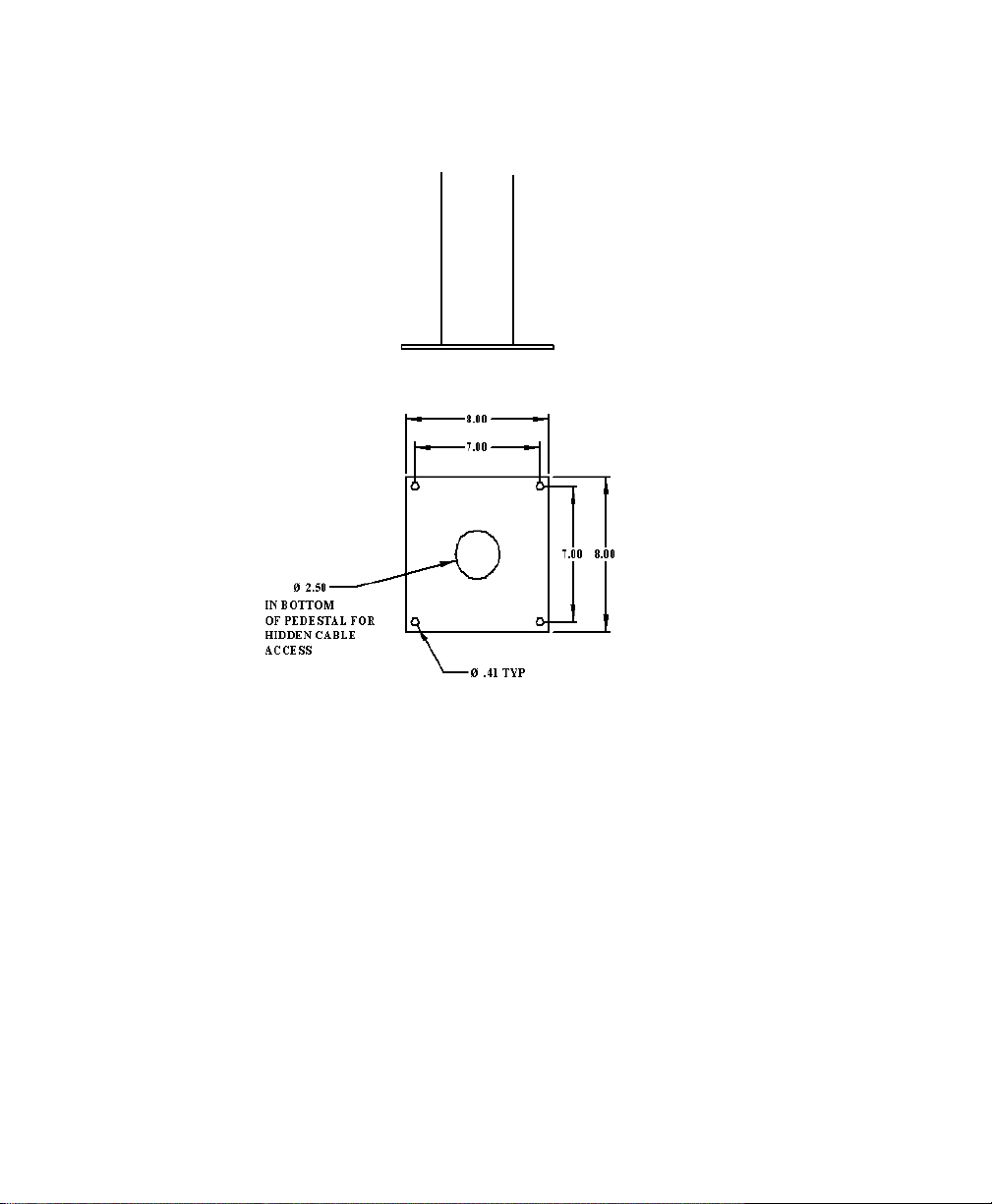

Installation using Pedestal mounting option
1. Prepare the mounting surface for installation of the pedestal by referring to
the illustration above.
2. Install the pedestal using appropriate hardware and methods for the mount-
ing surface selected taking strength, cable routing and sealing into consid-
eration.

13
Note: The ¾” conduit and other sealing hardware are not required for NEMA 12
monitors or NEMA 4/4X monitors with the 4-cable gland.

14
3. Free the pedestal top plate from the assembly by removing the retaining
screw, yoke locking nut, stainless steel washer and 4 ¼-20 screws.
4. Position and support the monitor and yoke assembly so that cables exiting
from the monitor can be easily routed into the top of the pedestal.
5. Install the pedestal top plate and polyethylene friction plate using the four
¼-20 screws insuring all cabling inside the pedestal has been fed through
the top of the pedestal top plate.
6. Connect all communication and power cables to the monitor insuring all
remaining hardware has been threaded onto the cables in their proper order
per the illustration above. Connectors that do not have a locking mechan-
ism should be sheathed in heat shrink tubing to insure that they do not
come loose inside the pedestal.
7. Install the monitor and yoke assembly onto the top of the pedestal with the
stainless steel washer, the yoke locking nut and the retaining screw. Insure
that there is a sealing washer underneath the retaining screw.
8. Feed all connectors and excess cabling inside the top of the pedestal.
9. Screw conduit elbow onto top of pedestal taking care to position the direc-
tion of the conduit to allow free tilting of the monitor without interference.

15
Cleaning
Resistive Touchscreen model
Any standard glass cleaner can be used to clean the touchscreen. Al-
ways spray the glass cleaner on the cloth or towel and then clean the
touchscreen. Glass cleaner sprayed directly on the monitor could possi-
bly leak inside a non-sealed unit and cause damage.
Vinegar or ammonia will not hurt the touchscreen. Again, spray the cloth and
then clean the touchscreen.
Tempered Anti-Reflective Glass Window
Use any standard glass cleaner as long as there is no abrasive or oily content.
The anti-reflective coatings are physically part of the surface of the glass and
resist degradation to the Military Specifications.

16
Troubleshooting
Note: For troubleshooting with a KVM extender installed, please refer to the Instal-
ler/User Guide that comes with that equipment.
Blank Screen After installing the power adapter and connecting I/O cable to a PC, the
monitor displays a blank screen.
•Press the power button and check to see if the power LED is lit.
•If the LED turns green, make sure the PC is powered on. Make
sure all cables are connected.
•If the LED turns orange, check to see if the PC is in the power
saving mode by pressing any keys on the keyboard.
Rolling Screen
•Change PC display resolution to 1280x1024 at 60 Hz refresh.
•Unplug the power adapter to monitor and then plug it in again.
•Press monitor power button again.
•Reset the monitor to the original factory setting.
•Press “Auto” button.
Unstable Screen
•Press the “Auto” button.
•Make sure the PC display resolution is not set greater than
1280x1024 at 75hz.
•Make sure the PC display resolution matches one of the factory
preset timings in this manual.
•Change the PC display resolution to 1024x768 at 60hz.
•Reset the monitor to the factory setting.
•Press the “Auto” button.
Screen is not perfect
•Make sure the PC display resolution matches one the factory pre-
set timings shown in this manual.
•Recall factory setting. Refer to panel controls and OSD functions
in this manual.
•Fine tune the picture by performing the following adjustments in
this order – pitch, phase, and position. Refer to OSD functions in
this manual.
Auto Adjustment Locked
•To unlock press the MENU and AUTO buttons simultaneously for
at least 5 seconds. (see page 7)

17
Drawings
Front View
Bottom, Side and Rear View of NEMA 12 option

18
Specifications
Display
Type
Thin-film transistor (TFT) Active Matrix Liquid Crystal
Size
17” diagonal
Image size
13.3” (338mm) x 10.6” (270mm)
Native resolution
SXGA (1280 x 1024)
Plug and Play
DDC1/2B compatible`
Minimum resolution
VGA (640 x 480)
Pixel pitch
0.264mm x 0.264mm
Number of colors
16 million
Viewing Angle (Hori/Vert)
160
°
/ 160
°
, typical
Brightness (white)
300 nits (cd/m2) max
Contrast ratio
600:1 (typical)
Back light
Four CCFTs (Cold Cathode Fluorescent Tube); 50,000
hours brightness half-life; replaceable
Screen protector (when
not shipped with touch-
screen)
Tempered glass to ANSI-Z97.1 SPEC; AR coated on both
sides; 98% Transmission of light; 99% Reduction of glare;
53% UV blocking; 30% NIR Blocking; proprietary hydro-
phobic coating on outside reduces fingerprint smears, repels
liquid spills and makes glass easy to clean.
Video
Input connector
HD-15 (optional BNC input)
Input signal format RGB Analog video 0 – 0.7V p-p – sep V and H, combined
sync, sync on green
Horizontal scan 30kHz – 81kHz
Supported Video Stan-
dards Std VGA – 640x480 @ 60Hz SVGA – 800x600 @ 60Hz
XGA – 1024x768 @ 60Hz
SXGA – 1280x1024 @ 60Hz (native)
Vertical scan 56Hz – 75Hz
Response rate (typical) 12ms

19
Electrical
Monitor input
90VAC – 264VAC, 50/60Hz (+/- 3Hz)
Power consumption
Less than 34W
Power management
DPMS/energy star, < 1W
Compliance
UL 1950, cUL 959; FCC Class A
Environmental
Temperature
0-45
°
C
Humidity
20% to 90% non-condensing
Shock
30g (1/2 sine, 11 msec.)
Vibration
0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine
Altitude
Operating: up to 10,000 feet; Non-operating: up to 40,000
feet
Functional
Panel controls (rear
access) Menu, MagicBright, Brightness, Adjust, Enter, Auto, Power,
Power Indicator
OSD (On Screen Display)
controls Brightness, contrast, color tone, color control, gamma,
coarse, fine, sharpness, H-position, V-position, OSD lan-
guage, OSD H-position, OSD V-position, OSD transparency,
OSD display time, image reset, color reset, information
Touch screen option
5-wire resistive system; emulates a mouse; Serial RS-232 or
USB interface to host computer

20
Enclosure
Type
Self-contained; NEMA 12 black powder coated steel
Panel rating
NEMA 12
Physical
Dimensions – Height,
Width
16.4” (417mm) W x 13.94” (354mm) H
Depth
3.25” (83mm)
Net weight
Black Carbon Steel Model – 15.50 lbs.
Stainless Steel Model – 17.90 lbs.
Shipping weight
Black Carbon Steel Model – 18 lbs.
Stainless Steel Model – 21 lbs.
VGA Pin assignment
Pin No. Signal Pin No. Signal
1
Red
9
No pin
2
Green
10
Ground
3
Blue
11
Ground
4
Ground
12
SDA
5
Ground
13
H. sync
6
Ground
14
V. sync
7
Ground
15
SCL
8
Ground
