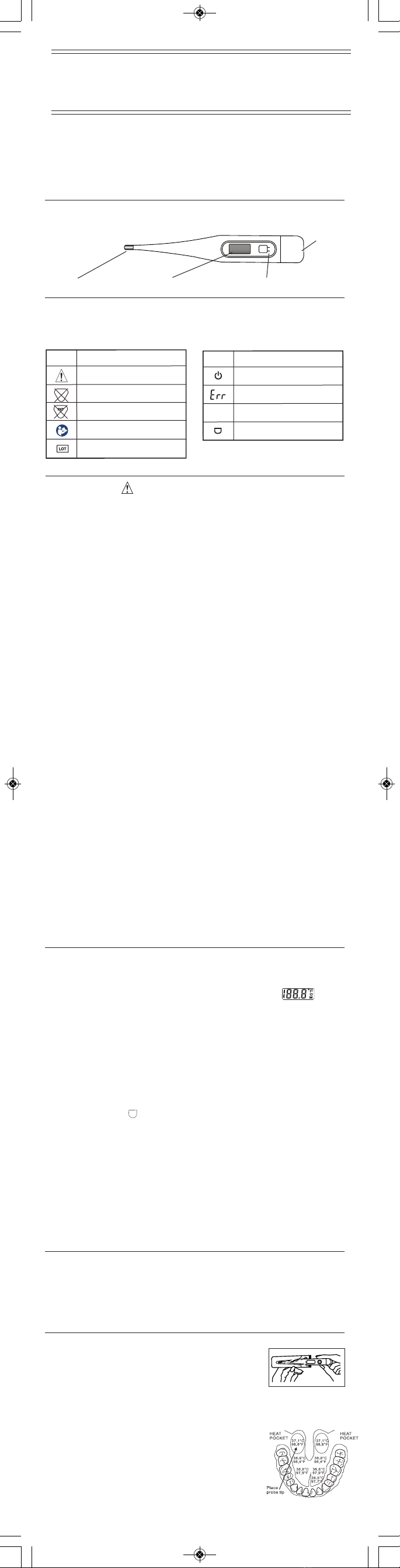

Hopkins 570410 User manual

Device Description and Intended Use
This device is intended to measure human body temperature in children and adults. It
has a compact size and digital display and can be used in a professional or household
environment.
Parts and Assembly
Symbol Definitions
The following symbols are associated with your thermometer.
General Warnings
A warning statement in this manual identifies a condition or practice which, if
not corrected or discontinued immediately, could lead to patient injury,
illness, or death.
WARNING: This instrument is designed for oral, rectal, or axillary use only.
WARNING: High prolonged fever requires medical attention, especially for young children.
Please contact your physician.
WARNING: Keep out of reach of unsupervised children. Components may be harmful if
swallowed.
WARNING: Stop using the thermometer if it operates erratically or if the display malfunctions.
WARNING: Oral readings are usually 0.5°F to 1.0°F degree lower than rectal readings;
axillary readings are generally 0.5°F to 1.0°F lower than oral readings.
WARNING: Avoid taking temperature for 30 minutes after physical exercise, bathing,
dining, or drinking hot or cold beverages.
WARNING: Allow the thermometer to warm naturally to room temperature before using.
Performance may be affected if operated or stored outside stated temperature and humidity
ranges or if the patient's temperature is below the ambient (room) temperature.
WARNING: After using, clean the thermometer and place it into the case. Clean the unit by
wiping it with a dry cloth and disinfect the probe with isopropyl (rubbing) alcohol. See cleaning
instructions for additional details.
CAUTION: Keep thermometer away from direct sunlight, extreme temperatures, or dust.
CAUTION: Do not boil, bite, bend, drop, or disassemble the thermometer.
CAUTION: Do not open the unit except to replace the battery.
CAUTION: Do not use this device close to strong electromagnetic fields, such as mobile tele-
phones.
CAUTION: Do not autoclave. Please note the cleaning procedures described in this manual.
CAUTION: Dispose of batteries in accordance with locally applicable regulations, not with
domestic waste.
CAUTION: IP22: Protected against solid foreign objects of 12.5mm diameter and greater. Pro-
tected against vertically falling water drops when the device is tilted up to 15°.
How to Use
1. Disinfect the probe with isopropyl (rubbing) alcohol before using.
2. Press and release the multifunction button. The display will read
confirming the unit is functioning properly. The last measured temperature will be
displayed for approximately 2 seconds. Next the thermometer will read - - - °F,
(or - - -C°).
3. We recommend using probe covers with all digital stick thermometers. If using, place
cover over tip of unit.
4. Place the probe in the appropriate position for your measurement site (see Ensuring
Accurate Temperature Measurement below).
5. The °F or °C symbol will flash when the unit is ready to measure temperature.
Please note that the “ ” indicates a low battery. See instructions for replacing
battery before measuring temperature. Do not expect an accurate temperature
reading if this low battery indicator is present. An “ERR” message in the
window indicates your unit is not functioning properly.
6. Depending on the measurement site, the unit will complete measurement in
approximately 30-40 (oral), 25-35 (rectal), or 90 (axillary) seconds. The display
will flash and the unit will beep signaling completion.
7. Read and record the temperature and time for reference. The reading will automatically
be stored in the memory.
8. The unit will automatically turn off in about 8 minutes. To prolong battery life,
press the multifunction button to turn off the device manually.
Switching Temperature Modes
From the OFF position, the Celsius or Fahrenheit mode can be switched by pressing and
holding the multifunction button for at least 5 seconds. After 3 seconds in one scale the
°F or °C will flash, indicating ready to measure.
Ensuring Accurate Temperature Measurement
We recommend using probe covers with all digital stick
thermometers (Figure 1).
Oral Use: Place the probe well under the patient’s tongue
(Figure 2). Keep mouth closed while thermometer is reading.
Instruct children not to bite down on the probe. The peak
temperature should be reached in as little as 30* seconds.
Opening the mouth or improper placement of the probe tip
could result in a longer time for a reading.
(*30 second response time achieved in water bath test)
Digital Stick Thermometer
All Models with Fahrenheit or Celsius Reading
Symbol Definition
Important warning/caution
Phthalate free
Operating instructions
Lot number
LATEX
Symbol Definition
Multifunction button
Auto detection error
Memory indication
Low battery indication
Not made with natural rubber latex
M
Probe Tip Display Window Multifunction Button
Battery
Cover
Figure 1
Figure 2
93-410HOP-00 rev 6.qxp_Layout 1 4/21/20 3:30 PM Page 1

Rectal Use: Lubricate the probe cover with a water-soluble jelly for easier
insertion; do not use petroleum jelly, as it may cause an inaccurate reading.
Gently insert the tip of the probe no more than 1/2 inch into the rectum.
STOP if you meet any resistance. The sensing unit is on the very tip of the probe
and there is no need to insert the probe deep into the rectum.
Dispose of the used probe cover and wash the thermometer as recommended.
The peak temperature should be reached in approximately 25-35 seconds.
Axillary Use: Wipe armpit with a dry towel. Place the probe in the
patient’s armpit (Figure 3) and keep the patient’s arm pressed
firmly against the body. In order to achieve a better axillary reading,
a minimum measuring time of 90 seconds or longer is
recommended, depending on placement of the probe and
closure of the arm against the body.
Battery Replacement
1. When the symbol “ ” appears, the battery needs to
be replaced.
2. Remove battery compartment lid (Figure 4).
3. Use a pointed object such as a toothpick to pry loose the
old battery. Avoid using any sharp metal object.
4. Place new 1.55V coin-type battery (LR41 or equivalent) in the chamber with the
positive (+) side facing up or towards the display of the unit.
5. Replace the battery compartment lid.
Cleaning and Disinfecting
Do not use corrosive detergent to clean the unit.
Clean and disinfect the thermometer before and after each use.
Cleaning Process
1. Wipe probe with a cloth dipped in a disinfectant solution such as 70%
isopropyl (rubbing) alcohol or soap and water.
2. Rinse off disinfectant residue.
Care and Storage
• Do NOT drop or crush; this device is not shock proof.
• Do NOT dismantle or modify device other than replacing the battery.
• Do NOT store the device in an extreme environment with direct sunlight or high
temperatures.
• Store the unit in the protective case while not in use.
LIMITED WARRANTY
This thermometer is guaranteed for a period of 24 months from date of purchase. This warranty
does not cover batteries, or damage resulting from improper handling or use. Specific legal rights
stipulated in your state may guide this warranty. If you have a legitimate claim under this warranty,
send item(s) postage paid to Service Center, Attn: Repair Dept., 6850 Southbelt Dr., Caledonia, MI
49316. Please include your name and address, phone no., proof of purchase, and a brief note ex-
plaining the problem, your return address and $2.00 to cover shipping and handling.
IB p/n 93-410HOP-00 rev 6 (4/25/2020) Printed in China
LATEX
Figure 4
Specifications
Size: 5”L x 3/4”W x 3/8”H (12.7cm L x 1.9 cm W x .95 cm H)
Weight: 0.388 oz. (11 grams)
Display: LCD, Liquid Crystal Display
Battery: 1.55V (LR41)
Battery Life: Estimated 4,500 measurements
Measurement Time: Oral 30* seconds / Rectal 25-35 seconds / Axillary 90 seconds
Measurement Range: 90.0°F to 109.9°F (32.0°C to 42.9°C)
96.0°F to 107.0 °F ±0.2°F / 1°C (34.0°C to 42.0°C)
at a room temperature of 64.4°F to 82.4°F (18.0°C to 28.0°C)
Accuracy: 90.0°F to 96.0°F ±0.4°F / 0.2°C (32.0°C to 34.0°C)
and 107.0°F to 109.9°F (42.0°C to 42.9°C)
Measurement Mode: Real measurement with peak-hold method
Audible Alarm: 1 beep at start-up. Continuous beep at measurement completion
Auto Turn-off: In approximately 8 ±1 minutes
Memory: Last reading
Operating Conditions: 50°F to 104°F (10°C to 40°C)
Humidity of 15% to 95% (non-condensing)
Storage Conditions: -13°F to 131°F (-25°C to 55°C)
Humidity of 15% to 95% (non-condensing)
Standards: Complies with EN 12470-3, ASTM E 1112-00,
IEC 60601-1, IEC 60601-1- 2, IEC 60601-1-11
Electromagnetic compatibility: device fulfills the stipulations
of standard IEC 60601-1-2
The manufacturer recommends a calibration check every 2 years.
*30 second response time achieved in water bath test.
BATTERY
Service Center
6850 Southbelt Dr.
Caledonia, MI 49316
Inspected in the U.S.A.
Made in China
Read the instruction manual carefully before using
this device, especially the safety instructions, and
keep the instruction manual for future use. Type BF applied part
Batteries and electronic devices must be disposed of
in accordance with the locally applicable
regulations, not with domestic waste.
Figure 3
