Horizon Hobby Hobbyzone Mini AeroScout User manual

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni

EN
2
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or
result in damage to the product or the property of others.
• Always keep a safe distance in all directions around your
model to avoid collisions or injury.This model is controlled by a
radio signal subject to interference from many sources outside
your control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away from
full-size vehicles, traffic and people.
• Always carefully follow the directions and warnings for this
and any optional support equipment (chargers, rechargeable
battery packs, etc.).
• Always keep all chemicals, small parts and anything
electrical out of the reach of children.
• Always avoid water exposure to all equipment not specifically
designed and protected for this purpose. Moisture causes
damage to electronics.
• Never place any portion of the model in your mouth as it
could cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is
powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For
up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab
for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and
serious injury OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of
serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility
of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the
product or other property. This product is not intended for use by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This
manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and
warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
14+AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

Mini AeroScout
EN
3
Specifications
Box Contents
Table of Contents
30.31 inch (770mm)
21.26 inch (540mm)
4.33 oz (123 g)
Motor: Brushed motor Installed
Flight Controller*: 3-in-1 flight controller
(HBZ5708) Installed
Battery: 800mAh 1S 3.7V 30C LiPo
(SPMX8001S30) Included
Battery Charger: 1S USB Li-Po Charger,
700mAh, JST (EFLC1014) Included
Transmitter*: 2.4GHz (HBZRMLP4) Included
Specifications........................................................................ 3
Preflight Checklist.................................................................. 4
Charging Warnings................................................................. 4
Charge the Flight Battery ....................................................... 4
Assemble the Aircraft............................................................. 5
Install the Transmitter Batteries.............................................. 6
Transmitter Layout................................................................. 6
Install the Flight Battery ......................................................... 7
Binding.................................................................................. 7
Arm the Aircraft ..................................................................... 8
Control Horn Locations and Surface Centering ....................... 8
Control Direction Test............................................................. 8
Transmitter Dual Rates .......................................................... 9
Transmitter Trims................................................................... 9
Flying .................................................................................... 9
Post Flight Checklist ............................................................ 10
Troubleshooting ................................................................... 10
Parts List ............................................................................. 11
Limited Warranty ................................................................. 11
Warranty and Service Contact Information ........................... 12
FCC Information................................................................... 13
IC Information...................................................................... 13
Compliance Information for the European Union................... 13
* The included 3-in-1 flight controller and transmitter are not
compatible with DSM, DSM2 or DSMX protocols.

EN
4
Find a safe and open area.
Charge the flight battery.
Assemble the aircraft.
Install the transmitter batteries.
Install the flight battery.
Perform control direction test.
Plan flight for flying field conditions.
Set a flight timer for 10 minutes.
Have fun!
Preflight Checklist
Charge the Flight Battery
Charging Warnings
The included USB charger has been designed to safely charge
the included Li-Po battery.
CAUTION:All instructions and warnings must be
followed exactly. Mishandling of Li-Po batteries can
result in a fire, personal injury and/or property damage.
• NEVER LEAVE CHARGING BATTERIES UNATTENDED.
• NEVER CHARGE BATTERIES OVERNIGHT.
• By handling, charging or using the included Li-Po battery, you
assume all risks associated with lithium batteries.
• If at any time the battery begins to balloon or swell,
discontinue use immediately. If charging or discharging,
discontinue and disconnect. Continuing to use, charge or
discharge a battery that is ballooning or swelling can result
in fire.
• Always store the battery at room temperature in a dry area
for best results.
• Always transport or temporarily store the battery in a
temperature range of 40–120° F. Do not store the battery or
model in a car or direct sunlight. If stored in a hot car, the
battery can be damaged or even catch fire.
• Always charge batteries away from flammable materials.
• Always inspect the battery before charging.
• Always disconnect the battery after charging, and let the
charger cool between charges.
• Always constantly monitor the temperature of the battery
pack while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE
LI-PO BATTERIES. Failure to charge the battery with a
compatible charger may cause a fire resulting in personal
injury and/or property damage.
• Never discharge Li-Po cells to below 3V under load.
• Never cover warning labels with hook and loop strips.
• Never leave charging batteries unattended.
• Never charge batteries outside recommended levels.
• Never charge damaged batteries.
• Never attempt to dismantle or alter the charger.
• Never allow minors to charge battery packs.
• Never charge batteries in extremely hot or cold places
(recommended between 40–120° F or 5–49° C) or place in
direct sunlight.
NOTICE: Charge only batteries that are cool to the touch and
are not damaged. Look at the battery to make sure it is not
damaged e.g., swollen, bent, broken or punctured.
1. Insert the charger into a USB port.
2. Connect the battery to the charger lead, noting the correct
polarity.
3. Always disconnect the flight battery from the charger
immediately upon completion of charging.
CAUTION: Only use chargers specifically designed to
charge the included Li-Po battery. Failure to do so
could result in fire, causing injury or property damage.
CAUTION: Never exceed the recommended charge
rate.
LED Indications
When you make the connection successfully, the LED on the
charger turns solid red, indicating charging has begun.
Charging a fully discharged (not over-discharged) 800mAh
battery takes approximately 75-90 minutes. The light goes off
when the charge is complete.
CHARGING (Solid Red)
MAX CHARGE (OFF)
CAUTION: Once charging is complete, immediately
remove the battery. Never leave a battery connected
to the charger.

Mini AeroScout
EN
5

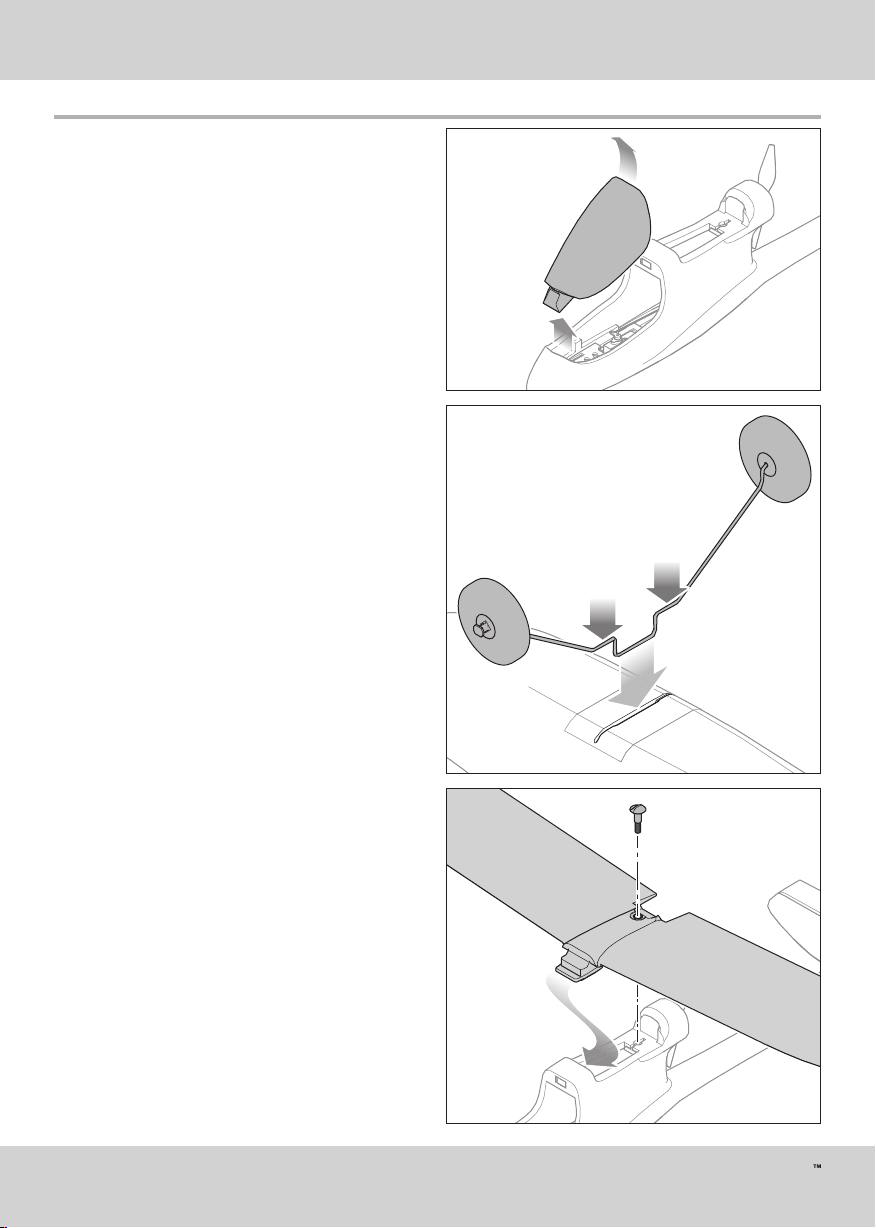

Assemble the Aircraft
1. Remove the battery hatch cover from the fuselage by
lifting from the rear of the hatch and rotating forward.
The hatch is held in place by a foam tab at the front and a
magnet at the back.
2. Carefully install the landing gear into the mount in the
bottom of the fuselage. Press on the wire as shown in the
illustration, taking care not to crush the fuselage foam.
The landing gear wire is fully seated when it snaps into
the mount.
3. Insert the front of the wing into the center of the fuselage.
4. Install the included thumb screw to secure the wing. Do
not over tighten the screw.

EN
6
Install the Transmitter Batteries
Transmitter Layout
1. Remove the battery cover from the back of the transmitter.
2. Install four included AA batteries (noting proper polarity).
3. Reinstall the battery cover.
LED
Power Switch
Battery Cover
Throttle Trim
(Up/Down)
Rudder Trim
(Left/Right)
Throttle Stick Elevator/Rudder Stick
Elevator Trim
(Up/Down)
Dual Rate
Button
Bind Button

Mini AeroScout
EN
7
Binding
Install the Flight Battery
1. Apply the soft, loop side of the hook and loop tape to the
battery tray inside the fuselage.
2. Apply the hook side to the battery.
TIP: Do not cover the battery label information with the hook
material.
3. Install the battery in the fuselage. Move the battery forward
or backward in the fuselage to adjust the aircraft center of
gravity. The center of gravity should be 39-44mm back from
the leading edge of the wing, as shown in the illustration.
TIP: Install the 1S 800mAh battery towards the front of the
battery compartment to achieve the correct CG.
Arm the Aircraft
CAUTION: Always keep hands away from the
propeller. When armed, the motor will turn the
propeller in response to any throttle movement.
1. Ensure the transmitter throttle stick is in the lowest position.
The motor will not arm if the throttle is not set to the lowest
position when powering on the aircraft.
2. Power on the transmitter.
3. Connect a fully charged flight battery.
4. The motor will be armed when the battery is connected.
Binding is the process of programming the receiver to
recognize the GUID (Globally Unique Identifier) code of a single
specific transmitter. The transmitter and receiver are bound at
the factory. If you need to rebind, follow the instructions below.
1. Ensure the transmitter throttle stick is in the lowest position.
2. Install and connect a fully charged flight battery to the
aircraft.
3. After approximately 5 seconds, the LED on the aircraft
flight control board will begin to flash rapidly.
4. Push and hold down the left transmitter stick.
5. Power on the transmitter. Release the left stick when the
transmitter beeps.
6. The LED on the aircraft flight control board will glow solid
when binding is complete.
CAUTION: Always keep hands away from the
propeller. When armed, the motor will turn the
propeller in response to any throttle movement.
39-44mm

EN
8
Control Horn Locations and Surface Centering
Control Direction Test
Test the controls prior to the first flight to ensure none of the
servos, linkages or parts were damaged during shipping and
handling and the controls function in the correct directions.
Move the rudder stick to the right. The rudder should move to
the right. This will cause the aircraft to yaw and bank to the
right in flight.
Move the rudder stick to the left. The rudder should move to
the left. This will cause the aircraft to yaw and bank to the left
in flight.
Pull the elevator stick backward. The elevator should move
up. This will cause the nose of the aircraft to pitch up in flight.
Push the elevator stick forward. The elevator should move
down. This will cause the nose of the aircraft to pitch down
in flight.
Stick Movement Control Surface Reaction
Both the elevator and rudder clevises should be in the outer
holes of the control horns, as shown in the illustrations.
Additionally, the elevator should be raised 1mm from center
when the transmitter trim is centered.
The rudder should be centered with centered trim. If either
surface is not positioned correctly, gently open the clevis and
pull the pin from the control horn. Turn the clevis in or out to
adjust the control surface position. Reconnect the clevis to the
control horn, ensuring the pin is in the proper hole.
Rudder, viewed from the top
(some detail removed for clarity)
Elevator, viewed from the left Clevis removal and adjustment
Outer hole
Outer hole
1mm

Mini AeroScout
EN
9
Transmitter Dual Rates
Transmitter Trims
The included transmitter features dual rates to tailor the
sensitivity of the controls to the pilot. The low rate setting
decreases the control throws, thereby decreasing the
sensitivity. The high rate setting increases the control throws
to maximum, thereby increasing the sensitivity of the aircraft.
High rate is the default setting.
To change from high rate to low rate:
1. With the transmitter powered on, press and release the
right transmitter stick. The transmitter beeps to indicate
which rate is selected.
A long tone indicates high rate.
A short tone indicates low rate.
2. Press and release again to change back.
The included transmitter features digital trim buttons next to
the control sticks to make fine adjustments during flight.
The transmitter beeps when a trim button is pressed. The tone
changes slightly when the trim value is centered.
To quickly re-center the trims, press both the left and right
sticks at the same time.
If the aircraft drifts right or left in flight, use the opposite
direction rudder trim button correct the drift. For example, if the
aircraft drifts right in flight, press and release the left rudder
trim button until the aircraft no longer drifts.
If the aircraft climbs or dives during flight, press and release
the down or up trim buttons until the aircraft flies level.
If there is not enough digital trim available, mechanically adjust
the loops in the control linkages to center the surfaces.
Elevator down trim
Elevator up trim
Rudder left trim
Rudder right trim
Flying
Consult local laws and ordinances before choosing a
location to fly your aircraft.
We recommend flying your aircraft outside in no greater than
light winds or inside in a large gymnasium. Always avoid flying
near houses, trees, wires and buildings.
Avoid flying in areas where there are many people, such as
busy parks, schoolyards or soccer fields.
Set a timer for 10 minutes.
TIP: The HobbyZone Mini AeroScout can normally fly 12-15
minutes on a fully charged flight battery. This time will
vary pending on your flying style, flight conditions and the
condition of your battery.
Hand Launching
To hand launch the aircraft, hold the fuselage under the wings.
Advance to full throttle and give the aircraft a firm throw,
slightly up (5–10 degrees above the horizon), and directly into
the wind. After the model gains altitude and speed, decrease
the throttle as you desire.
Takeoff
Taxi the aircraft in position for takeoff (facing into the wind if
flying outdoors). Gradually increase the throttle to full power.
Hold a small amount of up elevator and steer with the rudder.
When the aircraft lifts off, climb gently and adjust the trim for level
flight. Once the trim is adjusted, begin exploring the flight envelope
of the aircraft. When your timer expires, prepare for landing.
Landing
Always land into the wind. Fly the landing pattern with a
slightly nose high attitude. Use throttle management to control
the descent rate of the aircraft.
During flare, keep the wings level and the aircraft pointed into
the wind. Slowly lower the throttle while easing back on the
elevator to bring the aircraft gently down on the main wheels.
NOTICE: Always fully lower the throttle at touch down when
landing the aircraft. Failure to lower the throttle stick and
trim to the lowest possible positions during a crash could
result in damage to the ESC in the receiver unit.

EN
10
Repairs
Crash damage is not covered under warranty.
Repair this aircraft using foam-compatible CA glue or clear
tape. Only use foam-compatible CA glue as other types of glue
can damage the foam. When parts are not repairable, see the
Replacement Parts List for ordering by item number.
NOTICE: Use of foam-compatible CA accelerant on your
aircraft can damage paint. DO NOT handle the aircraft until
accelerant fully dries.
Post Flight Checklist
Maintenance
Disconnect the flight battery from the ESC.
Power OFF the transmitter.
Remove the flight battery from the aircraft.
Recharge the flight battery.
Repair or replace all damaged parts.
Store the flight battery apart from the aircraft and monitor the
battery charge.
Make note of the flight conditions and flight plan results,
planning for future flights.
Horizontal Tail Removal/Replacement
The horizontal tail is easily removed for storage or
replacement.
To remove the horizontal tail:
1. Gently pull straight down on the tail wheel assembly as
shown. The rudder control horn should slide from the tail
wheel assembly.
2. Rotate the rudder control horn to the side.
3. Open the elevator clevis and remove it from the elevator
control horn.
4. Carefully pull the horizontal tail assembly straight back
and out of the fuselage. The tail is held in place by two
snap-fit alignment pins.
To install the tail:
1. Push the horizontal tail into the fuselage. The alignment
pins and elevator control horn should face down. Ensure
the two pins on the bottom of the horizontal tail align with
the holes in the fuselage. The tail is fully inserted when the
hole in the bottom of the rudder lines up with the hole in
the horizontal tail.
2. Attach the elevator clevis to the outer hole on the elevator
control horn.
3. Align the hole in the rudder control horn with the hole in
the horizontal tail.
4. Insert the tail wheel assembly through the rudder control
horn, the horizontal tail and into the rudder. The tail wheel is
fully inserted when the square section of the shaft is in the
rudder control horn and the shaft “clicks” into the rudder.
WARNING: Do not perform this or any other equipment maintenance with the propeller installed on the aircraft. Serious
injury or property damage could result from the motor starting inadvertently.

Mini AeroScout
EN
11
Troubleshooting
Problem Possible Cause Solution
Aircraft will not
respond to throttle
but responds to
other controls
Throttle stick and/or throttle trim is too high Reset controls with throttle stick and throttle trim at
lowest setting
Motor is disconnected from receiver Open fuselage and ensure the plug for the motor is
properly installed
Extra propeller noise
or extra vibration Damaged propeller, prop shaft or motor Replace damaged parts
Reduced flight
time or aircraft
underpowered
Flight battery charge is low Completely recharge flight battery
Flight battery is damaged Replace flight battery and follow flight battery
instructions
Flight conditions may be too cold Make sure battery is warm before use
Battery capacity is too low for flight conditions Replace battery or use a larger capacity battery
LED on receiver
flashes rapidly and
aircraft will not
bind to transmitter
(during binding)
Transmitter is too near aircraft during binding
process
Power off transmitter, move transmitter a larger
distance from aircraft, disconnect and reconnect flight
battery to aircraft and follow binding instructions
Bind button was not held while transmitter was
powered on Power off transmitter and repeat bind process
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Move aircraft and transmitter to another location and
attempt binding again
LED on receiver
flashes rapidly
and aircraft will
not respond to
transmitter (after
binding)
Less than a 5-second wait between first
powering on transmitter and connecting flight
battery to aircraft
Leaving transmitter on, disconnect and reconnect flight
battery to aircraft
Flight battery/transmitter battery charge is
too low Replace/recharge batteries
Transmitter may have been bound to a different
model Select the right transmitter or bind to the new one
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Move aircraft and transmitter to another location and
attempt connecting again
Propeller Removal/Replacement
WARNING: Always disconnect the flight battery from
the model before removing the propeller.
The propeller is press fit onto the motor shaft.
To remove the propeller:
1. Grasp the propeller at the hub.
2. Gently pull the propeller from the motor shaft.
3. Push the new propeller onto the motor shaft, taking care
not to push too far. The propeller hub should not rub on
any part of the motor and should rotate freely.

EN
12
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the original purchaser
that the product purchased (the “Product”) will be free from
defects in materials and workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i)
cosmetic damage, (ii) damage due to acts of God, accident,
misuse, abuse, negligence, commercial use, or due to improper
use, installation, operation or maintenance, (iii) modification of
or to any part of the Product, (iv) attempted service by anyone
other than a Horizon Hobby authorized service center, (v)
Product not purchased from an authorized Horizon dealer, (vi)
Product not compliant with applicable technical regulations, or
(vii) use that violates any applicable laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON
MAKES NO OTHER WARRANTY OR REPRESENTATION, AND
HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES
THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT
WILL SUITABLY MEET THE REQUIREMENTS OF THE
PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive
remedy shall be that Horizon will, at its option, either (i)
service, or (ii) replace, any Product determined by Horizon to
be defective. Horizon reserves the right to inspect any and all
Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of
purchase is required for all warranty claims. SERVICE OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY,
REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER
THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall
the liability of Horizon exceed the individual price of the Product
on which liability is asserted. As Horizon has no control over use,
setup, final assembly, modification or misuse, no liability shall
be assumed nor accepted for any resulting damage or injury. By
the act of use, setup or assembly, the user accepts all resulting
liability. If you as the purchaser or user are not prepared to accept
the liability associated with the use of the Product, purchaser is
advised to return the Product immediately in new and unused
condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to
conflict of law principals). This warranty gives you specific legal
rights, and you may also have other rights which vary from
state to state. Horizon reserves the right to change or modify
this warranty at any time without notice.
Limited Warranty
Parts List
Problem Possible Cause Solution
Control surface does
not move
Control surface, control horn, linkage or servo
damage Replace or repair damaged parts and adjust controls
Wire damaged or connections loose Do a check of wires and connections; connect or
replace as needed
Flight battery charge is low Fully recharge flight battery
Control linkage does not move freely Make sure control linkage moves freely
Motor loses power Damage to motor or power components Check the motor and power components for damage
(replace as needed)
Motor power pulses
then loss of power
Battery power is down to the point of receiver/
ESC Low Voltage Cutoff (LVC)
Recharge flight battery or replace battery that is no
longer performing
Part Number Description
EFLC1014 1S USB Li-Po Charger, 700mA, JST
HBZ5701 Fuselage
HBZ5702 Hatch
HBZ5703 Wing
HBZ5704 Horizontal Stab
HBZ5705 Tailwheel Assembly
HBZ5706 Landing Gear
Part Number Description
HBZ5707 Pusher Prop
HBZ5708 Flight Controller
HBZ5709 Motor
HBZ5710 Pushrods
HBZRMLP4 MLP4 2.4GHZ Transmitter
SPMX8001S30 800mAh 1s 3.7v 30C LiPo; JST

Mini AeroScout
EN
13
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide
warranty support or service. Once assembly, setup or use of
the Product has been started, you must contact your local
distributor or Horizon directly. This will enable Horizon to
better answer your questions and service you in the event that
you may need any assistance. For questions or assistance,
please visit our website at www.horizonhobby.com, submit a
Product Support Inquiry, or call the toll free telephone number
referenced in the Warranty and Service Contact Information
section to speak with a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is
compliant in the country you live and use the Product in,
please use the Horizon Online Service Request submission
process found on our website or call Horizon to obtain a
Return Merchandise Authorization (RMA) number. Pack the
Product securely using a shipping carton. Please note that
original boxes may be included, but are not designed to
withstand the rigors of shipping without additional protection.
Ship via a carrier that provides tracking and insurance for
lost or damaged parcels, as Horizon is not responsible for
merchandise until it arrives and is accepted at our facility.
An Online Service Request is available at http://www.
horizonhobby.com/content/service-center_render-service-
center. If you do not have internet access, please contact
Horizon Product Support to obtain a RMA number along with
instructions for submitting your product for service. When
calling Horizon, you will be asked to provide your complete
name, street address, email address and phone number where
you can be reached during business hours. When sending
product into Horizon, please include your RMA number, a list of
the included items, and a brief summary of the problem. A copy
of your original sales receipt must be included for warranty
consideration. Be sure your name, address, and RMA number
are clearly written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have
any issue with a LiPo battery, please contact the appropriate
Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original
sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be
serviced or replaced free of charge. Service or replacement
decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be
completed and payment will be required without notification
or estimate of the expense unless the expense exceeds
50% of the retail purchase cost. By submitting the item for
service you are agreeing to payment of the service without
notification. Service estimates are available upon request. You
must include this request with your item submitted for service.
Non-warranty service estimates will be billed a minimum of
½ hour of labor. In addition you will be billed for return freight.
Horizon accepts money orders and cashier’s checks, as well
as Visa, MasterCard, American Express, and Discover cards. By
submitting any item to Horizon for service, you are agreeing
to Horizon’s Terms and Conditions found on our website http://
www.horizonhobby.com/content/service-center_render-
service-center.
ATTENTION: Horizon service is limited to Product compliant
in the country of use and ownership. If received, a non-
compliant Product will not be serviced. Further, the sender
will be responsible for arranging return shipment of the
un-serviced Product, through a carrier of the sender’s
choice and at the sender’s expense. Horizon will hold non-
compliant Product for a period of 60 days from notification,
after which it will be discarded.
10/15
Warranty and Service Contact Information
Country of
Purchase Horizon Hobby Contact Information Address
United States
of America
Horizon Service Center (Repairs and Repair
Requests) servicecenter.horizonhobby.com/RequestForm/
2904 Research Rd
Champaign, IL 61822
Horizon Product Support
(Product Technical Assistance)
[e-mail]
877-504-0233
Sales [e-mail]
800-338-4639
European Union Horizon Technischer Service ser[email protected] Hanskampring 9
D 22885 Barsbüttel, Germany
Sales: Horizon Hobby GmbH [phone]

EN
14
EU Compliance Statement:
HBZ Mini AeroScout (HBZ5700)
Horizon Hobby, LLC hereby declares that this
product is in compliance with the essential
requirements and other relevant provisions of the
RED, EMC, and LVD Directives.
A copy of the EU Declaration of Conformity is available online at:
http://www.horizonhobby.com/content/support-render-compliance.
Instructions for disposal of WEEE by users
in the European Union
This product must not be disposed of with other
waste. Instead, it is the user’s responsibility to
dispose of their waste equipment by handing it
over to a designated collections point for the
recycling of waste electrical and electronic
equipment. The separate collection and
recycling of your waste equipment at the time of
disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and
the environment. For more information about where you can
drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or
where you purchased the product.
Compliance Information for the European Union
IC Information
FCC Information
Contains IC: 25727-HBZRMLP4
CAN ICES-3 (B)/NMB-3(B) This device complies with Industry
Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Contains FCC ID: 2AVDQ-HBZRMLP4
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
NOTICE: Modifications to this product will void the user’s
authority to operate this equipment.
This product contains a radio transmitter with wireless
technology which has been tested and found to be compliant
with the applicable regulations governing a radio transmitter in
the 2.400GHz to 2.4835GHz frequency range.
Supplier’s Declaration of Conformity
HBZ Mini AeroScout (HBZ5700)
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE:This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Horizon Hobby, LLC
2904 Research Rd.,
Champaign, IL 61822
Email: [e-mail]
Web: HorizonHobby.com

© 2020 Horizon Hobby, LLC
HobbyZone, the HobbyZone logo, AeroScout, E-flite, DSM, DSM2, DSMX, and the Horizon Hobby logo are trademarks or registered trademarks of
Horizon Hobby, LLC. www.horizonhobby.com
Created 01/20 61813 HBZ5700
