HornBlasters 127VX User manual

CONDUCTOR'S SPECIAL
INSTALLATION MANUAL
127VX, 228VX, 238VX, 248VX
WARNING: To ensure the longevity of
your system, reading and following these
instructions are recommended. Make sure
to change lters and to drain the moisture
from your tank on a regular basis.

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
BEFORE GETTING STARTED
Read over the entire instruction guide before you begin your installation.
KIT CONTENTS:
• HornBlasters Shocker Horns
• Viair Air Source Kit (20003, 20005, 20007, 20008)
• 1/2” Electric Solenoid Valve
• 17’ 1/2” Airline
• 10’ 5/16” Airline
• 1 x 1/2” PTC to 1/2” NPT
• 4 x 5/16” PTC to 1/8“ NPT Elbow
• 1 x 1/2” NPT to 4x 5/16” PTC
• 17’ 10 Gauge Wire
• 17’ 18 Gauge Wire
• 5 x 18-22 Gauge Butt Connector
• 3 x 10-12 Gauge Butt Connector
• 2 x 18-22 Gauge Ring Terminal
• 1 x 10-22 Gauge Ring Terminal
• 1 x 10-22 Gauge Male Quick Disconnect
• 1 x 18-22 Gauge Male Quick Disconnect
• 1 x 10-12 Gauge Scotch Lock
• 1 x 18-22 Gauge Scotch Lock
• 1 x 35 Amp Fuse
• 1 x Inline Fuse Holder
• 1 x Toggle Switch
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: To prevent the risk of electrical shock or electrocution:
• Do not disassemble any electrical components of this horn kit (air compressor, air valve, pressure switch).
• Do not attempt repairs or modications of any component. Please refer to qualied service agencies for all service
and repairs.
• Do not operate any component where it can fall or be submerged into water or any kind of liquid.
• Do not reach for any component that has fallen or been submerged into water or any kind of liquid.
• Use the included components with 12 volt DC systems only.
• Do not leave the air system unattended during use.
WARNING: To prevent injury:
• Never allow children to operate the compressor or air horn. Use close supervision when operating this equipment
near children.
• The air compressor will become very HOT during and immediately after operation. Do not touch any part of the
compressor with your bare hands during or immediately after use.
• Do not use this product near open ames or explosive materials or where aerosol products are being used.
• Do not operate this product where oxygen is being administered.
• Do not pump anything other than atmospheric air.
• Never use this product while sleepy or drowsy.
• Do not use any tools or attachments with the supplied air source unit without rst determining maximum air
pressure for that tool or attachment.
• Never point any air nozzle or air sprayer toward another person or any part of your body.
• The included compressor is equipped with an automatic reset thermal protector and can automatically restart after
the thermal protector resets. Always cut o󰀨 power source when thermal protector becomes activated.
• Use only in well ventilated areas.
• Do not sound the air horn(s) in close proximity to another person’s or your own ear(s).
• Do not ll the included air tank above 150 PSI. Doing so may result in death or serious injury.
HORNBLASTERS SHOCKER ***VX INSTALLATION GUIDE
IMPORTANT: This complete train horn kit uses 12 volt DC components. Only install this kit
with a 12 volt DC power source.

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
PLANNING YOUR INSTALLATION
This is the most important step in your installation.
• Plan out the location of each component before starting your installation.
• Make sure you have enough airline and wire to install the system before beginning the installation.
• Make sure mounting locations are secure and void of debris.
• Try to keep the supply wire to the compressor as short as possible. Wires lose voltage over distance therefore
shorter wires will result in better performance.
• Mount your air source unit in a location that is as cool as possible and away from heat sources. This will make your
compressor run cooler and last longer.
• Your air source unit must be mounted upright with the compressor above the tank. Failure to mount the unit in this
position will allow any condensation buildup to drain back in to the compressor and harm its components, and also
will disrupt the compressor’s ability to cool.
• Teon tape or a locking compound should be used on every tting in your air system to prevent air leaks; unless a
white or red PTFE paste is already applied.
• Use the supplied 10 gauge wire or thicker (lower gauge #) wire to power your air compressor.
I. INSTALLING YOUR HORNBLASTERS TRAIN HORNS
The horns can be mounted in any direction and still be heard from all around. The horns should not be mounted
where they will be completely submerged or will receive any kind of impact. Horns may be mounted directly to your
vehicle, on a medium such as grommet strips (plumber’s strap), sheet metal or any sort of custom bracket. Note
that air line will be running to each horns rear mount.
1. Locate a secure, dry, and safe position for your horns.
2. Drill a 3/16” hole for the front mount of each horn and a 7/16” hole for each rear mount.
3. Secure the horn using the supplied mounting hardware.
II. INSTALLING YOUR AIR SOURCE KIT
Locate a at and secure installation area that will remain free of dust, dirt, and debris (your compressors performance
is directly a󰀨ected by air quality). Try to keep the distance of the unit from the battery to a minimum to keep your
compressor running at maximum performance.
1. Disconnect the ground cable from the vehicle’s battery.
2. Position the unit in the desired location and secure it using the supplied mounting hardware (10mm).
3. Remove the orange plug in the compressor’s inlet and mount the included air lter in its place.
SAFETY DURING INSTALLATION
• Disconnect the ground of your battery before beginning your installation.
• Use eye protection when operating drills.
• Take your time and do not rush your installation.
INSTALLING YOUR TRAIN HORN KIT
RECOMMENDED TOOLS
• 3/8” Long Socket (Horn Front Mount)
• 1/2” Long Socket (Horn Rear Mount)
• 1/2” Wrench
• 9/16” Wrench (1/4” NPT Fittings)
• 7/8” Wrench (1/2” Banjo)
• 10mm Wrench or Socket (Air Source Mounting)
• 12mm Wrench
• Drill (3/16” & 7/16” Bits)
• Wire Cutter/Stripper
• Tubing Cutter/Razor
• Eye and Ear Protection

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
III. INSTALLING YOUR AIR TUBING & AIR VALVE
Before cutting any air tubing make sure to double check your measurements. Make sure to cut equal lengths of air line to connect
each horn to the manifold or the horns may sound at dierent times. We recommend cutting lengths with at least an extra inch per
line just to be safe. Unlike compression ttings our push to connect ttings can be used multiple times. The air valve should connect
to the center tting of the banjo tting. When threading any ttings make sure to use Teon tape to prevent air leaks. The air valve may
be mounted in any direction but it preferred that it is mounted vertically.
FITTING FLOW CHART
[Air Source] » [1/2” Line] » [1/2” to 1/2” NPT M Fitting] » [Air Valve] » [5/16” 4-point Banjo Fitting] » [5/16“ Line] » [5/16” to 1/8”
NPT F Elbow Fitting] » [Rear Horn Mount]
1. Plan out the ttings placement out before you begin and make sure you understand the correct order.
2. Make sure that your tank is empty of air and that the compressor is not running during installation.
3. Start by cutting equal lengths of 5/16” tubing to run from each horn to the 4-point banjo tting.
4. If the valve has a directional arrow on its body the arrow starts with the inlet and points out the outlet; the arrow should point
towards your horns.
5. Next connect your air valve’s inlet port to your air source unit using 1/2” air line and 1/2” to 1/2” PTC tting.
IV. WIRING YOUR VALVE & AIR SOURCE UNIT
Your train horn kit will use two completely independent circuits. One circuit will connect your horn trigger (push-button intermittent
switch, or toggled factory button) to your electric valve. The other circuit will connect your accessory trigger (ignition positive wire)
to your air source kit.

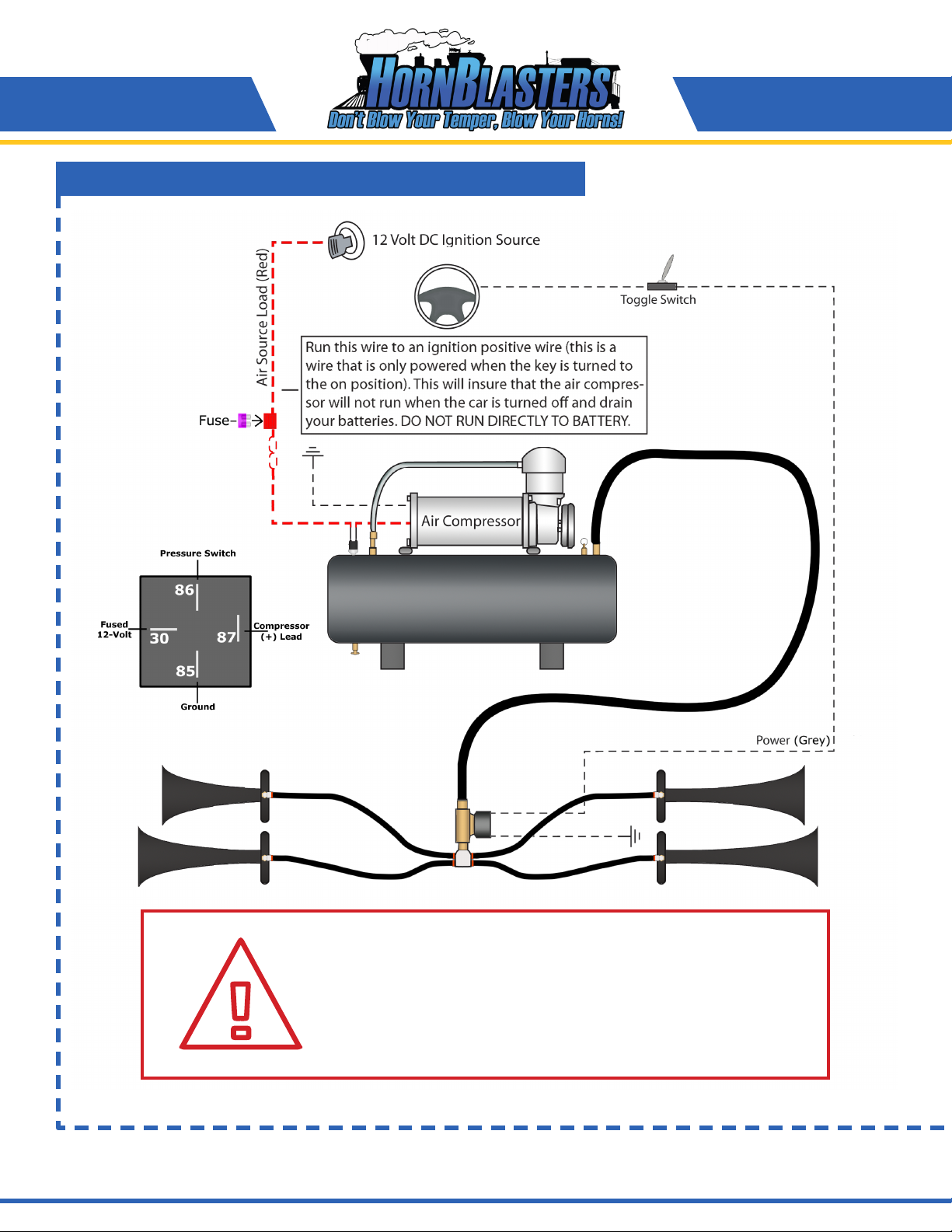

VALVE WIRING FLOW CHART
[Factory Horn Wire] » [Toggle Switch] » [Air Valve] » [Ground]
AIR SOURCE WIRING FLOW CHART
[Remote Wire/Accessory Wire] » [Inline Fuse] » [Air Source Unit] » [Ground]
CIRCUIT 1
1. Begin by wiring your horn trigger.
a. If you are intending to use your factory horn switch, start by locating the load wire of the horn button (positive when horn is depressed
in a standard vehicle) and wiring it to the included toggle switch.
b. If you are going to use a push button switch (intermittent toggle switch) wire a fused (5A) wire from any 12 volt source desired
(battery) to your switch.
2. Next wire your switch to any pole of your air valve.
3. Wire the other side of the air valve to ground.
4. Test your circuit by activating your trigger and listening for a ‘click’ from the valve.
CIRCUIT 2
1. Locate an accessory line in your vehicle that is capable of a 16 amp load.
2. Wire your accessory line using an inline fuse (35A) to your air source unit (Red Wire).
3. Ground the other side of your air source unit (Black Wire) to ground.
4. Your air compressor system will not turn on automatically when power is on (Key is in ‘accessory’ or ‘on’ position) and automatically turn
itself o upon reaching destination.
YOU’RE DONE!
It’s time to test your horns! Share your install photos on our facebook at www.facebook.com/hornblasters or instagram/twitter
@hornblasters and don’t forget to check www.trainhornforums.com, the largest train horn community on the internet.
INSTALLING YOUR TRAIN HORN KIT (cont.)
IMPORTANT: The air horns and connecting ttings up to the outlet of the air valve will use 5/16” air line. The air source
unit will use 1/2” air line to connect to the inlet port of the air valve.
IMPORTANT: Do not make any kinks in your air line. Doing so will disrupt air ow and the damage is irreversible.
IMPORTANT: The air valve is directional and must be properly installed. There is an arrow on the brass body of the valve
that shows the airow direction, the arrow must point towards the horn. Improper installation will cause the
valve to malfunction and create a constant air leak to the horns.

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
Disconnect electrical components and drain you air system before performing maintenance.
GENERAL AIR HORN SYSTEM MAINTENANCE
• Check your air horns for debris when appropriate and at least once a month and clean when necessary.
• Drain your air system at least every other week, to remove any condensation buildup on the inside of you air tank.
• Make sure you air compressor is clean and free from debris at all times.
• Periodically change your two stage air lter on your compressor.
TIPS
• Make sure your engine is running when you air compressors are in use to insure proper voltage and to prevent damage to your
system.
• Do not run your compressor above its maximum rated working pressure. Doing so will not only void you warranty, but may also
damage your compressor.
• The air horns are pre-tuned to a locomotive chord and to their loudest possible tone. Do not adjust the tuning screw on the
horns. Doing so will void your warranty and may damage the horns if improperly adjusted.
CAN’T FIGURE IT OUT?
No problem! Give us a call at 813-783-8058, or email at [email protected] and we’ll be more than happy to help you x
you system. Also feel free to visit our online horn community, www.trainhornforums.com, for more information.
PROBLEM
MAINTENANCE & TIPS
TROUBLESHOOTING
Air horn will not sound.
1. No pressure in air tank.
2. No power or toggle switch in ‘Off’ position.
3. Blown fuse.
4. Loose connections or bad ground in air valve circuit (circuit 1).
1. Check that air tank is pressurized.
2. Make sure all toggle switches are on.
3. Disconnect electrical components and replace fuse.
4. Check that all electrical circuits are secure and not corroded.
Horn tone changes
when sounded
1. A side tting as used to connect the air source (line from valve) to
the 4-point banjo manifold.
2. Air line connecting the horns is not of equal length.
1. Check that air source (line coming from valve) is entering the
center tting of the 4-point banjo manifold.
2. Check that the air line connecting each horn to the 4-point banjo
manifold is of equal length.
Excessive moisture
in horn or safety
discharge.
1. Excessive water in tank.
2. Compressor is exposed to high humidity.
1. Depressurize tank using safety, then drain tank. Tilt the tank to
drain moisture and drain more frequently.
2. Move the compressor to an area with less humidity.
Compressor will not
run.
1. No power or toggle switch in ‘Off’ position.
2. Blown fuse.
3. Motor overheat.
4. Faulty pressure switch.
1. Make sure all toggle switches are on.
2. Disconnect compressor from power & replace fuse (35A).
3. Let compressor cool off for about 30 minutes for thermal
overload switch to reset.
4. Replace pressure switch.
Thermal overload
protector cuts out
repeatedly.
1. Lack of proper ventilation/ambient temperature too high.
2. Compressor valves failed.
1. Move compressor to a well ventilated area or an area with a lower
ambient temperature.
2. Replace air compressor.
Excessive knocking or
rattling
1. Loose mounting bolts.
2. Worn bearing on eccentric or motor shaft.
3. Cylinder or piston ring is worn.
1. Tighten bolts.
2. Replace compressor.
3. Replace compressor.
Tank pressure drops
when compressor
shuts off
1. Loose drain cock.
2. Air valve or check valve is leaking.
3. Loose connections.
4. Defective safety valve.
1. Tighten drain cock.
2. Replace air valve or check valve.
3. Check all air connections with soap and water solution and
tighten as necessary.
4. Replace safety valve.
Compressor runs
continuously and air
ow lower than normal
1. Excessive air usage.
2. Loose connections.
3. Worn piston ring or inlet valve.
4. Clogged air lter element.
1. Decrease air usage.
2. Check all connections with soap and water solution and tighten
as necessary.
3. Replace compressor
4. Replace air lter element.
Compressor runs
continuously causing
safety valve to open.
1. Faulty pressure switch.
2. Defective safety valve.
1. Replace pressure switch.
2. Replace safety valve.

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
GENERAL PHOTOGRAPH SUBMISSION GUIDELINES
• Please submit clean, concise photographs. Make sure your subject is clearly visible and in focus.
• You may submit and digital image format either via email at [email protected], or via digital media (CD, DVD, etc).
• Make sure to include some kind of personal information with your submission. We would love to be able to contact you and
thank you.
INSTALLATION GALLERY SUBMISSION GUIDELINES
• Please take at least one photo of each major components of your installation (horns, compressor, tank, valve, switches, etc).
• Don’t forget to send us some shots of your vehicle too! If we can’t tell what the install is on, we probably won’t post it.
• Include as much installation information as possible.
¤ Who installed the system and when was it installed?
¤ How long did the install take?
¤ What is the year, model, and style of your vehicle?
¤ If you took your system to a shop, would you recommend the shop to others?
¤ Do you have any comments or tips about the installation?
¤ Anything else you want to tell us, we always appreciate your feedback!
• Optionally include a little personal information:
¤ Your name (if you would like your full name to be displayed, you have to let us know!)
GENERAL VIDEO SUBMISSION GUIDELINES
• We accept all kinds of media. Please provide us with the highest quality media to prevent video degradation.
• We can read all formats of video. We recommend using either the default your camera records with; or if you are compressing
the video, we recommend using AVI containers and Xvid, Divx, or a MPEG codec. We recommend AGAINST using any kind of
Windows Media*, Real Media*, or Apple QuickTime* formats.
• You may submit any digital image format either via email at [email protected], or via digital media (CD, DVD, etc).
• Make sure to include some kind of personal information with your submission. We would love to be able to contact you and
thank you!
*Windows, Windows Media, Real, Real Media, Apple, and QuickTime are all registered trademarks and copyright of their
respective owners.
GET INVOLVED IN THE TRAIN HORN COMMUNITY
No matter what your take is on your new train horn kit, it’s always good to have someone to share your stories with.
Trainhornforums.com is the largest train horn community online and provides a place to share photos of your ride, post videos,
catch up with other train horn and HornBlasters fans, meet other train horn enthusiasts, or even nd help with a complicated
question.
Go online to www.trainhornforums.com and sign up today!
Send in your installation photographs and any other media for a chance to be featured on our web site!
PHOTOGRAPH & MEDIA SUBMISSION GUIDELINES
@hornblasters #hornblasters
/hornblasters
Make sure to follow us on all the popular social media! Facebook, Snapchat, Twitter, Youtube, and
Instagram. Show o your install and tag us in all your photos!

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
2 GALLON SHOCKER INSTALLATION DIAGRAM
WARNING: To ensure the life of your system, reading and following these
instructions are recommended. Make sure to change lters and to drain the
moisture from your tank on a regular basis. Most factory horns are positively
activated. If your horn system is negatively activated, then you will need
to wire one of the leads from the value to a direct 12v power source. Then
wire the other lead to the megatively charged horn wire. Also if your vehicle
does not have an ignition positive source rated for 16AMPS, please use a
standard 40AMP relay.

6511 N 54th St
Tampa, FL 33610
[phone]
Fax: [phone]
www.hornblasters.com [email protected]
