Hoshizaki F-300BAJ User manual

Models
F-300BAJ
F-500BAJ
Self-Contained Flaker
Instruction Manual
Issued: 12/12/2016
hoshizakiamerica.com

2
WARNING
Only qualied service technicians should install and service the appliance. To
obtain the name and phone number of your local Hoshizaki Certied Service
Representative, visit www.hoshizaki.com. No installation or service should be
undertaken until the technician has thoroughly read this Instruction Manual.
Likewise, the owner/manager should not proceed to operate the appliance until the
installer has instructed them on its proper operation. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage. Proper installation is the responsibility of the installer. Product failure or
property damage due to improper installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the appliance.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, send an e-mail message, or write to the Hoshizaki Technical
Support Department for assistance.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
• Model Number
• Serial Number
• Complete and detailed explanation of the problem.

3
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications...................................................................................................................... 7
A. Electrical and Refrigerant Data ..................................................................................... 7
1. F-300BAJ ................................................................................................................. 7
2. F-500BAJ................................................................................................................. 7
B. Dimensions/Connections .............................................................................................. 8
1. F-300BAJ ................................................................................................................. 8
2. F-500BAJ................................................................................................................. 9
II. Installation and Operating Instructions ............................................................................ 10
A. Location ...................................................................................................................... 10
B. Checks Before Installation........................................................................................... 10
C. How to Remove Panels ...............................................................................................11
D. Setup............................................................................................................................11
E. Electrical Connection .................................................................................................. 12
F. Water Supply and Drain Connections .......................................................................... 14
G. Final Checklist ............................................................................................................ 16
H. Startup ........................................................................................................................ 17
I. Bin Control Check......................................................................................................... 18
J. Alarm Safeties.............................................................................................................. 20
III. Maintenance ................................................................................................................... 21
A. Maintenance Schedule................................................................................................ 22
B. Cleaning and Sanitizing Instructions ........................................................................... 23
IV. Preparing the Appliance for Periods of Non-Use ............................................................ 27
V. Disposal ........................................................................................................................... 28
IMPORTANT
This manual should be read carefully before the appliance is installed and operated.
Read the warnings and guidelines contained in this manual carefully as they
provide essential information for the continued safe use and maintenance of the
appliance. Retain this manual for any further reference that may be necessary.

4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the appliance, or damage to property.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the
appliance or property.
IMPORTANT Indicates important information about the installation, use, and
care of the appliance.
WARNING
The appliance should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for injury or damage resulting
from improper, incorrect, and unreasonable use. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly
water damage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precautions including the following:
• Only qualied service technicians should install and service the appliance.
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or damage.
• The appliance requires an independent power supply of proper capacity. See
the nameplate for electrical specications. Failure to use an independent power
supply of proper capacity can result in a tripped breaker, blown fuse, damage to
existing wiring, or component failure. This could lead to heat generation or re.
• THE APPLIANCE MUST BE GROUNDED: Failure to properly ground the
appliance may result in death, electric shock, or re.
• To reduce the risk of electric shock, do not touch the power switch, control switch,
or plug (on corded models) with damp hands.

5
WARNING, continued
For Corded Models
• This appliance is equipped with a NEMA5-15 three-prong grounding plug to
reduce the risk of potential shock hazards. Corded models must be plugged into
a properly grounded, independent 3-prong wall outlet. Ifthe outlet is a 2-prong
outlet, it is your personal responsibility to have a qualied electrician replace it
with a properly grounded, independent 3-prong wall outlet. Do not remove the
ground prong from the plug and do not use an adapter plug. Failure to follow these
instuctions may result in death, electric shock, or re.
• Before servicing, move the power switch to the "OFF" position. Unplug the
appliance from the electrical outlet.
• Do not use an extension cord.
• Do not use an appliance with a damaged power cord. The power cord should not
be altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the appliance, be sure to pull the
plug, not the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected to the
appliance. If it becomes necessary to remove or replace the power cord, be sure to
connect the power cord's ground wire.
For Hard-Wired Models
• Electrical connection must be hard-wired.
• Before servicing, move the power switch to the "OFF" position. Turn off the power
supply. Lockout/Tagout to prevent the power supply from being turned back on
inadvertently.
For All Models
• Do not splash, pour, or spray water directly onto or into the appliance. This might
cause short circuit, electric shock, corrosion, or failure.
• Do not make any alterations to the appliance. Alterations could result in electric
shock, injury, re, or damage to the appliance.
• Do not place ngers or any other objects into the ice discharge opening.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be properly supervised around the appliance.
• Do not climb, stand, or hang on the appliance or appliance door or allow children or
animals to do so. Serious injury could occur or the appliance could be damaged.
• Be careful not to pinch ngers when opening and closing the door. Be careful when
opening and closing the door when children are in the area.

6
WARNING, continued
• Do not use combustible spray or place volatile or ammable substances near the
appliance. They might catch re.
• Keep the area around the appliance clean. Dirt, dust, or insects in the appliance
could cause harm to individuals or damage to the appliance.
• Do not place anything on top of the appliance. Foreign objects or moisture could
enter the appliance and result in electric shock or re.
NOTICE
• Protect the oor when moving the appliance to prevent damage to the oor.
• Follow the water supply, drain connection, and maintenance instructions carefully
to reduce the risk of costly water damage.
• In areas where water damage is a concern, install in a contained area with a oor
drain.
• Install the appliance in a location that stays above freezing. Normal operating
ambient temperature must be within 45°F to 100°F (7°C to 38°C).
• If water collects in the bin and will not drain, turn off the appliance and close the
water supply line shut-off valve. Call for service.
• Do not leave the appliance on during extended periods of non-use, extended
absences, or in sub-freezing temperatures. To properly prepare the appliance for
these occasions, follow the instructions in "IV. Preparing the Appliance for Periods
of Non-Use."
• Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
• Do not place objects on top of the appliance.
• The storage bin is for ice use only. Do not store anything else in the storage bin.

7
I. Specications
A. Electrical and Refrigerant Data
The rating label and nameplate provide electrical and refrigerant data. The rating label
can be seen by removing the front panel. The nameplate is located on the rear panel.
For certication marks, see the nameplate.
We reserve the right to make changes in specications and design without prior notice.
1. F-300BAJ
Model Number F-300BAJ
AC Supply Voltage 115/60/1
Amperes 7.8 AMPS
Design Pressure HI-467PSI LO-250PSI
Refrigerant 404A 9.17 OZ.
2. F-500BAJ
Model Number F-500BAJ
AC Supply Voltage 115/60/1
Compressor 115V 10.5RLA 54.5LRA
Gear Motor 115V 2.4FLA 1/4 HP
Fan 115V 0.85A MAX
Other 115V 0.08A
Maximum Fuse Size 20 AMPS
Max. HACR Circuit Breaker (USA only) 20 AMPS
Max. Circuit Breaker (Canada only) 20 AMPS
Minimum Circuit Ampacity 20 AMPS
Design Pressure HI-467PSI LO-250PSI
Refrigerant 404A 1 LB. 0.6 OZ.

8
B. Dimensions/Connections
1. F-300BAJ
Unit: mm [in.]
SideFront
NOTICE
Allow 6" (15 cm) clearance at rear and
sides for proper air circulation and ease
of maintenance and/or service should
they be required. Allow 24" (61 cm)
clearance at top to allow for removal of
the auger.
Rear

9
2. F-500BAJ
Unit: mm [in.]
NOTICE
Allow 6" (15 cm) clearance at rear and
sides for proper air circulation and ease
of maintenance and/or service should
they be required. Allow 24" (61 cm)
clearance at top to allow for removal of
the auger.
Side
Rear
Front

10
II. Installation and Operating Instructions
WARNING
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• Failure to install, operate, and maintain the appliance in accordance with this
manual will adversely affect safety, performance, component life, and warranty
coverage and may result in costly water damage.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after installation. Make sure that none have fallen into the ice
storage bin.
A. Location
NOTICE
• The appliance is not intended for outdoor use. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature must be within 45°F to 90°F (7°C to 32°C). Operation of the
appliance, for extended periods, outside of these normal temperature ranges
may affect appliance performance.
• The appliance will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the appliance if the air temperature is going to go
below 32°F (0°C). See "IV. Preparing the Appliance for Periods of Non-Use."
• Appliance should not be located next to ovens, grills, or other high heat producing
equipment.
• Allow 6" (15 cm) clearance at rear and sides for proper air circulation and ease of
maintenance and /or service should they be required. Allow 24" (61 cm) clearance at top
to allow for removal of the auger.
• The location should provide a rm and level foundation for the appliance.
B. Checks Before Installation
• Visually inspect the exterior of the shipping container and immediately report any damage
to the carrier. Upon opening the container, any concealed damage should also be
immediately reported to the carrier.
• Remove the shipping carton, tape, and packing material. If any are left in the appliance, it
will not work properly.
• See the nameplate on the rear panel, and check that your voltage supplied corresponds
with the voltage specied on the nameplate.
• Remove the package containing the accessories.
• Remove the protective plastic lm from the panels. If the appliance is exposed to the sun
or to heat, remove the lm after the appliance cools.

11
C. How to Remove Panels
See Fig. 1
• Top Panel: Remove the screws. Lift up at the front slightly, push rearward, and lift off.
• Front Panel: Remove the screws. Lift up and pull towards you.
Top Panel
Storage Bin
Sliding Door
Front Panel
Fig. 1
D. Setup
1) See Fig. 2. Attach four 6" adjustable legs provided to the bottom of the appliance.
2) Position the appliance in the selected permanent location.
3) Level the appliance from side-to-side and front-to-rear by adjusting the legs.
Fig. 2
Model Shown: F-500BAJ
Model Shown: F-500BAJ

12
E. Electrical Connection
WARNING
• Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or damage.
• The appliance requires an independent power supply of proper capacity. See
the nameplate for electrical specications. Failure to use an independent power
supply of proper capacity can result in a tripped breaker, blown fuse, damage to
existing wiring, or component failure. This could lead to heat generation or re.
• THE APPLIANCE MUST BE GROUNDED: Failure to properly ground the
appliance may result in death, electric shock, or re.
• To reduce the risk of electric shock, do not touch the power switch, control switch,
or plug (on corded models) with damp hands.
• For Corded Models
• This appliance is equipped with a NEMA5-15 three-prong grounding plug to
reduce the risk of potential shock hazards. Corded models must be plugged into
a properly grounded, independent 3-prong wall outlet. Ifthe outlet is a 2-prong
outlet, it is your personal responsibility to have a qualied electrician replace it
with a properly grounded, independent 3-prong wall outlet. Do not remove the
ground prong from the plug and do not use an adapter plug. Failure to follow these
instuctions may result in death, electric shock, or re.
• Do not use an extension cord.
• Make sure the power switch is in the "OFF" position before plugging in or
unplugging the appliance to reduce the risk of electric shock.
• Do not use an appliance with a damaged power cord. The power cord should not
be altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could
result in electric shock or re. To unplug the appliance, be sure to pull the plug, not
the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected to the
appliance. If it becomes necessary to remove or replace the power cord, be sure to
connect the power cord's ground wire to this screw upon reattachment.
• For Hard-Wired Models
• Electrical connection must be hard-wired.
• Electrical connections must be made in accordance with the instructions on the
"WARNING" tag, provided with the pig tail leads on the junction box. See Fig. 3.
• Usually an electrical permit and services of a licensed electrician are required.
• The maximum allowable voltage variation is ±10 percent of the nameplate rating.

13
Fig. 3
115/60/1
WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage
to the icemaker. The white lead
must be connected to the neutral
conductor of the power source.
See diagram below.
4A5730-010
JUNCTION BOX
1
15V
BLACK
WHITE
L
N
F-500BAJ
For Hard-Wired Models
• The opening for the power supply connection is 7/8" DIA to t a 1/2" trade size conduit.
• The white lead must be connected to the neutral conductor of the power source.
NOTICE! Miswiring may result in damage to the icemaker.

14

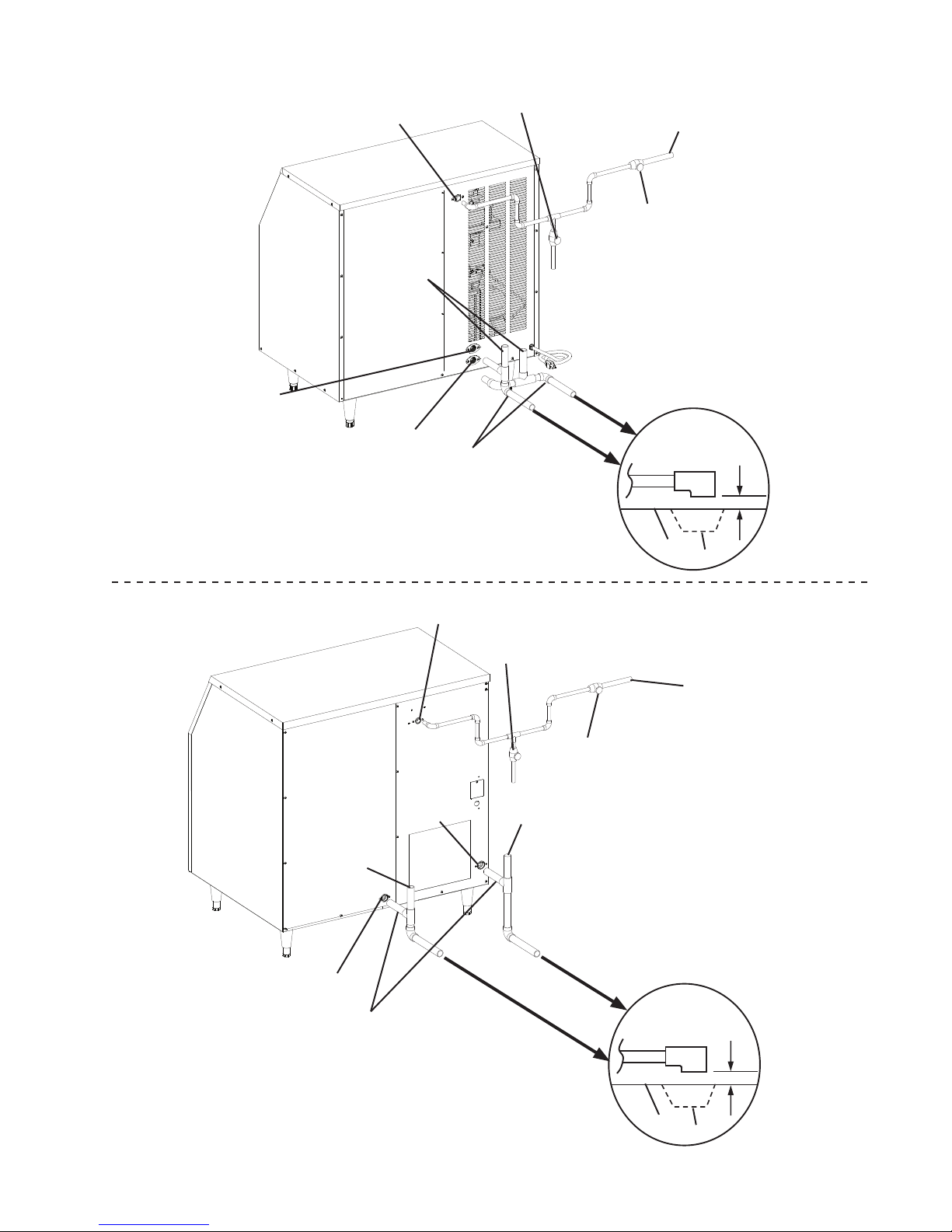

F. Water Supply and Drain Connections
See Fig. 4 and Fig. 5
WARNING
Water supply and drain connections must be installed in accordance with applicable
national, state, and local regulations.
NOTICE
• Normal operating water temperature must be within 45°F to 90°F (7°C to
32°C). Operation of the appliance, for extended periods, outside of this normal
temperature range may affect appliance performance.
• Water supply pressure must be a minimum of 10 PSIG and a maximum of
113PSIG. If the pressure exceeds 113 PSIG, the use of a pressure reducing valve
is required.
• External lters, strainers, or softeners may be required depending on water quality.
Contact your local Hoshizaki Certied Service Representative or local Hoshizaki
distributor for recommendations.
• A plumbing permit and services of a licensed plumber may be required in some areas.
• Drain lines must have 1/4" fall per foot (2 cm per 1 m) on horizontal runs to get a good
ow. A vented tee connection is also required for proper ow.
• Drain lines should not be piped directly to the sewer system. An air gap of a minimum of
2vertical inches (5 cm) must be between the end of the drain pipes from the icemaker
and ice storage bin and the oor drain.
Water Supply
Inlet
Minimum Water Supply
Line Size
Icemaker and Bin
Drain Outlets
Minimum Drain
Line Size
1/2" Female Pipe
Thread (FPT)
1/4" Nominal ID
Copper Water Tubing or
Equivalent
3/4" Female Pipe
Thread (FPT)
3/4" NominalID
Hard Pipe or
Equivalent

15
Shut-Off Valve
Drain Valve
Icemaker Water Supply Inlet
1/2" FPT
Bin Drain Outlet
3/4" FPT
Icemaker Drain Outlet
3/4" FPT
Separate piping to approved drain.
Leave a 2-inch (5-cm) vertical air
gap between the end of each pipe
and the drain.
Icemaker
Fig.5
F-500BAJ
Minimum 3/4" Nominal ID
Hard Pipe or Equivalent
Shut-Off Valve
Drain Valve
Icemaker Water Supply Inlet
1/2" FPT
Bin Drain Outlet
3/4" FPT
Icemaker Drain Outlet
3/4" FPT
Icemaker
Fig. 4
F-300BAJ Minimum 1/4" Nominal ID
Copper Water Tubing or
Equivalent
Minimum 3/4" Nominal ID
Hard Pipe or Equivalent
Separate piping to approved drain.
Leave a 2-inch (5-cm) vertical air
gap between the end of each pipe
and the drain.
Drain
2-inch
(5-cm) air gap
Floor
Be sure there is sufficient
extra water supply line and
drain line for the appliance
to be pulled out for service.
Drain
2-inch
(5-cm) air gap
Floor
Be sure there is sufficient
extra water supply line and
drain line for the appliance
to be pulled out for service.
Vent Tube
Minimum 1/4" Nominal ID
Copper Water Tubing or
Equivalent
Vent Tube
Vent Tube

16
G. Final Checklist
WARNING
CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after installation. Make sure that none have fallen into the ice
storage bin.
1) Is the icemaker level?
2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to
38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around?
3) Is there at least 6" (15 cm) at the rear and sides and 24" (61 cm) at the top of the
appliance for maintenance and service?
4) Have the shipping carton, tape, and packing material been removed from the
appliance?
5) Have all electrical and water connections been made? Do electrical and water
connections meet all national, state, and local code and regulation requirements?
6) Has the power supply voltage been checked or tested against the nameplate rating?
Is the power supply a properly grounded, independent 3-prong wall outlet on corded
models, or has a proper ground been installed to the icemaker on hard-wired models?
7) Are the water supply and drain lines sized as specied? Are the water supply line
shut-off valve and drain valve installed? Has the water supply pressure been checked to
ensure a minimum of 10 PSIG and a maximum of 113 PSIG?
8) Are all components, fasteners, and thumbscrews securely in place?
9) Has the end user been given the instruction manual, and instructed on how to operate
the appliance and the importance of the recommended periodic maintenance?
10) Has the end user been given the contact information of an authorized service agent?
11) Has the warranty card been lled out and forwarded to the factory for warranty
registration?

17
H. Startup
WARNING
• All parts are factory-adjusted. Improper adjustments may adversely affect safety,
performance, component life, and warranty coverage.
• To reduce the risk of electric shock, do not touch the power switch, control switch,
or plug (on corded models) with damp hands. If you have to slide the appliance
back for a built-in installation, make sure you do not damage or pinch the water
supply line, drain line, or power cord.
NOTICE
• If the appliance is turned off, wait for at least 3 min. before restarting the appliance
to prevent damage to the compressor.
• At startup, conrm that all internal and external connections are free of leaks.
1) Open the water supply line shut-off valve.
2) Remove the top and front panels.
3) Make sure the power switch is in the "OFF" position.
4a) Corded Models: Plug the icemaker into the electrical outlet.
4b) Hard-Wired Models: Turn on the power supply.
5) Move the control switch to the "ICE" position, then move the power switch to the "ON"
position to start the automatic icemaking process. Replace the front and top panels.
6) Once the unit starts to produce ice, allow it to run for another 30 min.
7) Remove the top and front panels.
8) Move the power switch to the "OFF" position, then move the control switch to the
"DRAIN" position. Move the power switch to the "ON" position, then replace the front
and top panels. Allow the water system to drain for 5 min.
9) Remove the top and front panels, then move the power switch to the "OFF" position.
10a) Corded Models: Unplug the icemaker from the electrical outlet.
10b) Hard-Wired Models: Turn off the power supply.
11) Pour warm water into the ice storage bin and melt any remaining ice. Clean the ice
storage bin liner using a neutral cleaner. Rinse thoroughly after cleaning.
12) Conrm bin control operation. See "II.I. Bin Control Check."

18
I. Bin Control Check
A mechanical bin control controls the level of ice in the ice storage bin.
IMPORTANT
• Make sure the icemaker has been installed as outlined in this manual and that the
water supply is on.
• Make sure S1 dip switch 7 is in the "OFF" position and dip switch 8 is in the "ON"
position.
1) Remove the top and front panels and the control box cover.
2) Make sure the power switch is in the "OFF" position.
3a) Corded Models: Plug the icemaker into the electrical outlet.
3b) Hard-Wired Models: Turn on the power supply.
4) Move the control switch to the "ICE" position, then move the power switch to the "ON"
position.
5) Make sure the "GM" LED on the control board is on. See Fig. 6. There is a delay of
at least 30 seconds before the "GM" LED turns on after power-up. After the "GM"
LED turns on, press the "SERVICE" button on the control board to bypass the 5-min.
compressor delay. WARNING! Risk of electric shock. Care should be taken not to
touch live terminals. Conrm the "COMP" LED turns on.
Note: If the "SERVICE" button is not pressed, the "COMP" LED turns on and
compressor energizes 5 min. after gear motor starts.
6) Once the "COMP" LED is on and compressor is energized, engage the actuator located
in the ice storage bin. See Fig. 7. The icemaker shuts down within 6 to 10 sec. Release
the actuator.
7) Move the power switch to the "OFF" position.
8a) Corded Models: Unplug the icemaker from the electrical outlet.
8b) Hard-Wired Models: Turn off the power supply.
9) Replace the control box cover in its correct position.
10a) Corded Models: Plug the icemaker into the electrical outlet.
10b) Hard-Wired Models: Turn on the power supply.
11) Move the control switch to the "ICE" position, then move the power switch to the "ON"
position to start the automatic icemaking process.
12) Replace the front and top panels.

19
"SERVICE"
Button
S1 Dip Switch
"GM" LED
"COMP" LED
Fig. 6
Control Board
Actuator
Fig. 7
Model Shown: F-500BAJ

20
J. Alarm Safeties
Should an alarm occur, follow the instructions in the table below to address the alarm.
If an alarm continues to occur, contact an authorized service agent.
WARNING
• Only qualied service technicians should service the appliance.
• To reduce the risk of electric shock, do not touch the icemaker power switch or
control switch with damp hands.
• Before servicing, move the power switch to the "OFF" position.
Corded Models: Unplug the appliance from the electrical outlet.
Hard-Wired Models: Turn off the power supply. Lockout/Tagout to prevent the
power supply from being turned back on inadvertently.
No. of Beeps
(every 5 sec.) Type of Alarm Reset Options
1Low Water Safety
UFS open>90 sec. after WV energized.
Automatic reset once water supply is restored
and UFS closes.
2Control Switch
In "DRAIN" position longer than 15 min.
Automatic reset once the control switch is
moved to the "ICE" position.
3High-Pressure Switch
First and second activation in 1 hr.
Automatic reset once pressure drops below
the high pressure threshold and the high
pressure switch closes.
4High-Pressure Switch
Third activation in 1 hr.
Call for service. To avoid possible catastrophic
failure, it is recommended to leave the
icemaker off until this alarm is resolved.
Manual reset. Turn power off and on again.
5Freeze Timer
WV off > 30 min. since last WV activation.
Manual reset. Turn power off and on again.
6Low Voltage
92VAC±5% or less
"POWER OK" LED turns off if voltage
protection operates.
The control voltage safeties automatically
reset when voltage is corrected.
7High Voltage
147VAC±5% or more
8Gear Motor
CCR contacts fail to close.
Manual reset. Turn power off and on again.
Legend: CB–control board; CCR–compressor control relay; UFS–upper oat switch;
WV–inlet water valve
