Hoshizaki KM-630MAF User manual

NO.
MAY 24, 1999
ISSUED:
71140
(FINAL) PARTS LIST
HOSHIZAKI
MODULAR CRESCENT CUBER
MODEL
KM-630MAF
KM-630MWF
KM-630MRF
JUNE 27, 2002
REVISED:

HA
2
KM-630MAF J-0 March, 1999
K-0 Dec. 1999
L-0 Dec. 2000
L-1 March, 2001
KM-630MWF J-0 March, 1999
K-0 Dec. 1999
L-0 Jan. 2001
KM-630MRF J-0 March, 1999
K-0 Dec. 1999
L-0 Jan. 2001

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)
skipped. So, "K" indicates "2000". part.
Ex.2 L-0 o = New part for "x" in the
"L" is the next in alphabetical same auxiliary code.
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably
in a year, this number advances.

HA
4

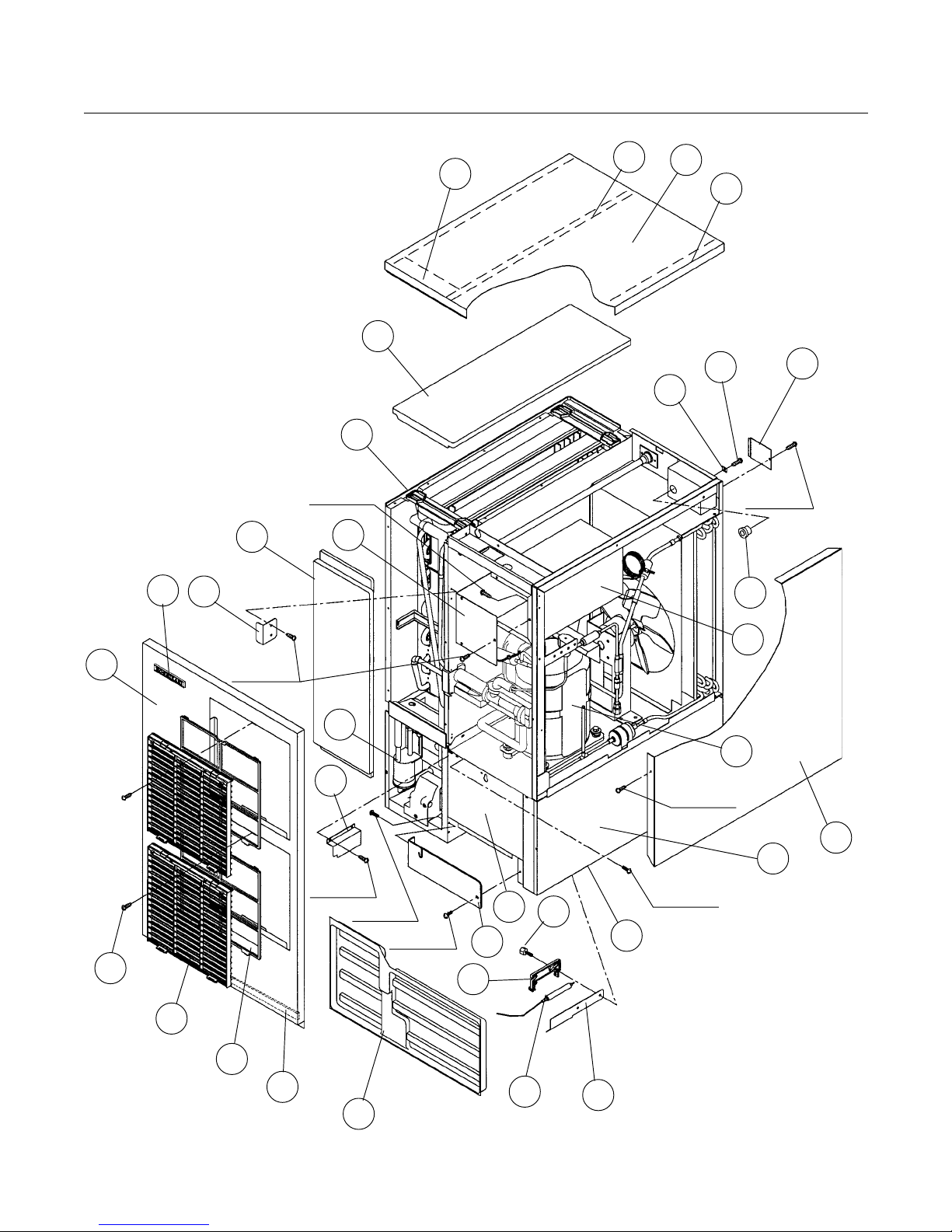

KM-630MAF A. ICE CUBER ASSEMBLY J-0, K-0, L-0, L-1
7P31-0408
8
27
21
22
23
7F31-0408
12
E
7
9
24
B
7P32-0408
5
20
14
15
7P31-0408
13
6
4
D
7P31-0408
10
28
19
18
17
25
16
7C32-0408 3
7P31-0408
11
7C32-0425
2
26
C
1
29

HA
5
MODEL: KM-630MAF TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0 L-1
B REFRIGERATION CIRCUIT - 1A0345A01 1 1 1 1
C WATER CIRCUIT HS-1205 1A0283A02 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1309A01 1 1 1 1
E LABEL LOCATION - 3A1150A01 1 1 1 1
1 EVAP. CASE HS-1011 1A0277G02 1 1 -
HS-1011 2A0532G02 1 1
2 BASE - 2A1321G01 1 1 1 1
3 FRAME ABS 3A0217G01 1 1 1 1
4 SQUARE WASHER BRASS 433537-02 1 1 1 1
5 SCREW-GROUNDING BRASS 433304-02 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1
7 DEFLECTOR SS 4A1951-01 1 1 1 1
8 BULB HOLDER ABS, PE 328919-01 1 1 1 1
9 SPACER PE 443545-01 1 1 1 1
10 THUMBSCREW SS, ABS 415949G03 2 2 2 2
11 BASE COVER SS 321525G01 1 1 1 1
12 TOP INSULATION PP, PUR 215730G01 1 1 1 1
13 FRONT INSULATION PP, PUR 215731G02 1 1 1 1
14 SIDE PANEL (R) SS 211811G02 1 1 1 1
15 CONTROL BOX COVER GS 3A0594-01 1 1 1 1
16 FRONT PANEL (A) SS 212935-02 1 1 1 1
17 LOUVER (B) - 103121-03 2 2 2 2
18 AIR FILTER (B) - 208283G03 2 2 2 2
19 TAPPING SCREW (BLACK) STEEL, 4x8 433954-01 2 2 2 2
20 BUSHING SR-34-2 420472-05 1 1 1 1
21 TOP PANEL SS (324859A01) 213544-01 1 1 x1
SS (324859A03) 220465-01 o1 1

HA
6
MODEL: KM-630MAF TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0 L-1
22 GASKET PVC 427014-04 2 2 2 2
23 GASKET (A) PVC 324859-03 1 1 1 1
24 INSULATION PE FOAM 438012-01 1 1 1 1
25 BARRIER GS 4A0352-01 1 1 1 1
26 SIDE PANEL (R) BASE SS 212620-01 1 1 1 1
27 FRONT COVER PS 2A0182-01 1 1 1 1
28 BARRIER-INSULATION GS 4A1167-01 1 1 1 1
29 GASKET L=554 4A0808L02 1 1

HA
7

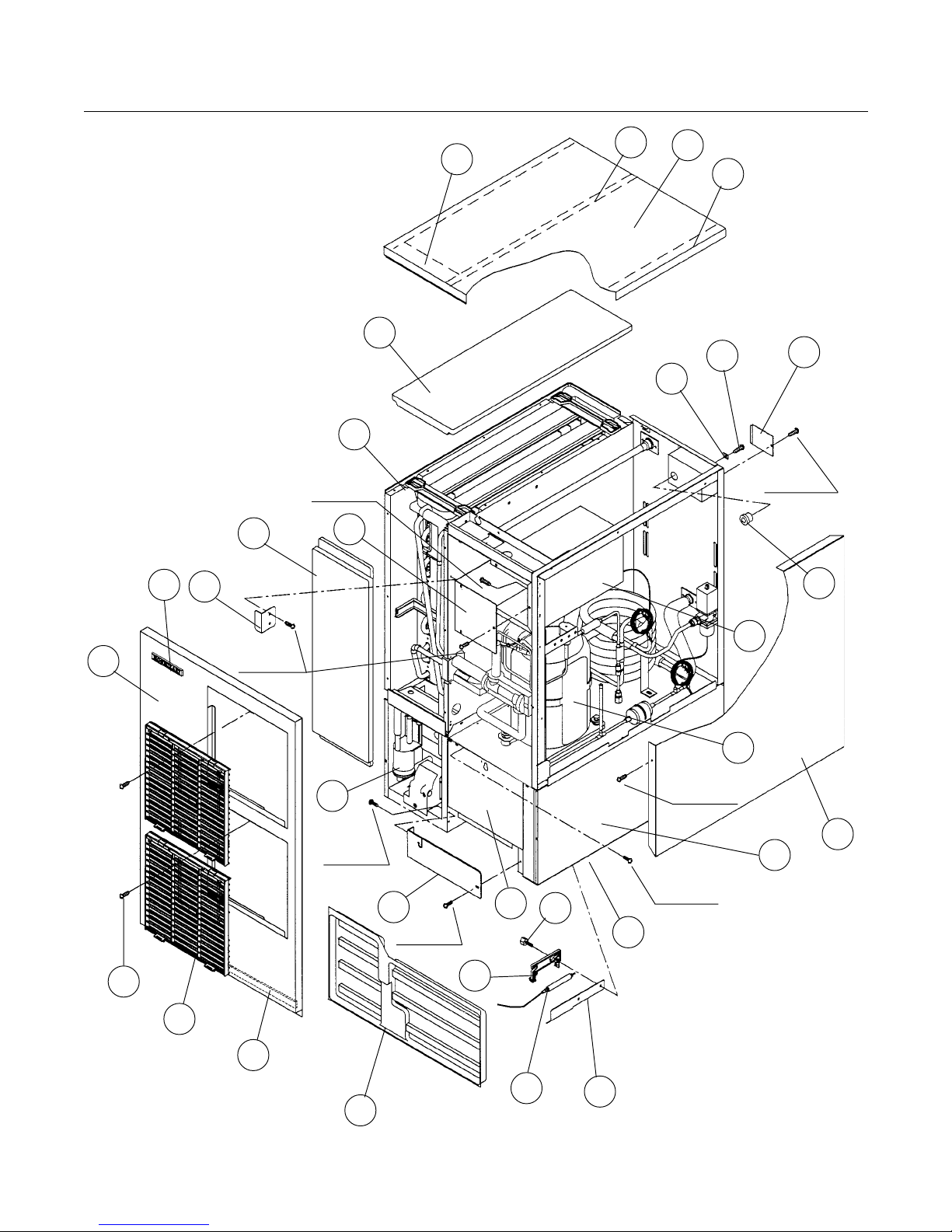

KM-630MWF A. ICE CUBER ASSEMBLY J-0, K-0, L-0
7P31-0408
8
23
18
19
20
7F31-0408
12
E
7
9
21
B
7P32-0408
5
17
14
15
7P31-0408
13
6
4
D
7P31-0408
10
24
16
7C32-0408
311
7C32-0425
2
22
C
1
25
26
27

HA
8
MODEL: KM-630MWF TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0343A01 1 1 1
C WATER CIRCUIT HS-1205 1A0283A02 1 1 1
D CONTROL BOX ASSEMBLY - 2A1309A02 1 1 1
E LABEL LOCATION - 3A1151A01 1 1 1
1 EVAP. CASE HS-1011 1A0277G02 1 1 -
HS-1011 2A0532G02 1
2 BASE - 2A1321G02 1 1 1
3 FRAME ABS 3A0217G01 1 1 1
4 SQUARE WASHER BRASS 433537-02 1 1 1
5 SCREW-GROUNDING BRASS 433304-02 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1
7 DEFLECTOR SS 4A1951-01 1 1 1
8 BULB HOLDER ABS, PE 328919-01 1 1 1
9 SPACER PE 443545-01 1 1 1
10 THUMBSCREW SS, ABS 415949G03 2 2 2
11 BASE COVER SS 321525G01 1 1 1
12 TOP INSULATION PP, PUR 215730G01 1 1 1
13 FRONT INSULATION PP, PUR 215731G02 1 1 1
14 SIDE PANEL (R) SS 211811G02 1 1 1
15 CONTROL BOX COVER GS 3A0594-01 1 1 1
16 FRONT PANEL (A) SS 212934-04 1 1 1
17 BUSHING SR-34-2 420472-05 1 1 1
18 TOP PANEL SS (324859A01) 213544-01 1 1 x1
SS (324859A01) 220465-01 o1
19 GASKET PVC 427014-04 2 2 2
20 GASKET (A) PVC 324859-03 1 1 1
21 INSULATION PE FOAM 438012-01 1 1 1
22 SIDE PANEL (R) BASE SS 212620-01 1 1 1
23 FRONT COVER PS 2A0182-01 1 1 1
24 BARRIER-INSULATION GS 4A1167-01 1 1 1
25 LOUVER (B) - 103121-03 2 2 2
26 TAPPING SCREW (BLACK) STEEL, 4x8 433954-01 2 2 2

HA
9
MODEL: KM-630MWF TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0
27 GASKET L=554 4A0808L02 1

HA
10
KM-630MRF A. ICE CUBER ASSEMBLY J-0, K-0, L-0
7P31-0408
8
23
18
19
20
7F31-0408
12
E
25
9
21
B
7P32-0408
5
17
14
15
7P31-0408
13
6
4
D
7P31-0408
10
24
16
7C32-0408
311
7C32-0425
2
22
7
C
1
26
27
28

HA
11
MODEL: KM-630MRF TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0288A01 1 1 1
C WATER CIRCUIT HS-1205 1A0283A02 1 1 1
D CONTROL BOX ASSEMBLY - 2A1309A02 1 1 1
E LABEL LOCATION - 3A1152A01 1 1 1
1 EVAP. CASE HS-1011 1A0277G02 1 1 -
HS-1011 1A0532G02 1
2 BASE - 2A1321G03 1 1 1
3 FRAME ABS 3A0217G01 1 1 1
4 SQUARE WASHER BRASS 433537-02 2 2 2
5 SCREW-GROUNDING BRASS 433304-02 2 2 2
6 JUNCTION BOX COVER GS 433410-01 2 2 2
7 BUSHING SR-34-2 420472-05 1 1 1
8 BULB HOLDER ABS, PE 328919-01 1 1 1
9 SPACER PE 443545-01 1 1 1
10 THUMBSCREW SS, ABS 415949G03 2 2 2
11 BASE COVER SS 321525G01 1 1 1
12 TOP INSULATION PP, PUR 215730G01 1 1 1
13 FRONT INSULATION PP, PUR 215731G02 1 1 1
14 SIDE PANEL (R) SS 211811G02 1 1 1
15 CONTROL BOX COVER GS 3A0594-01 1 1 1
16 FRONT PANEL (A) SS 212934-04 1 1 1
17 BUSHING SR-30-1 420472-03 1 1 1
18 TOP PANEL (324859A01) SS 213544-01 1 1 x1
(324859A03) SS 220465-01 o1
19 GASKET PVC 427014-04 2 2 2
20 GASKET (A) PVC 324859-03 1 1 1
21 INSULATION PE FOAM 438012-01 1 1 1
22 SIDE PANEL (R) BASE SS 212620-01 1 1 1
23 FRONT COVER PS 2A0182-01 1 1 1
24 BARRIER – INSULATION GS 4A1167-01 1 1 1
25 DEFLECTOR SS 4A1951-01 1 1 1
26 LOUVER (B) - 103121-03 1 1 1

HA
12
MODEL: KM-630MRF TITLE:A. ICE CUBER ASSEMBLY
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0
27 TAPPING SCREW (BLACK) STEEL, 4x8 433954-01 1 1 1
28 GASKET L=554 4A0808L02 1

HA
13

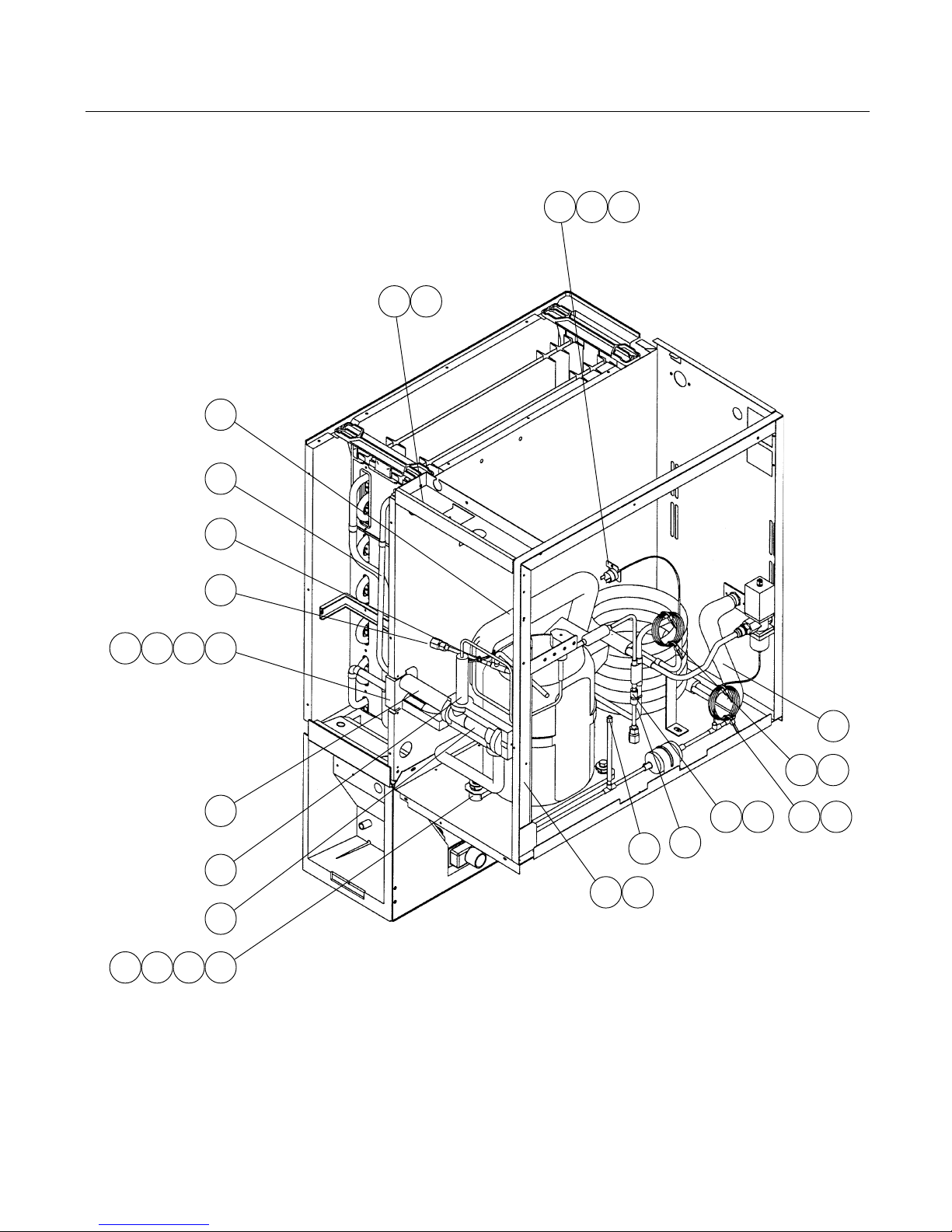

KM-630MAF B. REFRIGERATION CIRCUIT (1/2) J-0, K-0, L-0, L-1
5
30
39
34
59
54
21 22
20
18
41
48
14
1
63
6
28 29
3836
63
19
15 16 172
56
13
45444342
31
54

HA
14

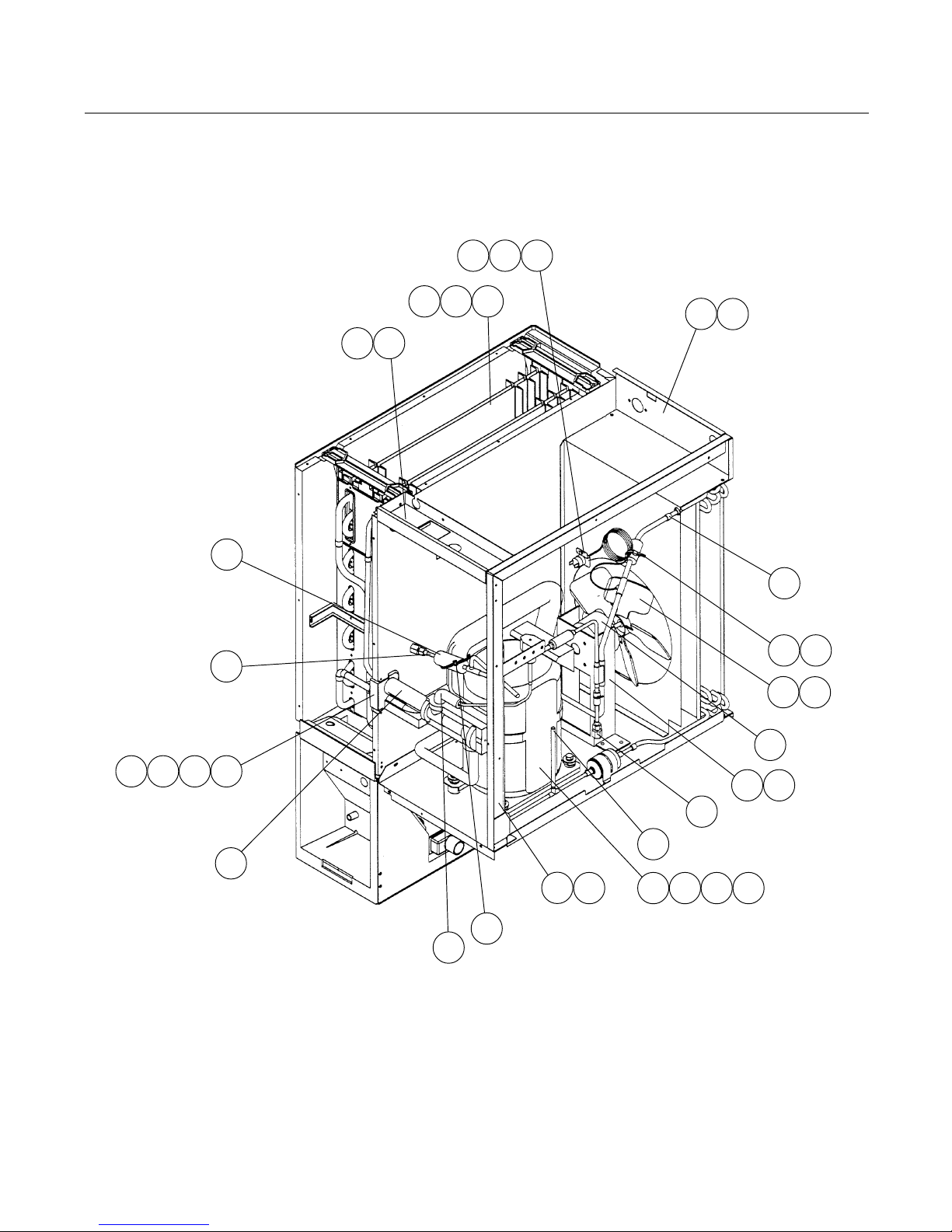

KM-630MAF B. REFRIGERATION CIRCUIT (2/2) J-0, K-0, L-0, L-1
57
61
26
11 12
910
47
7 8
54 63
41
62
23 24 25
46
40
32 33 34 35
5127
55
41
50 49
64
5253
65
58
SEE DETAIL "A"
DETAIL "A" THERMISTOR ATTACHMENTDETAILED HOLDER / EXPANSION VALVE
60
48

HA
15
MODEL: KM-630MAF TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0 L-1
1 SIDE FRAME - 2A1301G01 1 1 1 1
2 T2 SCREW 4x8 7P31-0408 4 4 4 4
3 REAR PANEL - 3A1133G01 1 1 1 1
4 T2 SCREW 4x8 7P31-0408 3 3 3 3
5 TOP FRAME - 3A1140-01 1 1 1 1
6 T2 SCREW 4x8 7P31-0408 2 2 2 2
7 CONDENSER - 218912-01 1 1 1 1
8 T2 SCREW 4x8 7P31-0408 2 2 2 2
9 BARRIER - 433693-02 1 1 1 1
10 T2 SCREW 4x8 7P31-0408 2 2 2 2
11 SHROUD - 2A1325-01 1 1 1 1
12 T2 SCREW 4x8 7P31-0408 2 2 2 2
13 INSULATION TUBE L=120 7762-1030 1 -
14 COMPRESSOR RS64C1E-CAV-219 4A1683-01 1 1 1 1
15 SPACER - 434404-01 4 4 4 4
16 GROMMET 527-0039-04 434403-01 4 4 4 4
17 BOLT 8x45 437889-01 4 4 4 4
18 FAN MOTOR BRACKET - 327180-01 1 1 1 1
19 HEX HEAD BOLT W/WASHER (LF) 5x12 7B0130512 4 4 4 4
20 FAN MOTOR U99081 7190-1031 440911-01 1 1 1 1
21 FAN BLADE AD10CW32 444898-01 1 1 1 1
22 SELF LOCKING NUT NO. 8-32 7N21I0832 4 4 4 4
23 DRIER CW-0325-S 4A1413-01 1 1 1 1
24 DRIER BRACKET - 4A0807-01 1 1 1 1
25 T2 SCREW 4x8 7P31-0408 2 2 2 2
26 HEAT EXCHANGER - 2A1586G01 1 1 1 1
27 EXP. VALVE HFE-10NHDU-3 4A1684-01 1 1 1 1
28 EVAPORATOR - 106396G01 1 1 1 1
29 T2 SCREW 4x16, SS 7P32-0416 4 4 4 4
30 T2 SCREW 4x12, SS 7P32-0412 2 2 2 2

HA
16
MODEL: KM-630MAF TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0 L-1
- 4A1759G01 1 x1 31 COPPER TUBE – ACCESS
VALVE - 4A2025G01 o1 1 1
32 VALVE BODY - 440352-01 1 1 1 1
33 COIL –VALVE ABS-25-1-HD-2 440353-01 1 1 1 1
34 BOLT - 440353F01 1 1 1 1
35 TRUSS HEAD SCREW 4x8 7C31-0408 2 2 2 2
36 PRESSURE SWITCH ACB-1UB09 433441-07 1 1 1 1
37 - - - - -
38 PRESSURE SWITCH
BRACKET
- 434938-01 1 1 1 1
39 T2 SCREW 4x8 7P31-0408 1 1 1 1
40 COPPER TUBE (E) –HIGH
SIDE
COPPER 3A1213G01 1 1 1 1
FV180D001 446715-01 1 x1 41 ACCESS VALVE
TCJ-2F20NHDU-1 457729-01 o1 1 1
42 RUBBER TUBE (A) RUBBER 3A1044-01 1 1 1 1
43 RUBBER TUBE (B) - 3A1045-01 1 1 1 1
44 INSULATION HOLDER - 4A1550-01 1 1 1 1
45 T2 SCREW 4x8, SS 7P32-0408 2 2 2 2
46 COPPER TUBE (A) –HIGH
SIDE
COPPER 3A1157G02 1 1 1 1
47 COPPER TUBE (B) –HIGH
SIDE
COPPER 4A1782G01 1 1 1 1
48 ENDCAPS - 4A1413F01 2 2 2 2
49 CLAMP - 443461-02 1 1 1 1
50 HOLDER –EXP. VALVE 3/8”3A0107-01 1 1 1 1
51 EXP. VALVE COVER - 3A0944-01 1 1 1 1
52 THERMISTOR - 429006-03 1 1 1 1
53 HOLDER –THERMISTOR - 427430-01 1 1 1 1
54 INSULATION TUBE L=40 7762-1020 2 3 2 3
55 COPPER TUBE –LOW SIDE COPPER 3A1193G01 1 1 1 1

HA
17
MODEL: KM-630MAF TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0 L-1
56 INSULATION TUBE L=150 7762-1020 1 -
57 COPPER TUBE (A) –HOT GAS COPPER 4A1755-01 1 1 1 1
58 CABLE TIE CV-200 7920-0010 3 3 3 3
59 BUSHING OCB-625 428394-03 1 1 1 1
60 ELBOW COPPER 417395-03 1 1 1 1
61 STRAINER - 441569-02 1 1 1 1
62 COPPER TUBE (F) –HIGH
SIDE
COPPER 4A1108-01 1 1 1 1
63 CABLE TIE CV-150 7920-0003 4 4 4 4
64 INSULATION THERMISTOR (A) PE FOAM 439368-01 1 1 1 1
65 INSULATION THERMISTOR (B) PE FOAM 439368-02 1 1 1 1

HA
18
KM-630MWF B. REFRIGERATION CIRCUIT (1/2) J-0, K-0, L-0
25
3
41
43
47
30
54535251
42
37
50
10987
5 6
59 34
47 26 26 47
26 47
46
4
27 28

HA
19
KM-630MWF B. REFRIGERATION CIRCUIT (2/2) J-0, K-0, L-0
36
35
1 2
39
11 12 13
31 32 33
45
44
38
14 15 16
40
21 22 23 24
17
201918
29
SEE DETAIL "A"
DETAIL "A" THERMISTOR ATTACHMENT
DETAILED HOLDER / EXPANSION VALVE
61
5556
62
58
49 48
60

HA
20
MODEL: KM-630MWF TITLE:B. REFRIGERATION CIRCUIT
REQUIRED NUMBER
INDEX
NO.
DESCRIPTION MATERIAL OR MODEL
NUMBER
PART
NUMBER J-0 K-0 L-0
1 REAR PANEL - 2A1335G01 1 1 1
2 T2 SCREW 4x8 7P31-0408 5 5 5
3 TOP FRAME - 3A1140-01 1 1 1
4 T2 SCREW 4x8 7P31-0408 2 2 2
5 SIDE FRAME - 2A1301G01 1 1 1
6 T2 SCREW 4x8 7P31-0408 4 4 4
7 COMPRESSOR RS64C1E-CAV-219 4A1683-01 1 1 x1
RS64C2E-CAV-219 4A2302-01 o1
8 SPACER - 434404-01 4 4 4
9 GROMMET 527-0039-04 434403-01 4 4 4
10 BOLT 8x45 437889-01 4 4 4
11 WASHER - 4A0655-03 3 3 3
12 CONDENSER - 212929-03 1 1 1
13 HEX HEAD BOLT W/WASHER (LF) 5x10 7B0130510 3 3 3
14 DRIER CW-0325-S 4A1413-01 1 1 1
15 DRIER BRACKET - 4A0807-01 1 1 1
16 T2 SCREW 4x8 7P31-0408 2 2 2
17 EXP. VALVE HFE-10NHDU-03 4A1684-01 1 1 1
18 EVAPORATOR - 106396G01 1 1 1
19 T2 SCREW 4x16 7P31-0416 4 4 4
20 T2 SCREW 4x12 7P31-0412 2 2 2
21 VALVE BODY 70 440352-01 1 1 1
22 COIL-VALVE ABS-25-1-HD-2 440353-01 1 1 1
23 BOLT - 440353F01 1 1 1
24 TRUSS HEAD SCREW 4x8 7C31-0408 2 2 2
25 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1
26 INSULATION TUBE L=40 7762-1020 3 3 3
27 PRESSURE SWITCH BRACKET - 434938-01 1 1 1
