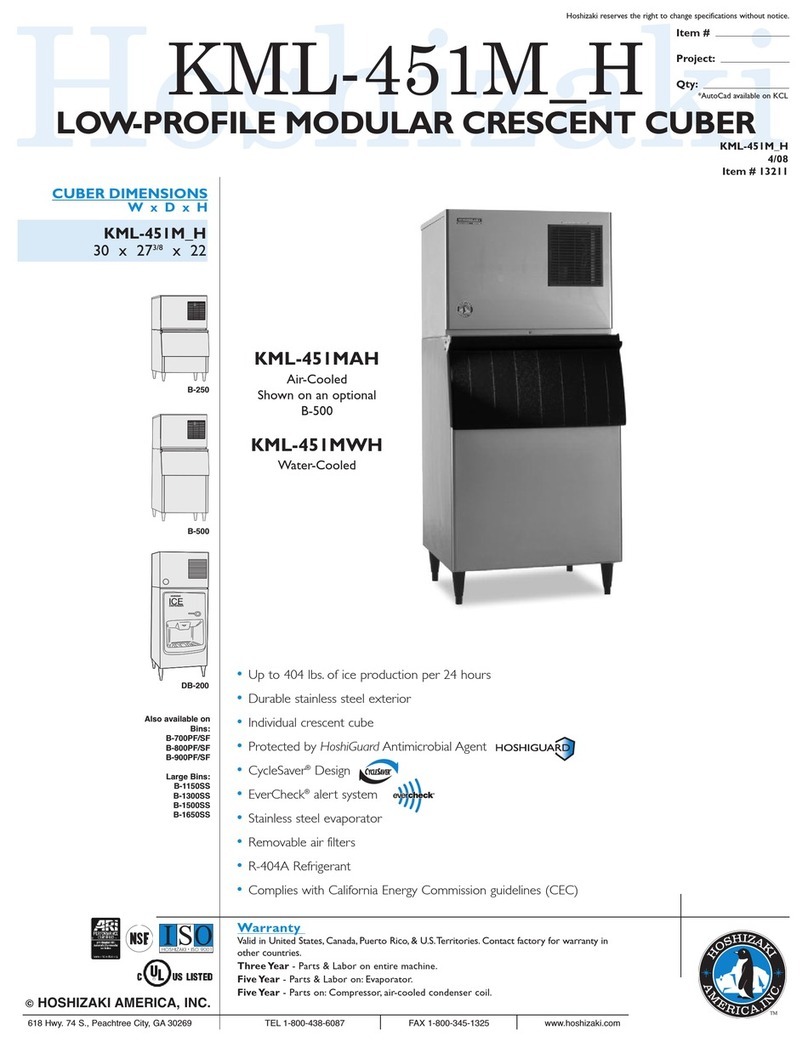

Hoshizaki KML-451MWH User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
KML-451MAH
KML-451MWH
Modular Crescent Cuber
Hoshizaki America, Inc.
Number: 71262
Issued: 10-12-2006
Revised: 9-25-2009
PARTS LIST

2
CONTENTS
Auxiliary Codes...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Cuber Assembly .......................................................................................................... 5
KML-451MAH.................................................................................................................... 5
KML-451MWH................................................................................................................... 8
B. Refrigeration Circuit......................................................................................................... 10
KML-451MAH.................................................................................................................. 10
KML-451MWH................................................................................................................. 14
C. Water Circuit.................................................................................................................... 18
D. Control Box Assembly...................................................................................................... 22
E. Label Location................................................................................................................. 24
KML-451MAH.................................................................................................................. 24
KML-451MWH................................................................................................................. 26
F. Top Panel Assembly ......................................................................................................... 28
G. Front Panel Assembly ..................................................................................................... 29
H. Accessories & Packaging ................................................................................................ 30

3
Auxiliary Codes
KML-451MAH R-0 June 2006
S-1 January 2007
S-2 December 2007
T-0 January 2008
T-1 November 2008
T-2 December 2008
U-0 January 2009
U-1 August 2009
KML-451MWH R-0 June 2006
S-1 April 2007
S-2 December 2007
T-0 January 2008
U-0 January 2009
U-1 January 2009
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This
is the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.

4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene -styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel

5
A. Ice Cuber Assembly
KML-451MAH
R-0 to U-1
1
B
C
G1
DD1
E
F
G
2
5a
4
13a
35
7
9
11
12
13
14
15
16
17
19
18
20
10
2a
21
6
S-2 and later
22
For Thermostat, see
"D. Control Box
Assembly"
24
23
R-0, S-1
6a
9a
22a
22b
8

6
Title: A. Ice Cuber Assembly Model: KML-451MAH
Index
No. Description
Material Or
Model Number Part Number
Required Number
R-0
S-1
S-2
T- 0
T- 2
U-0 T- 1 U-1
B Refrigeration Circuit - 1A1143A01 1 1 -
1A1678A01 1 1
C Water Circuit - 1A1186A01 1 1 -
1A1186A02 1 -
1A1186A04 1
DControl Box Assembly - 2A2541A01 1 1 -
2A4901A01 1 -
2A4901A03 1
D1 T2 Screw 4×8 7P31-0408 3 3 3 3
E Label Location - 3A3915A01 1 1 -
3A5154A01 1 -
3A5480A01 1
FTop Panel Assembly - 3A1862A01 1 1 1 1
GFront Panel Assembly - 3A1859A01 1 1 1 1
G1 Truss Head Screw 4×8, SS 7C32-0408 1 1 1 1
1 Evaporator Case HS-1014 2A2113G02 1 1 1 1
2 Control Box Cover GS 3A2371-01 1 1 1 1
2a T2 Screw 4×8 7P31-0408 3 3 3 3
3Square Washer Brass 433537-02 1 1 1 1
4 Screw-Grounding Brass 433304-02 1 1 1 1
5 Junction Box Cover GS 433410-01 1 1 1 1
5a T2 Screw 4×8 7P31-0408 1 1 1 1
6 Thermostat Extension Bracket SS 4A3436-01 1 -
4A4358-01 1 1 1
6a Thumbscrew SS, ABS 415949G10 2 2 2 2
7 Spacer PE 443545-01 2 -
8 Wire Saddle VWS4238-C 4A0338-02 2 2 2 2
9 Bin Control Cover GS 3A0664G01 1 1 1 1
9a Thumbscrew SS, ABS 415949G08 2 2 2 2
10 Capillary Ring EP Rubber 425307-01 1 1 1 1
11 Top Insulation PP 215730G01 1 1 1 1
12 Front Insulation - 2A0664G01 1 1 -
2A4540A01 1 1
13 Side Panel (R) SS 2A2111G01 1 1 1 1
13a T2 Screw 4×8, SS 7P32-0408 1 1 1 1
14 Louver ABS 1A0548-01 2 2 2 2
15 Push Retainer - 4A2414-01 6 6 6 6
16 Air Filter ABS 2A2063G01 2 2 2 2
17 Bushing SR-30-1 420472-03 1 1 1 1
18 Gasket L=655 4A0808L02 2 2 2 2
19 Gasket L=190 4A0808L02 1 1 1 1
20 Gasket L=762 4A0808L02 1 1 1 1
21 Silicone Hose L=310 7730I3812 1 1 1 1

7
Title: A. Ice Cuber Assembly Model: KML-451MAH
Index
No. Description
Material Or
Model Number Part Number
Required Number
R-0
S-1
S-2
T- 0
T- 2
U-0 T- 1 U-1
22 Bulb Holder - 3A3903-01 1 1 1
22a Thumbscrew - 415949G11 2 2 2
22b NSF Plate - 4A4401G01 1 1 1
23 Gasket L=170 4A0808L02 1 1
24 Gasket L=112 4A0808L02 1 1

8
A. Ice Cuber Assembly
KML-451MWH
R-0 to U-1
9
1
B
C
DD1
E
F
G1
G
2a
2
5a
13a
4
5
10
17
11
16
15
14
13
12 3
7
18
6
R-0, S-1
S-2 and later
19
For Thermostat, see
"D. Control Box
Assembly"
6a
9a
8
19a
19b

9
Title: A. Ice Cuber Assembly Model: KML-451MWH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
S-1
S-2
to
U-0
U-1
(A-G)
U-1
(H-M)
B Refrigeration Circuit - 1A1144A01 1 1 -
1A1679A01 1 1
C Water Circuit - 1A1186A01 1 1 -
1A1186A02 1 -
1A1186A04 1
DControl Box Assembly - 2A2541A02 1 1 -
2A4901A02 1 -
2A4901A04 1
D1 T2 Screw 4×8 7P31-0408 3 3 3 3
E Label Location - 3A3916A01 1 1 -
3A5155A01 1 -
3A5483A01 1
FTop Panel Assembly - 3A1862A01 1 1 1 1
GFront Panel Assembly - 3A1859A02 1 1 1 1
G1 Truss Head Screw 4×8, SS 7C32-0408 1 1 1 1
1 Evaporator Case - 2A2113G02 1 1 1 1
2 Control Box Cover GS 3A2371-01 1 1 1 1
2a T2 Screw 4×8 7P31-0408 3 3 3 3
3Square Washer BRASS 433537-02 1 1 1 1
4 Screw-Grounding BRASS 433304-02 1 1 1 1
5 Junction Box Cover GS 433410-01 1 1 1 1
5a T2 Screw 4×8 7P31-0408 1 1 1 1
6 Thermostat Extension Bracket SS 4A3436-01 1 -
4A4358-01 1 1 1
6a Thumbscrew SS, ABS 415949G10 2 2 2 2
7 Spacer PE 443545-01 2 -
8 Wire Saddle VWS4238-C 4A0338-02 2 2 2 2
9 Bin Control Cover GS 3A0664G01 1 1 1 1
9a Thumbscrew SS, ABS 415949G08 2 2 2 2
10 Capillary Ring EP RUBBER 425307-01 1 1 1 1
11 Top Insulation PP 215730G01 1 1 1 1
12 Front Insulation PP 2A0664G01 1 1 1 1
13 Side Panel (R) SS 2A2111G01 1 1 1 1
13a T2 Screw 4×8, SS 7P32-0408 1 1 1 1
14 Bushing SR-30-1 420472-03 1 1 1 1
15 Gasket L=655 4A0808L02 2 2 2 2
16 Gasket L=190 4A0808L02 1 1 1 1
17 Gasket L=762 4A0808L02 1 1 1 1
18 Silicone Hose L=310 7730I3812 1 1 1 1
19 Bulb Holder - 3A3903-01 1 1 1
19a Thumbscrew SS, ABS 415949G11 2 2 2
19b NSF Plate - 4A4401G01 1 1 1

10
B. Refrigeration Circuit
KML-451MAH
R-0 to T-0, T-2, U-0
1a
1
19a
2a
2
6789
11 12
13 14
15
16 17
18
19
25
24
22 23 23a
44a
33a
5a 5b 5c
5
10 10a
11a
20 21a
21 21b
25a
26
28
26
27
29
30
31
32
33
34
35
36
37
38
41
42
43
44
45
41
42a
43a
41
41 46
46
THERMISTOR DETAIL
EXPANSION VALVE BULB DETAIL
39 40 40a

11
B. Refrigeration Circuit
KML-451MAH
T-1, U-1
1a
1
19a
2a
2
678
11
12
13 14
15
16 17
18
19
25
24
22
44a
33a
5a 5b 5c
5
10 10a
11a
20 21a
21 21b
25a
28
26 27
29
30
32
33
34
35
36
37
38
39 40
41
42
43
44
41
40a
42a
43a
41 46
THERMISTOR DETAIL
EXPANSION VALVE BULB DETAIL

12
Title: B. Refrigeration Circuit Model: KML-451MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
T- 0
T- 2
U-0
T- 1
U-1
1 Condenser Support GS 3A3870-01 1 1
1a T2 Screw 4×8 7P31-0408 5 5
2 Condenser S-0799 2A0640-01 1 1
2a T2 Screw 4×8 7P31-0408 3 3
3 Barrier GS 4A0932-01 1 1
3a T2 Screw 4×8 7P31-0408 2 2
4 Shroud GS 3A0597G02 1 1
4a T2 Screw 4×8 7P31-0408 7 5
5 Compressor RS43C2E-
CAA-219
4A2300-01 1 -
RST45C1E-
CAA-202
4A4479-01 1
5a Spacer - 434404-01 4 -
4A2595-01 4
5b Grommet - 434403-01 4 -
4A2593-01 4
5c Bolt 8×45 437889-01 4 4
6 Terminal Cover - 4A2300F01 1 -
4A4479F01 1
7 Spring Clip - 4A2300F02 1 -
4A4479F02 1
8 Protector - 4A1805-01 1 -
4A4481-01 1
9 Protector Holder - 437339-01 1 -
10 Fan Motor Bracket GS 3A3967-01 1 1
10a Hex Head Bolt w/Washer (LF) 5×12 7B0130512 4 4
11 Fan Motor 5KCP84
DFK148S
4A3158-01 1 1
11a Self Locking Nut NO. 8-32 7N21I0832 4 4
12 Fan Blade AD10CW40 4A4014-01 1 1
13 Drier C-03E126 4A2666-01 1 1
14 Nylon Tie PLWP3H-TL 8911-0301 1 1
15 Expansion Valve HFE-10NHDU-4 4A4008-01 1 -
HFE-10NHDU-3 4A1684-01 1
16 Holder/Expansion Valve-3/8 SS 3A0107-01 1 1
17 Clamp SS 443461-02 1 1
18 Expansion Valve Cover PE FOAM 3A0944-01 1 1
19 Evaporator Assembly - 2A0717G01 1 1
19a T2 Screw 4×16 7P31-0416 4 4
20 Valve Body-Hot Gas ATS-B7SHDU-2 4A3978-01 1 1
21 Coil-Valve AMS-C12HDU-3 4A3277-01 1 1
21a Bolt - 4A3277F01 1 1
21b Truss Head Screw 4×8 7C31-0408 2 2
22 Pressure Switch ACB-1UB09 433441-07 1 -
ACB-1UB44 463180-04 1

13
Title: B. Refrigeration Circuit Model: KML-451MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
T- 0
T- 2
U-0
T- 1
U-1
23 Pressure Switch Bracket GS 434938-01 1 -
23a T2 Screw 4×8 7P31-0408 1 -
24 Strainer - 4A0397-01 1 -
441569-02 1
25 Bracket GS 4A1406-01 1 1
25a T2 Screw 4×8 7P31-0408 2 2
26 Access Valve TCJ-
2F20NHDU-1
457729-01 2 2
27 Copper Tube (A)-High Side Copper 3A3789G01 1 -
2A4919G01 1
28 Copper Tube (C)-High Side Copper 3A3790G01 1 -
Copper Tube (B)-High Side 3A5164-01 1
29 Copper Tube (D)-High Side Copper 3A3788G01 1 1
30 Copper Tube (E)-High Side Copper 3A3783-01 1 -
4A4693-01 1
31 Copper Tube (A)-Hot Gas Copper 4A1878-01 1 -
32 Copper Tube (B)-Hot Gas Copper 2A3691G01 1 1
33 Copper Tube (A)-Access
Valve
Copper 3A3974G01 1 -
Copper Tube-Access Valve 3A4783G01 1
34 Heat Exchanger Copper 2A3685G01 1 -
2A4894G01 1
35 Thermistor - 429006-03 1 1
36 Holder-Thermistor Copper 427430-01 1 1
37 Insulation-Thermistor (A) PE FOAM 439368-01 1 1
38 Insulation-Thermistor (B) PE FOAM 439368-02 1 1
39 Insulated Rubber Tube EPDM 4A1008G01 1 1
40 Insulation Holder SS 3A1084-01 1 -
4A3902-01 1
40a T2 Screw 4×8 7P31-0408 2 2
41 Cable Tie PLT2S-M 8911-0200 12 14
42 Frame (A) GS 2A0645-01 1 1
42a T2 Screw 4×8 7P31-0408 4 4
43 Frame (B) GS 3A0595-01 1 1
43a T2 Screw 4×8 7P31-0408 4 4
44 Elbow COPPER 4A1059-01 1 1
45 Elbow COPPER 417395-03 1 -
46 Insulation Tube L=30 7762-1020 3 3

14
B. Refrigeration Circuit
KML-451MWH
R-0 to U-0
39
38
37 36
46
29
30 32
31
41
43
42
42
46
42 46
46
46
45
40
28
1a
3a
6a
8
24
2a
22b 2c
25
20
21
14a
15 16
17a
19a
21
16a
42 4622 23
22a
16b
26
27
19
33
35
34
44
45a
44a
46
41a
31a
18
17
14
13
1211
9
7
6
5
3
7a
4
10
1
EXPANSION VALVE BULB DETAIL
THERMISTOR DETAIL

15
B. Refrigeration Circuit
KML-451MWH
U-1
39
38
37
36
46
29
30
32
31
41
43
42
46
46
45
40
1a
6a
8
24
2a
22b 2c
25
20
21
14a
15 16
17a
16a
22 23
22a
16b
26
27
33
35
44
45a
44a
46
41a
31a
18
17
14
13
1211
9
7
6
7a
3a 5
34
10
1
EXPANSION VALVE BULB DETAIL
THERMISTOR DETAIL

16
Title: B. Refrigeration Circuit Model: KML-451MWH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
U-0 U-1
1 Rear Panel (B) GS 3A0630G03 1 1
1a T2 Screw 4×8 7P31-0408 9 9
2 Compressor RS43C2E-
CAA-219
4A2300-01 1 -
RST55C1E-
CAA-202
4A4376-01 1
2a Spacer - 434404-01 4 -
4A2595-01 4
2b Grommet - 434403-01 4 -
4A2593-01 4
2c Bolt 8×45 437889-01 4 4
3 Terminal Cover - 4A2300F01 1 -
4A4376F01 1
3a Spring Clip - 4A2300F02 1 -
4A4376F02 1
4 Protector - 4A1805-01 1 -
4A2634-02 1
5 Protector Holder - 437339-01 1 -
6 Condenser HS-0160 2A2359G01 1 1
6a Hex Head Bolt w/Washer (LF) 5×12 7B0130512 2 2
7 Condenser Support GS 2A2367-01 1 1
7a T2 Screw 4×8 7P31-0408 4 4
8 Drier C-03E126 4A2666-01 1 1
9Nylon Tie PLWP3H-TL 8911-0301 1 1
10 Expansion Valve HFE-10NHDU-4 4A4008-01 1 -
HFE-10NHDU-3 4A1684-01 1
11 Holder/Expansion Valve 3/8 SS 3A0107-01 1 1
12 Clamp SS 443461-02 1 1
13 Expansion Valve Cover PE FOAM 3A0944-01 1 1
14 Evaporator Assembly - 2A0717G01 1 1
14a T2 Screw SS, 4×16 7P32-0416 4 4
15 Valve Body-Hot Gas ATS-
B7SHDU-2
4A3978-01 1 1
16 Coil-Valve AMS-
C12HDU-3
4A3277-01 1 1
16a Bolt - 4A3277F01 1 1
16b Truss Head Screw 4×8 7C31-0408 2 2
17 Bracket GS 4A1406-01 1 1
17a T2 Screw 4×8 7P31-0408 2 2
18 Pressure Switch ACB-2UB04 433441-05 1 -
ACB-1UB43 463180-05 1
19 Pressure Switch Bracket GS 434938-01 1 -
19a T2 Screw 4×8 7P31-0408 1 -
20 Strainer - 4A0397-01 1 -
441569-02 1
21 Access Valve - 457729-01 2 2
22 Water Regulator V46DA-6 4A0911-06 1 1
22a Truss Head Screw 4×6 7C31-0406 2 2

17
Title: B. Refrigeration Circuit Model: KML-451MWH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
U-0 U-1
23 Male Connector BRASS 4A1087-01 1 1
24 Copper Tube (A)-High Side Copper 3A3789G01 1 -
2A4919G01 1
25 Copper Tube (B)-High Side Copper 3A3812G01 1 -
3A5165-01 1
26 Copper Tube (C)-High Side Copper 3A3813G01 1 1
27 Copper Tube (E)-High Side Copper 3A3783-01 1 -
4A4693-01 1
28 Copper Tube (A)-Hot Gas Copper 4A1878-01 1 -
29 Copper Tube (B)-Hot Gas Copper 2A3691G01 1 1
30 Copper Tube (A)-Access
Valve
Copper 3A3974G01 1 -
Copper Tube-Access Valve 3A4783G01 1
31 Copper Tube (A) Copper 3A2174G01 1 1
31a T2 Screw 4×8 7P31-0408 2 2
32 Copper Tube (B) Copper 3A2149G01 1 1
33 Heat Exchanger Copper 2A3685G01 1 -
2A4894G01 1
34 Elbow Copper 417395-03 1 -
35 Elbow Copper 4A1059-01 1 1
36 Thermistor - 429006-03 1 1
37 Holder-Thermistor Copper 427430-01 1 1
38 Insulation-Thermistor (A) PE Foam 439368-01 1 1
39 Insulation-Thermistor (B) PE Foam 439368-02 1 1
40 Insulated Rubber Tube EPDM 4A1008G01 1 1
41 Insulation Holder SS 3A1084-01 1 -
4A3902-01 1
41a T2 Screw 4×8 SS 7P32-0408 2 2
42 Insulation Tube L=30 7762-1020 4 4
43 Insulation Tube L=800 7762-1323 1 1
44 Frame (A) GS 2A0645-01 1 1
44a T2 Screw 4×8 7P31-0408 4 4
45 Frame (B) GS 3A0595-01 1 1
45a T2 Screw 4×8 7P31-0408 4 4
46 Cable Tie PLT2S-M 8911-0200 13 15

18
C. Water Circuit
KML-451MAH, KML-451MWH
R-0 to U-1 (A-G)
1a
1
10
2
4
20a
3a
3
5
6
7
8
9
11
12
13
14
15
16
17
18
19
22
20
23
25
22a
23a
24 24a
26
25a
26a
27a
27
28
29
30
31
32
34 34a
35
36
39
19
19
19
19
14
40
40
41
37
38
42 43
33
21 21a
23b
44

19
1a
1
10
2
4
20a
3a
3
5
6
7
8
9
11
12
13
14
15
16
17
18
19
22
20
23
25
22a
23a
26
25a
26a
27a
27
28
29
30
31
32
34 34a
35
36
14
19
19
19
19
14
40
40
41
37
38
42 43
33
21 21a
44
C. Water Circuit
KML-451MAH, KML-451MWH
U-1 (H & later)
45 45a

20
Title: C. Water Circuit Model: KML-451MAH, KML-451MWH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
S-1
S-2
T- 0 T- 1 U-0
U-1
(A-G)
U-1
(H-M)
1 Water Supply Pipe COPPER 4A0768G04 1 1 1 1 1 1
1a T2 Screw 4×8 7P31-0408 2 2 2 2 2 2
2 Rubber Gasket NR 413854-03 1 1 1 1 1 1
3Water Valve Bracket GS 321443-01 1 1 1 1 1 1
3a T2 Screw 4×8 7P31-0408 1 1 1 1 1 1
4Water Valve J248-647 3U0150-01 1 1 1 1 1 1
5Spray Tube PE 1A0260-02 1 1 1 1 1 1
6 Spray Guide PE 208586-01 6 6 6 6 6 6
7Water Supply Tube PE 2A0079-01 1 1 1 1 1 1
8 Plug - 4A0176-01 2 2 2 2 2 2
9Water Supply Tee SANTOPRENE 4A1006-01 1 1 1 1 1 1
10 Flange EPDM 439267-01 1 1 1 1 1 1
11 Insulation (E) PE FOAM 4A0392-01 1 1 1 1 1 1
12 Elbow SANTOPRENE 4A0393-01 1 1 1 1 1 1
13 Connecting Pipe PE 3A1335-01 1 1 1 1 1 1
14 Hose Clamp SS, 25 mm 427443-03 3 3 3 3 3 4
15 Cube Guide ABS 2A0660-01 1 1 1 1 1 1
16 Pump Hose EPDM 4A1007-01 1 1 1 1 1 -
Vinyl Hose L=245 7716-2025 1
17 Rubber Ring EPDM 4A1004-01 1 1 1 1 1 1
18 Bypass Hose SANTOPRENE 4A1005-01 1 1 1 1 1 1
19 Hose Clamp SS, 18 mm 427443-05 5 5 5 5 5 5
20 Solenoid Valve 207CB-GS1873 439322-01 2 -
DSVP12N-2LSX-
120A-L1SR 4A3722-01 2 2 2 2 2
20a Truss Head Screw 4×8 7C31-0408 4 4 4 4 4 4
21 Solenoid Valve Bracket - 4A3137-01 1 1 1 1 1 1
21a T2 Screw 4×8 7P31-0408 2 2 2 2 2 2
22 Solenoid Cover GS 4A0996-01 1 1 1 1 1 1
22a T2 Screw 4×8 7P31-0408 2 2 2 2 2 2
23 Pump Motor OSP-B15BEJ16 2A2861-01 1 1 1 1 1 -
PV-211BHZ1 4A4259-01 1
23a Truss Head Screw 4×16, SS 7C32-0416 4 4 4 4 4 -
Thumbscrew SS, ABS 415949G11 1
23b Wellnut 347011 4A1070-01 2 2 2 -
24 Barrier - 4A2997-01 1 1 1 1 1 -
24a T2 Screw 4x8 SS 7P32-0408 2 2 2 2 2 -
25 Float Switch 213095 4A3624-01 1 1 1 1 1 1
25a T2 Screw 4x8 SS 7P32-0408 2 2 2 2 2 2
26 Float Switch Bracket ABS 327757-01 1 1 1 1 1 1
26a T2 Screw 4×12, SS 7P32-0412 2 2 2 2 2 2
27 Float Switch Cover ABS 3A0665-01 111111
27a T2 Screw 4×12, SS 7P32-0412 3 3 3 3 3 3
28 Vinyl Hose L=150 7716-1216 1 1 1 1 1 1
29 Vinyl Hose L=325 7716-1519 1 1 1 1 1 1
30 Vinyl Hose L=55 7716-1519 1 1 1 1 1 1
31 Bushing OCB-875 428394-04 1 1 1 1 1 1
32 Wire Saddle - 4A0338-02 8 8 8 8 8 8
33 Joint Pipe - 439329-01 1 1 1 1 1 1
