Hoshizaki DCM-500BAH User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
DCM-500BAH
DCM-500BWH
Cubelet Icemaker/Dispenser
Hoshizaki America, Inc.
Number: 71285
Issued: 7-8-2008
Revised: 7-28-2010
PARTS LIST
®

CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Dispenser Assembly .................................................................................................... 5
DCM-500BAH .................................................................................................................... 5
DCM-500BWH ................................................................................................................. 10

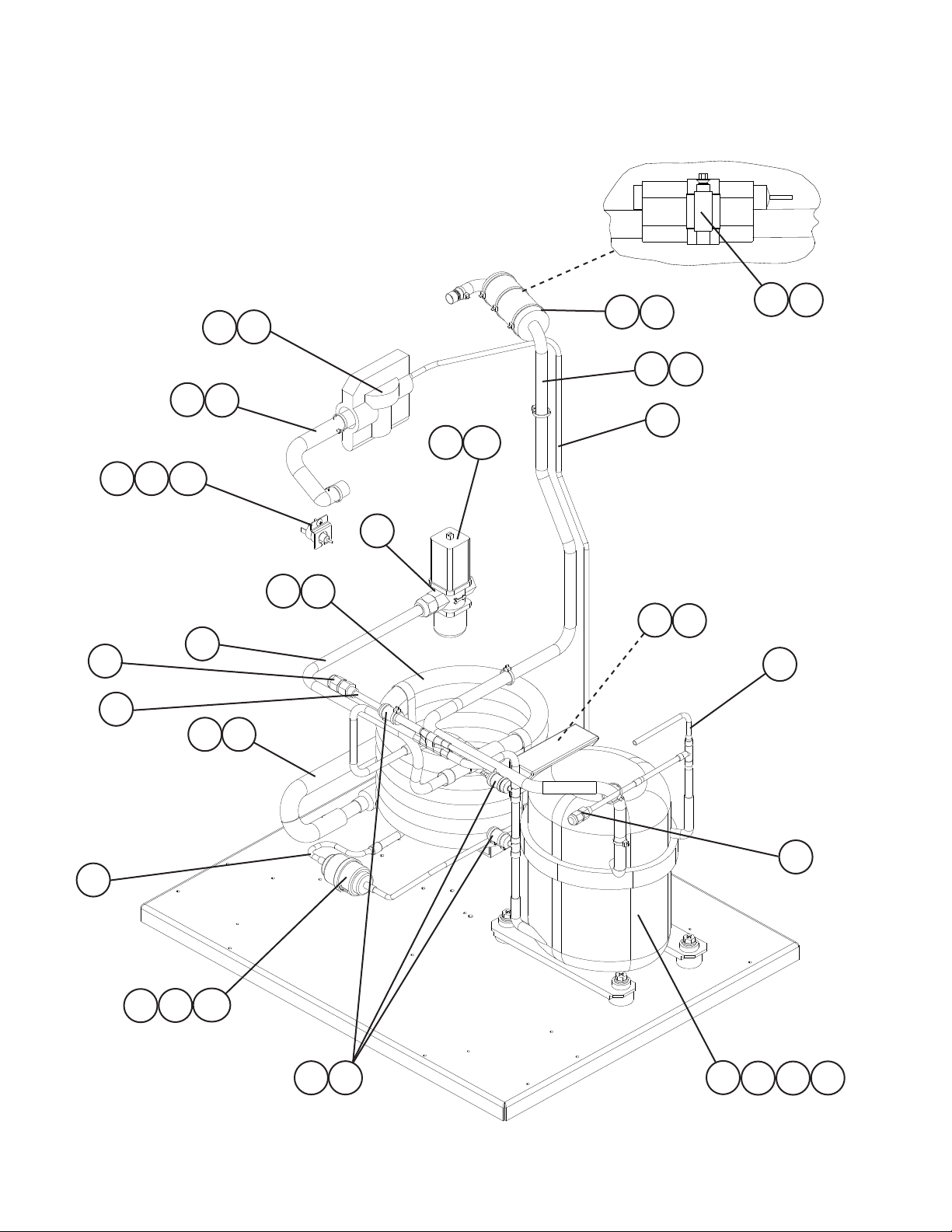

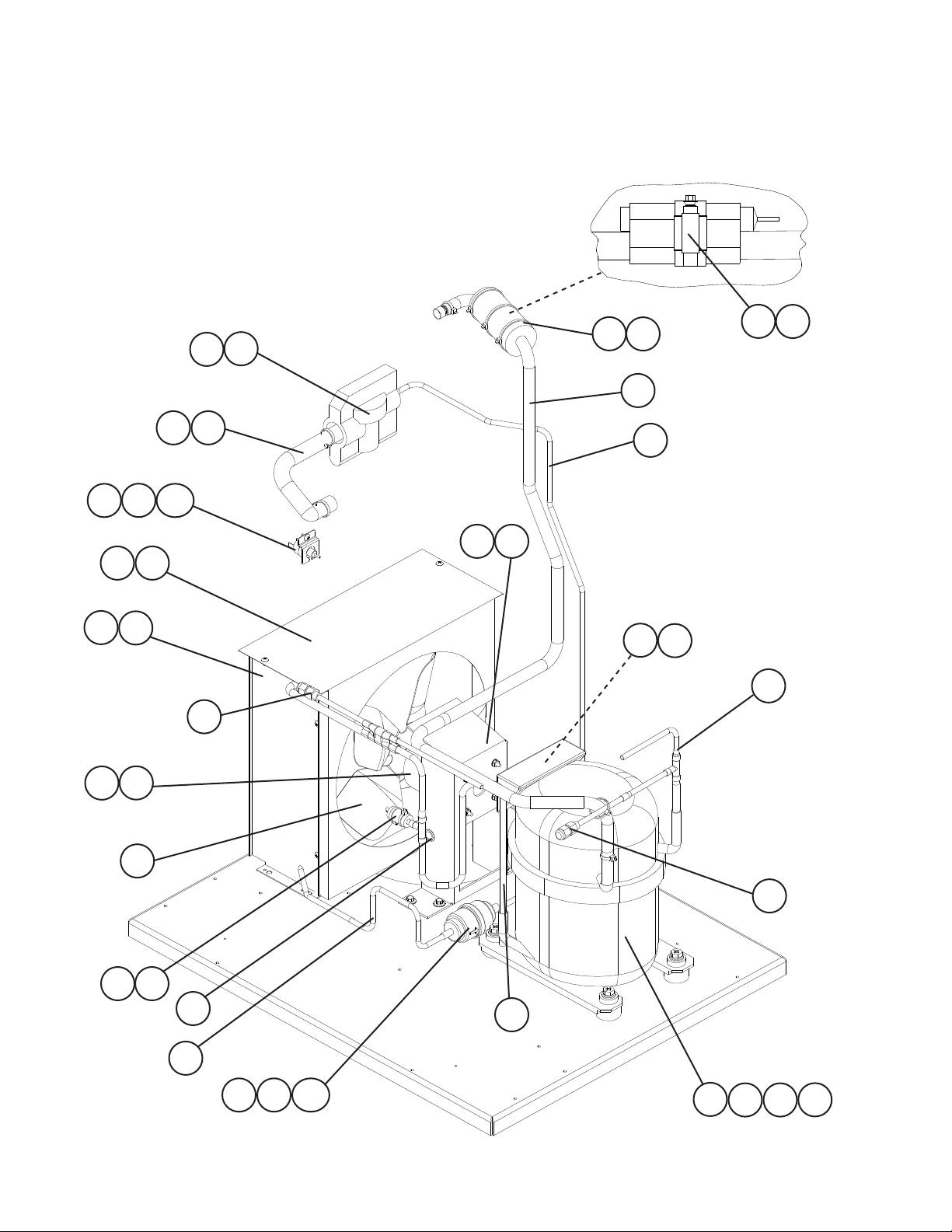

B. Refrigeration Circuit ......................................................................................................... 14
DCM-500BAH .................................................................................................................. 14
DCM-500BWH ................................................................................................................. 18
C. Icemaking Unit ................................................................................................................ 22
D. Water Circuit .................................................................................................................... 23
E. Control Box Assembly...................................................................................................... 27
F. Front Panel Assembly ....................................................................................................... 32
G. Middle Front Frame Assembly ......................................................................................... 33
H. Shutter Assembly............................................................................................................. 34
J. Gear Motor Assembly (Agitator) ....................................................................................... 36
K. Gear Motor Assembly (Dispense) .................................................................................... 37
L. Bin Assembly ................................................................................................................... 38
M. Frame Assembly ............................................................................................................. 39
N. Label Location ................................................................................................................. 41
P. Evaporator Assembly ...................................................................................................... 43
Q. Bin Top Assembly ............................................................................................................ 45
R. Accessories & Packaging ................................................................................................ 46
2

Auxiliary Codes
DCM-500BAH T-0 (C) March 2008
T-0 (E) May 2008
T-1 October 2008
U-0 January 2009
U-1 August 2009
V-0 January 2010
V-2 May 2010
V-3 June 2010
V-4 July 2010
DCM-500BWH T-0 (E) May 2008
T-1 October 2008
U-0 April 2009
U-1 September 2009
V-0 February 2010
V-1 April 2010
V-2 May 2010
V-3 June 2010
V-4 July 2010
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This is
the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
3

Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EPP = Expanded Polypropylene
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
EPDM = EP rubber
EPH = Epichlorohydrin
NBR = Nitrile butadiene rubber
NP = Neoprene
NR = Natural rubber
SI.R = Silicone rubber
SY.R = Synthetic rubber
VN = Vinyl Nitrile
STEEL
GS = Galvanized steel
PAS = Primed steel
PS = Plated steel
SS = Stainless steel
4

A. Ice Dispenser Assembly
1/2
DCM-500BAH
T-0 to V-4
1a
1
10
B
D
EE1
F
4
6
78
9
11
12
13
14
23
22
24
14a
31
32
K1
K
J1
J
L1
L
M
N
5a
5
15 15a
18 18a
21 21a
20 20a
19 19a
173
2a
2
9a
12a
F1
G1
GG2
35 35a
33
34
16 16a 16b
5

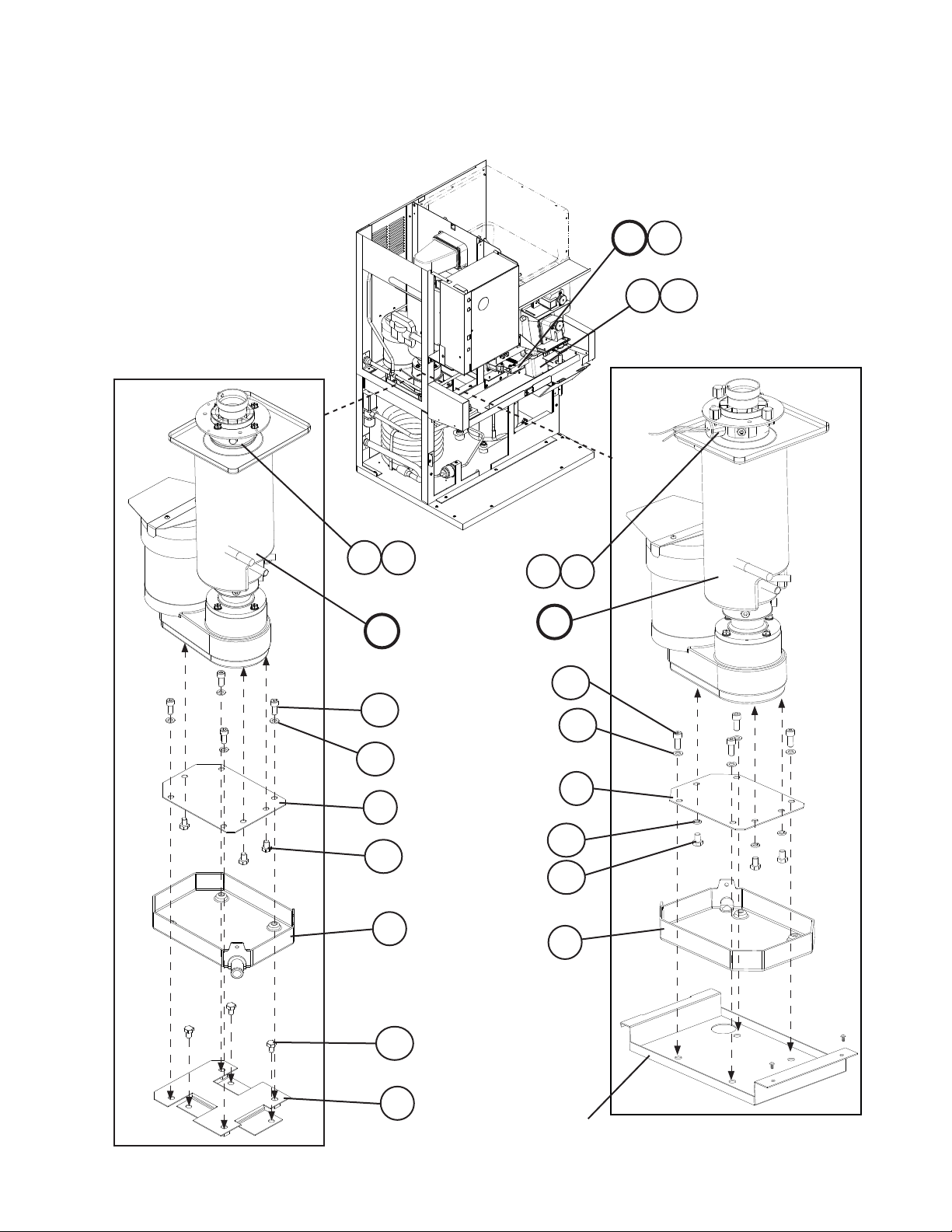

A. Ice Dispenser Assembly
2/2
DCM-500BAH
T-0 to V-4
30
29
H1
H
27a
27
26a
28b
26
C
28
28a
25 25a
30
29
26a
28b
26
C
28
28a
T-0 to V-2 V-3 and later
26b
See "M. Frame Assembly," items 6 and 6a.
6

Title: A. Ice Dispenser Assembly Model: DCM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
(C)
T-0
(E)
T-1
U-0
U-1
V-0 V-2 V-3 V-4
B Refrigeration Circuit 227494A02 1 1 1 1 -
2A5916A01 1 1 -
2A5916A02 1
C Icemaking Unit 3A0623A04 1 1 1 1 1 1 1
D Water Circuit 2A0395A03 1 1 1 1 1 -
2A5455A01 1 1
E Control Box Assembly 227498A09 1 1 1 -
227498A11 1 -
227498A13 1 -
2A5460A02 1 1
E1 Truss Head Screw 4×8 7C31-0408 3 3 3 3 3 -
FT Screw 4×8, SS 7F32-0408 3 3
F Front Panel Assembly 3A4999A01 1 1 1 -
3A4999A02 1 1 1 1
F1 Truss Head Screw 4×8, SS 7C32-0408 1 1 1 1 1 -
FT Screw 7F32-0408 1 1
G Middle Front Frame Assembly 2A2603A01 1 -
2A4749A01 1 1 -
2A4749A03 1 1 1 1
G1 Taper Collar SS 4H0171-01 2 2 2 2 2 2 2
G2 Flat Head Screw 4×12, SS 7C22-0412 2 2 2 2 2 2 2
H Shutter Assembly 2A0410A01 1 1 1 1 1 1 1
H1 Truss Head Screw 4×8, SS 7C32-0408 2 2 2 2 2 -
FT Screw 7F32-0408 2 2
J Gear Motor Assembly (Agitator) 4A0620A01 1 1 1 1 1 1 1
J1 Thumbscrew 415949G12 2 2 2 2 2 2 2
K Gear Motor Assembly
(Dispense)
4A0622A01 1 1 1 1 1 1 1
K1 Thumbscrew 415949G12 2 2 2 2 2 2 2
L Bin Assembly 2A0413A01 1 1 1 1 1 -
2A0413A02 1 1
L1 Truss Head Screw 4×12, SS 7C32-0412 2 2 2 2 2 -
FT Screw 4×8, SS 7F32-0408 3 3
M Frame Assembly 2A0388A06 1 1 1 1 1 -
2A5324A02 1 1
N Label Location 2A4366A01 1 1 1 1 1 1 1
1 Louver (B) 103121-03 2 2 2 2 2 2 2
1a Tapping Screw-Black 4×8 433954-01 2 2 2 2 2 2 2
2 Spout Cover 215773-01 1 1 1 1 1 1 1
2a Thumbscrew 415949G08 2 2 2 2 2 2 2
3 Cup Guide 326702-01 2 2 2 2 2 2 2
4 Bushing SR-30-1 420472-03 1 1 1 1 1 -
Cable Tie CV-150 8911-0150 1 1
5 Evaporator Bracket SS 3A0360-01 1 1 1 1 1 1 1
5a Hex Head Bolt w/Washer 5×10, SS 7B0230510 2 2 2 2 2 2 2
6 Packing 427151-02 1 1 1 1 1 1 1
7 Square Washer 433537-02 1 1 1 1 1 1 1
7

Title: A. Ice Dispenser Assembly Model: DCM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
(C)
T-0
(E)
T-1
U-0
U-1
V-0 V-2 V-3 V-4
8 Grounding Screw 433304-02 1 1 1 1 1 1 1
9 Spout 103329G01 1 1 1 1 1 1 1
9a Thumbscrew 415949G11 3 3 3 3 3 3 3
10 Packing (A) Spout 427195-01 1 1 1 1 1 1 1
11 Gasket 429758-01 2 2 2 2 2 2 2
12 Spout (B) 208807-01 1 1 1 1 1 1 1
12a Thumbscrew 415949G11 4 4 4 4 4 4 4
13 Packing (B) Spout 427196-01 1 1 1 1 1 1 1
14 Rear Panel GS 2A0405-01 1 1 1 1 1 -
2A5403-01 1 1
14a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -
FT Screw 7F32-0408 4 4
15 Panel (Lo) SS 2A0699G01 1 1 1 1 1 1 1
15a FT Screw 4×8, SS 7F32-0408 6 6 6 6 6 6 6
16 Apron Panel (A) SS 2A0720-01 1 1 1 1 1 1 1
16a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -
FT Screw 7F32-0408 2 2
16b T2 Screw 4×8, SS 7P32-0408 2 2
17 Grille 2A0827G01 1 1 1 1 1 1 1
18 Bin Cover 2A0880A02 1 1 1 1 1 1 1
18a Thumbscrew 415949G12 4 4 4 4 4 4 4
19 Drip Tray 2A2591G01 1 1 1 1 1 1 1
19a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -
FT Screw 7F32-0408 4 4
20 Side Panel (L) SS 2A2616-01 1 1 1 1 1 -
2A6144-01 1 1
20a Truss Head Screw 4×8, SS 7C32-0408 6 6 6 6 6 -
FT Screw 7F32-0408 6 6
21 Side Panel (R) SS 2A2617-01 1 1 1 1 1 -
2A6143-01 1 1
21a Truss Head Screw 4×8, SS 7C32-0408 6 6 6 6 6 -
FT Screw 7F32-0408 6 6
22 Auger (Dispense) SS 339192G01 1 1 1 1 1 1 1
23 Agitator SS 3A0895G01 1 1 1 1 1 1 1
24 Top Panel SS 3A2514G01 1 1 1 1 1 1 1
25 Ice Chute 4A2204-01 1 1 1 1 1 1 1
25a Thumbscrew 415949G08 2 2 2 2 2 2 2
26 Gear Motor Bracket SS 4A4308-01 1 1 1 1 1 1 1
26a Hex Head Bolt 8×12, SS 7B02-0812 3 3 3 3 3 3 3
26b Split Lock Washer M8, SS 7L22-0800 3 3
27 Drain Pan Bracket Assembly SS 4A4315G01 1 1 1 1 1 See "M. Frame
Assembly," items
6 and 6a
27a Hex Head Bolt 8×12, SS 7B02-0812 3 3 3 3 3
28 Drain Pan Assembly 4A4354G01 1 1 1 1 1 -
4A4354G02 1 1
28a Flat Washer M8, SS 7W22-0800 4 4 4 4 4 4 4
28b Allen Head Cap Screw 8×20, SS 7S12-0820 4 4 4 4 4 4 4
29 Heater (includes item 30) 4A2292-01 1 1 1 1 1 1 1
30 Spring 4A2292F01 1 1 1 1 1 1 1
8

Title: A. Ice Dispenser Assembly Model: DCM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
(C)
T-0
(E)
T-1
U-0
U-1
V-0 V-2 V-3 V-4
31 Plug Housing 03-09-2021 4A4002-01 2 2 -
3191-4P-201 412832-05 1 1 1 1 1
32 Air Filter 208283G03 1 1 1 1 1 1 1
33 Bushing OCB-500 428394-02 1 1
34 Wire Saddle 4A0338-01 2 2
35 Reservoir Bracket 3A5675-01 1 1
35a FT Screw 7F32-0408 2 2
9

A. Ice Dispenser Assembly
1/2
DCM-500BWH
T-0 to V-4
1a
1
B
D
EE1
3
67
10
21
23
22
13 13a
31
G1
GG2
J1
J
K1
K
L1
L
M
N
14 14a
17 17a
20 20a
16
18 18a
2
9
5
8
11
12
4a
4
8a 11a
19 19a
FF1
33
25
32 32a
25
15 15a 15b
10

30
29
26a
28b
26
C
28
28a
A. Ice Dispenser Assembly
2/2
DCM-500BWH
T-0 to V-4
H1
H
24 24a
30
29
27a
27
26a
28b
26
C
28
28a
T-0 to V-2 V-3 and later
26b
See "M. Frame Assembly," items 6 and 6a.
11

Title: A. Ice Dispenser Assembly Model: DCM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
T-1
U-0
U-1
V-0 V-1 V-2 V-3 V-4
B Refrigeration Circuit 2A2399A01 1 1 1 -
2A5917A01 1 1 1 -
2A5917A02 1
C Icemaking Unit 3A0623A04 1 1 1 1 1 1 1
D Water Circuit 2A0395A03 1 1 1 1 1 -
2A5455A01 1 1
E Control Box Assembly 227498A10 1 1 -
227498A12 1 -
227498A14 1 1 -
2A5460A04 1 1
E1 Truss Head Screw 4×8 7C31-0408 3 3 3 3 3 -
FT Screw 4×8, SS 7F32-0408 3 3
F Front Panel Assembly 3A4999A01 1 1 -
3A4999A02 1 1 1 1 1
F1 Truss Head Screw 4×8, SS 7C32-0408 1 1 1 1 1 -
FT Screw 4×8, SS 7F32-0408 1 1
G Middle Front Frame Assembly 2A4749A01 1 1 -
2A4749A03 1 1 1 1 1
G1 Taper Collar SS 4H0171-01 2 2 2 2 2 2 2
G2 Flat Head Screw 4×12, SS 7C22-0412 2 2 2 2 2 2 2
H Shutter Assembly 2A0410A01 1 1 1 1 1 1 1
H1 Truss Head Screw 4×8, SS 7C32-0408 2 2 2 2 2 -
FT Screw 7F32-0408 2 2
J Gear Motor Assembly (Agitator) 4A0620A01 1 1 1 1 1 1 1
J1 Thumbscrew 415949G12 2 2 2 2 2 2 2
K Gear Motor Assembly
(Dispense)
4A0622A01 1 1 1 1 1 1 1
K1 Thumbscrew 415949G12 2 2 2 2 2 2 2
L Bin Assembly 2A0413A01 1 1 1 1 1 -
2A0413A02 1 1
L1 Truss Head Screw 4×12, SS 7C32-0412 2 2 2 2 2 -
FT Screw 4×8, SS 7F32-0408 3 3
M Frame Assembly 2A0388A06 1 1 1 1 1 -
2A5324A02 1 1
N Label Location 2A4366A02 1 1 1 1 1 1 1
1 Spout Cover 215773-01 1 1 1 1 1 1 1
1a Thumbscrew 415949G08 2 2 2 2 2 2 2
2 Cup Guide 326702-01 2 2 2 2 2 2 2
3 Bushing SR-30-1 420472-03 1 1 1 1 1 -
Cable Tie 8911-0150 1 1
4 Evaporator Bracket SS 3A0360-01 1 1 1 1 1 1 1
4a Hex Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2 2 2 2 2 2
5 Packing 427151-02 1 1 1 1 1 1 1
6 Square Washer 433537-02 1 1 1 1 1 1 1
7 Grounding Screw 433304-02 1 1 1 1 1 1 1
8 Spout 103329G01 1 1 1 1 1 1 1
8a Thumbscrew 415949G11 3 3 3 3 3 3 3
9 Packing (A) Spout 427195-01 1 1 1 1 1 1 1
12

Title: A. Ice Dispenser Assembly Model: DCM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
T-1
U-0
U-1
V-0 V-1 V-2 V-3 V-4
10 Gasket 429758-01 2 2 2 2 2 2 2
11 Spout (B) 208807-01 1 1 1 1 1 1 1
11a Thumbscrew 415949G11 4 4 4 4 4 4 4
12 Packing (B) Spout 427196-01 1 1 1 1 1 1 1
13 Rear Panel GS 2A2471-01 1 1 1 1 1 -
2A5402-01 1 1
13a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -
FT Screw 7F32-0408 4 4
14 Panel (Lo) SS 2A0699G01 1 1 1 1 1 1 1
14a FT Screw 4×8, SS 7F32-0408 6 6 6 6 6 6 6
15 Apron Panel (A) SS 2A0720-01 1 1 1 1 1 1 1
15a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -
FT Screw 7F32-0408 2 2
15b T2 Screw 4×8, SS 7P32-0408 2 2
16 Grille 2A0827G01 1 1 1 1 1 1 1
17 Bin Cover 2A0880A02 1 1 1 1 1 1 1
17a Thumbscrew 415949G12 4 4 4 4 4 4 4
18 Drip Tray 2A2591G01 1 1 1 1 1 1 1
18a Truss Head Screw 4×8, SS 7C32-0408 4 4 4 4 4 -
FT Screw 7F32-0408 4 4
19 Side Panel (L) SS 2A2624-01 1 1 1 1 1 -
2A6142-01 1 1
19a Truss Head Screw 4×8, SS 7C32-0408 6 6 6 6 6 -
FT Screw 7F32-0408 6 6
20 Side Panel (R) SS 2A2625-01 1 1 1 1 1 -
2A6141-01 1 1
20a Truss Head Screw 4×8, SS 7C32-0408 6 6 6 6 6 -
FT Screw 7F32-0408 6 6
21 Agitator SS 3A0895G01 1 1 1 1 1 1 1
22 Top Panel SS 3A2514G01 1 1 1 1 1 1 1
23 Auger (Dispense) SS 339192G01 1 1 1 1 1 1 1
24 Ice Chute 4A2204-01 1 1 1 1 1 1 1
24a Thumbscrew 415949G08 2 2 2 2 2 2 2
25 Wire Saddle 4A0338-01 2 2
26 Gear Motor Bracket SS 4A4308-01 1 1 1 1 1 1 1
26a Hex Head Bolt 8×12, SS 7B02-0812 3 3 3 3 3 3 3
26b Split Lock Washer M8, SS 7L22-0800 3 3
27 Drain Pan Bracket Assembly SS 4A4315G01 1 1 1 1 1 See "M. Frame
Assembly," items
6 and 6a
27a Hex Head Bolt 8×12, SS 7B02-0812 3 3 3 3 3
28 Drain Pan Assembly 4A4354G01 1 1 1 1 -
4A4354G02 1 1 1
28a Flat Washer M8, SS 7W22-0800 4 4 4 4 4 4 4
28b Allen Head Cap Screw 8×20, SS 7S12-0820 4 4 4 4 4 4 4
29 Heater (includes item 29) 4A2292-01 1 1 1 1 1 1 1
30 Spring 4A2292F01 1 1 1 1 1 1 1
31 Plug Housing 4A4002-01 2 -
412832-05 1 1 1 1 1 1
32 Reservoir Bracket 3A5675-01 1 1
32a FT Screw 7F32-0408 2 2
33 Bushing 428394-02 1 1
13

10
4a
423
5a
5
6a
6
7a
7
8
9
11
12
13
15a
14 15
16 17
19
21
20
25
22 23 23a
18 26
1a
11b 1c
24 26
26
27
27
B. Refrigeration Circuit
DCM-500BAH
T-0 to V-0
14

B. Refrigeration Circuit
DCM-500BAH
V-2 to V-4
10
4a
4
2
5a
5
6a
6
7a
7
8
9
11
12
13
14 15
16 17
19
21
20
25
22
18 26
24 26
26
1a
11b 1c
1e
1d
26 28
27
15

Title: B. Refrigeration Circuit Model: DCM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
to
V-1
V-2
V-3 V-4
1 Compressor RS43C2E-CAA-219 4A2300-01 1 -
RST45C1E-CAA-202 4A4479-01 1 1
1a Grommet 434403-01 4 -
4A2593-01 4 4
1b Spacer 434404-01 4 -
4A2595-01 4 4
1c Bolt 8×45 437889-01 4 4 4
1d Terminal Cover 4A4479F01 1 1
1e Spring Clip 4A4479F02 1 1
2 Protector 4A1805-01 1 -
4A4481-01 1 1
3 Protector Holder 437339-01 1 -
4 Condenser 210104-02 1 1 1
4a FT Screw 4×8, SS 7F32-0408 2 2 2
5 Shroud GS 2A0728-01 1 1 1
5a T2 Screw 4×8 7P31-0408 6 6 6
6 Fan Motor Bracket GS 3A0650-01 1 1 1
6a Hex Head Bolt w/Washer 5×12, SS 7B0230512 4 4 4
7 Fan Motor 50 Watt, GEHI 4A3158-01 1 1 1
7a Self-Locking Nut 7N21I0832 4 4 4
8 Fan Blade 444898-01 1 1 1
9 Copper Tube (A)-High Side
(1 of item 27; order assembly
parts individually)
340127G01 1 -
Copper Tube (A)-High Side
(item 22 and 1 of item 27; order
assembly parts individually)
3A5914G01 1 1
10 Copper Tube (B)-High Side 453831-01 1 1 1
11 Copper Tube (C)-High Side 340129-01 1 1 1
12 Copper Tube (A)-Low Side 2A1821G01 1 -
3A5915A01 1 1
13 Copper Tube (B)-Low Side 4A2175G01 1 1 1
14 Drier 4A1113-01 1 1 1
15 Drier Bracket GS 445847-01 1 -
Nylon Tie 8911-0301 1 1
15a FT Screw 4×8, SS 7F32-0408 1 -
16 Expansion Valve 4A1117-01 1 1 1
17 Expansion Valve Cover 4A1168-01 1 1 1
18 Insulation Tube L=30 7762-0717 1 -
L=40 2 2
19 Copper Tube-Access Valve (1 of
item 27; order assembly parts
individually)
453830G01 1 -
4A5102G01 1 -
4A5102G02 1
20 Clamp 443461-01 1 1
21 Expansion Valve Holder 3A0107-01 1 1 1
22 High-Pressure Switch 433441-07 1 -
463180-04 1 1
16

Title: B. Refrigeration Circuit Model: DCM-500BAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
to
V-1
V-2
V-3 V-4
23 Pressure Switch Bracket GS 434938-01 1 -
23a T2 Screw 4×8 7P31-0408 1 -
24 Insulation Tube L=150 7762-2646 1 1 1
25 Bushing SB-562-7 420470-09 1 1 1
26 Cable Tie CV-150 8911-0150 10 8 8
27 Access Valve 457729-01 2 2 2
28 Insulation Tube L=40 7762-1020 1 1
17

B. Refrigeration Circuit
DCM-500BWH
T-0 to V-0
4a
4
23
6
7
5
11a
10 11
17
16 16a
2414
15
12 13
20
21
18
24
22 23 23a
19 24 1a
11b 1c
25
824
924
26
26
18

B. Refrigeration Circuit
DCM-500BWH
V-1 to V-4
4a
4
6
7
5
10 11
17
16 16a
15
12 13
20
19 24
1a
11b 1c
8
924
26
22
1d 1e
2
21
18
26
24
19
24 27
24 25
14 14a
19

Title: B. Refrigeration Circuit Model: DCM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
to
V-0
V-1
to
V-3 V-4
1 Compressor RS43C2E-CAA-219 4A2300-01 1 -
RST45C1E-CAA-202 4A4479-01 1 1
1a Grommet 434403-01 4 -
4A2593-01 4 4
1b Spacer 434404-01 4 -
4A2595-01 4 4
1c Bolt 8×45 437889-01 4 -
437889-01 4 4
1d Terminal Cover 4A4479F01 1 1
1e Spring Clip 4A4479F02 1 1
2 Protector 4A1805-01 1 -
4A4481-01 1 1
3 Protector Holder 437339-01 1 -
4 Condenser-Water Cooled HS-0161 2A2359G02 1 1 1
4a Hex Head Bolt w/Washer (LF) 5×12, SS 7B0230512 2 2 2
5 Copper Tube (A)-High Side
(Includes 1 of item 26)
3A2215G01 1 -
Copper Tube (A)-High Side
(includes item 22 and 1 of item
26)
3A5923G01 1 1
6 Copper Tube(B)-High Side 4A2680-01 1 1 1
7 Copper Tube (C)-High Side 2A2455-01 1 1 1
8 Copper Tube (A)-Low Side 2A1821G01 1 -
3A5915A01 1 1
9 Copper Tube (B)-Low Side 4A2175G01 1 1 1
10 Drier 4A1113-01 1 1 1
11 Drier Bracket GS 445847-01 1 -
Nylon Tie 8911-0301 1 1
11a FT Screw 4×8, SS 7F32-0408 1 -
12 Expansion Valve 4A1117-01 1 1 1
13 Expansion Valve Cover 4A1168-01 1 1 1
14 Inlet Water Tube 3A2230G01 1 1 1
14a Truss Head Screw 4×6, SS 7C32-0406 2 2 2
15 Outlet Water Tube 3A2231G01 1 1 1
16 Water Regulator 4A0911-04 1 1 1
16a Truss Head Screw 4×6, SS 7C32-0406 2 2 2
17 Male Connector 4A1087-01 1 1 1
18 Clamp 443461-01 1 1 1
19 Insulation Tube L=30 7762-0717 3 -
L=40 3 3
20 Copper Tube-Access Valve (1 of
item 26; order assembly parts
individually)
453830G01 1 -
4A5102G01 1 -
4A5102G02 1
21 Expansion Valve Holder 3A0107-01 1 1 1
22 High-Pressure Switch 433441-05 1 -
463180-05 1 1
23 Pressure Switch Bracket 434938-01 1 -
23a T2 Screw 4×8 7P31-0408 1 -
20
