Hot Shot HYPH6001-3 User manual

Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at 1-877-447-4768,
8:00 a.m. – 4:30 p.m. CST, Monday – Friday, or email us at [e-mail]
Serial Number
ATTACH YOUR RECEIPT HERE
HIGH EFFICIENCY PATIO HEATER
ITEM # 52356
MODEL# HYPH6001-3
Purchase Date

2
Contents
SAFETY INFORMATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
HARDWARE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
CONTENTS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
ASSEMBLY INSTRUCTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
OPERATION� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
MAINTENANCE� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
TROUBLESHOOTING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
WARRANTY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
REPLACEMENT PARTS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �17

3
HIGH EFFICIENCY PATIO HEATER
DANGER:
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
A propane cylinder not connected
for use shall not be stored in the vicinity of this or any
other appliance.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause property damage,
injury or death. Read the installation, operating and
maintenance instructions thoroughly before installing
or servicing this equipment.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor. Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as
a camper, tent, car or home.
WARNING: For Outdoor Use Only.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
DANGER:
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
DANGER
WARNING: FUELS USED IN LIQUEFIED
PROPANE GAS APPLIANCES,AND THE PRODUCTS
OF COMBUSTION OF SUCH FUELS, CAN EXPOSE
YOU TO CHEMICALS INCLUDING BENZENE, WHICH
IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
For more information go to: www.P65Warnings.ca.gov.

4
Before you assemble or operate this unit, please carefully read this entire manual� Failure to do so may result in a
fire, explosion, injury or death�
WARNING
1� The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149�2�
2� THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated
space and shall not be used in any enclosed area�
3� This unit is to be used with propane gas only! (sold separately)
4� Do not attach a remote gas supply to this unit�
5� Only use propane gas for this unit�
6� This unit is not intended for natural gas�
7� Converting this unit to natural gas is dangerous and not recommended� The conversion of this unit will void
the manufacturer warranty�
8� Do not use any solid fuel or charcoal for this unit�
9� If the propane gas tank is leaking gas, you may see or smell it, or hear a hiss� Do the following: 1� Disconnect
the propane gas tank� 2� Do not attempt to fix the problem yourself� 3� Contact your propane supplier or fire
department for help�
10� Applying too much propane may result in gas pooling and will not burn� Allow fresh air into the unit so that
the remaining gas may escape�
11� Do not use a flame to check for gas leaks�
12� Manifold pressure: 11 in w�c� (2�74kPa)�
13� Use propane tanks with the following dimensions: diameter 12 in, height 18 in� - capacity 20 lbs�
14� You must use a propane tank that has a collar to protect the gas valve�
15� DO NOT fill tank over 80 percent full�
16� The tank system must be set up for vapor withdrawal�
17� Discontinue use if any part of the propane tank is damaged� Rust and dents may be hazardous and should
be inspected by a gas supplier�
18� Do not operate unit until all parts are fully assembled�
19� Do not paint or color any part of this heating unit�
20� Unit may be hot while in use, do not attempt to move it while in use�
21� Never leave this heating unit unattended while in use�
22� This unit is not intended for cooking�
23� Keep any flammable items away�
24� Keep a safe distance to avoid burning skin or clothing�
25� Do not sit or rest hands or feet on this heating unit�
26� Never place hands or fingers on upper portion of this unit while in use�
27� Keep all electrical cords and fuel supply hose away from heated surfaces�
28� Combustible material should not be within 48 inches of the top of the unit, or within 48 inches around the
entire unit�
29� Keep the appliance area clear and free from combustible material, gasoline and other flammable vapors and
liquids�
30� If the flame goes out while burning, turn the gas valve off� Wait 5 minutes before repeating the initial lighting
procedure� Once you have a flame started, hold down the control knob for 1 minute�
31� Do not add water into the unit�
32� Do not operate unit if any part has been under water� Call a service technician to replace any damaged parts
should this occur�
33� Do not disconnect any part while unit is in use�
34� Do not store a spare propane tank under or near this appliance�
35� If the heating unit is indoors, detach the propane tank and leave outdoors�
SAFETY INFORMATION

5
36� Do not operate on a boat or vehicle� This unit must be used on a flat surface and outdoors ONLY�
37� Always remove protective cover before operating (if applicable)�
38� Check for leaks after not using the unit for long periods of time�
39� Children should never operate this unit� Children must be supervised while near this unit�
40� Keep gas tank at least 5 feet away from unit when lit� (if external tank)
41� The maximum gas supply: 250 psi; Min� gas supply: 10 psi�
42� All installation and repair should be done by a qualified professional� This unit should be inspected annually
and cleaned regularly�
43� Inspect all elements of this heating unit before each use� If there is damage, the burner must be replaced�
44� Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or injury�
45� The gas supply tank should be constructed and marked in accordance with the specifications for the LP-gas
cylinders of the U�S� Department of Transportation (DOT) or CSA B339;
46� The propane gas tank must have a listed overfilling prevention device and a QCCI or Type I, (CGA791) propane
gas tank connection�
47� This heating appliance should not be used on plastic or artificial wood decks�
48. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
49. Young children should be carefully supervised when they are in the vicinity of the heater.
50. Clothing or other flammable materials should not be hung from the heater, or placed on or near the heater.
51. Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating
the heater.
52. Installation and repair should be done by a qualified service person. The heater should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required as
necessary. It is imperative that the control compartment, burners and circulating air passageways of the
heater be kept clean.
53� Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the
appliance� A cylinder must be stored outdoors in a well-ventilated area out of the reach of children� A
disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage or
any other enclosed area�
54� Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use� Only install the type of
dust cap on the cylinder valve that is provided with the cylinder valve� Other types of caps or plugs may result
in leakage of propane�
55� Installation of this appliance at altitudes above 2000 ft (610 m) shall be in accordance with local codes, or in
the absence of local codes, ANSI Z223�1/NFPA 54 or CSA B149�1�
56� Appliance may shut down in windy conditions in excess of 3 miles per hour (4�83 kilometers per hour)�
57� Check the hose assembly for signs of extreme abrasion, cuts or wear� Suspected areas should be leak tested�
If the hose leaks, inspect the visible portion of the hose before each use of the appliance and inspect the
entire hose assembly at least annually� If disassembly is required, properly check the connections for leaks
upon re-assembly� The hose assembly must be replaced prior to the appliance being put into operation if
there is evidence of excessive abrasion or wear, or if the hose is damaged� The replacement hose assembly
shall be that specified by the manufacturer�
58� An appliance may be installed with shelter no more inclusive than the following:
• 1) With walls on all sides, but with no overhead cover�
• 2) Within a partial enclosure, which includes an overhead cover and no more than two side walls� These side
walls may be parallel, as in a breezeway, or at right angles to each other�
• 3) Within a partial enclosure which includes an overhead cover and three side walls, as long as 30% or more of
the horizontal periphery of enclosure is permanently open�
59� No obstructing the flow of combustion and ventilation air�
SAFETY INFORMATION

6
Only use the regulator and hose assembly provided with this unit� Replacement parts must be supplied by the
manufacturer�
Inspect the burner before use of this unit� If the burner shows any kind of damage, do not operate the appliance�
For assistance with repair or replacement of the burner or any other parts, call the manufacturer at 1-877-447-4768
NOTE: You must follow all steps to properly assemble this heating item� Make sure the gas valve is turned ‘OFF’
before assembling� Do NOT attempt to assemble without proper tools�
48”
48”
48”
BE CAREFUL: WHEN CERTAIN MATERIALS OR
ITEMS ARE STORED ABOVE, BESIDE OR UNDER
THIS HEATER WHILE IN USE, THEY WILL BE
SUBJECT TO RADIANT HEAT AND COULD BE
SERIOUSLY DAMAGED.
Combustible materials should not be within 48
inches of the top of the unit, or within 48 inches
around the entire unit.
SAFETY INFORMATION

7
Before beginning assembly of product, make sure all parts are present� Compare parts with package contents list
and hardware contents list� If any parts are missing or damaged, do not attempt to assemble the product� Contact
customer service for replacement parts�
Estimated Assembly Time: 30 minutes
Tools required for assembly (not included): Phillips Screwdriver
HARDWARE
PART DESCRIPTION QTY
AA M8 flange nut (Packed with part B) 2
BB Bolt M8x16 (Packed with part B) 2
CC M6 flange nut 6
DD Bolt M6 x12 (4pcs preassembled on part H) 18
EE Screw M4 x8 1
FF Washer 9
GG M8 stud 3
HH Wing Nut 3
II Screw M6 x8 12
JJ Cap nut 12
KK Anchoring arm 3
LL Anchor 3
MM Wrench 1
AA
GG
HH
II JJ KK LL
MM
BB CC DD EE FF

8
PART DESCRIPTION QTY
A Base (preassembled) 1
BWheel Assembly 1
C Door (preassembled) 1
D Tank housing (preassembled) 1
E Tank housing cover 1
F Decorative cap 1
G Support pole 1
H Burner assembly 1
I Regulator (preassembled) 1
J Control knob (preassembled) 1
K Electronic igniter (preassembled) 1
L Battery (AA) 1
M Radiation ring 1
N Center reflector 1
O Reflector panel 4

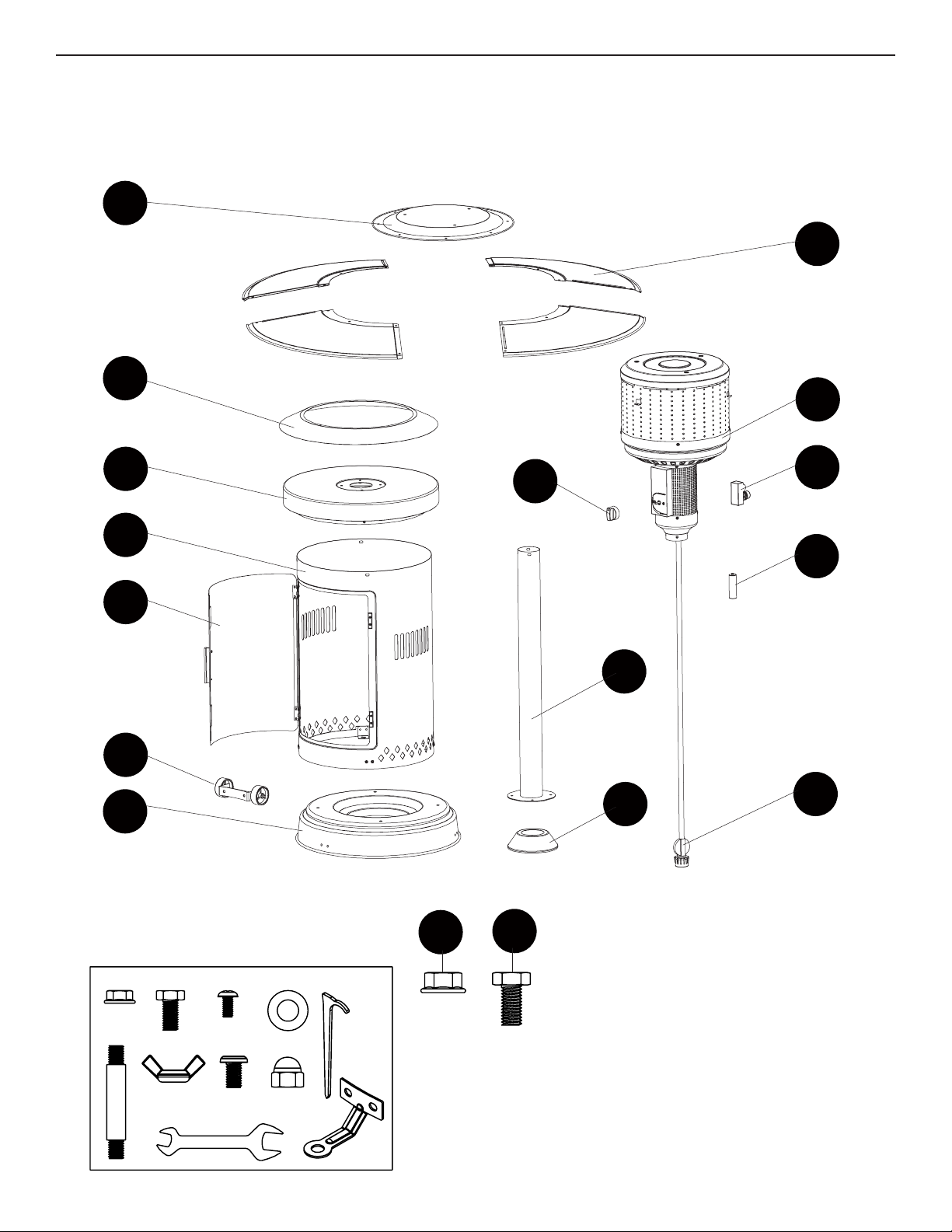

CONTENTS
N
M
E
D
C
B
AF
G
J
H
O
K
L
I

9
Step 1
Turn the base (A) upside down, then attach the
wheel assembly (B) to the base (A) using 2 M8
flange nuts (AA) and 2 M8x16 bolts (BB)� Attach
3 anchoring arms (KK) to the base (A) using 6 M6
flange nuts (CC) and 6 M6x12 bolts (DD)� Tighten
bolts securely�
Step 2
Attach the tank housing cover (E) to the tank
housing (D) using 4 M6x12 bolts (DD)� Tighten bolts
securely�
Step 3
Attach the support pole (G) to the tank housing
cover (E) using 4 M6x12 bolts (DD)� Be sure that
the lighting label faces the door side� Tighten bolts
securely�
Place the decorative cap (F) on the support pole (G)
and slide the decorative cap onto the tank housing
cover (E) gently�
ASSEMBLY INSTRUCTIONS
A
B
BB AA DD
CC
KK
E
D
G
F
G
E
DD
DD

10
Step 4
Remove the 4 preassembled M6x12 bolts (DD) from
the burner assembly (H)� Attach 3 M8 studs (GG)
and 3 washers (FF) to the burner assembly (H)�
Tighten the M8 studs (GG)�
Step 5
WARNING: Remove protective lm
before assembling.
Attach the 4 reflector panels (O) to the center
reflector (N) using 12 M6x10 screws (II) and 12 cap
nuts (JJ)� Fully tighten all the screws�
Step 6
Insert the radiation ring (M) from the top end of the
burner assembly (H) to the support tabs, align the
small hole on the radiation ring with the threaded
hole on one support tab and attach it using 1 M4x8
screw (EE)�
ASSEMBLY INSTRUCTIONS
H
GG
FF
DD
N
O
JJ
II
H
MEE

11
Step 7
Slide 3 washers (FF) over the threaded end of studs�
Attach the top reflector assembly made in step 5 to
the top of the M8 studs (GG) using 3 washers (FF)
and 3 wing nuts (HH)�
Step 8
With the help of another person, insert the regulator
(I) from the top end of the support pole (G), then
attach the burner head made in the last step to
the support pole (G) using the 4 M6x12 bolts (DD)
removed at the beginning of step 4� Be sure that
the control knob faces the door side� Tighten bolts
securely�
Step 9
Use the anchors (LL) to fasten the product into the
ground�
ASSEMBLY INSTRUCTIONS
LL
I
G
DD
GG
FF
HH
FF

12

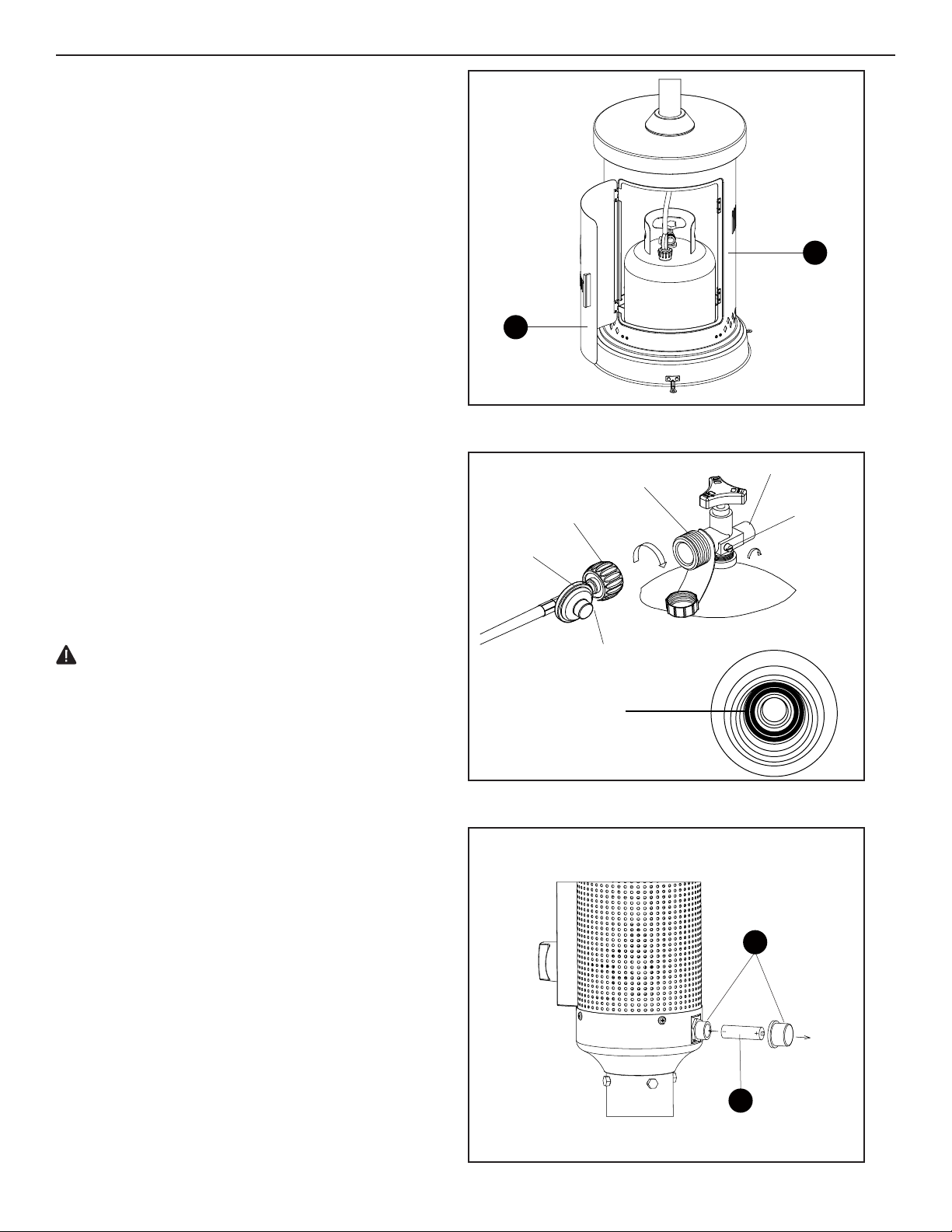

Step 10
Open the door (C) and place the propane gas tank
(not included) into the tank housing (D)�
Step 11
Turn the cylinder valve on the tank clockwise to
close the propane tank� Attach the regulator (I) to
the cylinder valve by turning the regulator coupling
nut clockwise� Make sure it is fastened securely and
tighten connections by hand only�
WARNING
Please inspect the rubber O-ring in the
propane tank valve to ensure it is not worn
before attaching regulator. Worn rubber
O-rings can cause leaks, explosions and
serious injury by propane tank.
Step 12
Unscrew and remove the cap on the electronic
igniter (K), then slide the battery (L ) into the battery
slot� Make sure the positive side of the battery faces
outwards� Screw the electronic igniter cap (K) over
the battery tightly�
ASSEMBLY INSTRUCTIONS
D
C
K
L
Regulator
Rubber o-ring
Black coupling nut
turn clockwise to connect
Cylinder valve
Pressure relief valve
Bleed-off valve
Turn clockwise
to reseal
I

13
Before performing a leak test, be sure that no sparks can occur, and you are in a spacious outdoor area� Connect
the propane gas tank to the regulator and turn the valve on the unit to the ‘OFF’ position� Brush a soap and water
mixture on all connections� Turn the gas supply on; if bubbles appear on any connection there may be a leak� If
you smell gas or a leak is discovered, turn the gas valve off, disconnect the propane gas tank and do not use the
appliance until the leak is repaired�
Do not use the heating unit without inspecting the gas hose� If there are signs of wear or abrasion you must replace
the hose (if applicable)�
When lit for the first time the heater may emit a slight odor and smoke� This is a normal and temporary condition�
The emitter screen will become a bright red due to the heat� The color is more visible at night� Flame patterns
should be a blue flame; these flames should not be yellow in color; indicating an obstruction of airflow through the
burners�

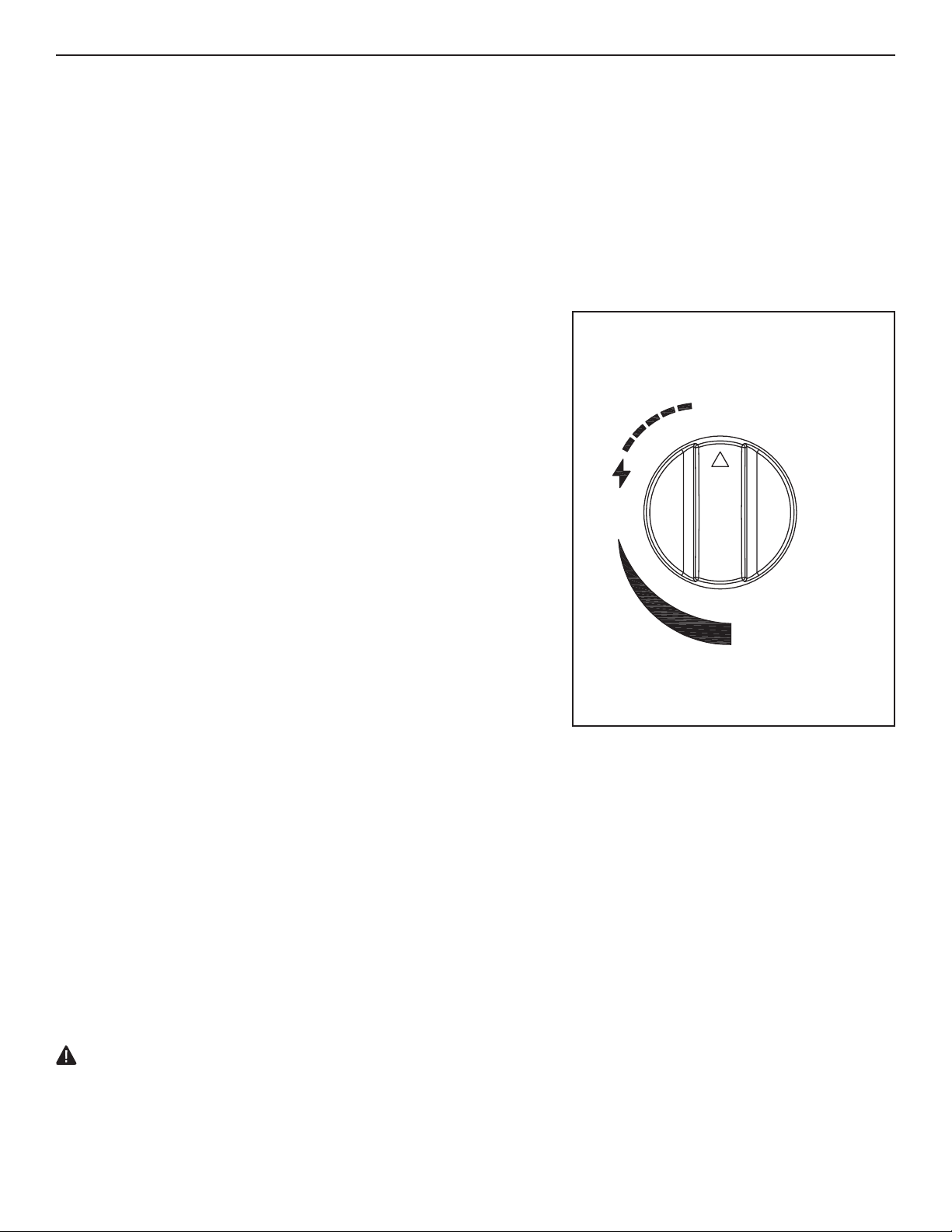

To Extinguish
1� Turn and push the control knob clockwise to the ‘OFF’ position�
2� Turn the cylinder valve on the gas tank clockwise to close�
CAUTION
Disconnect propane cylinder if you don’t intend to use it for a long time.
To Light
1� Make sure the control knob is in the ‘OFF’ position�
2� Slowly open the valve on the propane gas tank by turning
the knob counterclockwise�
3� A pulse igniter is built into the control knob, so pushing
and turning the control knob counterclockwise to the ‘LOW’
position will ignite the fuel� Once lit, keep holding down the
control knob for 15 seconds�
4� If ignition does not immediately take place within seconds,
push and turn the control knob (J) clockwise to ‘OFF’ and
wait 5 minutes, and then repeat the lighting procedure as
above�
5� If igniter does not light burner, use a long match or long
butane lighter�
6� Adjust flame to desired intensity with the control knob�
7� If the burner flame goes out accidentally or it is blown out
by wind, turn off the heater and wait at least 5 minutes or
more to let the gas dissipate before lighting again to avoid
possible gas explosion� Repeat step 3�
OFF / ARRÊT /APAGADO
HIGH / HAUT /ALTO
LOW
BAS
BAJO
OPERATION

14
• Before performing any maintenance always disconnect propane gas tank�
• Keeping the heating item free and clear from combustible materials�
• Visually inspect burner for obstructions and keep tank enclosure free and clear from debris�
• Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is completely cooled down�
Wipe down with a soft cloth�
• Harsh weather conditions may cause stubborn stains, discoloration, and possibly rust pitting�
• Permanent damage may occur if powder or solvent comes in contact with painted or plastic components on
this heating unit�
• Keep the heating unit stored away from direct sunlight�
• If storing this unit inside, disconnect the propane gas tank from the gas valve�
• Not using manufacturer approved or supplied parts/accessories may result in a defective condition and void
the warranty of this heating unit�
• Always place lid (if applicable) or protective cover on heating item when not in use�
MAINTENANCE

15
TROUBLESHOOTING
Problem Cause Solution
The burner will not light� The burner injector is clogged� Clean the burner injector�
There is low gas supply pressure� Call your gas supplier�
The burner flame goes off
immediately after ignition�
There is low gas pressure� Call your gas supplier�
The ignition is delayed� The main burner carryover ports are clogged� Clean the main burner ports�
There is low gas pressure� Call your gas supplier�
The combustion on the burner is
inadequate�
There is not enough air� Check the air passageways and burners for
dirt and debris, and clean with compressed air�
The burner flame is low� The supply hose is bent or twisted� Straighten the hose and perform a leak test�
There is blockage in the burner injector� Clean or replace the burner injector�
The emitter glows uneven� There is blockage in the burner
injector�
Clean or replace the burner injector�
The base is not on a level surface� Place the heater on a level surface�
The gas pressure is low� Replace the cylinder with a new cylinder�
There is slight smoke and odor
during initial operation�
This is residue from the
manufacturing process�
This will stop after approximately 30 minutes
of operation�
There is thick black smoke� There is blockage in the burner� Turn off the heater and let it cool�
Remove the blockage and clean the
inside and outside of the burner�
The heater produces a whistling
noise when the burner is lit�
Air passageways are blocked� Check the minimum installation
clearances and air passageways for
debris�
There is air in the gas line� Operate the burner until the air is
completely purged�
The heater produces a clicking
noise just after the burner is lit
or turned off�
The metal is expanding and
contracting�
This is common with heaters� If noise is
excessive, contact a qualified service
person�
There is a gas odor even when
the control knob is in the OFF
position�
There is a gas leak� Locate and correct the leak
immediately�
The gas control is defective� Replace the gas control�
There is a gas odor during
combustion�
There is foreign matter in the gas or
on the burner ports�
Check the gas passageway and burner�
The heater is burning vapors from
paint or impurities in the air�
Stop storing and using odor causing
products near the heater�
There is gas leaking from the
regulator and hose connection, the
valve and pipe connections, and the
pipes�
Locate and correct the leaks, or contact
your gas supplier�
There is carbon build-up� There is dirt or film on the reflector
and flame screen�
Clean the reflector and flame screen�

16
If within one year from the date or original purchase, this item fails due to a defect in material or workmanship, we
will replace or repair at our option, free of charge�
To order parts or to obtain warranty service, call 1-877-447-4768, 8:00AM-4:30PM, CST, Monday-Friday.
This warranty does not cover defects resulting from improper or abnormal use, misuse, accident, or alteration�
Failure to follow all instructions in the owner’s manual will also void this warranty� The manufacturer will not be
liable for incidental or consequential damages, or common erosion of outdoor products�
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation may not apply to you� This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state�
WARRANTY
GHP Group Inc.
6440 W. Howard St.
Niles, IL 60714-3302
877-447-4768

17
For replacement parts, call our customer service department at
1-877-447-4768, 8:00 a�m� –4:30 p�m�, CST, Monday – Friday�
REPLACEMENT PARTS
HWP
CC x6 DD x14 EE x1 FF x9 LL x3
KK x3
JJ x12
II x12
HH x3
MM x1
GG x3
N
M
E
D
C
B
A
AA BB
F
G
J
H
O
K
L
I

18
Printed in China

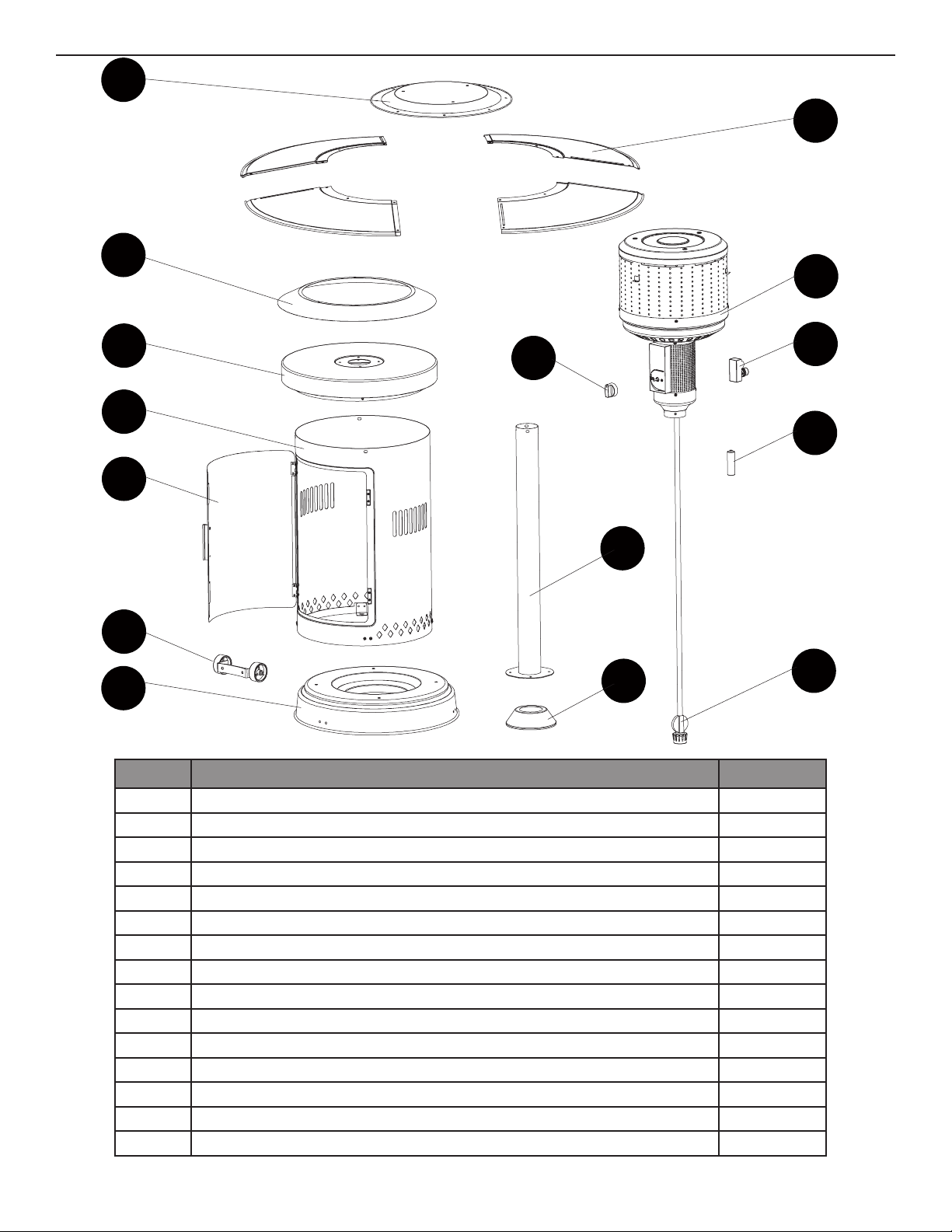

REPLACEMENT PARTS
PART DESCRIPTION Part #
A Base 30-01-679
BWheel Assembly 30-01-680
C Door 30-01-681
D Tank Housing 30-01-682
E Tank Housing Cover 30-01-683
F Decorative Cap 30-01-684
G Support Pole 30-01-685
HBurner Assembly 30-01-686
I Regulator 30-01-687
J Control Knob 30-01-688
K Electronic Igniter 30-01-689
L Battery (AA) 30-02-147-B
M Radiation Ring 30-01-690
N Center Reflector 30-01-691
O Reflector Panel 30-01-692
AA M8 Flange Nut 30-01-693
BB Bolt M8 x 16 30-01-694
HWP Hardware Pack 30-09-578

19
¿Tiene preguntas, problemas, piezas faltantes?
Antes de volver a la tienda, llame a nuestro departamento de servicio al cliente al 1-877-447-4768,
de lunes a viernes de 8:00 a.m. a 4:30 p.m., hora central estándar o envíenosun correo electrónicoa
[e-mail]
Número de serie
ADJUNTE SU RECIBO AQUÍ
CALEFACTOR DE PATIO DE ALTA EFICIENCIA
ARTICULO # 52356
MODELOL# HYPH6001-3
Fecha de compra

20
Contenido
INFORMACIÓN DE SEGURIDAD � � � � � � � � � � � � � � � � � � � � � � � � � 21
HERRAJES� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 25
CONTENIDO � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
ENSAMBLE INSTRUCCIONES � � � � � � � � � � � � � � � � � � � � � � � � � � � 27
FUNCIONAMIENTO � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 31
MANTENIMIENTO � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 32
SOLUCIÓN DE PROBLEMAS � � � � � � � � � � � � � � � � � � � � � � � � � � � � 33
GARANTÍA� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 34
LISTA DE PIEZAS DE REPUESTO � � � � � � � � � � � � � � � � � � � � � � � � � 35
